W83195BR-S
STEPLESS 200MHZ 3-DIMM CLOCK FOR SOLANO CHIPSET

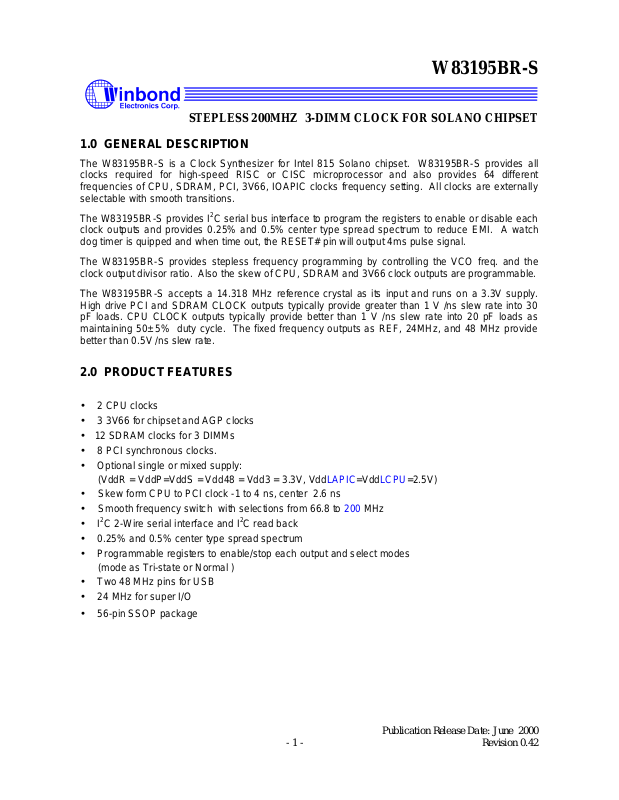

1.0 GENERAL DESCRIPTION
The W83195BR-S is a Clock Synthesizer for Intel 815 Solano chipset. W83195BR-S provides all clocks required for high-speed RISC or CISC microprocessor and also provides 64 different frequencies of CPU, SDRAM, PCI, 3V66, IOAPIC clocks frequency setting. All clocks are externally selectable with smooth transitions.
The W83195BR-S provides I2C serial bus interface to program the registers to enable or disable each clock outputs and provides 0.25% and 0.5% center type spread spectrum to reduce EMI. A watch dog timer is quipped and when time out, the RESET# pin will output 4ms pulse signal.
The W83195BR-S provides stepless frequency programming by controlling the VCO freq. and the clock output divisor ratio. Also the skew of CPU, SDRAM and 3V66 clock outputs are programmable.
The W83195BR-S accepts a 14.318 MHz reference crystal as its input and runs on a 3.3V supply. High drive PCI and SDRAM CLOCK outputs typically provide greater than 1 V /ns slew rate into 30 pF loads. CPU CLOCK outputs typically provide better than 1 V /ns slew rate into 20 pF loads as maintaining 50± 5% duty cycle. The fixed frequency outputs as REF, 24MHz, and 48 MHz provide better than 0.5V /ns slew rate.
2.0 PRODUCT FEATURES
• 2 CPU clocks
• 3 3V66 for chipset and AGP clocks
• 12 SDRAM clocks for 3 DIMMs
• 8 PCI synchronous clocks.
• Optional single or mixed supply:
(VddR = VddP=VddS = Vdd48 = Vdd3 = 3.3V, VddLAPIC=VddLCPU=2.5V)
• Skew form CPU to PCI clock -1 to 4 ns, center 2.6 ns
• Smooth frequency switch with selections from 66.8 to 200 MHz
• I2C 2-Wire serial interface and I2C read back
• 0.25% and 0.5% center type spread spectrum
• Programmable registers to enable/stop each output and select modes
(mode as Tri-state or Normal )
• Two 48 MHz pins for USB
• 24 MHz for super I/O
• 56-pin SSOP package
Publication Release Date: June 2000
- 1 - Revision 0.42
Page 2
3.0 PIN CONFIGURATION
W83195BR-S
PRELIMINARY
Vss
Vdd3
REF2X/ *FS3
PCICLK0^/ *FS0
PCICLK1^/ *FS1 PCICLK2^/*FS2
PCICLK3^/Mode1*
48MHz_1/ FS4*
SIO_SEL*/24_48MHz
*: interanl pull-up #:active low input ^:1.5X~2X strength $: open drain
Xin
Xout
Vdd3
3V66-0
3V66-1
3V66-2
Vss3
VssP
PCICLK4^
Vdd3
PCICLK5^
PCICLK6^
PCICLK7
Vss48
48MHz_0
Vdd3
*SDATA
VssS Vdd3
16
26
1 2 3 4
6 7
9 10 11 12
13 14 15
17 18 19 20 21 22
24
25
27
5
8
23
28
56
33
32 31 30
29
55 54 53
52 51 50
49 48 47
46 45 44 43 42 41 40 39 38 37 36 35 34
Vdd2
IOAPIC
Vss VddLCPU CPUCLK0
CPUCLK1
VssC SDRAM 0 SDRAM 1 SDRAM 2 Vdd3 VssS
SDRAM 3
SDRAM 4 SDRAM 5
SDRAM 6
Vdd3
VssS
SDRAM 7
SDRAM 8
SDRAM 9 SDRAM 10
Vdd3
VssS SDRAM 11
SDRAM 12
PD#/RESET$
*SDCLK
Publication Release Date: June 2000
- 2 - Revision 0.42
Page 3
4.0 FREQUENCY SELECTION BY HARDWARE
W83195BR-S
PRELIMINARY
FS4 FS3 FS2 FS1 FS0
0 0 0 0 0 75.30 112.95 75.30 37.65 18.83 0 0 0 0 1 95.00 95.00 63.33 31.67 15.83 0 0 0 1 0 129.00 129.00 86.00 43.00 21.50 0 0 0 1 1 150.00 113.00 75.33 37.67 18.83 0 0 1 0 0 150.00 150.00 75.00 37.50 18.75 0 0 1 0 1 110.00 110.00 73.33 36.67 18.33 0 0 1 1 0 140.00 140.00 70.00 35.00 17.50 0 0 1 1 1 144.00 108.00 72.00 36.00 18.00 0 1 0 0 0 68.30 102.45 68.30 34.15 17.08 0 1 0 0 1 105.00 105.00 70.00 35.00 17.50 0 1 0 1 0 138.00 138.00 69.00 34.50 17.25 0 1 0 1 1 140.00 105.00 70.00 35.00 17.50 0 1 1 0 0 66.80 100.20 66.80 33.40 16.70 0 1 1 0 1 100.20 100.20 66.80 33.40 16.70 0 1 1 1 0 133.60 133.60 66.80 33.40 16.70 0 1 1 1 1 133.60 100.20 66.80 33.40 16.70 1 0 0 0 0 157.30 118.00 78.67 39.33 19.67 1 0 0 0 1 160.00 120.00 80.00 40.00 20.00 1 0 0 1 0 146.00 110.00 73.33 36.67 18.33 1 0 0 1 1 122.00 91.50 61.00 30.50 15.25 1 0 1 0 0 127.00 127.00 84.67 42.33 21.17 1 0 1 0 1 122.00 122.00 81.33 40.67 20.33 1 0 1 1 0 117.00 117.00 78.00 39.00 19.50 1 0 1 1 1 114.00 114.00 76.00 38.00 19.00 1 1 0 0 0 80.00 120.00 80.00 40.00 20.00 1 1 0 0 1 78.00 117.00 78.00 39.00 19.50 1 1 0 1 0 166.00 166.00 83.00 41.50 20.75 1 1 0 1 1 160.00 160.00 80.00 40.00 20.00 1 1 1 0 0 66.60 100.00 66.67 33.33 16.67 1 1 1 0 1 100.00 100.00 66.67 33.33 16.67 1 1 1 1 0 133.30 133.30 66.65 33.33 16.66 1 1 1 1 1 133.30 100.00 66.67 33.33 16.67
CPU(MHz)
SDRAM
(MHz)
3V66(MHz) PCI(MHz) IOAPIC (MHz)
Publication Release Date: June 2000
- 3 - Revision 0.42
Page 4
W83195BR-S
PRELIMINARY
5.0 SERIAL CONTROL 0REGISTERS
The Pin column lists the affected pin number and the @PowerUp column gives the state at true power up. Registers are set to the values shown only on true power up. "Command Code" byte and "Byte Count" byte must be sent following the acknowledge of the Address Byte. Although the data (bits) in these two bytes are considered "don't care", they must be sent and will be acknowledge.
After that, the below described sequence (Register 0, Register 1, Register 2, ....) will be valid and
acknowledged.
Frequency Table Setting by I2C (SEL5 ~ SEL0)
SSEL5 SSEL4 SSEL3 SSEL2 SSEL1 SSEL0
0 0 0 0 0 0 75.30 112.95 75.30 37.65 18.83 0 0 0 0 0 1 95.00 95.00 63.33 31.67 15.83 0 0 0 0 1 0 129.00 0 0 0 0 1 1 150.00 0 0 0 1 0 0 150.00 0 0 0 1 0 1 110.00 0 0 0 1 1 0 140.00 0 0 0 1 1 1 144.00 0 0 1 0 0 0 68.30 102.45 68.30 34.15 17.08 0 0 1 0 0 1 105.00 0 0 1 0 1 0 138.00 0 0 1 0 1 1 140.00 0 0 1 1 0 0 66.80 100.20 66.80 33.40 16.70 0 0 1 1 0 1 100.20 0 0 1 1 1 0 133.60 0 0 1 1 1 1 133.60 0 1 0 0 0 0 157.30 0 1 0 0 0 1 160.00 0 1 0 0 1 0 146.00 0 1 0 0 1 1 122.00 0 1 0 1 0 0 127.00 0 1 0 1 0 1 122.00 0 1 0 1 1 0 117.00 0 1 0 1 1 1 114.00 0 1 1 0 0 0 80.00 120.00 80.00 40.00 20.00 0 1 1 0 0 1 78.00 117.00 78.00 39.00 19.50 0 1 1 0 1 0 166.00 0 1 1 0 1 1 160.00
CPU
(MHz)
- 4 - Revision 0.42
SDRAM
(MHz)
129.00 86.00 43.00 21.50
113.00 75.33 37.67 18.83
150.00 75.00 37.50 18.75
110.00 73.33 36.67 18.33
140.00 70.00 35.00 17.50
108.00 72.00 36.00 18.00
105.00 70.00 35.00 17.50
138.00 69.00 34.50 17.25
105.00 70.00 35.00 17.50
100.20 66.80 33.40 16.70
133.60 66.80 33.40 16.70
100.20 66.80 33.40 16.70
118.00 78.67 39.33 19.67
120.00 80.00 40.00 20.00
110.00 73.33 36.67 18.33
91.50 61.00 30.50 15.25
127.00 84.67 42.33 21.17
122.00 81.33 40.67 20.33
117.00 78.00 39.00 19.50
114.00 76.00 38.00 19.00
166.00 83.00 41.50 20.75
160.00 80.00 40.00 20.00
3V66
(MHz)
Publication Release Date: June 2000
PCI(MHz)
IOAPIC
(MHz)
Page 5
0 1 1 1 0 0 66.60 100.00 66.67 33.33 16.67 0 1 1 1 0 1 100.00 0 1 1 1 1 0 133.30 0 1 1 1 1 1 133.30
SSEL5 SSEL4 SSEL3 SSEL2 SSEL1 SSEL0
1 0 0 0 0 0 136.00 1 0 0 0 0 1 138.00 1 0 0 0 1 0 139.00 1 0 0 0 1 1 141.00 1 0 0 1 0 0 142.00 1 0 0 1 0 1 142.00 1 0 0 1 1 0 143.00 1 0 0 1 1 1 143.00 1 0 1 0 0 0 144.00 1 0 1 0 0 1 144.00 1 0 1 0 1 0 146.00 1 0 1 0 1 1 146.00 1 0 1 1 0 0 147.00 1 0 1 1 0 1 147.00 1 0 1 1 1 0 148.00 1 0 1 1 1 1 148.00 1 1 0 0 0 0 149.00 1 1 0 0 0 1 152.00 1 1 0 0 1 0 153.00 1 1 0 0 1 1 156.00 1 1 0 1 0 0 157.00 1 1 0 1 0 1 158.00 1 1 0 1 1 0 159.00 1 1 0 1 1 1 160.00 1 1 1 0 0 0 162.00 1 1 1 0 0 1 164.00 1 1 1 0 1 0 170.00 1 1 1 0 1 1 175.00 1 1 1 1 0 0 180.00 1 1 1 1 0 1 185.00 1 1 1 1 1 0 190.00 1 1 1 1 1 1 200.40
W83195BR-S
PRELIMINARY
100.00 66.67 33.33 16.67
133.30 66.65 33.33 16.66
100.00 66.67 33.33 16.67
CPU
(MHz)
- 5 - Revision 0.42
SDRAM
(MHz)
102.00 68.00 34.00 17.00
138.00 69.00 34.50 17.25
104.25 69.50 34.75 17.38
105.75 70.50 35.25 17.63
142.00 71.00 35.50 17.75
106.50 71.00 35.50 17.75
143.00 71.50 35.75 17.88
107.25 71.50 35.75 17.88
144.00 72.00 36.00 18.00
108.00 72.00 36.00 18.00
146.00 73.00 36.50 18.25
109.50 73.00 36.50 18.25
147.00 73.50 36.75 18.38
110.25 73.50 36.75 18.38
148.00 74.00 37.00 18.50
111.00 74.00 37.00 18.50
111.75 74.50 37.25 18.63
152.00 76.00 38.00 19.00
114.75 76.50 38.25 19.13
156.00 78.00 39.00 19.50
117.75 78.50 39.25 19.63
158.00 79.00 39.50 19.75
119.25 79.50 39.75 19.88
160.00 80.00 40.00 20.00
121.50 81.00 40.50 20.25
123.00 82.00 41.00 20.50
127.50 85.00 42.50 21.25
116.67 77.78 38.89 19.44
120.00 80.00 40.00 20.00
185.00 61.67 30.83 15.42
126.67 63.33 31.67 15.83
133.60 66.80 33.40 16.70
3V66
(MHz)
Publication Release Date: June 2000
PCI(MHz)
IOAPIC
(MHz)
Page 6
5.1 Register 0: Control Register
W83195BR-S
PRELIMINARY
Bit @PowerUp
7 6 5
4 X - FS3# 3 X - FS4# 2 1 -
1 0 -
0 1 - 1=CENTER SPREAD 0=DOWN SPREAD
X - FS0# X - FS1# X - FS2#
Pin Description
If Reg0-bit7=1 0 = ± 0.5% Center type Spread Spectrum Modulation 1 = ± 0.25% Center type Spread Spectrum Modulation If Reg0-bit7=0 0 = 0 ~ - 1 % Down type Spread Spectrum Modulation
1 = 0 ~ - 0.5% Down type Spread Spectrum Modulation 0 = Normal
1 = Spread Spectrum enabled
5.2 Register 1 : SDRAM Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin
7 1 38 SDRAM7 (Active / Inactive) 6 1 41 SDRAM6 (Active / Inactive) 5 1 42 SDRAM5 (Active / Inactive) 4 1 43 SDRAM4 (Active / Inactive) 3 1 44 SDRAM3 (Active / Inactive) 2 1 47 SDRAM2 (Active / Inactive) 1 1 48 SDRAM1 (Active / Inactive) 0 1 49 SDRAM0 (Active / Inactive)
Description
5.3 Register 2: PCI Clock Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin
7 1 20 PCICLK7 (Active / Inactive) 6 1 19 PCICLK6 (Active / Inactive) 5 1 18 PCICLK5 (Active / Inactive) 4 1 16 PCICLK4 (Active / Inactive) 3 1 15 PCICLK3 (Active / Inactive) 2 1 13 PCICLK2 (Active / Inactive) 1 1 12 PCICLK1 (Active / Inactive) 0 1 11 PCICLK0 (Active / Inactive)
- 6 - Revision 0.42
Description
Publication Release Date: June 2000
Page 7
5.4 Register 3: Control Register (1 = Active, 0 = Inactive)
W83195BR-S
PRELIMINARY
Bit @PowerUp Pin
7 1 9 3V66_2(Active/Inactive) 6 1 8 3V66_1(Active / Inactive) 5 1 7 3V66_0(Active / Inactive) 4 1 31 SDRAM12 (Active / Inactive) 3 1 32 SDRAM11 (Active / Inactive) 2 1 35 SDRAM10 (Active / Inactive) 1 1 36 SDRAM9 (Active / Inactive) 0 1 37 SDRAM8 (Active / Inactive)
Description
5.5 Register 4: Control Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin
7 0 ­6 0 ­5 0 4 0 ­3 0 -
2 0 ­1 0 ­0
0 - 0 = Running
-
SSEL3 (Frequency table selection by software via I2C ) SSEL2 ( Frequency table selection by software via I2C) SSEL1 ( Frequency table selection by software via I2C) SSEL0 ( Frequency table selection by software via I2C) 0 = Selection by hardware
1 = Selection by software I2C - Bit (1,2, 4:6) SSEL4 (Frequency table selection by software via I2C )
SSEL5 (Frequency table selection by software via I2C )
1 = Tristate all outputs
Description
5.6 Register 5: Skew Register
Bit @PowerUp Pin
7 6 5 4 3 2 1 1 51 CPUCLK1(Active/Inactive) 0 1 52 CPUCLK0(Active / Inactive)
1 - CSkew2 (CPU to SDRAM skew program bit) 0 - CSkew1 (CPU to SDRAM skew program bit) 0 - CSkew0 (CPU to SDRAM skew program bit) 1 - CASkew2 (CPU to 3V66 skew program bit) 0 - CASkew1 (CPU to 3V66 skew program bit) 0 - CASkew0 (CPU to 3V66 skew program bit)
- 7 - Revision 0.42
Description
Publication Release Date: June 2000
Page 8
5.7 Register 6~10: Step-less M/N control registers
5.12 Register 11: Winbond Chip ID Register (Read Only)
W83195BR-S
PRELIMINARY
Bit @PowerUp Pin
7 0 - Winbond Chip ID 6 1 - Winbond Chip ID 5 0 - Winbond Chip ID 4 1 - Winbond Chip ID
3 0 - Winbond Chip ID
2 0 - Winbond Chip ID 1 0 - Winbond Chip ID 0 0 - Winbond Chip ID
Description
5.13 Register 12: Winbond Chip ID Register (Read Only)
Bit @PowerUp Pin
7 0 - Winbond Chip ID 6 0 - Winbond Chip ID 5 1 - Winbond Chip ID 4 0 - Winbond Chip ID 3 0 - Winbond Chip ID 2 0 - Winbond Version ID 1 1 - Winbond Version ID 0 0 - Winbond Version ID
Description
Register10 Bit3-6 Ratio Bit6 Bit 5 Bit 4 Bit 3 DS3 DS2 DS1 DS0 CPU SDRAM 3V66
0 0 0 0 4 4 6 0 0 0 1 3 3 6 0 0 1 0 2 3 6 0 0 1 1 2 2 6 0 1 0 0 6 4 6 0 1 0 1 3 4 6 0 1 1 0 6 3 6 0 1 1 1 4 3 6 1 0 x x 2 2 4 1 1 x x 2 4 6
- 8 - Revision 0.42
Publication Release Date: June 2000
Page 9
6.0 ORDERING INFORMATION
Part Number Package Type Production Flow
W83195BR-S
PRELIMINARY
W83195BR-S 56 PIN SSOP
Commercial, 0°C to +70°C
7.0 HOW TO READ THE TOP MARKING
1st line: Winbond logo and the type number: W83195BR-S
2nd line: Tracking code 2 8051234 2: wafers manufactured in Winbond FAB 2
8051234: wafer production series lot number
3rd line: Tracking code 814 G B B 814: packages made in '98, week 14
G: assembly house ID; O means OSE, G means GR
A: Internal use code
B: IC revision
All the trade marks of products and companies mentioned in this data sheet belong to their respective owners.
W83195BR-S 28051234 814GAB
Publication Release Date: June 2000
- 9 - Revision 0.42
Page 10

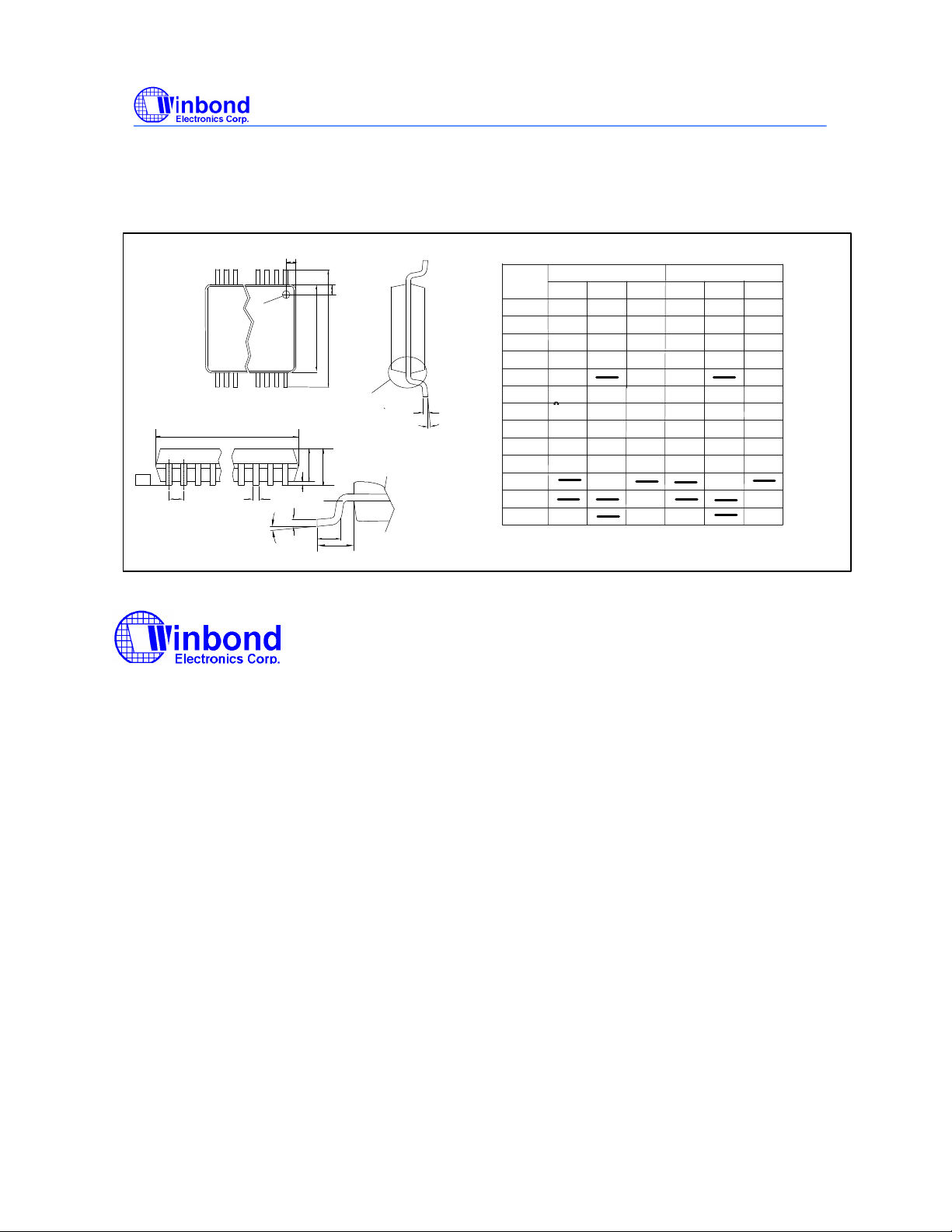

8.0 PACKAGE DRAWING AND DIMENSIONS
Y
SEATING PLANE
TOP VIEW
D
e
SIDE VIEW
0.40/0.50 DIA
b
θ
.035 .045
PARTING LINE
c
A1
E
HE
A2
DETAIL"A"
A
L
.045 .055
L1
SEE DETAIL "A"
SYMBOL
END VIEW
c
θ
DIMENSION IN MM
MIN. NOM MAX. MAX.NOM
2.79
2.57
2.41
A
0.30 0.41
0.20
A1
A2
2.24
0.20 0.34
b
0.13 0.25
c
18.2
D
H
10.16
E
E
7.42
0.51 0.760.64
e
0.61 0.81
L
L1
Y
0
θ
2.29
0.25
18.42
10.31
7.52
1.40
2.34
18.54
10.41
7.59
1.02
0.08 8
W83195BR-S
PRELIMINARY
DIMENSION IN INCH
MIN.
0.101
0.095
0.008
0.088
0.008 0.0135
0.005 0.010
0.720 0.7300.725
0.400
0.292
0.020 0.0300.025
0.024 0.032
0
0.110
0.012 0.016
0.090
0.092
0.010
0.410
0.406
0.2990.296
0.040
0.055
0.003 8
