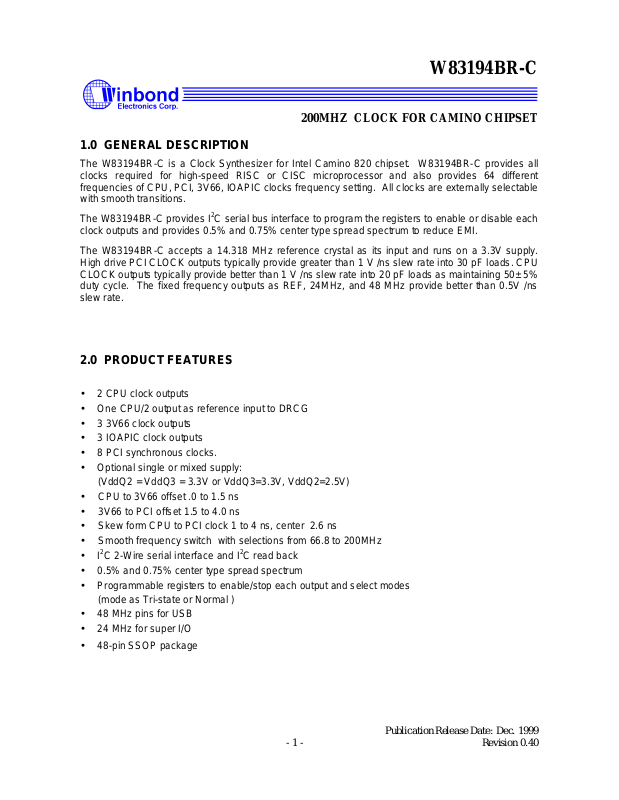

W83194BR-C
200MHZ CLOCK FOR CAMINO CHIPSET
1.0 GENERAL DESCRIPTION
The W83194BR-C is a Clock Synthesizer for Intel Camino 820 chipset. W83194BR-C provides all
clocks required for high-speed RISC or CISC microprocessor and also provides 64 different
frequencies of CPU, PCI, 3V66, IOAPIC clocks frequency setting. All clocks are externally selectable
with smooth transitions.
The W83194BR-C provides I2C serial bus interface to program the registers to enable or disable each
clock outputs and provides 0.5% and 0.75% center type spread spectrum to reduce EMI.
The W83194BR-C accepts a 14.318 MHz reference crystal as its input and runs on a 3.3V supply.
High drive PCI CLOCK outputs typically provide greater than 1 V /ns slew rate into 30 pF loads. CPU
CLOCK outputs typically provide better than 1 V /ns slew rate into 20 pF loads as maintaining 50± 5%
duty cycle. The fixed frequency outputs as REF, 24MHz, and 48 MHz provide better than 0.5V /ns
slew rate.
2.0 PRODUCT FEATURES
• 2 CPU clock outputs
• One CPU/2 output as reference input to DRCG
• 3 3V66 clock outputs
• 3 IOAPIC clock outputs
• 8 PCI synchronous clocks.
• Optional single or mixed supply:
(VddQ2 = VddQ3 = 3.3V or VddQ3=3.3V, VddQ2=2.5V)
• CPU to 3V66 offset .0 to 1.5 ns
• 3V66 to PCI offset 1.5 to 4.0 ns
• Skew form CPU to PCI clock 1 to 4 ns, center 2.6 ns
• Smooth frequency switch with selections from 66.8 to 200MHz
• I2C 2-Wire serial interface and I2C read back
• 0.5% and 0.75% center type spread spectrum
• Programmable registers to enable/stop each output and select modes
(mode as Tri-state or Normal )
• 48 MHz pins for USB
• 24 MHz for super I/O
• 48-pin SSOP package
Publication Release Date: Dec. 1999
- 1 - Revision 0.40
Page 2
3.0 PIN CONFIGURATION
W83194BR-C
PRELIMINARY
IOAPIC
REF2X
VDDQ3
Xin
Xout
VSS
PCICLK0/ *FS2
PCICLK1/ *FS1
VDDQ3
PCICLK2
PCICLK3
PCICLK4
PCICLK5
VSS
PCICLK6
PCICLK7/FS3#
VDDQ3
PCICLK8
PCICLK9
VSS
3V66-0
3V66-1
3V66-2
VDDQ3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
VSS
VddQ2
IOAPIC0
IOAPIC
VSS
VDDQ2
CPU/2
VSS
VDDQ2
CPUCLK2
VSS
VDDQ2
CPUCLK1
CPUCLK0
*SDATA
VDDQ3
VSS
PD#
*SDCLK
VDDQ3
*24_48MHz /SIO
48MHz/ *FS0
VSS
SEL133/100#
Publication Release Date: Dec. 1999
- 2 - Revision 0.40
Page 3
W83194BR-C
PCICLK1/ *FS1
PCICLK7/ *FS3
PRELIMINARY
4.0 PIN DESCRIPTION
IN - Input
OUT - Output
I/O - Bi-directional Pin
# - Active Low
* - Internal 250kΩ pull-up
4.1 Crystal I/O
SYMBOL PIN I/O FUNCTION
Xin 4 IN Crystal input with internal loading capacitors and
feedback resistors.
Xout 5 OUT Crystal output at 14.318MHz nominally.
4.2 CPU, 3V66, PCI, IOAPIC Clock Outputs
CPUCLK [0:2] 45,44 OUT Low skew (< 250ps) clock outputs for host
CPU/2 42 O As a reference signal for DRCG. The voltage is
PD# 31 IN Power Down mode when driven low.
SEL133/100# 25 IN Frequency selection input pin.
PCICLK0/ *FS2 7 I/O 3.3V PCI clock during normal operation.
PCICLK[2,8:9] 10,11,12,13,15
3V66 [0:2] 21, 22, 23 OUT 3.3V output clocks for the chipset.
IOAPIC[0:2] 46, 45, 1 O Synchronous with CPU clocks, 2.5V.
SYMBOL PIN I/O FUNCTION
frequencies such as CPU and Chipset.
determined by VDDQ2.
Latched input for FS2 at initial power up for H/W
selecting the output frequency of CPU, SDRAM and
PCI clocks.
8 I/O Low skew (< 250ps) PCI clock outputs.
Latched input for FS1 at initial power up for H/W
selecting the output frequency of CPU, SDRAM and
PCI clocks.
I/O Low skew (< 250ps) PCI clock outputs.
,18,19
16 I/O Low skew (< 250ps) PCI clock outputs.
Latched input for FS3 at initial power up for H/W
selecting the output frequency of CPU, SDRAM and
PCI clocks.
Publication Release Date: Dec. 1999
- 3 - Revision 0.40
Page 4
wire control interface with internal
t frequency of 24MHz(HIGH) and 48MHz(LOW)
4.3 I2C Control Interface
SYMBOL PIN I/O FUNCTION
*SDATA 34 I/O Serial data of I2C 2-
*SDCLK 30 IN Serial clock of I2C 2-wire control interface with
4.4 Fixed Frequency Outputs
SYMBOL PIN I/O FUNCTION
IOAPIC[0:2] 46, 45, 1 O Synchronous with CPU clocks, 2.5V.
REFX2 2 I/O 14.318MHz reference clock.
24_48MHz/ *SIO 28 I/O 24MHz or 48MHz output clock.
48MHz/ FS0* 27 I/O 48MHz / Latched input for FS0 at initial power up
W83194BR-C
PRELIMINARY
pull-up resistor.
internal pull-up resistor.
Latched input for SIO at initial power up for the
outpu
clocks.
for H/W selecting the output frequency.
4.5 Power Pins
SYMBOL PIN FUNCTION
VddQ2 37,40,43,47 Power supply for CPU & IOAPIC, 2.5V
VddQ3 3,9,17,24,29,33 Power supply for PCI,3V66,REF2X,48MHz output,3.3V.
Vss 6,14,20,26,32,38,41,
44,48
Circuit Ground.
Publication Release Date: Dec. 1999
- 4 - Revision 0.40
Page 5
5.0 Frequency Selection by Hardware
W83194BR-C
PRELIMINARY
FS4 FS3 FS2 FS1 FS0
0 0 0 0 0 133.90 66.95 0.50 66.95 33.48 16.74
0 0 0 0 1 128.50 64.25 0.50 64.25 32.13 16.06
0 0 0 1 0 124.00 62.00 0.67 82.67 41.34 20.67
0 0 0 1 1 66.80 33.40 1.00 66.80 33.40 16.70
0 0 1 0 0 120.00 60.00 0.67 80.00 40.00 20.00
0 0 1 0 1 114.00 57.00 0.67 76.00 38.00 19.00
0 0 1 1 0 105.00 52.50 0.67 70.00 35.00 17.50
0 0 1 1 1 100.20 50.10 0.67 66.80 33.40 16.70
0 1 0 0 0 160.00 80.00 0.50 80.00 40.00 20.00
0 1 0 0 1 155.00 77.50 0.50 77.50 38.75 19.38
0 1 0 1 0 152.50 76.25 0.50 76.25 38.13 19.06
0 1 0 1 1 150.00 75.00 0.50 75.00 37.50 18.75
0 1 1 0 0 148.00 74.00 0.50 74.00 37.00 18.50
0 1 1 0 1 143.00 71.50 0.50 71.50 35.75 17.88
0 1 1 1 0 138.00 69.00 0.50 69.00 34.50 17.25
0 1 1 1 1 133.30 66.65 0.50 66.65 33.33 16.66
1 0 0 0 0 100.90 50.45 0.50 50.45 25.23 12.61
1 0 0 0 1 109.00 54.50 0.67 72.67 36.34 18.17
1 0 0 1 0 116.00 58.00 0.67 77.34 38.67 19.33
1 0 0 1 1 122.00 61.00 0.50 61.00 30.50 15.25
1 0 1 0 0 126.00 63.00 0.50 63.00 31.50 15.75
1 0 1 0 1 130.00 65.00 0.50 65.00 32.50 16.25
1 0 1 1 0 135.00 67.50 0.50 67.50 33.75 16.88
1 0 1 1 1 140.00 70.00 0.50 70.00 35.00 17.50
1 1 0 0 0 145.00 72.50 0.50 72.50 36.25 18.13
1 1 0 0 1 159.00 79.50 0.50 79.50 39.75 19.88
1 1 0 1 0 162.00 81.00 0.50 81.00 40.50 20.25
1 1 0 1 1 165.00 82.50 0.50 82.50 41.25 20.63
1 1 1 0 0 168.00 84.00 0.50 84.00 42.00 21.00
1 1 1 0 1 171.00 85.50 0.50 85.50 42.75 21.38
1 1 1 1 0 174.00 87.00 0.50 87.00 43.50 21.75
1 1 1 1 1 180.00 90.00 0.50 90.00 45.00 22.50
CPU(MHz) CPU/2 3V66/CPU 3V66(MHz) PCI(MHz)
IOAPIC
(MHz)
Publication Release Date: Dec. 1999
- 5 - Revision 0.40
Page 6
IOAPIC
W83194BR-C
PRELIMINARY
6.0 SERIAL CONTROL REGISTERS
The Pin column lists the affected pin number and the @PowerUp column gives the state at true
power up. Registers are set to the values shown only on true power up. "Command Code" byte and
"Byte Count" byte must be sent following the acknowledge of the Address Byte. Although the data
(bits) in these two bytes are considered "don't care", they must be sent and will be acknowledge.
After that, the below described sequence (Register 0, Register 1, Register 2, ....) will be valid and
acknowledged.
Frequency Selection BY I2C
SSEL5 SSEL4 SSEL3 SSEL2 SSEL1 SSEL0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0 0 1 1 1 1 133.30 66.65 66.65 33.33 16.66
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0 0 0 0 0 133.90 66.95 66.95 33.48 16.74
0 0 0 0 1 128.50 64.25 64.25 32.13 16.06
0 0 0 1 0 124.00 62.00 82.67 41.34 20.67
0 0 0 1 1 66.80 33.40 66.80 33.40 16.70
0 0 1 0 0 120.00 60.00 80.00 40.00 20.00
0 0 1 0 1 114.00 57.00 76.00 38.00 19.00
0 0 1 1 0 105.00 52.50 70.00 35.00 17.50
0 0 1 1 1 100.20 50.10 66.80 33.40 16.70
0 1 0 0 0 160.00 80.00 80.00 40.00 20.00
0 1 0 0 1 155.00 77.50 77.50 38.75 19.38
0 1 0 1 0 152.50 76.25 76.25 38.13 19.06
0 1 0 1 1 150.00 75.00 75.00 37.50 18.75
0 1 1 0 0 148.00 74.00 74.00 37.00 18.50
0 1 1 0 1 143.00 71.50 71.50 35.75 17.88
0 1 1 1 0 138.00 69.00 69.00 34.50 17.25
1 0 0 0 0 100.90 50.45 50.45 25.23 12.61
1 0 0 0 1 109.00 54.50 72.67 36.34 18.17
1 0 0 1 0 116.00 58.00 77.34 38.67 19.33
1 0 0 1 1 122.00 61.00 61.00 30.50 15.25
1 0 1 0 0 126.00 63.00 63.00 31.50 15.75
1 0 1 0 1 130.00 65.00 65.00 32.50 16.25
1 0 1 1 0 135.00 67.50 67.50 33.75 16.88
1 0 1 1 1 140.00 70.00 70.00 35.00 17.50
1 1 0 0 0 145.00 72.50 72.50 36.25 18.13
1 1 0 0 1 159.00 79.50 79.50 39.75 19.88
1 1 0 1 0 162.00 81.00 81.00 40.50 20.25
1 1 0 1 1 165.00 82.50 82.50 41.25 20.63
1 1 1 0 0 168.00 84.00 84.00 42.00 21.00
1 1 1 0 1 171.00 85.50 85.50 42.75 21.38
1 1 1 1 0 174.00 87.00 87.00 43.50 21.75
1 1 1 1 1 180.00 90.00 90.00 45.00 22.50
CPU
(MHz)
CPU/2 3V66
(MHz)
PCI
(MHz)
(MHz)
Publication Release Date: Dec. 1999
- 6 - Revision 0.40
Page 7
W83194BR-C
PRELIMINARY
SSEL5 SSEL4 SSEL3 SSEL2 SSEL1 SSEL0
1 0 0 0 0 0 134.00 67.00 67.00 33.50 16.75
1 0 0 0 0 1 135.00 67.50 67.50 33.75 16.88
1 0 0 0 1 0 136.00 68.00 68.00 34.00 17.00
1 0 0 0 1 1 137.00 68.50 68.50 34.25 17.13
1 0 0 1 0 0 139.00 69.50 69.50 34.75 17.38
1 0 0 1 0 1 141.00 70.50 70.50 35.25 17.63
1 0 0 1 1 0 142.00 71.00 71.00 35.50 17.75
1 0 0 1 1 1 144.00 72.00 72.00 36.00 18.00
1 0 1 0 0 0 146.00 73.00 73.00 36.50 18.25
1 0 1 0 0 1 147.00 73.50 73.50 36.75 18.38
1 0 1 0 1 0 149.00 74.50 74.50 37.25 18.63
1 0 1 0 1 1 151.00 75.50 75.50 37.75 18.88
1 0 1 1 0 0 152.00 76.00 76.00 38.00 19.00
1 0 1 1 0 1 153.00 76.50 76.50 38.25 19.13
1 0 1 1 1 0 154.00 77.00 77.00 38.50 19.25
1 0 1 1 1 1 157.00 78.50 78.50 39.25 19.63
CPU
(MHz)
CPU/2 3V66
(MHz)
PCI
(MHz)
IOAPIC
(MHz)
1 1 0 0 0 0 158.00 79.00 79.00 39.50 19.75
1 1 0 0 0 1 161.00 80.50 80.50 40.25 20.13
1 1 0 0 1 0 163.00 81.50 81.50 40.75 20.38
1 1 0 0 1 1 164.00 82.00 82.00 41.00 20.50
1 1 0 1 0 0 166.00 83.00 83.00 41.50 20.75
1 1 0 1 0 1 167.00 83.50 83.50 41.75 20.88
1 1 0 1 1 0 169.00 84.50 84.50 42.25 21.13
1 1 0 1 1 1 170.00 85.00 85.00 42.50 21.25
1 1 1 0 0 0 172.00 86.00 86.00 43.00 21.50
1 1 1 0 0 1 173.00 86.50 86.50 43.25 21.63
1 1 1 0 1 0 175.00 87.50 87.50 43.75 21.88
1 1 1 0 1 1 181.00 90.50 90.50 45.25 22.63
1 1 1 1 0 0 183.00 91.50 91.50 45.75 22.88
1 1 1 1 0 1 185.00 92.50 92.50 46.25 23.13
1 1 1 1 1 0 190.00 95.00 95.00 47.50 23.75
1 1 1 1 1 1 200.00 100.00 100.00 50.00 25.00
Publication Release Date: Dec. 1999
- 7 - Revision 0.40
Page 8
6.1 Register 0: CPU Frequency Select Register
W83194BR-C
PRELIMINARY
Bit @PowerUp
7 0 - SSEL3 ( Frequency table selection by software via I2C)
6 0 - SSEL2 ( Frequency table selection by software via I2C)
5 0 - SSEL1 ( Frequency table selection by software via I2C)
4 0 - SSEL0 ( Frequency table selection by software via I2C)
3 0 - 0 = Selection by hardware
2 0 - SSEL4 (Frequency table selection by software via I2C )
1 0 - SSEL5 (Frequency table selection by software via I2C )
0
0 - 0 = Normal
Pin Description
1 = Selection by software I2C - Bit (1,2, 6:4)
1 = Spread Spectrum enabled
6.2 Register 1 : CPU Clock Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin
7 1 27 48MHz(Active / Inactive)
6 1 28 24_48MHz(Active / Inactive)
5
4 1 42 CPU/2(Active / Inactive)
3
2 1 39 CPUCLK2(Active / Inactive)
0 -
0 - 0 = Running
0 = ±0.25% Center type Spread Spectrum Modulation
1 =±0.5% Center type Spread Spectrum Modulation
1 = Tristate all outputs
Description
1 1 36 CPUCLK1(Active / Inactive)
0 1 35 CPUCLK0(Active / Inactive)
6.3 Register 2: PCI Clock Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin
7 1 16 PCICLK7 (Active / Inactive)
6 1 15 PCICLK6 (Active / Inactive)
5 1 13 PCICLK5 (Active / Inactive)
4 1 12 PCICLK4 (Active / Inactive)
3 1 11 PCICLK3 (Active / Inactive)
2 1 10 PCICLK2 (Active / Inactive)
1 1 8 PCICLK1 (Active / Inactive)
0 1 7 PCICLK0 (Active / Inactive)
- 8 - Revision 0.40
Description
Publication Release Date: Dec. 1999
Page 9
6.4 Register 3: 3V66 Clock Register (1 = Active, 0 = Inactive)
W83194BR-C
PRELIMINARY
Bit @PowerUp Pin
7
6 1 23 3V66_2(Active / Inactive)
5 1
4 1
3
2
1 1 19 PCICLK9 (Active / Inactive)
0 1 18 PCICLK8 (Active / Inactive)
0 - Reserve
22 3V66_1(Active / Inactive)
21 3V66_0(Active / Inactive)
0 - Reserve
0 - Reserve
Description
6.5 Register 4: PCI Clock Additional Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin
7
6 1 1
5 1 45
4 1 46
3
2
1
0 1 2 REF2X (Active / Inactive)
0 -
0 - Reserve
0 - Reserve
0 - Reserve
0 = Center type Spread Spectrum Modulation
1 =0~0.5% Down type Spread Spectrum (Override register bit5)
IOAPIC2 (Active / Inactive)
IOAPIC1 (Active / Inactive)
IOAPIC0 (Active / Inactive)
Description
6.6 Register 5: Skew Register
Bit @PowerUp Pin
7
6
5
4
3
2
1
0
1 - Skew2 (CPU to 3V66 skew program bit)
0 - Skew1 (CPU to 3V66 skew program bit)
0 - Skew0 (CPU to 3V66 skew program bit)
X - FS3#
X - SEL133/100#
X - FS2#
X - FS1#
X - FS0#
Description
Publication Release Date: Dec. 1999
- 9 - Revision 0.40
Page 10
6.7 Register 6: Winbond Chip ID Register (Read Only)
W83194BR-C
PRELIMINARY
Bit @PowerUp Pin
7 1 - Winbond Chip ID
6 0 - Winbond Chip ID
5 0 - Winbond Chip ID
4 1 - Winbond Chip ID
3 0 - Winbond Chip ID
2 0 - Winbond Chip ID
1 0 - Winbond Chip ID
0 0 - Winbond Chip ID
Description
5.8 Register 7: Winbond Chip ID Register (Read Only)
Bit @PowerUp Pin
7 0 - Winbond Chip ID
6 0 - Winbond Chip ID
5 0 - Winbond Chip ID
4 1 - Winbond Chip ID
3
2
0
0
- Winbond Version ID
- Winbond Version ID
Description
1
0
0
1
- Winbond Version ID
- Winbond Version ID
6.9 Register 8: Watchdog Timer Register
Bit @PowerUp Pin
7 0 - Enable Count 1 = start timer
0 = stop timer
6 0 - Second timeout status (READ ONLY)
5 0 - Second count 5
4 0 - Second count 4
3 0 - Second count 3
2 0 - Second count 2
1 0 - Second count 1
0 0 - Second count 0
- 10 - Revision 0.40
Description
Publication Release Date: Dec. 1999
Page 11
6.10 Register 9: M/N Program Register and 3V66 Divisor
W83194BR-C
PRELIMINARY
Bit @PowerUp Pin
7 0 - N value bit 8
6 0 - 3V66 divisor 00: CPU/2 ; 01: CPU/1.5
5 0 - 3V66 divisor 10: CPU/1 ; 11: CPU/3
4 0 - M value bit 4
3 0 - M value bit 3
2 0 - M value bit 2
1 0 - M value bit 1
0 0 - M value bit 0
Description
6.11 Register 10: M/N Program Register
Bit @PowerUp Pin
7 0 - N value bit 7
6 0 - N value bit 6
5 0 - N value bit 5
4 0 - N value bit 4
3 0 - N value bit 3
2 0 - N value bit 2
Description
1 0 - N value bit 1
0 0 - N value bit 0
6.12 Register 11: Divisor Register
Bit @PowerUp Pin
7 1 - Spread spectrum up count[0:3]
6 1 - Spread spectrum up count[0:3]
5 1 - Spread spectrum up count[0:3]
4 1 - Spread spectrum up count[0:3]
3 1 - Spread spectrum down count[0:3]
2 1 - Spread spectrum down count[0:3]
1 1 - Spread spectrum down count[0:3]
0 1 - Spread spectrum down count[0:3]
- 11 - Revision 0.40
Description
Publication Release Date: Dec. 1999
Page 12
6.12 Register 12 Divisor Register
W83194BR-C
PRELIMINARY
Bit @PowerUp Pin
7 0 - 0: use frequency table
1: use M/N register 9~12 to program frequency
Freq. = 14.318MHz * (N+4)/ 2*M
6 1 - Reserve
5 1 - Reserve
4 1 - Reserve
3 1 - Reserve
2 1 - Reserve
1 1 - Reserve
0 1 - Reserve
7.0 ORDERING INFORMATION
Part Number Package Type Production Flow
W83194BR-C 48 PIN SSOP
8.0 HOW TO READ THE TOP MARKING
Description
Commercial, 0°C to +70°C
1st line: Winbond logo and the type number: W83194BR-C
2nd line: Tracking code 2 8051234
2: wafers manufactured in Winbond FAB 2
8051234: wafer production series lot number
3rd line: Tracking code 814 G B B
814: packages made in '98, week 14
G: assembly house ID; A means ASE, S means SPIL, G means GR
B: Winbond internal use code
B: IC revision
All the trade marks of products and companies mentioned in this data sheet belong to their
respective owners.
W83194BR-C
28051234
814GBB
Publication Release Date: Dec. 1999
- 12 - Revision 0.40
Page 13

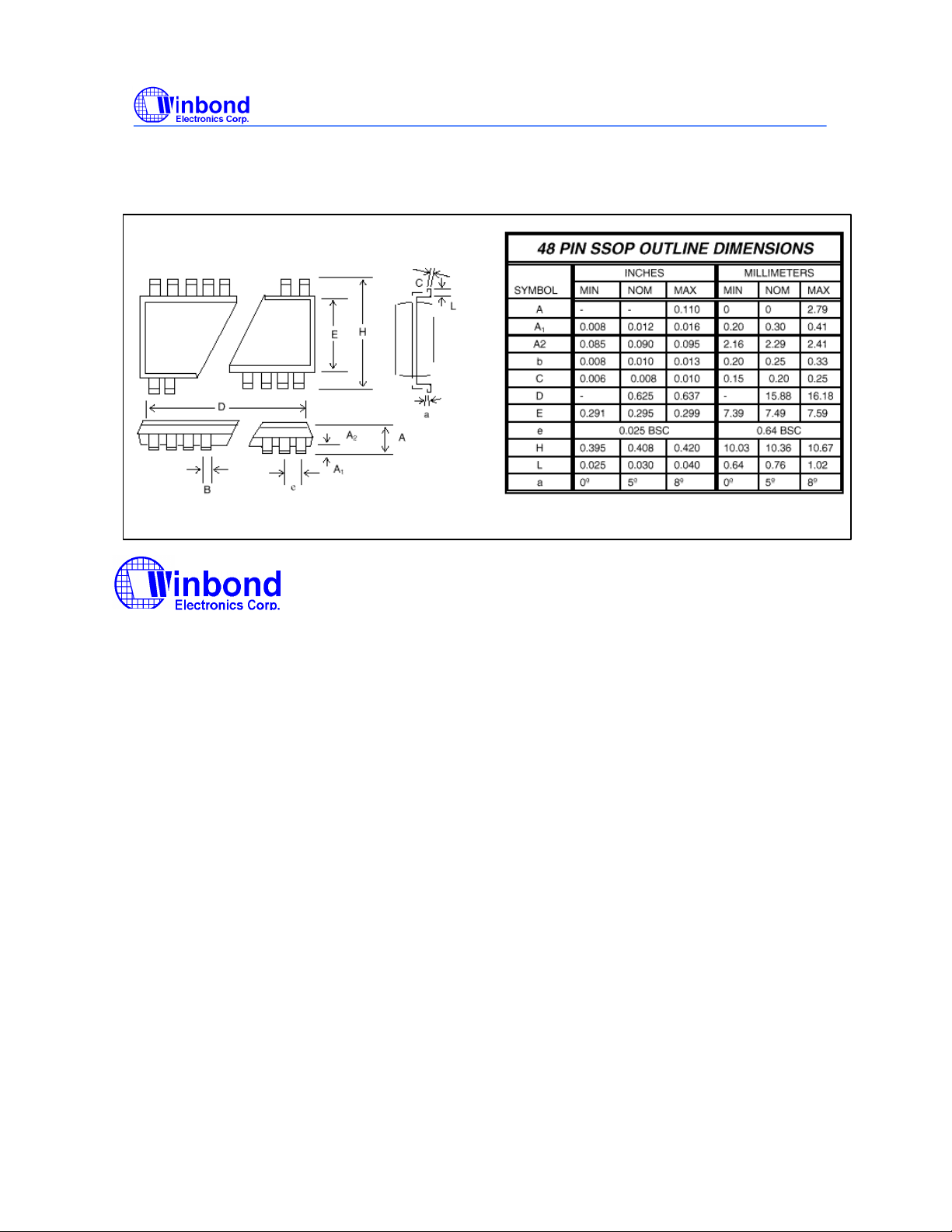

9.0 PACKAGE DRAWING AND DIMENSIONS
W83194BR-C
PRELIMINARY
Headquarters
No. 4, Creation Rd. III
Science-Based Industrial Park
Hsinchu, Taiwan
TEL: 886-35-770066
FAX: 886-35-789467
www: http://www.winbond.com.tw/
Taipei Office
11F, No. 115, Sec. 3, Min-Sheng East Rd.
Taipei, Taiwan
TEL: 886-2-7190505
FAX: 886-2-7197502
TLX: 16485 WINTPE
Winbond Electronics (H.K.) Ltd.
Rm. 803, World Trade Square, Tower II
123 Hoi Bun Rd., Kwun Tong
Kowloon, Hong Kong
TEL: 852-27516023-7
FAX: 852-27552064
Winbond Electronics
(North America) Corp.
2730 Orchard Parkway
San Jose, CA 95134 U.S.A.
TEL: 1-408-9436666
FAX: 1-408-9436668
Please note that all data and specifications are subject to change without notice. All the trade
marks of products and companies mentioned in this data sheet belong to their respective
owners.
These products are not designed for use in life support appliances, devices, or systems
where malfunction of these products can reasonably be expected to result in personal injury.
Winbond customers using or selling these products for use in such applications do so at their
own risk and agree to fully indemnify Winbond for any damages resulting from such improper
use or sale.
Publication Release Date: Dec. 1999
- 13 - Revision 0.40
Loading...
