W83194BR-97
200MHZ CLOCK FOR CAMINO CHIPSET

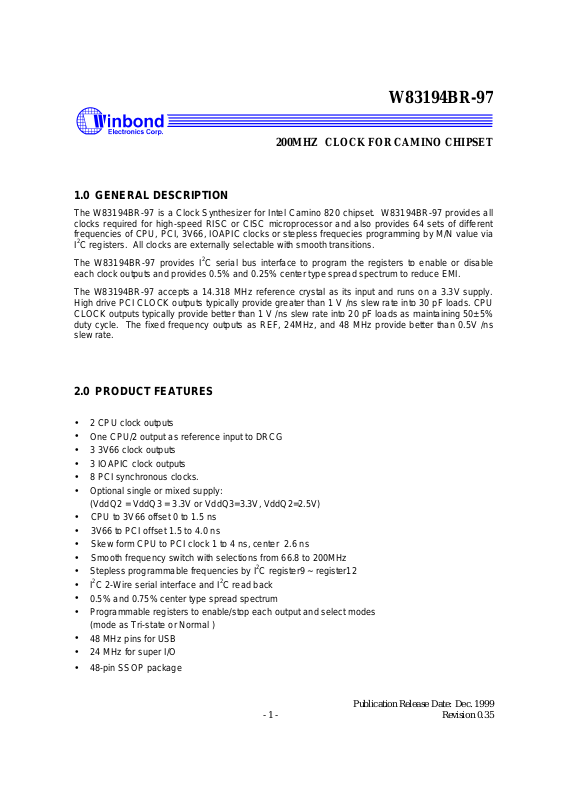

1.0 GENERAL DESCRIPTION
The W83194BR-97 is a Clock Synthesizer for Intel Camino 820 chipset. W83194BR-97 provides all
clocks required for high-speed RISC or CISC microprocessor and also provides 64 sets of different
frequencies of CPU, PCI, 3V66, IOAPIC clocks or stepless frequecies programming by M/N value via
I2C registers. All clocks are externally selectable with smooth transitions.
The W83194BR-97 provides I2C serial bus interface to program the registers to enable or disable
each clock outputs and provides 0.5% and 0.25% center type spread spectrum to reduce EMI.
The W83194BR-97 accepts a 14.318 MHz reference crystal as its input and runs on a 3.3V supply.
High drive PCI CLOCK outputs typically provide greater than 1 V /ns slew rate into 30 pF loads. CPU
CLOCK outputs typically provide better than 1 V /ns slew rate into 20 pF loads as maintaining 50± 5%
duty cycle. The fixed frequency outputs as REF, 24MHz, and 48 MHz provide better than 0.5V /ns
slew rate.
2.0 PRODUCT FEATURES
•
2 CPU clock outputs
•
One CPU/2 output as reference input to DRCG
•
3 3V66 clock outputs
•
3 IOAPIC clock outputs
• 8 PCI synchronous clocks.
•
Optional single or mixed supply:
(VddQ2 = VddQ3 = 3.3V or VddQ3=3.3V, VddQ2=2.5V)
•
CPU to 3V66 offset 0 to 1.5 ns
•
3V66 to PCI offset 1.5 to 4.0 ns
• Skew form CPU to PCI clock 1 to 4 ns, center 2.6 ns
•
Smooth frequency switch with selections from 66.8 to 200MHz
•
Stepless programmable frequencies by I2C register9 ~ register12
•
I2C 2-Wire serial interface and I2C read back
•
0.5% and 0.75% center type spread spectrum
•
Programmable registers to enable/stop each output and select modes
(mode as Tri-state or Normal )
•
48 MHz pins for USB
• 24 MHz for super I/O
•
48-pin SSOP package
Publication Release Date: Dec. 1999
- 1 - Revision 0.35
Page 2
W83194BR-97
PRELIMINARY
3.0 PIN CONFIGURATION
VSSR
REF0
REF1/*SEL24_48#
VDDR
Xin
Xout
VSSP
PCICLK_F/ *FS0
PCICLK1/ *FS1
VDDP
PCICLK2/ *FS2
PCICLK3/ *FS3
VSSPCI
PCICLK4
PCICLK5
VDDP
PCICLK6
PCICLK7
VSSPCI
PCICLK8
PCICLK9
PCICLK10
VDDPCI
PD#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
VddA
IOAPIC0
IOAPIC1
VSSA
IOAPIC2
VDDC/2
CPU/2
VSSC/2
CPUCLK0
VDDCPU
CPUCLK1
CPUCLK2
VSSCPU
VDD66
3V66-0
3V66-1
3V66-2
VSS66
*SDATA
*SDCLK
VDD48
48MHz/ *FS4
24_48MHz/FREQ_APIC*
VSS48
Publication Release Date: Dec. 1999
- 2 - Revision 0.35
Page 3
4.0 FREQUENCY SELECTION BY HARDWARE
FS4 FS3 FS2 FS1 FS0
CPU
(MHz)
CPU/2 3V66/
CPU
3V66
(MHz)
W83194BR-97
PRELIMINARY
PCI
(MHz)
IOAPIC (MHz)
FREQ_APIC=1
IOAPIC (MHz)
FREQ_APIC=0
0 0 0 0 0 103.00 51.50 0.67 68.67 34.33
0 0 0 0 1 105.00 52.50 0.67 70.00 35.00
0 0 0 1 0 100.30 50.15 0.67 66.87 33.43
0 0 0 1 1 100.90 50.45 0.67 67.27 33.63
0 0 1 0 0 107.00 53.50 0.67 71.33 35.67
0 0 1 0 1 109.00 54.50 0.67 72.67 36.33
0 0 1 1 0 112.00 56.00 0.67 74.67 37.33
0 0 1 1 1 114.00 57.00 0.67 76.00 38.00
0 1 0 0 0 116.10 58.05 0.67 77.40 38.70
0 1 0 0 1 118.00 59.00 0.67 78.67 39.33
0 1 0 1 0 133.30 66.65 0.50 66.65 33.33
0 1 0 1 1 120.00 60.00 0.67 80.00 40.00
0 1 1 0 0 122.00 61.00 0.67 81.33 40.67
0 1 1 0 1 125.10 62.55 0.67 83.40 41.70
0 1 1 1 0 128.20 64.10 0.67 85.47 42.73
0 1 1 1 1 130.00 65.00 0.67 86.67 43.33
1 0 0 0 0 133.00 66.50 0.67 88.67 44.33
1 0 0 0 1 133.90 66.95 0.50 66.95 33.48
1 0 0 1 0 138.00 69.00 0.50 69.00 34.50
1 0 0 1 1 142.00 71.00 0.50 71.00 35.50
1 0 1 0 0 146.00 73.00 0.50 73.00 36.50
1 0 1 0 1 150.00 75.00 0.50 75.00 37.50
1 0 1 1 0 153.00 76.50 0.50 76.50 38.25
1 0 1 1 1 156.00 78.00 0.50 78.00 39.00
1 1 0 0 0 159.10 79.55 0.50 79.55 39.78
1 1 0 0 1 162.00 81.00 0.50 81.00 40.50
1 1 0 1 0 165.00 82.50 0.50 82.50 41.25
1 1 0 1 1 168.00 84.00 0.50 84.00 42.00
1 1 1 0 0 171.00 85.50 0.50 85.50 42.75
1 1 1 0 1 174.00 87.00 0.50 87.00 43.50
1 1 1 1 0 177.00 88.50 0.50 88.50 44.25
1 1 1 1 1 180.00 90.00 0.50 90.00 45.00
5.0
SERIAL CONTROL REGISTERS
17.17 34.33
17.50 35.00
16.72 33.43
16.82 33.63
17.83 35.67
18.17 36.33
18.67 37.33
19.00 38.00
19.35 38.70
19.67 39.33
16.66 33.33
20.00 40.00
20.33 40.67
20.85 41.70
21.37 42.73
21.67 43.33
22.17 44.33
16.74 33.48
17.25 34.50
17.75 35.50
18.25 36.50
18.75 37.50
19.13 38.25
19.50 39.00
19.89 39.78
20.25 40.50
20.63 41.25
21.00 42.00
21.38 42.75
21.75 43.50
22.13 44.25
22.50 45.00
Publication Release Date: Dec. 1999
- 3 - Revision 0.35
Page 4
3V66/
3V66/
W83194BR-97
PRELIMINARY
The Pin column lists the affected pin number and the @PowerUp column gives the state at true
power up. Registers are set to the values shown only on true power up. "Command Code" byte and
"Byte Count" byte must be sent following the acknowledge of the Address Byte. Although the data
(bits) in these two bytes are considered "don't care", they must be sent and will be acknowledge.
After that, the below described sequence (Register 0, Register 1, Register 2, ....) will be valid and
acknowledged.
Frequency Selection BY I2C
SSEL5 SSEL4 SSEL3 SSEL2 SSEL1 SSEL0
0 0 0 0 0 0 103.00 51.50 0.67 68.67 34.33
0 0 0 0 0 1 105.00 52.50 0.67 70.00 35.00
0 0 0 0 1 0 100.30 50.15 0.67 66.87 33.43
0 0 0 0 1 1 100.90 50.45 0.67 67.27 33.63
0 0 0 1 0 0 107.00 53.50 0.67 71.33 35.67
0 0 0 1 0 1 109.00 54.50 0.67 72.67 36.33
0 0 0 1 1 0 112.00 56.00 0.67 74.67 37.33
0 0 0 1 1 1 114.00 57.00 0.67 76.00 38.00
0 0 1 0 0 0 116.10 58.05 0.67 77.40 38.70
0 0 1 0 0 1 118.00 59.00 0.67 78.67 39.33
0 0 1 0 1 0 133.30 66.65 0.50 66.65 33.33
0 0 1 0 1 1 120.00 60.00 0.67 80.00 40.00
0 0 1 1 0 0 122.00 61.00 0.67 81.33 40.67
0 0 1 1 0 1 125.10 62.55 0.67 83.40 41.70
0 0 1 1 1 0 128.20 64.10 0.67 85.47 42.73
0 0 1 1 1 1 130.00 65.00 0.67 86.67 43.33
0 1 0 0 0 0 133.00 66.50 0.67 88.67 44.33
0 1 0 0 0 1 133.90 66.95 0.50 66.95 33.48
0 1 0 0 1 0 138.00 69.00 0.50 69.00 34.50
0 1 0 0 1 1 142.00 71.00 0.50 71.00 35.50
0 1 0 1 0 0 146.00 73.00 0.50 73.00 36.50
0 1 0 1 0 1 150.00 75.00 0.50 75.00 37.50
0 1 0 1 1 0 153.00 76.50 0.50 76.50 38.25
0 1 0 1 1 1 156.00 78.00 0.50 78.00 39.00
0 1 1 0 0 0 159.10 79.55 0.50 79.55 39.78
0 1 1 0 0 1 162.00 81.00 0.50 81.00 40.50
0 1 1 0 1 0 165.00 82.50 0.50 82.50 41.25
0 1 1 0 1 1 168.00 84.00 0.50 84.00 42.00
0 1 1 1 0 0 171.00 85.50 0.50 85.50 42.75
0 1 1 1 0 1 174.00 87.00 0.50 87.00 43.50
0 1 1 1 1 0 177.00 88.50 0.50 88.50 44.25
0 1 1 1 1 1 180.00 90.00 0.50 90.00 45.00
SSEL5 SSEL4 SSEL3 SSEL2 SSEL1 SSEL0
CPU
(MHz)
CPU
(MHz)
CPU/2
CPU/2
CPU
CPU
3V66
(MHz)
3V66
(MHz)
PCI
(MHz)
PCI
(MHz)
IOAPIC (MHz)
FREQ_APIC=1
IOAPIC (MHz)
FREQ_APIC=0
17.17 34.33
17.50 35.00
16.72 33.43
16.82 33.63
17.83 35.67
18.17 36.33
18.67 37.33
19.00 38.00
19.35 38.70
19.67 39.33
16.66 33.33
20.00 40.00
20.33 40.67
20.85 41.70
21.37 42.73
21.67 43.33
22.17 44.33
16.74 33.48
17.25 34.50
17.75 35.50
18.25 36.50
18.75 37.50
19.13 38.25
19.50 39.00
19.89 39.78
20.25 40.50
20.63 41.25
21.00 42.00
21.38 42.75
21.75 43.50
22.13 44.25
22.50 45.00
IOAPIC (MHz)
FREQ_APIC=1
IOAPIC (MHz)
FREQ_APIC=0
Publication Release Date: Dec. 1999
- 4 - Revision 0.35
Page 5
W83194BR-97
100.00
PRELIMINARY
1 0 0 0 0 0 134.00 67.00 0.50 67.00 33.50
1 0 0 0 0 1 135.00 67.50 0.50 67.50 33.75
1 0 0 0 1 0 136.00 68.00 0.50 68.00 34.00
1 0 0 0 1 1 137.00 68.50 0.50 68.50 34.25
1 0 0 1 0 0 139.00 69.50 0.50 69.50 34.75
1 0 0 1 0 1 140.00 70.00 0.50 70.00 35.00
1 0 0 1 1 0 143.00 71.50 0.50 71.50 35.75
1 0 0 1 1 1 144.00 72.00 0.50 72.00 36.00
1 0 1 0 0 0 145.00 72.50 0.50 72.50 36.25
1 0 1 0 0 1 147.00 73.50 0.50 73.50 36.75
1 0 1 0 1 0 148.00 74.00 0.50 74.00 37.00
1 0 1 0 1 1 149.00 74.50 0.50 74.50 37.25
1 0 1 1 0 0 152.00 76.00 0.50 76.00 38.00
1 0 1 1 0 1 154.00 77.00 0.50 77.00 38.50
1 0 1 1 1 0 155.00 77.50 0.50 77.50 38.75
1 0 1 1 1 1 157.00 78.50 0.50 78.50 39.25
1 1 0 0 0 0 158.00 79.00 0.50 79.00 39.50
1 1 0 0 0 1 160.00 80.00 0.50 80.00 40.00
1 1 0 0 1 0 163.00 81.50 0.50 81.50 40.75
1 1 0 0 1 1 164.00 82.00 0.50 82.00 41.00
1 1 0 1 0 0 166.00 83.00 0.50 83.00 41.50
1 1 0 1 0 1 167.00 83.50 0.50 83.50 41.75
1 1 0 1 1 0 169.00 84.50 0.50 84.50 42.25
1 1 0 1 1 1 170.00 85.00 0.50 85.00 42.50
1 1 1 0 0 0 172.00 86.00 0.50 86.00 43.00
1 1 1 0 0 1 173.00 86.50 0.50 86.50 43.25
1 1 1 0 1 0 175.00 87.50 0.50 87.50 43.75
1 1 1 0 1 1 181.00 90.50 0.50 90.50 45.25
1 1 1 1 0 0 183.00 91.50 0.50 91.50 45.75
1 1 1 1 0 1 185.00 92.50 0.50 92.50 46.25
1 1 1 1 1 0 190.00 95.00 0.50 95.00 47.50
1 1 1 1 1 1 200.00
0.50 100.00 50.00
16.75 33.50
16.88 33.75
17.00 34.00
17.13 34.25
17.38 34.75
17.50 35.00
17.88 35.75
18.00 36.00
18.13 36.25
18.38 36.75
18.50 37.00
18.63 37.25
19.00 38.00
19.25 38.50
19.38 38.75
19.63 39.25
19.75 39.50
20.00 40.00
20.38 40.75
20.50 41.00
20.75 41.50
20.88 41.75
21.13 42.25
21.25 42.50
21.50 43.00
21.63 43.25
21.88 43.75
22.63 45.25
22.88 45.75
23.13 46.25
23.75 47.50
25.00 50.00
Publication Release Date: Dec. 1999
- 5 - Revision 0.35
Page 6
W83194BR-97
PRELIMINARY
5.1 Register 0: CPU Frequency Select Register
Bit @PowerUp Pin Description
7 0 - SSEL3 ( Frequency table selection by software via I2C)
6 0 - SSEL2 ( Frequency table selection by software via I2C)
5 0 - SSEL1 ( Frequency table selection by software via I2C)
4 0 - SSEL0 ( Frequency table selection by software via I2C)
3 0 - 0 = Selection by hardware
1 = Selection by software I2C - Bit (0,2, 6:4)
2 0 - SSEL4 (Frequency table selection by software via I2C )
1 0 - 0 = Normal
1 = Spread Spectrum enabled
0 0 - SSEL5 ( Frequency table selection by software via I2C)
5.2 Register 1 : CPU Clock Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin Description
7 1 40 CPUCLK0(Active / Inactive)
6 1 38 CPUCLK1(Active / Inactive)
5 1 37 CPUCLK2(Active / Inactive)
4 1 42 CPU/2(Active / Inactive)
3
2
1
0
1 47
1 46
1 2
1 3
IOAPIC0 (Active / Inactive)
IOAPIC1 (Active / Inactive)
REF1 (Active / Inactive)
REF0 (Active / Inactive)
5.3 Register 2: PCI Clock Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin Description
7 1 18 PCICLK7 (Active / Inactive)
6 1 17 PCICLK6 (Active / Inactive)
5 1 15 PCICLK5 (Active / Inactive)
4 1 14 PCICLK4 (Active / Inactive)
3 1 12 PCICLK3 (Active / Inactive)
2 1 11 PCICLK2 (Active / Inactive)
1 1 9 PCICLK1 (Active / Inactive)
0 1 8 PCICLK_F (Active / Inactive)
- 6 - Revision 0.35
Publication Release Date: Dec. 1999
Page 7
W83194BR-97
5.4 Register 3: 3V66 Clock Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin Description
7 1 34 3V66_0(Active / Inactive)
6 1
5 1
4
3
2
1
0
X - FS1#
0 -
0 - 0 =
X - FS3#
X - FS2#
5.5 Register 4: PCI Clock Additional Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin Description
7
6
5
4 1 22 PCICLK10 (Active / Inactive)
3 1 21 PCICLK9 (Active / Inactive)
2 1 20 PCICLK8 (Active / Inactive)
1
0
1 26 24_48MHz(Active / Inactive)
1 27 48MHz(Active / Inactive)
X - FS0#
1 - Reserve
X - FS4#
33 3V66_1(Active / Inactive)
32 3V66_2(Active / Inactive)
0 = ±0.25% Center type Spread Spectrum Modulation
1 =±0.5% Center type Spread Spectrum Modulation
Running
1 = Tristate all outputs
PRELIMINARY
5.6 Register 5: Skew Register
Bit @PowerUp Pin Description
7 1 - Skew2 (CPU to 3V66 skew program bit)
6 0 - Skew1 (CPU to 3V66 skew program bit)
5 0 - Skew0 (CPU to 3V66 skew program bit)
4 1 - Reserve
3 1 - Reserve
2 1 - Reserve
1 1 - Reserve
0 1 - Reserve
Publication Release Date: Dec. 1999
- 7 - Revision 0.35
Page 8
5.7 Register 6: Winbond Chip ID Register (Read Only)
Bit @PowerUp Pin Description
7 1 - Winbond Chip ID
6 0 - Winbond Chip ID
5 0 - Winbond Chip ID
4 1 - Winbond Chip ID
3 0 - Winbond Chip ID
2 0 - Winbond Chip ID
1 0 - Winbond Chip ID
0 0 - Winbond Chip ID
5.8 Register 7: Winbond Chip ID Register (Read Only)
Bit @PowerUp Pin Description
7 0 - Winbond Chip ID
W83194BR-97
PRELIMINARY
6 0 - Winbond Chip ID
5 1 - Winbond Chip ID
4 0 - Winbond Chip ID
3 0 - Winbond Version ID
2 0 - Winbond Version ID
1 0 - Winbond Version ID
0 1 - Winbond Version ID
5.9 Register 8: Watchdog Timer Register
Bit @PowerUp Pin Description
7 0 - Enable Count 1 = start timer
0 = stop timer
6 0 - Second timeout status (READ ONLY)
5 0 - Second count 5
4 0 - Second count 4
3 0 - Second count 3
2 0 - Second count 2
1 0 - Second count 1
0 0 - Second count 0
Publication Release Date: Dec. 1999
- 8 - Revision 0.35
Page 9
5.10 Register 9: M/N Program Register and 3V66 Divisor
Bit @PowerUp Pin Description
7 0 - N value bit 8
6 0 - 3V66 divisor 00: CPU/2 ; 01: CPU/1.5
5 0 - 3V66 divisor 10: CPU/1 ; 11: CPU/3
4 0 - M value bit 4
3 0 - M value bit 3
2 0 - M value bit 2
1 0 - M value bit 1
0 0 - M value bit 0
5.11 Register 10: M/N Program Register
Bit @PowerUp Pin Description
7 0 - N value bit 7
6 0 - N value bit 6
5 0 - N value bit 5
4 0 - N value bit 4
3 0 - N value bit 3
2 0 - N value bit 2
1 0 - N value bit 1
0 0 - N value bit 0
W83194BR-97
PRELIMINARY
5.12 Register 11: Divisor Register
Bit @PowerUp Pin Description
7 1 - Spread spectrum up count[0:3]
6 1 - Spread spectrum up count[0:3]
5 1 - Spread spectrum up count[0:3]
4 1 - Spread spectrum up count[0:3]
3 1 - Spread spectrum down count[0:3]
2 1 - Spread spectrum down count[0:3]
1 1 - Spread spectrum down count[0:3]
0 1 - Spread spectrum down count[0:3]
Publication Release Date: Dec. 1999
- 9 - Revision 0.35
Page 10
5.12 Register 12 Divisor Register
Bit @PowerUp Pin Description
7 0 - 0: use frequency table
1: use M/N register 9~12 to program frequency
The equation is
6 1 - Reserve
5 1 - Reserve
4 1 - Reserve
3 1 - Reserve
2 1 - Reserve
1 1 - Reserve
0 1 - Reserve
CPU freq. = 14.318MHz * (N+4)/ 2*M
6.0 ORDERING INFORMATION
W83194BR-97
PRELIMINARY
Part Number Package Type Production Flow
W83194BR-97
48 PIN SSOP
Commercial, 0°C to +70°C
7.0 HOW TO READ THE TOP MARKING
1st line: Winbond logo and the type number: W83194BR-97
2nd line: Tracking code 2 8051234
2
B: Winbond internal use code
B
All the trade marks of products and companies mentioned in this data sheet belong to their
respective owners.
8051234
3rd line: Tracking code 814 G B B
G: assembly house ID; A means ASE, S means SPIL, G means GR
W83194BR-97
28051234
814GBB
: wafers manufactured in Winbond FAB 2
: wafer production series lot number
814
: packages made in '98, week 14
: IC revision
Publication Release Date: Dec. 1999
- 10 - Revision 0.35
Page 11

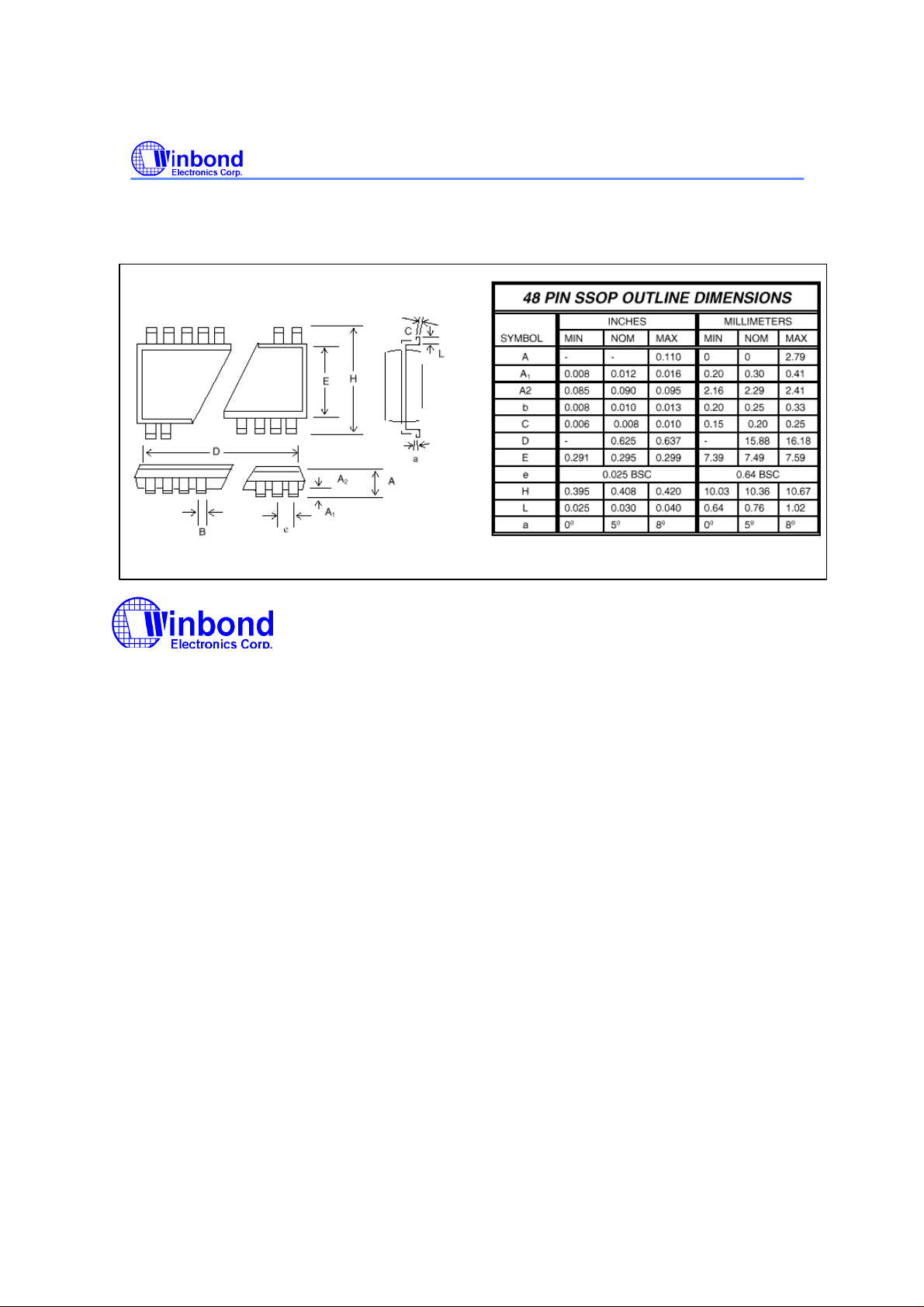

8.0 PACKAGE DRAWING AND DIMENSIONS
W83194BR-97
PRELIMINARY
Headquarters
No. 4, Creation Rd. III
Science-Based Industrial Park
Hsinchu, Taiwan
TEL: 886-35-770066
FAX: 886-35-789467
www: http://www.winbond.com.tw/
Taipei Office
11F, No. 115, Sec. 3, Min-Sheng East Rd.
Taipei, Taiwan
TEL: 886-2-7190505
FAX: 886-2-7197502
TLX: 16485 WINTPE
Winbond Electronics (H.K.) Ltd.
Rm. 803, World Trade Square, Tower II
123 Hoi Bun Rd., Kwun Tong
Kowloon, Hong Kong
TEL: 852-27516023-7
FAX: 852-27552064
Winbond Electronics
(North America) Corp.
2730 Orchard Parkway
San Jose, CA 95134 U.S.A.
TEL: 1-408-9436666
FAX: 1-408-9436668
Please note that all data and specifications are subject to change without notice. All the trade
marks of products and companies mentioned in this data sheet belong to their respective
owners
.
These products are not designed for use in life support appliances, devices, or systems
where malfunction of these products can reasonably be expected to result in personal injury.
Winbond customers using or selling these products for use in such applications do so at their
own risk and agree to fully indemnify Winbond for any damages resulting from such improper
use or sale.
Publication Release Date: Dec. 1999
- 11 - Revision 0.35
Loading...
