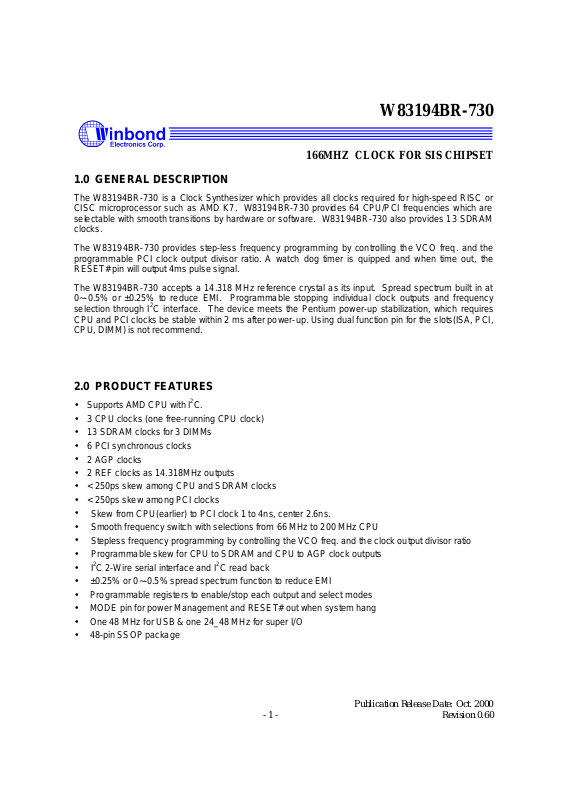

W83194BR-730
166MHZ CLOCK FOR SIS CHIPSET
1.0 GENERAL DESCRIPTION
The W83194BR-730 is a Clock Synthesizer which provides all clocks required for high-speed RISC or
CISC microprocessor such as AMD K7. W83194BR-730 provides 64 CPU/PCI frequencies which are
selectable with smooth transitions by hardware or software. W83194BR-730 also provides 13 SDRAM
clocks.
The W83194BR-730 provides step-less frequency programming by controlling the VCO freq. and the
programmable PCI clock output divisor ratio. A watch dog timer is quipped and when time out, the
RESET# pin will output 4ms pulse signal.
The W83194BR-730 accepts a 14.318 MHz reference crystal as its input. Spread spectrum built in at
0~-0.5% or ± 0.25% to reduce EMI. Programmable stopping individual clock outputs and frequency
selection through I2C interface. The device meets the Pentium power-up stabilization, which requires
CPU and PCI clocks be stable within 2 ms after power-up. Using dual function pin for the slots(ISA, PCI,
CPU, DIMM) is not recommend.
2.0 PRODUCT FEATURES
•
Supports AMD CPU with I2C.
•
3 CPU clocks (one free-running CPU clock)
•
13 SDRAM clocks for 3 DIMMs
•
6 PCI synchronous clocks
•
2 AGP clocks
•
2 REF clocks as 14.318MHz outputs
•
< 250ps skew among CPU and SDRAM clocks
•
< 250ps skew among PCI clocks
•
Skew from CPU(earlier) to PCI clock 1 to 4ns, center 2.6ns.
• Smooth frequency switch with selections from 66 MHz to 200 MHz CPU
•
Stepless frequency programming by controlling the VCO freq. and the clock output divisor ratio
•
Programmable skew for CPU to SDRAM and CPU to AGP clock outputs
•
I2C 2-Wire serial interface and I2C read back
•
±0.25% or 0~-0.5% spread spectrum function to reduce EMI
•
Programmable registers to enable/stop each output and select modes
•
MODE pin for power Management and RESET# out when system hang
•
One 48 MHz for USB & one 24_48 MHz for super I/O
• 48-pin SSOP package
Publication Release Date: Oct. 2000
- 1 - Revision 0.60
Page 2
3.0 PIN CONFIGURATION
W83194BR-730
PRELIMINARY
REF1^/ &AGPSEL
PCICLK0^/ &FS1
PCICLK1^/ &FS2
PCICLK5/RESET$
AGPCLK0/SEL24#_48*
AGPCLK1/Mode1*
24_48MHz/&Mode
* : 120K pull-up
&: 120K pull-down
^ : 2X driving stength
$ : Open-drain
#: Active LOW
VddR
REF0^/ &FS3
Vss
Xin
Xout
VddP
PCICLK2^
PCICLK3^
PCICLK4^
Vss
VddAGP
Vss
Vss
48MHz/&FS0
Vdd48
SDATA*
SDCLK*
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
VddLCPU
CPUC0$
CPUT0$
CPUCS_C1$
Vss
VddSD
SDRAM 0
SDRAM 1
SDRAM 2
Vss
SDRAM 3
SDRAM 4
SDRAM 5
VddSD
SDRAM 6
SDRAM 7
Vss
SDRAM 8/PD#
SDRAM 9/SDRAM_STOP#
VssSD
SDRAM 10/PCI_STOP#
SDRAM11/CPU_STOP#
SDRAM12
VddSD
4.0 PIN DESCRIPTION
IN - Input
OUT - Output
I/O - Bi-directional Pin
# - Active Low
* - Internal 250kΩ pull-up
4.1 Crystal I/O
SYMBOL PIN I/O FUNCTION
Xin 5 IN Crystal input with internal loading capacitors and
feedback resistors.
Xout 6 OUT Crystal output at 14.318MHz nominally.
Publication Release Date:Oct. 2000
- 2 - Revision 0.60
Page 3
4.2 CPU, SDRAM, PCI, AGP Clock Outputs
SDRAM clock outputs. The same phase as CPUC0$
PCICLK1^/&FS2
SYMBOL PIN I/O FUNCTION
CPUC0$
CPUT0$
CPUCS_C1$ 45 OD Open drain clock for chipset. Stopped if CPU_STOP#
SDRAM [ 0:7],12 42,41,40,38,37
SDRAM 8/PD# 31 OUT Pin21 &Mode=0, SDRAM clock outputs.
SDRAM9/
SDRAM_STOP#
SDRAM 10/
PCI_STOP#
SDRAM 11/
CPU_STOP#
PCICLK0^/&FS1
PCICLK [2:4]^
PCICLK5/
RESET$
AGPCLK0/
SEL24#_48*
AGPCLK1/
Mode1*
47,46 OD Open drain output clock for host frequencies CPU.
,36,34,33, 26
30 OUT Pin21 &Mode=0, SDRAM clock outputs.
28 OUT Pin21 &Mode=0, SDRAM clock outputs.
27 OUT Pin21 &Mode=0, SDRAM clock outputs.
8 I/O Low skew (< 250ps) PCI clock outputs.
9 I/O Low skew (< 250ps) PCI clock outputs.
10,11,12 I/O Low skew (< 250ps) PCI clock outputs.
13 I/O PCI clock during normal operation. (pin 17 MODE1=1)
16 I/O Low skew (< 250ps) AGP clock output.
17 OUT AGP clock outputs
W83194BR-730
PRELIMINARY
Powered by VddLCPU. Stopped if CPU_STOP# is
low.
is low and Register1 bit7=0. The same phase as
CPUC0$.
OUT
Pin21 &Mode=1, PD# input
Pin21 &Mode=1, SDRAM_STOP# input
Pin21 &Mode=1, PCI_STOP# input
Pin21 &Mode=1, CPU_STOP# input
Latched input for FS1 at initial power up for H/W
selecting the output frequency of CPU, SDRAM and
PCI clocks.
Latched input for FS2 at initial power up for H/W
selecting the output frequency of CPU, SDRAM and
PCI clocks.
Latched Input.
If pin17 MODE1=0, RESET# (open drain, 4ms low
active pulse when Watch Dog time out)
Latched Input. SEL24#_48*=1, Pin 21 is 24MHz;
SEL24_48*=0, Pin21 is 48MHz
Latched Input. Mode1*=1, Pin 13 is PCICLK;
Mode1*=0, Pin13 is RESET#
Publication Release Date:Oct. 2000
- 3 - Revision 0.60
Page 4
W83194BR-730
PRELIMINARY
4.3 I2C Control Interface
SYMBOL PIN I/O FUNCTION
SDATA* 23 I/O Serial data of I2C 2-wire control interface
SDCLK* 24 IN Serial clock of I2C 2-wire control interface
4.4 Fixed Frequency Outputs
SYMBOL PIN I/O FUNCTION
REF0 ^/ &AGPSEL 2 I/O 14.318MHz reference clock. This REF output is the
atched input for &AGPSEL at initial power up for H/W
selecting the output frequency of AGP clocks.
REF1 ^/ &FS3 3 I/O 14.318MHz reference clock.
Latched input for FS3 at initial power up for H/W
selecting the output frequency of CPU, SDRAM and
PCI clocks.
24_48MHz / &Mode 21 I/O 24_48MHz output clock, selected by pin16.
Latched Input. &Mode=0, Pin 27,28,30,31 are SDRAM
clocks; &Mode=0, Pin27,28,29,31 areCPU_STOP#,
SDRAM_STOP#, PCI_STOP#,PD#
48MHz / &FS0 20 I/O 48MHz output for USB during normal operation.
Latched input for FS0 at initial power up for H/W
selecting the output frequency of CPU, SDRAM and
PCI clocks.
4.5 Power Pins
SYMBOL PIN FUNCTION
VddR 1 Power supply for Ref [0:1] crystal and core logic.
VddAGP 15 Power supply for AGP output, 3.3V.
VddLCPU 48 Power supply for CPUC0,T0,CS_C1, either 2.5V or 3.3V.
VddP 7 Power supply for PCICLK[0:5], 3.3V.
VddSD 43,35,29,25 Power supply for SDRAM[0:12], and CPU PLL core,
Vdd48 19 Power for 24 & 48MHz output buffers and fixed PLL core.
Vss 4,14,18,19,29,32,39,44 Circuit Ground.
nominal 3.3V.
Publication Release Date:Oct. 2000
- 4 - Revision 0.60
Page 5
5.0 FREQUENCY SELECTION BY HARDWARE
W83194BR-730
PRELIMINARY
FS3 FS2 FS1 FS0 (MHz) (MHz) (MHz) (MHz) (MHz) (MHz)
0 0 0 0 400 100 100 33.3 66.6 50
VCO CPU SDRAM
PCI AGPSEL=0 AGPSEL=1
0 0 0 1 400 100 133 33.3 66.6 50
0 0 1 0 300 100 150 30.0 60 50
0 0 1 1 400 100 66.6 33.3 66.6 50
0 1 0 0 336 112 112 33.6
67.2 56
0 1 0 1 500 125 100 31.3 62.5 50
0 1 1 0 372 124 124 31 62 46.5
0 1 1 1 400 133 100 33.3 66.6 50
1 0 0 0 400 133 133 33.3 66.6 50
1 0 0 1 300 150 150 30 60 50
1 0 1 0 333 111 166 33.3
1 0 1 1 330 110 165 33.0
66.6 55.6
66 55
1 1 0 0 332 166 166 33.3 66.6 55.6
1 1 0 1 360 90 90 30 60 45
1 1 1 0 192 48 48 32 64 48
1 1 1 1 192 45 60 30 60 45
6.0 SERIAL CONTROL REGISTERS
The Pin column lists the affected pin number and the @PowerUp column gives the default state at true
power up. "Command Code" byte and "Byte Count" byte must be sent following the acknowledge of
the Address Byte. Although the data (bits) in these two bytes are considered "don't care", they must be
sent and will be acknowledge. After that, the sequence described below (Register 0, Register 1,
Register 2, ....) will be valid and acknowledged.
Bytes sequence order for I2C controller :
Clock Address
A(6:0) & R/W
Ack
8 bits dummy
Command code
Ack
8 bits dummy
Byte count
Set R/W to 1 when Read back”, the data sequence is as follows :
Clock Address
A(6:0) & R/W
Ack
Byte 0 Ack
Byte 1
- 5 - Revision 0.60
Ack
Byte0,1,2...
until Stop
Ack
Byte2, 3, 4...
until Stop
Publication Release Date:Oct. 2000
Page 6
W83194BR-730
PRELIMINARY
FREQUENCY BY SOFTWARE
SSEL5 SSEL4 SSEL3 SSEL2 SSEL1 SSEL0 (MHz) (MHz) (MHz) (MHz) (MHz) (MHz)
0 0 0 0 0 0 400 100 100 33.3
0 0 0 0 0 1 400 100 133 33.3
0 0 0 0 1 0 300 100 150 30.0 60 50
0 0 0 0 1 1 400 100 66.6 33.3
0 0 0 1 0 0 336 112
0 0 0 1 0 1 500 125 100 31.3
0 0 0 1 1 0 372 124 124 31 62 46.5
0 0 0 1 1 1 400 133 100 33.3
0 0 1 0 0 0 400 133 133 33.3
0 0 1 0 0 1 300 150 150 30 60 50
0 0 1 0 1 0 333 111
0 0 1 0 1 1 330 110
0 0 1 1 0 0 332 166 166 33.3
0 0 1 1 0 1 360 90 90 30 60 45
0 0 1 1 1 0 192 48 48 32 64 48
0 0 1 1 1 1 192 45 60 30 60 45
0 1 0 0 0 0 368 92 92 30.67
0 1 0 0 0 1 380 95 95 31.67
0 1 0 0 1 0 384 96 96 32 64 48
0 1 0 0 1 1 392 98 98 32.67
0 1 0 1 0 0 368 92 122.67 30.67
0 1 0 1 0 1 380 95 126.67 31.67
0 1 0 1 1 0 384 96 128 32 64 48
0 1 0 1 1 1 392 98 130.67 32.67
0 1 1 0 0 0 354 118 88.5 29.5
0 1 1 0 0 1 360 120 90 30 60 45
0 1 1 0 1 0 366 122 91.5 30.5
0 1 1 0 1 1 378 126 94.5 31.5
0 1 1 1 0 0 378 126 126 31.5
0 1 1 1 0 1 384 128 128 32 64 48
0 1 1 1 1 0 390 130 130 32.5
0 1 1 1 1 1 408 136 136 34 68 51
VCO CPU SDRAM PCI AGPSEL=0 AGPSEL=1
66.6 50
66.6 50
66.6 50
112 33.6
166 33.3
165 33.0
67.2 56
62.5 50
66.6 50
66.6 50
66.6 55.6
66 55
66.6 55.6
61.33 46
63.33 47.5
65.33 49
61.33 46
63.33 47.5
65.33 49
59 44.25
61 45.75
63 47.25
63 47.25
65 48.75
Publication Release Date:Oct. 2000
- 6 - Revision 0.60
Page 7
W83194BR-730
PRELIMINARY
SSEL5 SSEL4 SSEL3 SSEL2 SSEL1 SSEL0 (MHz) (MHz) (MHz) (MHz) (MHz) (MHz)
1 0 0 0 0 0 408 102 102 34 68 51
1 0 0 0 0 1 412 103 103 34.33
1 0 0 0 1 0 416 104 104 34.67
1 0 0 0 1 1 420 105 105 35 70 52.5
1 0 0 1 0 0 408 102 136 34 68 51
1 0 0 1 0 1 412 103 137.33 34.33
1 0 0 1 1 0 416 104 138.67 34.67
1 0 0 1 1 1 424 106 141.33 35.33
1 0 1 0 0 0 390 130 97.5 32.5
1 0 1 0 0 1 405 135 101.25 33.75
1 0 1 0 1 0 414 138 103.5 34.5
1 0 1 0 1 1 426 142 106.5 35.5
1 0 1 1 0 0 411 137 137 34.25
1 0 1 1 0 1 414 138 138 34.5
1 0 1 1 1 0 417 139 139 34.75
1 0 1 1 1 1 429 143 143 35.75
1 1 0 0 0 0 429 143 107.25 35.75
1 1 0 0 0 1 432 144 108 36 54 43.2
1 1 0 0 1 0 435 145 108.75 36.25
1 1 0 0 1 1 438 146 109.5 36.5
1 1 0 1 0 0 441 147 110.25 29.4
1 1 0 1 0 1 444 148 111 29.6
1 1 0 1 1 0 456 152 114 30.4
1 1 0 1 1 1 459 153 114.75 30.6
1 1 1 0 0 0 468 156 117 31.2
1 1 1 0 0 1 474 158 118.5 31.6
1 1 1 0 1 0 480 160 120 32 60 48
1 1 1 0 1 1 489 163 122.25 32.6
1 1 1 1 0 0 498 166 124.5 33.2
1 1 1 1 0 1 525 175 131.25 35 65.63 52.5
1 1 1 1 1 0 534 178 133.5 35.6
1 1 1 1 1 1 540 180 135 36 67.5 54
VCO CPU SDRAM PCI AGPSEL=0 AGPSEL=1
68.67 51.5
69.33 52
68.67 51.5
69.33 52
70.67 53
65 48.75
67.5 50.63
69 51.75
71 53.25
68.5 51.38
69 51.75
69.5 52.13
71.5 53.63
71.5 53.63
54.38 43.5
54.75 43.8
55.13 44.1
55.5 44.4
57 45.6
57.38 45.9
58.5 46.8
59.25 47.4
61.13 48.9
62.25 49.8
66.75 53.4
Publication Release Date:Oct. 2000
- 7 - Revision 0.60
Page 8
5.1 Register 0: Frequency Select Register
W83194BR-730
PRELIMINARY
Bit @PowerUp
7 0 - SSEL5 ( Frequency table selection by software via I2C)
6 0 - SSEL4 ( Frequency table selection by software via I2C)
5 0 - SSEL3 ( Frequency table selection by software via I2C)
4 0 - SSEL2 ( Frequency table selection by software via I2C)
3 0 - SSEL1 ( Frequency table selection by software via I2C)
2 0 - SSEL0 (Frequency table selection by software via I2C )
1 0 - 0 = Selection by hardware
0 0 - 0 =
Pin Description
1 = Selection by software I2C - Bit (7:2)
Running
1 = Tristate all outputs
5.2 Register 1 : CPU Clock Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin
7 1 - CPUCS_C1$ free running control 1: stopped by CPU_STOP#
0: Free running pin
6 1 27 SDRAM11 (Active / Inactive)
5 0 - 0 = Normal
1 = Spread spectrum enable
4 0 -
3 1 26 SDRAM12 (Active / Inactive)
2 1 45 CPUCS_C1$(Active / Inactive)
1 1 46 CPUC0$ (Active / Inactive)
0 1 47 CPUT0$ (Active / Inactive)
0 = ±0.25% Center type Spread Spectrum Modulation
1= 0 ~ (-
0.5%) Down type Spread Spectrum Modulation
Description
5.3 Register 2: PCI, AGP Clock Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin
7 1 17 AGPCLK1(Active / Inactive)
6 1 16 AGPCLK0(Active / Inactive)
5 1 13 PCICLK5 (Active / Inactive)
4 1 12 PCICLK4 (Active / Inactive)
3 1 11 PCICLK3 (Active / Inactive)
2 1 10 PCICLK2 (Active / Inactive)
1 1 9 PCICLK1 (Active / Inactive)
0 1 8 PCICLK0 (Active / Inactive)
Description
Publication Release Date:Oct. 2000
- 8 - Revision 0.60
Page 9
W83194BR-730
PRELIMINARY
5.4 Register 3: SDRAM Clock Additional Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin
7 1 33 SDRAM7 (Active / Inactive)
6 1 34 SDRAM6 (Active / Inactive)
5 1 36 SDRAM5 (Active / Inactive)
4 1 37 SDRAM4 (Active / Inactive)
3
2
1
0
1 38 SDRAM3 (Active / Inactive)
1 40 SDRAM2 (Active / Inactive)
1 41 SDRAM1 (Active / Inactive)
1 42 SDRAM0 (Active / Inactive)
Description
5.5 Register 4: SDRAM Clock Additional Register (1 = Active, 0 = Inactive)
Bit @PowerUp Pin
7
6
5
4
3
2
1
0
X - AGPSEL#
X - FS3#
X - FS2#
X - FS1#
X - FS0#
1 28 SDRAM10 (Active / Inactive)
1 30 SDRAM9 (Active / Inactive)
1 31 SDRAM8 (Active / Inactive)
Description
5.6 Register 5: Skew Register
Bit @PowerUp Pin
7 1 - CSkew2 (SDRAM to CPU skew program bit)
6 0 - CSkew1 (SDRAM to CPU skew program bit)
5 0 - CSkew0 (SDRAM to CPU skew program bit)
4 1 - CAkew2 (AGP to CPU skew program bit)
3 0 - CAkew1 (AGP to CPU skew program bit)
2 0 - CAkew0 (AGP to CPU skew program bit)
1 1 21 24_48MHz(Active / Inactive)
0 1 20 48MHz(Active / Inactive)
- 9 - Revision 0.60
Description
Publication Release Date:Oct. 2000
Page 10
5.7 Register 6: Watchdog Timer Register
W83194BR-730
PRELIMINARY
Bit @PowerUp Pin
7 0 - Enable Count 1 = start timer
0 = stop timer
6 X - Second timeout status (READ ONLY)
5 0 - Second count 5
4 0 - Second count 4
3 0 - Second count 3
2 0 - Second count 2
1 0 - Second count 1
0 0 - Second count 0
Description
5.8 Register 7: M/N Program Register and Divisor
Bit @PowerUp Pin
7 0 - N value bit 8
6
5
4 0 - M value bit 4
3 0 - M value bit 3
2 0 - M value bit 2
1 0 - M value bit 1
0 0 - M value bit 0
1 - Test 1 (Internal test use)
0 - Test 0 (Internal test use)
Description
5.9 Register 8: M/N Program Register
Bit @PowerUp Pin
7 0 - N value bit 7
6 0 - N value bit 6
5 0 - N value bit 5
4 0 - N value bit 4
3 0 - N value bit 3
2 0 - N value bit 2
1 0 - N value bit 1
0 0 - N value bit 0
Description
Publication Release Date:Oct. 2000
- 10 - Revision 0.60
Page 11
5.10 Register 9: Spread Spectrum Register
W83194BR-730
PRELIMINARY
Bit @PowerUp Pin
7 0 - Spread spectrum up count 3
6 0 - Spread spectrum up count 2
5 0 - Spread spectrum up count 1
4 0 - Spread spectrum up count 0
3 0 - Spread spectrum down count 3
2 0 - Spread spectrum down count 2
1 0 - Spread spectrum down count 1
0 0 - Spread spectrum down count 0
Description
5.11 Register 10: Divisor Register
Bit @PowerUp Pin
7 0 - 0: use frequency table
1: use M/N register to program frequency
The equation is
6 X - Ratio SEL3 (See ratio selection table)
5 X - Ratio SEL2 (See ratio selection table)
4 X - Ratio SEL1 (See ratio selection table)
3 X - Ratio SEL0 (See ratio selection table)
2 X - AGP Ratio SEL2 (See ratio selection table1)
1 X - AGP Ratio SEL1 (See ratio selection table1)
0 X - AGP Ratio SEL0 (See ratio selection table1)
VCO freq. = 14.318MHz * (N+4)/ M
Description
5.12 Register 11: Winbond Chip ID Register (Read Only)
Bit @PowerUp Pin
7 0 - Winbond Chip ID
6 0 - Winbond Chip ID
5 0 - Winbond Chip ID
4 0 - Winbond Chip ID
3 0 - Winbond Chip ID
2 1 - Winbond Chip ID
1 0 - Winbond Chip ID
0 1 - Winbond Chip ID
- 11 - Revision 0.60
Description
Publication Release Date:Oct. 2000
Page 12
5.13 Register 12: Winbond Chip ID Register (Read Only)
W83194BR-730
PRELIMINARY
Bit @PowerUp Pin
7 0 - Winbond Chip ID
6 0 - Winbond Chip ID
5 1 - Winbond Chip ID
4 1 - Winbond Chip ID
3 0 - Version ID
2 0 - Version ID
1 0 - Version ID
0 1 - Version ID
Ratio Selection Table
Reg10 Reg10 Reg10 Reg10 VCO/ VCO/ VCO/
bit6 bit5 bit4 bit3 CPU SDRAM PCI
SSEL3 SSEL2 SSEL1 SSEL0 ratio ratio ratio
0 0 0 0 2 2 10
0 0 0 1 2 3 10
0 0 1 0 3 2 10
0 0 1 1 3 3 10
0 1 0 0 3 3 12
0 1 0 1 3 3 16
0 1 1 0 3 4 12
0 1 1 1 3 4 16
1 0 0 0 4 3 10
1 0 0 1 4 3 12
1 0 1 0 4 3 16
1 0 1 1 4 4 12
1 1 0 0 4 6 12
1 1 0 1 6 3 12
1 1 1 0 6 4 12
1 1 1 1 6 6 12
Description
Ratio Selection Table 1
Reg10 Reg10 Reg10
bit2 bit1 bit0 VCO/AGP
AGP2 AGP1 AGP0 ratio
0 0 0 3
0 0 1 5
0 1 0 6
0 1 1 8
1 0 0 4
1 0 1 1 1 0 1 1 1 10
Publication Release Date:Oct. 2000
- 12 - Revision 0.60
Page 13
ORDERING INFORMATION
Part Number Package Type Production Flow
W83194BR-730
48 PIN SSOP
HOW TO READ THE TOP MARKING
W83194BR-730
28051234
1st line: Winbond logo and the type number: W83194BR-730
2nd line: Tracking code 2 8051234
2
A: Internal use code
B
8051234
3rd line: Tracking code 814 G B B
G: assembly house ID; O means OSE, G means GR
002GAB
: wafers manufactured in Winbond FAB 2
: wafer production series lot number
002
: packages made in '00, week 02
: IC revision
W83194BR-730
PRELIMINARY
Commercial, 0°C to +70°C
All the trade marks of products and companies mentioned in this data sheet
belong to their respective owners
.
Publication Release Date:Oct. 2000
- 13 - Revision 0.60
Page 14

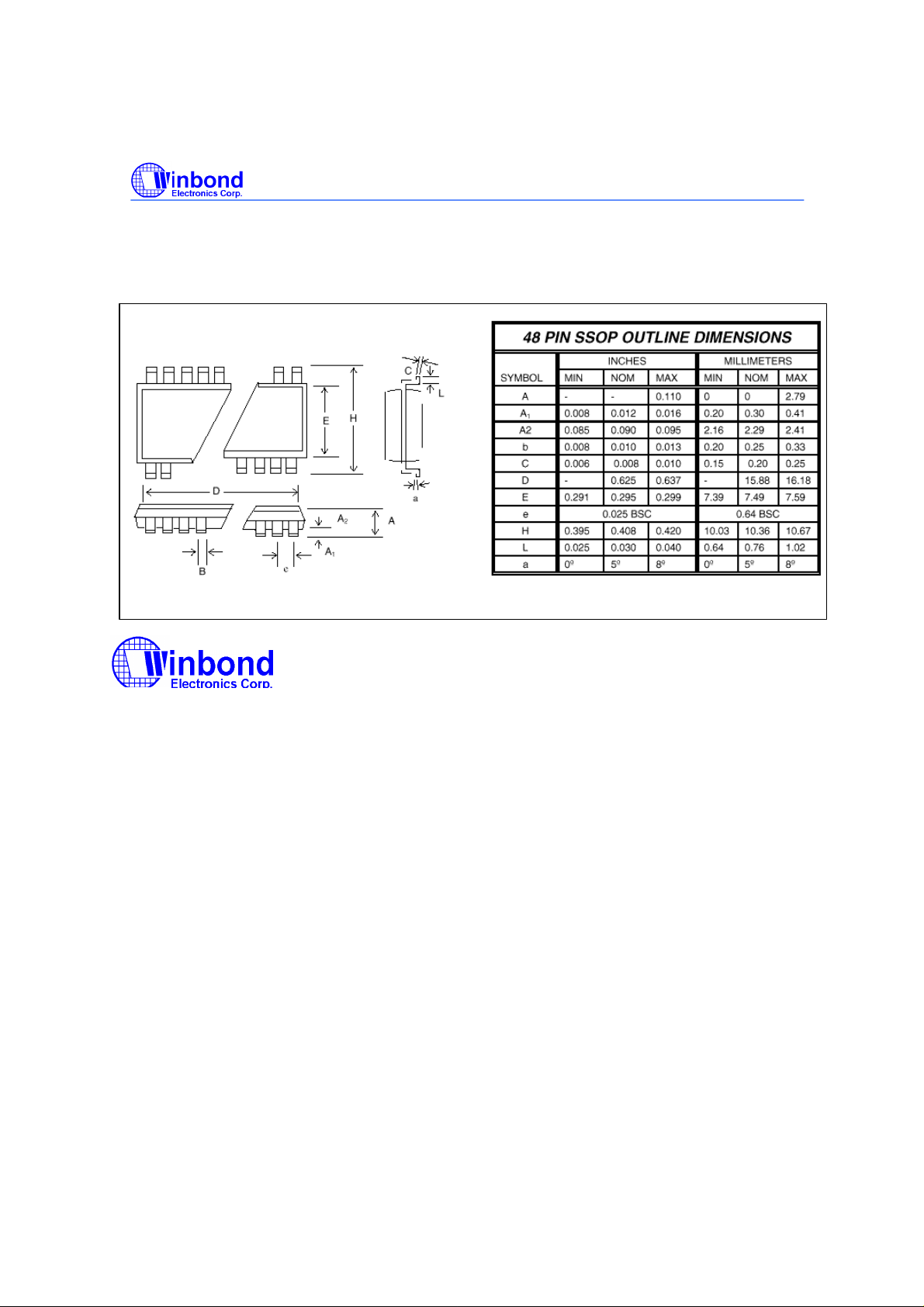

PACKAGE DRAWING AND DIMENSIONS
W83194BR-730
PRELIMINARY
Headquarters
No. 4, Creation Rd. III
Science-Based Industrial Park
Hsinchu, Taiwan
TEL: 886-35-770066
FAX: 886-35-789467
www: http://www.winbond.com.tw/
Taipei Office
11F, No. 115, Sec. 3, Min-Sheng East Rd.
Taipei, Taiwan
TEL: 886-2-7190505
FAX: 886-2-7197502
TLX: 16485 WINTPE
Winbond Electronics (H.K.) Ltd.
Rm. 803, World Trade Square, Tower II
123 Hoi Bun Rd., Kwun Tong
Kowloon, Hong Kong
TEL: 852-27516023-7
FAX: 852-27552064
Winbond Electronics
(North America) Corp.
2730 Orchard Parkway
San Jose, CA 95134 U.S.A.
TEL: 1-408-9436666
FAX: 1-408-9436668
Please note that all data and specifications are subject to change without
notice. All the trade marks of products and companies mentioned in this data
sheet belong to their respective owners
.
These products are not designed for use in life support appliances, devices,
or systems where malfunction of these products can reasonably be expected
to result in personal injury. Winbond customers using or selling these
products for use in such applications do so at their own risk and agree to fully
indemnify Winbond for any damages resulting from such improper use or sale.
Publication Release Date:Oct. 2000
- 14 - Revision 0.60
Loading...
