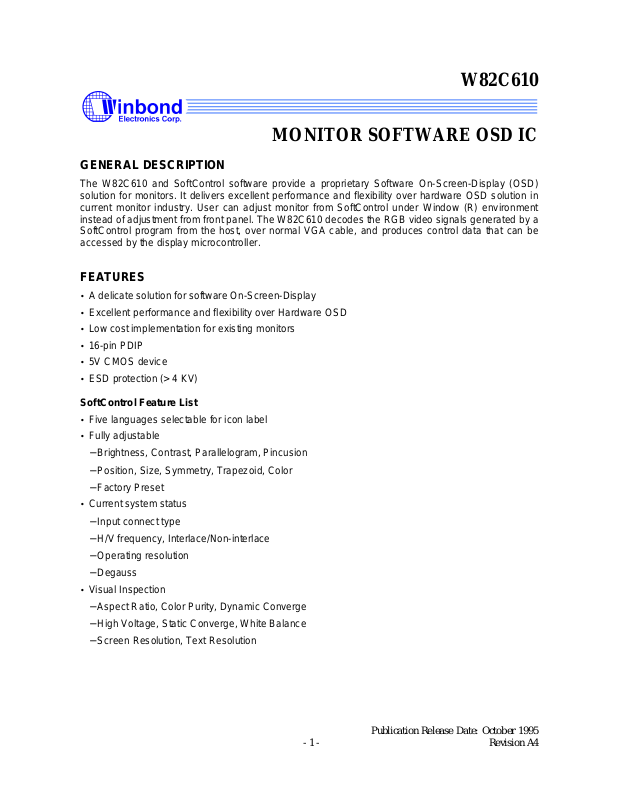

Page 1
W82C610
MONITOR SOFTWARE OSD IC
GENERAL DESCRIPTION
The W82C610 and SoftControl software provide a proprietary Software On-Screen-Display (OSD)
solution for monitors. It delivers excellent performance and flexibility over hardware OSD solution in
current monitor industry. User can adjust monitor from SoftControl under Window (R) environment
instead of adjustment from front panel. The W82C610 decodes the RGB video signals generated by a
SoftControl program from the host, over normal VGA cable, and produces control data that can be
accessed by the display microcontroller.
FEATURES
• A delicate solution for software On-Screen-Display
• Excellent performance and flexibility over Hardware OSD
• Low cost implementation for existing monitors
• 16-pin PDIP
• 5V CMOS device
• ESD protection (> 4 KV)
SoftControl Feature List
• Five languages selectable for icon label
• Fully adjustable
− Brightness, Contrast, Parallelogram, Pincusion
− Position, Size, Symmetry, Trapezoid, Color
− Factory Preset
• Current system status
− Input connect type
− H/V frequency, Interlace/Non-interlace
− Operating resolution
− Degauss
• Visual Inspection
− Aspect Ratio, Color Purity, Dynamic Converge
− High Voltage, Static Converge, White Balance
− Screen Resolution, Text Resolution
Publication Release Date: October 1995
- 1 - Revision A4
Page 2
PIN CONFIGURATION
RD
INT
W82C610
RDATA
GDATA
BDATA
LEVEL
RD
INT
IDB3
GND
1 16
2
3
4
5
6
7
8 9
V
CC
15
ODB0
14
ODB1
ODB2
13
12
ODB3
11
IDB0
10
IDB1
IDB2
PIN DESCRIPTION
NO. NAME TYPE DESCRIPTION
1 RDATA Input AC-coupled red video (0.7 VPP typ)
2 GDATA Input AC-coupled green video (0.7 VPP typ)
3 BDATA Input AC-coupled blue video (0.7 VPP typ)
4 LEVEL Input Comparator trip level for RGB video
5
6
Input Read enable. Enables the ODB[3:0] bus of the SoftControl
code output to be read by the controller.
Output (OD)
Enabled whenever SoftControl identification code is detected.
7 IDB3 Input 4-bit bus for data input from key pad
8 GND Power Ground
9 IDB2 Input 4-bit bus for data input from key pad
10 IDB1 Input 4-bit bus for data input from key pad
11 IDB0 Input 4-bit bus for data input from key pad
12 ODB3 Output 4-bit bus for data output
13 ODB2 Output 4-bit bus for data output
14 ODB1 Output 4-bit bus for data output
15 ODB0 Output 4-bit bus for data output
16 VCC Power +5V
*OD: Open-drain output
- 2 -
Page 3
BLOCK DIAGRAM
W82C610
IDB[3:0]
ODB[3:0]
INT
RDATA
GDATA
BDATA
LEVEL
RD
COMPARATORS
CLEAR
L
R
S
E
H
G
I
I
F
S
T
T
E
R
S
S
I
G
N
A
T
U
R
E
LATCH
D
E
T
E
C
T
I
O
N
A
T
C
H
ENABLE
C
R
O
E
N
A
T
D
R
O
L
FUNCTIONAL DESCRIPTION
The W82C610 converts analog video signals to digital data and detects the SoftControl signature
code. If the signature code is detected, the W82C610 informs the microcontroller and places the
SoftControl data on the parallel bus.
SoftControl allows the PC to communicate with the monitor over the normal video cable. No
additional circuits are required in the PC. Communication is accomplished by means of coded data
transferred on the RGB video signals by the SoftControl program. To prevent false readings, data are
sent with a 12-bit signature code.
The W82C610 provides a data path for inputs from key pad to microcontroller. Output ODB0-ODB3
can be either from key pad (IDB0−IDB3) or from VGA cable (RDATA, GDATA, BDATA).
Publication Release Date: October 1995
- 3 - Revision A4
Page 4
ABSOLUTE MAXIMUM RATINGS
B
PARAMETER RATING UNIT
Supply Voltage (VCC to VSS) 5.5 V
Analog Input Voltage VSS-0.5 to VCC+0.5 V
Digital Input Voltage VSS-0.5 to VCC+0.5 V
Power Dissipation 5 mW
W82C610
Ambient Operating Temperature 0 to 70
Lead Temperature (Soldering, 10 sec) 250
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the
device.
°C
°C
DC CHARACTERISTICS
VCC = 5V +/- 5%, Ta = 0° C to 70° C
PARAMETER TEST
CONDITIONS
VCC Supply Current 1 mA
Leakage Current
Ta = 70° C
Logic Input, VIH 0.7 VDD - - V
Logic Input, VIL 0 - 0.2 VDD V
Logic Output, VOH
Logic Output, VOL
IO ≥ 24 mA
IO ≤ 6 mA
Operating Frequency - - Note MHz
Note: Depending on level input voltage (Level Voltage (V)/Max Frequency (Mhz)):
(3/2, 2.5/10, 2/13, 1.5/15, 1/15, 0.5/10).
MIN. TYP. MAX. UNIT
- - 10
µA
2.5 3.5 - V
- 0.3 0.4 V
AC CHARACTERISTICS AND TIMING WAVEFORMS
Read SoftControl Data
INT
DB[0:7]
RD
IDB[3:0] Output
DATA
T
A
T
B
- 4 -
IDB[3:0] Output
T
Page 5
Read Characteristics, continued
INT
PARAMETER SYMBOL MIN. MAX. UNIT
W82C610
to Read
TH - Note Note
Data Ready TA 50 - nS
Bus to IDB[3:0] Output TB - 50 nS
Note: Video data are available until RD occurs.
TYPICAL APPLICATION CIRCUIT
KEY PAD CIRCUIT
BIAS
RC
NETWORK
5
10
4
9
3
8
2
7
1
6
15
14
13
12
11
W82C610
LEVEL
RDATA
GDATA
BDATA
RD
INT
IDB3
IDB2
IDB1
IDB0
ODB3
ODB2
ODB1
ODB0
31
EA/VP
19
X1
18
X2
9
RESET
12
INT0
INT1
13
14
T0
15
T1
1
P1.0
2
P1.1
3
P1.2
4
P1.3
5
P1.4
6
P1.5
7
P1.6
8
P1.7
80X51X
P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7
P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7
RD
WR
PSEN
ALE/P
TXD
RXD
39
38
37
36
35
34
33
32
21
22
23
24
25
26
27
28
17
16
29
30
11
10
Publication Release Date: October 1995
- 5 - Revision A4
Page 6
RC NETWORK
W82C610
5.6K 1%
2.7K 1%
RED
BLUE
GREEN
680 1%
+5V
IN4148
33u
150K
IN4148
33u
150K
33u
150K
0.1u
0.1u
IN4148
W82C610
LEVEL
150K
RDATA
BDATA
IN4148
GDATA
Headquarters
No. 4, Creation Rd. III,
Science-Based Industrial Park,
Hsinchu, Taiwan
TEL: 886-3-5770066
FAX: 886-3-5792646
http://www.winbond.com.tw/
Voice & Fax-on-demand: 886-2-7197006
Winbond Electronics (H.K.) Ltd.
Rm. 803, World Trade Square, Tower II,
123 Hoi Bun Rd., Kwun Tong,
Kowloon, Hong Kong
TEL: 852-27516023
FAX: 852-27552064
Taipei Office
11F, No. 115, Sec. 3, Min-Sheng East Rd.,
Taipei, Taiwan
TEL: 886-2-7190505
FAX: 886-2-7197502
Note: All data and specifications are subject to change without notice.
- 6 -
Winbond Electronics North America Corp.
Winbond Memory Lab.
Winbond Microelectronics Corp.
Winbond Systems Lab.
2730 Orchard Parkway, San Jose,
CA 95134, U.S.A.
TEL: 1-408-9436666
FAX: 1-408-9436668
