Datasheet W78E51BP-40, W78E51BP-24, W78E51BF-40, W78E51BF-24, W78E51B-40 Datasheet (Winbond Electronics)

Preliminary W78E51B

8-BIT MTP MICROCONTROLLER

Publication Release Date: December 1998

- 1 - Revision A1

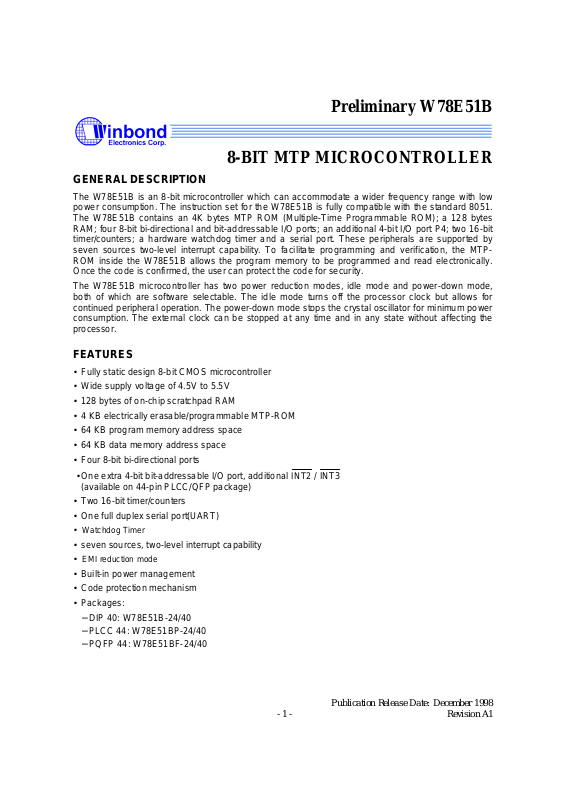

GENERAL DESCRIPTION

The W78E51B is an 8-bit microcontroller which can accommodate a wider frequency range with low
power consumption. The instruction set for the W78E51B is fully compatible with the standard 8051.
The W78E51B contains an 4K bytes MTP ROM (Multiple-Time Programmable ROM); a 128 bytes
RAM; four 8-bit bi-directional and bit-addressable I/O ports; an additional 4-bit I/O port P4; two 16-bit
timer/counters; a hardware watchdog timer and a serial port. These peripherals are supported by
seven sources two-level interrupt capability. To facilitate programming and verification, the MTP­ROM inside the W78E51B allows the program memory to be programmed and read electronically.
Once the code is confirmed, the user can protect the code for security.

The W78E51B microcontroller has two power reduction modes, idle mode and power-down mode,
both of which are software selectable. The idle mode turns off the processor clock but allows for
continued peripheral operation. The power-down mode stops the crystal oscillator for minimum power
consumption. The external clock can be stopped at any time and in any state without affecting the
processor.

FEATURES

• Fully static design 8-bit CMOS microcontroller

• Wide supply voltage of 4.5V to 5.5V

• 128 bytes of on-chip scratchpad RAM

• 4 KB electrically erasable/programmable MTP-ROM

• 64 KB program memory address space

• 64 KB data memory address space

• Four 8-bit bi-directional ports

•One extra 4-bit bit-addressable I/O port, additional

INT2

/ INT3

(available on 44-pin PLCC/QFP package)

• Two 16-bit timer/counters

• One full duplex serial port(UART)

• Watchdog Timer

• seven sources, two-level interrupt capability

• EMI reduction mode

• Built-in power management

• Code protection mechanism

• Packages:

− DIP 40: W78E51B-24/40

− PLCC 44: W78E51BP-24/40

− PQFP 44: W78E51BF-24/40

Preliminary W78E51B

- 2 -

PIN CONFIGURATIONS

VDD1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

39

40

34

35

36

37

38

30

31

32

33

26

27

28

29

21

22

23

24

25

P0.0, AD0

P0.1, AD1

P0.2, AD2

P0.3, AD3

P0.4, AD4

P0.5, AD5

P0.6, AD6

P0.7, AD7

EA

ALE

PSEN

P2.5, A13

P2.6, A14

P2.7, A15

P2.0, A8

P2.1, A9

P2.2, A10

P2.3, A11

P2.4, A12

P1.0

40-Pin DIP (W78E51B)

P1.2
P1.3
P1.4
P1.5
P1.6

RXD, P3.0
TXD, P3.1

P1.7
RST

INT0, P3.2
INT1, P3.3

T0, P3.4
T1, P3.5

WR, P3.6

RD, P3.7

XTAL1

XTAL2

VSS

P1.1

44-Pin PLCC (W78E51BP)

44-Pin QFP (W78E51BF)

34

40 39 38 37 36

3544

43 4241

33
32

31
30
29
28
27
26
25
24

23

P0.4, AD4
P0.5, AD5
P0.6, AD6
P0.7, AD7
EA

ALE
PSEN

P2.7, A15
P2.6, A14
P2.5, A13

2221201918171615141312

11

4

3

2

1

8

7

6

5

10

9

P1.5
P1.6
P1.7
RST

RXD, P3.0

TXD, P3.1
INT0, P3.2
INT1, P3.3

T0, P3.4

T1, P3.5

X
T
A
L
1

V
S
S

P
2
.
4
,
A
1
2

P
2
.
3
,
A
1
1

P
2
.
2
,
A
1
0

P
2
.
1
,
A
9

P
2
.
0
,
A
8

X
T
A
L
2

P
3
.
7
,
/
R
D

P
3
.
6
,
/
W
R

A
D
3
,
P
0
.
3

P
1
.
0

P
1
.
2

V
D
D

A
D
2
,
P
0
.
2

A
D
1
,
P
0
.
1

A
D
0
,
P
0
.
0

P
1
.
1

P
1
.
3

P
1
.
4

40

2 1 44 43 42

41

6 5 4 3

39
38
37

36
35
34
33
32
31
30

29

P0.4, AD4
P0.5, AD5
P0.6, AD6
P0.7, AD7
EA

ALE
PSEN

P2.7, A15
P2.6, A14
P2.5, A13

2827262524232221201918

17

10

9

8

7

14

13

12

11

16

15

P1.5
P1.6
P1.7

RST

RXD, P3.0

TXD, P3.1
INT0, P3.2
INT1, P3.3

T0, P3.4
T1, P3.5

A
D
3
,
P
0
.
3

P
1
.
0

P
1
.
2

V

A
D
2
,
P
0
.
2

A
D
1
,
P
0
.
1

A
D
0
,
P
0
.
0

P
1
.
1

P
1
.
3

P
1
.
4

X
T
A
L
1

V
S
S

P
2
.
4
,
A
1
2

P
2
.
3
,
A
1
1

P
2
.
2
,
A
1
0

P
2
.
1
,
A
9

P
2
.
0
,
A
8

X
T
A
L
2

P
3
.
7
,
/
R
D

P
3
.
6
,
/
W
R

P
4
.
0

/
I
N
T
3
,
P
4
.
2

P4.1

P4.1

P
4
.
0

INT2, P4.3

INT2, P4.3

/
I
N
T
3
,
P
4
.2D

D

Preliminary W78E51B

Publication Release Date: December 1998

- 3 - Revision A1

PIN DESCRIPTION

SYMBOL DESCRIPTIONS

EA

EXTERNAL ACCESS ENABLE: This pin forces the processor to execute out of
external ROM. It should be kept high to access internal ROM. The ROM address and

data will not be presented on the bus if EA pin is high and the program counter is
within on-chip ROM area.

PSEN

PROGRAM STORE ENABLE:

PSEN

enables the external ROM data onto the Port 0

address/ data bus during fetch and MOVC operations. When internal ROM access is
performed, no

PSEN

strobe signal outputs from this pin.

ALE

ADDRESS LATCH ENABLE: ALE is used to enable the address latch that separates
the address from the data on Port 0.

RST

RESET: A high on this pin for two machine cycles while the oscillator is running resets
the device.

XTAL1

CRYSTAL1: This is the crystal oscillator input. This pin may be driven by an external
clock.

XTAL2

CRYSTAL2: This is the crystal oscillator output. It is the inversion of XTAL1.

VSS

GROUND: Ground potential

VDD

POWER SUPPLY: Supply voltage for operation.

P0.0−P0.7

PORT 0: Port 0 is a bi-directional I/O port which also provides a multiplexed low order
address/data bus during accesses to external memory. The pins of Port 0 can be
individually configured to open-drain or standard port with internal pull-ups.

P1.0−P1.7

PORT 1: Port 1 is a bi-directional I/O port with internal pull-ups. The bits have alternate
functions which are described below:

T2(P1.0): Timer/Counter 2 external count input
T2EX(P1.1): Timer/Counter 2 Reload/Capture control

P2.0−P2.7

PORT 2: Port 2 is a bi-directional I/O port with internal pull-ups. This port also provides
the upper address bits for accesses to external memory.

P3.0−P3.7

PORT 3: Port 3 is a bi-directional I/O port with internal pull-ups. All bits have alternate
functions, which are described below:

RXD(P3.0) : Serial Port receiver input
TXD(P3.1) : Serial Port transmitter output

INT0 (P3.2) : External Interrupt 0

INT1

(P3.3) : External Interrupt 1
T0(P3.4) : Timer 0 External Input
T1(P3.5) : Timer 1 External Input

WR

(P3.6) : External Data Memory Write Strobe

RD

(P3.7) : External Data Memory Read Strobe

P4.0−P4.3

PORT 4: Another bit-addressable bidirectional I/O port P4. P4.3 and P4.2 are
alternative function pins. It can be used as general I/O port or external interrupt input

sources (

INT2

/INT3).

Preliminary W78E51B

- 4 -

BLOCK DIAGRAM

P3.0
~
P3.7

P1.0

~

P1.7

ALU

Port 0
Latch

Port 1
Latch

Timer

1

Timer

0

Port

1

UART

XTAL1

PSENALE

Vss

Vcc

RST

XTAL2

Oscillator

Interrupt

PSW

Instruction

Decoder

&

Sequencer

Reset Block

Bus & Clock

Controller

SFR RAM

Address

Power control

128 bytes

RAM & SFR

Stack

Pointer

B

Addr. Reg.

Incrementor

PC

DPTR

Temp Reg.

T2

T1

ACC

Port 3

Latch

Port 4

Latch

Port

3

Port 2

Latch

P4.0
~
P4.3

Port

4

Port

0

Port

2

P2.0
~
P2.7

P0.0
~
P0.7

INT2

INT3

Watchdog

Timer

ROM

FUNCTIONAL DESCRIPTION

The W78E51B architecture consists of a core controller surrounded by various registers, five general
purpose I/O ports, 128 bytes of RAM, two timer/counters, and a serial port. The processor supports
111 different opcodes and references both a 64K program address space and a 64K data storage
space.

New Defined Peripheral

In order to be more suitable for I/O, an extra 4-bit bit-addressable port P4 and two external interrupt

INT2

, INT3 has been added to either the PLCC or QFP 44 pin package. And description follows:

Preliminary W78E51B

Publication Release Date: December 1998

- 5 - Revision A1

1.

INT2

/ INT3

Two additional external interrupts,

INT2

and INT3 , whose functions are similar to those of external
interrupt 0 and 1 in the standard 80C52. The functions/status of these interrupts are
determined/shown by the bits in the XICON (External Interrupt Control) register. The XICON register
is bit-addressable but is not a standard register in the standard 80C52. Its address is at 0C0H. To
set/clear bits in the XICON register, one can use the "SETB (/CLR) bit" instruction. For example,
"SETB 0C2H" sets the EX2 bit of XICON.

XICON - external interrupt control (C0H)

PX3 EX3 IE3 IT3 PX2 EX2 IE2 IT2

PX3: External interrupt 3 priority high if set
EX3: External interrupt 3 enable if set
IE3: If IT3 = 1, IE3 is set/cleared automatically by hardware when interrupt is detected/serviced
IT3: External interrupt 3 is falling-edge/low-level triggered when this bit is set/cleared by software
PX2: External interrupt 2 priority high if set
EX2: External interrupt 2 enable if set
IE2: If IT2 = 1, IE2 is set/cleared automatically by hardware when interrupt is detected/serviced
IT2: External interrupt 2 is falling-edge/low-level triggered when this bit is set/cleared by software

Eight-source interrupt informations:

INTERRUPT

SOURCE

VECTOR

ADDRESS

POLLING

SEQUENCE WITHIN

PRIORITY LEVEL

ENABLE

REQUIRED

SETTINGS

INTERRUPT

TYPE

EDGE/LEVEL

External Interrupt 0 03H 0 (highest) IE.0 TCON.0
Timer/Counter 0 0BH 1 IE.1 ­External Interrupt 1 13H 2 IE.2 TCON.2
Timer/Counter 1 1BH 3 IE.3 ­Serial Port 23H 4 IE.4 ­External Interrupt 2 33H 5 XICON.2 XICON.0
External Interrupt 3 3BH 6 (lowest) XICON.6 XICON.3

2. PORT4

Another bit-addressable port P4 is also available and only 4 bits (P4<3:0>) can be used. This port
address is located at 0D8H with the same function as that of port P1, except the P4.3 and P4.2 are

alternative function pins. It can be used as general I/O pins or external interrupt input sources (

INT2

,

INT3 ).

Example:

P4 REG 0D8H

MOV P4, #0AH ; Output data "A" through P4.0−P4.3.

MOV A, P4 ; Read P4 status to Accumulator.
SETB P4.0 ; Set bit P4.0
CLR P4.1 ; Clear bit P4.1

Preliminary W78E51B

- 6 -

3. Reduce EMI Emission

Because of on-chip MTP-ROM, when a program is running in internal ROM space, the ALE will be
unused. The transition of ALE will cause noise, so it can be turned off to reduce the EMI emission if it
is useless. Turning off the ALE signal transition only requires setting the bit 0 of the AUXR SFR,
which is located at 08Eh. When ALE is turned off, it will be reactivated when the program accesses
external ROM/RAM data or jumps to execute an external ROM code. The ALE signal will turn off
again after it has been completely accessed or the program returns to internal ROM code space. The
AO bit in the AUXR register, when set, disables the ALE output. In order to reduce EMI emission from
oscillation circuitry, W78E51B allows user to diminish the gain of on-chip oscillator amplifiers by using
programmer to clear the B7 bit of security register. Once B7 is set to 0, a half of gain will be
decreased. Care must be taken if user attempts to diminish the gain of oscillator amplifier, reducing a
half of gain may effect to external crystal operating improperly at high frequency above 24MHz. The
value of R and C1,C2 may need adjustment while running at lower gain.

***AUXR - Auxiliary register (8EH)

- - - - - - - AO

AO: Turn off ALE output.

4. Power-off Flag

***PCON - Power control (87H)

- -

-

POF

GF1 GF0 PD IDL

POF: Power off flag. Bit is set by hardware when power on reset. It can be cleared by software

to determine chip reset is a warm boot or cold boot.
GF1, GF0: These two bits are general-purpose flag bits for the user.
PD: Power down mode bit. Set it to enter power down mode.
IDL: Idle mode bit. Set it to enter idle mode.

The power-off flag is located at PCON.4. This bit is set when VDD has been applied to the part. It can
be used to determine if a reset is a warm boot or a cold boot if it is subsequently reset by software.

Watchdog Timer

The Watchdog timer is a free-running timer which can be programmed by the user to serve as a
system monitor, a time-base generator or an event timer. It is basically a set of dividers that divide
the system clock. The divider output is selectable and determines the time-out interval. When the
time-out occurs a system reset can also be caused if it is enabled. The main use of the Watchdog
timer is as a system monitor. This is important in real-time control applications. In case of power
glitches or electro-magnetic interference, the processor may begin to execute errant code. If this is
left unchecked the entire system may crash. The watchdog time-out selection will result in different
time-out values depending on the clock speed. The Watchdog timer will de disabled on reset. In
general, software should restart the Watchdog timer to put it into a known state. The control bits that
support the Watchdog timer are discussed below.

Preliminary W78E51B

Publication Release Date: December 1998

- 7 - Revision A1

Watchdog Timer Control Register

Bit: 7 6 5 4 3 2 1 0

ENW CLRW WIDL - - PS2 PS1 PS0

Mnemonic: WDTC Address: 8FH

ENW : Enable watch-dog if set.
CLRW: Clear watch-dog timer and prescaler if set. This flag will be cleared automatically
WIDL : If this bit is set, watch-dog is enabled under IDLE mode. If cleared, watch-dog is disabled

under IDLE mode. Default is cleared.

PS2, PS1, PS0: Watch-dog prescaler timer select. Prescaler is selected when set PS2~0 as follows:

PS2 PS1 PS0 PRESCALER SELECT

0 0 0 2
0 1 0 4
0 0 1 8
0 1 1 16
1 0 0 32
1 0 1 64
1 1 0 128
1 1 1 256

The time-out period is obtained using the following equation :

1

OSC

2 PRESCALER 1000 12 mS

14

× × × ×

Before Watchdog time-out occurs, the program must clear the 14-bit timer by writing 1 to WDTC.6
(CLRW). After 1 is written to this bit, the 14-bit timer , prescaler and this bit will be reset on the next
instruction cycle. The Watchdog timer is cleared on reset.

OSC 1/12

PRESCALER

14-BIT TIMER

CLEAR

CLRW

EXTERNAL

RESET

INTERNAL

RESET

WIDL

IDLE

ENW

Watchdog Timer Block Diagram

Preliminary W78E51B

- 8 -

Typical Watch-Dog time-out period when OSC = 20 MHz

PS2 PS1 PS0 WATCHDOG TIME-OUT PERIOD

0 0 0 19.66 mS
0 1 0 39.32 mS
0 0 1 78.64 mS
0 1 1 157.28 mS
1 0 0 314.57 mS
1 0 1 629.14 mS
1 1 0 1.25 S
1 1 1 2.50 S

Clock

The W78E51B is designed to be used with either a crystal oscillator or an external clock. Internally,
the clock is divided by two before it is used. This makes the W78E51B relatively insensitive to duty
cycle variations in the clock. The W78E51B incorporates a built-in crystal oscillator. To make the
oscillator work, a crystal must be connected across pins XTAL1 and XTAL2. In addition, a load
capacitor must be connected from each pin to ground. An external clock source should be connected
to pin XTAL1. Pin XTAL2 should be left unconnected. The XTAL1 input is a CMOS-type input, as
required by the crystal oscillator.

Power Management

Idle Mode

The idle mode is entered by setting the IDL bit in the PCON register. In the idle mode, the internal
clock to the processor is stopped. The peripherals and the interrupt logic continue to be clocked. The
processor will exit idle mode when either an interrupt or a reset occurs.

Power-down Mode

When the PD bit of the PCON register is set, the processor enters the power-down mode. In this
mode all of the clocks are stopped, including the oscillator. The only way to exit power-down mode is
by a reset.

Reset

The external RESET signal is sampled at S5P2. To take effect, it must be held high for at least two
machine cycles while the oscillator is running. An internal trigger circuit in the reset line is used to
deglitch the reset line when the W78E51B is used with an external RC network. The reset logic also
has a special glitch removal circuit that ignores glitches on the reset line.

During reset, the ports are initialized to FFH, the stack pointer to 07H, PCON (with the exception of
bit 4) to 00H, and all of the other SFR registers except SBUF to 00H. SBUF is not reset.

ON-CHIP MTP ROM CHARACTERISTICS

The W78E51B has several modes to program the on-chip MTP-ROM. All these operations are
configured by the pins RST, ALE,

PSEN

, A9CTRL(P3.0), A13CTRL(P3.1), A14CTRL(P3.2),

OECTRL(P3.3), CE(P3.6), OE(P3.7), A0(P1.0) and VPP(EA). Moreover, the A15−A0(P2.7−P2.0,

Preliminary W78E51B

Publication Release Date: December 1998

- 9 - Revision A1

P1.7−P1.0) and the D7−D0(P0.7−P0.0) serve as the address and data bus respectively for these
operations.

Read Operation

This operation is supported for customer to read their code and the Security bits. The data will not be
valid if the Lock bit is programmed to low.

Output Disable Condition

When the OE is set to high, no data output appears on the D7..D0.

Program Operation

This operation is used to program the data to MTP ROM and the security bits. Program operation is
done when the Vpp is reach to Vcp (12.5V) level, CE set to low, and OE set to high.

Program Verify Operation

All the programming data must be checked after program operations. This operation should be
performed after each byte is programmed; it will ensure a substantial program margin.

Erase Operation

An erase operation is the only way to change data from 0 to 1. This operation will erase all the MTP
ROM cells and the security bits from 0 to 1. This erase operation is done when the Vpp is reach to

Vep level, CE set to low, and OE set to high.

Erase Verify Operation

After an erase operation, all of the bytes in the chip must be verified to check whether they have been
successfully erased to 1 or not. The erase verify operation automatically ensures a substantial erase

margin. This operation will be done after the erase operation if Vpp = Vep (14.5V), CE is high and

OE is low.

Program/Erase Inhibit Operation

This operation allows parallel erasing or programming of multiple chips with different data. When
P3.6(CE)= VIH, P3.7( OE) = VIH, erasing or programming of non-targeted chips is inhibited. So,

except for the P3.6 and P3.7 pins, the individual chips may have common inputs.

Preliminary W78E51B

- 10 -

Company/Device ID Read Operation

This operation is supported for MTP ROM programmer to get the company ID or device ID on the
W78E51B.

OPERATIONS P3.0

(A9

CTRL)

P3.1
(A13

CTRL)

P3.2

(A14

CTRL)

P3.3

(OE

CTRL)

P3.6

(CE)

P3.7

(OE )

EA

(VPP)

P2,P1

(A15..A0)P0(D7..D0)

NOTE

Read 0 0 0 0 0 0 1 Address Data Out
Output Disable 0 0 0 0 0 1 1 X Hi-Z
Program 0 0 0 0 0 1 VCP Address Data In
Program

Verify

0 0 0 0 1 0 VCP Address Data Out @3

Erase 1 0 0 0 0 1 VEP A0:0,

others: X

Data In

0FFH

@4

Erase Verify 1 0 0 0 1 0 VEP Address Data Out @5
Program/Eras

e Inhibit

X 0 0 0 1 1 VCP/

VEP

X X

Company ID 1 0 0 0 0 0 1 A0 = 0 Data Out
Device ID 1 0 0 0 0 0 1 A0 = 1 Data Out

Notes:

1. All these operations happen in RST = VIH, ALE = VIL and PSEN = VIH.

2. VCP = 12.5V, VEP = 14.5V, VIH = VDD, VIL = Vss.

3. The program verify operation follows behind the program operation.

4. This erase operation will erase all the on-chip MTP-ROM cells and the Security bits.

5. The erase verify operation follows behind the erase operation.

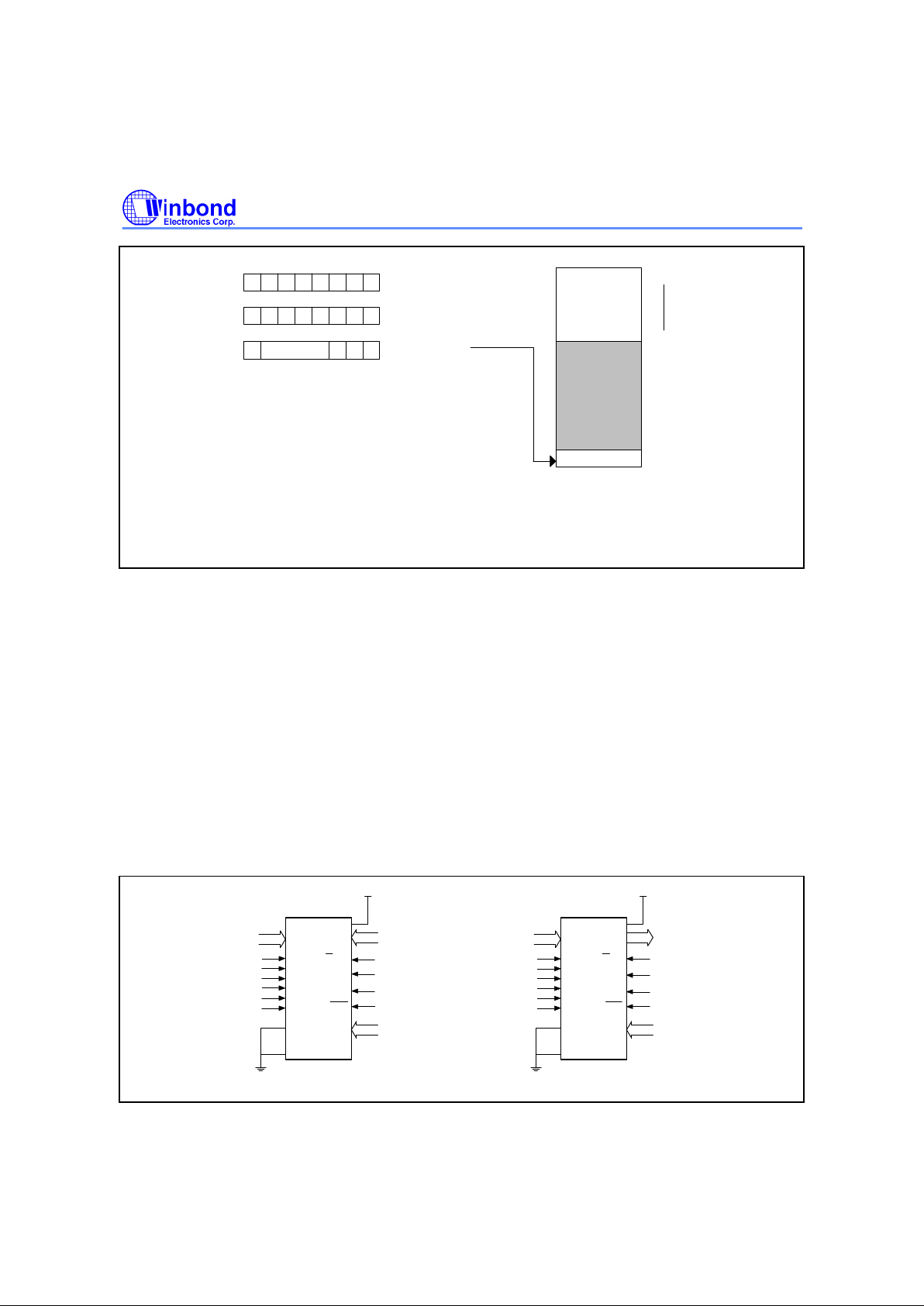

SECURITY BITS

During the on-chip MTP-ROM operation mode, the MTP-ROM can be programmed and verified
repeatedly. Until the code inside the MTP-ROM is confirmed OK, the code can be protected. The
protection of MTP ROM and those operations on it are described below. The W78E51B has several
Special Setting Registers, including the Security Register and Company/Device ID Registers, which
can not be accessed in normal mode. These registers can only be accessed from the MTP-ROM
operation mode. Those bits of the Security Registers can not be changed once they have been
programmed from high to low. They can only be reset through erase-all operation. The contents of the
Company ID and Device ID registers have been set in factory. Both registers are addressed by the A0
address line during the same specific condition. The Security Register is addressed in the MTP-ROM
operation mode by address #0FFFFh.

Preliminary W78E51B

Publication Release Date: December 1998

- 11 - Revision A1

B0B1

B0 : Lock bit, logic 0 : active
B1 : MOVC inhibit,

logic 0 : the MOVC instruction in external memory
cannot access the code in internal memory.
logic 1 : no restriction.

Default 1 for all security bits.

Special Setting Registers

Company ID (#DAH)

D7 D6 D5 D4 D3 D2 D1 D0

1 1 0 1 1 0 1 0

Device ID (#E0H)

1 1 1 0 00 0

Security Bits

0

4KB MTP ROM

Program Memory

Reserved

Security Register

0FFFFh

0000h

0FFFh

Reserved B2

B2 : Encryption
logic 0 : the encryption logic enable
logic 1 : the encryption logic disable

Reserved bits must be kept in logic 1.

B7

B7 : Osillator Control

logic 0 : 1/2 gain

logic 1 : Full gain

Lock bit

This bit is used to protect the customer's program code in the W78E51B. It may be set after the
programmer finishes the programming and verifies sequence. Once this bit is set to logic 0, both the
MTP ROM data and Special Setting Registers can not be accessed again.

MOVC Inhibit

This bit is used to restrict the accessible region of the MOVC instruction. It can prevent the MOVC
instruction in external program memory from reading the internal program code. When this bit is set
to logic 0, a MOVC instruction in external program memory space will be able to access code only in
the external memory, not in the internal memory. A MOVC instruction in internal program memory
space will always be able to access the ROM data in both internal and external memory. If this bit is
logic 1, there are no restrictions on the MOVC instruction.

Encryption

This bit is used to enable/disable the encryption logic for code protection. Once encryption feature is
enabled, the data presented on port 0 will be encoded via encryption logic. Only whole chip erase will
reset this bit.

P1

P3.0
P3.1
P3.2
P3.3
P3.6
P3.7

X'tal1
X'tal2

P0

EA/Vpp

ALE

RST

PSEN

P2

Vss

A0 to A7

V

CP

V

IL

V

IH

V

IL

V

IL

V

IL

V

IL

V

IL

A8 to A15

PGM DATA

V

IH

V

IH

+5V

Programming Configuration

V

DD

P1

P3.0
P3.1
P3.2
P3.3
P3.6
P3.7

X'tal1
X'tal2

P0

EA/Vpp

ALE

RST

PSEN

P2

Vss

A0 to A7

V

CP

V

IL

V

IH

V

IL

V

IL

V

IL

V

IL

V

IL

A8 to A15

PGM DATA

V

IH

V

IH

+5V

Programming Verification

VDD

Preliminary W78E51B

- 12 -

ABSOLUTE MAXIMUM RATINGS

PARAMETER SYMBOL MIN. MAX. UNIT

DC Power Supply

VDD−VSS

-0.3 +7.0 V
Input Voltage VIN VSS -0.3 VDD +0.3 V
Operating Temperature TA 0 70

°C

Storage Temperature TST -55 +150

°C

Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the

device.

DC CHARACTERISTICS

VCC−VSS = 5V ±10%, TA = 25° C, unless otherwise specified.

PARAMETER SYMBOL TEST CONDITIONS SPECIFICATION UNIT

MIN. MAX.

Operating Voltage VDD 4.5 5.5 V
Operating Current IDD No load VDD = 5.5V - 20 mA
Idle Current IIDLE Idle mode VDD = 5.5V - 6 mA
Power Down Current IPWDN Power-down mode

VDD = 5.5V

- 50

µA

Input Current
P1, P2, P3, P4

IIN1 VDD = 5.5V

VIN = 0V or VDD

-50 +10

µA

Logical 1-to-0 Transition
Current P1, P2, P3

(*1)

, P4

ITL VDD = 5.5V

VIN = 2.0V

(*1)

-550 -

µA

Input Current
RST

(*2)

IIN2 VDD = 5.5V

VIN = VDD

-10 +300

µA

Input Leakage Current
P0,

EA

ILK VDD = 5.5V

0V < VIN < VDD

-10 +10

µA

Output Low Voltage
P1, P2, P3, P4

VOL1 VDD = 4.5V

IOL1 = +2 mA

- 0.45 V

Output Low Voltage
ALE,

PSEN

, P0

(*3)

VOL2 VDD = 4.5V

IOL2 = +4 mA

- 0.45 V

Output High Voltage
P1, P2, P3, P4

VOH1 VDD = 4.5V

IOH1 = -100 µA

2.4 - V

Output High Voltage
ALE,

PSEN

, P0

(*3)

VOH2 VDD = 4.5V

IOH2 = -400 µA

2.4 - V

Preliminary W78E51B

Publication Release Date: December 1998

- 13 - Revision A1

DC Characteristics, continued

PARAMETER SYMBOL TEST CONDITIONS SPECIFICATION UNIT

MIN. MAX.

Input Low Voltage
(Except RST)

VIL1 VDD = 4.5V 0 0.8 V

Input Low Voltage
RST

(*4)

VIL2 VDD = 4.5V 0 0.8 V

Input Low Voltage
XTAL1

(*4)

VIL3 VDD = 4.5V 0 0.8 V

Input High Voltage
(Except RST)

VIH1 VDD = 4.5V 2.4 VDD +0.2 V

Sink Current
P1, P2, P3, P4

ISK1 VDD = 4.5V

Vs = 0.45V

4 12 mA

Input High Voltage
RST

(*4)

VIH2 VDD = 4.5V 0.67 VDD VDD +0.2 V

Input High Voltage
XTAL1

(*4)

VIH3 VDD = 4.5V 0.67 VDD VDD +0.2 V

Sink Current
P0, ALE, PSEN

(*3)

ISK2 VDD = 4.5V

Vs = 0.45V

8 16 mA

Source Current
P1, P2, P3, P4

ISR1 VDD = 4.5V

VS = 2.4V

-100 -250 uA

Source Current
P0, ALE, PSEN

(*3)

ISR2 VDD = 4.5V

Vs = 2.4V

-8 -14 mA

Notes:
*1. Pins P1, P2 and P3 source a transition current when they are being externally driven from 1 to 0. The transition current reaches

its maximum value when VIN is approximately 2V.

*2. RST pin has an internal pull-down resistor.
*3. P0, ALE,

PSEN

are in the external access memory mode.

*4. XTAL1 is a CMOS input and RST is a Schmitt trigger input.

AC CHARACTERISTICS

The AC specifications are a function of the particular process used to manufacture the part, the
ratings of the I/O buffers, the capacitive load, and the internal routing capacitance. Most of the
specifications can be expressed in terms of multiple input clock periods (TCP), and actual parts will
usually experience less than a ±20 nS variation. The numbers below represent the performance
expected from a 0.6micron CMOS process when using 2 and 4 mA output buffers.

Preliminary W78E51B

- 14 -

Clock Input Waveform

T

T

XTAL1

F

CH

CL

OP, TCP

PARAMETER SYMBOL MIN. TYP. MAX. UNIT NOTES

Operating Speed FOP 0 - 40 MHz 1
Clock Period TCP 25 - - nS 2
Clock High TCH 10 - - nS 3
Clock Low TCL 10 - - nS 3

Notes:

1. The clock may be stopped indefinitely in either state.

2. The TCP specification is used as a reference in other specifications.

3. There are no duty cycle requirements on the XTAL1 input.

Program Fetch Cycle

PARAMETER SYMBOL MIN. TYP. MAX. UNIT NOTES

Address Valid to ALE Low TAAS

1 TCP -∆

- - nS 4

Address Hold from ALE Low TAAH

1 TCP -∆

- - nS 1, 4

ALE Low to

PSEN

Low

TAPL

1 TCP -∆

- - nS 4

PSEN

Low to Data Valid

TPDA - - 2 TCP nS 2

Data Hold after

PSEN

High

TPDH 0 - 1 TCP nS 3

Data Float after

PSEN

High

TPDZ 0 - 1 TCP nS

ALE Pulse Width TALW

2 TCP -∆

2 TCP - nS 4

PSEN

Pulse Width

TPSW

3 TCP -∆

3 TCP - nS 4

Notes:

1. P0.0−P0.7, P2.0−P2.7 remain stable throughout entire memory cycle.

2. Memory access time is 3 TCP.

3. Data have been latched internally prior to

PSEN

going high.

4. "∆" (due to buffer driving delay and wire loading) is 20 nS.

Data Read Cycle

PARAMETER SYMBOL MIN. TYP. MAX. UNIT NOTES

ALE Low to RD Low

TDAR

3 TCP -∆

-

3 TCP +∆

nS 1, 2

RD

Low to Data Valid

TDDA - - 4 TCP nS 1

Data Hold from RD High

TDDH 0 - 2 TCP nS

Data Float from RD High

TDDZ 0 - 2 TCP nS

RD

Pulse Width

TDRD

6 TCP -∆

6 TCP - nS 2

Notes:

1. Data memory access time is 8 TCP.

2. "∆" (due to buffer driving delay and wire loading) is 20 nS.

Preliminary W78E51B

Publication Release Date: December 1998

- 15 - Revision A1

Data Write Cycle

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

ALE Low to WR Low

TDAW

3 TCP -∆

-

3 TCP +∆

nS

Data Valid to WR Low

TDAD

1 TCP -∆

- - nS

Data Hold from WR High

TDWD

1 TCP -∆

- - nS

WR

Pulse Width

TDWR

6 TCP -∆

6 TCP - nS

Note: "∆" (due to buffer driving delay and wire loading) is 20 nS.

Port Access Cycle

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Port Input Setup to ALE Low TPDS 1 TCP - - nS
Port Input Hold from ALE Low TPDH 0 - - nS
Port Output to ALE TPDA 1 TCP - - nS

Note: Ports are read during S5P2, and output data becomes available at the end of S6P2. The timing data are referenced to

ALE, since it provides a convenient reference.

Program Operation

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

VPP Setup Time TVPS 2.0 - -

µS

Data Setup Time TDS 2.0 - -

µS

Data Hold Time TDH 2.0 - -

µS

Address Setup Time TAS 2.0 - -

µS

Address Hold Time TAH 0 - -

µS

CE

Program Pulse Width for

Program Operation

TPWP 290 300 310

µS

OECTRL Setup Time

TOCS 2.0 - -

µS

OECTRL Hold Time

TOCH 2.0 - -

µS

OE

Setup Time

TOES 2.0 - -

µS

OE

High to Output Float

TDFP 0 - 130 nS

Data Valid from

OE

TOEV - - 150 nS

Note: Flash data can be accessed only in flash mode. The RST pin must pull in VIH status, the ALE pin must pull in VIL status, and

the

PSEN

pin must pull in VIH status.

Preliminary W78E51B

- 16 -

TIMING WAVEFORMS

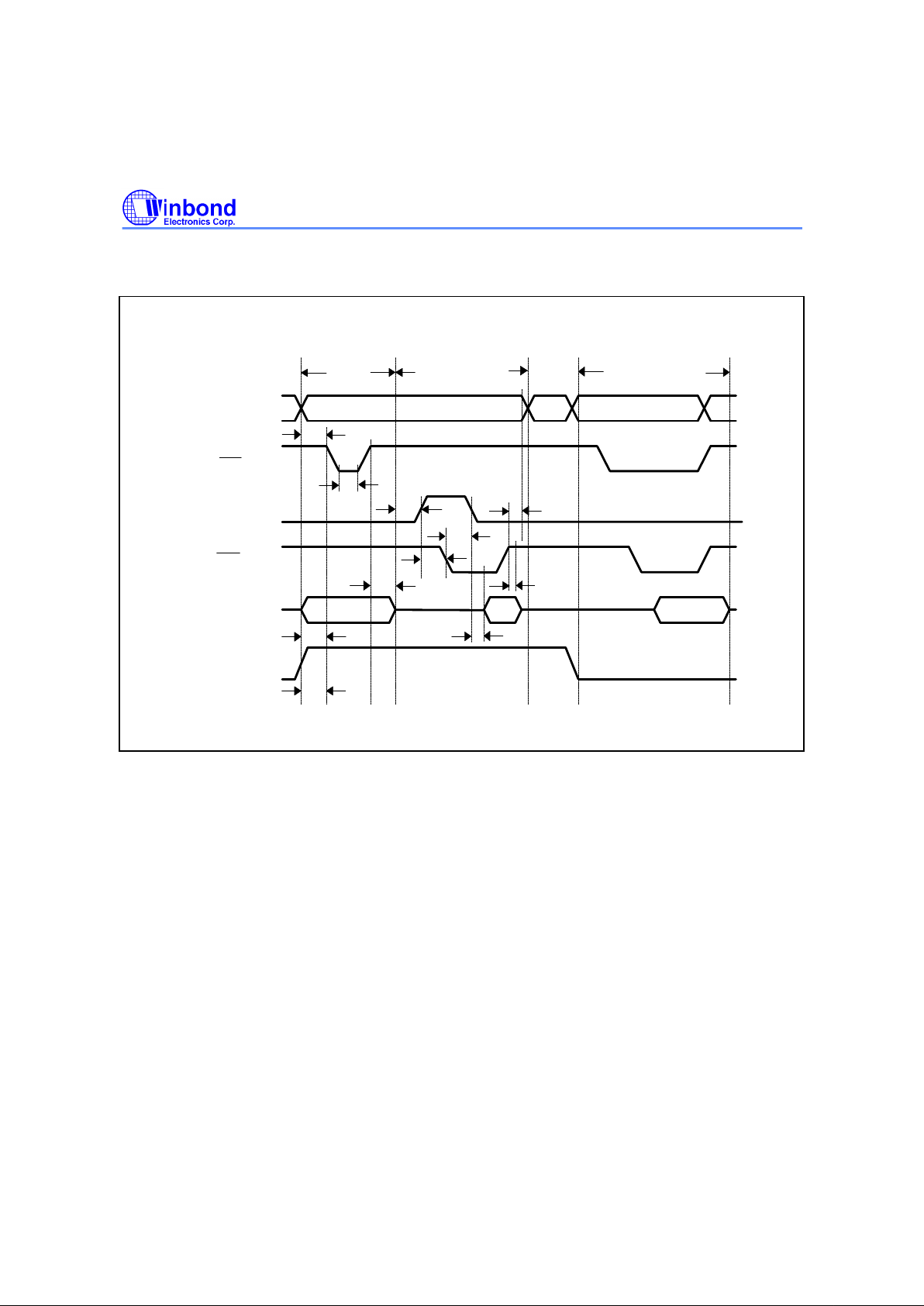

Program Fetch Cycle

S1

XTAL1

S2 S3 S4 S5 S6 S1 S2 S3 S4 S5 S6

ALE

PORT 2

A0-A7

A0-A7

Data

A0-A7

Code

T

A0-A7

DataCode

PORT 0

PSEN

PDH,TPDZ

T

PDA

T

AAH

T

AAS

T

PSW

T

APL

T

ALW

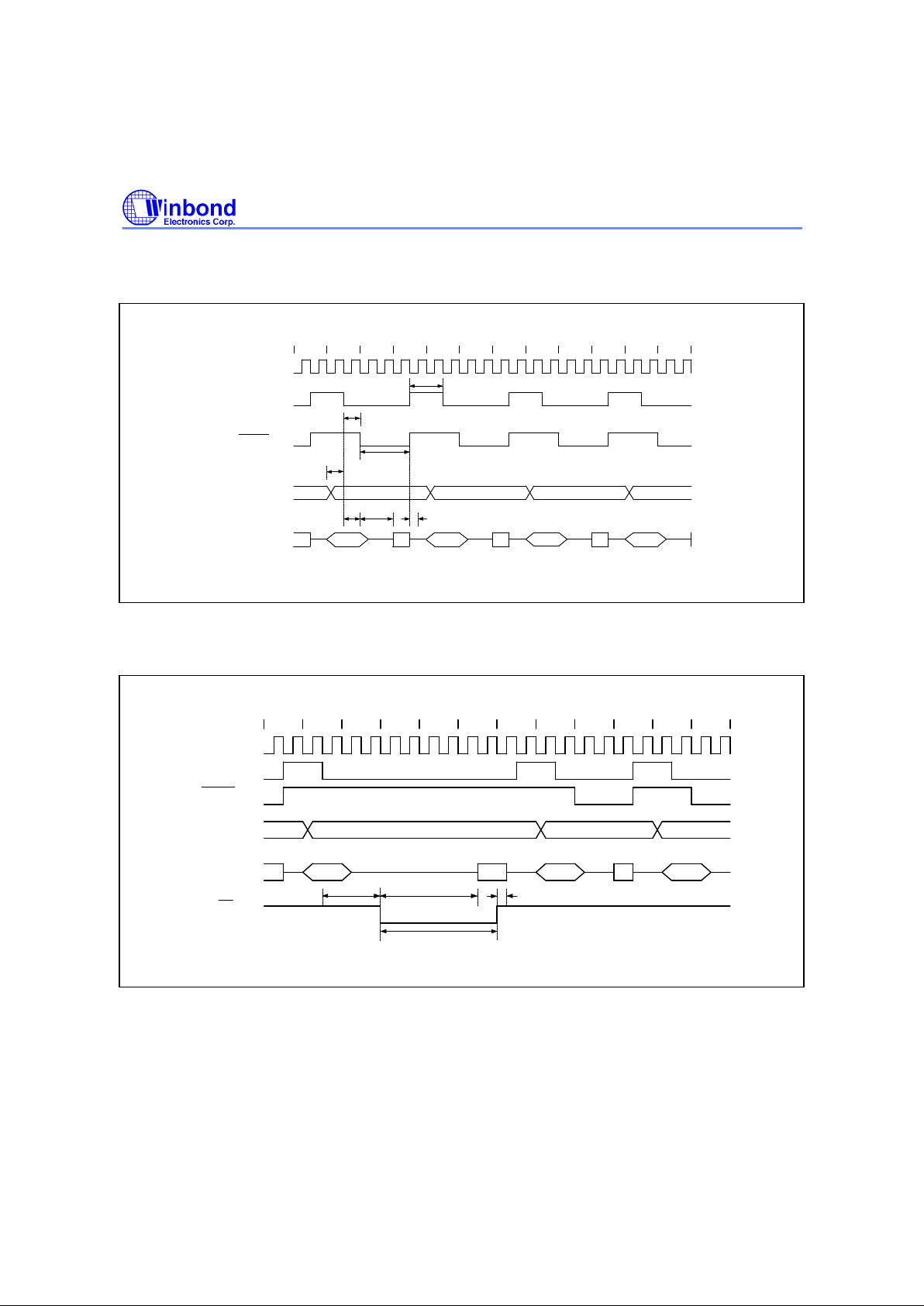

Data Read Cycle

S2 S3S5 S6 S1S2 S3 S4S5 S6 S1S4

XTAL1

ALE

PSEN

DATA

A8-A15

PORT 2

PORT 0

A0-A7

RD

T

DDH,TDDZ

TDDA

T

DRD

TDAR

Preliminary W78E51B

Publication Release Date: December 1998

- 17 - Revision A1

Timing Waveforms, continued

Data Write Cycle

S2 S3S5 S6 S1S2 S3 S4S1S5 S6S4

XTAL1

ALE

PSEN

A8-A15

DATA OUT

PORT 2

PORT 0

A0-A7

WR

T

T

DAW

DAD

T

DWR

T

DWD

Port Access Cycle

XTAL1

ALE

S5 S6 S1

DATA OUT

T

T

PORT

INPUT

T

SAMPLE

PDA

PDHPDS

Preliminary W78E51B

- 18 -

Timing Waveforms, continued

Program Operation

P2, P1

(A15... A0)

Address Stable

V

IH

V

IL

Address Valid

P3.6
(CE)

V

IH

V

IL

V

IH

V

IL

V

IH

V

IL

Data In Data Out

Vpp

D

OUT

Read Verify

Vcp
V

IH

Program Program

Verify

T

VPS

T

DS

T

DH

T

AS

T

AH

T

PWP

T

OES

T

DFP

T

OEV

T

OCS

V

IH

V

IL T

OCH

P3.7
(OE)

P0

(A7... A0)

P3.3

(OECTRL)

Preliminary W78E51B

Publication Release Date: December 1998

- 19 - Revision A1

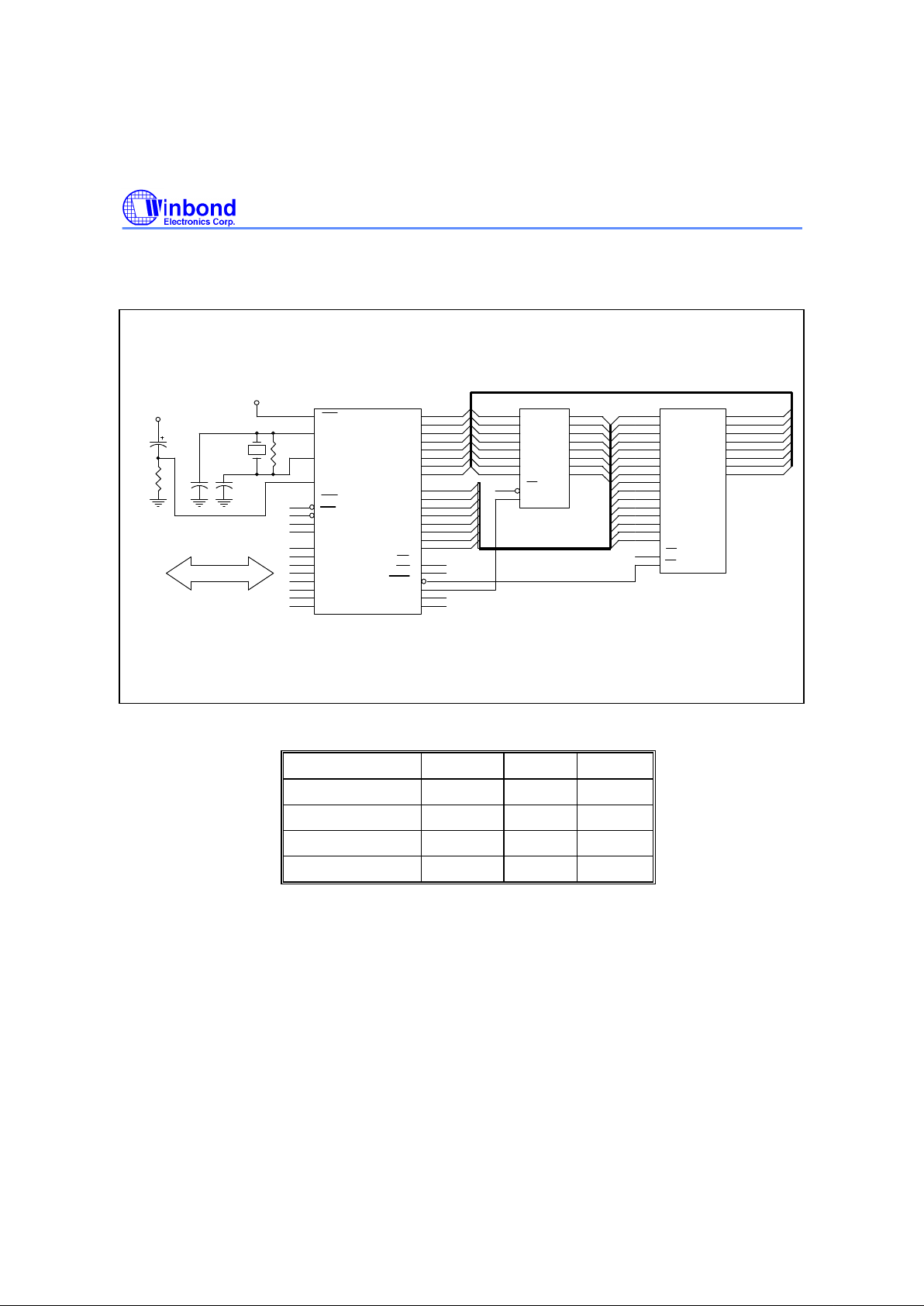

TYPICAL APPLICATION CIRCUITS

Expanded External Program Memory and Crystal

AD0

A0

A0

A0

10

A1

9

A2

8

A3

7

A4

6

A5

5

A6

4

A7

3

A8

25

A9

24

A10

21

A11

23

A12

2

A13

26

A14

27

A15

1

CE

20

OE

22

O0

11

O1

12

O2

13

O3

15

O4

16

O5

17

O6

18

O7

19

27512

AD0

D0

3

Q0

2

D1

4

Q1

5

D2

7

Q2

6

D3

8

Q3

9

D4

13

Q4

12

D5

14

Q5

15

D6

17

Q6

16

D7

18

Q7

19

OC

1

G

11

74373

AD0

EA

31

XTAL1

19

XTAL2

18

RST

9

INT0

12

INT1

13

T0

14

T1

15

P1.0

1

P1.1

2

P1.2

3

P1.3

4

P1.4

5

P1.5

6

P1.6

7

P1.7

8

39

38

37
36
35

34
33
32

21
22
23
24
25
26
27
28

17

WR

P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7

P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7

RD

16

PSEN

29

ALE

30

TXD

11

RXD

10

W78E51B

10 u

8.2 K

DD

CRYSTAL

C1

C2

R

AD1
AD2
AD3
AD4
AD5
AD6
AD7

A8

AD1
AD2
AD3
AD4
AD5
AD6
AD7

GND

A1
A2

A3
A4
A5
A6
A7

A1
A2
A3
A4
A5
A6
A7
A8
A9

AD1
AD2
AD3
AD4
AD5
AD6
AD7

A10
A11
A12
A13
A14
A15

GND

A9
A10
A11
A12

A13

A14

A15

V

DD

V

Figure A

CRYSTAL C1 C2 R

16 MHz 30P 30P ­24 MHz 15P 15P ­33 MHz 10P 10P 6.8K
40 MHz 5P 5P 4.7K

Above table shows the reference values for crystal applications (full gain).

Note: C1, C2, R components refer to Figure A.

Preliminary W78E51B

- 20 -

Typical Application Circuits, continued

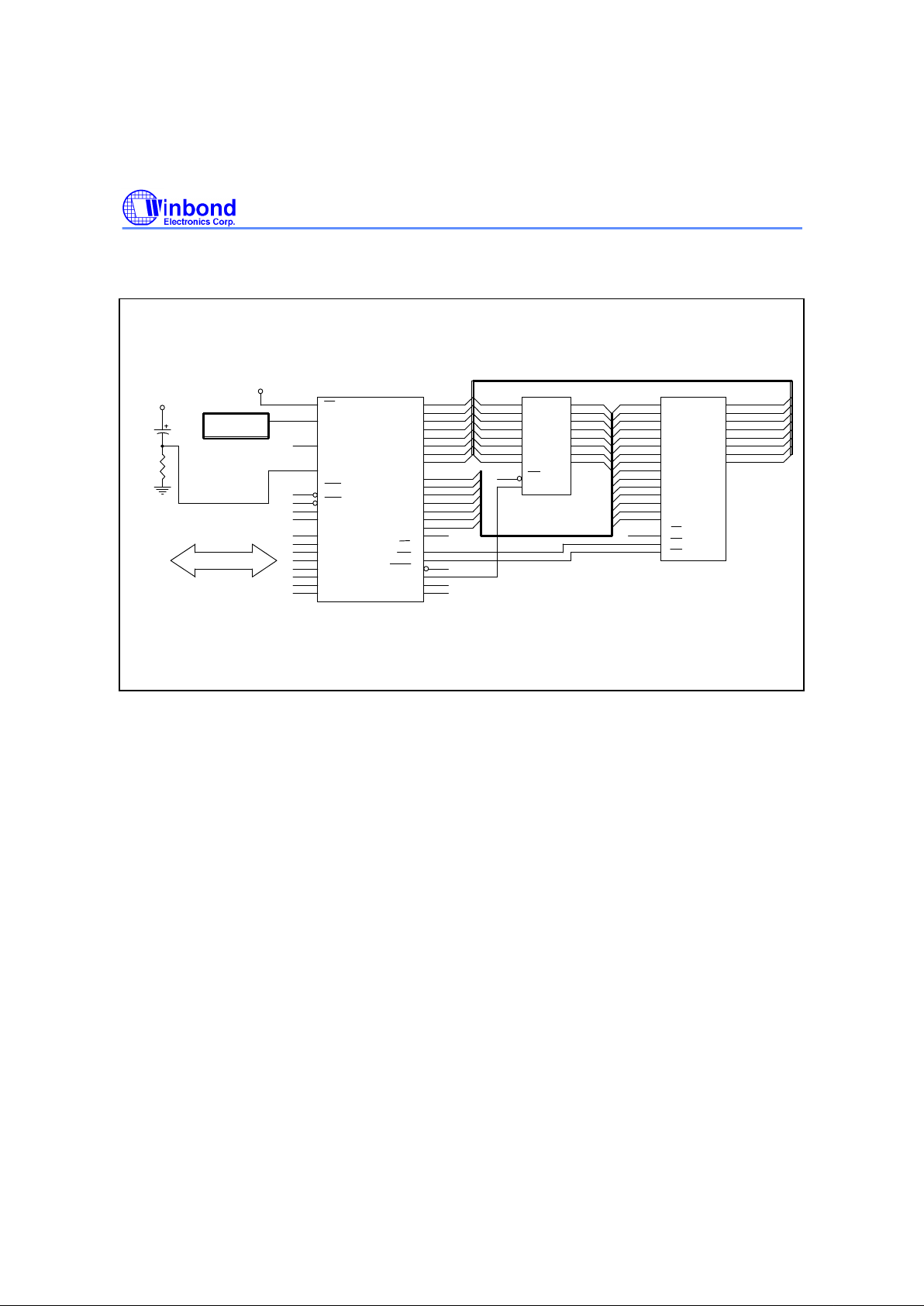

Expanded External Data Memory and Oscillator

10 u

8.2 K

DD

OSCILLATOR

EA

31

XTAL1

19

XTAL2

18

RST

9

INT0

12

INT1

13

T0

14

T1

15

1
2
3
4
5
6

P1.0
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6

7

P1.7

8

P0.0

39

P0.1

38

P0.2

37

P0.3

36

P0.4

35

P0.5

34

P0.6

33

P0.7

32

P2.0

21
P2.1 22
P2.2

23
P2.3 24
P2.4

25
P2.5

26
P2.6 27
P2.7

28

RD

17

WR

16

PSEN

29

ALE

30

TXD

11

RXD

10

W78E51B

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7

A0
A1
A2
A3
A4
A5
A6
A7

D0

3

Q0

2

D1

4

Q1

5

D2

7

Q2

6

D3

8

Q3

9

D4

13

Q4

12

D5

14

Q5

15

D6

17

Q6

16

D7

18

Q7

19

OC

1

G

11

74373

A0
A1
A2
A3
A4
A5
A6
A7

10

9
8
7
6
5
4
3

A0
A1
A2
A3
A4
A5
A6
A7

AD0

AD1
AD2
AD3
AD4
AD5
AD6
AD7

11
12
13
15
16
17
18
19

D0
D1
D2
D3
D4
D5
D6

D7
A8
A9
A10
A11
A12
A13
A14

25
24
21
23

26

1

20

2

A8
A9

A10
A11
A12
A13
A14

CE

GND

A8

A9
A10
A11
A12
A13
A14

GND

22
27

OE
WR

20256

V

DD

V

Figure B

Preliminary W78E51B

Publication Release Date: December 1998

- 21 - Revision A1

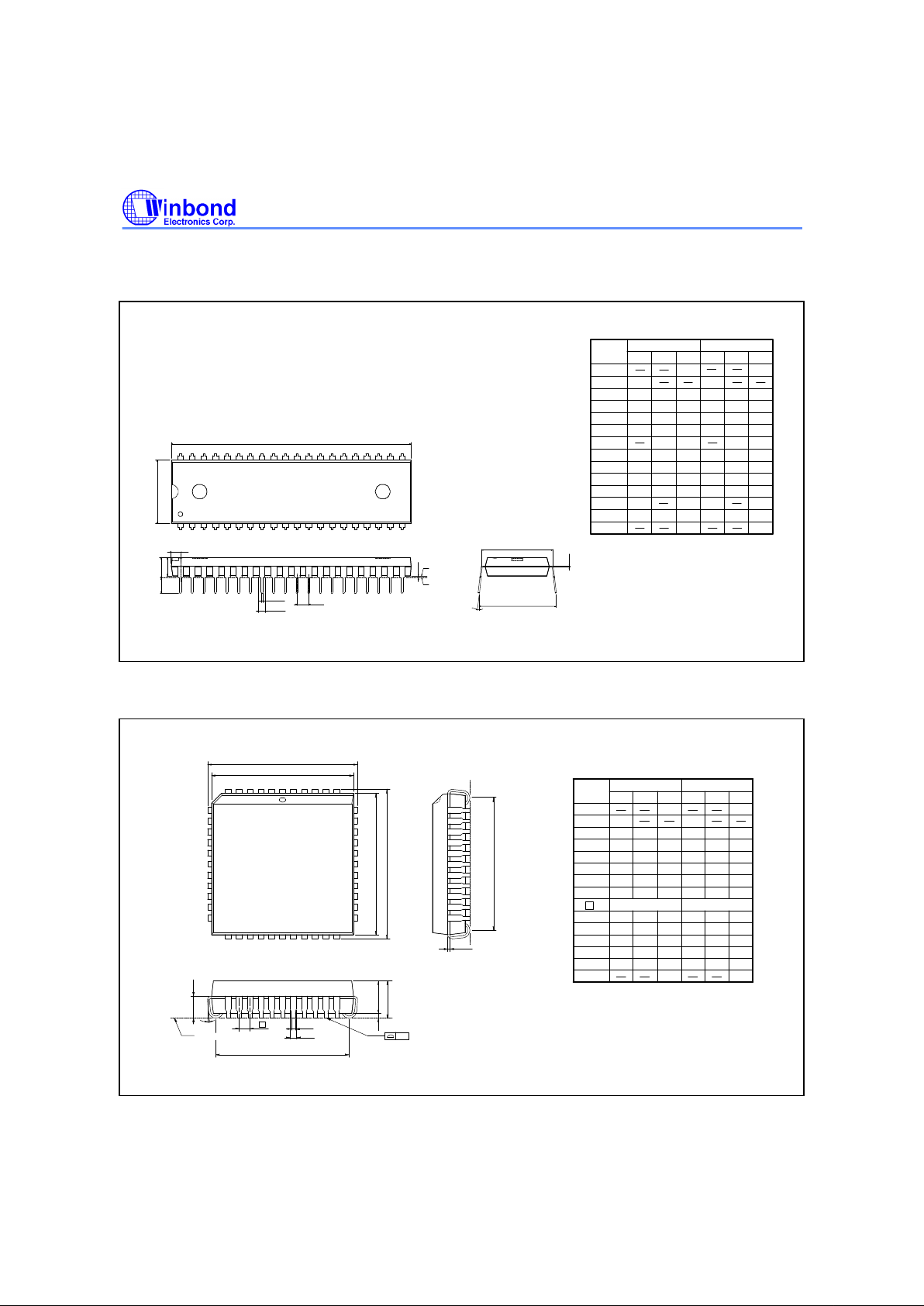

PACKAGE DIMENSIONS

40-pin DIP

Seating Plane

1. Dimension D Max. & S include mold flash or
tie bar burrs.

2. Dimension E1 does not include interlead flash.

3. Dimension D & E1 include mold mismatch and

are determined at the mold parting line.

6. General appearance spec. should be based on

final visual inspection spec.

.

1.3721.2190.0540.048

Notes:

Symbol

Min.

Nom.

Max. Max.

Nom.

Min.

Dimension in inch Dimension in mm

0.050 1.27

0.210

5.334

0.010

0.150

0.016

0.155

0.018

0.160

0.022

3.81

0.406

0.254

3.937

0.457

4.064

0.559

0.008

0.120

0.670

0.010

0.130

0.014

0.140

0.203

3.048

0.254

3.302

0.356

3.556

0.540

0.5500.545

13.72

13.97

13.84

17.01

15.24

14.986

15.494

0.6000.590

0.610

2.286 2.54 2.7940.090 0.100

0.110

A

B

c
D

e

A

L

S

A

A

1

2

E

B

1

1

e

E

1

a

2.055 2.070 52.20 52.58

0 15

0.090

2.286

0.6500.630 16.00 16.51

protrusion/intrusion.

4. Dimension B1 does not include dambar

5. Controlling dimension: Inches.

150

e A

A

a

c

E

Base Plane

1

A

1

e

L

A

S

1

E

D

1

B

B

40

21

201

2

44-pin PLCC

44 40

39

29

2818

17

7

6 1

L

c

1

b

2

A

H

D

D

e

b

E

H

E

y

A

A

1

Seating Plane

D

G

G

E

Symbol

Min.

Nom.

Max. Max.

Nom.

Min.

Dimension in inch Dimension in mm

A

e

HE
L

y

b
c
D

A
A

1

2

E

b1

H

D

G

G

D

E

Notes:

on final visual inspection spec.

4. General appearance spec. should be based

3. Controlling dimension: Inches

protrusion/intrusion.

2. Dimension b1 does not include dambar

flash.

1. Dimension D & E do not include interlead

0.020

0.145

0.026

0.016

0.008

0.648

0.590

0.680

0.090

0.150

0.028

0.018

0.010

0.653

0.610

0.690

0.100

0.050 BSC

0.185

0.155

0.032

0.022

0.014

0.658

0.630

0.700

0.110

0.004

0.508

3.683

0.66

0.406

0.203

16.46

14.99

17.27

2.296

3.81

0.711

0.457

0.254

16.59

15.49

17.53

2.54

1.27

4.699

3.937

0.813

0.559

0.356

16.71

16.00

17.78

2.794

0.10

BSC

16.7116.5916.46

0.6580.6530.648

16.00

15.4914.99

0.6300.610

0.590

17.7817.53

17.27

0.700

0.690

0.680

θ

Preliminary W78E51B

- 22 -

Package Dimensions, continued

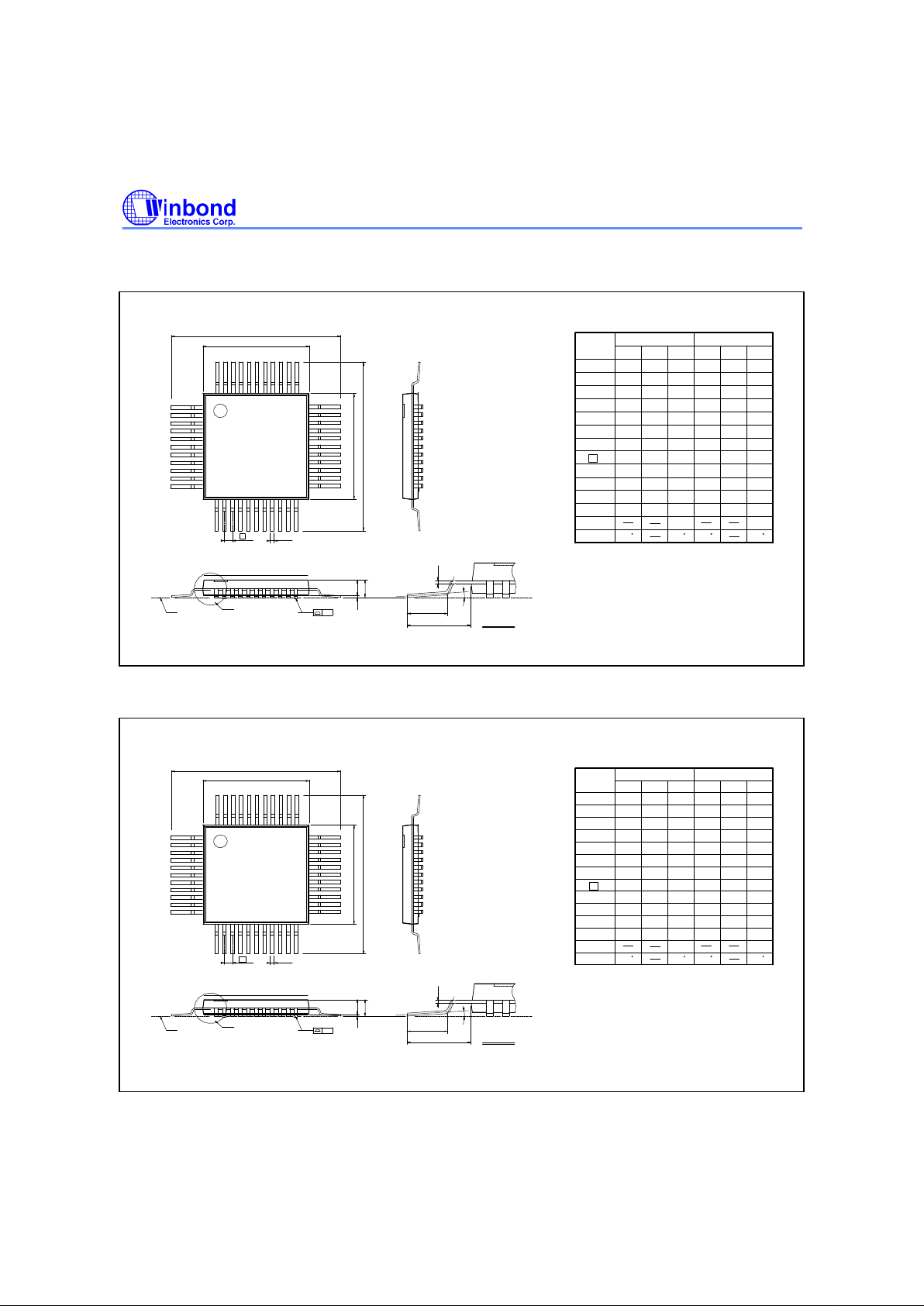

44-pin PQFP

Seating Plane

11

22

12

See Detail F

e

b

A

y

1

A

A

L

L 1

c

E

EH

1

D

44

H

D

34

33

Detail F

1. Dimension D & E do not include interlead
flash.

2. Dimension b does not include dambar
protrusion/intrusion.

3. Controlling dimension: Millimeter

4. General appearance spec. should be based
on final visual inspection spec.

0.2540.101

0.0100.004

Notes:

Symbol

Min.

Nom.

Max. Max.

Nom.

Min.

Dimension in inch

Dimension in mm

A

b
c
D

e

H

D

H

E

L
y

A
A

L

1

1

2

E

0.006 0.152

---

0.002

0.075

0.01

0.081

0.014

0.087

0.018

1.90

0.25

0.05

2.05

0.35

2.20

0.45

0.390

0.025

0.063

0.003

0

7

0.394

0.031

0.398

0.037

9.9

0.80

0.65

1.6

10.00

0.8

10.1

0.95

0.3980.394

0.390

0.530

0.520

0.510 13.45

13.2

12.95

10.1

10.00

9.9

7

0

0.08

0.031

0.01 0.02 0.25

0.5

--- ---

--- ---

---

θ

2

θ

0.025

0.036

0.635

0.952

0.530

0.520

0.510

13.4513.2

12.95

0.051 0.075 1.295

1.905

44-pin TQFP

Seating Plane

11

22

12

See Detail F

e

b

A

y

1

A

A

L

L

1

c

E

EH

1

D

44

H

D

34

33

Detail F

1. Dimension D & E do not include interlead
flash.

2. Dimension b does not include dambar
protrusion/intrusion.

3. Controlling dimension: Millimeter

4. General appearance spec. should be based
on final visual inspection spec.

0.2000.090

0.0080.004

Notes:

Symbol

Min. Nom. Max. Max.Nom.Min.

Dimension in inch Dimension in mm

---

---

0.047

0.002

0.037

0.0039

0.039

0.013

0.041

0.015

0.95

0.22

0.05

1.00

0.32

1.05

0.38

0.390

0.018

0.039

0.003

0

7

0.394

0.024

0.398

0.030

9.9

0.80

0.45

1.00

10.00

0.60

10.1

0.75

0.3980.394

0.390

0.476

0.472

0.468 12.10

12.00

11.90

10.1

10.00

9.9

7

0

0.08

0.031

0.004 0.006 0.10

0.15

--- ---

--- ---

1.20

A

b
c
D

e

H

D

H

E

L

y

A
A

L

1

1

2

E

θ

2

θ

0.025

0.036

0.635

0.952

0.476

0.472

0.468

12.1012.00

11.90

---

---

--- ---

Preliminary W78E51B

Publication Release Date: December 1998

- 23 - Revision A1

Headquarters

No. 4, Creation Rd. III,
Science-Based Industrial Park,
Hsinchu, Taiwan
TEL: [phone]
FAX: [phone]
http://www.winbond.com.tw/
Voice & Fax-on-demand: 886-2-27197006

Taipei Office

11F, No. 115, Sec. 3, Min-Sheng East Rd.,
Taipei, Taiwan
TEL: [phone]
FAX: [phone]

Winbond Electronics (H.K.) Ltd.

Rm. 803, World Trade Square, Tower II,
123 Hoi Bun Rd., Kwun Tong,
Kowloon, Hong Kong
TEL: [phone]
FAX: [phone]

Winbond Electronics North America Corp.
Winbond Memory Lab.
Winbond Microelectronics Corp.
Winbond Systems Lab.

2727 N. First Street, San Jose,
CA 95134, U.S.A.
TEL: [phone]
FAX: [phone]

Note: All data and specifications are subject to change without notice.
