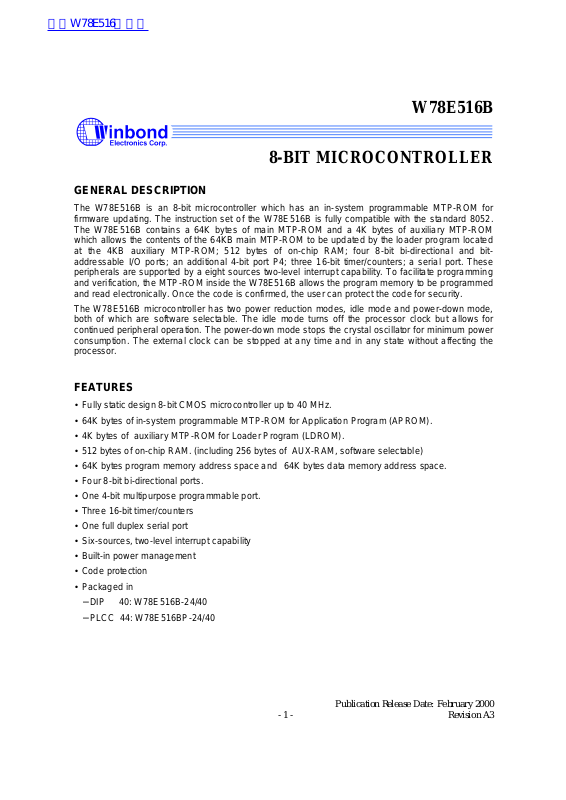

W78E516B

8-BIT MICROCONTROLLER

GENERAL DESCRIPTION

The W78E516B is an 8-bit microcontroller which has an in-system programmable MTP-ROM for
firmware updating. The instruction set of the W78E516B is fully compatible with the standard 8052.
The W78E516B contains a 64K bytes of main MTP-ROM and a 4K bytes of auxiliary MTP-ROM
which allows the contents of the 64KB main MTP-ROM to be updated by the loader program located
at the 4KB auxiliary MTP-ROM; 512 bytes of on-chip RAM; four 8-bit bi-directional and bit­addressable I/O ports; an additional 4-bit port P4; three 16-bit timer/counters; a serial port. These
peripherals are supported by a eight sources two-level interrupt capability. To facilitate programming
and verification, the MTP-ROM inside the W78E516B allows the program memory to be programmed
and read electronically. Once the code is confirmed, the user can protect the code for security.

The W78E516B microcontroller has two power reduction modes, idle mode and power-down mode,
both of which are software selectable. The idle mode turns off the processor clock but allows for
continued peripheral operation. The power-down mode stops the crystal oscillator for minimum power
consumption. The external clock can be stopped at any time and in any state without affecting the
processor.

FEATURES

• Fully static design 8-bit CMOS microcontroller up to 40 MHz.

• 64K bytes of in-system programmable MTP-ROM for Application Program (APROM).

• 4K bytes of auxiliary MTP-ROM for Loader Program (LDROM).

• 512 bytes of on-chip RAM. (including 256 bytes of AUX-RAM, software selectable)

• 64K bytes program memory address space and 64K bytes data memory address space.

• Four 8-bit bi-directional ports.

• One 4-bit multipurpose programmable port.

• Three 16-bit timer/counters

• One full duplex serial port

• Six-sources, two-level interrupt capability

• Built-in power management

• Code protection

• Packaged in

− DIP 40: W78E516B-24/40

− PLCC 44: W78E516BP-24/40

Publication Release Date: February 2000

- 1 - Revision A3

PIN CONFIGURATIONS

P0.4, AD4

P0.5, AD5

P0.6, AD6

P0.7, AD7

40-pin DIP (W78E516B)

T2, P1.0

T2EX, P1.1

P1.2
P1.3
P1.4
P1.5
P1.6
P1.7

RST
RXD, P3.0
TXD, P3.1

INT0, P3.2
INT1, P3.3

T0, P3.4
T1, P3.5

WR, P3.6

RD, P3.7

XTAL2
XTAL1

VSS

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21

VDD1

P0.0, AD0
P0.1, AD1
P0.2, AD2
P0.3, AD3
P0.4, AD4
P0.5, AD5
P0.6, AD6
P0.7, AD7
EA
ALE

PSEN
P2.7, A15

P2.6, A14
P2.5, A13
P2.4, A12
P2.3, A11
P2.2, A10
P2.1, A9
P2.0, A8

W78E516B

44-pin PLCC (W78E516BP)

T
2
E
X
,

P

P

P

P

1

1

1

1

.

.

.

.

2

1

3

4

6 5 4 3

7

P1.5

8

P1.6

9

P1.7

10

RST

P4.3

11
12
13
14
15
16

17

X

X

P

P

T

T

3

3

A

A

.

.

L

L

7

6

1

2

,

,

/

/

R

W

D

R

RXD, P3.0

TXD, P3.1
INT0, P3.2
INT1, P3.3

T0, P3.4
T1, P3.5

A

T

D

2

0

,

,

P

P

P

1

V

0

4

.

D

.

.

0

D

0

2

2 1 44 43 42

V

P

P

P

S

2

2

4

S

.

.

.

1

0

0

,

,

A

A

9

8

A

A

A

D

D

D

3

2

1

,

,

,

P

P

P

0

0

0

.

.

.

3

1

2

40

41

39
38
37

36
35

EA

34

P4.1

33

ALE

32

PSEN

31

P2.7, A15

30

P2.6, A14

29

P2.5, A13

2827262524232221201918

P

P

P

2

2

2

.

.

.

3

4

2

,

,

,

A

A

A

1

1

1

1

2

0

- 2 -

PIN DESCRIPTION

EA

W78E516B

SYMBOL TYPE

P0.0−P0.7
P1.0−P1.7
P2.0−P2.7

P3.0−P3.7
P4.0−P4.3

PSEN

ALE O H ADDRESS LATCH ENABLE: ALE is used to enable the address latch that

RST I L RESET: A high on this pin for two machine cycles while the oscillator is

XTAL1 I CRYSTAL 1: This is the crystal oscillator input. This pin may be driven by an

XTAL2 O CRYSTAL 2: This is the crystal oscillator output. It is the inversion of XTAL1.

VSS I GROUND: ground potential.

VDD I POWER SUPPLY: Supply voltage for operation.

I EXTERNAL ACCESS ENABLE: This pin forces the processor to execute the

external ROM. The ROM address and data will not be presented on the bus if
the EA pin is high.

O H

I/O D PORT 0: Function is the same as that of standard 8052.
I/O H PORT 1: Function is the same as that of standard 8052.
I/O H PORT 2: Port 2 is a bi-directional I/O port with internal pull-ups. This port also

I/O H PORT 3: Function is the same as that of the standard 8052.
I/O H PORT 4: A bi-directional I/O. See details below.

PROGRAM STORE ENABLE: PSEN enables the external ROM data in the
Port 0 address/data bus. When internal ROM access is performed, no

strobe signal outputs originate from this pin.

separates the address from the data on Port 0. ALE runs at 1/6th of the
oscillator frequency.

running resets the device.

external clock.

provides the upper address bits for accesses to external memory.

DESCRIPTIONS

PSEN

* Note:

PORT4

Another bit-addressable port P4 is also available and only 4 bits (P4<3:0>) can be used. This port
address is located at 0D8H with the same function as that of port P1,

Example:
P4 REG 0D8H
MOV P4, #0AH ; Output data "A" through P4.0−P4.3.
MOV A, P4 ; Read P4 status to Accumulator.
SETB P4.0 ; Set bit P4.0
CLR P4.1 ; Clear bit P4.1

- 3 - Revision A3

I: input, O: output, I/O: bi-directional, H: pull-high, L: pull-low, D: open drain

TYPE

Publication Release Date: February 2000

BLOCK DIAGRAM

W78E516B

P1.0

P1.7

P3.0

P3.7

P4.0
P4.3

Port

1

Port

Port

Port 1

Latch

ACC

Interrupt

Timer

2

Timer

0

Timer

1

UART

3

4

Port 3

Latch

Port 4

Latch

XTAL1

Oscillator

PSW

Instruction

Decoder

&

Sequencer

Bus & Clock

Controller

ALE

ALU

Reset Block

PSEN

T2T1

SFR RAM

Address

512 bytes

RAM & SFR

B

Stack

Pointer

Power control

VssVCCRSTXTAL2

Port 0

Latch

DPTR

Temp Reg.

PC

Incrementor

Addr. Reg.

64KB

MTP-ROM

4KB

MTP-ROM

Port 2

Latch

Port
0

Port
2

P0.0

P0.7

P2.0

P2.7

FUNCTIONAL DESCRIPTION

The W78E516B architecture consists of a core controller surrounded by various registers, four
general purpose I/O ports, one special purpose programmable 4-bits I/O port, 512 bytes of RAM,
three timer/counters, a serial port and an internal 74373 latch and 74244 buffer which can be
switched to port2. The processor supports 111 different opcodes and references both a 64K program
address space and a 64K data storage space.

RAM

The internal data RAM in the W78E516B is 512 bytes. It is divided into two banks: 256 bytes of
scratchpad RAM and 256 bytes of AUX-RAM. These RAMs are addressed by different ways.

•

RAM 0H−127H can be addressed directly and indirectly as the same as in 8051. Address pointers

are R0 and R1 of the selected register bank.

•

RAM 128H−255H can only be addressed indirectly as the same as in 8051. Address pointers are

R0, R1 of the selected registers bank.

- 4 -

W78E516B

INT1

•

AUX-RAM 0H−255H is addressed indirectly as the same way to access external data memory with
the MOVX instruction. Address pointer are R0 and R1 of the selected register bank and DPTR
register. An access to external data memory locations higher than 255H will be performed with the
MOVX instruction in the same way as in the 8051. The AUX-RAM is disable after a reset. Setting
the bit 4 in CHPCON register will enable the access to AUX-RAM. When AUX-RAM is enabled the
instructions of "MOVX @Ri" will always access to on-chip AUX-RAM. When executing from internal

program memory, an access to AUX-RAM will not affect the Ports P0, P2, WR and RD.

Timers 0, 1, and 2

Timers 0, 1, and 2 each consist of two 8-bit data registers. These are called TL0 and TH0 for Timer
0, TL1 and TH1 for Timer 1, and TL2 and TH2 for Timer 2. The TCON and TMOD registers provide
control functions for timers 0, 1. The T2CON register provides control functions for Timer 2. RCAP2H
and RCAP2L are used as reload/capture registers for Timer 2. The operations of Timer 0 and Timer
1 are the same as in the W78C51. Timer 2 is a 16-bit timer/counter that is configured and controlled
by the T2CON register. Like Timers 0 and 1, Timer 2 can operate as either an external event counter
or as an internal timer, depending on the setting of bit C/T2 in T2CON. Timer 2 has three operating
modes: capture, auto-reload, and baud rate generator. The clock speed at capture or auto-reload
mode is the same as that of Timers 0 and 1.

Clock

The W78E516B is designed with either a crystal oscillator or an external clock. Internally, the clock is
divided by two before it is used by default. This makes the W78E516B relatively insensitive to duty
cycle variations in the clock.

Crystal Oscillator

The W78E516B incorporates a built-in crystal oscillator. To make the oscillator work, a crystal must
be connected across pins XTAL1 and XTAL2. In addition, a load capacitor must be connected from
each pin to ground, and a resistor must also be connected from XTAL1 to XTAL2 to provide a DC
bias when the crystal frequency is above 24 MHz.

External Clock

An external clock should be connected to pin XTAL1. Pin XTAL2 should be left unconnected. The
XTAL1 input is a CMOS-type input, as required by the crystal oscillator. As a result, the external clock
signal should have an input one level of greater than 3.5 volts.

Power Management

Idle Mode

Setting the IDL bit in the PCON register enters the idle mode. In the idle mode, the internal clock to
the processor is stopped. The peripherals and the interrupt logic continue to be clocked. The
processor will exit idle mode when either an interrupt or a reset occurs.

Power-down Mode

When the PD bit in the PCON register is set, the processor enters the power-down mode. In this
mode all of the clocks are stopped, including the oscillator. To exit from power-down mode is by a

hardware reset or external interrupts INT0 to

when enabled and set to level triggered.

Reduce EMI Emission

The W78E516B allows user to diminish the gain of on-chip oscillator amplifier by using programmer

Publication Release Date: February 2000

- 5 - Revision A3

W78E516B

to clear the B7 bit of security register. Once B7 is set to 0, a half of gain will be decreased. Care must
be taken if user attempts to diminish the gain of oscillator amplifier, reducing a half of gain may affect
the external crystal operating improperly at high frequency above 24 MHz. The value of R and C1, C2
may need some adjustment while running at lower gain.

Reset

The external RESET signal is sampled at S5P2. To take effect, it must be held high for at least two
machine cycles while the oscillator is running. An internal trigger circuit in the reset line is used to
deglitch the reset line when the W78E516B is used with an external RC network. The reset logic also
has a special glitch removal circuit that ignores glitches on the reset line. During reset, the ports are
initialized to FFH, the stack pointer to 07H, PCON (with the exception of bit 4) to 00H, and all of the
other SFR registers except SBUF to 00H. SBUF is not reset.

W78E516B Special Function Registers (SFRs) and Reset Values

F8

F0 +B

00000000

E8

E0 +ACC

00000000

D8

D0 +PSW

C8 +T2CON

C0 XICON

B8 +IP

B0 +P3

A8 +IE

A0 +P2

98 +SCON

90 +P1

88 +TCON

80 +P0

Notes:

1.The SFRs marked with a plus sign(+) are both byte- and bit-addressable.

2. The text of SFR with bold type characters are extension function registers.

+P4

xxxx1111

00000000

00000000

00000000

00000000

00000000

00000000

11111111

00000000

11111111

00000000

11111111

E7

DF

D7

RCAP2L

00000000

A7

SBUF

xxxxxxxx

TMOD

00000000

SP

00000111

SFRAL

TL0

00000000

DPL

00000000

RCAP2H

00000000

TL1

00000000

DPH

00000000

TL2

00000000

00000000

TH0

00000000

TH2

00000000

SFRAH

00000000

TH1

00000000

CHPENR

00000000

CF

SFRFD

00000000

B7

97

8F

PCON

00000000
CHPCON
0xx00000

00110000

F7

EF

SFRCN

AF

FF

C7

BF

9F

87

- 6 -

W78E516B

Port 4 (D8H)

BIT NAME FUNCTION

7 - Reserve
6 - Reserve
5 - Reserve
4 - Reserve
3 P43 Port 4 Data bit which outputs to pin P4.3.
2 P42 Port 4 Data bit. which outputs to pin P4.2.
1 P41 Port 4 Data bit. which outputs to pin P4.1.
0 P40 Port 4 Data bit which outputs to pin P4.0.

In-System Programming (ISP) Mode

The W78E516B equips one 64K byte of main MTP-ROM bank for application program (called
APROM) and one 4K byte of auxiliary MTP-ROM bank for loader program (called LDROM). In the
normal operation, the microcontroller executes the code in the APROM. If the content of APROM
needs to be modified, the W78E516B allows user to activate the In-System Programming (ISP) mode
by setting the CHPCON register.

specific values 87H, then 59H sequentially to the CHPENR register to enable the CHPCON
write attribute. Writing CHPENR register with the values except 87H and 59H will close
CHPCON register write attribute.

including enter/exit ISP Mode, program, erase, read ... etc, during device in the idle mode. Setting the
bit CHPCON.0 the device will enter in-system programming mode after a wake-up from idle mode.
Because device needs proper time to complete the ISP operations before awaken from idle mode,
software may use timer interrupt to control the duration for device wake-up from idle mode. To
perform ISP operation for revising contents of APROM, software located at APROM setting the
CHPCON register then enter idle mode, after awaken from idle mode the device executes the
corresponding interrupt service routine in LDROM. Because the device will clear the program counter
while switching from APROM to LDROM, the first execution of RETI instruction in interrupt service
routine will jump to 00H at LDROM area. The device offers a software reset for switching back to
APROM while the content of APROM has been updated completely.

1 and 7 to logic-1 will result a software reset to reset the CPU

external reset. This in-system programming feature makes the job easy and efficient in which the
application needs to update firmware frequently. In some applications, the in-system programming
feature make it possible to easily update the system firmware without opening the chassis.

The CHPCON is read-only by default, software must write two

The W78E516B achieves all in-system programming operations

Setting CHPCON register bit 0,

. The software reset serves as a

SFRAH, SFRAL:

SFRFD:
SFRCN:

- 7 - Revision A3

The programming data for on-chip MTP-ROM in programming mode.

The control byte of on-chip MTP-ROM programming mode.

The objective address of on-chip MTP-ROM in the in-system programming mode.
SFRFAH contains the high-order byte of address, SFRFAL contains the low-order
byte of address.

Publication Release Date: February 2000

W78E516B

0: The Loader Program locates at the 64 KB APROM. 4KB LDROM is

SFRCN (C7)

BIT NAME FUNCTION

7 - Reserve.
6 WFWIN On-chip MTP-ROM bank select for in-system programming.

= 0: 64K bytes MTP-ROM bank is selected as destination for re-programming.

= 1: 4K bytes MTP-ROM bank is selected as destination for re-programming.
5 OEN MTP-ROM output enable.
4 CEN MTP-ROM chip enable.

3, 2, 1, 0 CTRL[3:0] The flash control signals

MODE WFWIN CTRL<3:0> OEN CEN SFRAH, SFRAL SFRFD

Erase 64KB APROM 0 0010 1 0 X X
Program 64KB APROM 0 0001 1 0 Address in Data in
Read 64KB APROM 0 0000 0 0 Address in Data out
Erase 4KB LDROM 1 0010 1 0 X X
Program 4KB LDROM 1 0001 1 0 Address in Data in
Read 4KB LDROM 1 0000 0 0 Address in Data out

In-System Programming Control Register (CHPCON)

CHPCON (BFH)

BIT NAME FUNCTION

7 SWRESET

(F04KMODE)

6 - Reserve.
5 - Reserve.

ENAUXRAM

4

3 0 Must set to 0.
2 0 Must set to 0.
1 FBOOTSL The Program Location Select.

When this bit is set to 1, and both FBOOTSL and FPROGEN are set to 1. It
will enforce microcontroller reset to initial condition just like power on reset.
This action will re-boot the microcontroller and start to normal operation. To
read this bit in logic-1 can determine that the F04KBOOT mode is running.

1: Enable on-chip AUX-RAM.
0: Disable the on-chip AUX-RAM

destination for re-programming.
1: The Loader Program locates at the 4 KB memory bank. 64KB APROM is

destination for re-programming.

- 8 -

W78E516B

CHPCON (BFH), continued

BIT NAME FUNCTION

0 FPROGEN MTP-ROM Programming Enable.

= 1: enable. The microcontroller enter the in-system programming mode after
entering the idle mode and wake-up from interrupt. During in-system
programming mode, the operation of erase, program and read are
achieve when device enters idle mode.

= 0: disable. The on-chip flash memory is read-only. In-system
programmability is disabled.

F04KBOOT Mode (Boot From LDROM)

By default, the W78E516B boots from APROM program after a power on reset. On some occasions,
user can force the W78E516B to boot from the LDROM program via following settings. The possible
situation that you need to enter F04KBOOT mode when the APROM program can not run properly
and device can not jump back to LDROM to execute in-system programming function. Then you can
use this F04KBOOT mode to force the W78E516B jumps to LDROM and executes in-system
programming procedure. When you design your system, you may reserve the pins P2.6, P2.7 to
switches or jumpers. For example in a CD-ROM system, you can connect the P2.6 and P2.7 to PLAY
and EJECT buttons on the panel. When the APROM program fails to execute the normal application
program. User can press both two buttons at the same time and then turn on the power of the
personal computer to force the W78E516B to enter the F04KBOOT mode. After power on of personal
computer, you can release both buttons and finish the in-system programming procedure to update

the APROM code. In application system design, user must take care of the P2, P3, ALE, EA and

PSEN pin value at reset to prevent from accidentally activating the programming mode or

F04KBOOT mode.

F04KBOOT MODE

P4.3 P2.7 P2.6 MODE

X L L FO4KBOOT
L X X FO4KBOOT

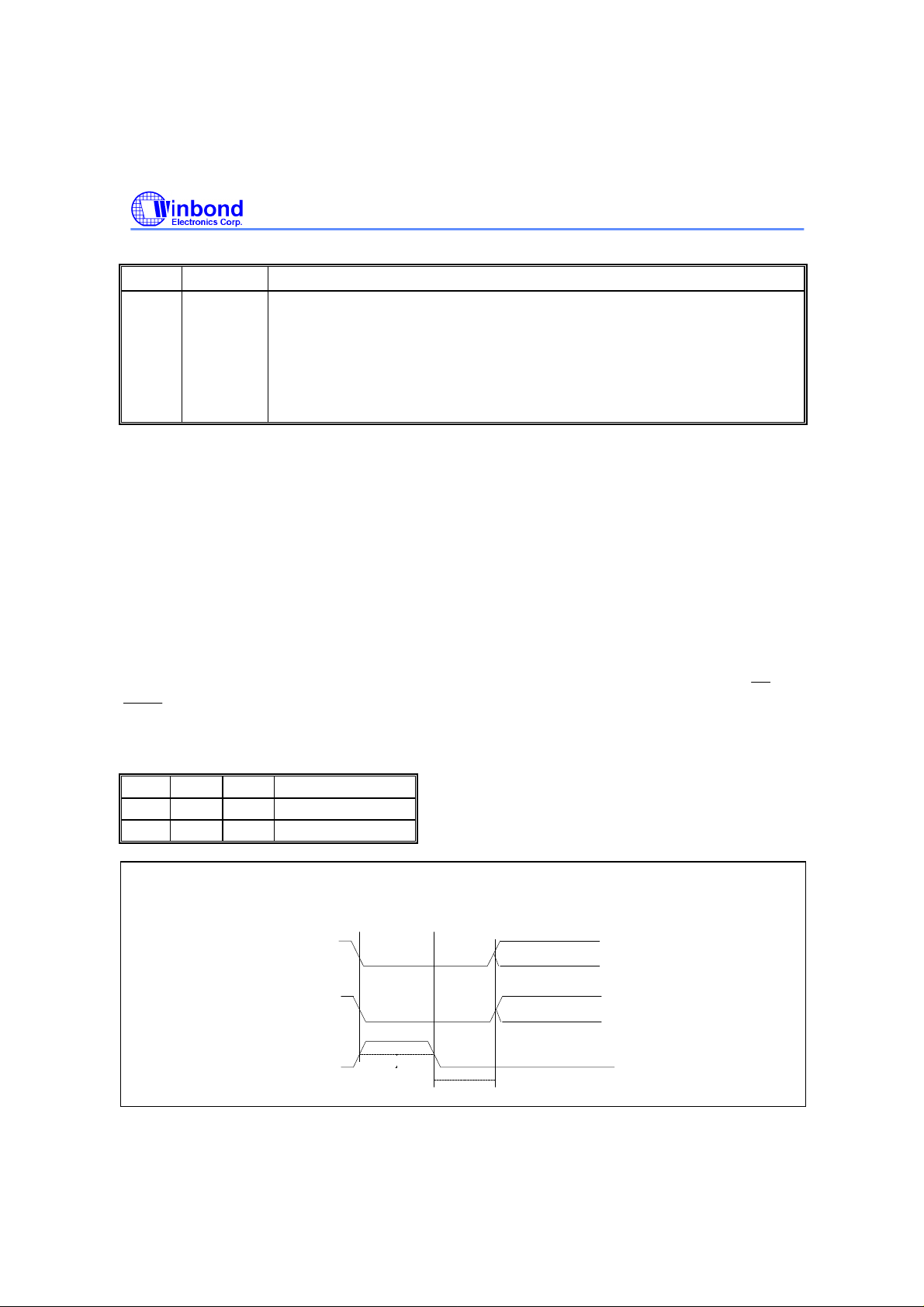

The Reset Timing For Entering

F04KBOOT Mode

P2.7

P2.6

RST

30 mS

10 mS

Hi-Z

Hi-Z

Publication Release Date: February 2000

- 9 - Revision A3

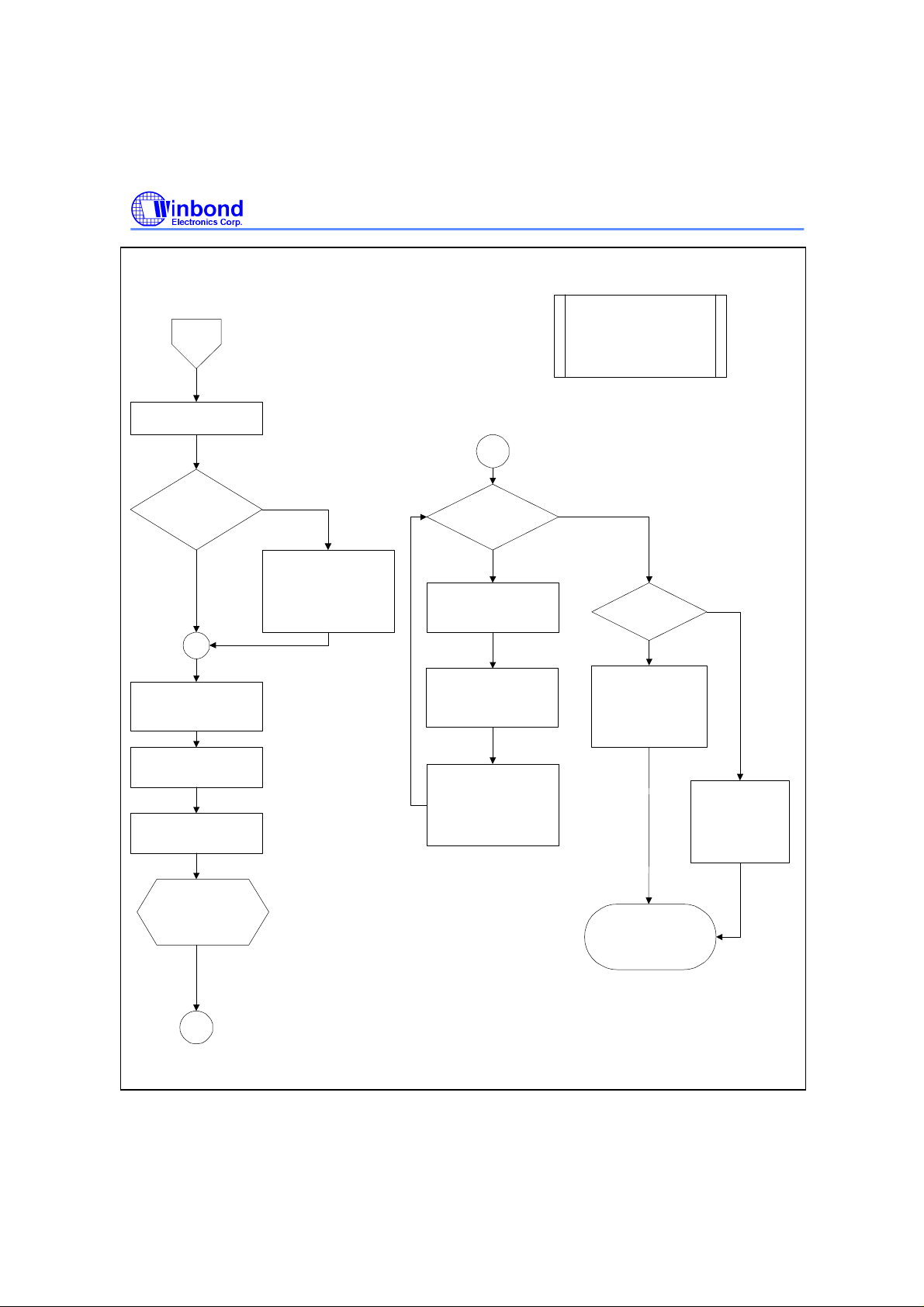

The Algorithm of In-System Programming

W78E516B

START

Enter In-System

Programming Mode ?

(conditions depend on

user's application)

Yes

Setting control registers

MOV CHPENR,#87H
MOV CHPENR,#59H

MOV CHPCON,#03H

Setting Timer (about 1.5 us)

and enable timer interrupt

Start Timer and enter idle Mode.

(CPU will be wakened from idle mode

by timer interrupt, then enter In-System

Programming mode)

Part 1:64KB APROM

procedure of entering

In-System Programming Mode

No

Execute the normal application

program

END

CPU will be wakened by interrupt and

re-boot from 4KB LDROM to execute

the loader program.

Go

- 10 -

W78E516B

Go

Timer Interrupt Service Routine:

Stop Timer & disable interrupt

Is F04KBOOT Mode?

(CHPCON.7=1)

No

Setting Timer and enable Timer

interrupt for wake-up .

(15 ms for erasing operation)

Setting erase operation mode:

MOV SFRCN,#22H

(Erase 64KB APROM)

Start Timer and enter IDLE

Mode.

(Erasing...)

Yes

Reset the CHPCON Register:

MOV CHPENR,#87H
MOV CHPENR,#59H
MOV CHPCON,#03H

PGM

End of Programming ?

No

Setting Timer and enable Timer

interrupt for wake-up .

(50us for program operation)

Get the parameters of new code

(Address and data bytes)

through I/O ports, UART or

other interfaces.

Setting control registers for

programming:

MOV SFRAH,#ADDRESS_H
MOV SFRAL,#ADDRESS_L
MOV SFRFD,#DATA
MOV SFRCN,#21H

Part 2: 4KB LDROM

Procedure of Updating

the 64KB APROM

Yes

Is currently in the

F04KBOOT Mode ?

No

Software reset CPU and
re-boot from the 64KB
APROM.

MOV CHPENR,#87H
MOV CHPENR,#59H
MOV CHPCON,#83H

Yes

Hardware Reset
to re-boot from

new 64 KB APROM.

(S/W reset is

invalid in F04KBOOT

Mode)

End of erase

operation. CPU will

be wakened by Timer

interrupt.

PGM

END

Executing new code

from address

00H in the 64KB APROM.

Publication Release Date: February 2000

- 11 - Revision A3

W78E516B

SECURITY

During the on-chip MTP-ROM programming mode, the MTP-ROM can be programmed and verified
repeatedly. Until the code inside the MTP-ROM is confirmed OK, the code can be protected. The
protection of MTP-ROM and those operations on it are described below.

The W78E516B has several Special Setting Registers, including the Security Register and
Company/Device ID Registers, which can not be accessed in programming mode. Those bits of the
Security Registers can not be changed once they have been programmed from high to low. They can
only be reset through erase-all operation. The contents of the Company ID and Device ID registers
have been set in factory. The Security Register is located at the 0FFFFH of the LDROM space.

D7 D6 D5D4 D3 D2 D1 D0

1 1 0 1 1 0 1 0

0 1 1 1 00 0

B7

B0: Lock bit, logic 0: active
B1: MOVC inhibit,

logic 0: the MOVC instruction in external memory

cannot access the code in internal memory.

logic 1: no restriction.

B2: Encryption
logic 0: the encryption logic enable
logic 1: the encryption logic disable

B07: Osillator Control
logic 0: 1/2 gain
logic 1: Full gain

Default 1 for all security bits.

Reserved bits must be kept in logic 1.

0

Reserved

B2

Company ID (#DAH)

Device ID (#62H)

Security Bits

B0B1

Special Setting Registers

4KB MTP ROM

Program Memory

LDROM

Reserved

Reserved

Security Register

0000h

0FFFh

64KB MTP ROM
Program Memory

APROM

FFFFh

Lock bit

This bit is used to protect the customer's program code in the W78E516B. It may be set after the
programmer finishes the programming and verifies sequence. Once this bit is set to logic 0, both the
MTP ROM data and Special Setting Registers can not be accessed again.

MOVC Inhibit

This bit is used to restrict the accessible region of the MOVC instruction. It can prevent the MOVC
instruction in external program memory from reading the internal program code. When this bit is set
to logic 0, a MOVC instruction in external program memory space will be able to access code only in
the external memory, not in the internal memory. A MOVC instruction in internal program memory
space will always be able to access the ROM data in both internal and external memory. If this bit is
logic 1, there are no restrictions on the MOVC instruction.

Encryption

This bit is used to enable/disable the encryption logic for code protection. Once encryption feature is
enabled, the data presented on port 0 will be encoded via encryption logic. Only whole chip erase will
reset this bit.

- 12 -

W78E516B

Oscillator Control

W78E516B/E516 allow user to diminish the gain of on-chip oscillator amplifier by using programmer
to set the bit B7 of security register. Once B7 is set to 0, a half of gain will be decreased. Care must
be taken if user attempts to diminish the gain of oscillator amplifier, reducing a half of gain may
improperly affect the external crystal operation at high frequency above 24 MHz. The value of R and
C1, C2 may need some adjustment while running at lower gain.

ABSOLUTE MAXIMUM RATINGS

PARAMETER SYMBOL MIN. MAX. UNIT

DC Power Supply

DD

−

V

VSS
Input Voltage VIN VSS -0.3 VDD +0.3 V
Operating Temperature TA 0 70
Storage Temperature TST -55 +150

Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the
device.

D.C. ELECTRICAL CHARACTERISTICS

(VDD-VSS = 5V ±10%, TA = 25°C, Fosc = 20 MHz, unless otherwise specified.)

-0.3 +6.0 V

°

C

°

C

PARAMETER SYM.

Operating Voltage V
Operating Current I

Idle Current I

Power Down Current I

PWDN

Input Current
P1, P2, P3, P4
Input Current
RST
Input Leakage Current

P0, EA
Logic 1 to 0 Transition Current

I
P1, P2, P3, P4
Input Low Voltage
P0, P1, P2, P3, P4, EA

DD

DD

SPECIFICATION TEST CONDITIONS

MIN. MAX. UNIT

4.5 5.5 V RST = 1, P0 = VDD

- 20 mA No load
VDD = 5.5V

IDLE

- 6 mA Idle mode
VDD = 5.5V

- 50

Power-down mode

µA

VDD = 5.5V

IN1

I

-50 +10

µ

A

VDD = 5.5V
VIN = 0V or VDD

IN2

I

-10 +300

µ

A

VDD = 5.5V
0< VIN <VDD

LK

I

-10 +10

µ

A

VDD = 5.5V
0V< VIN < VDD

[*4]

TL

-500 -

IL1

V

0 0.8 V VDD = 4.5V

µ

A

VDD = 5.5V

IN

V

= 2.0V

Publication Release Date: February 2000

- 13 - Revision A3

W78E516B

D.C. Electrical Characteristics, continued

PARAMETER SYM. SPECIFICATION TEST CONDITIONS

Input Low Voltage

IL2

V
RST
Input Low Voltage

[*4]

XTAL1
Input High Voltage

IL3

V

IH1

V

P0, P1, P2, P3, P4, EA
Input High Voltage

IH2

V
RST
Input High Voltage

[*4]

XTAL1
Output Low Voltage

IH3

V

OL1

V
P1, P2, P3, P4
Output Low Voltage

P0, ALE, PSEN

[*3]

Sink Current

OL2

V

Isk1 4 12 mA VDD = 4.5V
P1, P3, P4
Sink Current

P0, P2, ALE,

PSEN

Output High Voltage

Isk2 10 20 mA VDD = 4.5V

OH1

V

P1, P2, P3, P4
Output High Voltage

P0, ALE, PSEN

[*3]

Source Current

OH2

V

Isr1 -120 -250
P1, P2, P3, P4
Source Current

Isr2 -8 -20 mA VDD = 4.5V
P0, P2, ALE, PSEN

Notes:
*1. RST pin is a Schmitt trigger input.

*3. P0, ALE and
*4. XTAL1 is a CMOS input.

*5. Pins of P1, P2, P3 , P4 can source a transition current when they are being externally driven from 1 to 0. The transition current
reaches its maximum value when VIN approximates to 2V.

are tested in the external access mode.

PSEN

MIN. MAX. UNIT

0 0.8 V VDD = 4.5V

0 0.8 V VDD = 4.5V

2.4 VDD +0.2 V VDD = 5.5V

3.5 VDD +0.2 V VDD = 5.5V

3.5 VDD +0.2 V VDD = 5.5V

- 0.45 V VDD = 4.5V
IOL = +2 mA

- 0.45 V VDD = 4.5V
IOL = +4 mA

VIN = 0.45V

VIN = 0.45V

2.4 - V VDD = 4.5V

OH

I

= -100 µA

2.4 - V VDD = 4.5V

OH

I

= -400 µA

VDD = 4.5V

µ

A

VIN = 2.4V

VIN = 2.4V

- 14 -

W78E516B

PSEN

PSEN

PSEN

PSEN

PSEN

PSEN

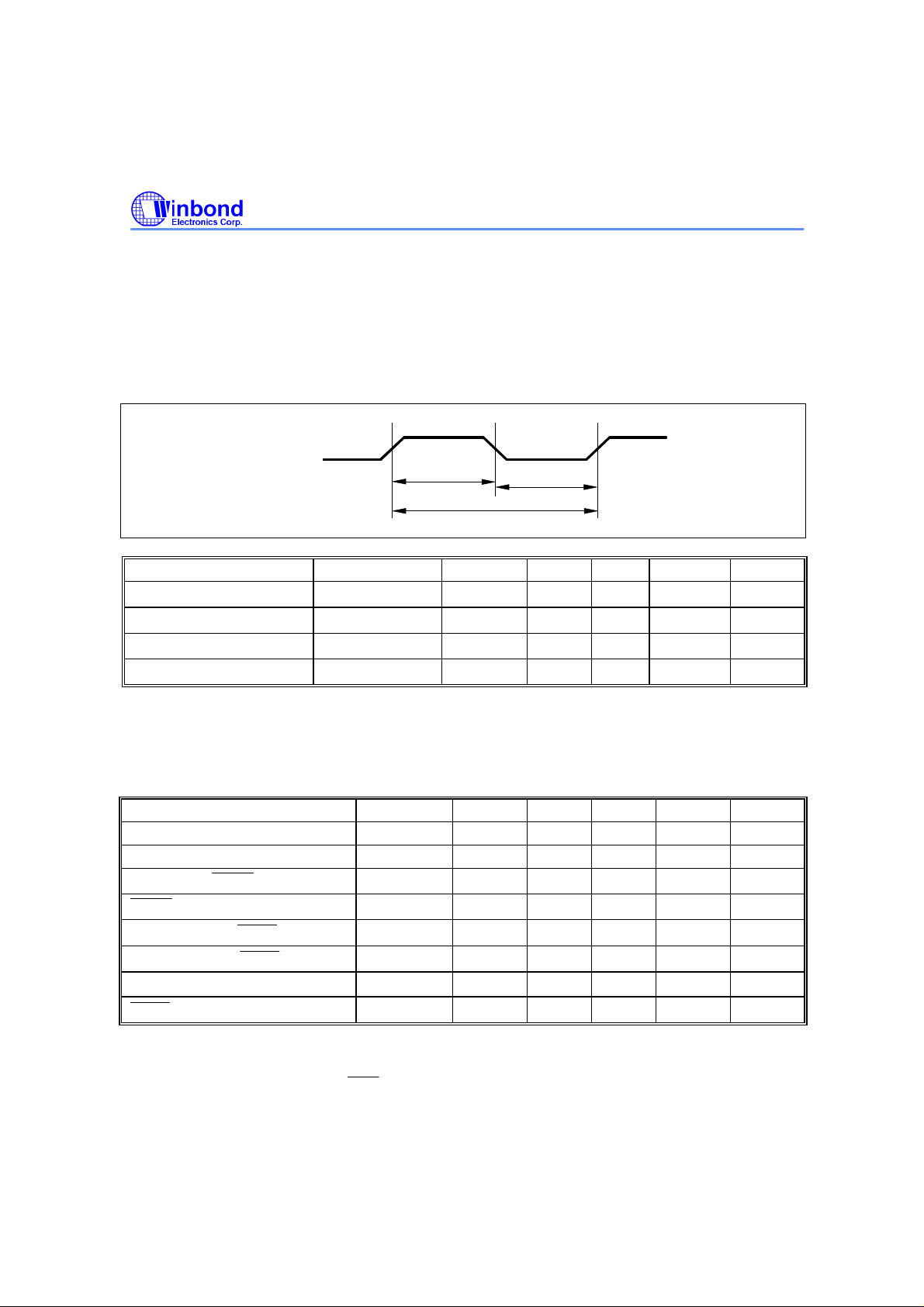

AC CHARACTERISTICS

The AC specifications are a function of the particular process used to manufacture the part, the
ratings of the I/O buffers, the capacitive load, and the internal routing capacitance. Most of the
specifications can be expressed in terms of multiple input clock periods (TCP), and actual parts will
usually experience less than a ±20 nS variation. The numbers below represent the performance
expected from a 0.6 micron CMOS process when using 2 and 4 mA output buffers.

Clock Input Waveform

XTAL1

T

CH

F

OP, TCP

T

CL

PARAMETER SYMBOL MIN. TYP. MAX. UNIT NOTES

Operating Speed Fop 0 - 40 MHz 1
Clock Period TCP 25 - - nS 2
Clock High Tch 10 - - nS 3
Clock Low Tcl 10 - - nS 3

Notes:

1. The clock may be stopped indefinitely in either state.

2. The TCP specification is used as a reference in other specifications.

3. There are no duty cycle requirements on the XTAL1 input.

Program Fetch Cycle

PARAMETER SYMBOL MIN. TYP. MAX. UNIT NOTES

Address Valid to ALE Low T
Address Hold from ALE Low T

ALE Low to

Low

Low to Data Valid
Data Hold after
Data Float after

High

High

ALE Pulse Width T

Pulse Width

Notes:

1. P0.0−P0.7, P2.0−P2.7 remain stable throughout entire memory cycle.

2. Memory access time is 3 TCP.

3. Data have been latched internally prior to

4. "∆" (due to buffer driving delay and wire loading) is 20 nS.

AAS

1 TCP-∆

AAH

1 TCP-∆

APL

T

1 TCP-∆

PDA

T

- - 2 TCP nS 2

PDH

T

0 - 1 TCP nS 3

PDZ

T

0 - 1 TCP nS

ALW

2 TCP-∆

PSW

T

3 TCP-∆

going high.

- - nS 4

- - nS 1, 4

- - nS 4

2 TCP - nS 4
3 TCP - nS 4

Publication Release Date: February 2000

- 15 - Revision A3

W78E516B

RD

RD

WR

Data Read Cycle

PARAMETER SYMBOL MIN. TYP. MAX. UNIT NOTES

DAR

T

ALE Low to RD Low

DDA

Low to Data Valid
Data Hold from RD High
Data Float from RD High

Pulse Width

Notes:

1. Data memory access time is 8 TCP.

2. "∆" (due to buffer driving delay and wire loading) is 20 nS.

T
T
T
T

DDH
DDZ
DRD

3 TCP-∆

- - 4 TCP nS 1
0 - 2 TCP nS

0 - 2 TCP nS

6 TCP-∆

Data Write Cycle

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

DAW

T

3 TCP-∆
1 TCP-∆
1 TCP-∆
6 TCP-∆

ALE Low to WR Low
Data Valid to WR Low
Data Hold from WR High

Pulse Width

T

DWD

T

DWR

T

DAD

-

3 T

CP+

∆

nS 1, 2

6 TCP - nS 2

-

3 TCP+∆

nS

- - nS

- - nS

6 TCP - nS

Note: "∆" (due to buffer driving delay and wire loading) is 20 nS.

Port Access Cycle

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Port Input Setup to ALE Low T
Port Input Hold from ALE Low T
Port Output to ALE T

Note: Ports are read during S5P2, and output data becomes available at the end of S6P2. The timing data are referenced to
ALE, since it provides a convenient reference.

PDS

PDH

PDA

1 TCP - - nS

0 - - nS

1 TCP - - nS

- 16 -

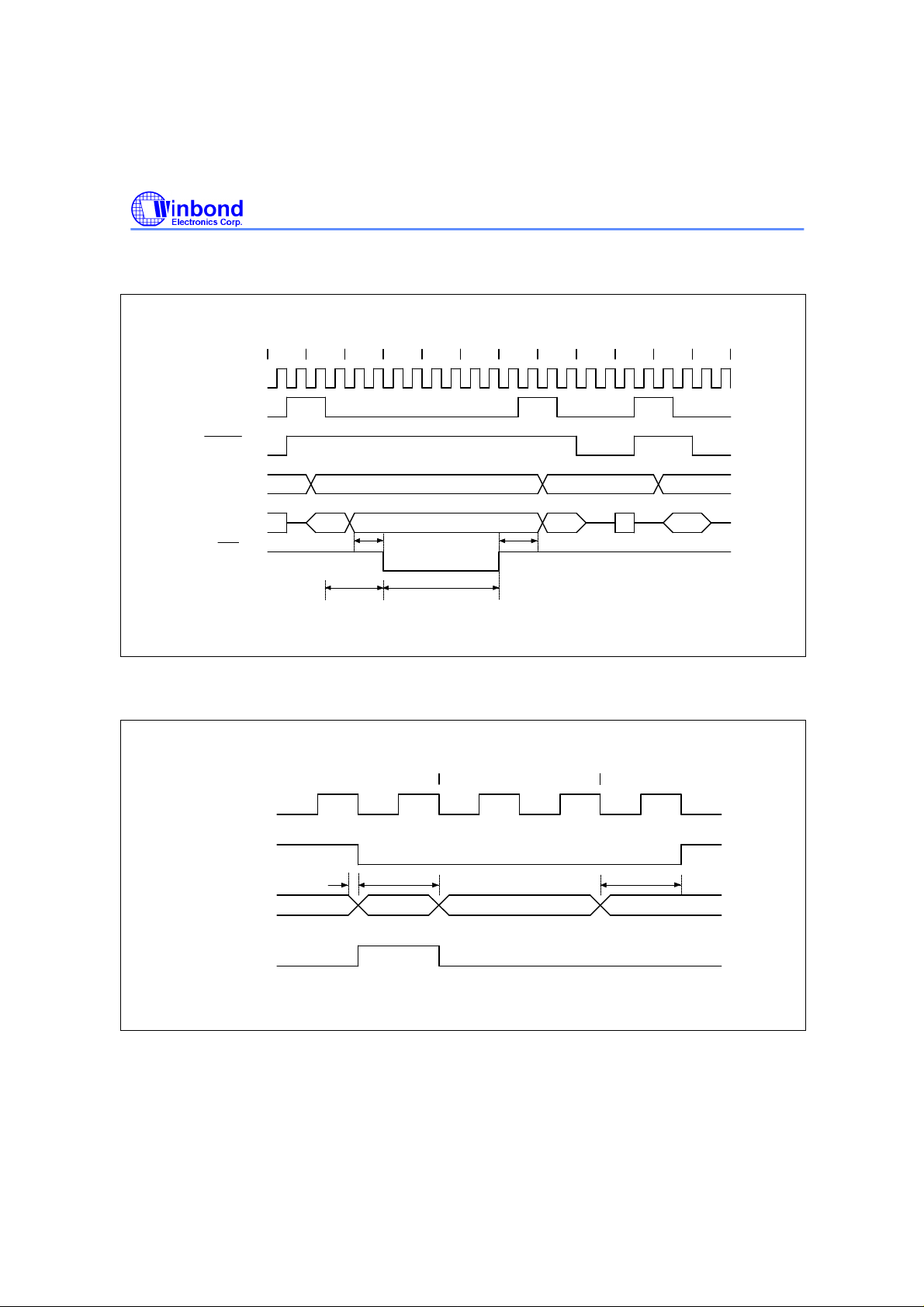

TIMING WAVEFORMS

Program Fetch Cycle

S1

XTAL1

ALE

PSEN

PORT 2

PORT 0

S2 S3 S4 S5 S6 S1 S2 S3 S4 S5 S6

T

ALW

T

APL

T

PSW

T

AAS

T

A0-A7

PDA

T

PDH,TPDZ

A0-A7

DataCode

Code

A0-A7

Data

T

AAH

W78E516B

A0-A7

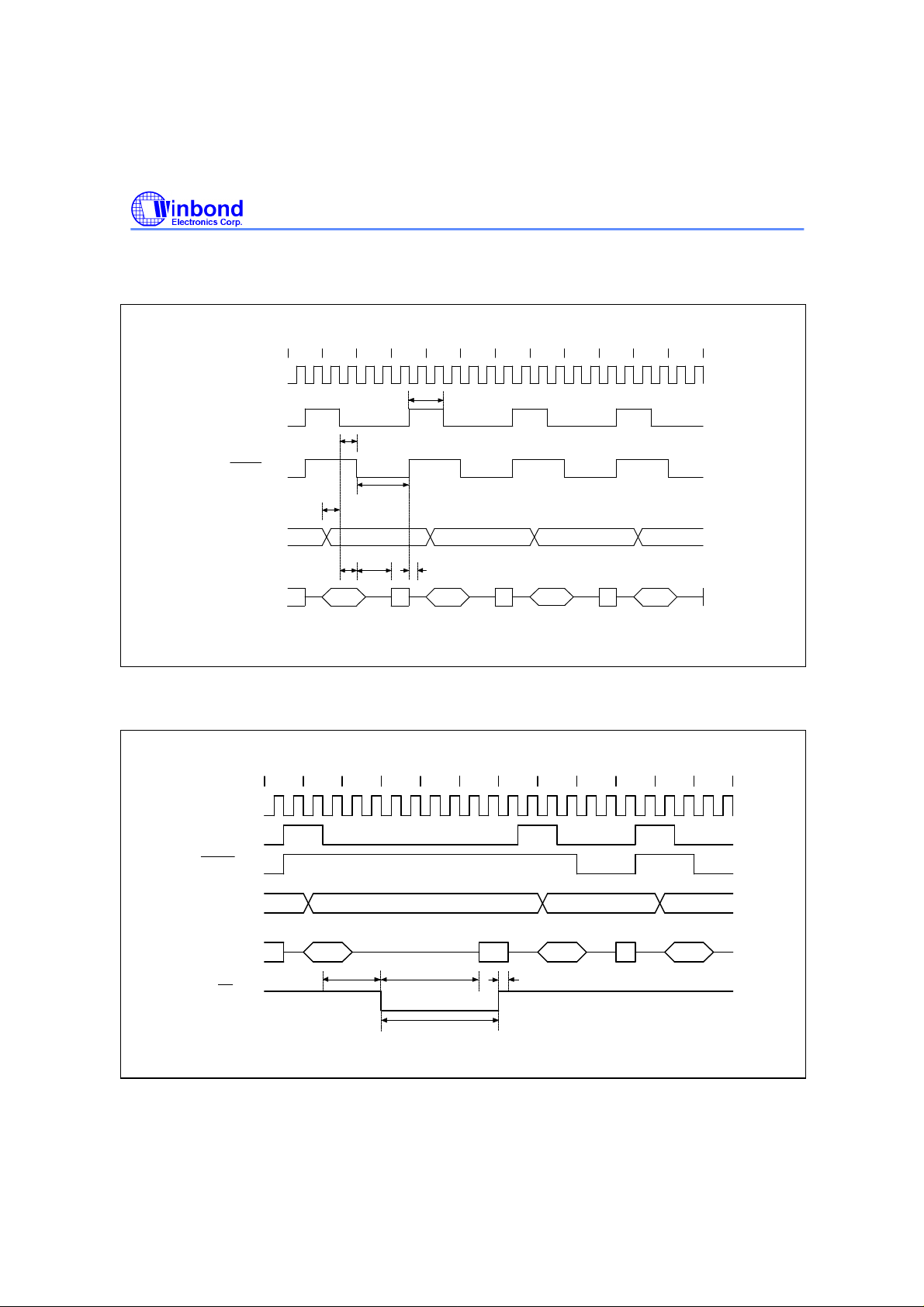

Data Read Cycle

S2 S3S5 S6 S1S2 S3 S4S5 S6 S1S4

XTAL1

ALE

PSEN

PORT 2

A0-A7

A8-A15

DATA

PORT 0

T

DAR

T

DDA

T

DDH,TDDZ

RD

T

DRD

Publication Release Date: February 2000

- 17 - Revision A3

Timing Waveforms, continued

Data Write Cycle

XTAL1

ALE

PSEN

W78E516B

S2 S3S5 S6 S1S2 S3 S4S1S5 S6S4

PORT 2

PORT 0

WR

Port Access Cycle

XTAL1

ALE

PORT

A0-A7

T

A8-A15

DATA OUT

T

DWD

T

DAW

T

DAD

T

DWR

S5 S6 S1

T

PDHPDS

T

PDA

DATA OUT

INPUT

SAMPLE

- 18 -

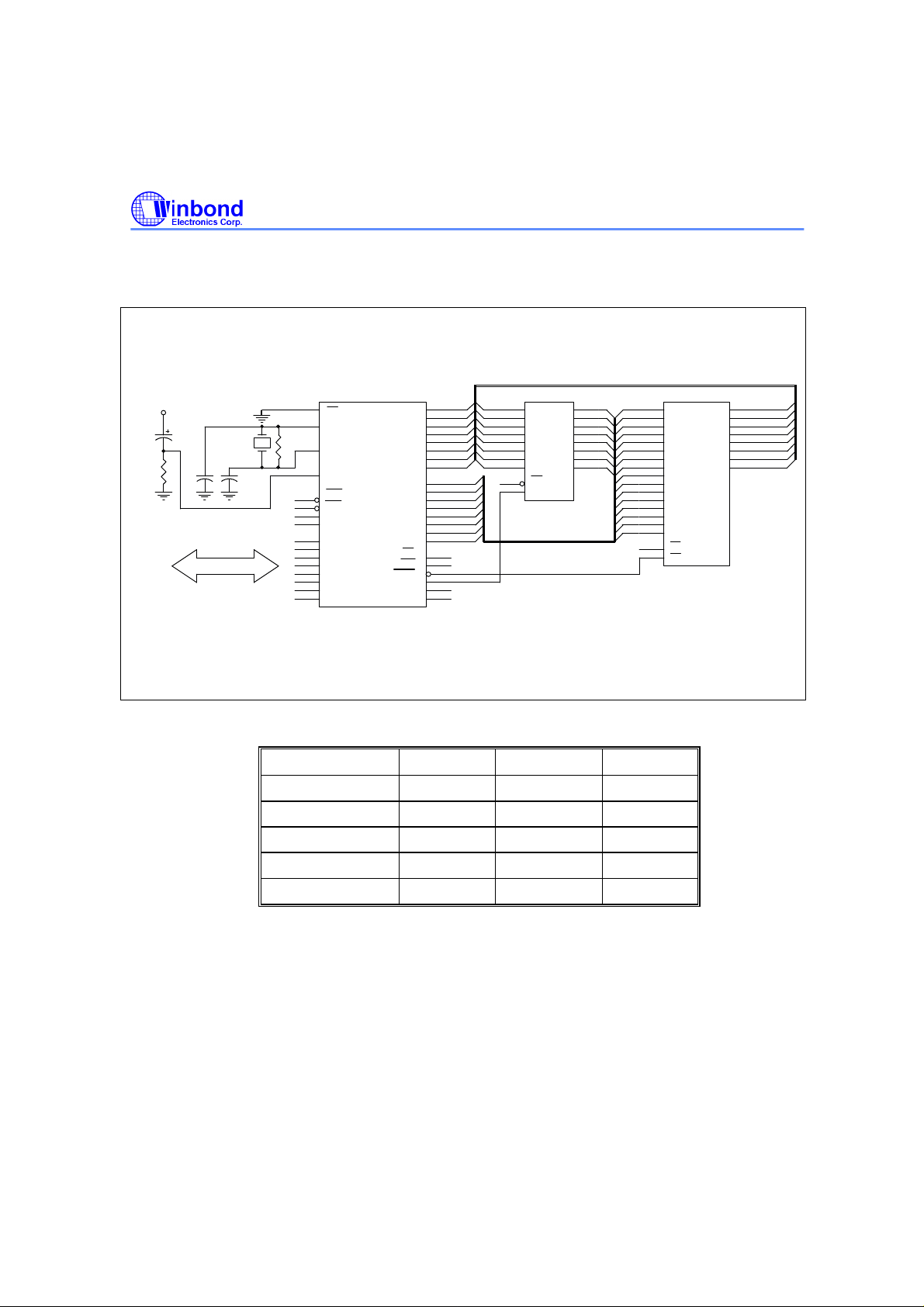

TYPICAL APPLICATION CIRCUIT

Expanded External Program Memory and Crystal

V

8.2 K

DD

10 u

CRYSTAL

C1

C2

31

EA

19

XTAL1

R

18

XTAL2

9

RST

INT0

12
13

INT1

14

T0

15

T1
P1.0 1

P1.1

2

P1.2

3

P1.3

4

P1.4

5

P1.5

6

P1.6

7

P1.7

8

W78E516B

P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7

P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7

PSEN

ALE
TXD
RXD

RD
WR

AD0

39
38
37
36
35
34
33
32

21
22
23
24
25
26
27
28

17
16

29
30
11
10

AD1
AD2
AD3
AD4
AD5
AD6
AD7

A8
A9
A10
A11
A12

A13

A14
A15

AD0D0 3
AD1
AD2
AD3
AD4
AD5
AD6
AD7

GND

W78E516B

AD0

A0
D1
D2
D3
D4
D5
D6
D7

OC
G

74LS373

Q0

5

A1

Q1

6

A2

Q2

9

A3

Q3

12

A4

Q4

15

A5

Q5

A6

16

Q6

19

Q7

A7

4
7
8
13
14
17
18

1

11

A0

2

GND

A10
A11
A12
A13
A14
A15

10

A0

A1

9

A1

A2

8

A2

A3

7

A3

A4

6

A4

A5

5

A5

A6

4

A6

3

A7

A7

25

A8

A8

24

A9

A9

21

A10

23

A11

2

A12

26

A13

27

A14

1

A15

20

CE

22

OE

27512

11

O0

12

O1
O2
O3
O4
O5
O6
O7

AD1

13

AD2

15

AD3

16

AD4

17

AD5

18

AD6

19

AD7

Figure A

CRYSTAL C1 C2 R

6 MHz 47P 47P ­16 MHz 30P 30P ­24 MHz 15P 10P ­32 MHz 10P 10P 6.8K
40 MHz 5P 5P 4.7K

Above table shows the reference values for crystal applications.

Notes:

1. C1, C2, R components refer to Figure A

2. Crystal layout must get close to XTAL1 and XTAL2 pins on user's application board.

Publication Release Date: February 2000

- 19 - Revision A3

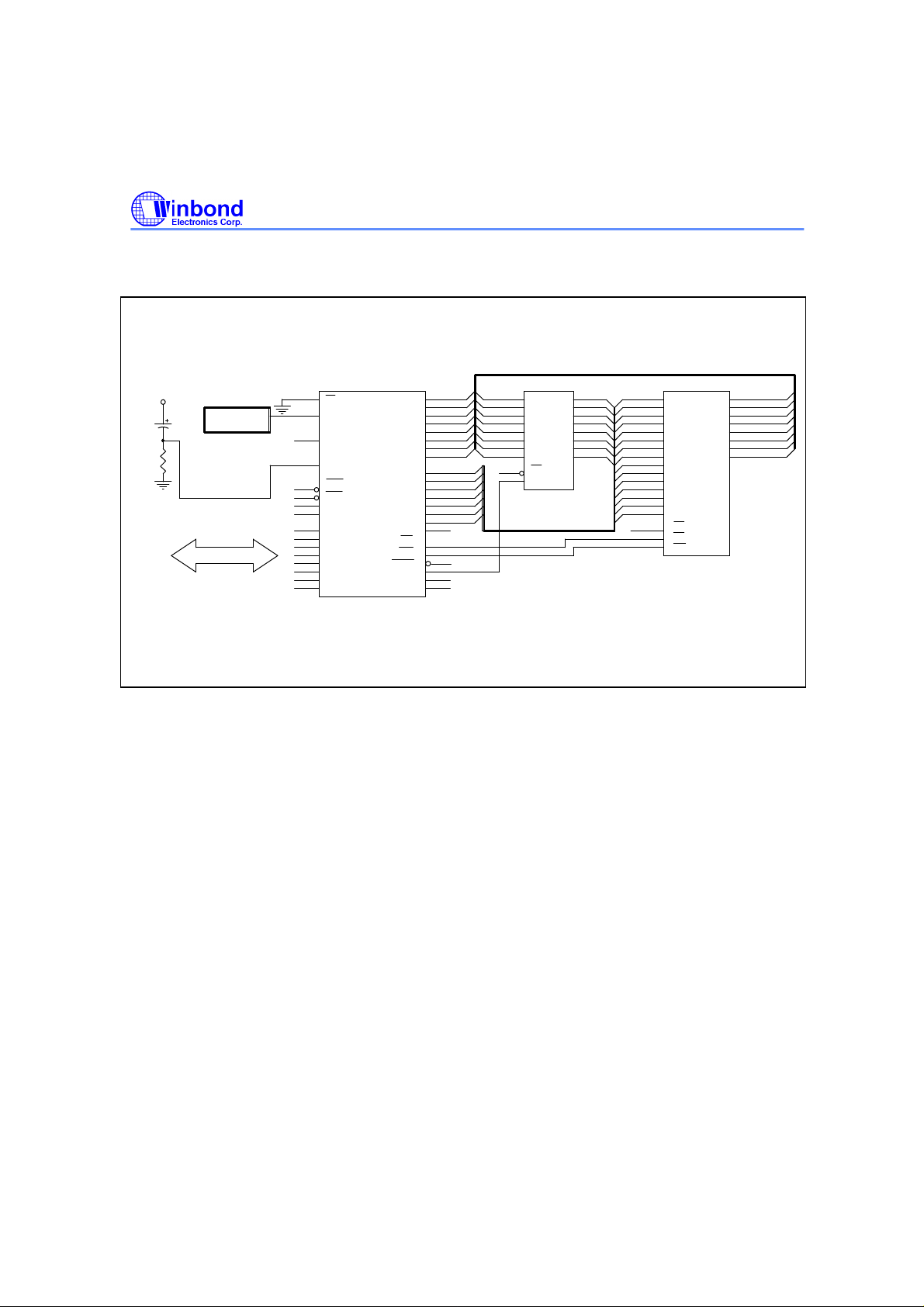

Tipical Application Circuit, continued

Expanded External Data Memory and Oscillator

V

8.2 K

DD

OSCILLATOR

10 u

31

19

18

9

12
13

14
15

1
2
3
4

5
6
7
8

EA
XTAL1

XTAL2

RST

INT0
INT1

T0
T1

P1.0
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7

W78E516B

P0.0 39
P0.1
P0.2 37
P0.3 36
P0.4
P0.5
P0.6
P0.7

P2.0 21
P2.1
P2.2 23
P2.3
P2.4 25
P2.5 26
P2.6

P2.7

RD

WR 16

PSEN

ALE
TXD
RXD

AD0

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7

A8
A9

A13

A10
A11
A12

A14

AD1
AD2
AD3
AD4
AD5
AD6
AD7

GND

38

35
34
33
32

22
24

27
28

17

29

30
11
10

W78E516B

3
4
7
8

13

14
17
18

1

D0
D1
D2
D3
D4
D5
D6
D7

OC
G 11

74LS373

2

A0

Q0

5

A1

Q1

6

A2

Q2

9

A3

Q3

12

A4

Q4

15

A5

Q5

16

A6

Q6

19

A7

Q7

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14

10

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14

CEGND
OE
WR

D0
D1
D2
D3
D4
D5
D6
D7

9
8
7
6
5
4

3
25
24
21
23

2
26

1
20

22
27

20256

AD0

11

AD1

12

AD2

13

AD3

15

AD4

16

AD5

17

AD6

18

AD7

19

Figure B

- 20 -

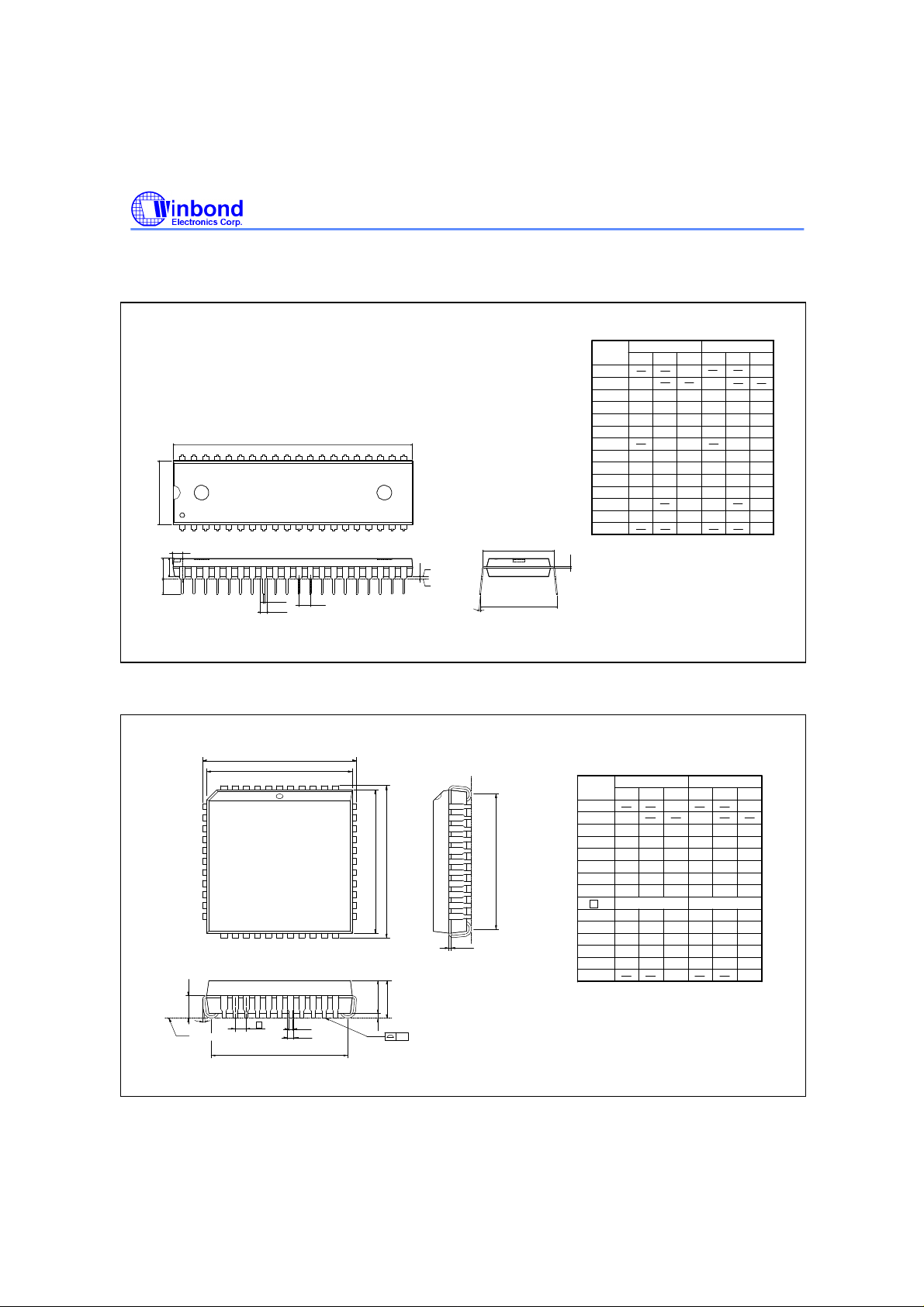

PACKAGE DIMENSIONS

40-pin DIP

40 21

1

E

1

S

A

2

A

L

D

B

e

1

B

1

W78E516B

Dimension in inch Dimension in mm

Symbol

Min. Nom. Max. Max.Nom.Min.

A

0.010

1

A

0.150

A

2

0.016

B

1

B

0.008

c
D
E

0.540

E1
e

1

0.120

L

a

0.630 16.00

A

e

20

Base Plane

1

A

Seating Plane

E

eA

a

S

Notes:

1. Dimension D Max. & S include mold flash or
tie bar burrs.

c

2. Dimension E1 does not include interlead flash.

3. Dimension D & E1 include mold mismatch and

are determined at the mold parting line.

4. Dimension B1 does not include dambar
protrusion/intrusion.

5. Controlling dimension: Inches.

6. General appearance spec. should be based on
final visual inspection spec.

0.210

0.155

0.160

0.018

0.022

0.050 1.27

0.0540.048

0.010

0.014

2.055 2.070

0.610

0.6000.590

0.545

0.550

0.110

0.130

0.140

0 15

0.670

0.650

0.090

.

0.254

3.81

0.406

0.203

14.986

13.72

2.286 2.54 2.7940.090 0.100

3.048

3.937

0.457

52.20

15.24

3.302

16.51

0.254

5.334

4.064

0.559

1.3721.219

0.356

52.58

15.494

13.9713.84

3.556

17.01

2.286

150

44-pin PLCC

H

D

D

e

44 40

G

D

Dimension in inch

Symbol

39

H

E

E

29

2818

A

2

A

b
b

1

A

1

y

G

E

c

Min. Nom. Max. Max.Nom.Min.

A

0.020

A

1

0.150

0.145

A

2

0.026

b1
b

c
D
E
e
G
G
H
H
L

y

Notes:

1. Dimension D & E do not include interlead
flash.

2. Dimension b1 does not include dambar

protrusion/intrusion.

3. Controlling dimension: Inches

4. General appearance spec. should be based
on final visual inspection spec.

0.028

0.016

0.018

0.008

0.010

0.648

0.653

0.653

0.648

0.050

0.590

0.610

D

0.590

E

0.680

0.690

D

0.680

E

0.100

0.090

BSC

0.185

0.155

0.032

0.022

0.014

0.658

0.658

0.630

0.6300.610

0.700

0.7000.690

0.110

0.004

Dimension in mm

0.508

3.81

3.683

0.66

0.711

0.406

0.457

0.203

0.254

16.46

16.59

16.59

16.46

1.27

BSC

14.99

15.49

17.27

17.53

2.54

2.296

4.699

3.937

0.813

0.559

0.356

16.71

16.71

16.00

16.0015.4914.99

17.78

17.7817.5317.27

2.794

0.10

Publication Release Date: February 2000

6 1

7

17

L

θ

Seating Plane

- 21 - Revision A3

W78E516B

Application Note: In-system Programming Software Examples

This application note illustrates the in-system programmability of the Winbond W78E516B MTP-ROM
microcontroller. In this example, microcontroller will boot from 64 KB APROM bank and waiting for a
key to enter in-system programming mode for re-programming the contents of 64 KB APROM. While
entering in-system programming mode, microcontroller executes the loader program in 4KB LDROM
bank. The loader program erases the 64 KB APROM then reads the new code data from external
SRAM buffer (or through other interfaces) to update the 64KB APROM.

EXAMPLE 1:

;*******************************************************************************************************************
;* Example of 64K APROM program: Program will scan the P1.0. if P1.0 = 0, enters in-system
;* programming mode for updating the content of APROM code else executes the current ROM code.
;* XTAL = 40 MHz
;*******************************************************************************************************************

.chip 8052
.RAMCHK OFF
.symbols

CHPCON EQU BFH
CHPENR EQU F6H
SFRAL EQU C4H
SFRAH EQU C5H
SFRFD EQU C6H
SFRCN EQU C7H

ORG 0H
LJMP 100H ; JUMP TO MAIN PROGRAM
;************************************************************************
;* TIMER0 SERVICE VECTOR ORG = 000BH
;************************************************************************
ORG 00BH
CLR TR0 ; TR0 = 0, STOP TIMER0
MOV TL0,R6
MOV TH0,R7
RETI
;************************************************************************
;* 64K APROM MAIN PROGRAM
;************************************************************************
ORG 100H

MAIN_64K:
MOV A,P1 ; SCAN P1.0

ANL A,#01H
CJNE A,#01H,PROGRAM_64K ; IF P1.0 = 0, ENTER IN-SYSTEM PROGRAMMING MODE
JMP NORMAL_MODE

PROGRAM_64K:
MOV CHPENR,#87H ; CHPENR = 87H, CHPCON REGISTER WRTE ENABLE

MOV CHPENR,#59H ; CHPENR = 59H, CHPCON REGISTER WRITE ENABLE
MOV CHPCON,#03H ; CHPCON = 03H, ENTER IN-SYSTEM PROGRAMMING MODE
MOV TCON,#00H ; TR = 0 TIMER0 STOP
MOV IP,#00H ; IP = 00H
MOV IE,#82H ; TIMER0 INTERRUPT ENABLE FOR WAKE-UP FROM IDLE MODE
MOV R6,#FEH ; TL0 = FEH

- 22 -

W78E516B

MOV R7,#FFH ; TH0 = FFH
MOV TL0,R6
MOV TH0,R7
MOV TMOD,#01H ; TMOD = 01H, SET TIMER0 A 16-BIT TIMER
MOV TCON,#10H ; TCON = 10H, TR0 = 1,GO
MOV PCON,#01H ; ENTER IDLE MODE FOR LAUNCHING THE IN-SYSTEM

; PROGRAMMABILITY
;********************************************************************************
;* Normal mode 64KB APROM program: depending user's application
;********************************************************************************
NORMAL_MODE:
. ; User's application program
.

.
.

EXAMPLE 2:

;*****************************************************************************************************************************
;* Example of 4KB LDROM program: This lorder program will erase the 64KB APROM first, then reads the new
;* code from external SRAM and program them into 64KB APROM bank. XTAL = 40 MHz

;*****************************************************************************************************************************

.chip 8052
.RAMCHK OFF
.symbols

CHPCON EQU BFH
CHPENR EQU F6H
SFRAL EQU C4H
SFRAH EQU C5H
SFRFD EQU C6H
SFRCN EQU C7H

ORG 000H
LJMP 100H ; JUMP TO MAIN PROGRAM

;************************************************************************
;* 1. TIMER0 SERVICE VECTOR ORG = 0BH
;************************************************************************
ORG 000BH
CLR TR0 ; TR0 = 0, STOP TIMER0
MOV TL0,R6
MOV TH0,R7
RETI

;************************************************************************
;* 4KB LDROM MAIN PROGRAM
;************************************************************************
ORG 100H

Publication Release Date: February 2000

- 23 - Revision A3

W78E516B

MAIN_4K:
MOV CHPENR,#87H ; CHPENR = 87H, CHPCON WRITE ENABLE.

MOV CHPENR,#59H ; CHPENR = 59H, CHPCON WRITE ENABLE.
MOV A,CHPCON
ANL A,#80H
CJNE A,#80H,UPDATE_64K ; CHECK F04KBOOT MODE ?

MOV CHPCON,#03H ; CHPCON = 03H, ENABLE IN-SYSTEM PROGRAMMING.
MOV CHPENR,#00H ; DISABLE CHPCON WRITE ATTRIBUTE

MOV TCON,#00H ; TCON = 00H, TR = 0 TIMER0 STOP
MOV TMOD,#01H ; TMOD = 01H, SET TIMER0 A 16BIT TIMER
MOV IP,#00H ; IP = 00H
MOV IE,#82H ; IE = 82H, TIMER0 INTERRUPT ENABLED
MOV R6,#FEH
MOV R7,#FFH
MOV TL0,R6
MOV TH0,R7
MOV TCON,#10H ; TCON = 10H, TR0 = 1, GO
MOV PCON,#01H ; ENTER IDLE MODE

UPDATE_64K:
MOV CHPENR,#00H ; DISABLE CHPCON WRITE-ATTRIBUTE

MOV TCON,#00H ; TCON = 00H , TR = 0 TIM0 STOP
MOV IP,#00H ; IP = 00H
MOV IE,#82H ; IE = 82H, TIMER0 INTERRUPT ENABLED
MOV TMOD,#01H ; TMOD = 01H, MODE1
MOV R6,#3CH ; SET WAKE-UP TIME FOR ERASE OPERATION, ABOUT 15 mS. DEPENDING
; ON USER'S SYSTEM CLOCK RATE.
MOV R7,#B0H
MOV TL0,R6
MOV TH0,R7

ERASE_P_4K:
MOV SFRCN,#22H ; SFRCN(C7H) = 22H ERASE 64K

MOV TCON,#10H ; TCON = 10H, TR0 = 1,GO
MOV PCON,#01H ; ENTER IDLE MODE (FOR ERASE OPERATION)

;*********************************************************************
;* BLANK CHECK
;*********************************************************************
MOV SFRCN,#0H ; READ 64KB APROM MODE
MOV SFRAH,#0H ; START ADDRESS = 0H
MOV SFRAL,#0H
MOV R6,#FBH ; SET TIMER FOR READ OPERATION, ABOUT 1.5 µS.
MOV R7,#FFH
MOV TL0,R6
MOV TH0,R7

BLANK_CHECK_LOOP:
SETB TR0 ; ENABLE TIMER 0

MOV PCON,#01H ; ENTER IDLE MODE
MOV A,SFRFD ; READ ONE BYTE
CJNE A,#FFH,BLANK_CHECK_ERROR

- 24 -

INC SFRAL ; NEXT ADDRESS
MOV A,SFRAL
JNZ BLANK_CHECK_LOOP
INC SFRAH
MOV A,SFRAH
CJNE A,#0H,BLANK_CHECK_LOOP ; END ADDRESS = FFFFH
JMP PROGRAM_64KROM

BLANK_CHECK_ERROR:
MOV P1,#F0H
MOV P3,#F0H

JMP $
;*******************************************************************************

;* RE-PROGRAMMING 64KB APROM BANK
;*******************************************************************************
PROGRAM_64KROM:

MOV DPTR,#0H ; THE ADDRESS OF NEW ROM CODE
MOV R2,#00H ; TARGET LOW BYTE ADDRESS
MOV R1,#00H ; TARGET HIGH BYTE ADDRESS
MOV DPTR,#0H ; EXTERNAL SRAM BUFFER ADDRESS
MOV SFRAH,R1 ; SFRAH, TARGET HIGH ADDRESS
MOV SFRCN,#21H ; SFRCN(C7H) = 21 (PROGRAM 64K)

MOV R6,#5AH ; SET TIMER FOR PROGRAMMING, ABOUT 50 µS.

MOV R7,#FFH
MOV TL0,R6
MOV TH0,R7

PROG_D_64K:
MOV SFRAL,R2 ; SFRAL(C4H) = LOW BYTE ADDRESS

MOVX A,@DPTR ; READ DATA FROM EXTERNAL SRAM BUFFER
MOV SFRFD,A ; SFRFD(C6H) = DATA IN
MOV TCON,#10H ; TCON = 10H, TR0 = 1,GO
MOV PCON,#01H ; ENTER IDLE MODE (PRORGAMMING)
INC DPTR
INC R2
CJNE R2,#0H,PROG_D_64K
INC R1
MOV SFRAH,R1
CJNE R1,#0H,PROG_D_64K

;*****************************************************************************
; * VERIFY 64KB APROM BANK
;*****************************************************************************
MOV R4,#03H ; ERROR COUNTER
MOV R6,#FBH ; SET TIMER FOR READ VERIFY, ABOUT 1.5 µS.
MOV R7,#FFH
MOV TL0,R6
MOV TH0,R7
MOV DPTR,#0H ; The start address of sample code
MOV R2,#0H ; Target low byte address
MOV R1,#0H ; Target high byte address
MOV SFRAH,R1 ; SFRAH, Target high address
MOV SFRCN,#00H ; SFRCN = 00 (Read ROM CODE)

W78E516B

Publication Release Date: February 2000

- 25 - Revision A3

W78E516B

READ_VERIFY_64K:
MOV SFRAL,R2 ; SFRAL(C4H) = LOW ADDRESS

MOV TCON,#10H ; TCON = 10H, TR0 = 1,GO
MOV PCON,#01H
INC R2
MOVX A,@DPTR
INC DPTR
CJNE A,SFRFD,ERROR_64K
CJNE R2,#0H,READ_VERIFY_64K
INC R1
MOV SFRAH,R1
CJNE R1,#0H,READ_VERIFY_64K

;******************************************************************************
;* PROGRAMMING COMPLETLY, SOFTWARE RESET CPU
;******************************************************************************
MOV CHPENR,#87H ; CHPENR = 87H
MOV CHPENR,#59H ; CHPENR = 59H
MOV CHPCON,#83H ; CHPCON = 83H, SOFTWARE RESET.

ERROR_64K:
DJNZ R4,UPDATE_64K ; IF ERROR OCCURS, REPEAT 3 TIMES.

. ; IN-SYSTEM PROGRAMMING FAIL, USER'S PROCESS TO DEAL WITH IT.
.
.
.

Headquarters

No. 4, Creation Rd. III,
Science-Based Industrial Park,
Hsinchu, Taiwan
TEL: [phone]
FAX: [phone]
http://www.winbond.com.tw/
Voice & Fax-on-demand: 886-2-27197006

Taipei Office

11F, No. 115, Sec. 3, Min-Sheng East Rd.,
Taipei, Taiwan
TEL: [phone]
FAX: [phone]

Note: All data and specifications are subject to change without notice.

Winbond Electronics (H.K.) Ltd.

Rm. 803, World Trade Square, Tower II,
123 Hoi Bun Rd., Kwun Tong,
Kowloon, Hong Kong
TEL: [phone]
FAX: [phone]

- 26 -

Winbond Electronics North America Corp.
Winbond Memory Lab.
Winbond Microelectronics Corp.
Winbond Systems Lab.

2727 N. First Street, San Jose,
CA 95134, U.S.A.
TEL: [phone]

FAX: [phone]
