Datasheet W78C58P-40, W78C58P-24, W78C58P-16, W78C58M-40, W78C58M-16 Datasheet (Winbond Electronics)

W78C58

INT2

8-BIT MICROCONTROLLER

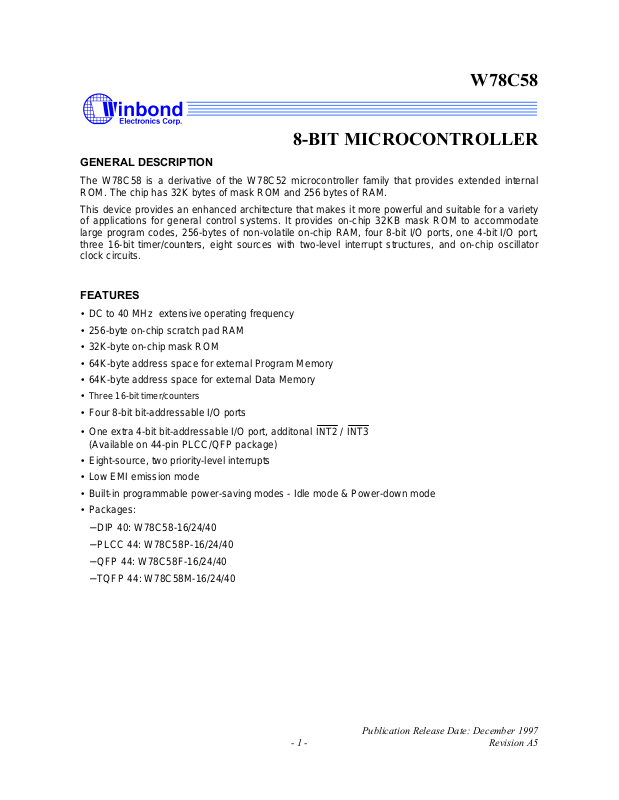

GENERAL DESCRIPTION

The W78C58 is a derivative of the W78C52 microcontroller family that provides extended internal
ROM. The chip has 32K bytes of mask ROM and 256 bytes of RAM.

This device provides an enhanced architecture that makes it more powerful and suitable for a variety
of applications for general control systems. It provides on-chip 32KB mask ROM to accommodate
large program codes, 256-bytes of non-volatile on-chip RAM, four 8-bit I/O ports, one 4-bit I/O port,
three 16-bit timer/counters, eight sources with two-level interrupt structures, and on-chip oscillator
clock circuits.

FEATURES

• DC to 40 MHz extensive operating frequency

• 256-byte on-chip scratch pad RAM

• 32K-byte on-chip mask ROM

• 64K-byte address space for external Program Memory

• 64K-byte address space for external Data Memory

• Three 16-bit timer/counters

• Four 8-bit bit-addressable I/O ports

• One extra 4-bit bit-addressable I/O port, additonal

(Available on 44-pin PLCC/QFP package)

• Eight-source, two priority-level interrupts

• Low EMI emission mode

• Built-in programmable power-saving modes - Idle mode & Power-down mode

• Packages:

− DIP 40: W78C58-16/24/40

− PLCC 44: W78C58P-16/24/40

− QFP 44: W78C58F-16/24/40

− TQFP 44: W78C58M-16/24/40

/ INT3

Publication Release Date: December 1997

- 1 - Revision A5

PIN CONFIGURATIONS

40-Pin DIP (W78C58)

T2, P1.0

T2EX, P1.1

P1.2
P1.3
P1.4
P1.5
P1.6
P1.7

RST
RXD, P3.0
TXD, P3.1

INT0, P3.2
INT1, P3.3

T0, P3.4
T1, P3.5

WR, P3.6

RD, P3.7

XTAL2
XTAL1

VSS

W78C58

VCC1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

40
39

P0.0, AD0

38

P0.1, AD1

37

P0.2, AD2

P0.3, AD3

36
35

P0.4, AD4

34

P0.5, AD5

33

P0.6, AD6

32

P0.7, AD7

31

EA

30

ALE

29

PSEN

P2.7, A15

28

P2.6, A14

27
26

P2.5, A13

25

P2.4, A12

24

P2.3, A11

23

P2.2, A10

P2.1, A9

22
21

P2.0, A8

44-Pin PLCC (W78C58P)

T
2
E
X
,
P

P

P

P

1

1

1

1

.

.

.

.

2

1

3

4

6 5 4 3

7

P1.5

8

P1.6

9

P1.7

10

RST

RXD, P3.

INT2, P4.3

TXD, P3.1
INT0, P3.2
INT1, P3.3

T0, P3.4
T1, P3.5

11
12
13
14
15
16

17

X

X

P

P

T

T

3

3

A

A

.

.

L

L

7

6

1

2

,

,

/

/

R

W

D

R

/
I

A

N

T

D

T

2

0

3

,

,

,

P

P

P

1

V

0

4

.

C

.

.

0

C

0

2

2 1 44 43 42

V

P

P

P

S

2

2

4

S

.

.

.

1

0

0

,

,

A

A

9

8

44-Pin QFP/TQFP (W78C58F/W78C58M)

/

T

I

2

A

A

A

D

D

D

3

2

1

,

,

,

P

P

P

0

0

0

.

.

.

3

1

2

40

41

P

P

2

2

.

.

3

2

,

,

A

A

1

1

1

0

P0.4, AD4

39
38

P0.5, AD5

37

P0.6, AD6

36

P0.7, AD7

35

EA

34

P4.1

33

ALE

32

PSEN

31

P2.7, A15

30

P2.6, A14

29

P2.5, A13

2827262524232221201918

P
2
.
4
,
A
1
2

P1.5
P1.6
P1.7

RST
RXD, P3.0
INT2, P4.3

TXD, P3.1
INT0, P3.2
INT1, P3.3

T0, P3.4
T1, P3.5

1
2

3

4
5
6
7
8
9
10

11

P
1
.
4

P
3
.
6
,
/
W
R

P
1
.
3

43 42 41

P
3
.
7
,
/
R
D

E
X
,
P

P
1

1
.

.
2

1

X

X

T

T

A

A

L

L

1

2

N

T

T

2

3

,

,

P

P

1

V

4

.

C

.

0

C

2

40 39 38 37 36

V

P

P

S

2

4

S

.

.

0

0

,
A
8

A

A

A

A

D

D

D

D

3

1

2

0

,

,

,

,

P

P

P

P

0

0

0

0

.

.

.

.

3

1

2

0

34

3544

P

P

P

2

2

2

.

.

.

3

1

2

,

,

,

A

A

A

1

1

9

1

0

P0.4, AD4

33
32

P0.5, AD5

31

P0.6, AD6

30

P0.7, AD7

29

EA

28

P4.1

27

ALE

26

PSEN

25

P2.7, A15

24

P2.6, A14

23

P2.5, A13

2221201918171615141312

P
2
.
4
,
A
1
2

- 2 -

W78C58

PIN DESCRIPTION

SYMBOL TYPE DESCRIPTIONS

EA I EXTERNAL ACCESS ENABLE: This pin forces the processor to execute out

of external ROM. The ROM address and data will not be present on the bus if
the EA pin is high and the program counter is within the 32 KB area.

Otherwise they will be present on the bus.

PSEN O H

ALE O H ADDRESS LATCH ENABLE: ALE is used to enable the address latch that

RST I L RESET: A high on this pin for two machine cycles while the oscillator is

XTAL1 I CRYSTAL 1: This is the crystal oscillator input. This pin may be driven by an

XTAL2 O CRYSTAL 2: This is the crystal oscillator output. It is the inversion of XTAL1.
VSS I GROUND: Ground potential.
VDD I POWER SUPPLY: Supply voltage for operation.
P0.0−P0.7
P1.0−P1.7
P2.0−P2.7
P3.0−P3.7

I/O D PORT 0: Function is the same as that of the standard 8052.
I/O H PORT 1: Function is the same as that of the standard 8052.
I/O H PORT 2: Function is the same as that of the standard 8052.
I/O H PORT 3: Function is the same as that of the standard 8052.

PROGRAM STORE ENABLE: PSEN enables the external ROM data in the
Port 0 address/data bus.

When internal ROM access is performed, no PSEN strobe signal outputs
originate from this pin.

separates the address from the data on Port 0. ALE runs at 1/6th of the
oscillator frequency. An ALE pulse is omitted during external data memory
accesses.

running resets the device.

external clock.

P4.0−P4.3

INT2 (P4.3) I H External interrupt 2: An extra interrupt input source. It cascades to pin P4.3

INT3 (P4.2) I H External interrupt 3: An extra interrupt input source. It cascades to pin P4.2

* Note : TYPE I: input, O: output, I/O: bi-directional, H: pull-high, L: pull-low, D: open drain

I/O H PORT 4: A 4-bit bi-directional parallel port and bit-addressable with internal

pull-ups. Pin P4.3 and P4.2 have alternative function as external interrupt
(INT2/INT3) source input.

internally.

internally.

Publication Release Date: December 1997

- 3 - Revision A5

BLOCK DIAGRAM

W78C58

P1.0
~
P1.7

P3.0
~
P3.7

P4.0
~
P4.3

INT2

INT3

Port

1

Port

3

Port

4

Port 1

Latch

Interrupt

Timer

Timer

Timer

UART

Port 3

Latch

Port 4

Latch

ACC

2

Oscillator

PSW

Instruction

Decoder

&

Sequencer

Bus & Clock

Controller

ALU

SFR RAM

RAM & SFR

Reset Block

0

1

T2T1

Address

256 bytes

B

Stack

Pointer

Power control

Port 0

Latch

DPTR

Temp Reg.

PC

Incrementor

Addr. Reg.

32KB
ROM

Port 2

Latch

Port
0

Port
2

P0.0
~
P0.7

P2.0
~
P2.7

XTAL1 PSENALE GNDVCCRSTXTAL2

Figure 2. Architecture of the W78C58

- 4 -

W78C58

FUNCTIONAL DESCRIPTION

The W78C58 is pin-to-pin compatible with the W78C52, except that the internal 8K mask ROM has
been replaced with 32K of internal mask ROM. The processor supports 111 different opcodes and
references both 64K program address space and 64 K data storage space.

Clock

The W78C58 is designed to be used with either a crystal oscillator or an external clock. Internally, the
clock is divided by two before it is used. This makes the W78C58 relatively insensitive to duty cycle
variations in the clock.

Crystal Oscillator

The W78C58 incorporates a built-in crystal oscillator. To make the oscillator work, a crystal is
connected across pins XTAL1 and XTAL2. In addition, a load capacitance of 30 pf (typically) must be
connected from each pin to ground. Resistor must also be connected from XTAL1 to XTAL2 to
provide a DC bias when the crystal frequency is above 24 MHz.

External Clock

An external clock should be connected to pin XTAL1. Pin XTAL2 should be left unconnected. The
XTAL1 input is a CMOS-type input, as required by the crystal oscillator. As a result, the external clock
signal should have an input one level greater than 3.5 volts.

Power Management

Idle Mode

The idle mode is entered by setting the IDLE bit in the PCON register. In the idle mode, the internal
clock to the processor is stopped. The peripherals and the interrupt logic continue to be clocked. The
processor will exit idle mode when either an interrupt or a reset occurs.

Power-down Mode

When the PD bit of the PCON register is set, the processor enters the power-down mode. In this
mode all of the clocks are stopped, including the oscillator. The only way to exit power-down mode is
by a reset.

Reset

The external RESET signal is sampled at S5P2. To take effect, it must be held high for at least two
machine cycles while the oscillator is running.

An internal trigger circuit in the reset line is used to deglitch the reset line when the W78C58 is used
with an external RC network. The reset logic also has a special glitch removal circuit that ignores
glitches on the reset line.

During reset, the ports are initialized to FFH, the stack pointer to 07H, PCON (with the exception of
bit 4) to 00H, and all of the other SFR registers except SBUF to 00H. SBUF is not reset.

New Defined Peripheral

In order to be more suitable for I/O, an extra 4-bit bit-addressable port P4 and two external interrupt
INT2, INT3 has been added to either the PLCC or QFP 44 pin package. And description follows:

Publication Release Date: December 1997

- 5 - Revision A5

1. INT2 / INT3

INT2

W78C58

Two additional external interrupts,
interrupt 0 and 1 in the standard 80C52. The functions/status of these interrupts are
determined/shown by the bits in the XICON (External Interrupt Control) register. The XICON register
is bit-addressable but is not a standard register in the standard 80C52. Its address is at 0C0H. To
set/clear bits in the XICON register, one can use the "SETB (/CLR) bit" instruction. For example,
"SETB 0C2H" sets the EX2 bit of XICON.

Example:

P4 REG 0D8H

MOV P4, #0AH ; Output data "A" through P4.0−P4.3.

MOV A, P4 ; Read P4 status to Accumulator.
SETB P4.0 ; Set bit P4.0
CLR P4.1 ; Clear bit P4.1

2. PORT4

Another bit-address port P4 is also available and only 4 bits (P4<3:0>) can be used. This port address
is located at 0D8H with the same function as that of port P1,except the P4.3 and P4.2 are alternative
function pins. It can be used as general I/O pins or external interrupt input sources (INT2/INT3).

and INT3 , whose functions are similar to those of external

Reduce EMI Emission

Because of the large on-chip mask-ROM, when a program is running in internal ROM space, the ALE
will be unused. The transition of ALE will cause noise, so it can be turned off to reduce the EMI
emission if it is useless. Turning off the ALE signal transition only requires setting the bit 0 of the
AUXR SFR, which is located at 08Eh. When ALE is turned off, it will be reactivated when the program
accesses external ROM/RAM data or jumps to execute an external ROM code. The ALE signal will
turn off again after it has been completely accessed or the program returns to internal ROM code
space..

POF Flag

The Power-Off-Reset flag is set by on-chip circuitry when the VCC level rises from 0 to 5V. The POF
bit can be set/cleared by software allowing a user to determine if the reset is the result of a power-on
or a warm up by external reset. To avoid effect of POF flag, the power voltage must remain above
3V.

Timers 0, 1, and 2

Timers 0, 1, and 2 each consist of two 8-bit data registers. These are called TL0 and TH0 for Timer 0,
TL1 and TH1 for Timer 1, and TL2 and TH2 for Timer 2. The TCON and TMOD registers provide
control functions for timers 0, 1. The T2CON register provides control functions for Timer 2. RCAP2H
and RCAP2L are used as reload/capture registers for Timer 2.

The operations of Timer 0 and Timer 1 are the same as in the W78C51. Timer 2 is a special feature
of the W78C52C: it is a 16-bit timer/counter that is configured and controlled by the T2CON register.
Like Timers 0 and 1, Timer 2 can operate as either an external event counter or as an internal timer,
depending on the setting of bit C/T2 in T2CON. Timer 2 has three operating modes: capture, auto­reload, and baud rate generator. The clock speed at capture or auto-reload mode is the same as that
of Timers 0 and 1.

- 6 -

W78C58

DESCRIPTIONS OF THE SPECIAL FUNCTION REGISTERS (SFRS)

SYMBOL DEFINITION ADDR. MSB BIT ADDRESS, SYMBOL LSB RESET

B B register F0H (F7) (F6) (F5) (F4) (F3) (F2) (F1) (F0) 00000000B
ACC Accumulator E0H (E7) (E6) (E5) (E4) (E3) (E2) (E1) (E0) 00000000B
P4* Port 4 D8H - - - - (DB)

INT2

PSW Program status word D0H (D7)CY(D6)AC(D5)F0(D4)

RS1
TH2 T2 reg. high CDH 00000000B
TL2 T2 reg. low CCH 00000000B
RCAP2H T2 capture high CBH 00000000B
RCAP2L T2 capture low CAH 00000000B
T2CON Timer 2 control C8H (CF)

XICON* External interrupt

control

IP Interrupt priority B8H - - PT2 PS PT1 PX1 PT0 PX0 xx000000B
P3 Port 3 B0H (B7)RD(B6)WR(B5)T1(B4)T0(B3)

IE Interrupt enable A8H (AF)EA(AE)-(AD)

P2 Port 2 A0H (A7)

SBUF Serial buffer 99H xxxxxxxxB
SCON* Serial control 98H (9F)

P1* Port 1 90H (97) (96) (95) (94) (93) (92) (91)

AUXR* Auxiliary 8EH - - - - - - - AO xxxxxxx0B
TH1 Timer high 1 8DH 00000000B
TH0 Timer high 0 8CH 00000000B
TL1 Timer low 1 8BH 00000000B
TL0 Timer low 0 8AH 00000000B
TMOD Timer mode 89H GATE C/T M1 M0 GATE C/T M1 M0 00000000B
TCON Timer control 88H (8F)

PCON* Power control 87H SMOD
DPH Data pointer high 83H 00000000B
DPL Data pointer low 82H 00000000B
SP Stack pointer 81H 00000111B
P0 Port 0 80H (87) (86) (85) (84) (83) (82) (81) (80) 11111111B

C0H (C7)

SM0/FE

TF2

PX3

A15

TF1

(CE)

EXF2

(C6)
EX3

(A6)

A14

(9E)

SM1

(8E)
TR1

SMOD0

(CD)

RCLK

(C5)

ET2
(A5)

(9D)

SM2

(8D)

(CC)

TCLK

(C4)

IE3

(AC)ES(AB)

(A4)

A13

TF0

A12

(9C)

REN

(8C)

TR0

- POF+ GF1 GF0 PD IDL 00xxxx00B

IT3

(D3)
RS0

(CB)

EXEN2

(C3)
PX2

INT1

ET1
(A3)

(9B)
TB8

(8B)

(DA)
INT3
(D2)OV(D1)-(D0)P00000000B

(CA)

(C2)

INT0
(AA)

A11

RB8

IE1

(D9) (D8) xxxx0000B

(C9)

TR2

C/T2

(C1)

EX2

(B2)

(B1)

TXD

(A9)

EX1

ET0

(A2)

(A1)A9(A0)A811111111B

A10

(9A)

T2EX

(8A)

IT1

(C8)

CP/RL2

(C0)

IE2

(B0)

RXD

(A8)
EX0

(99)TI(98)RI00000000B

(89)

IE0

00000000B

00000000B

IT2

11111111B

00000000B

(90)T211111111B

(88)

00000000B

IT0

Note: In column BIT_ADDRESS, SYMBOL, containing ( ) item means the bit address.

* SFRs modified or added to the W78C52. + Reset value depends on reset condition.

Publication Release Date: December 1997

- 7 - Revision A5

W78C58

W78C58 SFRs address location map:

F8 FF

F0 + B F7
E8 EF
E0 + ACC E7
D8 +P4 DF
D0 + PSW D7
C8 +T2CON RCAP2L RCAP2H TL2 TH2 CF
C0 +XICON C7
B8 + IP BF
B0 + P3 B7
A8 + IE AF
A0 + P2 A7

98 + SCON SBUF 9F

90 + P1 97

88 + TCON TMOD TL0 TL1 TH0 TH1 AUXR 8F

80 +P0 SP DPL DPH PCON 87

Notes:

1. + SFR is bit-addressable.

2. is additional defined function.

Power-off Flag

***PCON - Power Control (87H)

SMOD SMOD0

-

POF

SMOD: Double baud rate bit. When set to a 1, the baud rate is doubled when the serial port is

being used in either modes 1, 2, 3.

SMOD0: Enable FE bit in SCON. This bit is an alternative switch of SM0 and FE (Frame Error)
bit. When set to a 1, SCON.7 means a FE bit, otherwise a SM0 bit.

POF: Power off flag. Bit is set by hardware when power on reset. It can be cleared by software

to determine chip reset is a warm boot or cold boot.
GF1, GF0: These two bits are general-purpose flag bits for the user.
PD: Power down mode bit. Set it to enter power down mode.
IDL: Idle mode bit. Set it to enter idle mode.

GF1 GF0 PD IDL

The power-off flag is located at PCON.4. This bit is set when VDD has been applied to the part. It can
be used to determine if a reset is a warm boot or a cold boot if it is subsequently reset by software.

- 8 -

* Interrupts

***IE - Interrupt Enable (A8H)

EA - ET2 ES ET1 EX1 ET0 EX0

EA: lobal interrupt enable flag
ET2: Timer 2 overflow interrupt enable
ES: Serial port interrupt enable
EX1: External interrupt 1 enable
ET1: Timer 1 overflow interrupt enable
EX0: External interrupt 0 enable

***IP - Interrupt Priority (B8H)

- - PT2 PS PT1 PX1 PT0 PX0

PT2: Timer 2 interrupt priority high if set
PS: Serial port priority high if set
PT1: Timer 1 interrupt priority high if set
PX1: External interrupt 1 priority high if set
PT0: Timer 0 interrupt priority high if set
PX0: External interrupt 0 priority high if set

W78C58

***XICON - External Interrupt Control (C0H)

PX3 EX3 IE3 IT3 PX2 EX2 IE2 IT2

PX3: External interrupt 3 priority high if set
EX3: External interrupt 3 enable if set
IE3: If IT3 = 1, IE3 is set/cleared automatically by hardware when interrupt is detected/serviced
IT3: External interrupt 3 is falling-edge/low-level triggered when this bit is set/cleared by software
PX2: External interrupt 2 priority high if set
EX2: External interrupt 2 enable if set
IE2: If IT2 = 1, IE2 is set/cleared automatically by hardware when interrupt is detected/serviced
IT2: External interrupt 2 is falling-edge/low-level triggered when this bit is set/cleared by software

The W78C58 supports an eight-source and a four-priority-level interrupt architectures. Besides the
SFRs of IP and IE to control the six-source of the standard 8052 interrupt functions. There is an
another SFR (XICON) to control the extra two-source of the external interrrupt (INT2 and INT3). This
priority scheme is formed by combining IPH with IP to determine the priority of each interrupt. Except

the INT2 and INT3, they are not defined in IP SFR but in XICON.

Publication Release Date: December 1997

- 9 - Revision A5

Following tables show the interrupt informations and priority definitions.

Eight-source interrupt informations:

W78C58

INTERRUPT

SOURCE

External Interrupt 0 03H 0 (highest) IE.0 TCON.IT0
Timer/Counter 0 0BH 1 IE.1 ­External Interrupt 1 13H 2 IE.2 TCON.IT1
Timer/Counter 1 1BH 3 IE.3 ­Serial Port 23H 4 IE.4 ­Timer/Counter 2 2BH 5 IE.5 ­External Interrupt 2 33H 6 XICON.EX2 XICON.IT2
External Interrupt 3 3BH 7 (lowest) XICON.EX3 XICON.IT3

VECTOR

ADDRESS

POLLING

SEQUENCE WITHIN

PRIORITY LEVEL

ENABLE

REQUIRED

SETTINGS

INTERRUPT

TYPE

EDGE/LEVEL

*Timer/Counter

***TL0, TH0, TL1, TH1, TL2, TH2, RCAP2L, RCAP2H

***TMOD - Timer 0, 1 Mode (89H)

GATE C//T M1 M0 GATE C//T M1 M0

TIMER0

TIMER1

GATE: Gating control. When set, Timer/counter x is enabled only while INTx pin is high and TRx

control pin is set. When cleared, Timer x is enabled whenever the TRx conrol bit is set.
C//T: Timer or Counter Selector. Cleared for timer operation. Set for counter operation.
M1 M0: Operating Mode
0 0: 13-bit Timer/Counter.
0 1: 16-bit Timer/Counter.
1 0: 8-bit auto-reload Timer/Counter. THx holds a value which is to be reloaded into TLx

each time it overflows.

1 1: Timer 0: TL0 is an 8-bit timer/counter controlled by the standard Timer 0 control bits.

TH0 is an 8-bit timer only controlled by Timer 1 control bits.

Timer 1: Timer/counter 1 stopped.

- 10 -

W78C58

***TCON - Timer 0, 1 Control (88H)

TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0

TF1: Timer 1 overflow flag. Set by hardware on timer/counter overflow. cleared by hardware when

processor vectors to interrupt routine.
TR1: Timer 1 run control bit. Set/cleared by software to turn timer/counter on or off.
TF0: Timer 0 overflow flag. Set by hardware on timer/counter overflow. Cleared by hardware when

processor vectors to interrupt routine.
TR0: Timer 0 run control bit. Set/cleared by software to turn timer/counter on or off.
IE1: Interrupt 1 edge flag. Set by hardware when external interrupt edge detected. Cleared when

interrupt processed.
IT1: Interrupt 1 type control bit. Set/cleared by software to specify falling edge/low level triggered

external interrupt.

IE0: Interrupt 0 edge flag. Set by hardware when external interrupt edge detected. Cleared when

interrupt processed.

IT0: Interrupt 0 type control bit. Set/cleared by software to specify falling edge/low level triggered

external interrupt.

***T2CON - Timer 2 Control (C8H)

TF2 EXF2 RCLK TCLK EXEN2 TR2 C//T CP//RL2

TF2: Timer 2 overflow flag. Set by a Timer 2 overflow and must be cleared by software. TF2 will

not be set when RCLK = 1 or TCLK = 1.

EXF2: Timer2 external flag. Set when either a capture or reload is caused by a negative transition

on T2EX and EXEN2 = 1. When Timer 2 interrupt is enabled, EXF2 = 1 will cause the CPU
to vector to the Timer 2 interrupt routine. EXF2 must be cleared by software.

RCLK: Receive clock flag. RCLK = 1 causes the serial port to use Timer 2 overflow pulses for its

receive clock in mode 1 and 3. RCLK = 0 causes Timer 1 overflow to be used for the

receive clock.
TCLK: Transmit clock flag. TCLK = 1 causes the serial port to use Timer 2 overflow pulses for its

transmit clock in mode 1 and 3. TCLK = 0 causes Timer 1 overflow to be used for the
transmit clock.

EXEN2: Timer 2 external enable flag. EXEN2 = 1 allows a capture or reload to occur as a result of a

negative transition on T2EX if Timer 2 is not used to clock the serial port. EXEN2 = 0

causes Timer 2 to ignore events at T2EX.
TR2: TR2 = 1/0: turns on/off Timer 2.
C//T: Timer or Counter select. Set 1/0 for external event counter (falling edge triggered) /inter

timer.

CP//RL2:Capture/reload flag.

Publication Release Date: December 1997

- 11 - Revision A5

W78C58

EA

*Reduced EMI Mode

The AO bit in the AUXR register, when set, disables the ALE output.

***AUXR - Auxiliary Register (8EH)

- - - - - - - AO

AO: Turn off ALE output.

ABSOLUTE MAXIMUM RATINGS

PARAMETER SYMBOL MIN. MAX. UNIT

DC Power Supply VCC−VSS -0.3 +7.0 V
Input Voltage VIN VSS -0.3 VCC +0.3 V
Operating Temperature TA 0 70
Storage Temperature TST -55 +150

Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability

of the device.

°C
°C

DC CHARACTERISTICS

(VDD-VSS = 5V ±10%, TA = 25°C, Fosc = 20 MHz, unless otherwise specified.)

PARAMETER SYM. SPECIFICATION UNIT TEST CONDITIONS

MIN. MAX.

Operating Voltage VDD 4.5 5.5 V
Operating Current IDD - 20 mA No load

VDD = 5.5V

Idle Current IIDLE - 6 mA Idle mode

VDD = 5.5V

Power Down Current IPWDN - 50

Input Current
P1, P2, P3, P4
Input Current
RST
Input Leakage Current

P0,
Logic 1 to 0 Transition

Current
P1, P2, P3, P4

IIN1 -50 +10

IIN2 -10 +300

ILK -10 +10

ITL [*4] -500 -200

µA

µA

µA

µA

µA

Power-down mode
VDD = 5.5V
VDD = 5.5V
VIN = 0V or VDD
VDD = 5.5V
0 < VIN < VDD
VDD = 5.5V
0V <VIN < VDD

VDD = 5.5V
VIN = 2.0V

- 12 -

DC Characteristics, continued

EA

EA

PARAMETER SYM. SPECIFICATION UNIT TEST CONDITIONS

Input Low Voltage
P0, P1, P2, P3, P4,

W78C58

MIN. MAX.

VIL1 0 0.8 V VDD = 4.5V

Input Low Voltage
RST

Input Low Voltage
XTAL1[*4]
Input High Voltage

P0, P1, P2, P3, P4,
Input High Voltage

RST
Input High Voltage
XTAL1 [*4]
Output Low Voltage
P1, P2, P3, P4
Output Low Voltage

P0, ALE, PSEN [*3]
Sink Current

P1, P2, P3, P4
Sink Current

P0, ALE, PSEN
Output High Voltage

P1, P2, P3, P4
Output High Voltage

P0, ALE, PSEN [*3]

VIL2 0 0.8 V VDD = 4.5V

VIL3 0 0.8 V VDD = 4.5V

VIH1 2.4 VDD +0.2 V VDD = 5.5V

VIH2 3.5 VDD +0.2 V VDD = 5.5V

VIH3 3.5 VDD +0.2 V VDD = 5.5V

VOL1 - 0.45 V VDD = 4.5V

IOL = +2 mA

VOL2 - 0.45 V VDD = 4.5V

IOL = +4 mA

ISK1 4 8 mA VDD = 4.5V

Vs = 0.45V

ISK2 10 14 mA VDD = 4.5V

Vs = 0.45V

VOH1 2.4 - V VDD = 4.5V

IOH = -100 µA

VOH2 2.4 - V VDD = 4.5V

IOH = -400 µA

Source Current
P1, P2, P3, P4
Source Current

P0, ALE, PSEN

Notes:
*1. RST pin is a Schmitt trigger input. RST has internal pull-low resistors of about 30 KΩ.
*3. P0, ALE and /PSEN are tested in the external access mode.
*4. XTAL1 is a CMOS input.
*5. Pins of P1, P2, P3, P4 can source a transition current when they are being externally driven from 1 to 0. The transition

current reaches its maximum value when VIN approximates to 2V.

ISR1 -120 -180

µA

VDD = 4.5V
Vs = 2.4V

ISR2 -8 -14 mA VDD = 4.5V

Vs = 2.4V

Publication Release Date: December 1997

- 13 - Revision A5

W78C58

AC CHARACTERISTICS

The AC specifications are a function of the particular process used to manufacture the part, the
ratings of the I/O buffers, the capacitive load, and the internal routing capacitance. Most of the
specifications can be expressed in terms of multiple input clock periods (TCP), and actual parts will
usually experience less than a ±20 nS variation. The numbers below represent the performance
expected from a 0.8 micron CMOS process when using 2 and 4 mA output buffers.

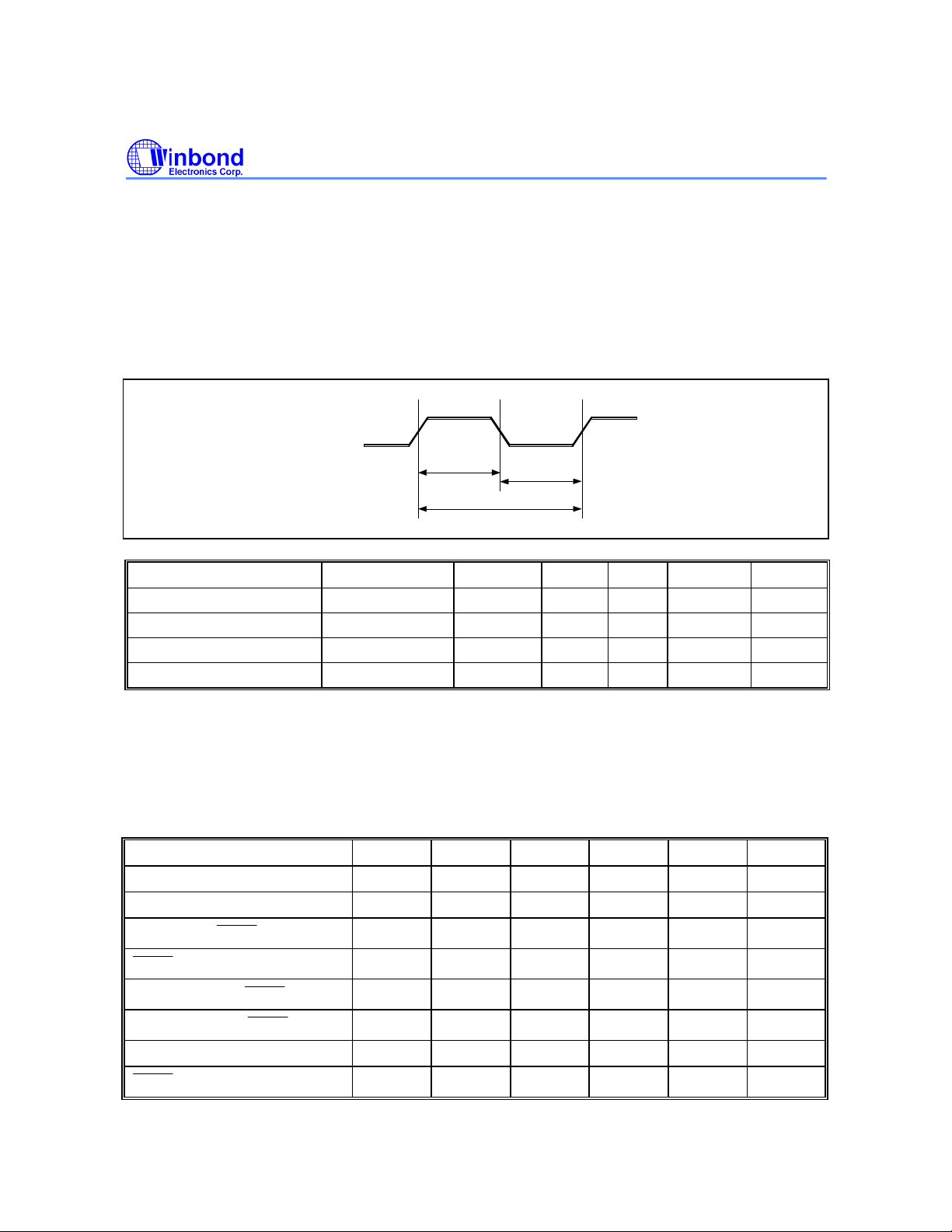

Clock Input Waveform

XTAL1

T

CH

F

OP, TCP

PARAMETER SYMBOL MIN. TYP. MAX. UNIT NOTES

Operating Speed FOP 0 - 40 MHz 1
Clock Period TCP 25 - - nS 2
Clock High TCH 10 - - nS 3
Clock Low TCL 10 - - nS 3

Notes:

1. The clock may be stopped indefinitely in either state.

2. The TCP specification is used as a reference in other specifications.

3. There are no duty cycle requirements on the XTAL1 input.

T

CL

Program Fetch Cycle

External Program Memory Fetch Cycle (see Figure 6)

PARAMETER SYMBOL MIN. TYP. MAX. UINT NOTES

Address Valid to ALE Low TAAS
Address Hold After ALE Low TAAH

ALE Low to PSEN Low

PSEN Low to Data Valid
Data Hold After PSEN High
Data Float After PSEN High

TAPL
TPDA - - 2TCP nS 2
TPDH 0 - 1TCP nS 3
TPDZ 0 - 1TCP nS

ALE Pulse Width TALW

PSEN Pulse Width

TPSW

1TCP -∆
1TCP -∆
1TCP -∆

2TCP -∆
3TCP -∆

- 14 -

- - nS

- - nS 1

1TCP

2TCP
3TCP

1TCP+∆

2TCP +∆
3TCP +∆

nS

nS 4
nS 4

Notes:

RD

RD

WR

1. P00-P07, P20-P27 remain stable through entire memory cycle.

2. Memory access time is 3 Tcp.

3. Data has been latched internally prior to /PSEN going high.

4. ∆ is 20 ns (due to buffer driving delay and wire loading).

Data Read Cycle

External Data Memory Read Cycle (see Figure 7)

PARAMETER SYMBOL MIN. TYP. MAX. UINT NOTES

ALE Low to RD Low

Low to Data Valid
Data Hold After RD High
Data Float After RD High

Pulse Width

Notes:

1. Data Memory access time is 5 Tcp.

2. ∆ is 20 ns (due to buffer driving delay and wire loading.

TDAR

TDDA - - 4 Tcp nS 1
TDDH 0 - 2 Tcp nS
TDDZ 0 - 2 Tcp nS
TDRD

3 Tcp-∆

6 Tcp-∆

3 Tcp

6 Tcp

3 Tcp+∆

6 Tcp+∆

W78C58

nS 1, 2

nS 2

Data Write Cycle

External Data Memory Write Cycle (see Figure 8)

PARAMETER SYMBOL MIN. TYP. MAX. UINT NOTE

ALE Low to WR Low
Data Valid to WR Low
Data Hold After WR High

Pulse Width

*Note: ∆ is 20 ns (due to buffer driving delay and wire loading)

TDAW

TDAD
TDWD
TDWR

3 Tcp-∆
1 Tcp-∆
1 Tcp-∆
6 Tcp-∆

3 Tcp

3 Tcp+∆

- - nS

- - nS

6 Tcp

6 Tcp+∆

nS *

nS *

Port Access Cycle

Port Access Cycle (see Figure 9)

PARAMETER SYMBOL MIN. TYP. MAX. UINT

Port Input Setup to ALE Low TPDS 1Tcp - - nS
Port Input Hold After ALE Low TPDH 0 - - nS
Port Output to ALE High TPDA

Note: Ports are read during S5P2, and output data becomes available at the end of S6P2. The timing data are referenced to

ALE, since it provides a convenient reference.

1Tcp-∆

- - nS

Publication Release Date: December 1997

- 15 - Revision A5

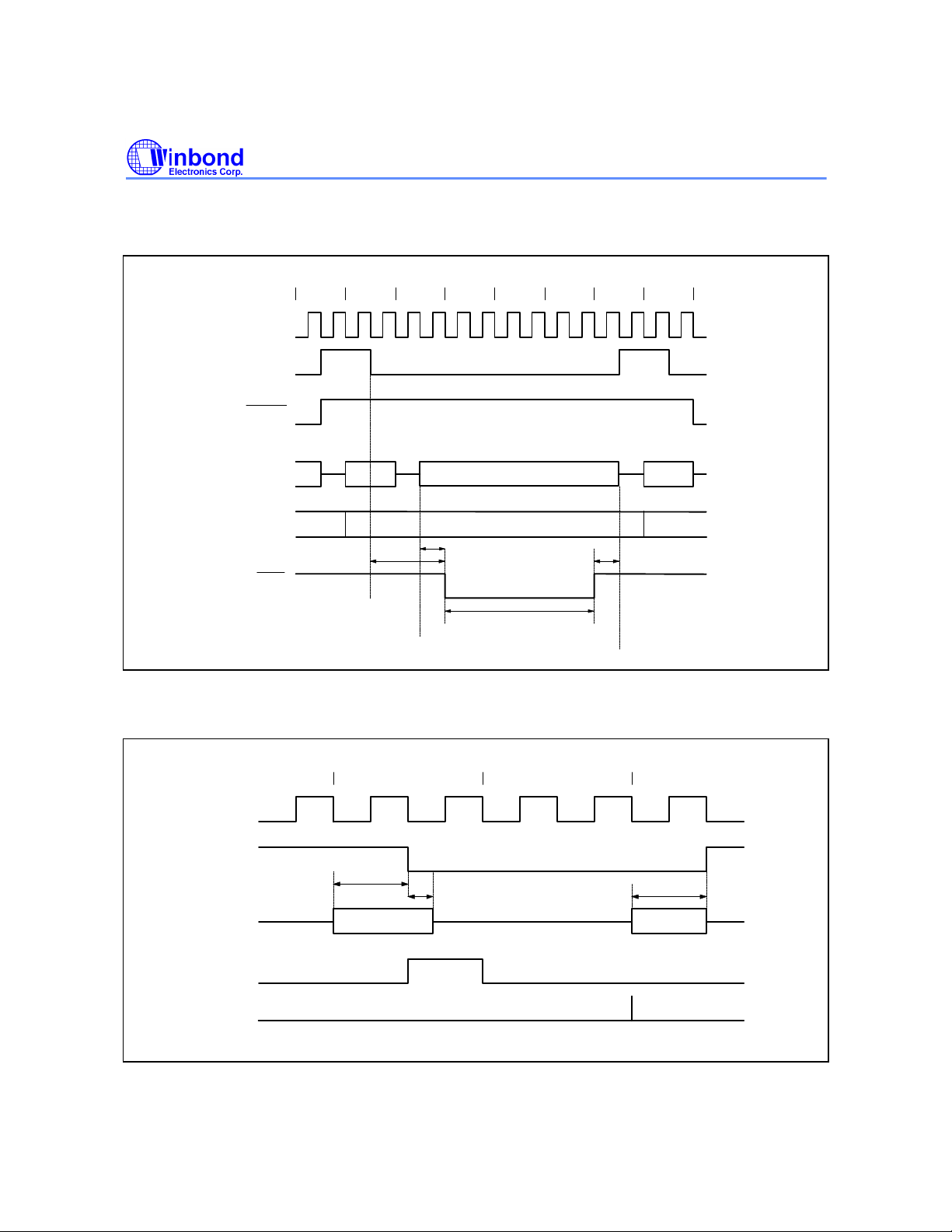

TIMING WAVEFORMS

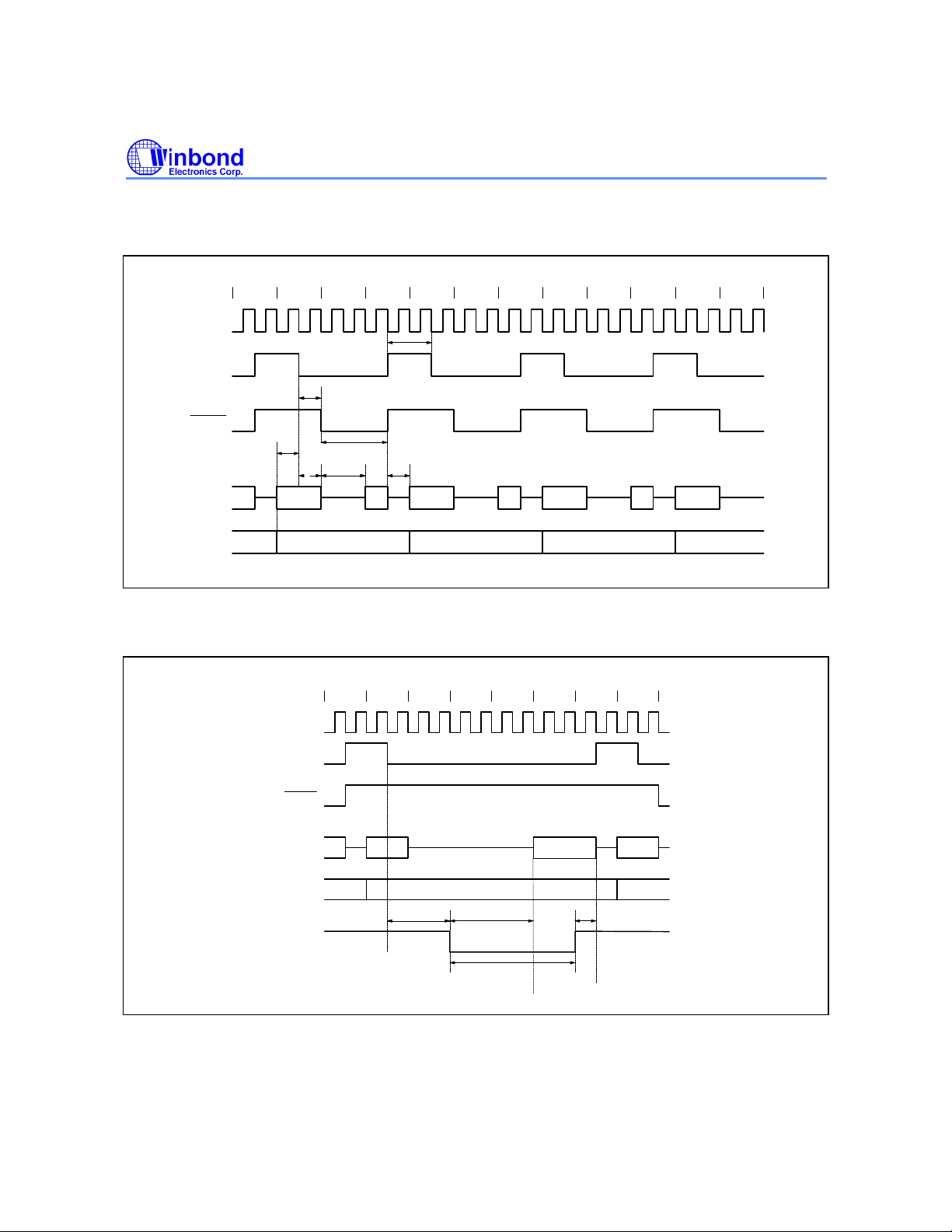

Program Fetch Cycle

S1 S2 S3 S4 S5 S6 S1 S2 S3 S4 S5 S6

XTAL1

ALE

PSEN

Taas

Code

P0

PCL
out

Tapl

Taah

Tpsw

Tpda

Code

Talw

Tpdh,Tpdz

PCL
out

Code Code

PCL
out

W78C58

PCL
out

P2

Data Read Cycle

PCH out PCH out

Figure 6. External Program Memory Fetch Cycle

S4 S5 S6 S1 S2 S3 S4 S5

XTAL1

ALE

PSEN

DPL or

P0

RI out

P2

Tdar

/RD

DPH or P2 SFR out

Tdda

Tdrd

PCH out PCH out

Data

Tddh,Tddz

Figure7. External Data Memory Read Cycle

- 16 -

Timing Waveforms, continued

Data Write Cycle

XTAL1

ALE

PSEN

W78C58

S4 S5 S6 S1 S2 S3 S4 S5

WR

Port Access Cycle

XTAL1

ALE

PORT

P0

P2

DPL or
RI out

Tdaw

Figure 8. External Data Memory Write Cycle

Tdad

Data

DPH or P2 SFR out

Tdwr

S5 S6 S1

Tpds

Tpdh

Data In

Tdwd

Tpda

Data Out

Input
Sample

Output
Clock

Figure 9. Port Access Cycle

Publication Release Date: December 1997

- 17 - Revision A5

APPLICATION CIRCUIT

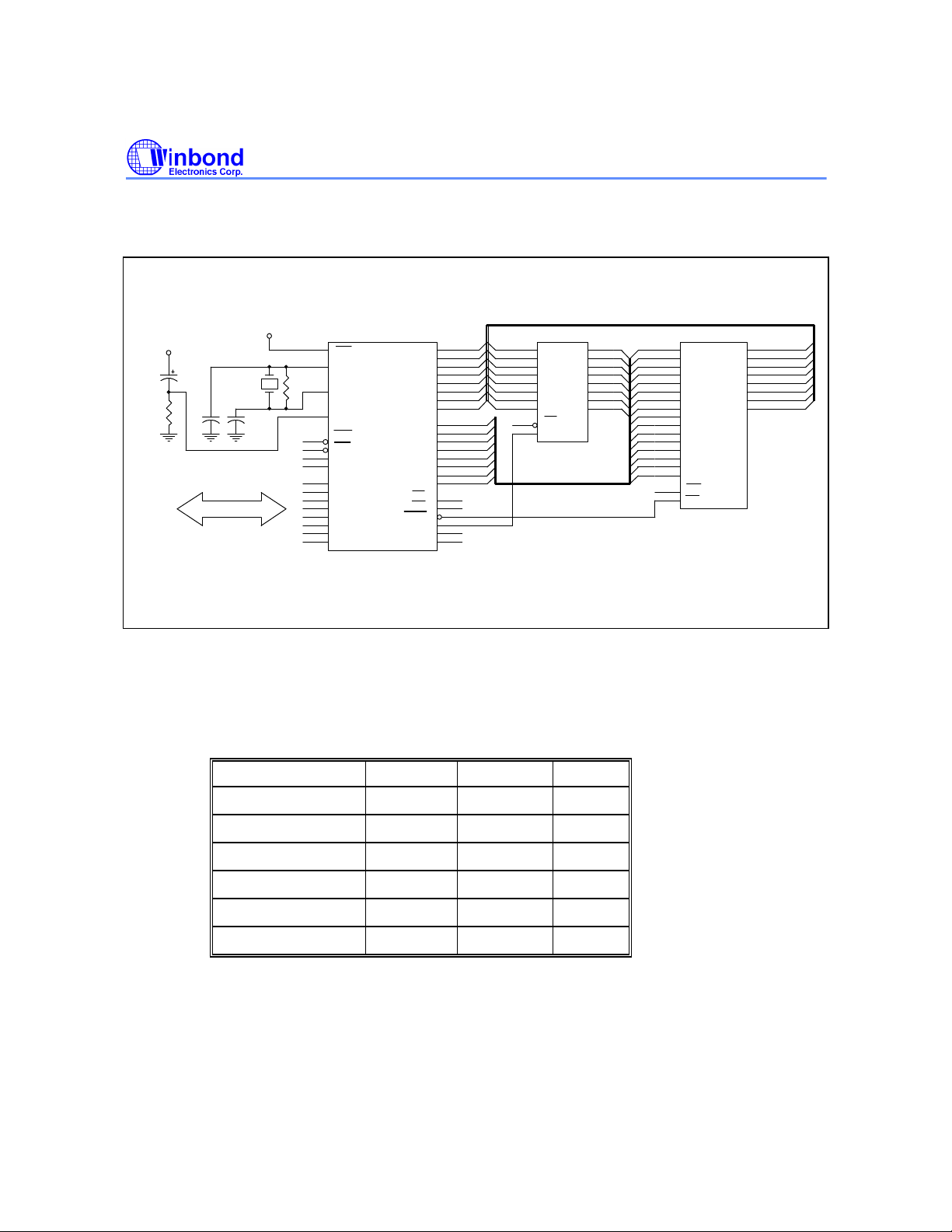

Expanded External Program Memory and Crystal

VCC

8.2K

VCC

10u

CRYSTAL

C1

C2

35

EA

21

X1

R

20

X2

10

RESET

INT0

14
15

INT1

16

T0

17

T1
P1.0

2
3

P1.1

4

P1.2

5

P1.3

6

P1.4

7

P1.5

8

P1.6
P1.7

9

W78C58

P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7

P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7

PSEN

ALE
TXD
RXD

RD
WR

AD0
AD1
AD2
AD3
AD4

AD5
AD6
AD7

A8
A9
A10
A11
A12
A13
A14
A15

AD0D0 3
AD1
AD2
AD3
AD4
AD5
AD6
AD7

GND

43
42
41
40
39
38
37
36

24
25
26
27
28
29
30
31

19
18
32

33
13
11

W78C58

AD0

A0

A0

2

Q0

4

D1

7

D2

8

D3

13

D4

14

D5

17

D6

18

D7

1

OC

11

G

74LS373

A1

5

Q1

6

A2

Q2

9

A3

Q3

A4

12

Q4

15

A5

Q5

16

A6

Q6

19

A7

Q7

A10
A11
A12
A13
A14
A15

GND

10

A0

A1

9

A1

A2

8

A2

A3

7

A3

A4

6

A4

A5

5

A5

A6

4

A6

A7

3

A7

A8

25

A8

24

A9

A9

21

A10

23

A11

2

A12

26

A13

27

A14

1

A15

20

CE

22

OE

27512

11

O0

12

O1
O2
O3
O4
O5
O6
O7

AD1

13

AD2

15

AD3

16

AD4

17

AD5

18

AD6

19

AD7

Figure A

Table 1 Shows the typical values of off-chip components to configure the on-chip oscillator.
Table 1. Off-chip components list

CRYSTAL FREQ. C1 C2 R

12 MHz 30 pF 30 pF ­16 MHz 30 pF 30 pF ­20 MHz 15 pF 15 pF ­24 MHz 15 pF 15 pF ­33 MHz 10 pF 10 pF

40MHz 5 pF 5 pF

Notes:

1. Refer to Figure 10 for C1, C2 and R.

2. It is recommended that an oscillator be used as external clock source when operating freq. is above 35MHz. Apply the
external clock signal to XTAL1, and leave XTAL2 float, as shown in Figure 10.

6.8 KΩ

4.3 KΩ

- 18 -

Application Circuits, continued

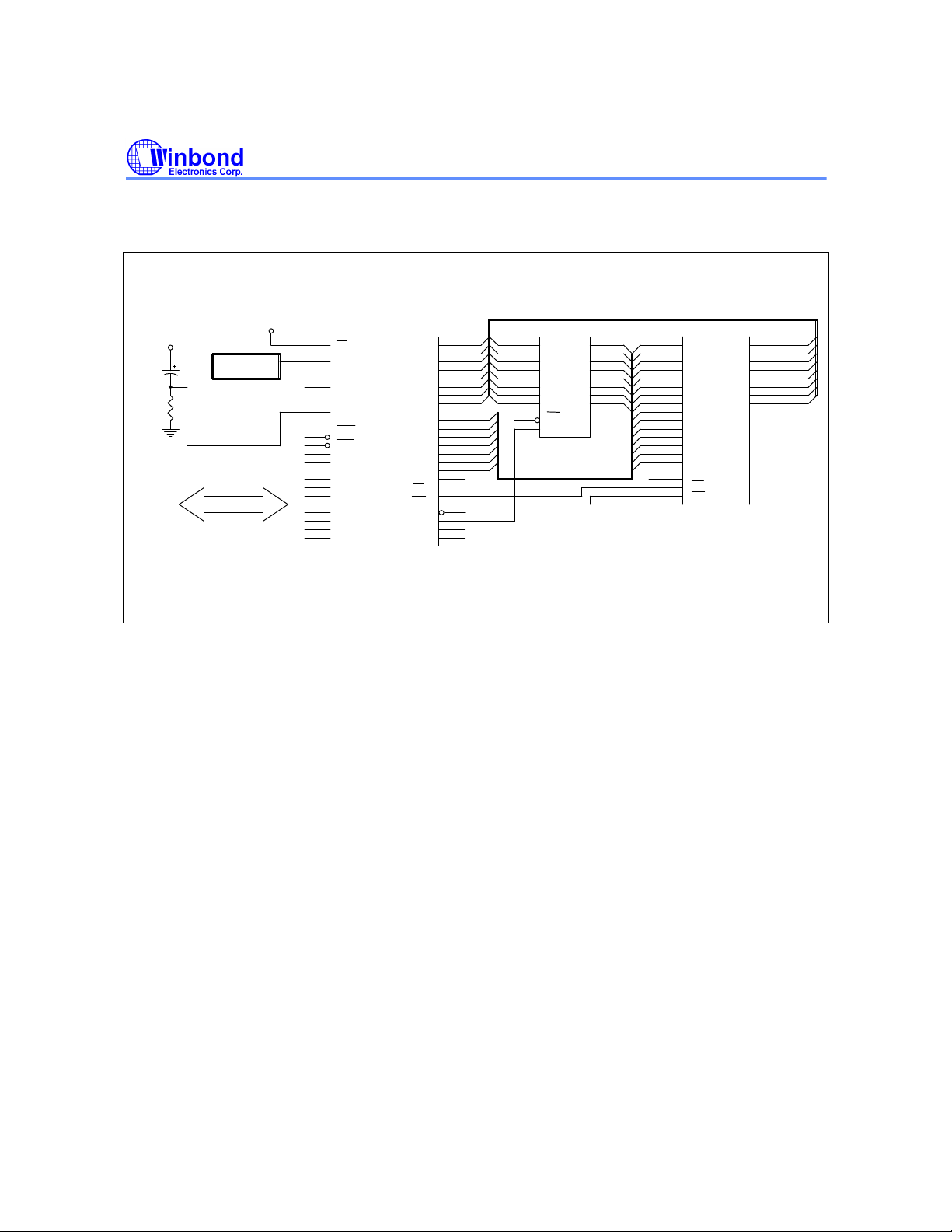

Expanded External Data Memory and Oscillator

VCC

8.2K

VCC

10u

OSCILLATOR

35

EA

21

X1

20

X2

10

RESET

INT0

14
15

INT1

16

T0

17

T1

2

P1.0

3

P1.1

4

P1.2

5

P1.3

6

P1.4

7

P1.5

8

P1.6

9

P1.7

W78C58

P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7

P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7

WR

PSEN

ALE

TXD

RXD

43

AD0

42

AD1

41

AD2

40

AD3

39

AD4

38

AD5

37

AD6

36

AD7

24

A8

25

A9

26

A10

27

A11

28

A12
A13

29

30

A14

31

RD

19
18
32
33
13
11

AD0
AD1
AD2
AD3
AD4
AD5
AD6

AD7
GND

W78C58

3

D0 Q0

4

D1 Q1

7

D2 Q2

8

D3 Q3

13

D4 Q4

14

D5 Q5

17

D6 Q6

18

D7

1

OC
G 11

74LS373

A0

2

A1

5

A2

6
9

A3
A4

12

A5

15

A6

16

A7

19

Q7

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14

GND

10

A0

20256

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14

CE
OE
WR

D0
D1
D2
D3
D4
D5
D6
D7

9
8
7
6
5
4

3
25
24
21
23

2
26

1

20
22
27

AD0

11

AD1

12

AD2

13

AD3

15

AD4

16

AD5

17

AD6

18

AD7

19

Figure B

Publication Release Date: December 1997

- 19 - Revision A5

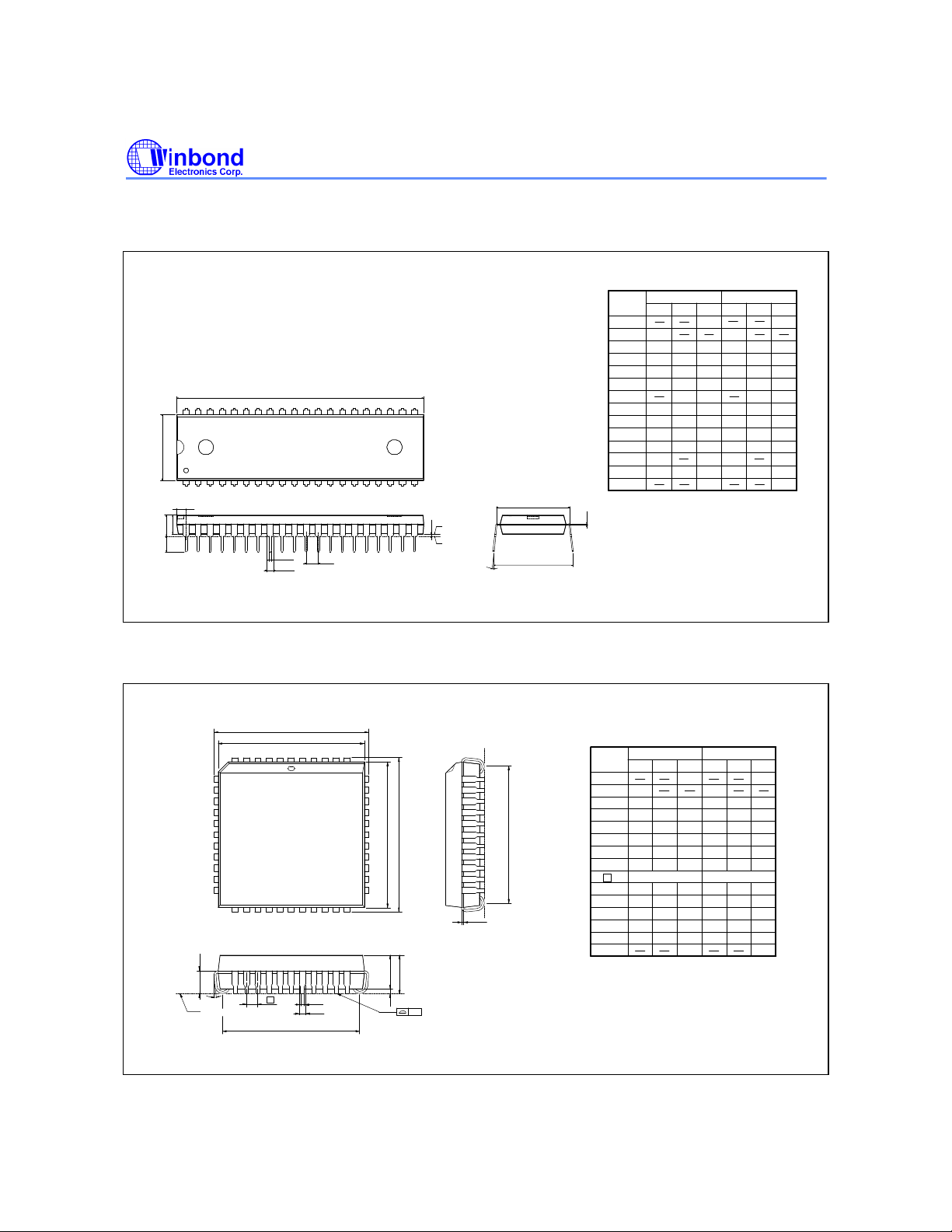

PACKAGE DIMENSIONS

40-pin DIP

40

1

E

S

A

2

A

L

D

B
B

1

W78C58

Dimension in inch Dimension in mm

Symbol

A
A
A
B
B
c

21

D
E
E
e
L

a

e

201

Base Plane

1

A

Seating Plane

e

1

E

e A

a

S

Notes:

1. Dimension D Max. & S include mold flash or
tie bar burrs.

c

2. Dimension E1 does not include interlead flash.

3. Dimension D & E1 include mold mismatch and
are determined at the mold parting line.

4. Dimension B1 does not include dambar
protrusion/intrusion.

5. Controlling dimension: Inches.

6. General appearance spec. should be based on
final visual inspection spec.

Nom.

Min.

0.010

1

0.155

0.150

2

0.016

0.018

0.050 1.27

1

0.008

0.010

2.055 2.070 52.20 52.58

0.6000.590

0.540

1

1

0.120

0.130

0 15

0.6500.630 16.00 16.51

A

Min.

0.254

3.81

0.406

0.203

14.986

13.72

2.286 2.54 2.7940.090 0.100

3.048

Nom.

3.937

0.457

0.254

15.24

13.84

3.302

5.334

4.064

0.559

1.3721.2190.0540.048

0.356

15.494

13.97

3.556

17.01

Max. Max.

0.210

0.160

0.022

0.014

0.610

0.5500.545

0.110

0.140

0.670

0.090

.

150

2.286

44-pin PLCC

7

17

L

θ

Seating Plane

6 1

e

H

D

D

44 40

G

D

Dimension in inch Dimension in mm

Symbol

39

H

E

E

29

2818

A

2

A

b
b

1

A

1

y

G

E

c

A
A
A
b1
b
c
D
E

e
G
G
H
HE
L

y

Notes:

1. Dimension D & E do not include interlead
flash.

2. Dimension b1 does not include dambar

protrusion/intrusion.

3. Controlling dimension: Inches

4. General appearance spec. should be based
on final visual inspection spec.

Nom.

Min.

0.020

1

0.145

2

0.026

0.016

0.008

0.648

0.590

D

0.590

E

0.680

D

0.680

0.090

Max. Max.

0.185

0.150

0.155

0.028

0.032

0.022

0.018

0.010

0.014

0.653

0.658

0.6580.6530.648

0.050 BSC

0.610

0.630

0.6300.610

0.690

0.700

0.700

0.690

0.100

0.110

0.004

Min.

0.508

3.683

0.66

0.406

0.203

16.46

14.99

17.27

17.27

2.296

1.27

Nom.

3.81

0.711

0.457

0.254

16.59

15.49

15.4914.99

17.53

2.54

BSC

4.699

3.937

0.813

0.559

0.356

16.71

16.7116.5916.46

16.00

16.00

17.78

17.7817.53

2.794

0.10

- 20 -

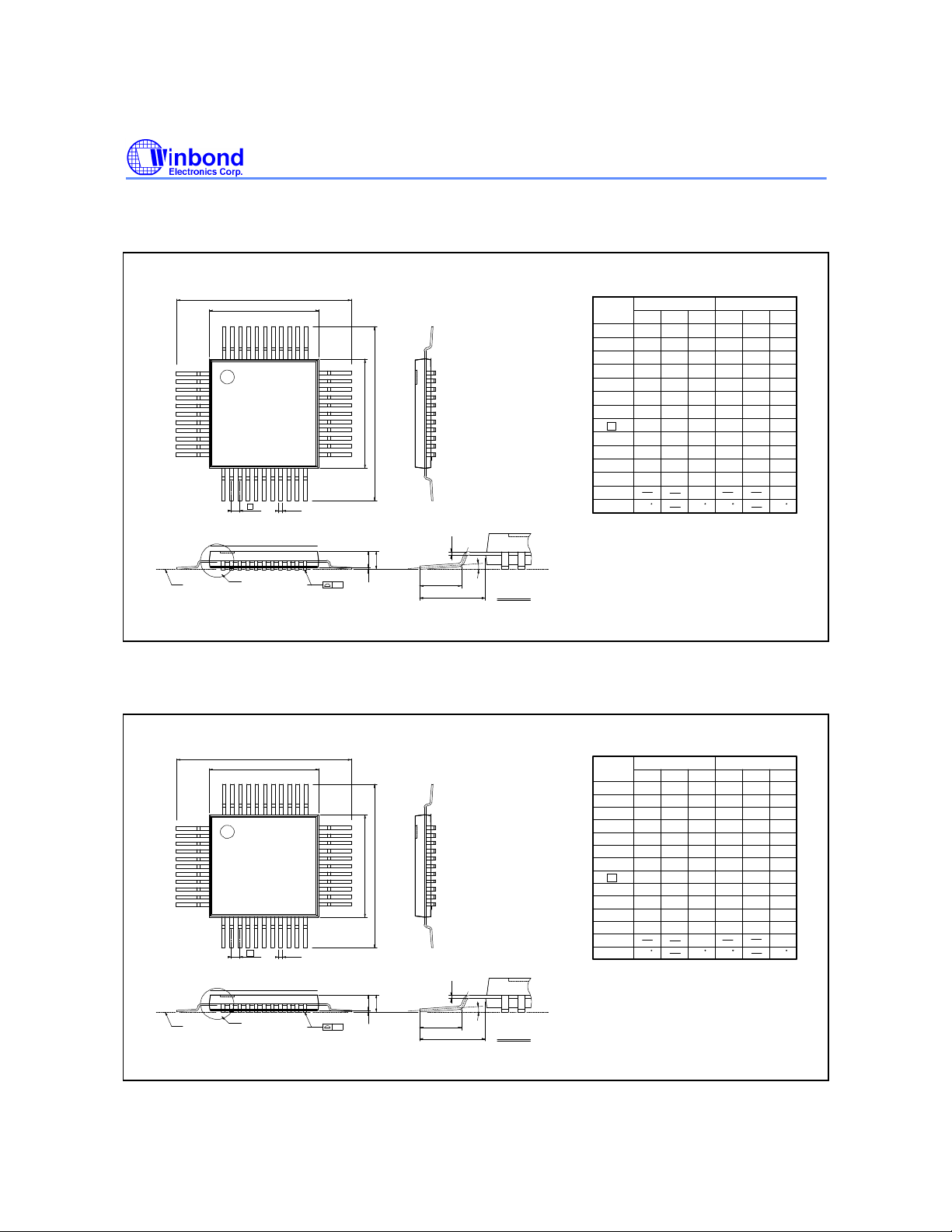

Package Dimensions, continued

1

2

44-pin QFP

H

D

D

44

1

11

12

e

Seating Plane

See Detail F

W78C58

Dimension in inch

34

33

Symbol

A
A
A

b

1

2

c

D

E

EH

E

e

D

H

E

H

L

1

L

22

b

c

A

A

2

A

1

y

θ

L

L 1

Detail F

y

θ

Notes:

1. Dimension D & E do not include interlead
flash.

2. Dimension b does not include dambar

protrusion/intrusion.

3. Controlling dimension: Millimeter

4. General appearance spec. should be based
on final visual inspection spec.

Nom.

Min.

--- ---

0.002

0.01 0.02 0.25

0.081

0.075

0.01

0.014

0.006 0.152

0.394

0.390

0.390

0.025

0.031

0.510 13.45

0.520

0.520

0.510

0.025

0.031

0.063

0.051 0.075 1.295

0

Dimension in mm

Max. Max.

---

0.087

0.018

0.0100.004

0.398

0.3980.394

0.036

0.530

0.530

0.037

0.003

Nom.

Min.

--- ---

0.05

1.90

0.25

9.9

9.9

0.635

12.95

12.95

0.65

7

0

2.05

0.35

10.00

10.00

0.80

13.2

---

0.5

2.20

0.45

0.2540.101

10.1

10.1

0.952

13.4513.2

0.8

0.95

1.6

1.905

0.08
7

44-pin TQFP

44

1

11

12

Seating Plane

H

D

D

e

See Detail F

Dimension in inch Dimension in mm

Symbol

34

33

E

EH

22

b

Notes:

c

A

A

A

1

y

θ

L

L

Detail F

Min. Nom. Max. Max.Nom.Min.

A

1

A

2

A

b
c
D
E

e

D

H

E

H
L

1

L

y

θ

1. Dimension D & E do not include interlead
flash.

2. Dimension b does not include dambar

protrusion/intrusion.

3. Controlling dimension: Millimeter

4. General appearance spec. should be based
on final visual inspection spec.

--- ---

0.002

0.004 0.006 0.10

0.037

0.039

0.0039

0.013

---

0.394

0.390

0.390

0.025

0.031

0.468 12.10

0.472

0.472

0.468

0.018

0.024

0.039

---

0

0.047

0.041

0.015

0.0080.004

0.398

0.3980.394

0.036

0.476

0.476

0.030

0.003

---

7

--- ---

0.05

0.95

0.22

9.9

9.9

0.635

11.90

11.90

0.45

--- ---

0

1.00

0.32

10.00

10.00

12.00

1.20

0.15

1.05

0.38

0.2000.090

---

10.1

10.1

0.952

0.80

12.1012.00

0.60

0.75

1.00

0.08
7

Publication Release Date: December 1997

- 21 - Revision A5

W78C58

Note: All data and specifications are subject to change without notice.

Headquarters

No. 4, Creation Rd. III,
Science-Based Industrial Park,
Hsinchu, Taiwan
TEL: [phone]
FAX: [phone]
http://www.winbond.com.tw/
Voice & Fax-on-demand: 886-2-27197006

Taipei Office

11F, No. 115, Sec. 3, Min-Sheng East Rd.,
Taipei, Taiwan
TEL: [phone]
FAX: [phone]

Winbond Electronics (H.K.) Ltd.

Rm. 803, World Trade Square, Tower II,
123 Hoi Bun Rd., Kwun Tong,
Kowloon, Hong Kong
TEL: [phone]
FAX: [phone]

- 22 -

Winbond Electronics North America Corp.
Winbond Memory Lab.
Winbond Microelectronics Corp.
Winbond Systems Lab.

2727 N. First Street, San Jose,
CA 95134, U.S.A.
TEL: [phone]

FAX: [phone]
