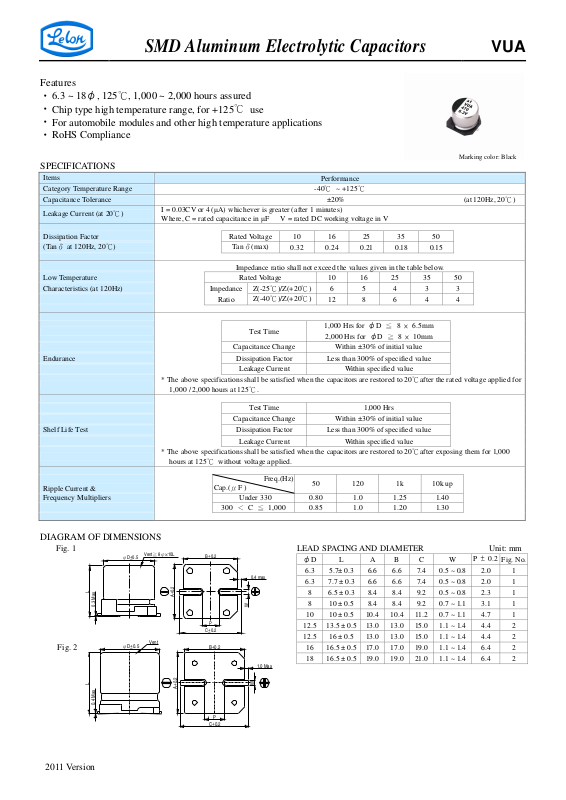

Page 1
Vent≧8φ×10L
SMD Aluminum Electrolytic Capacitors
VUA
Features
‧
6.3 ~ 18φ, 125℃, 1,000 ~ 2,000 hours assured
‧
Chip type high temperature range, for +125℃ use
‧
For automobile modules and other high temperature applications
‧
RoHS Compliance
SPECIFICATIONS
Items
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Dissipation Factor
(Tanδ at 120Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Endurance
Shelf Life Test
Ripple Current &
Frequency Multipliers
DIAGRAM OF DIMENSIONS
Fig. 1 LEAD SPACING AND DIAMETER Unit: mm
6.3 5.7± 0.3 6.6 6.6 7.4 0.5 ~ 0.8 2.0 1
6.3 7.7 ± 0.3 6.6 6.6 7.4 0.5 ~ 0.8 2.0 1
8 6.5 ± 0.3 8.4 8.4 9.2 0.5 ~ 0.8 2.3 1
8 10 ± 0.5 8.4 8.4 9.2 0.7 ~ 1.1 3.1 1
10 10 ± 0.5 10.4 10.4 11.2 0.7 ~ 1.1 4.7 1
12.5 13.5 ± 0.5 13.0 13.0 15.0 1.1 ~ 1.4 4.4 2
12.5 16 ± 0.5 13.0 13.0 15.0 1.1 ~ 1.4 4.4 2
Fig. 2
L
L
φD±
0.5
0.3 Max
φD±0.5
0.4 Max
I = 0.03CV or 4 (µA) whichever is greater (after 1 minutes)
Where, C = rated capacitance in µF V = rated DC working voltage in V
* The above specifications shall be satisfied when the capacitors are restored to 20℃after the rated voltage applied for
1,000 / 2,000 hours at 125℃.
* The above specifications shall be satisfied when the capacitors are restored to 20℃after exposing them for 1,000
hours at 125℃ without voltage applied.
0.2
±
A
Vent
A±0.2
Rated Voltage
Tanδ(max)
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage 10 16 25 35 50
Impedance
Ratio
Cap.(μF )
300 ＜ C ≦ 1,000
B±0.2
P
C±0.2
B±0.2
P
C±0.2
Z(-25℃)/Z(+20℃)
Z(-40℃)/Z(+20℃)
Test Time
Capacitance Change Within ±30% of initial value
Dissipation Factor Less than 300% of specified value
Leakage Current Within specified value
Test Time 1,000 Hrs
Capacitance Change Within ±30% of initial value
Dissipation Factor Less than 300% of specified value
Leakage Current Within specified value
Under 330 0.80 1.0 1.25 1.40
0.4 max
W
1.0 Max
W
0.32 0.24 0.21 0.18 0.15
Freq.(Hz)
Performance
-40℃ ~ +125℃
±20% (at 120Hz, 20℃)
10 16 25 35 50
6 5 4 3 3
12 8 6 4 4
1,000 Hrs for φD ≦ 8 × 6.5mm
2,000 Hrs for φD ≧ 8 × 10mm
50 120 1k 10k up
0.85 1.0 1.20 1.30
φD
16 16.5 ± 0.5 17.0 17.0 19.0 1.1 ~ 1.4 6.4 2
18 16.5 ± 0.5 19.0 19.0 21.0 1.1 ~ 1.4 6.4 2
L A B C W
Marking color: Black
P ± 0.2
Fig. No.
2011 Version
Page 2
mA
mA
mA
mA
mA
SMD Aluminum Electrolytic Capacitors
MARKING
φ
D = 6.3 mm
Negative
polarity
Dimension: φD × L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT
V. DC
µF
Contents
22 220
33 330
47 470
68 680 6.3×5.7 50 8×6.5 75 8×6.5 75 8×10 130 10×10 180
100 101 8×6.5 75 8×6.5 75 8×10 130 10×10 180 12.5×13.5 357
220 221 8×10 130 10×10 180 10×10 180 12.5×13.5 357 12.5×16 400
330 331 8×10 130 12.5×13.5 480 12.5×13.5 480 16×16.5 650 16×16.5 650
470 471 12.5×13.5 480 12.5×13.5 480 12.5×13.5 480 16×16.5 650 16×16.5 650
680 681 12.5×13.5 480 12.5×13.5 480 12.5×16 585 16×16.5 650 18×16.5 855
1,000 102 12.5×16 585 12.5×16 585 16×16.5 650 18×16.5 855
1,500 152 12.5×16 585 16×16.5 650 18×16.5 855
2,200 222 16×16.5 650 18×16.5 855
3,300 332 18×16.5 855
4,700 472 18×16.5 855
φ
a1
10
16u
Date code
Rated cap.
Rated voltage
& Series code
D = 8 ~ 10 mm
Negative
polarity
a1
VUA
470
6.3V
Date code
Series name
Rated cap
.
Rated voltage
Ripple Current: mA/rms at 120 Hz, 125°C
10V (1A) 16V (1C) 25V (1E) 35V (1V) 50V (1H)
φD×L
6.3×5.7 50 6.3×5.7 50 6.3×7.7 70 8×10 130
6.3×7.7 70 6.3×7.7 70 8×6.5 75 8×10 130
φD×L
φD×L
φD×L
6.3×5.7 50 8×6.5 75
φD×L
φ
D ≧ 12.5mm
Negative
polarity
a1
VUA
2200
6.3V
Date
code
Series
name
Rated
cap.
Rated
voltage
VUA
2011 Verison
