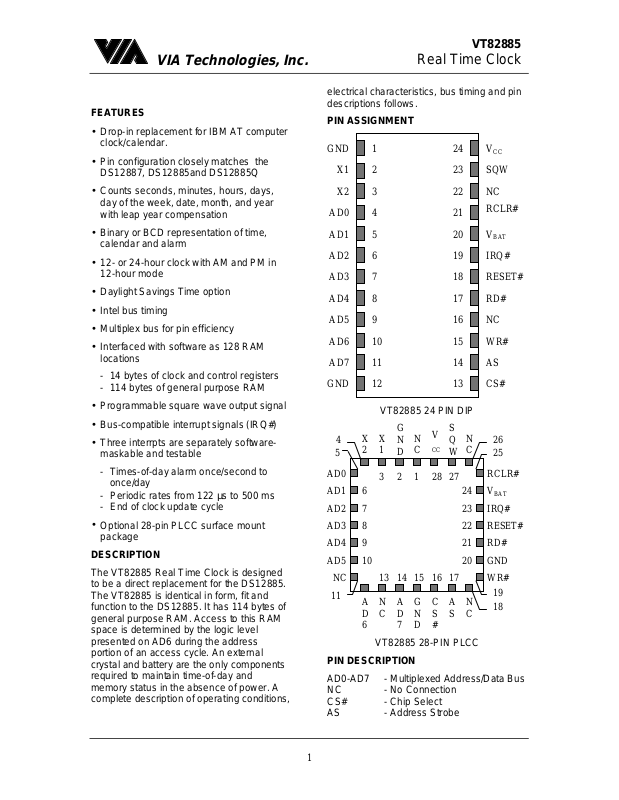

Page 1
VIA Technologies, Inc.
µ
FEATURES
•
Drop-in replacement for IBM AT computer
clock/calendar.
•
Pin configuration closely matches the
DS12887, DS12885and DS12885Q
•
Counts seconds, minutes, hours, days,
day of the week, date, month, and year
with leap year compensation
•
Binary or BCD representation of time,
calendar and alarm
•
12- or 24-hour clock with AM and PM in
12-hour mode
•
Daylight Savings Time option
•
Intel bus timing
•
Multiplex bus for pin efficiency
•
Interfaced with software as 128 RAM
locations
- 14 bytes of clock and control registers
- 114 bytes of general purpose RAM
VT82885
Real Time Clock
electrical characteristics, bus timing and pin
descriptions follows.
PIN ASSIGNMENT
GND
X1
X2
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
GND
1
2
3
4
5
6
7
8
9
10
11
12
24 V
23
22
21
20
19
18
17
16
15
14
13
CC
SQW
NC
RCLR#
V
BAT
IRQ#
RESET#
RD#
NC
WR#
AS
CS#
•
Programmable square wave output signal
•
Bus-compatible interrupt signals (IRQ#)
•
Three interrpts are separately softwaremaskable and testable
- Times-of-day alarm once/second to
once/day
- Periodic rates from 122
s to 500 ms
- End of clock update cycle
•
Optional 28-pin PLCC surface mount
package
DESCRIPTION
The VT82885 Real Time Clock is designed
to be a direct replacement for the DS12885.
The VT82885 is identical in form, fit and
function to the DS12885. It has 114 bytes of
general purpose RAM. Access to this RAM
space is determined by the logic level
presented on AD6 during the address
portion of an access cycle. An external
crystal and battery are the only components
required to maintain time-of-day and
memory status in the absence of power. A
complete description of operating conditions,
VT82885 24 PIN DIP
4
5
AD0
AD1
AD2
AD3
AD4
AD5
NC
11
G
X2X
1
3
6
7
8
9
10
13 14 15 16 17
A
NCA
D
6
N
N
C
D
12
G
D
N
7
D
V
CC
C
S
#
S
Q
W
2728
24
23
22
21
20
ASN
N
C
C
26
25
RCLR#
V
BAT
IRQ#
RESET#
RD#
GND
WR#
19
18
VT82885 28-PIN PLCC
PIN DESCRIPTION
AD0-AD7 - Multiplexed Address/Data Bus
NC - No Connection
CS# - Chip Select
AS - Address Strobe
1
Page 2
VIA Technologies, Inc.
VT82885
Real Time Clock
WR# - Write Strobe
RD# - Read Strobe
RESET# - Reset Input
IRQ# - Interrupt Request Output
SQW - Square Wave Output
V
CC
- +5 Volt Supply
OPERATION
The block diagram in Figure 1 shows the
pin connections with the major internal func-
FIQURE 1: BLOCK DIAGRAM VT82885
X1
X2
CS#
V
CC
V
BAT
OSC +8 +64 +64
POWER
SWITCH
AND
WRITE
PROTECT
CS#
V
CC
POK
GND - Ground
X1, X2 - 32.768 kHz Crystal Connec-
tions
# - +3 Volt Battery Input
V
BAT
RCLR# - RAM Clear
tions of the VT82885. The following paragraphs describe the function of each pin.
PERIODIC INTERUPT SQUARE WAVE
SELECTOR
SQUARE
WAVE OUT
SQW
RD#
CLOCK/
CALENDAR
UPDATE
BINARY
INCREMENT
AD0AD7
WR#
AS
GND
BUS
INTERFACE
POWER-DOWN/POWER-UP
CONSIDERATIONS
The Real Time Clock function will continue
to operate and all of the RAM, time, calendar and alarm memory locations remain
nonvolatile regardless of the level of the V
BCD/
CC
IRQ#
REGISTERS A,B,C,D
CLOCK, CALENDAR
AND ALARM RAM
USER RAM
114 BYTES
RESET#
RCLR#
input. When VCC is applied to the VT82885
and reaches a level of greater than 4.25
volts, the device becomes ac-cessible after
100 ms, provided that the oscillator is
running and the oscillator countdown chain
is not in reset (see Register A). This time
period allows the system to stabilize after
2
Page 3
VIA Technologies, Inc.
µ
µ
µ
µ
µ
VT82885
Real Time Clock
power is applied. When VCC falls below 4.25
volts, the chip select input is internally forced
to an inac-tive level regardless of the value
of CS# at the input pin. The VT82885 is,
therefore, write-protected. When V
below the level of V
, the external V
BAT
supply is switched off and the external V
CC
falls
CC
BAT
lithium energy source supplies power to the
Real Time Clock and the RAM memory.
SIGNAL DESCRIPTIONS
V
− DC power is provided to the device on
CC
thIs pin. V
is the +5 volt input. When 5
CC
volts are applied within normal limits, the
device is fully accessible and data can be
written and read. When VCC is below 4.25
volts typical, reads and writes are inhibited.
However, the timekeeping function continues unaffected by the lower input voltage. As
VCC falls below V
, the RAM and
BAT
timekeeper are switched over to the exter-
per month at 25°C regardless of the voltage
input on the V
−
V
Battery input for any standard 3 volt
BAT
CC
pin.
lithium cell or energy source. Battery voltage must be held between 2.5 and 3.4 volts
for proper operation. A maximum load of .5
A at 25°C in the absence of VCC power
should be used to size the external energy
source.
SQW (Square Wave Output)
− The SQW
pin can output a signal from one of 13 taps
provided by the internal divider stages of the
Real Time Clock. The frequency of the SQW
pin can be changed by programming
Register A as shown in Table 1. The SQW
signal can be turned on and off using the
SQWE bit in Register B. The SQW signal is
not available when V
is less than 4.25
CC
volts typical.
nal lithium energy source. The timekeeping
function maintains an accuracy of ± 1 minute
TABLE 1: PERIODIC INTERRUPT RATE AND SQUARE WAVE OUTPUT FREQUENCY
SELECT BITS REGISTER A tPI PERIODIC SQW OUTPUT
RS3 RS2 RS1 RS0 INTERRUPT RATE FREQUENCY
0000 None None
0001 3.90625 ms 256 Hz
0010 7.8125 ms 128 Hz
0011
0100
0101
0110
122.070
244.141
488.281
976.5625
s
s
s
s
8.192 kHz
4.096 kHz
2.048 kHz
1.024 kHz
0111 1.953125 ms 512 Hz
1000 3.90625 ms 256 Hz
1001 7.8125 ms 128 Hz
1010 15.625 ms 64 Hz
1011 31.25 ms 32 Hz
1100 62.5 ms 16 Hz
1101 125 ms 8 Hz
1110 250 ms 4 Hz
1111 500 ms 2 Hz
3
Page 4
VIA Technologies, Inc.
VT82885
Real Time Clock
X1, X2
− These pins connect to a standard
32.768 kHz quartz crystal. The internal oscillator circuitry is designed for operation with
a crystal having a specified load capacitance (CL) of 6 pF. Each of the pins (X1
and X2) require the installation of an external 10 pF capacitor.
RCLR#
(set to logic 1) all 114 bytes of general purpose RAM but does not affect the RAM associated with the real time clock. In order to
clear the RAM, RCLR# must be forced to an
input logic of 0 (-0.3 to +0.8 volts) during
battery back-up mode when V
plied. The RCLR# function is designed to be
used via human interface (shorting to ground
manually or by switch) and not to be driven
with external buffers. This pin is internally
pulled up.
AD0-AD7 (Multiplexed Bidirectional
Address/Data Bus)
save pins because address information and
data information time share the same signal
paths. The addresses are present during the
first portion of the bus cycle and the same
pins and cycle paths are used for data in the
second portion of the cycle. Address/data
multiplexing does not slow the access time
of the VT82885 since the bus change from
address to data occurs during the internal
RAM access time. Addresses must be valid
prior to the falling edge of AS, at which time
the VT82885 latches the address from AD0
to AD6. Valid data must be present and held
stable during the latter portion of the RD# or
WR# pulses. In a read cycle the VT82885
outputs 8 bits of data during the latter portion
of the RD# or RD# pulses. The read cycle is
terminated and the bus returns to a high
impedence state as RD# transistions high as
in Intel timing.
AS (Adress Strobe Input)
going address strobe pulse serves to
demultiplex the bus. The falling edge of AS
causes the address to be latched within the
VT82885.
RD# (Read Strobe)
the time period when the VT82885 drives the
bus with read data. The RD# signal is the
same definition as the Output Enable (OE#)
signal on a typical memory.
− The RCLR# pin is used to clear
is not ap-
CC
− Multiplexed buses
− A positive
− The RD# pin identifies
WR# (Write Strobe)
to indicate a write cycle.
CS# (Chip Select Input)
signal must be asserted low for a bus cycle
in the VT82885 to be accessed. CS# must
be kept in the active state during RD# and
WR#. Bus cycles which take place without
asserting CS# will latch addresses but no
access will occur. When V
volts, the VT82885 internally inhibits access
cycles by internally disabling the CS# input.
This action protects both the real time clock
data and RAM data during power outages.
IRQ# (Interrupt Request Output)
IRQ# pin is an active low output of the
VT82885 that can be used as an interrupt
input to a processor. The IRQ# output
remains low as long as the status bit causing
the interrupt is present and the
corresponding interrupt-enable bit is set. To
clear the IRQ# pin the processor program
normally reads the C register. The RESET#
pin also clears pending interrupts.
When no interrupt condition is present, the
IRQ# level is in the high impedence state.
Multiple interrupting devices can be
connected to an IRQ# bus. The IRQ# bus is
an open drain output and requires an
external pull-up resistor.
RESET# (Reset Input)
has no effect on the clock, calendar, or
RAM. On power-up the RESET# pin can be
held low for a time in order to allow the
power supply to stabilize. The amount of
time that RESET# is held low is dependent
on the application. However, if RESET# is
used on power-up, the time RESET# is low
should exceed 200 ms to make sure that the
internal timer that controls the VT82885 on
power-up has timed out. When RESET# is
low and V
following occurs:
A. Periodic Interrupt Enable (PEI) bit is
cleared to zero.
B. Alarm Interrupt Flag (AIE) bit is cleared
to zero.
C. Update Ended Interrupt Flag (UF) bit is
cleared to zero.
D. Interrupt Request Status Flag (IRQF) bit
is cleared to zero.
is above 4.25 volts, the
CC
− The WR# pin is used
− The Chip Select
is below 4.25
CC
− The
− The RESET# pin
4
Page 5
VIA Technologies, Inc.
VT82885
Real Time Clock
E. Periodic Interrupt Flag (PF) bit is cleared
to zero.
F. The device is not accessible until
RESET# is returned high.
G. Alarm Interrupt Flag (AF) bit is cleared to
zero.
H. IRQ# pin is in the high impedence state.
I. Square Wave Output Enable (SQWE)
bit is cleared to zero.
J. Update Ended Interrupt Enable (UIE) is
cleared to zero.
In a typical application RESET# can be
connected to V
the VT82885 to go in and out of power fail
without affecting any of the control registers.
FIGURE 2: ADDRESS MAP VT82885
0
. This connection will allow
CC
00
14 Bytes
Clock and Control
Status Registers
13
14
OD
0E
ADDRESS MAP
The address map of the VT82885 is shown
in Figure 2. The address map consists of
114 bytes of user RAM, 10 bytes of RAM
that contain the RTC time, calendar and
alarm data, and four bytes which are used
for control and status. All 128 bytes can be
directly written or read except the following:
1. Registers C and D are read-only.
2. Bit 7 of Register A is read-only.
3. The high order bit of the seconds byte is
read-only.
The contents of four registers (A, B, C and
D) are described in the “Register” section.
Binary or BCD Input
0 SECONDS 00
1 SECONDS ALARM 01
2 MINUTES 02
3 MINUTES ALARM 03
4 HOURS 04
114 Bytes
Storage
Registers
127
TIME, CALENDAR AND ALARM
LOCATIONS
The time and calendar information is
obtained by reading the appropriate memory
bytes. The time, calendar and alarm are set
7F
5 HOURS ALARM 05
6 DAY OF THE WEEK 06
7 DAY OF THE MONTH 07
8 MONTH 08
9 YEAR 09
10 REGISTER A 0A
11 REGISTER B 0B
12 REGISTER C 0C
13 REGISTER D 0D
or initialized by writing the appropriate RAM
bytes. The contents of the ten time, calendar and alarm bytes can be either Binary or
Binary-Coded Decimal (BCD) format. Before writing the internal time, calendar and
alarm registers, the SET bit in Register B
5
Page 6
VIA Technologies, Inc.
VT82885
Real Time Clock
should be written to a logic one to prevent
updates from occurring while access is being attempted. In addition to writing the ten
time, calendar and alarm registers in a selected format (binary or BCD), the data
mode bit (DM) of Register B must be set to
the appropriate logic level. All ten time, calendar and alarm bytes must use the same
data mode. The set bit in Register B should
be cleared after the data mode bit has been
written to allow the real time clock to update
the time and calendar bytes. Once initialized, the real time clock makes all updates in
the selected mode. The data mode can-not
be changed without reinitializing the ten data
bytes. Table 2 shows the binary and BCD
formats of the ten time, calendar and alarm
locations. The 24-12 bit cannot be changed
without reinitializing the hour loca-tions.
When the 12-hour format is selected, the
high order bit of the hours byte repre-sents
PM when it is a logic one. Once per second
the ten bytes are advanced by one second
and checked for an alarm condition. If a read
of the time and calendar data oc-curs during
an update, a problem exists where seconds,
minutes, hours, etc. may not correlate. The
probability of reading in-correct time and
calendar data is low. Sev-eral methods of
avoiding any possible incor-rect time and
calendar reads are covered later in this text.
The three alarm bytes can be used in two
ways. First, when the alarm time is written in
the appropriate hours, minutes and seconds
alarm locations, the alarm interrupt is initiated at the specified time each day if the
alarm enable bit is high. The second use
condition is to insert a “don’t care” state in
one or more of the three alarm bytes. The
“don’t care” code is any hexadecimal value
from C0 to FF. The two most significant bits
of each byte set the “don’t care” condition
when at logic 1. An alarm will be generated
each hour when the “don’t care” bits are set
in the hours byte. Similarily, an alarm is
generated every minute with “don’t care”
codes in the hours and minute alarm bytes.
The “don’t care” codes in all three alarm
bytes create an interrupt every second.
TABLE 2: TIME. CALENDAR AND ALARM DATA MODES
ADDRESS DECIMAL RANGE
LOCATION FUNCTION RANGE BINARY DATA MODE BCD DATA MODE
0 Seconds 0-59 00-3B 00-59
1 Seconds Alarm 0-59 00-3B 00-59
2 Minutes 0-59 00-3B 00-59
3 Minutes Alarm 0-59 00-3B 00-59
4 Hours-12-hr Mode 1.12 01-0C AM, 81-8C PM 01-12AM,81-92PM
Hours-24-hr Mode 0-23 00-17 00-23
5 Hours Alarm-12-hr 1-12 01-0C AM, 81-8C PM 01-12AM,81-92PM
Hours Alarm-24-hr 0-23 00-17 00-23
6 Day of the Week
Sunday = 1
7 Date of the Month 1-31 01-1F 01-31
8 Month 1-12 01-0C 01-12
9 Year 0-99 00-63 00-99
1-7 01-07 01-07
NONVOLATILE RAM
6
Page 7
VIA Technologies, Inc.
µ
µ
VT82885
Real Time Clock
The 114 general purpose nonvolatile RAM
bytes are not dedicated to any special function within the VT82885. They can be used
by the processor program as nonvolatile
memory and are fully available during the
update cycles.
INTERRUPTS
The RTC plus RAM includes three separate,
fully automatic sources of interrupt for a processor. The alarm interrupt can be programmed to occur at rates from once per
second to once per day. The peridoic interrupt can be selected for rates from 500 ms
to 122
be used to indicate to the program that an
update cycle is complete. Each of these
independent interrupt conditions is described in greater detail in other sections of
this text.
The processor program can select which
interrupts, if any, are going to be used.
Three bits in Register B enable the interrupts. Writing a logic 1 to an interrupt-enable
bit permits that interrupt to be initi-ated when
the event occurs. A zero in an interruptenable bit prohibits the IRQ# pin from being
asserted from the interrupt condition. If an
interrupt flag is already set when the
interrupt is enabled, IRQ# is im-mediately
set at an active level, although the interrupt
initiating the event may have occurred much
earlier. As a result, there are cases where
the program should clear such earlier
initiated interrupts before first ena-bling new
interrupts.
When an interrupt event occurs, the relating
flag bit is set to logic 1 in Register C. These
flag bits are set independent of the state of
the corresponding enable bit in Register B.
The flag bit can be used in a polling mode
without enabling the corresponding enable
bits. The interrupt flag bit is a status bit
which software can interrogate as necessary. When the flag is set, an indication is
given to software that an interrupt event has
occurred since the flag bit was last read.;
however, care should be taken when using
the flag bits as they are cleared each time
Register C is read. Double latching is included with Register C so that bits which are
set remain stable throughout the read cycle.
All bits which are set (high) are cleared when
read and new interrupts which are pending
s. The update-ended interrupt can
during the read cycle are held until after the
cycle is completed. One, two, or three bits
can be set when reading Register C. Each
utilized flag bit should be examined when
read to ensure that no interrupts are lost.
The second flag bit usage method is with
fully enabled interrupts. When an interrupt
flag bit is set and the corresponding interrupt enable bit is also set, the IRQ# pin is
asserted low. IRQ# is asserted as long as at
least one of three interrupt sources has its
flag and enable bits both set. The IRQF bit in
Register C is a one whenever the IRQ# pin
is being driven low. Determination that the
RTC initiated an interrupt is accom-plished
by reading Register C. A logic one in bit 7
(IRQF bit) indicates that one or more
interrupts have been initiated by the
VT82885. The act of reading Register C
clears all active flag bits and the IRQF bit.
OSCILLATOR CONTROL BITS
The VT82885’s internal oscillator can be
turned on and off as required. A pattern of
010 in bits 4 through 6 of Register A will turn
the oscillator on and enable the countdown
chain. A pattern of 11X will turn the oscillator on, but holds the countdown chain of the
oscillator in reset. All other combinations of
bits 4 through 6 keep the oscillator off.
SQUARE WAVE OUTPUT SELECTION
Thirteen of the 15 divider taps are made
available to a 1-of-15 selector, as shown in
the block diagram of Figure 1. The first
purpose of selecting a divider tap is to
generate a square wave output signal on the
SQW pin. The PS0-RS3 bits in Register A
establish the square wave output frequency.
These frequencies are listed in Table 1. The
SQW frequency selection shares its 1-of-15
selector with the periodic interrupt generator. Once the frequency is selected, the
output of the SQW pin can be turned on and
off under program control with the square
wave enable bit (SQWE)
PERIODIC INTERRUPT SELECTION
The periodic interrupt will cause the IRQ#
pin to go to an active state from once every
500 ms to once every 122
is separate from the alarm interrupt which
can be output from once per second to once
per day. The periodic interrupt rate is se-
s. This function
7
Page 8
VIA Technologies, Inc.
µ
µ
µ
VT82885
Real Time Clock
lected using the same Register A bits which
selected the square wave frequency (see
Table 1). Changing the Register A bits affects both the square wave frequency and
the periodic interrupt output. However, each
function has a separate enable bit in Register B. The SQWE bit controls the square
wave output. Similarly the periodic interrupt
is enabled by the PIE bit in Register B. The
periodic interrupt can be used with software
counters to measure inputs, create output
intervals, or await the next needed software
function.
UPDATE CYCLE
The VT82885 executes an update cycle
once per second regardless of the SET bit in
Register B. When the SET bit in Register B
is set to one, the user copy of the double
buffered time, calendar and alarm bytes is
frozen and will not update as the time increments. However, the time countdown
chain continues to update the internal copy
of the buffer. This feature allows time to
maintain accuracy independent of reading or
writing the time, calendar and alarm buf-fers
and also guarantees that time and cal-endar
information is consistent. The update cycle
also compares each alarm byte with the
corresponding time byte and issues an
alarm if a match or if a “don’t care” code is
present in all three positions.
There are three methods that can handle
access of the real time clock that avoid any
possibility of accessing inconsistent time and
calendar data. The first method uses the
update-ended interrupt. If enabled, an
interrupt occurs after every up date cycle
that indicates that over 999 ms are available
to read valid time and date information. If
this interrupt is used, the IRQF bit in Register C should be cleared before leaving the
interrupt routine.
A second method uses the update-inprogress bit (UIP) in Register A to determine
if the update cycle is in progress. The UIP bit
will pulse once per second. After the UIP bit
goes high, the update transfer occurs 244
later. If a low is read on the UIP bit, the user
has at least 244
sbefore the time/calendar
data will be changed. There-fore, the user
should avoid interrupt service routines that
would cause the time needed to read valid
time/calendar data to exceed 244
s.
The third method uses a periodic interrupt to
determine if an update cycle is in progress.
The UIP bit in Register A is set high between the setting of the PF bit in Register C
(see Figure3). Periodic interrupts that occur
at a rate of greater than t
allow valid time
BUC
and date information to be reached at each
occurrence of the periodic interrupt. The
reads should be complete within 1 (t
) to ensure that data is not read during
t
BUC
P1/2
+
the update cycle.
s

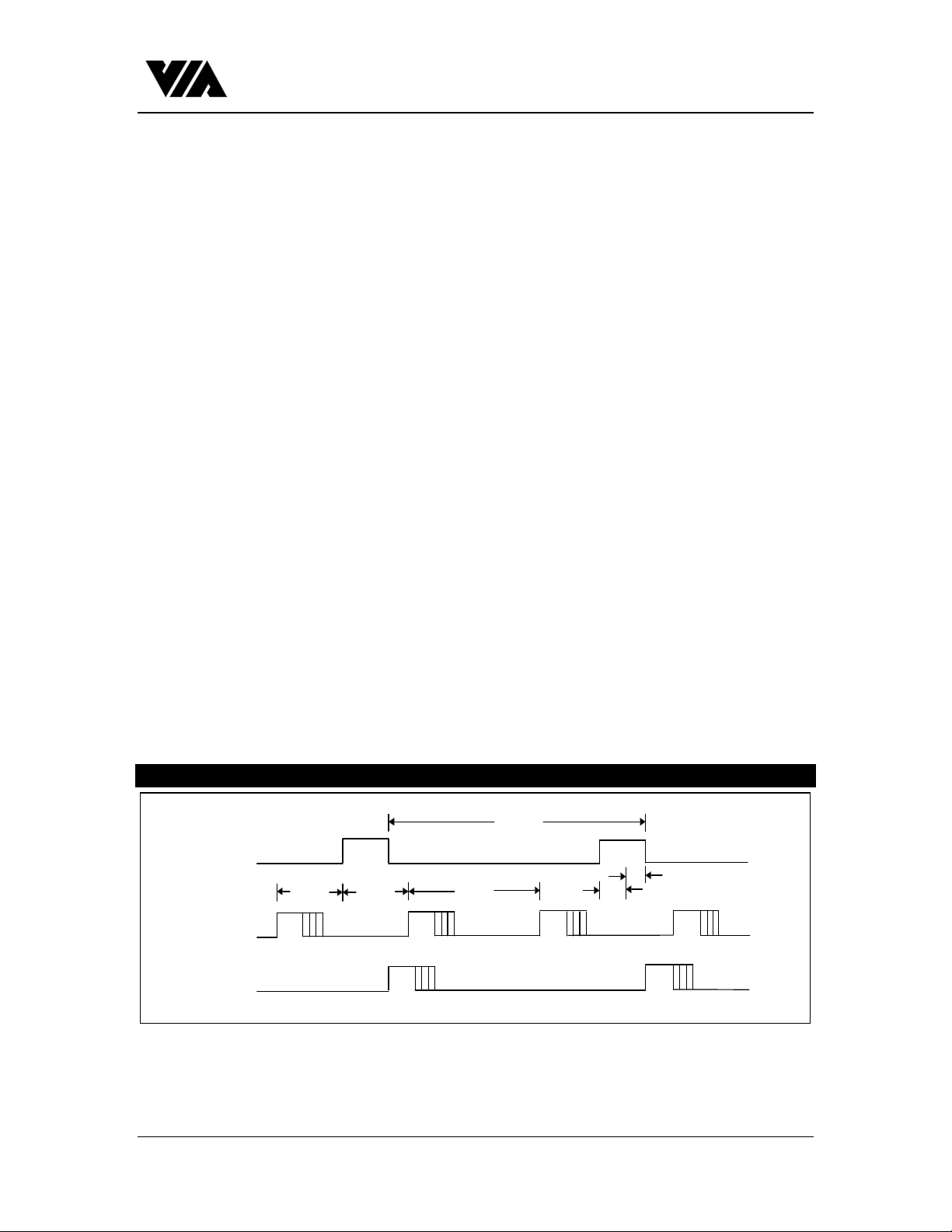

FIGURE 3: UPDATE-ENDED AND PERIODIC INTERRUPT RELATIONSHIP
1 sec
UIP
t
(tPI)
/2
(t
PI)/2
t
PI
t
BUC
UC
PF
UF
The VT82885 has four control registers
which are accessible at all times, even during the update cycle.
REGISTERS
REGISTER A
8
Page 9
VIA Technologies, Inc.
µ
VT82885
Real Time Clock
MSB LSB
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
UIP DV2 DV1 DV0 RS3 RS2 RS1 RS0
UIP
The Update in Progress (UIP) bit is a status
flag that can be monitored. When the UIP bit
is one, the update transfer will soon oc-cur.
When UIP is a zero, the update transfer will
not occur for at least 244
s. The time,
calendar and alarm information in RAM is
fully available for access when the UIP bit is
zero. The UIP bit is read only and is not affected by RESET#. Writing the SET bit in
Register B to a one inhibits any update
transfer and clears the UIP status bit.
DV0, DV1, DV2
These three bits are used to turn the oscillator on or off and to reset the countdown
chain. A pattern of 010 is the only combination of bits that will turn the oscillator on and
allow the RTC to keep time. A pattern of 11X
will enable the oscillator but holds the
countdown chain in reset. The next update
will occur at 500 ms after a pattern of 010 is
written to DV0, DV1 and DV2.
RS3, RS2 RS1, RS0
These four rate-selection bits select one of
the 13 taps on the 15-stage divider or disable the divider output. The tap selected can
be used to generate an output square wave
(SQW pin) and/or a periodic interrupt. The
user can do one of the following:
1. Enable the interrupt with the PIE bit;
2. Enable the SQW output pin with the
SQWE bit;
3. Enable both at the same time and the
same rate;
4. Enable neither.
Table 1 lists the periodic interrupt rates and
the square wave frequencies that can be
chosen with the RS# bits. These four
read/write bits are not affected by RESET#.
REGISTER B
MSB LSB
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
SET PIE AIE UIE SQWE DM 24/12 DSE
SET
When the SET bit is a zero, the update
transfer functions normally by advancing the
counts once per second. When the SET bit
is written to a one, any update transfer is
inhibited and the program can initialize the
time and calendar bytes without an update
occurring in the midst of initializing. SET is a
read/write bit that is not modified by RESET# or internal functions of the VT82885.
PIE
The periodic interrupt enable PIE bit is a
read/write bit which allows the Periodic Interrupt Flag (PF) bit in Register C to drive
the IRQ# pin low. When the PIE bit is set to
one, periodic interrupts are generated by
driving the IRQ# pin low at a rate specified
by the RS3-RS0 bits of Register A. A zero in
the PIE bit blocks the IRQ# output from being driven by a periodic interrupt, but the
Periodic Flag (PF) bit is still set at the periodic rate. PIE is not modified by any internal
VT82885 functions, but is cleared to zero on
RESET#.
AIE
The Alarm Interrupt Enable (AIE) bit is a
read/write bit which, when set to one, permits the Alarm Flag (AF) bit in Register C to
assert IRQ#. An alarm interrupt occurs for
each second that the three time bytes equal
the three alarm bytes including a “don’t care”
alarm code of binary 11XXXXXX. When the
AIE bit is set to zero, the AF bit does not
iniate the IRQ# signal. The RE-SET# pin
clears AIE to zero. The internal functions of
the VT82885 do not affect the AIE bit.
UIE
The Update Ended Interrupt Enable (UIE) bit
is a read/write that enables the Update End
Flag (UF) bit in Register C to assert IRQ#.
The RESET# pin going low or the SET bit
going high clears to UIE bit.
SQWE
When the Square Wave Enable (SQWE) bit
is set to a one, a square wave signal at the
frequency set by the rate-selection bits RS3
through RS0 is driven out on a SQW pin.
When the SQWE bit is set to zero, the SQW
pin is held low; the state of SQWE is cleared
9
Page 10
VIA Technologies, Inc.
VT82885
Real Time Clock
by the RESET# pin. SQWE is a read/write
bit.
DM
The Data Mode (DM) bit indicates whether
time and calendar information is in binary or
BCD format. The DM bit is set by the
program to the appropriate format and can
be read as required. This bit is not modified
by internal functions or RESET#. A one in
DM signifies binary data while a zero in DM
specifies Bnary Coded Decimal (BCD) data.
24/12
The 24/12 control bit establishes the format
of the hours byte. A one indicates the 24hour mode and a zero indicates the 12-hour
mode. This bit is read/write and is not
affected by internal functions of RESET#.
DSE
The Daylight Savings Enable (DSE) bit is a
read/write bit which enables two special
updates when DSE is set to one. On the first
Sunday in April the time increments from
1:59:59 AM to 3:00:00 AM. On the last
Sunday in October when the time reaches
1:59:59 AM it changes to 1:00:00 AM. These
special updates do not occur when the DSE
bit is a zero. This bit is not affected by
internal functions or RESET#.
REGISTER C
PF
The Periodic Interrupt Flag (PF) is a readonly bit whcih is set to a one when an edge
is detected on the selected tap of the divider
chain. The RS3 through RS0 bits establish
the periodic rate. PF is set to a one
independent of the state of the PIE bit.
When both PF and PIE are ones, the IRQ#
signal is active and will set the IRQF bit. The
PF bit is cleared by a RESET# or a software
read of Register C.
AF
A one in the Alarm Interrupt Flag (AF) bit
indicates that the current time has matched
the alarm time. If the AIE bit is also a one,
the IRQ# pin will go low and a one will
appear in the IRQF pin. UF is cleared by
reading Register C or a RESET#.
UF
The Update Ended Interrupt Flag (UF) bit is
set after each update cycle. When the UIE
bit is set to one, the one in UF causes the
IRQF bit to be a one which will assert the
IRQ# pin. UF is cleared by reading Register
C or a RESET#.
BIT 0 THROUGH BIT 3
These are unused bits of the status Register
C. These bits always read zero and cannot
be written.
MSB LSB
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
IRQF PF AF UF 0000
IRQF
The interrupt Request Flag (IRQF) bit is set
to a one when one or more of the following
are true:
PF = PIE = 1
AF = AIE = 1
UF = UIE = 1
That is, IRQF = PF • PIE + AF • AIE + UF
•
UIE.
Any time the IRQF bit is one, the IRQ# pin is
driven low. All flag bits are cleared after
Register C is read by the program or when
the RESET# pin is low.
ABSOLUTE MAXIMUM RATINGS*
REGISTER D
MSB LSB
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
VRT0000000
VRT
This bit is not writeable and should always
be one when read. If a zero is ever present,
an exhausted external lithium energy source
is indicated and both the contents of the
RTC data and RAM data are questionable.
This bit is unaffected by RESET#.
BIT 6 THROUGH BIT 0
The remaining bits of Register D are not
usable. They cannot be written and, when
read, they will always read zero.
10
Page 11
VT82885
µ
µ
µ
VIA Technologies, Inc.
VOLTAGE ON ANY PIN RELATIVE TO GROUND -0.3V TO +7.0V
OPERATING TEMPERATURE 0°C TO 70°C
STORAGE TEMPERATURE -40°C TO +70°C
SOLDERING TEMPERATURE 260°C FOR 10 SECONDS
*This is a stress rating only and functional operation of the device at these or any other conditions
above those indicated in the operation sections of this specification is not implied. Exposure to
absolute maximum rating conditions for extended periods of time may affect reliability.
Real Time Clock
RECOMMENDED DC OPERATING CONDITIONS (0
°C TO 70°C)
PARAMETER SYMBOL MIN TYP MAX UNITS NOTES
Power Supply Voltage V
Input Logic 1 V
Input Logic 0 V
CC
IH
IL
4.5 5.0 5.5 V 1
2.2 VCC+0.3 V 1
-0.3 +0.8 V 1
DC ELECTRICAL CHARACTERISTICS (0°C TO 70°C, VCC = 4.5 TO 5.5V)
PARAMETER SYMBOL MIN TYP MAX UNITS NOTES
Power Supply Current I
Input Leakage I
I/O Leakage I
Input Current I
Output @ 2.4V I
Output @ 0.4V I
Write Protect Voltage V
CC1
IL
LO
MOT
OH
OL
TP
-1.0 +1.0
-1.0 +1.0
-1.0 +500
-1.0 mA 1,5
4.0 4.25 4.5 V
510mA2
A
A
A
3
4
3
4.0 mA 1
CAPACITANCE (tA = 25°C)
PARAMETER SYMBOL MIN TYP MAX UNITS NOTES
Input Capacitance C
Output Capacitance C
IN
OUT
5pF
7pF
AC ELECTRICAL CHARACTERISTICS (0°C TO 70°C, VCC = 4.5V TO 5.5V)
PARAMETER SYMBOL MIN TYP MAX UNITS NOTES
Cycle Time t
Pulse Width, DS/E Low or
CYC
PW
EL
385 DC ns
150 ns
RD/WR# High
11
Page 12
VIA Technologies, Inc.
µ
µ
µ
µ
µ
VT82885
Real Time Clock
Pulse Width, DS/E High or
PW
RD/WR# Low
Input Rise and Fall Time tR, t
R/W# Hold Time t
R/W# Setup Time
RWH
t
RWS
before DS/E
Chip Select Setup Time
t
CS
before DS, WR#, or RD#
Chip Select Hold Time t
Read Data Hold Time t
Write Data Hold Time t
Muxed Address Valid Time
CH
DHR
DHW
t
ASL
to AS/ALE Fall
Muxed Address Hold Time t
Delay Time DS/E
AHL
t
ASD
to AS/ALE Rise
Pulse Width AS/ALE High PW
Delay Time, AS/alE
t
ASED
to DS/E Rise
EH
F
ASH
125 ns
30 ns
10 ns
50 ns
20 ns
0ns
10 80 ns
0
30 ns
10 ns
25 ns
60 ns
40 ns
Output Data Delay Time
t
DDR
from DS/E or RD#
DataSetup Time t
Reset Pulse Width t
IRQ# Release from DS t
IRQ# Release from
DSW
RWL
IRDS
t
IRR
RESET#
Delay Time before Update
t
BUC
Cycle
Periodic Interrupt Time
t
PI
Interval
Time of Update Cycle t
UC
NOTES
1. All voltages are referenced to ground.
2. All outputs are open.
3. Applies to the AD0-AD7 pins, the IRQ#
20 120 ns
100 ns
5
2
2
244
1708
pin and the SQW pin when each is in the
high impedence state.
4. The IRQ# pin is open drain.
5. Measured with a load as shown in
Figure 4.
s
s
s
s
See Table
1
s

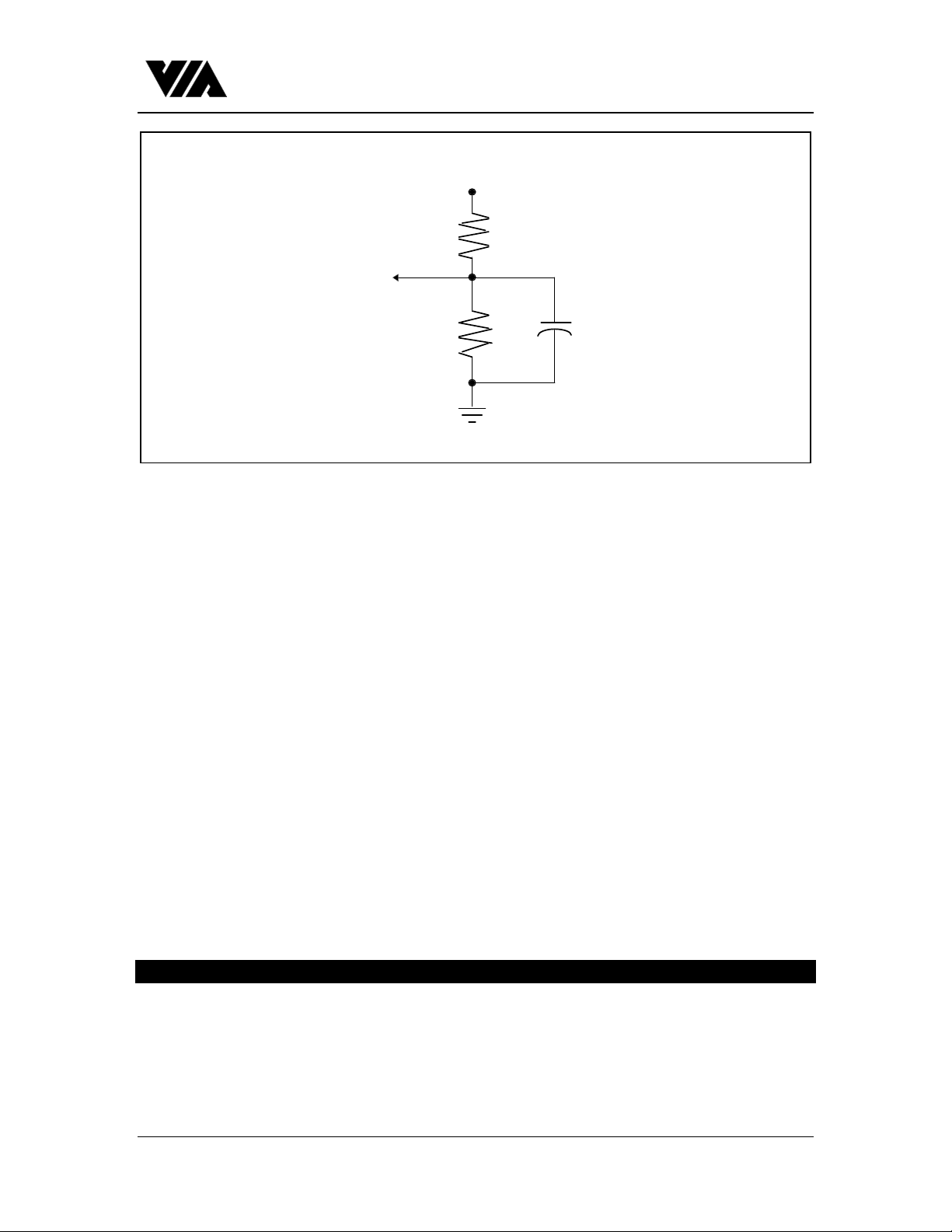

FIGURE 4: OUTPUT LOAD
12
Page 13
VIA Technologies, Inc.
+5 VOLTS
D.U.T.
1.1 K
VT82885
Real Time Clock
Ω
680
Ω
50 pF

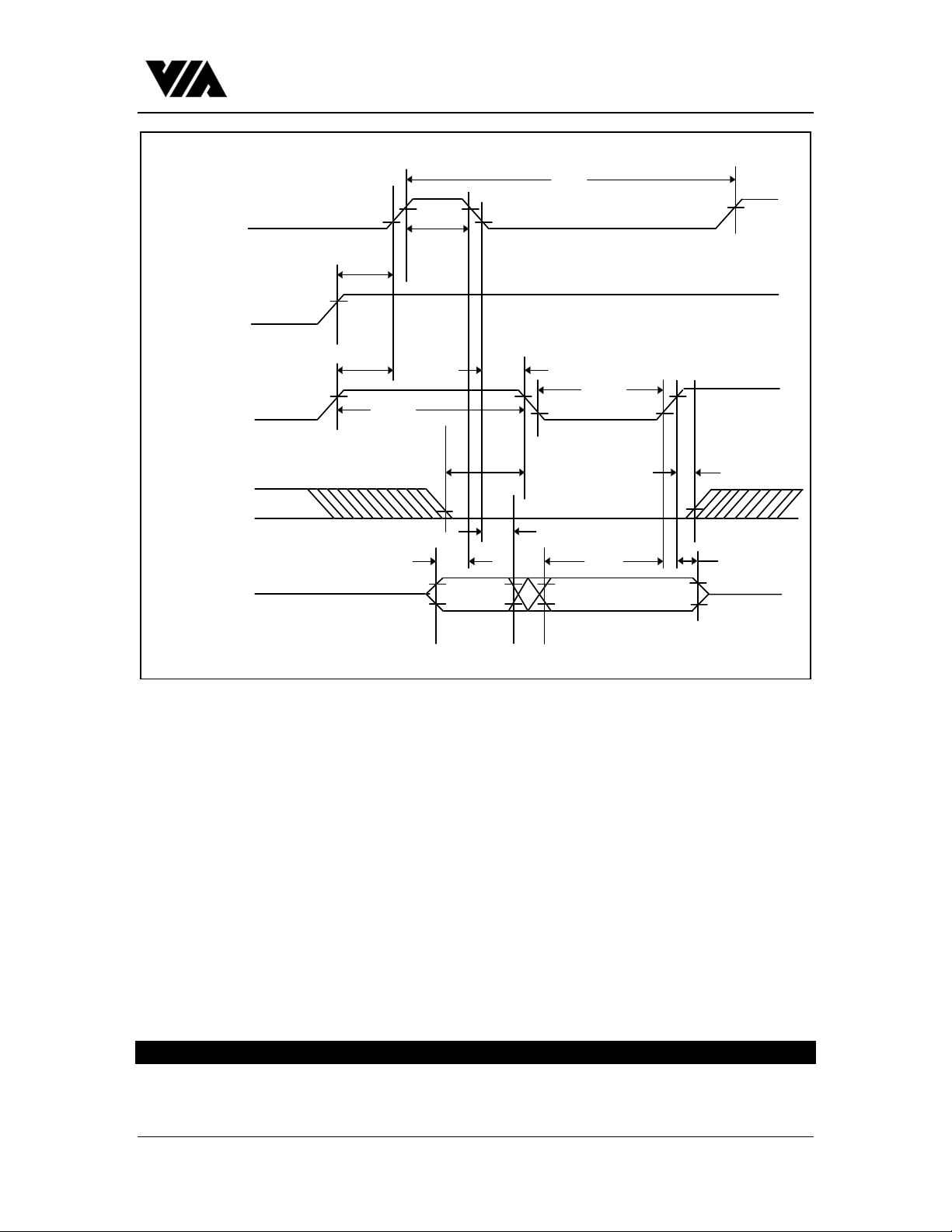

VT82885 BUS TIMING FOR WRITE CYCLE
13
Page 14
VIA Technologies, Inc.
t
VT82885
Real Time Clock
CYC
AS
RD#
WR#
CS#
AD0-AD7
t
t
ASD
ASD
PW
PW
ASH
t
ASED
PW
EH
EL
t
CS
t
AHL
t
ASL
t
DSW
t
t
DHW
CH

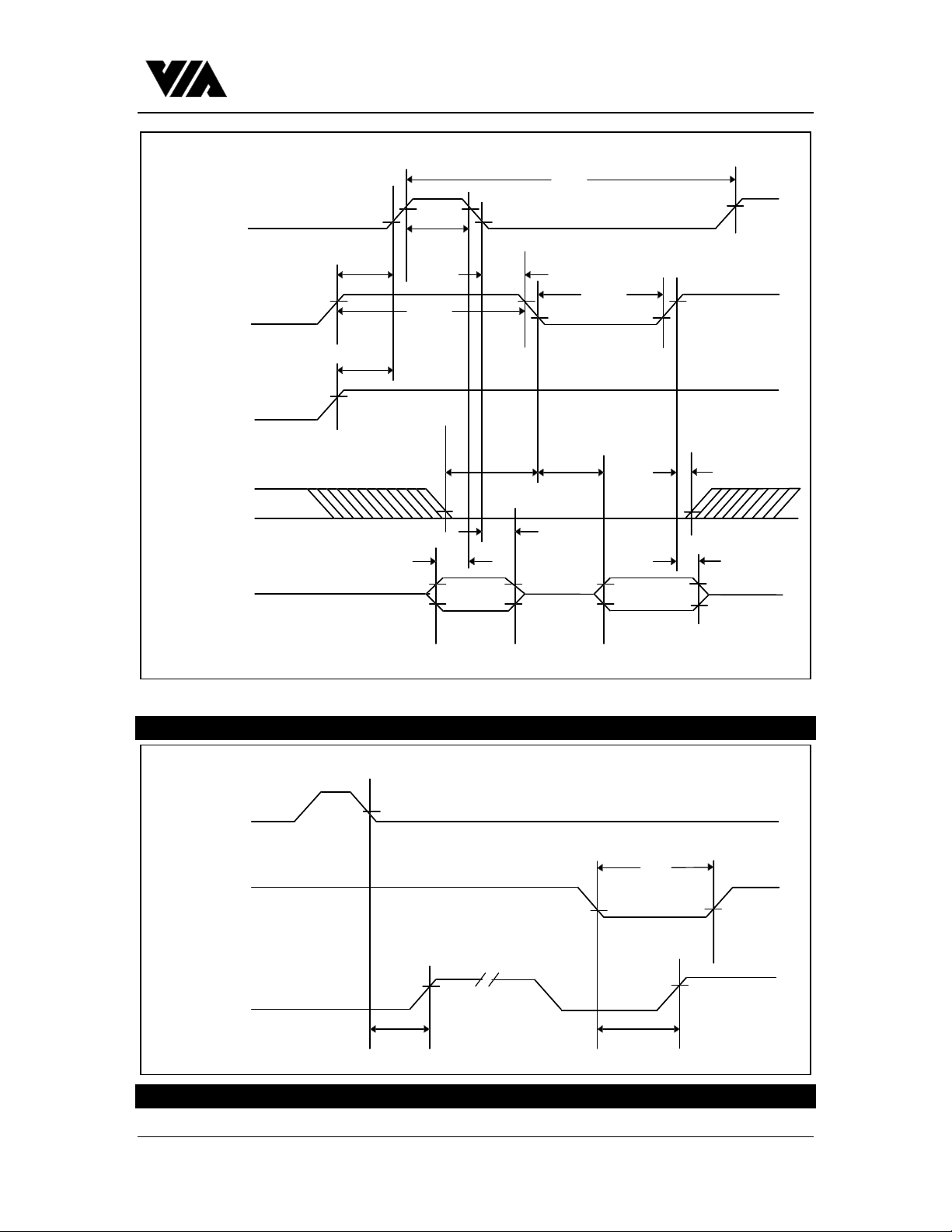

VT82885 BUS TIMING FOR READ CYCLE
14
Page 15
VIA Technologies, Inc.
t
VT82885
Real Time Clock
CYC
AS
RD#
WR#
CS#
AD0-AD7
t
t
ASD
ASD
PW
PW
ASH
t
ASED
PW
EH
EL
t
CS
t
AHL
t
ASL
t
DDR
t
CH
t
DHR
VT82885 IRQ RELEASE DELAY TIMING
RD#
RESET#
IRQ#
t
RDS

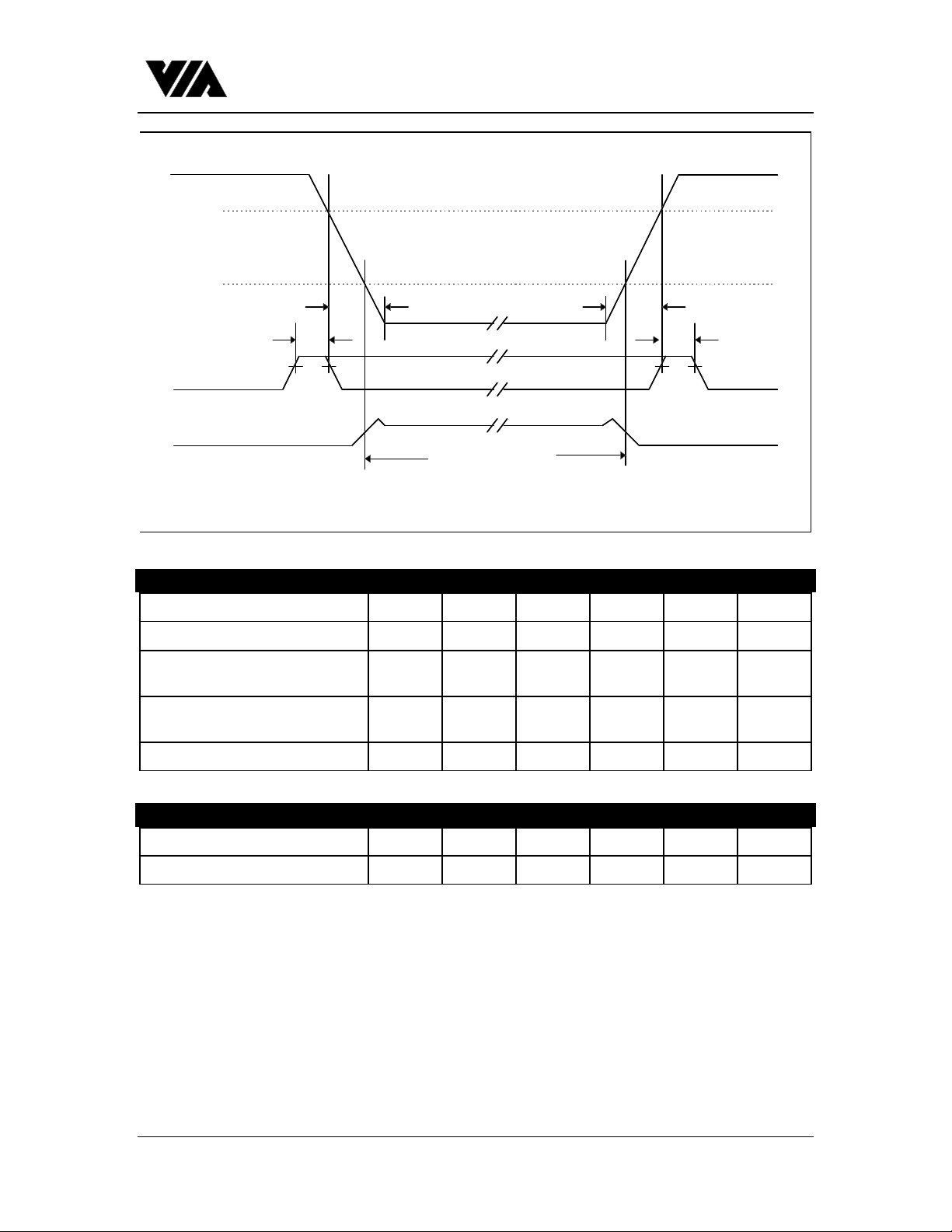

POWER DOWN/POWER UP TIMING
15
t
RWL
t
IRR
Page 16
VT82885
µ
µ
µ
VIA Technologies, Inc.
V
CC
4.5V
V
BAT
t
F
Real Time Clock
t
R
t
REC
CS#
CURRENT SUPPLIED
FROM EXTERNAL
LITHIUM ENERGY CELL
t
PD
DATA RETENTION
t
DR
POWER DOWN/POWER UP TIMING
PARAMETER SYMBOL MIN TYP MAX UNITS NOTES
CS# at VIH before Power-Down t
V
slew from 4.5V to 0V
CC
(CS# at V
IH
)
VCC slew from 0V to 4.5V
(CS# at V
IH
)
CS# at VIH after Power-Up t
PD
t
F
t
R
REC
0
300
100
20 200 ms
s
s
s
(tA = 25°C)
PARAMETER SYMBOL MIN TYP MAX UNITS NOTES
Expected Data Retention t
DR
NOTE
The real time clock will keep time to an
accuracy of ±1 minute per month during data
retention time for the period of t
DR
.
10 years
WARNING
Under no circumstances are negative
undershots, of any amplitude, allowed when
device is in battery backup mode.
16
