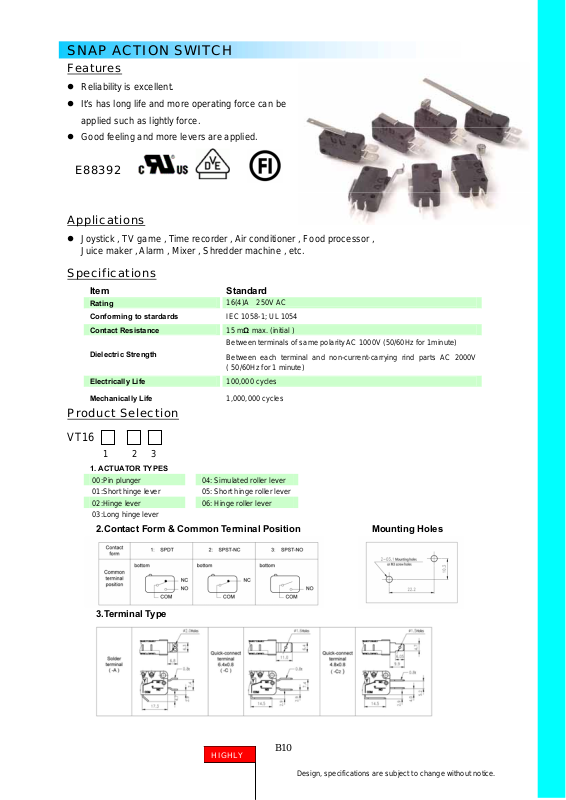

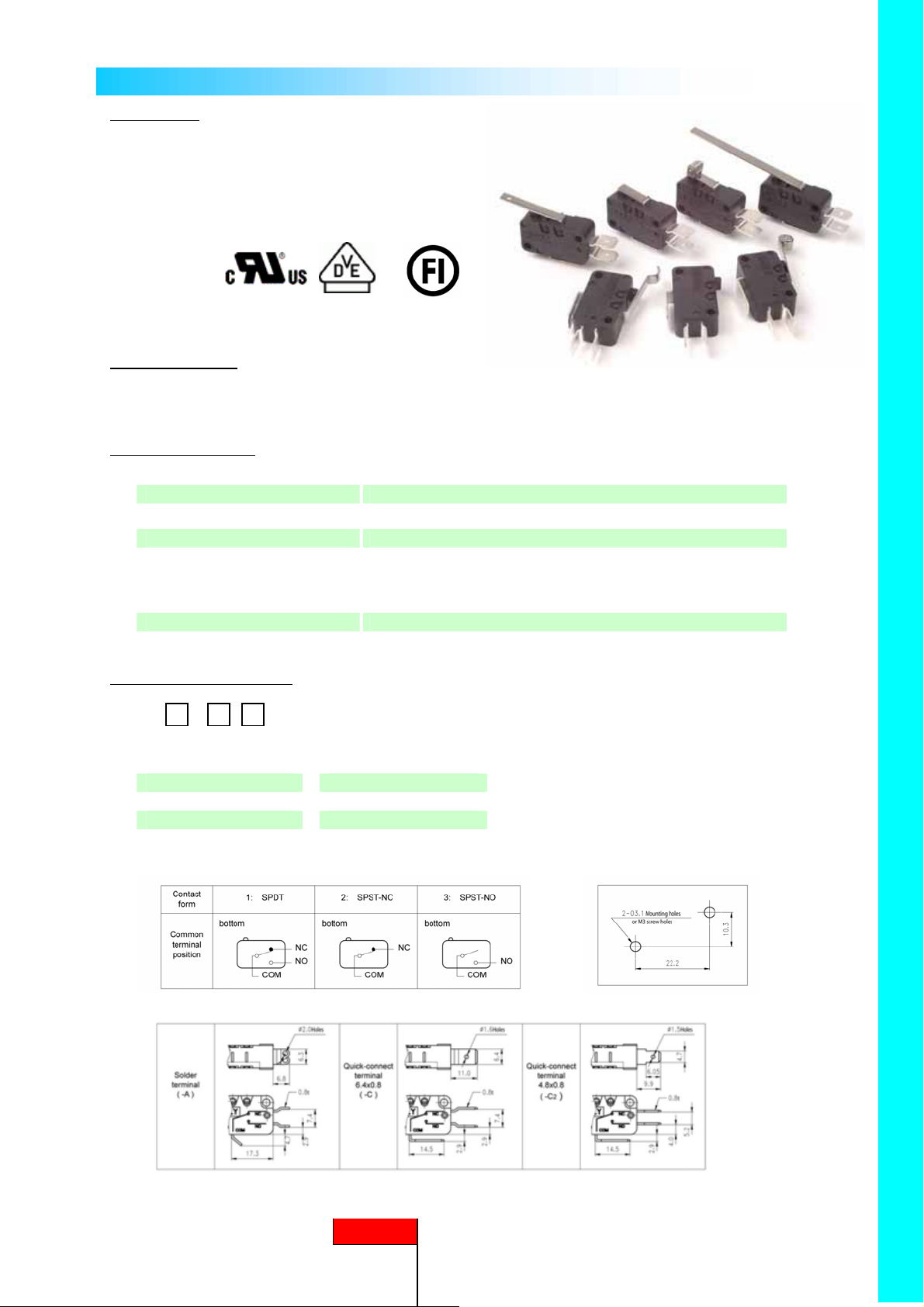

Page 1
SNAP ACTION SWITCH
Features
z Reliability is excellent.
z It’s has long life and more operating force can be
applied such as lightly force.
z Good feeling and more levers are applied.
E88392
Applications
z Joystick , TV game , Time recorder , Air conditioner , Food processor ,
Juice maker , Alarm , Mixer , Shredder machine , etc.
Specifications
Item Standard
Rating
Conforming to stardards IEC 1058-1; UL 1054
Contact Resistance 15 mΩ max. (initial )
Dielectric Strength
Electrically Life 100,000 cycles
16(4)A 250V AC
Between terminals of same polarity AC 1000V (50/60Hz for 1minute)
Between each terminal and non-current-carrying rind parts AC 2000V
( 50/60Hz for 1 minute)
Mechanically Life 1,000,000 cycles
Product Selection
VT16
1 2 3
1. ACTUATOR TYPES
00:Pin plunger 04: Simulated roller lever
01:Short hinge lever 05: Short hinge roller lever
02:Hinge lever 06: Hinge roller lever
03:Long hinge lever
2.Contact Form & Common Terminal Position Mounting Holes
3.Terminal Type
HIGHLY
B10
Design, specifications are subject to change without notice.

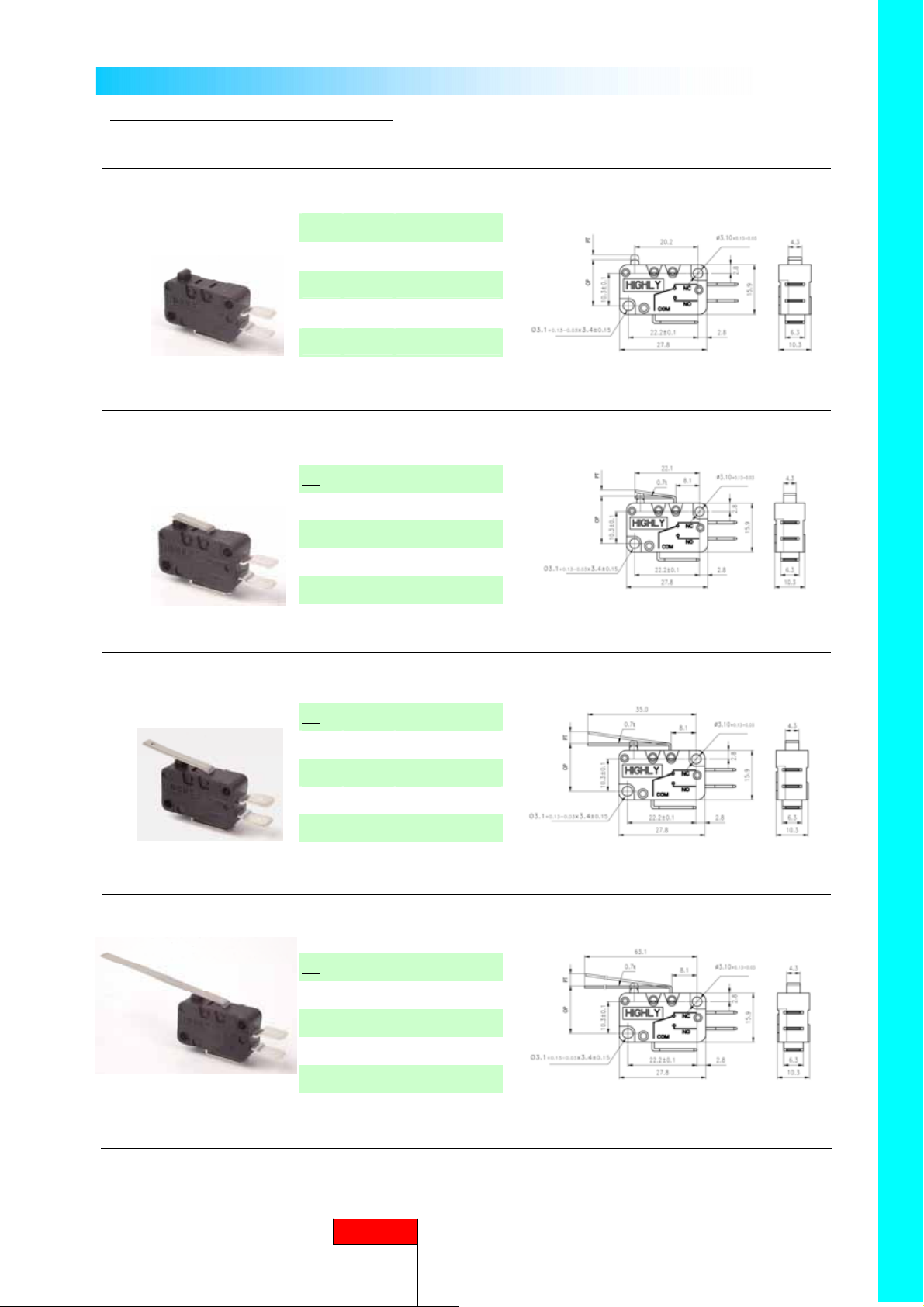

Page 2
SNAP ACTION SWITCH
Operating Characteristics Unit :mm
Item NO. Dimensions
VT1600
VT1601
OF max. 250g
RF min. 30g
PT max. 1.4 mm
OT min. 0.8 mm
MD max. 0.4 mm
OP 14.7±0.4 mm
OF
max. 250g
RF min. 20g
PT max. 1.6 mm
OT min. 0.8 mm
MD max. 0.4 mm
OP 15.2±0.6 mm
VT1602
VT1603
OF
OF
max. 120g
RF min. 10g
PT max. 3.2 mm
OT min. 1.8 mm
MD max. 1.0mm
OP 15.2±1.5 mm
max. 60g
RF min. 5g
PT max. 8.0 mm
OT min. 3.0 mm
MD max. 2.2mm
OP 15.2±2.6 mm
HIGHLY
B10
Design, specifications are subject to change without notice.

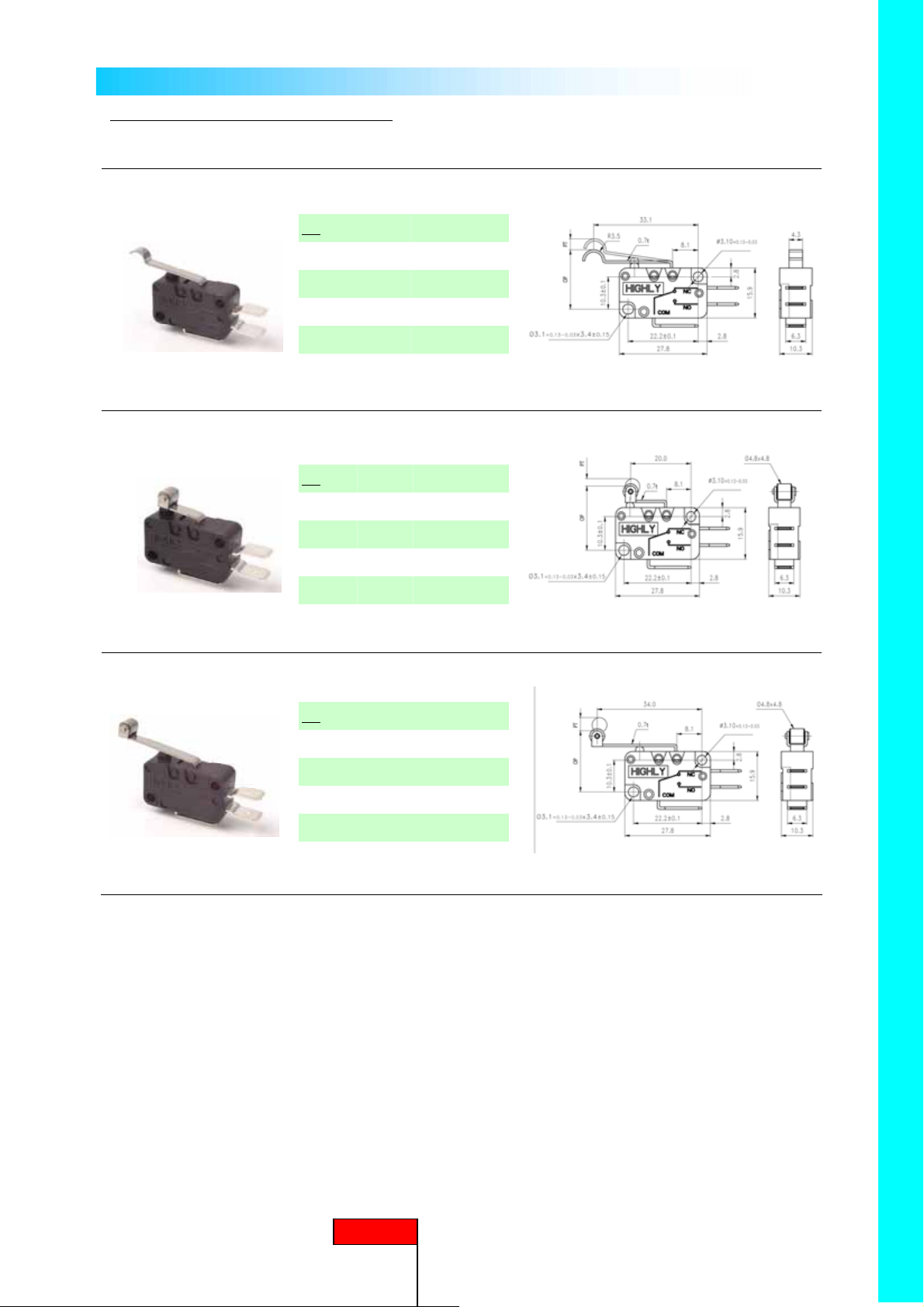

Page 3
SNAP ACTION SWITCH
Operating Characteristics Unit :mm
Item NO. Dimensions
VT1604
VT1605
OF
RF min. 10g
PT max. 3.2 mm
OT min. 1.8mm
MD max. 1.0 mm
OP 18.7±1.2 mm
max. 120g
OF
RF min. 30g
PT max. 14 mm
OT min. 0.8 mm
MD max. 0.4 mm
OP 20.7±0.6 mm
max. 250g
VT1606
OF
RF min. 10g
PT max. 3.2 mm
OT min. 1.8 mm
MD max. 1.0mm
OP 20.7±1.5 mm
max. 120g
HIGHLY
B10
Design, specifications are subject to change without notice.
