Datasheet VSC8151QV Datasheet (VITESSE)

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

STS-48/STM-16 Section Terminator

2.488Gb/s SONET/SDH

Features

• Integrated 2.488Gb/s T ransceiver

• SONET/SDH Transport Overhead Output

• SONET/SDH Transport Overhead Modification

• B1 Error Detection, Re-calculation, and Insertion

• Support for Multiple SONET/SDH Rates

• LOF/SEF Alarm Generation

• Section & Line AIS Insertion

• 50Ω Source Terminated 2.488Gb/s I/O

General Description

The VSC8151 is a 2.488Gb/s Section Termination device which both monitor s and modif ie s the secti on and
line overhead of a received SONET/SDH signal, and can generate AIS-L maintenance signals for trouble sec­tionalization. These features allow all section termination requirements to be supported for Operations, Admin­istration, Management, and Provisioning (OAM&P) functions in SONET/SDH terminal and optical networking
applications. An integrated 2.488Gb/s serial transceiver isolates the SONET/SDH signal interface, allowing
protocol information to be exchanged with programmable logic using a low-speed TTL interface.

VSC8151 Functional Block Diagram

RXFRERR
RXSEF
RXLOF

RXFPOUT
RXOHCLK
RXOHOUT[7:0]

TXPOUT[15:0]

POUTCLK

TXSCLKOUT+/­TXSOUT+/-

LOS

RXSIN+/-

RXSCLKIN+/-

POUTCLK

RXPIN[15:0]

SYSRST

TXSCLKIN+/-

TXOHWI

TXWRENA

TXADDR[5:0]

TXOHIN[7:0]

TXFPOUT

RXPIN[7:0]

1:8

DMX

OVERHEAD

INPUT &

INTERNAL

CONTROL

CONTROL

& ALARM

DETECTION

FRAMING

ASSEMBLER

AIS

GENERATION

DESCRAMBLER

B1

MONITOR

SCRAMBLER

& B1 CALC

OVERHEAD

OUTPUT

8:1

MUX

NOTE: References (R#-#) or (O#-#) refer to the SONET requirement or option specification listed in
Bellcore document GR-253 CORE Issue 2, Rev. 2, January 1999.

Functional Overview

The VSC8151 is divided into two logic sections, a monitoring section and a modification section, each
interfaced externally through both 2.5G b/s serial interfaces as well as 16-bit paralle l interfaces. Incoming



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 1

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

STS-48/STM-16 Sect ion Terminator

Advance Product Information

VSC8151

SONET/SDH data is demultiplexed, framed, descrambled, and the 27 bytes of the section and line overhead are
output. The BIP parity of the incoming signal is calcul at ed and co mpared with t he received B1 and B2 bytes for
calculating received parity errors. The byte aligned data, calculated B1/B2 parity, and frame boundary location
are then passed to the modification section where new overhead bytes are inserted. The modified data is
rescrambled, and B1/B2 parity rec alculated (if desired) pr ior to serialization and ou tput. An internal state
machine generates a section alarm inhibit signal (AIS) with user defined transport overhead that can be alterna­tively transmitted in place of the received signal.

2.5G Serial and Parallel Input Interfaces

The demux receives differential clock and data signals at the appropriate SO NET/SDH rate and demu lti­plexes the data for framing. These inputs are interna lly terminated by a ce nter-tapped resistor network and
include biasing resistors to fa cil ita te AC coupling. For differential input DC coupling, the netw ork is t ermi nated
to the appropriate termination voltage V

providing a 50Ω to V

Term

inputs. For differential input AC coupling, the network is terminated to V

The common mode reference voltage is created by a resistor divider as shown. If the input signal is driven
differentially and DC-coupled to the part, the mid-point of the input signal swing should be centered about this
reference voltage and not e xceed the max imum al lo wa ble ampl itude. F or sing le-ended , DC-coupl ing o perations,
it is recommended that the user provides an external reference voltage which has better temperature and power
supply noise rejection than the on-chip resistor divider. The external reference should have a nominal value
equivalent to the common mode switch point of the DC coupled signal, and can be connected to either side of
the differential gate.

Figure 1: High Speed Serial Clock and Data Inputs

termination for both true and complement

Term

via a blocking capacitor.

Term

Z

O

C

V

TERM

Z

O

CIN TYP = 100 pF (clock), 100nF (data)
C

TYP = 100 pF (clock), 100nF (data) for single ended applications.

SE

Page 2 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

Chip Boundary

V

= 3.3V

CC

C

IN

50Ω

AC

50Ω

C

SE

VITESSE SEMICONDUCTOR CORPORATION

1.65V 1.65V

V

= 0V

EE

R

= 1.5k

Ω

| |

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

STS-48/STM-16 Section Terminator

2.488Gb/s SONET/SDH

The serial demux can be bypassed and the 16-bi t single-ended PECL bu s R XPIN[1 5: 0] can be used to input
SONET/SDH data for applications where the data has already been deserialized by a previous device. This
mode is selected by asserting the EQULOOP input (active high). Input setup and hold requirements are speci­fied with respect to t he f a lli ng edg e of POUTCLK; th e user is responsible for meeting loop timi ng requirement s
between the VSC8151 and previous device. The user must still provide a line rate clock to the serial clock input
RXSLKIN+/- to provide a high-speed output clock to the mux and the means to create the divide-by-16 POUT­CLK.

2.5G Serial and Parallel Output Interfaces

The high speed clock and data outp ut driver consists of a differential pair design ed to drive a 50Ω transmis­sion line. The transmission line should be terminated with a 100Ω resistor at the load between true and comple­ment outputs. No connection to a termination voltage is required. The output driver is source terminated to 50
on-chip, providing a snubbing of any reflections. If used single-ended, one way to terminate the output driver is
differentially at the load with a 100Ω resistor between true and com plement outpu ts. See Figure 2 A. Another
option is to terminate the used output at the load with 50 ohm to V
V

at the source. See Figure 2B.

TERM

In some applications, it may be desirable to turn off the high speed outputs (TXSOUT, TXSCLKOUT) to
reduce power. To disable the high speed clock output, tie pin 22 to V
high speed data output, t i e pi n 1 7 t o V

(3.3V) instead of GND. T urning off each output will reduce maximum

CC

current consumption by 107mA for the clock output, and 122mA for the data output.

and the unused output with 50 ohm to

TERM

(3.3V) instead of GND. To disable the

CC

Ω

Figure 2A

Pre-Driver

50Ω

Figure 2: High Speed Output Driver & Termination

V

CC

50Ω

100Ω

Z0 = 50Ω

Figure 2B

V

EE

Pre-Driver

50Ω

V

CC

50Ω

50Ω

V

TERM

V

EE

Z0 = 50Ω

50Ω

V

TERM



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 3

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

STS-48/STM-16 Sect ion Terminator

Advance Product Information

VSC8151

The serial mux output can be bypassed and the 16-bit single-ended PECL bus TXPOUT[15:0] can be used
to output modified SONET/S DH data or AIS to anoth er device. These outputs are enabled by setting the DP bit
in the MISC register app ropr i ately, and should be disabled if not being used. It i s possi ble to use both the 16-bit
parallel output bus and the 2.5Gb/s serial out put si multaneou sly. The POUTCLK output is used to provide a b us
output clock for RXFPOUT and is a divide-by-16 version of TXSCLKIN.

2.5G Output Clocking Domains

The 2.5GHz clock input to the VSC8151 mux (TXSCLKIN) acts as the pe rmanent transmit clock for the
VSC8151. An internal clock domain boundary exists between the monitor and the transmit sections of the
device, allowing the AIS transm it portio n to func tion co mpletely indepen dently of the rece ive portion. This
allows a CDR to track whatever data is being received and allows the VSC8151 to monitor in-frame status of
the signal continuously.

During a LOS condition, the CDR clock output may drift outside of the SONET/SDH transmission stan­dard of +/-20PPM. By providing the option of using an external clock multiplication unit (CMU), one can

maintain a standard of +/-20PPM even during AIS states. This backup CMU rece ives it’s timing reference from
either a local AIS refer ence or the divided clock from the received RXSCLKIN +/- , depending whethe r AIS
transmit mode is selected or not.

The user controls the source of the reference clock ou tput through settings in the VS C8151 register file.
The user will change these settings at the same time AIS is asserted or when imminent loss of RXSCLKIN
clock quality exists. The AIS reference output can be switched from a divided down RXSCLKIN signal to a
copy of one of the external references, ensuring that a proper reference clock remains for the transmit multi­plexer. (See Table 2: VSC8151 Configuration Registers, Definition 13)

Figure 3: VSC8151 using CMU as Transmit Timing Source

Received

Data

Clock and

Data Recovery

VSC8122

Clock

Multiplication

Unit

VSC812X

Page 4 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

RXSIN+/-

2.488Gb/s Data
622Mb/s Data
155MB/s Data

2.488GHz Clock
622MHz Clock
155MHz Clock

RXSCLKIN+/-

TXSCLKIN+/-

2.488GHz Clock
622MHz Clock
155MHz Clock

SEF/LOF ALARMS

Demux &

Monitor

Logic

Modify

Logic

AIS State

Machine

Mux &

Frame

Assembly

Logic

AIS Reference

78 MHz

VITESSE SEMICONDUCTOR CORPORATION

CMU
Reference
Generator

AIS Insert

TXSOUT+/-

TXSCLKOUT+/-

AIS Reference

155/78 MHz

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

STS-48/STM-16 Section Terminator

2.488Gb/s SONET/SDH

If the user chooses to use the CDR as a t iming so ur ce even during AIS mode , the output of the CDR can be
connected single ended to both RXSCLK IN and TXSCLKIN, or a mult i-drop conn ection can b e made d if feren ­tially.

Figure 4: VSC8151 using CDR as Transmit Timing Source

SEF/LOF ALARMS

Demux &

Monitor

Logic

Modify

Logic

AIS State

Machine

Mux &

Frame

Assembly

AIS Insert

TXSOUT+/-

TXSCLKOUT+/-

Received

Data

Clock and

Data Recovery

VSC8122

RXSIN+/-

2.488Gb/s Data
622Mb/s Data

155MB/s Data

2.488GHz Clock
622MHz Clock
155MHz Clock

RXSCLKIN+/-

TXSCLKIN+/-

2.488GHz Clock
622MHz Clock
155MHz Clock

Logic

AIS Reference

78 MHz

CMU
Reference
Generator

AIS Reference

155/78 MHz

SONET/SDH Monitoring Circuitry Overview

The monitoring circuitry provides SONET/SDH compliant framing and framing alarms, as well as detect-

ing B1 and B2 parity errors and transport overhead byte output.

Framing

The frame acquisition algorithm determines the in-frame/out-of-frame status of the receiver. Out-of-frame

is defined as a sta te where th e frame boundaries of t he received SONET/SDH signal a re unkno wn, i .e. after sy s-

tem reset or if for some reason the receiver looses synchronizat i on, e.g. due to ‘bit sli ps’. In-frame is def ined as
a state where the frame boundaries are known.

The receiver monitors the frame synchronization by checking for the pres ence of a portion of the A1/A2
framing pattern every 125uS. If one or more bit errors are detected in the expected A1/A2 framing pattern out­put RXFRERR (active high) will be asserted (See Figure 5). If framing pattern errors are detected for four con­secutive frames a Severely Errored Frame (SEF) alarm will be asserted on output RXSEF (active high) (R5-

223).



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 5

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

STS-48/STM-16 Sect ion Terminator

Figure 5: Functional Block Diagram of Frame Acquisition Circuit

FRD

SL1
SL0

RXSIN

1:8

DMX

FRAME

DET

Advance Product Information

VSC8151

RXFRERR
RXSEF
RXLOF

RXFPOUT

RESYNC

BYTE

ALIGN

ERROR/ALARM

DETECTION

FRAME SYNC.

COUNTER

Aligned Output

The frame boundary detection/verification is based on 12, 24 or 48 bits of the A1/A2 overhead (See
Figure 6) depending on the setting of the FRDET register (See Table 2). Frame acquisition procedures are con­trolled by the settings of the FRDET register. Reframing can be controlled manually or reframing can automati­cally be initiated by the presence of an SEF signal. Using SEF as an indicator that reframe is necessary will
achieve realignment within 250uS or the receipt of two error free framing patterns (R5-225)

A frame detect based on 24 bits will result in an SEF alarm at an av era ge of no more than once e v ery 6 min­utes assuming a BER of 10-3 (R5-224). A frame detect based on 48 bits or 12 bits will result in a mean time
between SEF detects of 0.43 minutes and 103 minutes respectively.

Figure 6: Frame Detection Patterns

48 bits
24 bits
12 bits

A1 (0xF6) A1 (0xF6) A1 (0xF6) A2 (0x28) A2 (0x28) A2 (0x28)

Loss of Signal

The LOS (Loss of Signal, active high) input should be asserted whenever the interfacing module no longer
generates a valid electrical signal on the high speed clock and/or data lines of the VSC8151. If the clock signal
is present when the LOS input is a sserted th e VSC8151 wil l asser t SEF and ot her o utputs wil l become invalid. If
the input clock is not present, then the tr ansi ti on of t he LOS i npu t wil l not be dete cted and the part is effect ively
frozen. Asserting LO S will for ce SEF ( Severely Errored Frame) and L OF (Loss of Fram e) high, an d force all

0’s to be output from the device, regardless of the input.

Page 6 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

Loss of Frame

A Loss of Frame (LOF) defect is declared (RXLOF active h igh) when a Se ve rely Errored F rame (SEF) con­dition persists for 3ms (R6 -5 9). The LOF state detec tion is based on an integrating tim er to prevent sporadic
errors from asserting LOF, such as a periodic 1ms error. An LOF defect is cancelled after an in-frame condition
(SEF low) persists for 3ms (R6-61) because an integrating timer approach has been implemented (O6-62).

Multiple SONET/SDH Rate Functionality

The VSC8151 supports three SONET/SDH rates: STS-48/STM-16, STS-12/STM-4, and STS-3/STM-1.
The user is responsible for rate-provisioning the device by setting the RATESEL register (See Table 2). The
device requires clocks RXSCLKIN+/- and TXSCLKIN+/- to match the selecte d data rate in order for internal
circuitry to function correctly. The RATESEL register changes the expected frame length of the received signal
and selects the characteristics of the outgo in g traffic or AIS signal. LOF in tegration timing remains 3ms reg ard­less of selected SONET/SDH rate.

Descrambler

Framed SONET/SDH bytes are descrambled using a frame synchron ous descr ambl er wit h generat i ng pol y­nomial 1 + X6 + X7 and a sequence length of 127. The scrambling algorithm is reset to an all 1’s state immedi­ately following the Z0 byte (last channel of first row, third column). The A1, A2, and J0/Z0 bytes are not
descrambled (R5-6). The descrambler can be disabled by setting the MISC register appropriately.

STS-48/STM-16 Section Terminator

2.488Gb/s SONET/SDH

B1 Error Monitoring

The bit-interleaved parity (BIP-8) error detection code (B1) will be calculated for every received frame
before descrambling and compared to the descrambled B1 value in the following frame (R3-16). The results of
this calculation are used to generate a B1 parit y mask that is ou tput using th e ov erhead output interf ace. The cal­culated B1 parity used to do this com parison c an be sub stituted in the re ceived data stream and ou tput. This

effectively ‘corrects’ the B1 byte and prevents the same B1 errors from being detected downstream.

B2 Error Monitoring

Incoming B2 errors for the first STS-1 are monitored and detected. This circuitry is not designed to supply
B2 error rate monitoring but exists to provide support for modification of the overhead bytes of the line over­head. Incoming B2 pa rity must be dete rmined bec ause modification of the line overhead require s that the B2
byte for the first STS-1 be re-calculated. If the line overhead is not being modified by the user then the B2 error
monitoring still takes place and the B2 errormask is output.

Overhead Output

The 9 bytes of the SONET section overhead and the 18 bytes in the first channel of the line overhead (See
Figure 7) are made available to the user through the overhead output inter face RXOHOU T[7:0], RXOH CLK,
and RXFPOUT. Two additional bytes containing the r esul ts of the B1 and B2 parity error detect i on are also out­put. These 29 bytes are output from the RXOHOUT port, each accompanied by a pulse of RXOHCLK. The 27
overhead bytes are output in the order they are received, with a pulse on RXFPOUT appearing after the J0 byte.
RXFPOUT is used to provide a reference point for the 29 byte output sequ ence of overhead bytes and clocks



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 7

VITESSE

R

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

STS-48/STM-16 Sect ion Terminator

(See Figure 7). It is suggested that RXOHCLK be used to clock an external counter with RXFPOUT providing
a counter reset. This allows the counter value to be correlated to a specific output byte and to be used as a write
address for a register file.

Figure 7: Functional Overhead Output Timing

= delay

RXOHOUT[7:0]

XOHCLK

RXFPOUT

M0 E2 A1 A2 J0 B1 E1 F1

S1

Advance Product Information

VSC8151

B1MASK

The additional two bytes are parity error masks that indicate the number of received B1 and B2 errors.
These bytes contain a parity error-mask of the results of the BIP calculation. Incoming parity errors are desig-

nated by a ‘1’ in the correspon din g bi t posi tio n. A B1 or B2 error mask byte of 00H indicates no received parity
errors for that frame, and a byte of 13H would indicate 3 of 8 bits were errored. The B1 error mask appears
immediately after the F1 user byte is output and the B2 error mask appears immediately after the K2 APS byte
is output.

The RXOHOUT[7:0] output is undefined when SEF is high. RXFPOUT and RXOHCLK are functions of
the received data being properly framed and will also be indeterminate during a SEF or LOS condition.

SONET/SDH Modification Circuitry Overview

The modification circuitry receives frame aligned data from the monitoring circuitry or from an internal
state machine that generates a section AIS signal. The transp ort o verhe ad of either signal can be modif ied b y the
user, including the insertion of recalculated B1 parity. These features encompass the requirements for perform­ing section termination, as well as allowing the modification of line overhead bytes such as K1/K2 and the line
DCC bytes.

Overhead Write Interface

The 9 bytes of the sect ion o v erhead a nd the 18 b ytes of t he f irst c hanne l of th e line overhead can be repla ced
with user defined bytes or allowed to pass through the part unchanged. The overhead write interface makes use
of an internal 32 byte register file for storing the 27 overhead modifier bytes as well as providing internal con­figuration registers. TXWRENA, TXADDR[5:0], TXOHWI, and TXOHIN[7:0] are the write interface inputs.

Page 8 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

Data present on the TXOHIN[7:0] bus is written to the internal register addressed by TXADDR[5:0] on the ris­ing edge of TXWRENA. Assertion of TXOHWI (active high) during the overhead byte write cycle inhibits the
modification of the addressed overhead byte.

A1/A2 Boundary Modification

Only the first A1 and A2 bytes of the SONET/SDH can be modif ied. The A1 by te can be replaced with user
defined data without affecting the framing algorithms of subsequent VSC8151 devices. An F6H byte can be re­substituted before exiting the subsequent VSC8151, effectively creating an in-band 64kb/s messaging channel.
The A2 byte could be replaced by t he user to inte ntion ally corrup t the A1/A2 bou ndary and outpu t a data stream
that causes downstream network equipment to lose frame lock and enter alarm states.

BIP-8 Recalculation & Modification

The TXOHIN[7:0] information written to the B1 and B2 add ress loc ation does n ot replace t he outg oing BIP
byte. The 8 bits form an XOR mask that will intentionally induce BIP e rrors into the outgoing data stream. A
TXOHIN[7:0] word such a s B2H would co rrupt the BIP byte at bits 1 , 4, 5, 7, and a d ownstream device will
observe four parity errors. A TXOHIN[7:0] word of 00H will induce no parity errors, but will replace the BIP
byte with a recalculated value. Setting the TXOHWI bit at the B1 or B2 location will prevent the BIP byte from
being modified or corrected.

Note that if there is any modif icati on to the transport ov erhead it is necessary for th e B1 byte to be corrected
in order to prevent downstream parity errors. The B2 byte needs to be corrected if any changes are made to the
line overhead for the same reason.

Errors can be intentionally induced to the B2 channel to compensate for the lack of complete B2 error mon­itoring. Modifying the line overhead requires that the B2 byte in the first STS-1 be corrected, but this has the
effect of artificially lowering the observed B2 error rate at subsequent line termination equipment (LTE). Cor­recting the B2 byte i n the f ir st STS- 1 position will resul t in a 1 /48th , 1/12t h, or 1/3r d reduc tion dependin g on the
provisioned SONET/SDH rate. Monitoring received B2 errors on the RXOHOUT[7:0] B2 errormask and re­writing this errormask to the B2 address will keep the outgoing B2 error rate consistent with the received B2
error rate.

STS-48/STM-16 Section Terminator

2.488Gb/s SONET/SDH

Alarm Indication Signal (AIS) Overhead Modification

Transport overhead modification procedures are identical for AIS transmiss ion mode. TXFPOUT is
sourced from the frame counters resident within the receive framing circuitry during non-AIS transmiss ion
mode. During an AIS condition valid SONET/SDH data is no longer being received, resulting in the part enter­ing a LOF or LOS state. Counters in the receive framing block will be invalid during this time, therefore when
AIS is asserted the TXFPOUT signal is sourced from a redundant set of frame counters present within the AIS
generation state machine. The frame counters for AIS block are separate from the receiv e framing circuitry, and
as a result the TXFP OUT signal wi ll be in an unknown state durin g a AIS mo de transition , but will become
periodic again after 125us. User logic should anticipate a late or early TXFPOUT pulse when switching in and
out of AIS mode.



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 9

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

STS-48/STM-16 Sect ion Terminator

Line Overhead Modification

It is understood that the ability to modify a portion of the line overhead is not permitted in a section termi­nation function. The ability to do so has been in c luded in order to leave such decisions at the users discretion.

Scrambler

The outgoing data b ytes a re scrambl ed with a ge nerat ing polyn omial of 1 + X6 + X7 and sequ ence len gth of
127, prior to being multiplexed and output as a serial signal. The A1, A2, and J0/Z0 bytes are not scrambled.
The scrambler can be disabled by setting a bit in the MISC configuration register.

A1/A2 Boundary Refresh

The FWAx control in the register file forces the 8151 to re-write the entire A1/A2 boundary and to refresh
the F6H and 28H bytes while in frame. This feature allows the device to continue to output a valid A1/A2
boundary if input data suddenly disappears, and AIS has not been initiated. In the event that the incoming data
disappears, a valid A1/A2 will still appe ar in the h istorical frame boundary location, allowing downstream
devices to remain in frame until AIS can be initiated.

AIS Generation

The VSC8151 can be configured to output a section level AIS stream in lieu of passing SONET/SDH data
received f rom the RXSIN an d RXSCLK IN in puts. Th is is t ypicall y done du ring LOS o r LOF c ondit ions t o relay
information about the failure by utilizing th e section DCC b ytes an d k e ep the downstream sections in-frame and
monitored while fault isolation to takes place.

Setting the AISMODE configuration register replaces the received data stream with an internally generated
AIS-L signal appropriate for section terminating equipment. This signal contains user-defined section overhead
and an all-1’s pattern for the remainder of the bytes (R6-163), conveniently generating AIS for all higher
SONET/SDH alarm lev els . The sect ion and line ov erhea d bytes can be modif ied d uri ng AIS i n the same ma nner
that they may in a non-AIS m od e .

During the AIS state, the relative A1/A2 boundary can be preserved so that downstream devices will not be
forced to reframe on a new signal. By using the A1/A2 bounder refresh (previous paragraph), the user can ini­tiate a seamless AIS transition without forcing downstream nodes to enter SEF and frame search state.

Advance Product Information

VSC8151

Initialization & Configuration

Upon power up of the VSC8151, the user should apply a positive pulse to the system reset pin (SYSRST)
for at least 32 high speed (2.4GHz) clock cycles (12.8ns). Pulsing SYSRST resets all the counters, synchroniz­ers and state machines used by the 8151.

The device must also be configured upon startup by properly setting the TEST, RATE_SEL, FRMDET,
AIS_MODE, and MISC registers (See Table 2) using the overhead write interface. TEST must be initialized to
an 00H pattern for proper operat ion. The T XOHWI bit shoul d be set approp riatel y for all 27 o v erhea d modif ica­tion registers. No default state exists for all configuration and overhead registers, they must be initialized upon
startup. The PT bit of the MISC register has the effect of making the VSC8151 non-intrusive and function as if
in a monitor only mode by internally asserting all TXOHWI bits.

Page 10 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

Table 1: VSC8151 Register File Mapping

Register

Name

OHS0 5’h00 SONET #1 STS-1 A1 Modifier
OHS1 5’h01 SONET #1 STS-1 A2 Modifier
OHS2 5’h02 SONET #1 STS-1 J0 Modifier
OHS3 5’h03 B1 Error Mask
OHS4 5’h04 SONET #1 STS-1 E1 Modifier
OHS5 5’h05 SONET #1 STS-1 F1 Modifier
OHS6 5’h06 SONET #1 STS-1 D1 Modifier
OHS7 5’h07 SONET #1 STS-1 D2 Modifier

OHS8 5’h08 SONET #1 STS-1 D3 Modifier
OHL0 5’h09 SONET #1 STS-1 H1 Modifier
OHL1 5’h0A SONET #1 STS-1 H2 Modifier
OHL2 5’h0B SONET #1 STS-1 H3 Modifier
OHL3 5’h0C B2 Error Mask
OHL4 5’h0D SONET #1 STS-1 K1 Modifier
OHL5 5’h0E SONET #1 STS-1 K2 Modifier
OHL6 5’h0F SONET #1 STS-1 D4 Modifier
OHL7 5’h10 SONET #1 STS-1 D5 Modifier
OHL8 5’h11 SONET #1 STS-1 D6 Modifier
OHL9 5’h12 SONET #1 STS-1 D7 Modifier

OHL10 5’h13 SONET #1 STS-1 D8 Modifier
OHL11 5’h14 SONET #1 STS-1 D9 Modifier
OHL12 5’h15 SONET #1 STS-1 D10 Modifier
OHL13 5’h16 SONET #1 STS-1 D11 Modifier
OHL14 5’h17 SONET #1 STS-1 D12 Modifier
OHL15 5’h18 SONET #1 STS-1 S1 Modifier
OHL16 5’h19 SONET #1 STS-1 M0/1 Modifier
OHL17 5’h1A SONET #1 STS-1 E2 Modifier

Address

TXOHA[4:0]

2.488Gb/s SONET/SDH

STS-48/STM-16 Section Terminator

Data & Overhead Write Inhibit

TXOHD[7:0], OHWI

Table 2: VSC8151 Configuration Registers

Register

Name

TEST 5’h1B 00000000

RATE_SEL 5’h1C XXXXFWAxNSOC12OC3

FRMDET 5’h1D XXXXFRD1FRD0SL1SL0

AIS_MODE 5’h1E XXXXMXC1MXC0B2GAIS

MISC 5’h1F XXXXDSDDPTDP

Note: TEST register must be initialized to 00H

G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

Address

TXOHA[4:0]



VITESSE SEMICONDUCTOR CORPORATION

76543210

Data ( TXOHD[7:0] )

Page 11

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

STS-48/STM-16 Sect ion Terminator

Configuration Register Definitions

1. OC12 | OC3Multi-rate configuration control
0 | 0 = STS-48 / STM-16 Mode

0 | 1 = STS-3 / STM-1 Mode
1 | 0 = STS-12 / STM4 Mode
1 | 1 = Invalid

2. FRD0 Allows manual control of framing behavi or . FRD0 state controls wheth er the device is actively

searching for a frame boundary. Manual control will only function if FRD1 is set to a ‘1’.

0 = Do not perform frame boundary acquisition
1 = Attempt frame boundary acquisition

3. FRD1 Determines whether reframing is automatically performed or controlled by the setting of the

FRD0 register. Automatic reframing uses the status of the SEF output to determine whether
reframing needs to take place, forcing frame acquisition as long as SEF is detected.

0 = Frame acquisition is performed upon detection of SEF
1 = Frame Acquisition is controlled manually

4. SL1 | SL0 Controls detection width of A1/A2 boundary

0 | 0 = Search for 12 bit pattern: h’F62

0 | 1 = Search for 48 bit pattern: h’F6F6F6282828
1 | 0 = Search for 24 bit pattern: h’F6F628
1 | 1 = Do not search for start of frame.

Advance Product Information

VSC8151

5. AIS AIS Insertion mode

0 = Retransmit received data
1 = Replace received data with internally generated AIS

6. B2G = In AIS mode if this bit is set to a "1", B2 calculation on #1 STS-1

frame is performed. If this bit is set to "0", the B2 field of the
#1 STS-1 AIS frame is set to 8’hFF.

7. DP Disable 16-bit PECL output bus RXPOUT[15:0]. The user should leave these outputs un-ter-

minated to reduce power consumption and noise if they are disabled.

0 = Enable RXPOUT[15:0]
1 = Disable RXPOUT[15:0].

8. PT Pass Through Mode.

0 = Normal Operation
1 = Disable modification of overhead bytes & BIP recalculation

Page 12 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

9. DD Disable descrambling
0 = Normal Operation

1 = Disable descrambling of incoming data

10. DS Disable scrambling
0 = Normal Operation

1 = Disable scrambling of outgoing data

11. NS Non-SONET: Allows device to pass non-SONET data such as Gigabit Ethernet. NOTE: If

non-SONET data is being transmitted, Frame Detect must be disabled. (When NS=”1”, set
FRD1=”1” and FRD0=”0”).

0 = SONET data tr ansmitted
1 = non-SONET data transmitted

12. FWAx Forced write of A1/A2 boundary

described in the A1/A2 boundary refresh section)

0 = Normal Operation
1 = Forced re-write of A1/A2

. FWAx = “1” forces all A1 and A2 to be re-written (as

STS-48/STM-16 Section Terminator

2.488Gb/s SONET/SDH

13. MXC[1:0] VSC8151 CMU reference generator output clock selection (see Figure 3)

MXC1 MXC0 CKREFP/N, CKREFT Reference Generator Outputs

0 0 CMU Ref Gen Outputs = Referenced from RXSCLKIN/32 (Transport Mode)
0 1 CMU Ref Gen Outputs = Referenced from external 77MHz PECL AIS Refclk (I_RCAIS)
1 0 CMU Ref Gen Outputs = Referenced from external 155MHz PECL AIS Refclk (I_RCAIS )
1 1 CMU Ref Gen Outputs = Based off external TTL AIS Refclk (I_RCVCO) 77MHz



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 13

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

Advance Product Information

STS-48/STM-16 Sect ion Terminator

AC Timing Characteristics

Figure 8: Overhead Output Timing Diagram

RXOHOUT[7:0]

RXOHCLK

RXFPOUT

E2

A1

T

OHCLKW

Table 3: Overhead Output Timing (STS-48/STM-16 Mode)

Parameter Description Min Typ Max Units

T

OHSU

T

OHH

T

OHCLKW

T

FPSU

T

FPW

Note: Generated Waveforms are synchronous and assume a 2.488GHz RXSCLKIN signal.

Overhead output setup time with respect to RXOHCLK 70.5 —— ns
Overhead output hold time with respect to RXOHCLK 70.5 — — ns
Overhead ou tput clock period — 154 — ns
Frame pulse setup time with respect to RXOHCLK 88 — — ns
Frame pulse width 51.34 — 51.44 ns

A2 C1/J0

T

OHSU

T

OHH

T

FPSU

T

VSC8151

FPW

Table 4: Overhead Output Timing (STS-12/STM-4 Mode)

Parameter Description Min Typ Max Units

T

OHSU

T

OHH

T

OHCLKW

T

FPSU

T

FPW

Note: Generated Waveforms are synchronous and assume a 622MHz RXSCLKIN signal.

Overhead output setup time with respect to RXOHCLK 73.5 — — ns
Overhead output hold time with respect to RXOHCLK 73.5 — — ns
Overhead ou tput clock period — 154 — ns
Frame pulse setup time with respect to RXOHCLK 104 — — ns
Frame pulse width 51.34 — 51.44 ns

Table 5: Overhead Output Timing (STS-3/STM-1 Mode)

Parameter Description Min Typ Max Units

T

OHSU

T

OHH

T

OHCLKW

T

FPSU

T

FPW

Note: Generated Waveforms are synchronous and assume a 155MHz RXSCLKIN signal.

Page 14 

Overhead output setup time with respect to RXOHCLK 102 — — ns
Overhead output hold time with respect to RXOHCLK 102 — — ns
Overhead ou tput clock period — 154 — ns
Frame pulse setup time with respect to RXOHCLK 155 — — ns
Frame pulse width 51.34 — 51.44 ns

VITESSE SEMICONDUCTOR CORPORATION

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

STS-48/STM-16 Section Terminator

2.488Gb/s SONET/SDH

Figure 9: Framing and B1 Error Output Timing

T

FPW

RXFPOUT

T

FERRPW

RXFRERR

T

SEFSU

T

FERRSU

RXSEF

Note: Waveforms not to scale

Table 6: Framing and B1 Error Output Timing (STS-48/STM-16 Mode)

Parameter Description Min Typ Max Units

T

FPW

T

FERRSU

T

FERRPW

T

SEFSU

Note: Generated Waveforms are synchronous and assume a 2.488GHz RXSCLKIN signal.

Frame Pulse Width — 51.4 — ns
Frame Boundary Error delay with respect to RXFPOUT — 61.2 — ns
Frame Boundary E rror pulse width hi gh — 25.7 — n s
SEF transition delay time with respect to RXFPOUT — 48.3 — ns

Table 7: Framing and B1 Error Output Timing (STS-12/STM-4 Mode)

Parameter Description Min Typ Max Units

T

FPW

T

FERRSU

T

FERRPW

T

SEFSU

Note: Generated Waveforms are synchronous and assume a 622MHz RXSCLKIN signal.

Frame Pulse Width — 51.4 — ns
Frame Boundary Error delay with respect to RXFPOUT — 64.4 — ns
Frame Boundary E rror pulse width hi gh — 51.4 — n s
SEF transition delay time with respect to RXFPOUT — 51.4 — ns

Table 8: Framing and B1 Error Output Timing (STS-3/STM-1 Mode)

Parameter Description Min Typ Max Units

T

FPW

T

FERRSU

T

FERRPW

T

SEFSU

Note: Generated Waveforms are synchronous and assume a 155MHz RXSCLKIN signal.

G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

Frame Pulse Width — 51.4 — ns
Frame Boundary Error delay with respect to RXFPOUT — 0 — ns
Frame Boundary E rror pulse width hi gh — 51.4 — n s
SEF transition delay time with respect to RXFPOUT — 103 — ns



VITESSE SEMICONDUCTOR CORPORATION

Page 15

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

STS-48/STM-16 Sect ion Terminator

Figure 10: Transmit Frame Pulse Timing Diagram

Transmitted

Frame bytes

TXFPOUT

Table 9: Transmit Frame Pulse Timing

Parameter Description Min Typ Max Units

T

FPW

TB (OC-48) Transmitted Byte Cycle Time — 3.2 — ns

TB(OC-12) Transmitted Byte Cycle Time — 12.8 — ns

(OC-3) Transmitted Byte Cycle Time — 51.2 — ns

T

B

Transmit Frame Pulse Width —51.2— ns

E2 E2 E2

Advance Product Information

Payload bytes of Row 9

T

B

T

FPW

VSC8151

Figure 11: On Chip Register File Access Port Timing Diagram

TXADDR[5:0]

TXOHDATA[7:0]

TXOHWI

TXWRENA

T

SU

T

WE

T

H

T

CYC

Table 10: On Chip Register File Access Port Timing

Parameter Description Min Typ Max Units

T

T

T

T

CYC

SU

H

WE

Setup time for data/address 50 — — ns
Hold time for data/address 50 — — ns
Write enable low 50 — — ns
Write cycle time 375 — — ns

Page 16 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

STS-48/STM-16 Section Terminator

2.488Gb/s SONET/SDH

Figure 12: Serial Data Input Timing Diagram

T

RXSCLKIN

RXSCLKIN-

RXSCLKIN+

T

RXSSUTRXSH

RXSIN+

RXSIN-

Table 11: Serial Data Input Timing

Parameter Description Min Typ Max Units

T

RXSCLKIN

T

RXSSU

T

RXSH

Serial Receive clock period 401.9 —— ps

Serial Receive input data RXSIN setup time with respect
to falling edge of RXSCLKIN+

Serial Receive input data RXSIN hold time with respect
to falling edge of RXSCLKIN+

100 — — ps

75 — — ps

Figure 13: Parallel Data Input Timing Diagram

T

POUTCLK

POUTCLK

T

RXPSUTRXPH

RXPIN[15:0]

Table 12: Parallel Data Input Timing

Parameter Description Min Typ Max Units

T

POUTCLK

T

RXPSU

T

RXPH

Note: Parallel output clock is synchronously generated 50/50 1/16th the frequency of the serial clock input (RXSCLKIN)

Parallel output clock period 103. 2 — 6.45 ns
Parallel receive input data RXPIN setup time with

respect to falling edge of POUTCLK output
Parallel receive input data RXPIN hold time with respect

to falling edge of POUTCLK output

2.4 — — ns

1.0 — — ns



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 17

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

Advance Product Information

STS-48/STM-16 Sect ion Terminator

Figure 14: Serial Data Output Timing Diagram

T

TXSCLKIN+

TXSCLKIN-

TXSOUT+

TXSOUT-

Table 13: Serial Data Output Timing

Parameter Description Min Typ Max Units

T

TXSCLKIN

T

TXSOUT

Serial Receive clock period 401.9 —— ps

Propagation de la y fr om r is ing ed ge of TXSC LKI N + /- to
output edge of TXSOUT+/-

TXSCLKIN

T

TXSOUT

430 — 630 ps

VSC8151

Figure 15: Serial Data Output Timing Skew

T

TXSCLKOUT

TXSCLKOUT+

-T

SKW

TXSOUT+

TXSOUT-

Table 14: Serial Data Output Skew

Parameter Description Min Typ Max Units

T

TXSCLKOUT

T

TSKW

Serial transmit clock period 401.9 — — ps
Propagation de lay from falling edg e of TXSCLKOUT+

to output edge of TXSOUT+/-

+T

SKW

——100 ps

Page 18 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

Figure 16: Parallel Data Output Timing Diagram

T

POUTCLK

POUTCLK

T

P

TXPOUT[15:0]

Table 15: Parallel Data Output Timing

Parameter Description Min Typ Max Units

T

POUTCLK

T

P

Parallel output clock period 103. 2 —6.45 ns

Propagation de lay from falling edg e of POUTCLK to
output edge of TXPOUT[15:0]

STS-48/STM-16 Section Terminator

T

P

-500 — 500 ps

2.488Gb/s SONET/SDH

Note: Parallel output clock is synchronously generated 50/50 1/16th the frequency of the serial clock input (RXSCLKIN)



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 19

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

Advance Product Information

STS-48/STM-16 Sect ion Terminator

DC Characteristics

Table 16: High-Speed Differential Inputs and Outputs (HSPECL)

Parameter Description Min Typ Max Units Conditions

Data Output differential

V

V

V

ODATA

OCLK

OCM

R

O

V

ID

voltage
(Peak to Peak, Single-ended)

Clock Output differential
voltage
(Peak to Peak, Single-ended)

Output common-mode
voltage

Output Impedance 40 — 60 ohms Guaranteed, not tested.
Input differential voltage 450 — — mV

550 — 1200 mV

450 — 1200 mV

2100 — 3000 mV

Table 17: Low-Speed Parallel LVPECL Inputs and Outputs

Parameter Description Min Typ Max Units Conditions

V

OH

V

OL

V

IH

V

IL

I

IH

I

IL

Note: (1) External Reference (V

(2) Load = 50Ω to V
(3) External VREF current is 50µA per Input.

Output HIGH voltage V
Output LOW voltage V
Input HIGH voltage V
Input LOW voltage V
Input HIGH current — — 2 00 µAV
Input LOW current -50 — — µAV

TTL

REF

-2.0V .

) = V

-1.32V ± 25mV.

TTL

-1020 — V

TTL

-2000 — V

TTL

-1165 — V

TTL

-2000 — V

TTL

-700 mV —

TTL

-1620 mV —

TTL

-700 mV —

TTL

-1475 mV —

TTL

Table 18: TTL Inputs and Outputs

Load = 100 Ohms
across TXSOUT+/– at
load

Load = 100 Ohms
across TXCLKOUT+/–
at load

Load = 100 Ohms
across diff pair

AC Coupled, internally
biased to VTTL/2

VSC8151

= V
= V

IH
IL

(max)

(min)

IN
IN

Parameter Description Min Typ Max Units Conditions

V
V

V
V

OH
OL

IH
IL

I

IH

I

IL

Output HIGH voltage 2.4 — — V I
Output LOW voltage 0 — 0.4 V I
Input HIGH voltage 2.0 — V
Input LOW voltage 0 — 0.8 V —
Input HIGH current - — 500 µAV
Input LOW current -50 — — µAV

Table 19: Power Supply Currents (+2V/+3.3V Supplies, Outputs Open)

Parameter Description (Max) Units

I

TTL

I

MM

P

D

Page 20 

Power supply current from V
Power supply current from V
Power dissipation 3.6 W

VITESSE SEMICONDUCTOR CORPORATION

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

TTL
MM

+ 1.0V V —

TTL

= -8mA

OH

= 8mA

OL

= 2.4V

IN

= 0.4V

IN

380 mA

1100 mA

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

STS-48/STM-16 Section Terminator

2.488Gb/s SONET/SDH

Absolute Maximum Ratings

Power Supply Voltage (VCC) Potential to GND ............................................................................-0.5 V to +4.3 V

Power Supply Voltage (V

TTL Input Voltage Applied ..........................................................................................................-0.5 V to + 5.5V

ECL Input Voltage Applied ...................................................................................................+0.5 V to V

Output Current (I
Case Temperature Under Bias (T
Storage Temperature (T

Note: Caution: Stresses list e d under “Absolute Maxi mum Ratings” may be appl ied to devices one at a time without causing per-

manent damage. Functionality at or exceeding the values listed is not implied. Exposure to these values fo r extended
periods may affect device reliability.

)...................................................................................................................................50 mA

OUT

) Potential to GND...........................................................................-0.5 V to +3.0 V

MM

)................................................................................................-55o to + 125oC

C

) ...........................................................................................................-65o to + 150oC

STG

Recommended Operating Conditions

Power Supply Voltages (VCC)...............................................................................................................+3.3V ±5 %

Power Supply Voltages (V

Commercial Operating Temperature Range* (T).................................................................................. 0

)................................................... ........ ........ ...........................................+2.0V ±5 %

MM

o

-0.5 V

TT

to 85oC

Notes: (1)Lower limit of specification is ambient temperature and upper limit is case temperature.

(2)Customer must use air cooled/heatsink environment to meet thermal requirements of the package.
(3)Suggested power up of 8151 is +2.0V supply first, then +3.3V supply.

ESD Ratings

Proper ESD procedures should be used when handling this product. The VSC8151 is rated to the following

ESD voltages based on the human body model:

1. All pins are rated at or above 1500V.



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 21

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

Advance Product Information

STS-48/STM-16 Sect ion Terminator

Package Pin Descriptions

Table 20: Pin Identification

Signal Pin I/O Level Pin Description

VREF 1 PWR +1.98V PECL Input reference. No connect if RXPIN[15:0] is not used.

VCC 2 PWR +3.3V

VEE 3 PWR GND

VMM 4 PWR +2.0V

NC 5 — — Leave Unconnected

CKREFP 6 Ο PECL Output Clock for external AIS CMU (true)
CKREFN 7 Ο PECL Output Clock for external AIS CMU (complement)

VTERM

(RXSCLKIN)

VCC 9 PWR +3.3V
VCC 10 PWR +3.3V

VEE 11 PWR GND
VEE 12 PWR GND

VCC 13 PWR +3.3V

TXSOUT - 14 O HSECL Serial Data Output, complement

VCC 15 PWR +3.3V 2.5Gb/s PECL Output Driver Supply Pin

TXSOUT + 16 O HSECL Serial Data Output, true

DOPWR 17 Ι

VCC 18 PWR +3.3V 2.5Gb/s PECL Output Driver Supply Pin

TXSCLKOUT- 19 Ο HSECL Serial Clock Output, complement

TXSCLKOUT+ 20 Ο HSECL Serial Clock Output, true

VCC 21 PWR +3.3V

CLKOPWR 22 Ι

VCC 23 PWR +3.3V 2.5Gb/s PECL Output Driver Supply Pin

RXSCLKIN + 24 I HSECL Serial Clock Input for Demux, true

RXSCLKIN - 25 I HSECL Serial Clock Input For Demux, complement

VEE 26 PWR GND

TXSCLKIN- 27 — — Serial Clock Input for Mux, complement

TXSCLKIN+ 28 — — Serial Clock Input for Mux, true

RXSIN + 29 I HSECL Serial Data Input, true

RXSIN - 30 I HSECL Serial Data Input, complement

VTERM

(TXSCLKIN)

VTERM

(RXSIN)

8 Ι 0 -> 3.3V High Speed Clock Input Termination Voltage (Demux)

GND /

+3.3V

GND /

+3.3V

31 Ι 0 -> 3.3V High Speed Clock Input Termination Voltage (for Mux)

32 Ι 0 -> 3.3V High Speed Data Input Termination Voltage

Serial data output power down (tie to V
otherwise)

Serial clock output power down (tie to VCC to power down, GND
otherwise)

VSC8151

to power down, GND

CC

Page 22 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

Table 20: Pin Identification

Signal Pin I/O Level Pin Description

NC 33 — — Leave Unconnected
NC 34 — — Leave Unconnected
NC 35 — — Leave Unconnected
NC 36 — — Leave Unconnected

VMM 37 PWR +2.0V

VEE 38 PWR GND

VCC 39 PWR +3.3V

EQULOOP 40 I TTL RXPIN[15:0] parallel bus input enable. Tie low to use serial input

NC 41 — — Leave Unconnected

NC 42 — — Leave Unconnected
RXPIN15 43 I PECL 16 bit PECL input bus
RXPIN14 44 I PECL 16 bit PECL input bus
RXPIN13 45 I PECL 16 bit PECL input bus
RXPIN12 46 I PECL 16 bit PECL input bus
RXPIN11 47 I PECL 16 bit PECL input bus
RXPIN10 48 I PECL 16 bit PECL input bus

VCC 49 PWR +3.3V

VMM 50 PWR +2.0V
RXPIN9 51 I PECL 16 bit PECL input bus
RXPIN8 52 I PECL 16 bit PECL input bus

VEE 53 PWR GND
RXPIN7 54 I PECL 16 bit PECL input bus
RXPIN6 55 I PECL 16 bit PECL input bus

VMM 56 PWR +2 .0V
RXPIN5 57 I PECL 16 bit PECL input bus
RXPIN4 58 I PECL 16 bit PECL input bus

VMM 59 PWR +2 .0V
RXPIN3 60 I PECL 16 bit PECL input bus
RXPIN2 61 I PECL 16 bit PECL input bus

VCC 62 PWR +3.3V
RXPIN1 63 I PECL 16 bit PECL input bus
RXPIN0 64 I PECL 16 bit PECL input bus

VMM 65 PWR +2 .0V

NC 66 — — Leave Unconnected

RXFPOUT 67 O TTL Received Frame Pointer (Pulse High)

VEE 68 PWR GND

SEF 69 O TTL Severely Errored Frame Indicator (Active High)

RXOHCLK 70 O TTL Receive Overhead Output Clock

2.488Gb/s SONET/SDH

STS-48/STM-16 Section Terminator



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 23

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

STS-48/STM-16 Sect ion Terminator

Table 20: Pin Identification

Signal Pin I/O Level Pin Description

VEE 71 PWR GND

VCC 72 PWR +3.3V

I_RCVCO 73 Ι TTL TTL Reference Input (Set with MXC[1:0]) (77MHz)

NC 74 — — Leave Unconnected

I_RCAIS 75 Ι PECL PECL Reference Input (Set with MXC[1:0])

NC 76 — — Leave Unconnected
NC 77 — — Leave Unconnected
NC 78 — — Leave Unconnected
NC 79 — — Leave Unconnected
NC 80 — — Leave Unconnected

LOS 81 I TTL Loss of Signal

VCC 82 PWR +3.3V

VEE 83 PWR GND

VMM 84 PWR +2.0V

VCC 85 PWR +3.3V

VEE 86 PWR GND
RXFRERR 87 O TTL Received Frame Error
TXFPOUT 88 O TTL Transmit Frame Pointer

RXOHOUT4 89 O TTL Received Overhead Bus
RXOHOUT5 90 O TTL Received Overhead Bus
RXOHOUT6 91 O TTL Received Overhead Bus
RXOHOUT7 92 O TTL Received Overhead Bus
RXOHOUT0 93 O TTL Received Overhead Bus
RXOHOUT1 94 O TTL Received Overhead Bus

VEE 95 PWR GND

RXOHOUT2 96 O TTL Received Overhead Bus
RXOHOUT3 97 O TTL Received Overhead Bus

VCC 98 PWR +3.3V

LOF 99 O TTL Loss of Frame

CKREFT 100 O TTL Output Clock for external AIS CMU (Set with MXC[1:0])

NC 101 — — Leave Unconnected

TXPOUT15 102 O PECL 16 bit PECL output bus

VCC 103 PWR +3.3V
TXPOUT14 104 O PECL 16 bit PECL output bus
TXPOUT13 105 O PECL 16 bit PECL output bus

VCC 106 PWR +3.3V
TXPOUT12 107 O PECL 16 bit PECL output bus

NC 108 — — Leave Unconnected

Advance Product Information

VSC8151

Page 24 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

Table 20: Pin Identification

Signal Pin I/O Level Pin Description

TXADDR0 109 I TTL TX Regfile Address
TXADDR1 110 I TTL TX Regfile Address
TXADDR2 111 I TTL TX Regfile Address
TXADDR3 112 I TTL TX Regfile Address

TXWRENA 113 I TTL TX Regfile Write Enable

TXADDR4 114 I TTL TX Regfile Address Input

VMM 115 PWR +2.0V

VCC 116 PWR +3.3V

VMM 117 PWR +2.0V

VEE 118 PWR GND

VCC 119 PWR +3.3V

TXOHWI 120 I TTL TX Regfile Write Inhibit
TXOHIN7 121 I TTL TX Regfile Data Input
TXOHIN6 122 I TTL TX Regfile Data Input
TXOHIN5 123 I TTL TX Regfile Data Input
TXOHIN4 124 I TTL TX Regfile Data Input
TXOHIN3 125 I TTL TX Regfile Data Input
TXOHIN2 126 I TTL TX Regfile Data Input
TXOHIN1 127 I TTL TX Regfile Data Input
TXOHIN0 128 I TTL TX Regfile Data Input

VCC 129 PWR +3.3V

VCC 130 PWR +3.3V
TXPOUT11 131 O PECL 16 bit PECL output bus
TXPOUT10 132 O PECL 16 bit PECL output bus

VEE 133 PWR GND
TXPOUT9 134 O PECL 16 bit PECL output bus
TXPOUT8 135 O PECL 16 bit PECL output bus

VMM 136 PWR +2.0V
TXPOUT7 137 O PECL 16 bit PECL output bus
TXPOUT6 138 O PECL 16 bit PECL output bus

VCC 139 PWR +3.3V
TXPOUT5 140 O PECL 16 bit PECL output bus
TXPOUT4 141 O PECL 16 bit PECL output bus

VCC 142 PWR +3.3V
TXPOUT3 143 O PECL 16 bit PECL output bus
TXPOUT2 144 O PECL 16 bit PECL output bus

VMM 145 PWR +2.0V

TXPOUT1 146 O PECL 16 bit PECL output bus

2.488Gb/s SONET/SDH

STS-48/STM-16 Section Terminator



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 25

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

STS-48/STM-16 Sect ion Terminator

Table 20: Pin Identification

Signal Pin I/O Level Pin Description

TXPOUT0 147 O PECL 16 bit PECL output bus

VEE 148 PWR GND

POUTCLK 149 O PECL 16 bit PECL bus clock

NC 150 — — Leave Unconnected

VCC 151 PWR +3.3V

VCC 152 PWR +3.3V

NC 153 — — Leave Unconnected

NC 154 — — Leave Unconnected
TEST 155 I GND Test Input (TTL CLK)
TEST 156 I GND Test Input (TTL SEL)

NC 157 — — Leave Unconnected

SYSRST 158 I TTL System Reset

NC 159 — — Leave Unconnected
TEST 160 I GND Test Input

Advance Product Information

VSC8151

Page 26 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

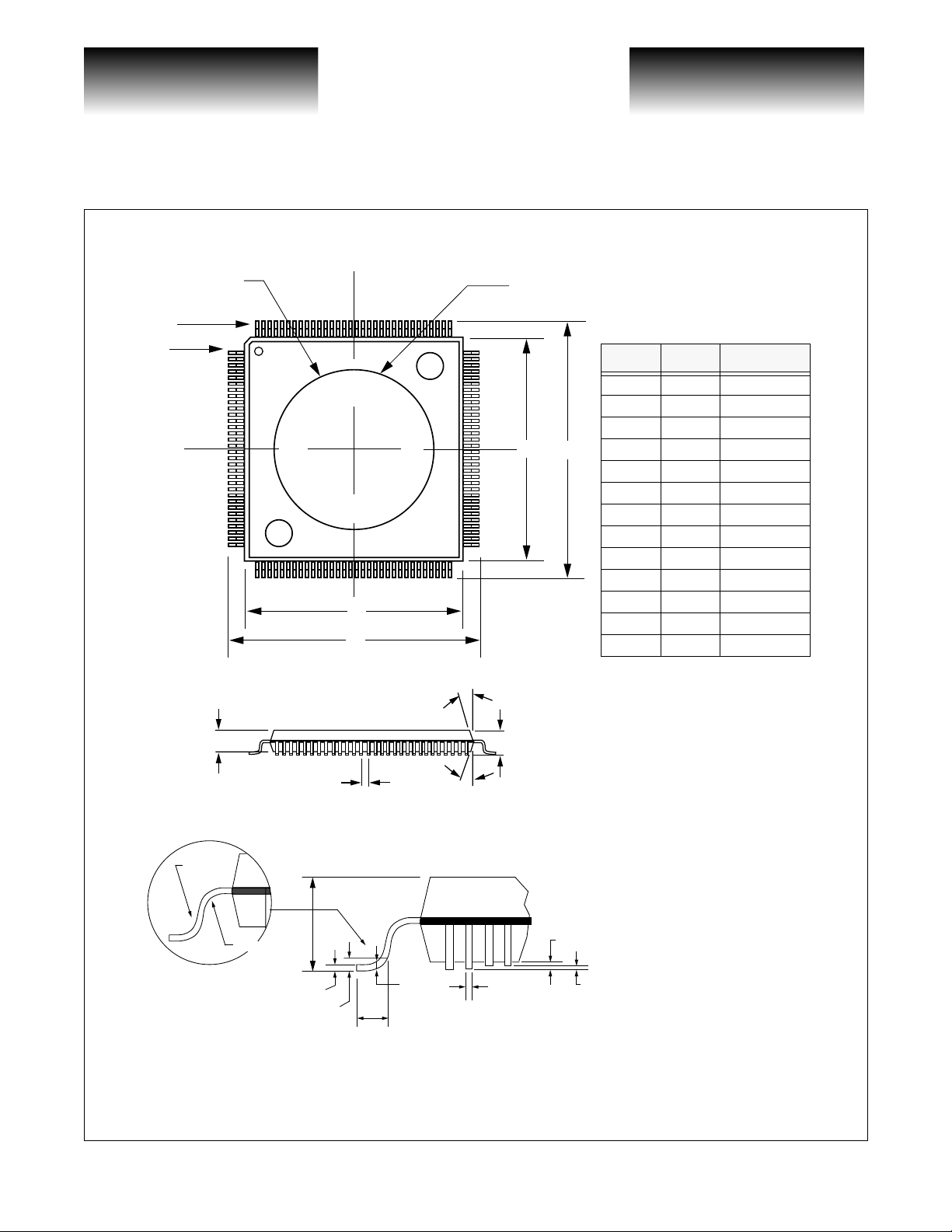

Package Information

EXPOSED HEATSINK

20.32 +/- .50 DIA.
Pin 160

Pin 1

D1

D

STS-48/STM-16 Section Terminator

HEATSINK INSTRUSION

Key mm Tolerance

A4.10 MAX
A1 0.25 MIN
A2 3.49 ±0.10

E1

E

D 31.20 ±0.20
D1 28,00 ±0.10

E 31.20 ±0.20
E1 28.00 ±0.10

L 0.88 +.15/–.10

e0.65BASIC

b0.30 ±0.05

θ 0-7°

R.30 TYP
R1 .20 TYP

2.488Gb/s SONET/SDH

10 TYP.

A

2

e

R

.

R1

A

.

0.17 MAX.

0.25
L

160 Plastic Quad Flat Pack

q

10 TYP.

A

A1

STANDOFF

b

Notes:
(1) Drawing not to scale
Package #101-285-5, Issu e #1

LEAD COPLANARITY

Notes: 1) Drawing is not to scale

2) All dimensions in mm

3) Package represented is
also used for the 144,
184, & 208 PQFP packages.

Pin count drawn does

not reflect the 160 package.



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 27

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

STS-48/STM-16 Sect ion Terminator

Advance Product Information

VSC8151

Package Thermal Characteristics

The VSC8151 is packaged in an 160 pin, 28mm x 28mm ther mally enhance d PQFP (EDQUAD) with an
exposed heatsink. These packages use industry-standard JDEC footprints, but have been enhanced to improve
thermal dissipation. The construction of the packages are as shown in Figure 13. A heat sink may be necessary
depending on the ambient temperature and airflow available in your system. Commercially available heatsinks

θ

are available to improve

Insulator

so that the case temperature is kept within the 85C specification.

ca

Figure 17: Package Cross Section

Plastic Molding

Exposed Heat Slug

Wire Bond

Die

Lead

Table 21: 160-Pin Enhanced PQFP Thermal Resistance

Symbol Description Value Units

θ
θ
θ
θ

ca-0
ca-1
ca-2
ca-4

Thermal resistance from case to ambient, still air 24
Thermal resistance from case to ambient, 1 m/sec air 14
Thermal resistance from case to ambient, 2 m/sec air 11
Thermal resistance from case to ambient, 3 m/sec air 10

o

C/W

o

C/W

o

C/W

o

C/W

Page 28 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

G52225-0, Rev. 2.9

VITESSE

SEMICONDUCTOR CORPORATION

Advance Product Information

SC8151

Ordering Information

The order number for this product is formed by a combination of the device number, and package type.

Device Type

VSC8151:

2.488Gb/s SONET/SDH
STS-48/STM-16 Section Terminator

VSC8151

2.488Gb/s SONET/SDH

STS-48/STM-16 Section Terminator

QV

Package

QV: 160PQFP, 28mm Body

Notice

This document contains information about a new product during its early sampling phase. The information
in this document is based on design targets, simulation results or early prototype test results. Characteristic data
and other specifications are subject to change without notice. Therefore the reader is cautioned to confirm that
this datasheet is current prior to design or order placement.

Warning

Vi tesse S emicondu ctor Co rporat ion’s products are not intended for use i n life support appli ances, devices or
systems. Use of a Vitesse product in such applications without the written consent is prohibited.



G52225-0, Rev. 2.9

12/1/99 741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

Page 29

VITESSE

SEMICONDUCTOR CORPORATION

2.488Gb/s SONET/SDH

STS-48/STM-16 Sect ion Terminator

Advance Product Information

VSC8151

Page 30 

741 Calle Plano, Camarillo, CA 93012 • 805/388-3700 • FAX: [phone]

VITESSE SEMICONDUCTOR CORPORATION

G52225-0, Rev. 2.9
