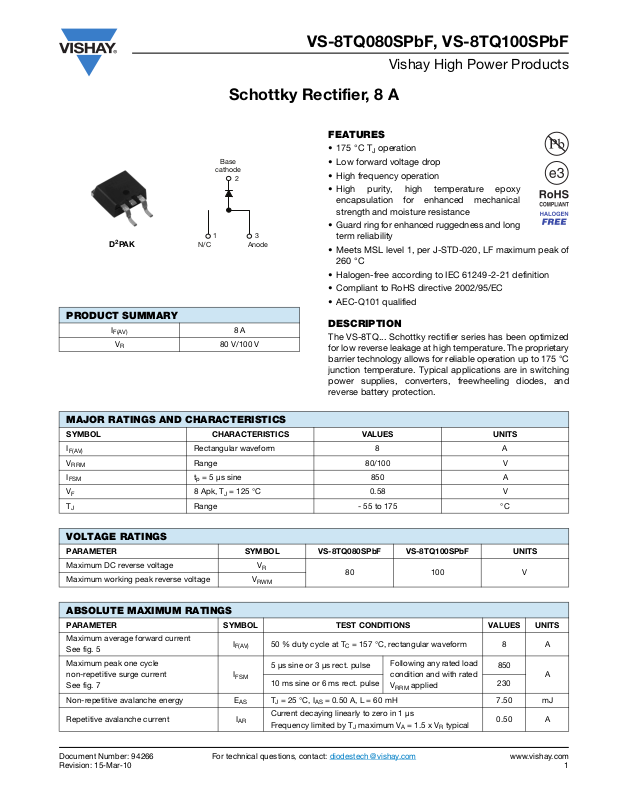

Page 1
D2PAK
PRODUCT SUMMARY
I
F(AV)
V
R
N/C
VS-8TQ080SPbF, VS-8TQ100SPbF
Schottky Rectifier, 8 A
FEATURES
• 175 °C TJ operation
Base
cathode
2
1
8 A
80 V/100 V
3
Anode
• Low forward voltage drop
• High frequency operation
• High purity, high temperature epoxy
encapsulation for enhanced mechanical
strength and moisture resistance
• Guard ring for enhanced ruggedness and long
term reliability
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
• Halogen-free according to IEC 61249-2-21 definition
• Compliant to RoHS directive 2002/95/EC
• AEC-Q101 qualified
DESCRIPTION
The VS-8TQ... Schottky rectifier series has been optimized
for low reverse leakage at high temperature. The proprietary
barrier technology allows for reliable operation up to 175 °C
junction temperature. Typical applications are in switching
power supplies, converters, freewheeling diodes, and
reverse battery protection.
Vishay High Power Products
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS VALUES UNITS
I
F(AV)
V
I
FSM
V
T
RRM
F
J
Rectangular waveform 8 A
Range 80/100 V
tp = 5 μs sine 850 A
8 Apk, TJ = 125 °C 0.58 V
Range - 55 to 175 °C
VOLTAGE RATINGS
PARAMETER SYMBOL VS-8TQ080SPbF VS-8TQ100SPbF UNITS
Maximum DC reverse voltage V
Maximum working peak reverse voltage V
R
RWM
80 100 V
ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum average forward current
See fig. 5
Maximum peak one cycle
non-repetitive surge current
See fig. 7
Non-repetitive avalanche energy E
Repetitive avalanche current I
I
F(AV)
I
FSM
AS
AR
50 % duty cycle at TC = 157 °C, rectangular waveform 8 A
5 μs sine or 3 μs rect. pulse
10 ms sine or 6 ms rect. pulse 230
TJ = 25 °C, IAS = 0.50 A, L = 60 mH 7.50 mJ
Current decaying linearly to zero in 1 μs
Frequency limited by T
maximum VA = 1.5 x VR typical
J
Following any rated load
condition and with rated
V
applied
RRM
850
A
0.50 A
www.vishay.com
Page 2
VS-8TQ080SPbF, VS-8TQ100SPbF
Vishay High Power Products
Schottky Rectifier, 8 A
ELECTRICAL SPECIFICATIONS
PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
8 A
Maximum forward voltage drop
See fig. 1
V
FM
16 A 0.88
(1)
8 A
16 A 0.69
Maximum reverse leakage current
See fig. 2
I
RM
Maximum junction capacitance C
Typical series inductance L
TJ = 25 °C
(1)
T
= 125 °C 7
J
VR = 5 VDC (test signal range 100 kHz to 1 MHz), 25 °C 500 pF
T
Measured lead to lead 5 mm from package body 8 nH
S
Maximum voltage rate of change dV/dt Rated V
T
= 25 °C
J
= 125 °C
T
J
V
= Rated V
R
R
R
0.72
0.58
0.55
10 000 V/μs
Note
(1)
Pulse width < 300 μs, duty cycle < 2 %
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum junction and
storage temperature range
Maximum thermal resistance,
junction to case
Typical thermal resistance,
case to heatsink
Approximate weight
Mounting torque
minimum 6 (5)
maximum 12 (10)
Marking device Case style D
T
, T
J
Stg
R
thJC
R
thCS
DC operation
See fig. 4
Mounting surface, smooth and greased 0.50
- 55 to 175 °C
2.0
2g
0.07 oz.
kgf · cm
(lbf · in)
2
PAK
8TQ080S
8TQ100S
V
mA
°C/W
www.vishay.com For technical questions, contact: [email protected]
Document Number: 94266
2 Revision: 15-Mar-10
Page 3
VS-8TQ080SPbF, VS-8TQ100SPbF
1000
100
10
- Instantaneous
F
I
1
Forward Current (A)
0.1
0
V
TJ = 175 °C
= 125 °C
T
J
T
= 25 °C
J
0.60.4 0.8 1.2 1.81.60.2 1.0 1.4 2.0
- Forward Voltage Drop (V)
FM
Schottky Rectifier, 8 A
100
10
0.1
0.01
- Reverse Current (mA)
R
0.001
I
2.2
0.0001
Vishay High Power Products
TJ = 175 °C
TJ = 150 °C
TJ = 125 °C
1
TJ = 100 °C
TJ = 75 °C
TJ = 50 °C
TJ = 25 °C
0
20 40
V
- Reverse Voltage (V)
R
60
80
Fig. 1 - Maximum Forward Voltage Drop Characteristics Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
1000
100
TJ = 25 °C
- Junction Capacitance (pF)
T
C
100
4020 60 80 100
3010 50 70 900
V
- Reverse Voltage (V)
R
110
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
10
1
D = 0.75
D = 0.50
D = 0.33
- Thermal Impedance (°C/W)
thJC
Z
0.1
0.0001 0.001 0.01 0.1 1
Single pulse
(thermal resistance)
D = 0.25
D = 0.20
t1 - Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
Characteristics
thJC
Document Number: 94266 For technical questions, contact: [email protected]
www.vishay.com
Revision: 15-Mar-10 3
Page 4
VS-8TQ080SPbF, VS-8TQ100SPbF
Vishay High Power Products
180
175
170
165
160
Square wave (D = 0.50)
155
80 % rated V
150
145
140
See note (1)
0
I
F(AV)
Allowable Case Temperature (°C)
applied
R
4268
- Average Forward Current (A)
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
DC
1000
Schottky Rectifier, 8 A
Average Power Loss (W)
1210
7
D = 0.20
D = 0.25
6
D = 0.33
D = 0.50
5
D = 0.75
4
3
2
1
0
0
24
I
- Average Forward Current (A)
F(AV)
DC
RMS limit
Fig. 6 - Forward Power Loss Characteristics
126810
Note
(1)
Formula used: TC = TJ - (Pd + Pd
Pd = Forward power loss = I
Pd
= Inverse power loss = VR1 x IR (1 - D); IR at VR1 = 80 % rated V
REV
At any rated load condition
and with rated V
following surge
- Non-Repetitive Surge Current (A)
100
FSM
I
10
tp - Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Non-Repetitive Surge Current
D.U.T.
Current
monitor
Fig. 8 - Unclamped Inductive Test Circuit
) x R
x VFM at (I
F(AV)
REV
;
thJC
/D) (see fig. 6);
F(AV)
applied
RRM
100 1000
L
IRFP460
= 25 Ω
R
g
R
High-speed
switch
Freewheel
diode
40HFL40S02
10 000
V
= 25 V
d
+
www.vishay.com For technical questions, contact: [email protected]
Document Number: 94266
4 Revision: 15-Mar-10
Page 5
VS-8TQ080SPbF, VS-8TQ100SPbF
ORDERING INFORMATION TABLE
Device code
VS- 8 T Q 100 S TRL PbF
1 - HPP product suffix
2 - Current rating (8 A)
3
- Circuit configuration: T = TO-220
4 - Schottky “Q” series
5 - Voltage ratings
- S = D
6
-
7
8
- PbF = Lead (Pb)-free
Schottky Rectifier, 8 A
324
2
PAK
None = Tube (50 pieces)
TRL = Tape and reel (left oriented)
TRR = Tape and reel (right oriented)
51
678
080 = 80 V
100 = 100 V
Vishay High Power Products
LINKS TO RELATED DOCUMENTS
Dimensions www.vishay.com/doc?95046
Part marking information www.vishay.com/doc?95054
Packaging information www.vishay.com/doc?95032
SPICE models www.vishay.com/doc?95291
www.vishay.com
