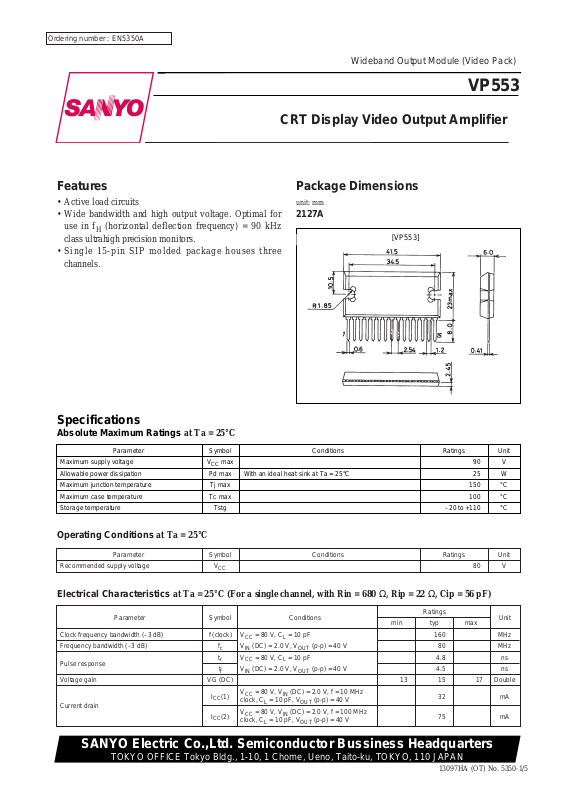

Wideband Output Module (Video Pack)
Ordering number : EN5350A
13097HA (OT) No. 5350-1/5
VP553
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
CRT Display Video Output Amplifier
Features
• Active load circuits
• Wide bandwidth and high output voltage. Optimal for
use in fH(horizontal deflection frequency) = 90 kHz
class ultrahigh precision monitors.
• Single 15-pin SIP molded package houses three
channels.
Package Dimensions
unit: mm
2127A
[VP553]
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage V
CC
max 90 V
Allowable power dissipation Pd max With an ideal heat sink at Ta = 25°C 25 W
Maximum junction temperature Tj max 150 °C
Maximum case temperature Tc max 100 °C
Storage temperature Tstg –20 to +110 °C
Specifications
Absolute Maximum Ratings at Ta = 25°C
Parameter Symbol Conditions
Ratings
Unit
min typ max
Clock frequency bandwidth (–3 dB) f (clock) V
CC
= 80 V, CL= 10 pF 160 MHz
Frequency bandwidth (–3 dB) f
c
VIN(DC) = 2.0 V, V
OUT
(p-p) = 40 V 80 MHz
Pulse response
t
r
VCC= 80 V, CL= 10 pF 4.8 ns
t
f
VIN(DC) = 2.0 V, V
OUT
(p-p) = 40 V 4.5 ns
Voltage gain VG (DC) 13 15 17 Double
I
CC
(1)
V
CC
= 80 V, VIN(DC) = 2.0 V, f = 10 MHz
32 mA
Current drain
clock, C
L
= 10 pF, V
OUT
(p-p) = 40 V
I
CC
(2)
V
CC
= 80 V, VIN(DC) = 2.0 V, f = 100 MHz
75 mA
clock, C
L
= 10 pF, V
OUT
(p-p) = 40 V
Electrical Characteristics at Ta = 25°C (For a single channel, with Rin = 680 Ω, Rip = 22 Ω, Cip = 56 pF)
Parameter Symbol Conditions Ratings Unit
Recommended supply voltage V
CC
80 V
Operating Conditions at Ta = 25°C
Page 2
Internal Equivalent Circuit
Test Circuit (for a single channel)
No. 5350-2/5
VP553

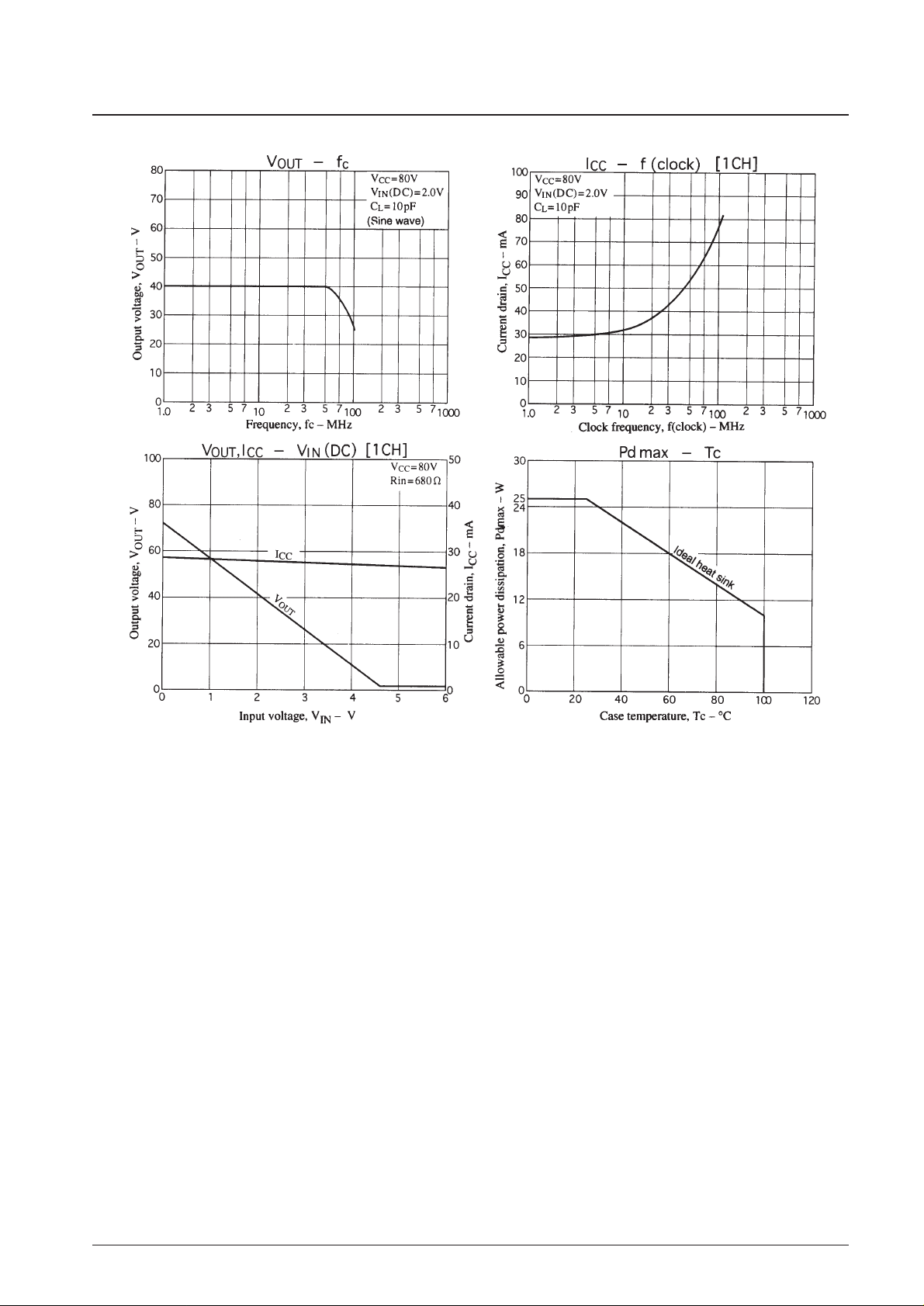

Page 3
Thermal Design
Thermal design requires that the two conditions Tj (max) ≤ 150°C and Tc ≤ 100°C be met.
(a) Concerning Tj (max), the chip temperature Tj for each transistor is given by equation (1).
Tj = (Tri) = θj–c (Tri) × PC(Tri) + ∆Tc + Ta (°C)................................................(1)
θj–c (Tri): The thermal resistance of each transistor chip itself
PC(Tri): The collector loss for each transistor
∆Tc: Increase in the case temperature
Ta: Ambient temperature
θj–c (Tri) for each chip will be:
θj–c (Tr1) to (Tr4) = 35°C/W ................................................................................(2)
The loss in transistors in a video pack varies with frequency. The loss increases with the frequency.
For example, if the maximum frequency will be 100 MHz (clock), then the transistors with the largest losses will be
transistors 3 and 4 in the emitter-follower (EF) stage. From the Pd – f (clock) figure, we see that that loss will be 25%
of the total for a single channel. That is:
PC(EF stage)
f = 100 MHz
= Pd (1ch)
f = 100 MHz
× 0.25 [W]..................................(3)
The thermal design must assure that Tj does not exceed 150°C at this time.
(b) Concerning Tc (max), the relationship between θh and ∆Tc is:
∆Tc = Pd (total) × θh .............................................................................................(4)
Taking the increase due to Ta into account, the condition the thermal design must meet becomes Tc = ∆Tc + Ta <
100°C.
Next we design thermal conditions for the VP553 that meet the conditions in sections (a) and (b) above.
No. 5350-3/5
VP553
Page 4
No. 5350-4/5
VP553
Sample Thermal Design for the VP553
Conditions: For an fH= 90 kHz class monitor, fV= 100 MHz (clock).
VCC= 80 V, V
OUT
= 40 Vp-p (CL= 10 pF)
Here we consider the case where such a monitor is to be operated at ambient temperatures up to Ta = 60°C and at a
maximum frequency of f = 100 MHz (clock).
As mentioned previously, the chips with the maximum loss will be transistors 3 and 4 in the emitter-follower stage.

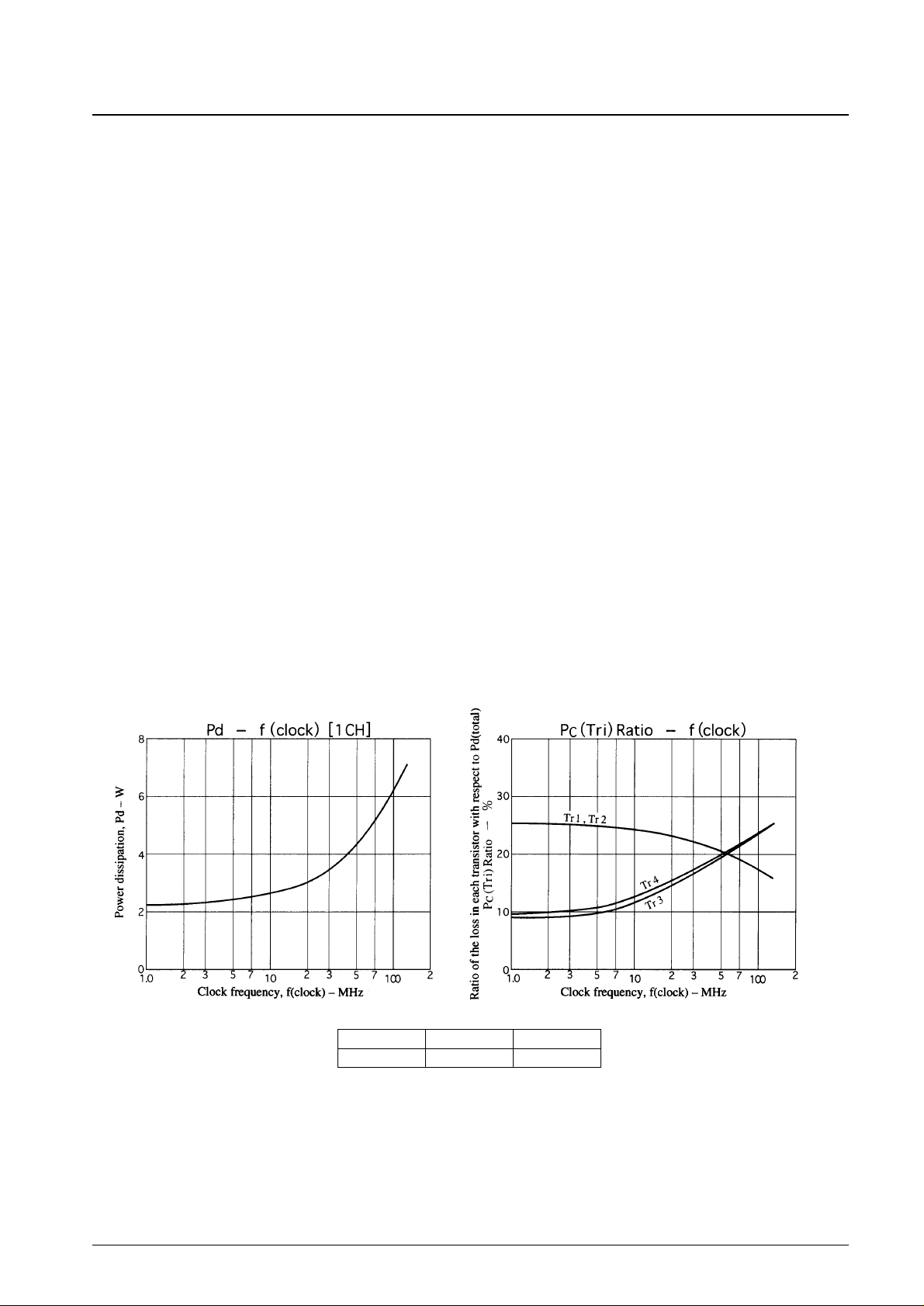

Equation (5) follows from deriving that value from the figure below and equation (3).
PC(Tr3, 4)
f = 100 MHz
= 6.2 × 0.25 ≈ 1.55 [W]......................................................(5)
However, the actual usage conditions include a blanking period. If we calculate the power during this period
approximately at a 1-MHz power ratio, from Pd – f (clock) and PC(Tri)Ratio – f (clock) figures, we see that PC(BLK)
for transistors 3 and 4 will be:
PCBLK (Tr3, 4) = 2.2 × 0.08 = 0.18 [W]..............................................................(6)
If the blanking period is 20% of the total, from the data of equation (5) and formula (6) we see that the loss in transistors
3 and 4 will be:
PC(Tr3, 4) = PC(Tr3, 4)
f = 100 MHz
× 0.8 + PCBLK (Tr3, 4) × 0.2 ≈ 1.28 [W]...(7)
Next, applying the value of θj–c to equation (7), shows ∆Tj to be:
∆Tj = 1.28 × 35 ≈ 45 [°C]
Since ∆Tj ≤ 50°C, it suffices to only consider the Tc ≤ 100°C condition in the thermal design. That is, in the thermal
design we design θh so that Tc will be under 100°C when Pd (total) = Pd (1ch) × 3 for the time when all three channels
are operating at their maximum levels.
∆Tc will be: ∆Tc = 100 – 60 = 40°C
θh = ∆Tc ÷ Pd (total) = 40 ÷ {(6.2 × 0.8 + 2.2 × 0.2) × 3} = 2.5
Thus:
θh = 2.5°C/W
In actual use, due to the actual ambient temperature, the operating conditions, and other factors, it will be possible to use
a heat sink smaller than the one required by the above design. Users should design an optimal heat sink using the data
presented above and their actual conditions.
VCC(V) V
OUT
(V) VO(center)
80 40 40
Page 5
No. 5350-5/5
VP553
