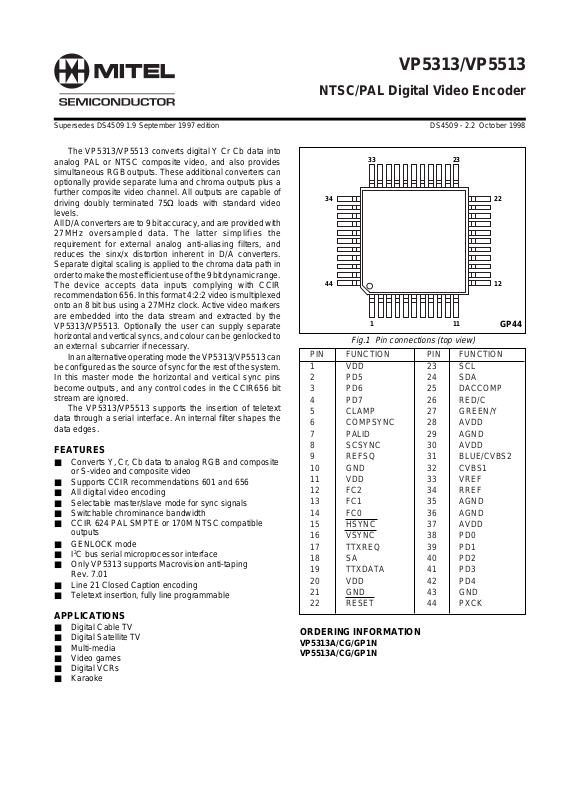

Datasheet VP5513GP1N, VP5513CG, VP5513A, VP5313GP1N, VP5313A Datasheet (MITEL)

PIN FUNCTION PIN FUNCTION
1 VDD 23 SCL
2 PD5 24 SDA
3 PD6 25 DACCOMP
4 PD7 26 RED/C
5 CLAMP 27 GREEN/Y
6 COMPSYNC 28 AVDD
7 PALID 29 AGND
8 SCSYNC 30 AVDD
9 REFSQ 31 BLUE/CVBS2
10 GND 32 CVBS1
11 VDD 33 VREF
12 FC2 34 RREF
13 FC1 35 AGND
14 FC0 36 AGND
15 HSYNC 37 AVDD
16 VSYNC 38 PD0
17 TTXREQ 39 PD1
18 SA 40 PD2
19 TTXDATA 41 PD3
20 VDD 42 PD4
21 GND 43 GND
22 RESET 44 PXCK

ORDERING INFORMATION

VP5313A/CG/GP1N
VP5513A/CG/GP1N

The VP5313/VP5513 converts digital Y Cr Cb data into
analog PAL or NTSC composite video, and also provides
simultaneous RGB outputs. These additional converters can
optionally provide separate luma and chroma outputs plus a
further composite video channel. All outputs are capable of
driving doubly terminated 75Ω loads with standard video
levels.
All D/A converters are to 9 bit accuracy, and are provided with
27MHz oversampled data. The latter simplifies the
requirement for external analog anti-aliasing filters, and
reduces the sinx/x distortion inherent in D/A converters.
Separate digital scaling is applied to the chroma data path in
order to make the most efficient use of the 9 bit dynamic range.
The device accepts data inputs complying with CCIR
recommendation 656. In this format 4:2:2 video is multiplexed
onto an 8 bit bus using a 27MHz clock. Active video markers
are embedded into the data stream and extracted by the
VP5313/VP5513. Optionally the user can supply separate
horizontal and vertical syncs, and colour can be genlocked to
an external subcarrier if necessary.

In an alternative operating mode the VP5313/VP5513 can
be configured as the source of sync for the rest of the system.
In this master mode the horizontal and vertical sync pins
become outputs, and any control codes in the CCIR656 bit
stream are ignored.

The VP5313/VP5513 supports the insertion of teletext
data through a serial interface. An internal filter shapes the
data edges.

FEATURES

■ Converts Y, Cr, Cb data to analog RGB and composite

or S-video and composite video

■ Supports CCIR recommendations 601 and 656

■ All digital video encoding

■ Selectable master/slave mode for sync signals

■ Switchable chrominance bandwidth

■ CCIR 624 PAL SMPTE or 170M NTSC compatible

outputs

■ GENLOCK mode

■ I2C bus serial microprocessor interface

■ Only VP5313 supports Macrovision anti-taping

Rev. 7.01

■ Line 21 Closed Caption encoding

■ Teletext insertion, fully line programmable

APPLICATIONS

■ Digital Cable TV

■ Digital Satellite TV

■ Multi-media

■ Video games

■ Digital VCRs

■ Karaoke

Fig.1 Pin connections (top view)

GP44

111

33 23

12

22

44

34

VP5313/VP5513

NTSC/PAL Digital Video Encoder

Supersedes DS4509 1.9 September 1997 edition DS4509 - 2.2 October 1998

VP5313/VP5513

2

RECOMMENDED OPERATING CONDITIONS

Parameter

Min.

Typ.

Max.

Units

Power supply voltage
Power supply current (including analog outputs)

1

Power supply current (including analog outputs)

2

Input clock frequency
SCL clock frequency
Analog video output load
DAC gain resistor
Ambient operating temperature

Symbol

VDD, AVDD

IDD
IDD

PXCK

f

SCL

4.75

-50ppm

0

5.25
230
190

+50ppm

500

70

V
mA
mA

MHz

kHz

Ω

Ω

°C

5.00

27.00

37.5
730

1. All four DACs driving 37R5 loads

2. All four DACs driving 75R loads

ELECTRICAL CHARACTERISTICS

Test conditions (unless otherwise stated): As specified in Recommended Operating Conditions

DC CHARACTERISTICS

VIN

VIL

VIH

VIL

IIH

IIL

VOH

VOL

VOL

2.0

0.7VDD

3.7

0.8

0.3VDD
10

-10

0.4

0.6

V
V

V
V

µA
µA

V
V

V

Parameter Conditions

VIN = VDD
VIN = VSS

IOH = -1mA
IOL = +4mA

IOL = +6mA

Symbol Min.

Typ.

Max.

Units

Digital Inputs TTL compatible (except SDA, SCL)

Input high voltage
Input low voltage

Digital Inputs SDA, SCL

Input high voltage
Input low voltage
Input high current
Input low current

Digital Outputs CMOS compatible

Output high voltage
Output low voltage

Digital Output SDA

Output low voltage

66.83

1.00
8k

1.3899

34.15
50

DC CHARACTERISTICS DACs

INL

DNL

VREF

ZR

IREF

0.95

±1.5

±1
±5

1.05

LSB
LSB

%

µA

V

Ω

mA
mA

pV-s

Parameter

Symbol Min.

Typ.

Max.

Units

Accuracy (each DAC)

Integral linearity error
Diffential linearity error
DAC matching error
Monotonicity

LSB size
Internal reference voltage
Internal reference voltage output impedance
Reference Current (V

REF/RREF) RREF = 730Ω

Maximum output
Peak Glitch Energy (see fig.3)

guaranteed

ABSOLUTE MAXIMUM RATINGS

Supply voltage VDD, AVDD -0·3 to 7·0V
Voltage on any non power pin -0·3 to VDD+0·3V
Ambient operating temperature 0 to 70°C
Storage temperature -55°C to 150°C

Note: Stresses exceeding these listed under Absolute
Maximum Ratings may induce failure. Exposure to Absolute
Maximum Ratings for extended periods may reduce
reliability. Functionality at or above these conditions is not
implied.

VP5313/VP5513

3

Pins

All pins
All pins

Notes

Meets Mil-Std-883 Class 2

Test Levels

2kV on 100pF through 1k5Ω

200V on 200pF through 0Ω & 500nH

Test

Human body model

Machine model

Luminance bandwidth
Chrominance bandwidth (Extended B/w mode)
Chrominance bandwidth (Reduced B/w mode)
Burst frequency (NTSC)
Burst frequency (PAL-B, D,G,H,I)
Burst frequency (PAL-N Argentina)
Burst cycles (NTSC and PAL-N)
Burst cycles ( PAL-B, D, G, H,I)
Burst envelope rise / fall time (NTSC )
Burst envelope rise / fall time (PAL-B, D, G, H, I, N)
Analog video sync rise / fall time (NTSC)
Analog video sync rise / fall time (PAL-B, D, G, H,I)
Analog video blank rise / fall time (NTSC )
Analog video blank rise / fall time (PAL-B, D, G, H,I)
Differential gain
Differential phase
Signal to noise ratio (unmodulated ramp)
Chroma AM signal to noise ratio (100% red field)
Chroma PM signal to noise ratio (100% red field)
Hue accuracy
Colour saturation accuracy
Residual sub carrier
Luminance / chrominance delay

VIDEO CHARACTERISTICS (NTSC, PAL COMPOSITE VIDEO)

Parameter

1
1

-61

-56

-58

2.5

2.5
10

Max.Symbol Min.

Typ.

5.5

1.3

650

3.57954545

4.43361875

3.58205625
9

10
300
300
145
245
145
245

-60
5

MHz
MHz

kHz
MHz
MHz
MHz

Fsc cycles
Fsc cycles

ns
ns
ns
ns
ns
ns

% pk-pk

° pk-pk

dB
dB
dB

%
%

dB

ns

Units

ESD COMPLIANCE

19.98

1.337

33.75

17.63

1.40

7.61

7.61

0.40

18.70

8.01

8.01

0.00

DC CHARACTERISTICS DACs

mA
mA

mA
mA
mA
mA
mA
mA

mA
mA
mA
mA

Parameter

Symbol Min.

Typ.

Max.

Units

RGB outputs:

Peak level
Black level

CVBS1, 2 Y and C outputs - NTSC (pedestal enabled)
Maximum output, relative to sync bottom
White level relative to black level
Black level relative to blank level
Blank level relative to sync level
Colour burst peak - peak
DC offset (bottom of sync)

CVBS1, 2, Y and C outputs - PAL
White level relative to black level
Black level relative to sync level
Colour burst peak - peak
DC offset (bottom of sync)

All figures are for: RREF = 730Ω; if RL = 75Ω then RREF = 1460Ω

VP5313/VP5513

4

Pin Name Pin No. Description

PD0-7 2-4, 8 Bit Pixel Data inputs clocked by PXCK. PD0 is the least significant bit. These pins are

internally pulled low.

PXCK 44 27MHz Pixel Clock input. The VP5313/VP5513 internally divides PXCK by two to provide the

pixel clock.
SA 18 Slave address select.
SCL 23 Standard I

2

C bus serial clock input.
SDA 24 Standard I2C bus serial data input/output.
FC0-2 12-14 Field Counter output in master sync mode.
REFSQ 9 Reference square wave input used only during Genlock mode.
SCSYNC 8 Subcarrier sync input, (synchronises phase quadrant in 4xfsc genlock mode), see fig 6.
PALID 7 PAL IDENT input, controls swinging colour burst phase in PAL genlock mode.
COMPSYNC 6 Composite sync pulse output. This is an active low output signal.
CLAMP 5 The CLAMP output signal is synchronised to COMPSYNC output and indicates the position of

the BURST pulse, (lines 10-263 and 273-525 for NTSC; lines 6-310 and 319-623 for PAL-

B,D,G,I,N(Argentina)).
TTXREQ 17 Teletext Data Request output, requests next line of teletext data.
TTXDATA 19 Teletext Data input.
HSYNC 15 Horizontal Sync, output in master mode, input in slave mode
VSYNC 16 Vertical Sync, output in master mode, input in slave mode
RESET 22 Master reset. This is an asynchronous, active low, input signal and must be asserted for a

minimum 200ns in order to reset the VP5313/VP5513.
VREF 33 Voltage reference output. This output is nominally 1·0V and should be decoupled with a

100nF capacitor to GND.
RREF 34 DAC full scale current control. A resistor connected between this pin and GND sets the

magnitude of the video output current. An internal loop amplifier controls a reference current

flowing through this resistor so that the voltage across it is equal to the Vref voltage. This

reference current has a weighting equal to 20.8 LSB’s.
DACCOMP 25 DAC compensation. A 100nF ceramic capacitor must be connected to AVDD.
CVBS1 32 Composite video output. These are high impedance current source outputs. A DC path to

GND must exist from each of these pins.
BLUE/CVBS2 31 Blue or composite DAC output. Output type as CVBS1.
GREEN/Y 27 Green or luminance DAC output. Output type as CVBS1.
RED/C 26 Red or chrominance DAC output. Output type as CVBS1.
VDD 1, 11, 20 Positive supply input. All VDD pins must be connected.
AVDD 37,28,30 Analog positive supply input. All AVDD pins must be connected.
GND 10,21,43 Negative supply input. All GND pins must be connected.
AGND 36,29,35 Analog negative supply input. All AGND pins must be connected.

PIN DESCRIPTIONS

38-42

VP5313/VP5513

5

Figure 3 Glitch Energy (see Peak Glitch Energy in table on page 2)

Figure 2 Functional block diagram

The glitch energy is calculated by measuring the area under the voltage

time curve for any LSB step, typically specified in picoVolt-seconds (pV-s)

Peak Glitch Area = H x W/2

V

T(ps)

W

H

G/Y

9 BIT

DAC

B/CVBS2

9 BIT

DAC

R/C

9 BIT

DAC

CVBS1

9 BIT

DAC

MUX

+ +

CLOSED

CAPTION

ANTI-TAPING

CONTROL

SET-UP

REGISTERS

I

2

C INTERFACE

YCrCb to

RGB

YCrCb

Y

UV

TELETEXT

SHAPING

FILTER

TELETEXT
CONTROL

INPUT

DEMUX

INTERPOLATING

FILTERS

VIDEO TIMING GENERATOR

DIGITAL

PHASE COMP

COLOUR SUBCARRIER

GENERATOR

SYNC

INSERT

MODULATOR

REFSQ

SCSYNC

PALID

COMPSYNC

FC0-2

VSYNC

HSYNC

PXCK

PD7-0

TTXREQ

TTXDATA

RESETB

SA

SCL

SDA

CLAMP

8

YCrCb

YUV

3

DAC
REF

RREF
VREF

DACCOMP

VP5313/VP5513

6

ADDRESS

hex

00
01
02
03
04
05
06
07
08
09
0A
0B
0C
0D
0E
0F
10
11

12
13-1F
20-33
34-3F

40

41

42

43

44

45

46

47
48-4F

50

51

52

53

54
55-5F

60

61
62-FD

FE-FF

REGISTER

NAME

BAR
PART ID2
PART ID1
PART ID0

REV ID

MODE

GCR

VOCR
RSTCTL
SC_ADJ

FREQ2
FREQ1
FREQ0

SCHPHM

SCHPHL
HSOFFL

HSOFFM

SLAVE1
SLAVE2
TSTPAT
Not used

Reserved

Not used
TTXLO2
TTXLO1
TTXLO0

TTXLE2
TTXLE1
TTXLE0

TTXDD
TTXCTL
Not used

CCREG1
CCREG2
CCREG3
CCREG4

CC_CTL
Not used

IICEXCTL
IICEXW/R

Not used

Reserved

7

RA7
ID17
ID0F
ID07

REV7

-

FSC4SEL

DITHEN

SC7

FR17
FR0F
FR07

-

SCH7

HSOFF7

-

NCORSTD

HCNT7

-

­L14
L22

-

L327
L335

TTXDD7

-

-

-

-

-

CTL7

W/RD7

6

RA6
ID16
ID0E
ID06

REV6

-

GENDITH

CHRMCLIP

SC6

FR16
FR0E
FR06

-

SCH6

HSOFF6

-

VBITDIS

HCNT6

-

­L13
L21

-

L326
L334

TTXDD6

F1W1D6
F1W2D6
F2W1D6
F2W2D6

-

CTL6

W/RD6

5

RA5
ID15
ID0D
ID05

REV5

-

GENLKEN

CHRBW

SC5

FR15
FR0D
FR05

-

SCH5

HSOFF5

-

VSMODE

HCNT5

-

­L12
L20

-

L325
L333

TTXDD5

F1W1D5
F1W2D5
F2W1D5
F2W2D5

-

CTL5

W/RD5

4

RA4

ID14
ID0C
ID04

REV4
DACCFG
NOLOCK

SYNCDIS

SC4
FR14
FR0C
FR04

-

SCH4

HSOFF4

-

F_SWAP

HCNT4

-

­L11
L19

-

L324
L332

TTXDD4

F1W1D4
F1W2D4
F2W1D4
F2W2D4

-

CTL4

W/RD4

2

RA2

ID12
ID0A
ID02

REV2
VFS0

YCDELAY

LUMDIS

SC2

FR12
FR0A
FR02

-

SCH2

HSOFF2

-

SL_HS0

HCNT2

-

-

L9

L17

­L322
L330

TTXDD2

F1W1D2
F1W2D2
F2W1D2
F2W2D2

F1ST
CTL2

W/RD2

1

RA1
ID11
ID09
ID01

REV1

SYNCM1

CLMPDIS

CHRDIS

SC1

FR11
FR09
FR01

-

SCH1
HSOFF1
HSOFF9

HCNT9
HCNT1

TTXPAT

-

L8

L16
L319
L321
L329

TTXDD1

F1W1D1
F1W2D1
F2W1D1
F2W2D1

F2EN
CTL1

W/RD1

3

RA3
ID13
ID0B
ID03

REV3
VFS1

PALIDEN

BURDIS

SC3

FR13
FR0B
FR03

-

SCH3

HSOFF3

-

SL_HS1

HCNT3

-

­L10
L18

-

L323
L331

TTXDD3

F1W1D3
F1W2D3
F2W1D3
F2W2D3

F2ST
CTL3

W/RD3

DEFAULT

hex

00
53
13
01
00
00
20
00
9C
A8
26
2B
00
00
7E
00
00
00
00

00
00
00
00
00
00
01
00

XX
XX
XX
XX

00

FF

-

0

RA0
ID10
ID08
ID00

REV0

SYNCM0

CVBSCLMP

PEDEN

TSURST

SC0

FR10
FR08
FR00
SCH8

SCH0
HSOFF0
HSOFF8

HCNT8
HCNT0

RAMPEN

L6
L7

L15
L318
L320
L328

TTXDD0

TTXEN

F1W1D3
F1W2D3
F2W1D3
F2W2D3

F1EN
CTL0

W/RD0

R/W

W
R
R
R

R
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W

R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W

R/W
R/W
R/W
R/W
R/W

W
R/W

REGISTERS MAP

See Register Details for further explanations.

Table.1 Register map

VP5313/VP5513

7

REGISTER DETAILS

BAR Base register

RA7-0 Register address

PART ID 2-0 Part number

ID17-00 Chip part ID number

REV ID Revision number

REV7-0 Chip revision ID number

MODE Mode Control

DACCFG
0 R,G,B & CVBS analog outputs
1 Y,C, CVBS1 & CVBS2 analog outputs

VFS1 VFS0 Video Standard

0 0 PAL-B,D,G,H,I,N(Arg.)
0 1 NTSC
1 0 Reserved
1 1 Reserved

SYNCM1 SYNCM0 Sync mode

0 0 Slave, Rec. 656
0 1 Slave H & V I/P
1 0 Master H & V O/P
1 1 Reserved

GCR Global Control

FSC4SEL Input subcarrier frequency select

0 REFSQ I/P = Fsubcarrier

SCSYNC I/P ignored

1 REFSQ I/P = 4 x Fsubcarrier

When SCSYNC I/P is asserted the
REFSQ I/P divide by 4 is reset

GENDITH Genlock dither addition control

0 No dither added
1 Dither added

GENLKEN Genlock enable control

0 Internal subcarrier generation
1 When high, enable Genlock to REFSQ

NOLOCK Genlock status bit (read only)

0 Genlocked
1 Cannot lock to REFSQ.

This bit is cleared by reading and set
again if lock cannot be attained.

PALIDEN PAL Ident select

0 Normal operation, internal PAL switch

is used.

1 Enables PALID input, a phase control

an for PALID signal, (0 = +135°, 1 = -135°)

YCDELAY Add delay to luma channel

0 Luma to Chroma delay, 0ns
1 Luma to Chroma delay, 37ns

CLAMPDIS CLAMP O/P select

0 CLAMP O/P enabled
1 CLAMP O/P disabled

CVBSCLAMP Composite clamp enable

0 CVBS Clamp disabled
1 Clamps CVBS output, to prevent out of

range DAC codes.

VOCR Video Output Control

DITHEREN Luma dither enable

0 Normal operation
1 Luma dither enabled

CHRMCLIP Chroma clipping select

0 No chroma clipping
1 Enable clipping of chroma data when

luma is clipped

CHRBW Chroma bandwidth select

0 ±650kHz
1 ±1·3MHz

SYNCDIS Sync disable (in CVBS signal)

0 Normal operation
1 Sync disabled

(COMPSYNC O/P is not affected)

BURDIS Chroma burst disable

0 Normal operation
1 Chroma burst disabled

LUMDIS Luma input disable - force black level

0 Normal operation
1 Luma disabled

CHRDIS Chroma input disable - force monochrome

0 Normal operation
1 Chroma disabled

PEDEN Pedestal (set-up) select

Valid for NTSC
0 Pedestal disabled
1 7·5 IRE pedestal on lines

23-262 and 286-525

VP5313/VP5513

8

RSTCTL Reset Data Control

TSURST Soft reset control

0 Normal operation
1 Chip soft reset

SC_ADJ Sub Carrier Adjust

SC7-0 Sub carrier frequency seed value.

FREQ2-0 Sub carrier frequency

FR17-00 24 bit Sub carrier frequency programmed via

I2C bus. FREQ3 is the MSB.

SCHPHM-L Sub carrier phase offset

SCH8-0 9 bit Sub carrier phase relative to the 50%

point of the leading edge of the horizontal
part of composite sync. SCHPHM bit 0 is the
MSB.

HSOFFL-M Horizontal Sync Output Offset

HSOFF9-0 This is a 10 bit number which allows the user

to offset the start of digital data input with
reference to the pulse HS.

SLAVE1-2 H & V Slave Mode Control

NCORSTD NCO line reset disable

NCO is always reset at end of 4(8)
field sequence in NTSC(PAL) regardless

of the value of this control bit
0 NCO is reset every line in NTSC mode
1 NCO line reset is disabled

VBITDIS Ignore REC656 V-bit select

0 REC656 V-bit will be decoded and the

line blanked accordingly
1 REC656 V-bit will be ignored

VSMODE Select type of Vsync input

0 Standard Vsync I/P
1 Field even/odd Vsync I/P

F_SWAP Invert field detect decision

0 Standard relationship applies
1 Inverted relationship applies

SL_HS(1:0) Internal Hsync delay control

00 No internal delay
01 1 x 27MHz cycle delay
10 2 x 27MHz cycle delay
11 3 x 27MHz cycle delay

TSLAVE2 HCNT(9:0) - Internal H counter is reset to this

value on falling edge of Hsync input.

TSTPAT Test Pattern Register

TTX_PAT Teletext test pattern enable

0 Normal operation
1 Teletext test pattern enabled

RAMPEN Modulated test ramp enable

0 Normal operation
1 Modulated test ramp enabled

TTXLO2-0 Teletext Odd Line Enable

L6-22 1 = Teletext Enabled on that line number

TTXLE2-0 Teletext Even Line Enable

L318-335 1 = Teletext Enabled on that line number

TTXDD7-0 Teletext Request Pulse Position

TTXCTL Teletext Control

TTXEN Teletext enable

0 Teletext disabled
1 Teletext enabled

CCREG1 Closed Caption register 1

F1W1D6-0 Field one (line 21), first data byte

CCREG2 Closed Caption register 2

F1W2D6-0 Field one (line 21), second data byte

CCREG3 Closed Caption register 3

F2W2D6-0 Field two (line 284), first data byte

CCREG4 Closed Caption register 4

F2W2D6-0 Field two (line 284), second data byte

CCCTL Closed Caption control register

F1ST Field one (line 21) status bit

0 New data has been loaded to CCREG1-2
1 Data has been encoded

F2ST Field one (line 284) status bit

0 New data has been loaded to CCREG3-4
1 Data has been encoded

F1EN Closed Caption field one (line 21)

0 Disabled
1 Enabled

F2EN Closed Caption field one (line 284)

0 Disabled
1 Enabled

VP5313/VP5513

9

IICEXCTL I2C Extension Control

CTL7-0 Each bit controls port direction

0 = output 1 = input

IICEXR/W I2C Extension Control

RD7-0 I2C bus read and write data from

I2C extension port

I2C BUS CONTROL INTERFACE

I2C bus address

The serial microprocessor interface is via the bi-directional
port consisting of a data (SDA) and a clock (SCL) line. It is
compatible to the Philips I

2

C bus standard (Jan. 1992
publication number 9398 393 40011). The interface is a slave
transmitter - receiver with a sub-address capability. All
communication is controlled by the microprocessor. The SCL
line is input only. The most significant bit (MSB) is sent first.
Data must be stable during SCL high periods.

A bus free state is indicated by both SDA and SCL lines
being high. START of transmission is indicated by SDA being
pulled low while SCL is high. The end of transmission, referred
to as a STOP, is indicated by SDA going from low to high while
SCL is high. The STOP state can be omitted if a repeated
START is sent after the acknowledge bit. The reading device
acknowledges each byte by pulling the SDA line low on the
ninth clock pulse, after which the SDA line is released to allow
the transmitting device access to the bus.

The device address can be partially programmed by the
setting of the pin SA. This allows the device to respond to one
of two addresses, providing for system flexibility. The I2C bus
address is seven bits long with the last bit indicating read/write
for subsequent bytes.

The first data byte sent after the device address, is the sub­address - BAR (base address register). The next byte will be
written to the register addressed by BAR and subsequent
bytes to the succeeding registers. The BAR maintains its data
after a STOP signal.

NTSC/PAL Video Standards

Both NTSC (4-field, 525 lines) and PAL (8-field, 625 lines)
video standards are supported by the VP5313/VP5513. All
raster synchronisation, colour sub-carrier and burst charac­teristics are adapted to the standard selected. The VP5313/
VP5513 generates outputs which follow the requirements of
SMPTE 170M and CCIR 624 for PAL signals.

The device supports the following standards:

PAL B, D, G, H, I, N (Argentina) (default state) and

NTSC.

Video Blanking

The VP5313/VP5513 automatically performs standard
composite video blanking. Lines 1-9, 264-272 inclusive, as
well as the last half of line 263 are blanked in NTSC mode. In
PAL mode, lines 1-5, 311-318, 624-625 inclusive, as well as
the last half of line 623 are blanked.

A6

0

A5

0

A4

0

A31A2

1

A0

SA

A1

0

R/ W

X

The V bit within REC656 defines the video blanking when
in TRS slave mode. By setting VBITDIS in the SLAVE1
register this blanking can be overidden. When in MASTER
mode the V bit is ignored; hence, if any lines are required to be
blank, they must have no video signal input on them.

Interpolator

The luminance and chrominance data is separately
passed through interpolating filters to produce output
sampling rates double that of the incoming pixel rate. This
reduces the sinx/x distortion that is inherent in the digital to
analog converters (DACs), and also simplifies the analog
reconstruction filter requirements.

Digital to Analog Converters

The VP5313/VP5513 contains four 9 bit digital to analog
converters which produce the analog video signals. The
DACs use a current steering architecture in which bit currents
are routed to one of two outputs; thus the DAC has true and
complimentary outputs, however, only the true outputs are
available on the pins. The use of identical current sources and
current steering their outputs means that monoticity is
guaranteed. An on-chip voltage reference of 1·00V (typ.)
provides the necessary biasing; if required, this can be
overridden by an external reference.

The full-scale output currents of the DACs is set by an
external 730Ω resistor between the RREF and AGND pins. An
on-chip loop amplifier stabilises the full-scale output current
against temperature and power supply variations.
By digitally summing the luma and chroma outputs a
composite output is generated. The analog outputs of the
VP5313/VP5513 are capable of directly driving doubly
terminated 75Ω co-axial cable. If it is required only to drive a
single 75Ω load then the DACGAIN resistor is simply doubled.

Luminance, Chrominance and Composite Video Outputs

The Luminance video output drives a 37.5Ω load at 1·0V,
sync tip to peak white. It contains only the luminance content
of the image plus the composite sync pulses. In the NTSC
mode, a set-up level offset is added during the active video
portion of the raster.

The Chrominance video output drives a 37.5Ω load at
levels proportional in amplitude to the luma output (40 IRE pk­pk burst). Burst is injected with the appropriate timing relative
to the luma signal.

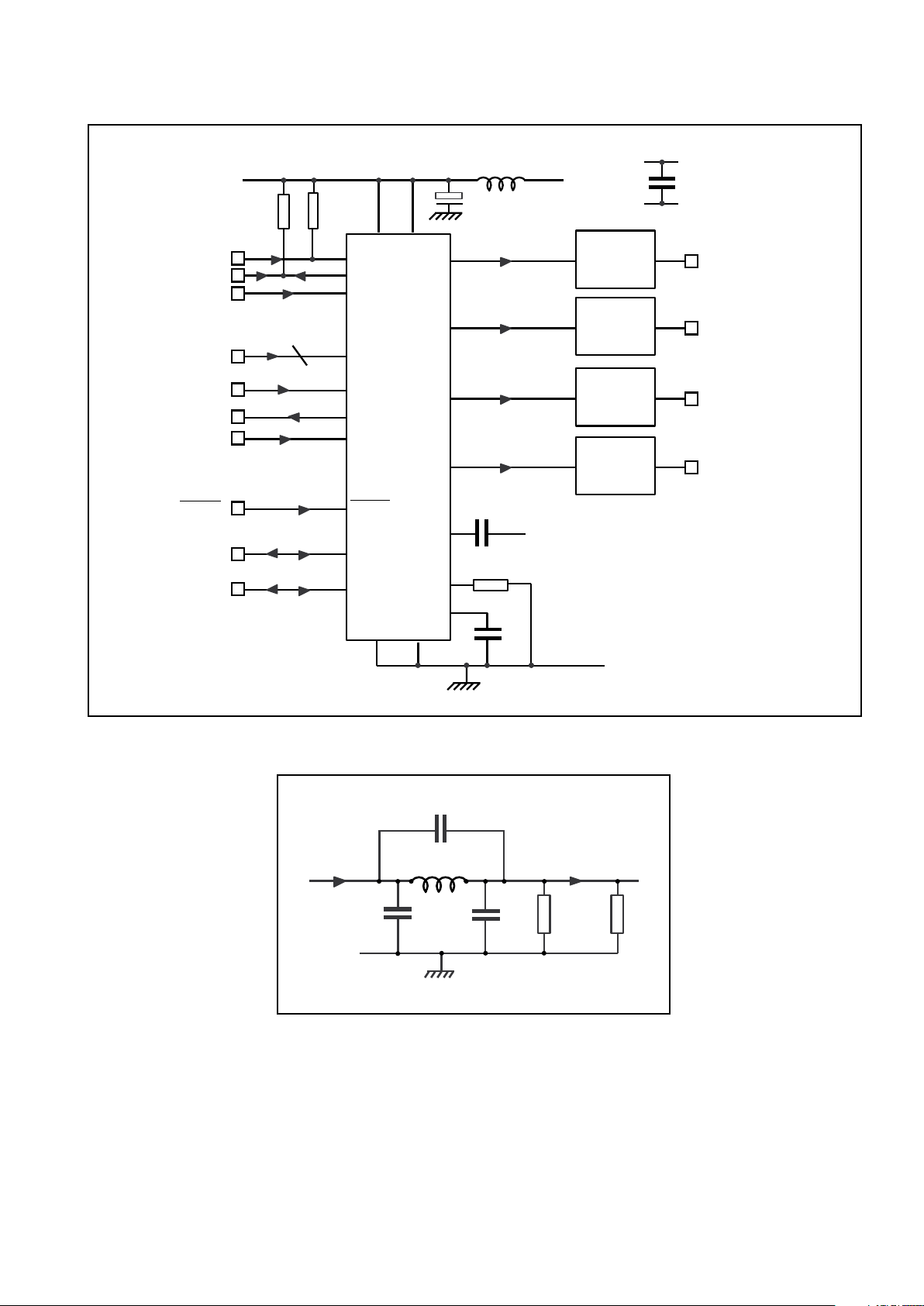

Output sinx/x compensation filters are required on all
video outputs, as shown in the typical application diagram, see
fig. 11 & 12.

RGB Video Outputs

The RGB video outputs drive a 37.5Ω load at 0.7V blank
to peak.

Output sinx/x compensation filters are required on all
video outputs, as shown in the typical application diagram, see
fig. 11 & 12.

Video Timing - Slave sync mode

The VP5313/VP5513 has an internal timing generator
which produces video timing signals appropriate to the mode
of operation. TRS slave mode means that the video encoder
synchronises itself to the TRS (Timing Reference Signal)
codes that are embedded into the Rec. 656 data pattern. In the

VP5313/VP5513

10

default (power up) the TRS slave mode is selected. All internal
timing signals are derived from the input clock, (PXCK) this
must be derived from a crystal controlled oscillator. Input pixel
data is latched on the rising edge of the PXCK clock.
The video timing generator produces the internal blanking and
burst gate pulses, together with the composite sync output
signal.

H&V slave mode is enabled by setting the SYNCM1-0 bits
in the MODE register to 01. In this mode the position of the
video syncs is derived from the HS and VS inputs. These HS
and VS pins are automatically configured as inputs.

Video Timing - Master sync mode

When SYNCM1-0 of the MODE register are 10, the
VP5313/VP5513 operates in a MASTER sync mode, all
REC656 timing reference codes are ignored with VS, HS and
FC0-2 outputs providing synchronisation signals to an
external (MPEG) device. The PXCK signal is, however, still
used to generate all internal clocks. In master mode the
direction setting of bits 4 - 0 of the IICEXCTL register are
ignored.

VS is the start of the field sync datum in the middle of the
equalisation pulses. HS is the line sync which is used by the
preceding MPEG2 decoder to define when to output digital
video data to the VP5313/VP5513. The position of the falling
edge of HS relative to the first data Cb0, can be programmed
in HSOFFM-L registers, see figure 5.

Genlock using REFSQ input

The VP5313/VP5513 can be Genlocked to another video
source by setting GENLKEN high (in GCR register) and
feeding a phase coherent sub carrier frequency signal into
REFSQ. Under normal circumstances, REFSQ will be the
same frequency as the sub carrier; however if FSC4SEL is set
high (in GCR register), a 4 x sub carrier frequency signal may
be input to REFSQ. In this case, the Genlock circuit can be
reset to the required phase of REFSQ, by supplying a pulse
to SCSYNC. The frequency of SCSYNC can be at the sub
carrier frequency, once per line or once per field could be
adequate, depending on the application. When GENLKEN is
set high, the direction setting of bit 5 of the IICEXCTL register
is ignored.

PALID input

When using PAL and Genlock mode; the VP5313/VP5513
requires a PAL phase identification signal, to define the
correct phase on every line. This is supplied to PALID input,
High = -135° and low = +135°. The signal is asynchronous,
and should by changed before the sub carrier burst signal.
PALID input is enabled by setting PALIDEN high (in GCR
register). When PALIDEN is set high, the direction setting of
bit 7 of the IICEXCTL register is ignored.

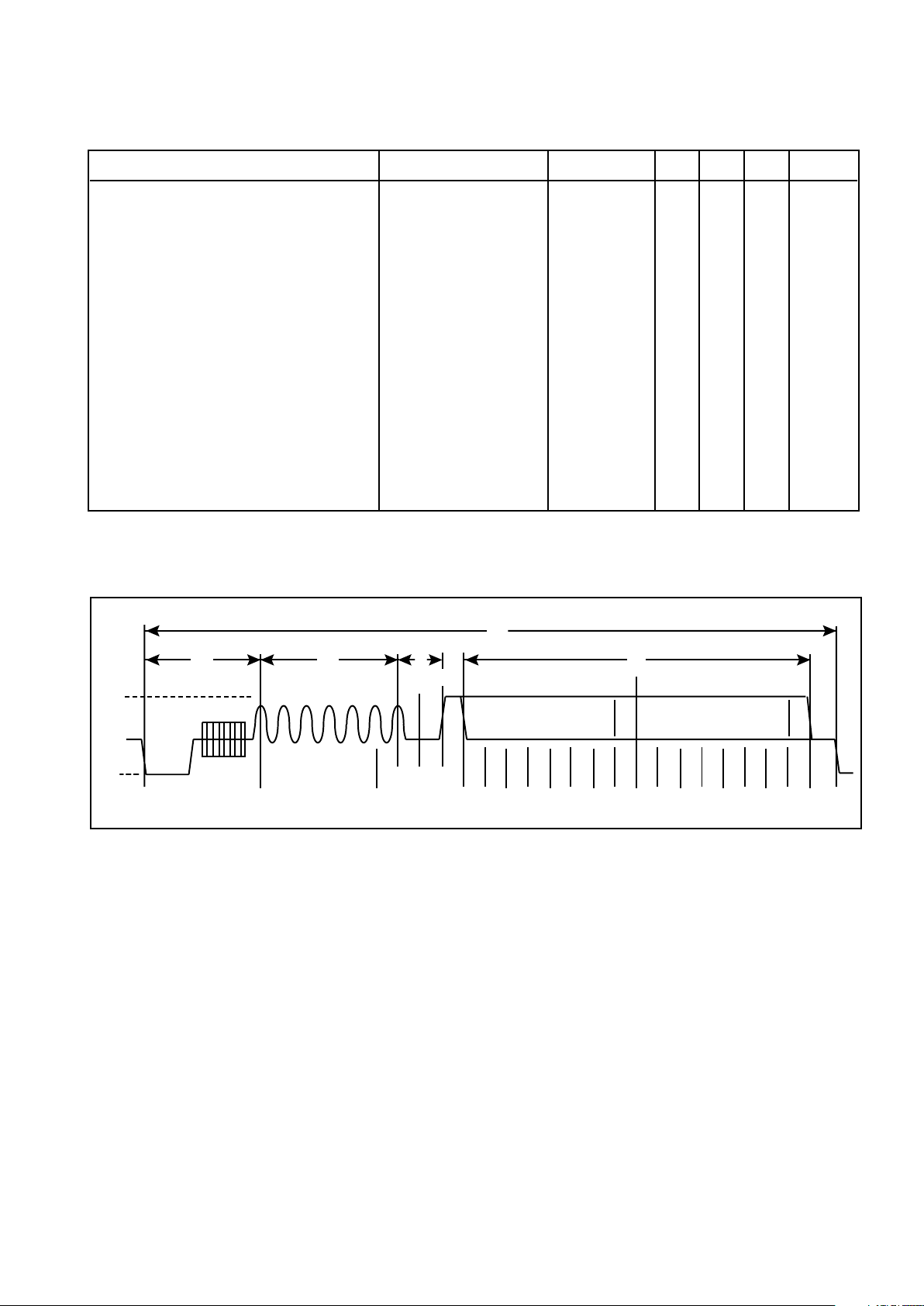

Line 21 coding

Two bytes of data are coded on the line 21 of each field,
see figure 8. In the NTSC Closed Caption service, the default
state is to code on line 21 of field one only. An additional
service can also be provided using line 21 (284) of the second
field. The data is coded as NRZ with odd parity, after a clock
run-in and framing code. The clock run-in frequency =

0.5034965MHz which is related to the nominal line period, D
= H / 32.

D = 63.55555556 / 32µs

Two data bytes per field are loaded via I2C bus registers
CCREG1-4. Each field can be independently enabled by
programming the enable bits in the control register (CC_CTL).
The data is cleared to zero in the Closed Caption shift
registers after it has been encoded by the VP5313/VP5513.
Two status bit are provided (in CC_CTL), which are set high
when data is written to the registers and set low when the data
has been encoded on the Luma signal. The data is cleared to
zero in the Closed Caption shift registers after it has been
encoded by the VP5313/VP5513. The next data bytes must
be written to the registers when the status bit goes high,
otherwise the Closed Caption data output will contain Null
characters. If a transmission slot is missed (ie. no data
received) the encoder will send Null characters. Null
characters are invisible to a closed caption reciever. The MSB
(bit 7) is the parity bit and is automatically added by the
encoder.

Teletext

The Teletext function within the VP5313/VP5513 co­ordinates the insertion of teletext serial data into the
luminance data stream and subsequently the composite video
data stream.

The serial data is filtered prior to insertion to minimise the
high frequency components and to reduce the jitter inherent in
the digital data stream.

The lines in which teletext data are inserted are individually
programmable for both even and odd fields. The insertion of
teletext data will only be enabled if the format of the composite
video is configured to be PAL-B,G,H,I,N and the teletext
enable bit TTXEN is asserted.

For test purposes, the teletext function incorporates
control logic to generate a serial clock cracker pattern in place
of the normal teletext data. This test pattern is enabled when
the TTX_PAT bit is asserted. There is no row coding used so
it will not display on a TV.

The VP5313/VP5513 teletext interface comprises of a
teletext request output, TTX_REQ, and a serial data input,
TTX_DATA.

To ensure that the composite video timing requirements
are satisfied, the serial data must be received at a specific
point in time during lines containing teletext data. The teletext
request output, TTX_REQ, will be asserted to indicate when
data must be applied to TTX_DATA, which must be generated
synchronous to the rising edges of PXCK. The TTX_REQ may
be advanced in multiples of PXCK, to compensate for the
latency within the source device, by writing to the TTXDD
register.

The serial teletext data which is applied to the TTX_DATA
input must obey the sequence defined below.

The teletext bit rate is defined to be 6.9375 MHz, which
equates to 444 times the PAL line frequency (15.625 kHz). It
is clear that for a 27 MHz system clock, a constant bit period
cannot be achieved.

VP5313/VP5513

11

Figure 5 REC 656 interface with HS output timing

Pixel Data Input (PD[7,0])

PXCK Input (27MHz)

Cb0 Cr0Y0 Y1 Y2 Y3Cb1 Cr1

HS

Nck=0Nck=2

t

SU; PD

t

HD; PD

The horizontal line duration for PAL equates to 1728
CLK27M cycles and within each line there are 444 data bit
periods. The duration of 37 data bits (the smallest number
possible for an integer number of CLK27M cycles) therefore
equates to 144 CLK27M cycles.

To ensure that the average bit rate is 6.9375 MHz, 33 in
every 37 data bits will have a duration of 4 CLK27M cycles and
4 in every 37 data bits will have a duration of 3 CLK27M cycles.
Of the first 37 data bits in each line, bits 10, 19, 28 and 37 will

have a duration of 3 CLK27M cycles. The sequence will be
repeated for all subsequent 37 bit groups.

Master Reset

The VP5313/VP5513 must be initialised with RESET. This
is an asynchronous, active low signal and must be active for
a minimum of 200ns in order to reset the VP5313/VP5513.
The device resets to line 64, start of horizontal sync (i.e. line
blanking active). There is no on-chip power on reset circuitry.

(d) = default
xx = don’t care.

The calculation of the FREQ register value is according to the following formula:-

FREQ = 2

26

x fSC/PXCK hex, where PXCK = 27.00MHz

NTSC value is rounded UP from the decimal number. PAL-B, D, G, H, I and N (Argentina) are rounded DOWN. The SC_ADJ
value is derived from the adjustment needed to be added after 8 fields to ensure accuracy of the Subcarrier frequency. Note the
SC_ADJ value of 9C required for PAL-B, D, G, H, I.

Standard

NTSC
PAL-B, G, H, I (d)
PAL-N (Argentina)

FREQ2-0

registers hex

87 C1 F1

A8 26 2B

87 DA 51

Lines/

field

525
625
625

Field

freq. HZ

59.94
50
50

1716
1728
1728

Number of

pixels/line

at 27MHz

15.734266

15.625000

15.625000

Horizontal

freq. kHz.

f

H

3.57954545

4.43361875

3.58205625

Subcarrier

freq. kHz.

f

SC

(455/2)

(1135/4+1/625)

(917/4+1/625)

fSC/fH

SC_ADJ

register

hex

xx

9C

57

Table.2 Line, field and subcarrier standards and register settings

NCO Adjustment

12345678910111213141516 1817 19 20 21 22 23 24

434 434

TTXDD

textbit #:

TTX_REQ

TTX_DATA

CVBS/Y

Figure 4 Teletext timing diagram

VP5313/VP5513

12

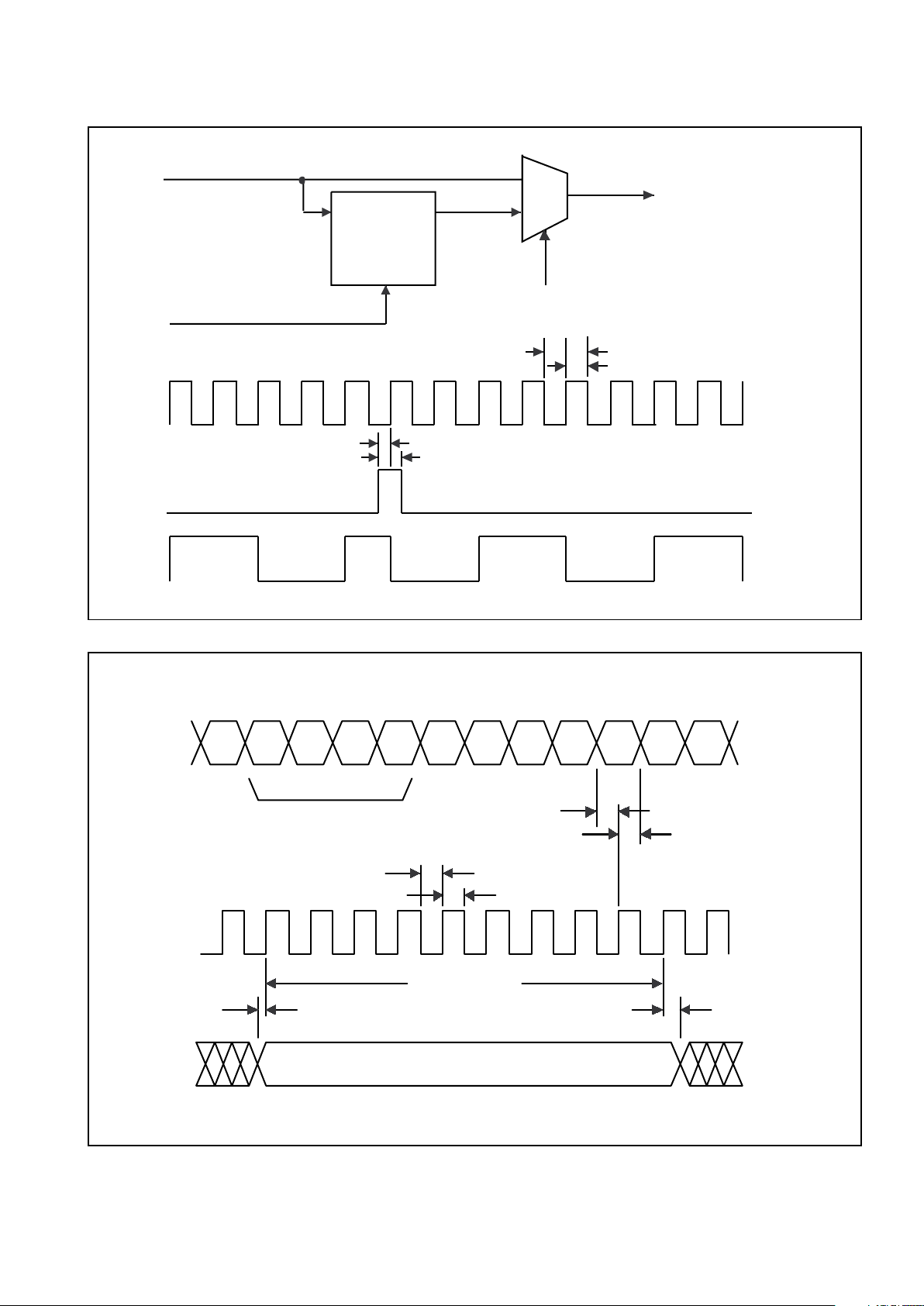

Figure 6 REFSQ and SC_SYNC input timing

Figure 7 PAL_ID input timing

REFSQ

SC_SYNC

Q

t

SU; SC_SYNC

t

HD; SC_SYNC

1/ f

SC_SYNC

t

PWH; SC_SYNC

Divide by 4

Synchronous

Counter

RESET

REFSQ

SC_SYNC

2:1 mux

Q

FSC4_SEL

f

SC

1

0

Input to
Genlocking
Block

(register bit)

1439 1440 1441 1442 1443 1444 1445 1446 1447 1448 1449 1450
Y719 $FF $00 $XY$00

EAV SEQUENCE

ANCILLARY DATA...

Pixel Data Input (PD[7,0\)

Sample Number

PAL_ID Stable

Input (PAL_ID)

PXCK Input (27MHz)

t

PWH; PXCK

t

PWL; PXCK

t

SU; PD

t

HD; PD

t

HD; PAL_ID

t

SU; PAL_ID

t

DUR; PAL_ID

VP5313/VP5513

13

TIMING INFORMATION

Min.

Typ.

10

14.5

10

5

10

0

10

0
9

27.0

Max.

TBD
TBD

25

Units

MHz

ns
ns
ns
ns
ns
ns
ns
ns
ns
ns

PXCK

periods

ns

f

PXCK

tPWH; PXCK
tPWL; PXCK

tRP

tFP
tSU;PD
tHD;PD

tSU;SC_SYNC

tHD;SC_SYNC

tSU;PAL_ID
tHD;PAL_ID

tDUR;PAL_ID

tDOS

10% to 90% points
90% to 10% points

PXCK to COMPSYNC
PXCK to CLAMP

Conditions

Parameters

Master clock frequency (PXCK input)
PXCK pulse width, HIGH
PXCK pulse width, LOW
PXCK rise time
PXCK fall time
PD7-0 set up time
PD7-0 hold time
SCSYNC set up time
SCSYNC hold time
PALID set up time
PALID hold time
PALID duration

Output delay

Symbol

Note: Timing reference points are at the 50% level. Digital CLOAD <40pF.

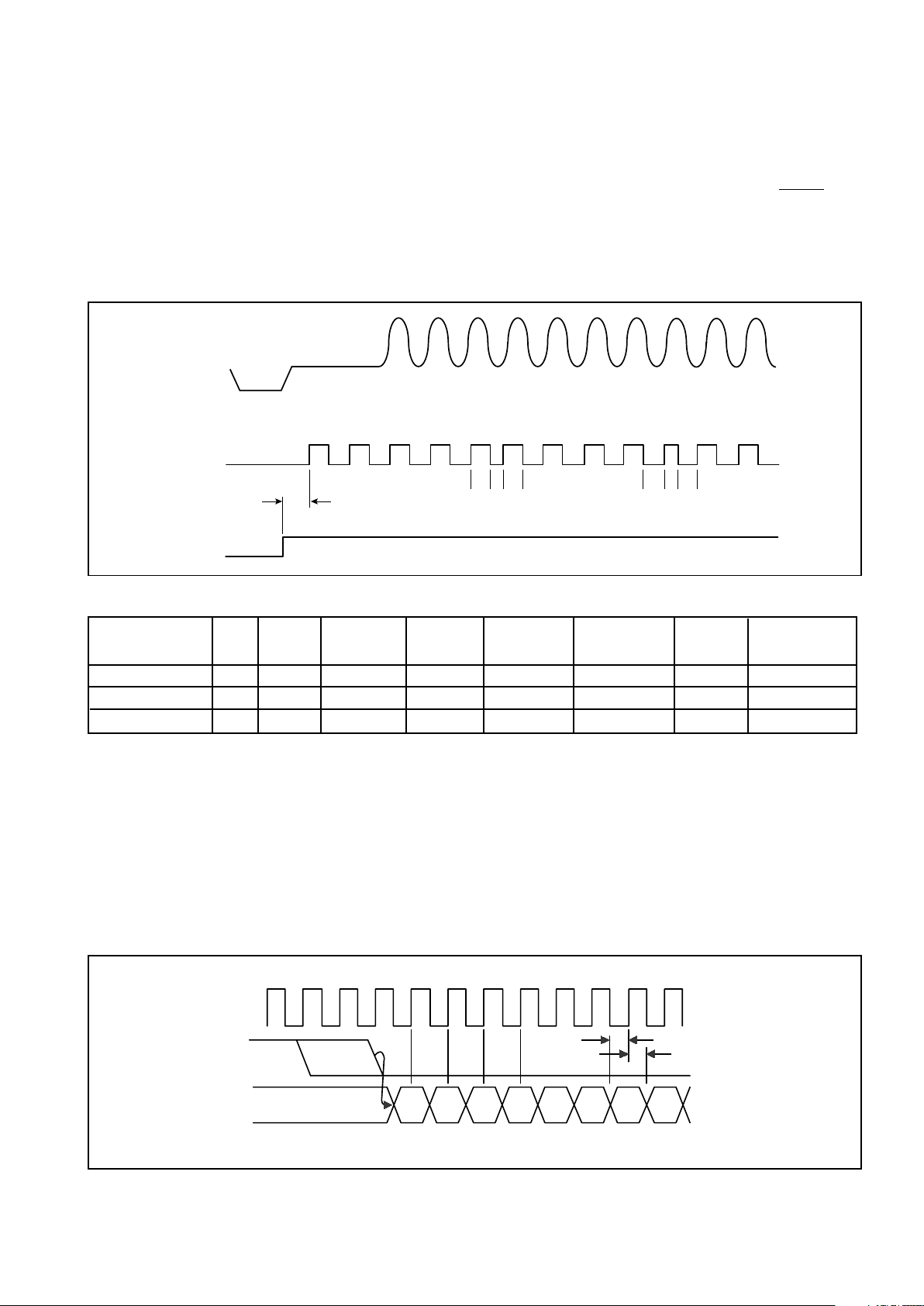

Figure 8 Closed Capation format

BIT0 BIT1 BIT2 BIT3 BIT4 BIT5 BIT6 BIT7 BIT0 BIT1 BIT2 BIT3 BIT4 BIT5 BIT6 BIT7

1

CLOCK RUN-IN

START BITS

13

DATA BYTE 1 DATA BYTE 2

0 1 0 0 0 0 1 1

FRAME CODE

B

CD E

A

H

0

50

-40
IRE

HSYNC COLOUR BURST

S1 S2 S3

P

P

P = Parity Bit

VP5313/VP5513

14

10.250µs

48 IRE

10.500µs

6.5D (12.910µs)

2.0D (3.972µs)

1.0D (1.986µs)

16.0D (31.778µs)

32.0D (63.556)

0.240µs
50 IRE

0 IRE

0 IRE

48 IRE

50 IRE

10.750µs

0.288µs
52 IRE

2 IRE

52 IRE

Encoder minimum

Encoder nominal

Encoder maximum

Description

H-sync to clock run-in
Clock run-in

2, 3

Clock run-in to third start bit

3

Data bit

1, 3

Data characters

4

Horizontal line

1

Rise / fall time of data bit transitions

5

Data bit high (logic level one)

6

Clock run-in maximum
Data bit low (logic level zero)

6

Clock run-in minimum
Data bit differential (high - low)

Clock run-in differential (max. - min)

Interval

A
B
C
D
E
H

Table. 5 Closed Caption data timing. (source EIA R - 4.3 Sept 16 1992)

Notes

1. The Horizontal line frequency fH is nominally 15734.26Hz ±0.05Hz. Interval D shall be adjusted to D = 1/(fH x 32) for the
instantaneous fH at line 21.

2. The clock run-in signal consists of 7.0 cycles of a 0.5034965MHz (1/D) sine wave when measured from the leading to trailing
0 IRE points. The sine wave is to be symmetrical about the 25 IRE level.

3. The negative going midpoints (half amplitude) of the clock run-in shall be coherent with the midpoints (half amplitude) of the
Start and Data bit transitions.

4. Two characters, each consisting of 7 data bits and 1 odd parity bit.

5. 2 T Bar, measured between the 10% and 90% amplitude points.

6. The clock run-in maximum level shall not differ from the data bit high level by more than ±1 IRE. The clock run-in minimum
level shall not differ from the data bit low level by more than ±1 IRE.

VP5313/VP5513

15

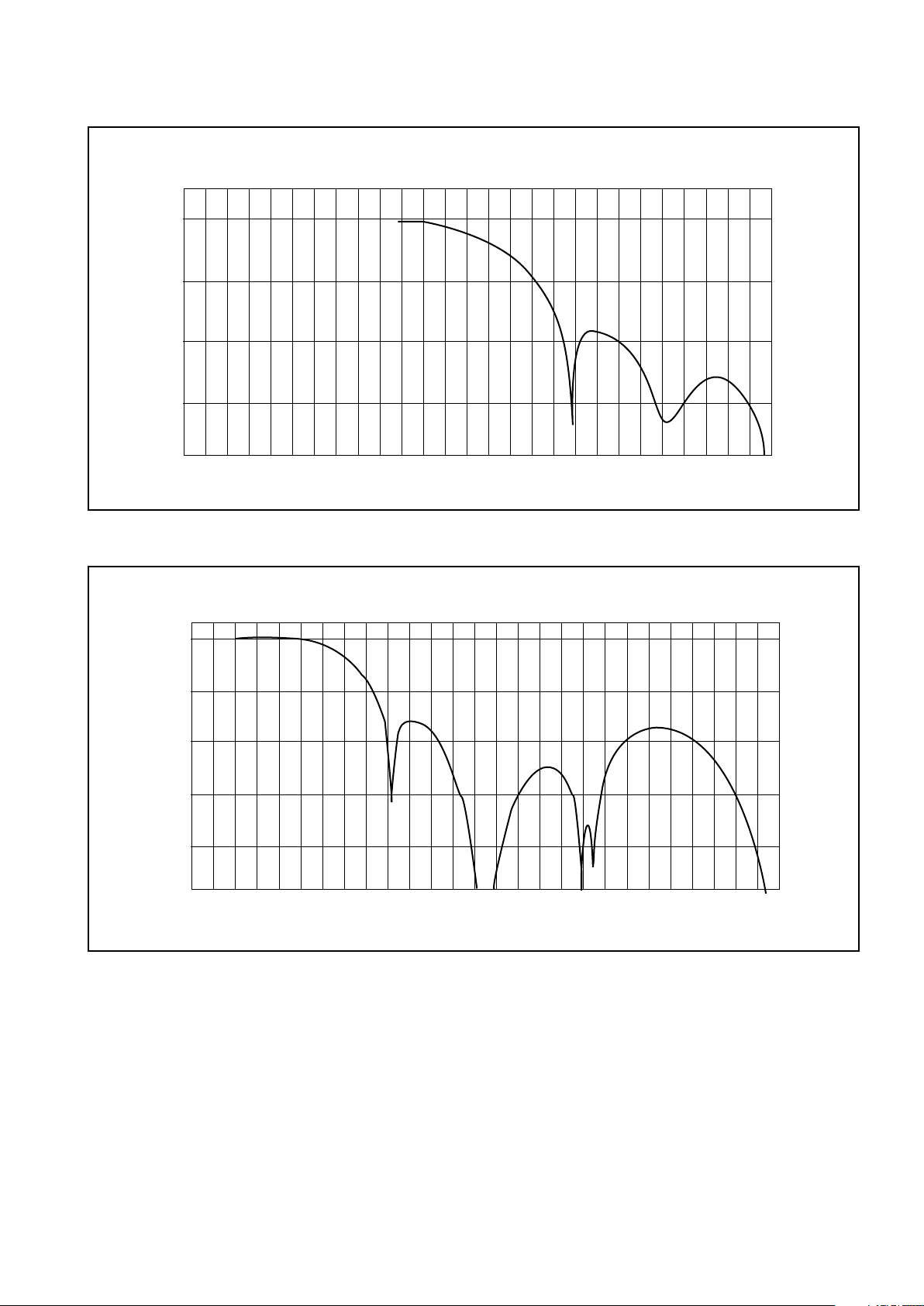

Figure 9 Luma filter for RGB datapath

Figure 10 Chroma filter for RGB datapath

0

-20

-40

-60

0

0 2.5e+6 5e+6 7.5e+6 10e+6 12e+6

0 2.5e+6 5e+6 7.5e+6 10e+6 12e+6

M

a
g
n

i

t
u
d
e

d

B

Frequency in Hz

Frequency Response Luma in RGB Path

0

-20

-40

-60

-80

0

0 2.5e+6 5e+6 7.5e+6 10e+6 12e+6

0 2.5e+6 5e+6 7.5e+6 10e+6 12e+6

M

a
g
n
i
t
u
d
e

d

B

Frequency in Hz

Frequency Response of Cr and Cb in RGB Path

VP5313/VP5513

16

Figure 11 Typical application diagram. (Output filter - see Fig.12)

to drive 37.5ohms

Figure 12 Output reconstruction filter

470pF

220pF

1.0µH

GND

75Ω

15pF

EXT
75Ω

+5V

SCL
SDA
SA

I2C
BUS

100µF

VDD, AVDD

GND, AGND

2k2Ω

G/Y

8

PD0-7

TTXDATA

PXCK

2k2Ω

B/CVBS2

R/C

CVBS1

RREF

VREF

DAC

COMP

SYNC

INTERFACE

HS

VS

SYSTEM

CLOCK

VDD

GND

10nF

GND

SCL
SDA
SA

RESET RESET

TELETEXT

DIGITAL

VIDEO

GREEN/LUMA

TTXREQ

INTERFACE

OUTPUT

FILTER

BLUE/CVBS

OUTPUT

FILTER

RED/CHROMA

OUTPUT

FILTER

CVBS

OUTPUT

FILTER

AT EVERY
VDD PIN

FERRITE

BEAD

100nF

+5V

730Ω

100nF

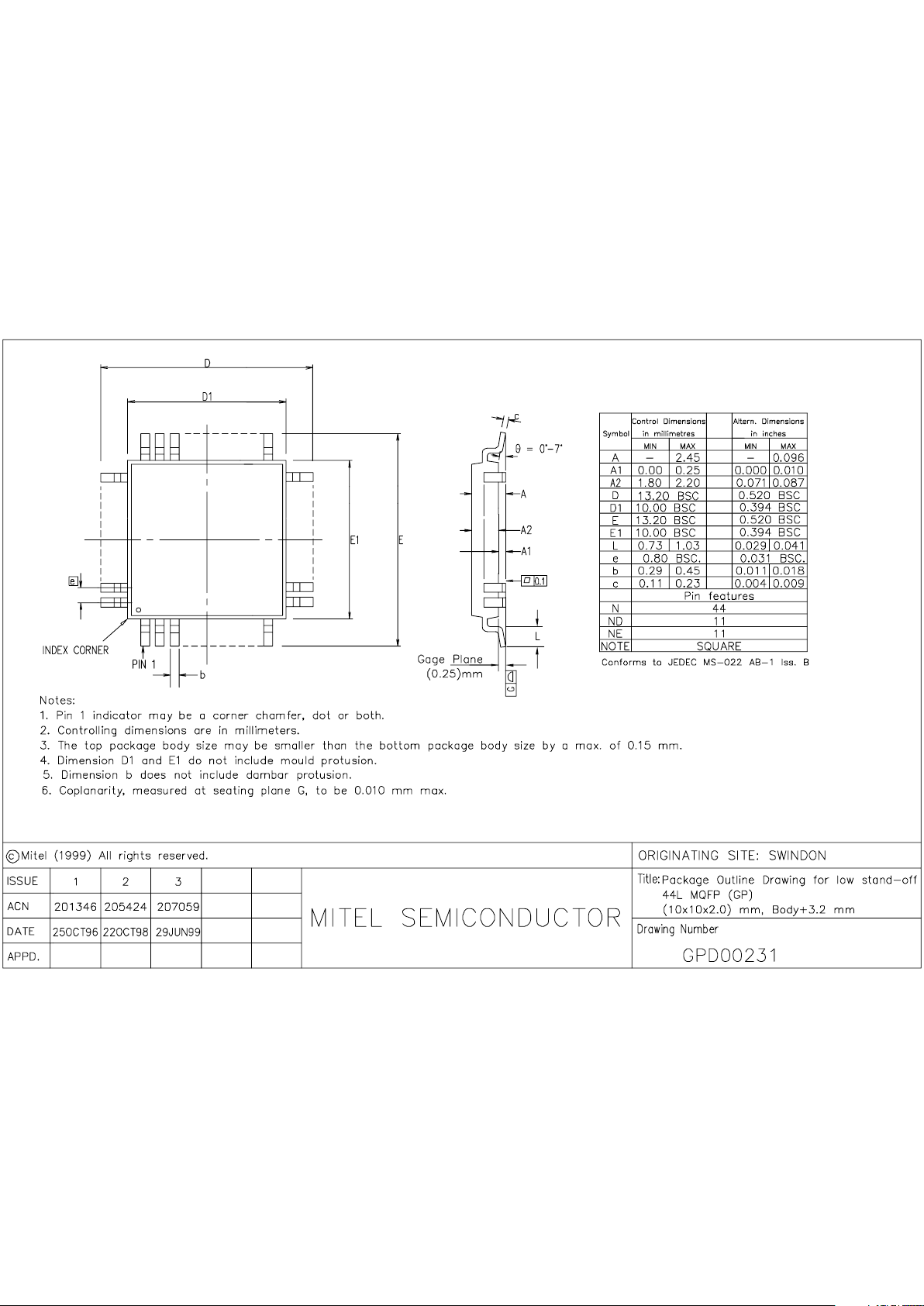

VP5313/VP5513

17

Note:

The VP5313 is only available to customers with a valid and existing authorisation to purchase issued by MACROVISION
CORPORATION.

This device is protected by U.S. patent numbers 4631603, 4577216 and 4819098 and other intellectual property rights. Use of
the Macrovision anticopy process in the device is licensed by Macrovision for non-commercial, home and limited exhibition uses
only. Reverse engineering or disassembly is prohibited.

M Mitel (design) and ST-BUS are registered trademarks of MITEL Corporation
Mitel Semiconductor is an ISO 9001 Registered Company
Copyright 1999 MITEL Corporation
All Rights Reserved
Printed in CANADA

TECHNICAL DOCUMENTATION - NOT FOR RESALE

World Headquarters - Canada

Tel: [phone]

Fax: [phone]

North America Asia/Pacific Europe, Middle East,

Tel: [phone] Tel: [phone] and Africa (EMEA)

Fax: [phone] Fax: [phone] Tel: [phone]

Fax: [phone]

http://www.mitelsemi.com

Information relating to products and services furnished herein by Mitel Corporation or its subsidiaries (collectively “Mitel”) is believed to be reliable. However, Mitel assumes no
liability for errors that may appear in this publication, or for liability otherwise arising from the application or use of any such information, product or service or for any infringement of
patents or other intellectual property rights owned by third parties which may result from such application or use. Neither the supply of such information or purchase of product or
service conveys any license, either express or implied, under patents or other intellectual property rights owned by Mitel or licensed from third parties by Mitel, whatsoever.
Purchasers of products are also hereby notified that the use of product in certain ways or in combination with Mitel, or non-Mitel furnished goods or services may infringe patents or
other intellectual property rights owned by Mitel.

This publication is issued to provide information only and (unless agreed by Mitel in writing) may not be used, applied or reproduced for any purpose nor form par t of any order or
contract nor to be regarded as a representation relating to the products or services concerned. The products, their specifications, services and other information appearing in this
publication are subject to change by Mitel without notice. No warranty or guarantee express or implied is made regarding the capability, performance or suitability of any product or
service. Information concerning possible methods of use is provided as a guide only and does not constitute any guarantee that such methods of use will be satisfactory in a specific
piece of equipment. It is the user’s responsibility to fully determine the performance and suitability of any equipment using such information and to ensure that any publication or
data used is up to date and has not been superseded. Manufacturing does not necessarily include testing of all functions or parameters. These products are not suitable for use in
any medical products whose failure to perform may result in significant injury or death to the user. All products and materials are sold and services provided subject to Mitel’s
conditions of sale which are available on request.
