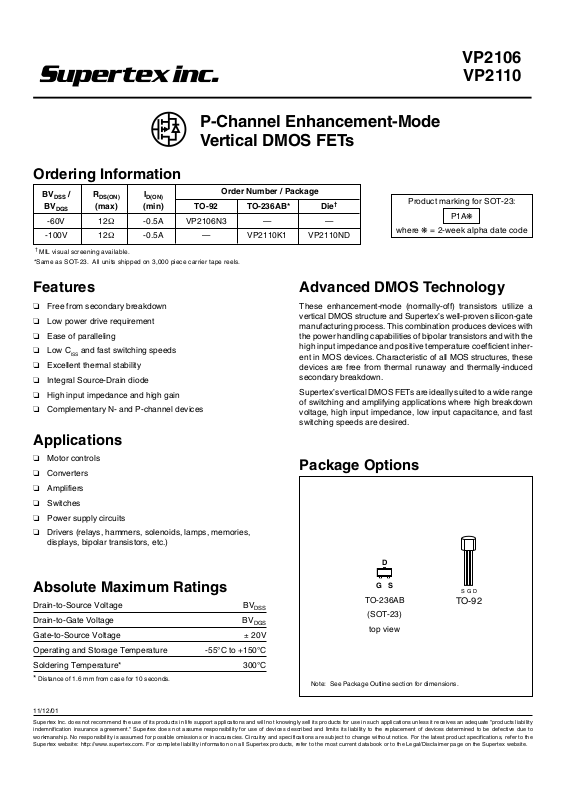

VP2106

VP2110

Note: See Package Outline section for dimensions.

Package Options

P-Channel Enhancement-Mode
Vertical DMOS FETs

TO-92

Applications

❏ Motor controls
❏ Converters
❏ Amplifiers
❏ Switches
❏ Power supply circuits
❏ Drivers (relays, hammers, solenoids, lamps, memories,

displays, bipolar transistors, etc.)

Features

❏ Free from secondary breakdown
❏ Low power drive requirement
❏ Ease of paralleling
❏ Low C

ISS

and fast switching speeds

❏ Excellent thermal stability
❏ Integral Source-Drain diode
❏ High input impedance and high gain
❏ Complementary N- and P-channel devices

Advanced DMOS Technology

These enhancement-mode (normally-off) transistors utilize a
vertical DMOS structure and Supertex’s well-proven silicon-gate
manufacturing process. This combination produces devices with
the power handling capabilities of bipolar transistors and with the
high input impedance and positive temperature coefficient inher­ent in MOS devices. Characteristic of all MOS structures, these
devices are free from thermal runaway and thermally-induced
secondary breakdown.

Supertex’s vertical DMOS FETs are ideally suited to a wide range
of switching and amplifying applications where high breakdown
voltage, high input impedance, low input capacitance, and fast
switching speeds are desired.

BV

DSS

/R

DS(ON)

I

D(ON)

BV

DGS

(max) (min) TO-92 TO-236AB* Die

†

-60V 12Ω -0.5A VP2106N3 — —

-100V 12Ω -0.5A — VP2110K1 VP2110ND

Product marking for SOT-23:

P1A❋

where ❋ = 2-week alpha date code

Order Number / Package

†MIL visual screening available.
*Same as SOT-23. All units shipped on 3,000 piece carrier tape reels.

Ordering Information

S G D

TO-236AB

(SOT-23)

top view

SDG

Absolute Maximum Ratings

Drain-to-Source Voltage BV

DSS

Drain-to-Gate Voltage BV

DGS

Gate-to-Source Voltage ± 20V
Operating and Storage Temperature -55°C to +150°C
Soldering Temperature* 300°C

*

Distance of 1.6 mm from case for 10 seconds.

2

90%

10%

90%

90%

10%

10%

PULSE

GENERATOR

V

DD

R

L

OUTPUT

D.U.T.

t

(ON)

t

d(ON)

t

(OFF)

t

d(OFF)

t

F

t

r

INPUT

INPUT

OUTPUT

0V

V

DD

R

gen

0V

-10V

VP2106/VP2110

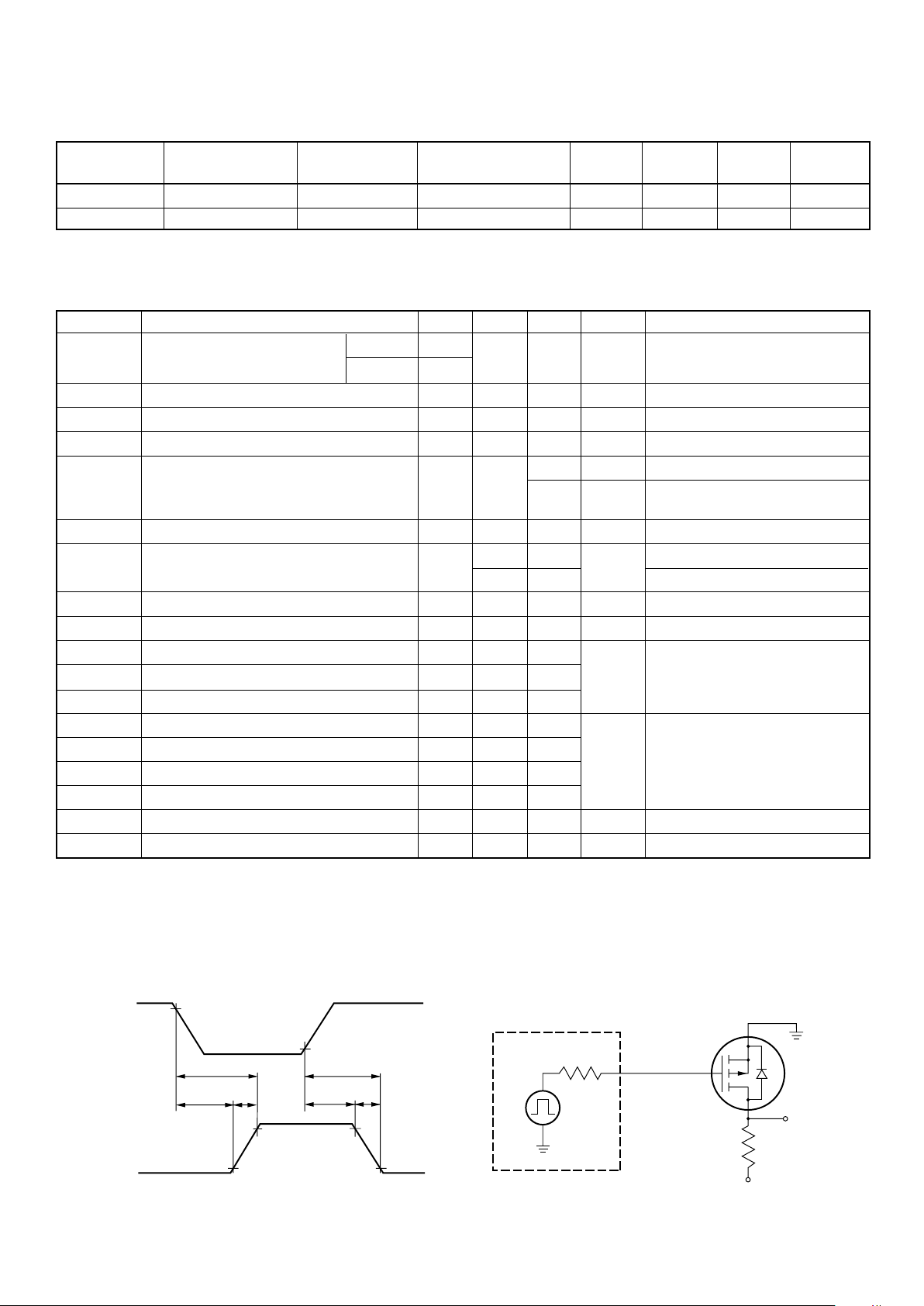

Switching Waveforms and Test Circuit

Package ID (continuous)* ID (pulsed) Power Dissipation

θ

jc

θ

ja

IDR*I

DRM

@ TA = 25°C °C/W °C/W

TO-236AB -120mA -400mA 0.36W 200 350 -120mA -400mA
TO-92 -0.25A -0.8A 0.74W 125 170 -0.25A -0.8A
*

ID (continuous) is limited by max rated Tj.

Thermal Characteristics

Symbol Parameter Min Typ Max Unit Conditions

VP2110 -100
VP2106 -60

V

GS(th)

Gate Threshold Voltage -1.5 -3.5 V VGS = VDS, ID = -1.0mA

∆V

GS(th)

Change in V

GS(th)

with Temperature 5.8 6.5 mV/°CID = -1.0mA, V

GS

= V

DS

I

GSS

Gate Body Leakage -1.0 -100 nA VGS = ±20V, VDS = 0V

I

DSS

Zero Gate Voltage Drain Current -10 µAV

GS

= 0V, VDS = Max Rating

V

GS

= 0V, VDS = 0.8 Max Rating

T

A

= 125°C

I

D(ON)

ON-State Drain Current -0.50 -1.0 A VGS = -10V, VDS = -25V

R

DS(ON)

11 15 VGS = -5V, ID = -0.1A

9.0 12 VGS = -10V, ID = -0.5A

∆R

DS(ON)

Change in R

DS(ON)

with Temperature 0.55 1.0 %/°CV

GS

= -10V, ID = -0.5A

G

FS

Forward Transconductance 150 200 m VDS = -25V, ID = -0.5A

C

ISS

Input Capacitance 45 60

C

OSS

Common Source Output Capacitance 22 30 pF

C

RSS

Reverse Transfer Capacitance 3 8

t

d(ON)

Turn-ON Delay Time 4 5

t

r

Rise Time 5 8

t

d(OFF)

Turn-OFF Delay Time 5 9

t

f

Fall Time 4 8

V

SD

Diode Forward Voltage Drop -1.2 -2.0 V ISD = -0.5A, VGS = 0V

t

rr

Reverse Recovery Time 400 ns ISD = -0.5A, VGS = 0V

Notes:

1.All D.C. parameters 100% tested at 25°C unless otherwise stated. (Pulse test: 300µs pulse, 2% duty cycle.)

2.All A.C. parameters sample tested.

BV

DSS

Drain-to-Source
Breakdown Voltage

Electrical Characteristics (@ 25°C unless otherwise specified)

VI

D

= -1.0mA, VGS = 0V

-1 mA

Static Drain-to-Source
ON-State Resistance

VGS = 0V, VDS = -25V
f = 1 MHz

VDD = -25V

ns ID = -0.5A

R

GEN

= 25Ω

Ω

Ω

3

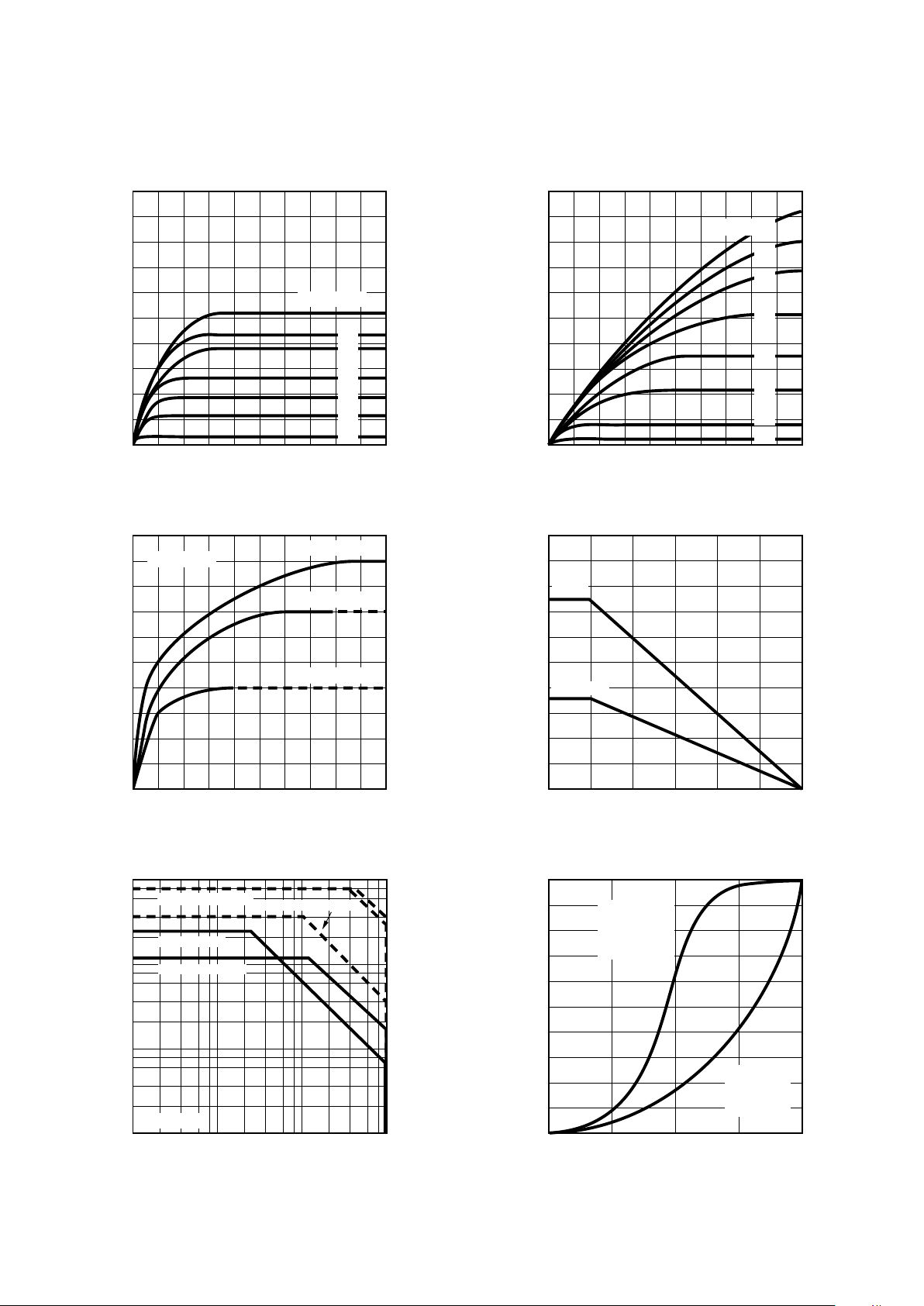

Typical Performance Curves

VP2106/VP2110

Output Characteristics

-2.0

-1.6

-1.2

-0.8

-0.4

0

Saturation Characteristics

-1.0

-0.8

-0.6

-0.4

-0.2

-0

Maximum Rated Safe Operating Area

-0.1 -100-10-1.0

-0.01

-0.1

-1.0

-0.001

Thermal Response Characteristics

Thermal Resistance (normalized)

1.0

0.8

0.6

0.4

0.2

0

0.001 100.01 0.1 1.0

Transconductance vs. Drain Current

Power Dissipation vs. Ambient Temperature

0 15010050

1.0

0.5

0

1257525

TO-236AB

VDS = 25V

TO-236AB (DC)

TO-236AB (pulsed)

TO-92 (DC)

0 -10 -20 -30 -50-40

0-2-4-6 -10-8

TO-92 (pulsed)

250

200

150

100

50

0

0 -0.2 -0.4 -0.6 -1.0-0.8

-7V

-6V

-5V

-4V

-3V

-8V

-9V

-7V

-6V

-5V

-4V

-8V

-9V

TA = 25°C

TO-236AB
P

D

= 0.36W

T

A

= 25°C

TO-92
P

D

= 1.0W

TA = 25°C

TO-92

VGS = -10V

VDS (volts)

I

D

(amperes)

I

D

(amperes)

VDS (volts)

V

GS

= -10V

G

FS

(millisiemens)

ID (amperes) TA (°C)

P

D

(watts)

TA = 125°C

T

A

= 25°C

T

A

= -55°C

VDS (volts)

I

D

(amperes)

tp (seconds)

4

1235 Bordeaux Drive, Sunnyvale, CA 94089

TEL: [phone] • FAX: [phone]

www.supertex.com

11/12/01

©2001 Supertex Inc. All rights reserved. Unauthorized use or reproduction prohibited.

VP2106/VP2110

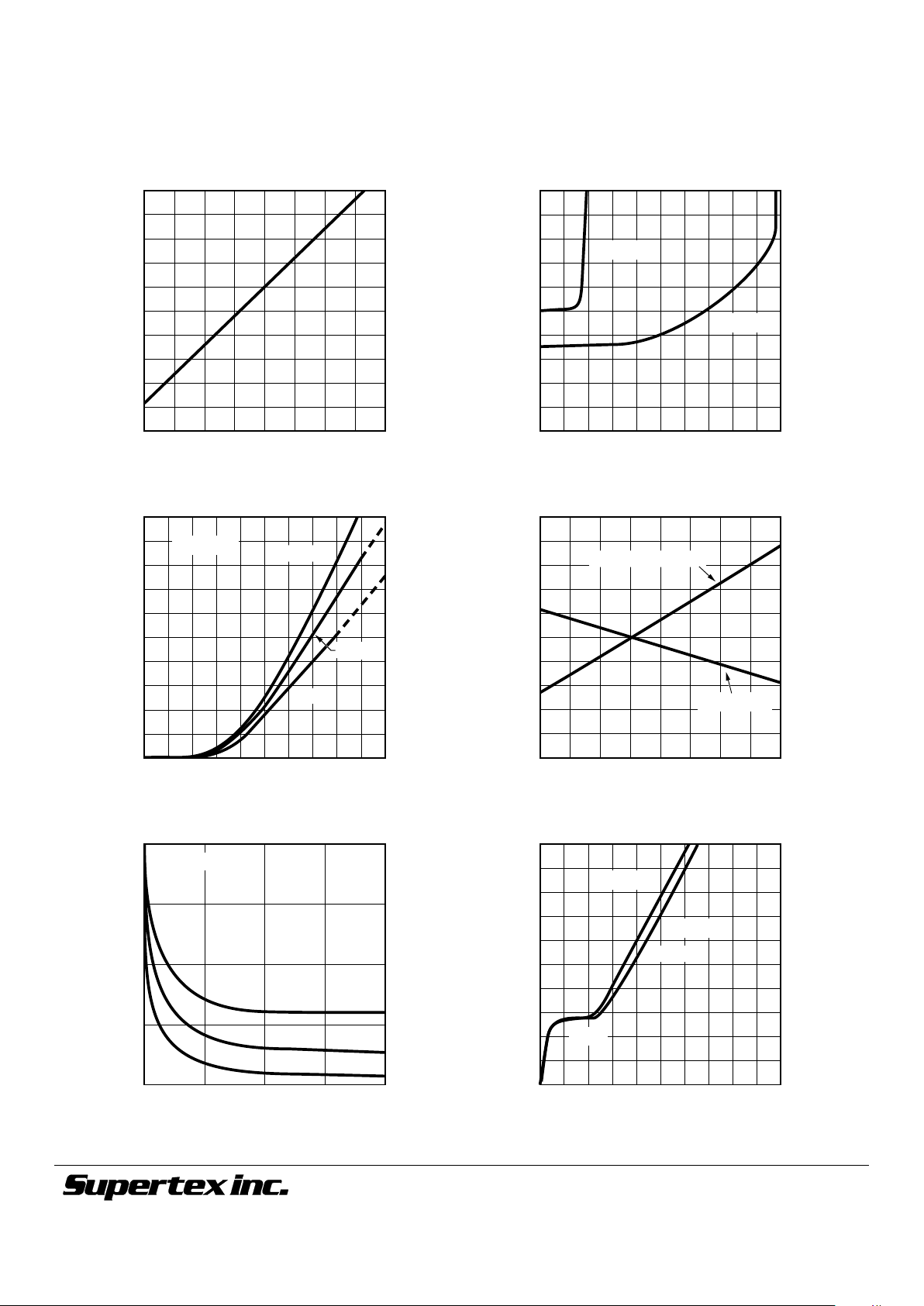

Typical Performance Curves

Gate Drive Dynamic Characteristics

On-Resistance vs. Drain Current

Transfer Characteristics

Capacitance vs. Drain-to-Source Voltage

100

75

50

25

0

C (picofarads)

0 -10 -20 -30 -40

0-2-4-6-8-10

-1.0

-0.8

-0.6

-0.4

-0.2

0

-50 0 50 100 150

-1.1

-1.0

20

16

12

8

4

0

1.4

1.2

1.0

0.8

0.6

-10

-8

-6

-4

-2

0

-50 0 50 100 150

35 pF

VGS = -10V

125°C

0 -0.2 -0.4 -0.6 -1.0-0.8

f = 1MHz

C

ISS

C

OSS

C

RSS

-0.9

101 pF

2.0

1.6

1.2

0.8

0.4

0

V

(th)

@ 1mA

R

DS(ON)

@ -10V, 0.5A

25°C

0

1.0 2.0

R

DS(ON)

(ohms)

BV

DSS

(normalized)

Tj (°C)

I

D

(amperes)

BV

DSS

Variation with Temperature

VGS = -5V

Tj (°C)

V

GS(th)

(normalized)

V

(th)

and RDS Variation with Temperature

V

GS

(volts)

I

D

(amperes)

R

DS(ON)

(normalized)

VDS = -25V

T

A

= -55

°C

QG (nanocoulombs)

V

GS

(volts)

VDS (volts)

V

DS

= -40V

V

DS

= -10V
