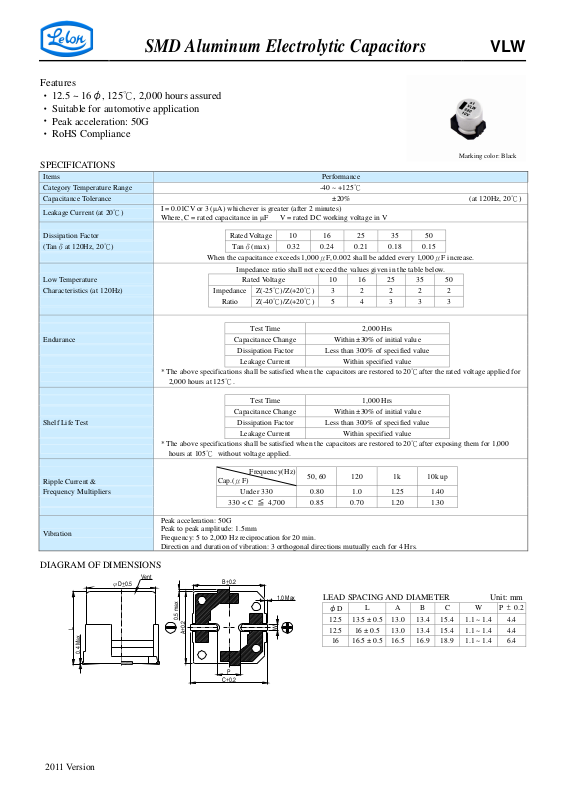

SMD Aluminum Electrolytic Capacitors
Features
‧
12.5 ~ 16φ, 125℃, 2,000 hours assured
‧
Suitable for automotive application
‧
Peak acceleration: 50G
‧
RoHS Compliance
SPECIFICATIONS
Items Performance
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Dissipation Factor
(Tanδat 120Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Endurance
Shelf Life Test
Ripple Current &
Frequency Multipliers
Vibration
Frequency(Hz)
DIAGRAM OF DIMENSIONS
φD±
Vent
0.5
L
0.4 Max
I = 0.01CV or 3 (µA) whichever is greater (after 2 minutes)
Where, C = rated capacitance in µF V = rated DC working voltage in V
Rated Voltage 10 16 25 35 50
Tanδ(max)
When the capacitance exceeds 1,000μF, 0.002 shall be added every 1,000μF increase.
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage 10 16 25 35 50
Impedance
Ratio
* The above specifications shall be satisfied when the capacitors are restored to 20℃after the rated voltage applied for
2,000 hours at 125℃.
* The above specifications shall be satisfied when the capacitors are restored to 20℃after exposing them for 1,000
hours at 105℃ without voltage applied.
Cap.(μF)
Peak acceleration: 50G
Peak to peak amplitude: 1.5mm
Frequency: 5 to 2,000 Hz reciprocation for 20 min.
Direction and duration of vibration: 3 orthogonal directions mutually each for 4 Hrs.
B±0.2
0.5 max
0.2
±
A
C±0.2
Z(-25℃)/Z(+20℃)
Z(-40℃)/Z(+20℃)
Test Time 2,000 Hrs
Capacitance Change Within ±30% of initial value
Dissipation Factor Less than 300% of specified value
Leakage Current Within specified value
Test Time 1,000 Hrs
Capacitance Change Within ±30% of initial value
Dissipation Factor Less than 300% of specified value
Leakage Current Within specified value
Under 330 0.80 1.0 1.25 1.40
330 < C ≦ 4,700
P
0.32 0.24 0.21 0.18 0.15
1.0 Max
W
-40 ~ +125℃
±20% (at 120Hz, 20℃)
3 2 2 2 2
5 4 3 3 3
50, 60 120 1k 10k up
0.85 0.70 1.20 1.30
LEAD SPACING AND DIAMETER Unit: mm
φD
12.5 13.5 ± 0.5 13.0 13.4 15.4 1.1 ~ 1.4 4.4
12.5 16 ± 0.5 13.0 13.4 15.4 1.1 ~ 1.4 4.4
16 16.5 ± 0.5 16.5 16.9 18.9 1.1 ~ 1.4 6.4
Marking color: Black
L A B C W
VLW
P ± 0.2
2011 Version
Page 2
Contents
mA
mA
mA
mA
mA
SMD Aluminum Electrolytic Capacitors
MARKING
φ
D ≧ 12.5mm
Negative
polarity
a 1
VLW
680
10 V
Dimension: φD × L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT
V. DC
µF
100 101
220 221
330 331
470 471 12.5×13.5 500 12.5×13.5 500 12.5×13.5 500 16×16.5 680 16×16.5 680
680 681 12.5×13.5 500 12.5×13.5 500 12.5×16 600 16×16.5 680
1,000 102 12.5×16 600 12.5×16 600 16×16.5 680
1,500 152 12.5×16 600 16×16.5 680
2,200 222 16×16.5 680
10V (1A) 16V (1C) 25V (1E) 35V (1V) 50V (1H)
φD×L
12.5×13.5 380
12.5×13.5 380 12.5×16 430
12.5×13.5 500 12.5×13.5 500 16×16.5 680 16×16.5 680
Date code
Series
name
Rated cap.
Rated
voltage
Ripple Current: mA/rms at 120 Hz, 125°C
φD×L
φD×L
φD×L
φD×L
VLW
2011 Verison
