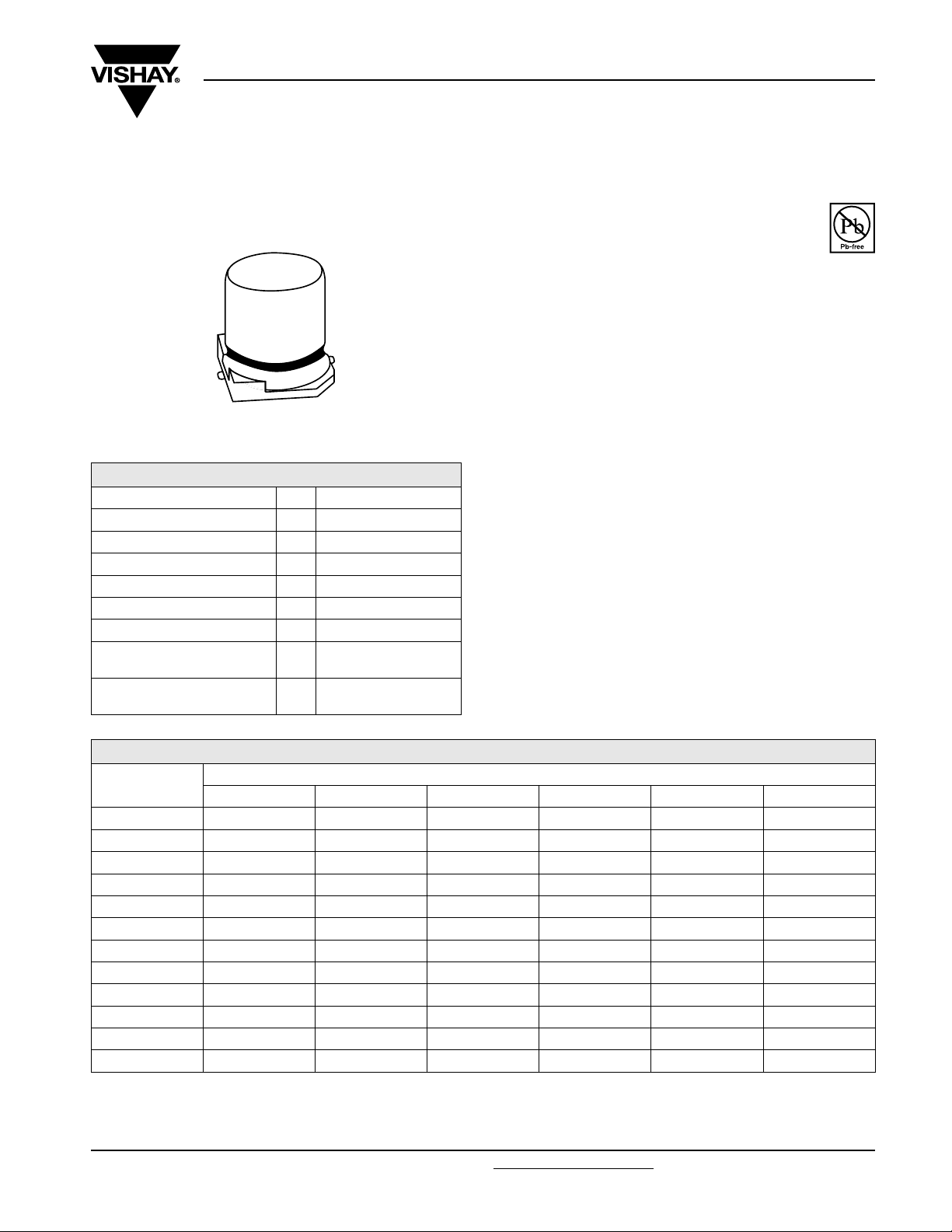

Aluminum Capacitors

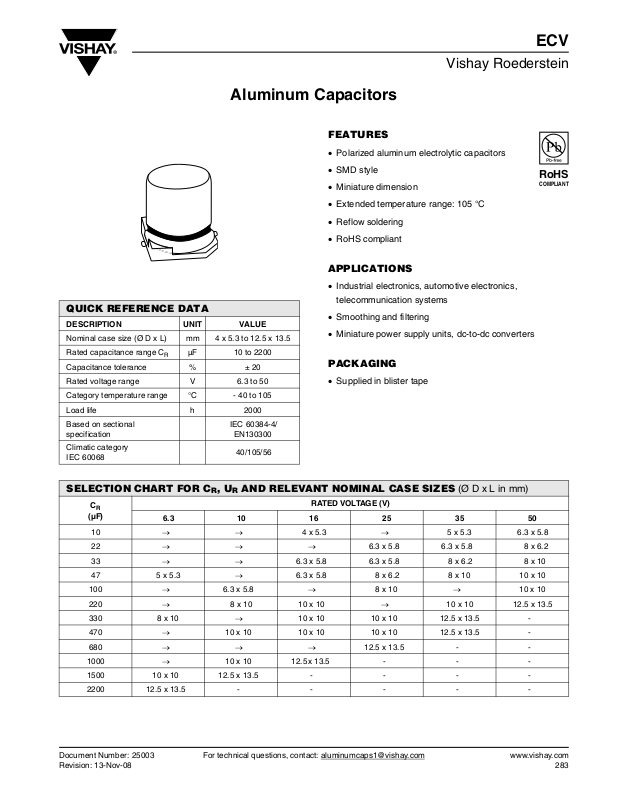

QUICK REFERENCE DATA

DESCRIPTION UNIT VALUE

Nominal case size (Ø D x L) mm 4 x 5.3 to 12.5 x 13.5

Rated capacitance range C

Capacitance tolerance % ± 20

Rated voltage range V 6.3 to 50

Category temperature range °C - 40 to 105

Load life h 2000

Based on sectional specification

Climatic category IEC 60068

µF 10 to 2200

IEC 60384-4/

EN130300

40/105/56

Vishay Roederstein

FEATURES

• Polarized aluminum electrolytic capacitors

• SMD style

• Miniature dimension

• Extended temperature range: 105 °C

• Reflow soldering

• RoHS compliant

APPLICATIONS

• Industrial electronics, automotive electronics,

telecommunication systems

• Smoothing and filtering

• Miniature power supply units, dc-to-dc converters

PACKAGING

• Supplied in blister tape

ECV

RoHS

COMPLIANT

SELECTION CHART FOR CR, UR AND RELEVANT NOMINAL CASE SIZES (Ø D x L in mm)

(µF)

10 →→4 x 5.3 → 5 x 5.3 6.3 x 5.8

22 →→→6.3 x 5.8 6.3 x 5.8 8 x 6.2

33 →→6.3 x 5.8 6.3 x 5.8 8 x 6.2 8 x 10

47 5 x 5.3 → 6.3 x 5.8 8 x 6.2 8 x 10 10 x 10

100 → 6.3 x 5.8 → 8 x 10 → 10 x 10

220 → 8 x 10 10 x 10 → 10 x 10 12.5 x 13.5

330 8 x 10 → 10 x 10 10 x 10 12.5 x 13.5 -

470 → 10 x 10 10 x 10 10 x 10 12.5 x 13.5 -

680 →→→12.5 x 13.5 - -

1000 → 10 x 10 12.5 x 13.5 - - -

1500 10 x 10 12.5 x 13.5 - - - -

2200 12.5 x 13.5 - - - - -

Document Number: 25003 For technical questions, contact: [email protected] Revision: 13-Nov-08 283

6.31016253550

RATED VOLTAGE (V)

www.vishay.com

Page 2

ECV

Vishay Roederstein

Aluminum Capacitors

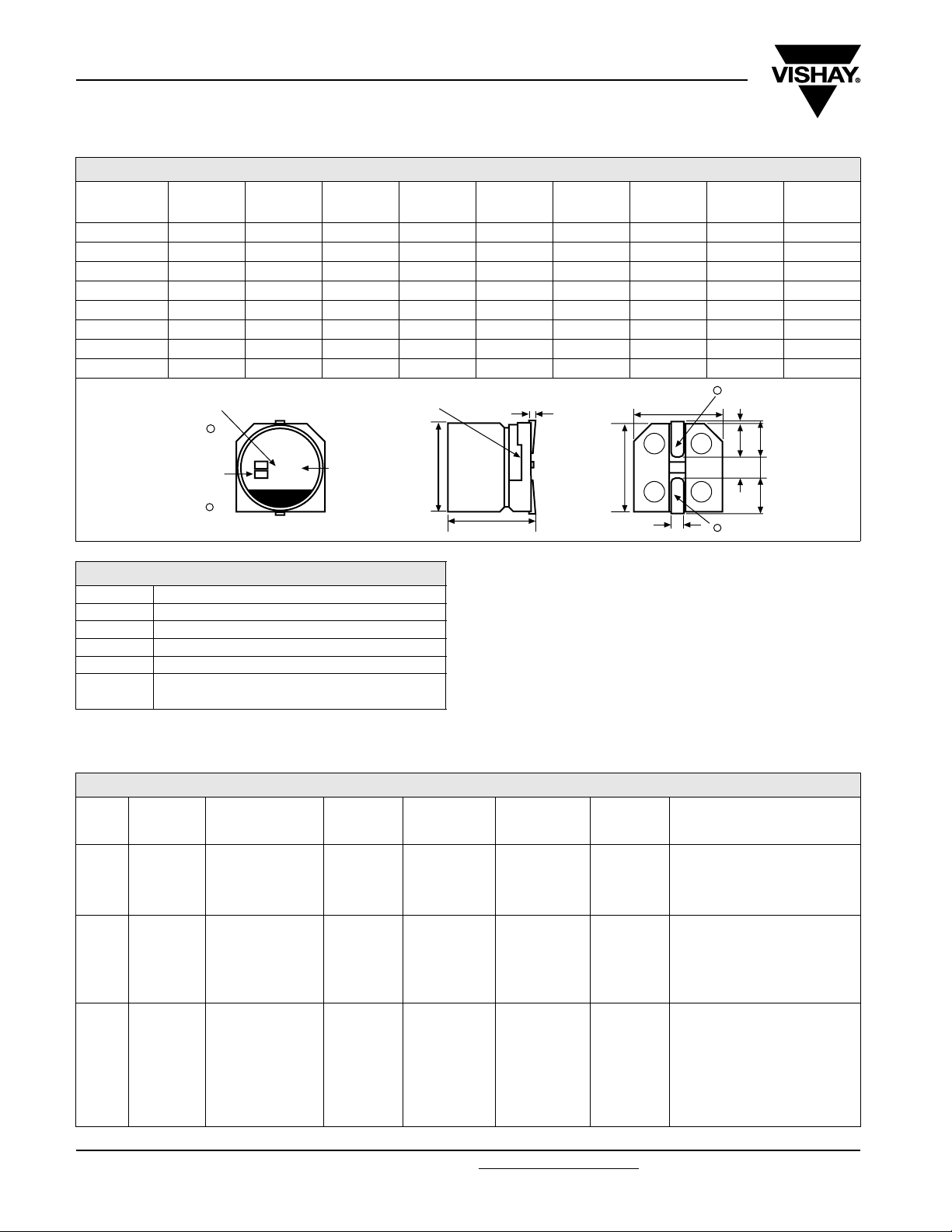

DIMENSIONS in millimeters

CASE SIZE

CODE

BB 4 ± 0.5 5.3 ± 0.2 1.9 ± 0.2 4.3 ± 0.2 4.3 ± 0.2 1.0 ± 0.2 0.5 ~ 0.8 0.3 0.5

BC 5 ± 0.5 5.3 ± 0.2 2.3 ± 0.2 5.3 ± 0.2 5.3 ± 0.2 1.4 ± 0.2 0.5 ~ 0.8 0.3 0.5

AD 6.3 ± 0.5 5.8 ± 0.3 2.4 ± 0.2 6.6 ± 0.2 6.6 ± 0.2 2.2 ± 0.2 0.5 ~ 0.8 0.3 0.5

BM 6.3 ± 0.5 7.7 ± 0.4 2.4 ± 0.2 6.6 ± 0.2 6.6 ± 0.2 2.2 ± 0.2 0.5 ~ 0.8 0.3 0.5

AE 8 ± 0.5 6.2 ± 0.4 3.3 ± 0.2 8.3 ± 0.2 8.3 ± 0.2 2.3 ± 0.2 0.5 ~ 0.8 0.3 0.5

AF 8 ± 0.5 10 ± 0.5 2.9 ± 0.2 8.3 ± 0.2 8.3 ± 0.2 3.1 ± 0.2 0.8 ~ 1.1 0.3 0.5

AG 10 ± 0.5 10 ± 0.5 3.2 ± 0.2 10.3 ± 0.2 10.3 ± 0.2 4.5 ± 0.2 0.8 ~ 1.1 0.3 0.5

AH 12.5 ± 0.5 13.5 ± 0.5 4.6 ± 0.2 12.8 ± 0.2 12.8 ± 0.2 4.5 ± 0.2 1.1 ~ 1.4 0.3 0.5

D ± α L ± α A ± α B ± α C ± α E ± α RNP

Capacitance

Lot no.

L ± α

N max.

C ± α

B ± α

Plastic plateform

Voltage

22 A

Ø D ± α

Positive P max.

E ± α

Negative

A ± α

ELECTRICAL DATA

ORDERING EXAMPLE

SYMBOL DESCRIPTION U

tan δ max. dissipation factor at 120 Hz R

ESR

rated voltage rated capacitance at 120 Hz

max. equivalent series resistance at 120 Hz

rated alternating current at 120 Hz and upper catagory temperature

ECV 220 µF/35 V, ± 20 %, size 10 x 10 mm

Ordering code: MALSECV00AG322FARK

For Standard Packaging Quantity (SPQ) and Minimum Order Quantity (MOQ) please refer to our price list or contact customer service.

Note

Unless otherwise specified, all electrical values apply at

=20°C, P = 86 to 106 kPa, RH = 45 to 75 %.

amb

ELECTRICAL DATA AND ORDERING INFORMATION

U (V)

120 Hz

(µF)

DIMENSIONS

DxL (mm)

tan δ

120 Hz

47 5 x 5.3 0.22 6.21 36 0.17 MALSECV00BC247BARK

6.3

330 8 x 10 0.28 1.13 288 1.00 MALSECV00AF333BARK 1500 10 x 10 0.28 0.25 560 1.21 MALSECV00AG415BARK 2200 12.5 x 13.5 0.28 0.17 730 2.00 MALSECV00AH422BARK

100 6.3 x 5.8 0.19 2.52 60 0.30 MALSECV00AD310CARK

220 8 x 10 0.24 1.45 173 1.00 MALSECV00AF322CARK

470 10 x 10 0.24 0.68 351 1.21 MALSECV00AG347CARK 1000 10 x 10 0.24 0.32 550 1.21 MALSECV00AG410CARK 1500 12.5 x 13.5 0.24 0.21 650 2.00 MALSECV00AH415CARK

10 4 x 5.3 0.16 21.22 17 0.12 MALSECV00BB210DARK 33 6.3 x 5.8 0.16 6.43 40 0.30 MALSECV00AD233DARK 47 6.3 x 5.8 0.16 4.52 50 0.30 MALSECV00AD247DARK

220 10 x 10 0.20 1.21 330 1.21 MALSECV00AG322DARK

330 10 x 10 0.20 0.80 441 1.21 MALSECV00AG333DARK

470 10 x 10 0.20 0.56 489 1.21 MALSECV00AG347DARK 1000 12.5 x 13.5 0.20 0.27 600 2.00 MALSECV00AH410DARK

www.vishay.com For technical questions, contact: [email protected] 284 Revision: 13-Nov-08

ESR

120 Hz/20 °C

(Ω)

120 Hz/105 °C

(mA)

WEIGHT

(g)

CATALOG NUMBER

Document Number: 25003

Page 3

ECV

Aluminum Capacitors

ELECTRICAL DATA AND ORDERING INFORMATION

(V)

120 Hz

(µF)

DIMENSIONS

DxL (mm)

tan δ

120 Hz

22 6.3 x 5.8 0.14 8.44 38 0.30 MALSECV00AD222EARK 33 6.3 x 5.8 0.14 5.63 48 0.30 MALSECV00AD233EARK

47 8 x 6.2 0.16 4.52 79 0.55 MALSECV00AE247EARK 100 8 x 10 0.16 2.12 181 1.00 MALSECV00AF310EARK 330 10 x 10 0.16 0.64 372 1.21 MALSECV00AG333EARK 470 10 x 10 0.16 0.45 450 1.21 MALSECV00AG347EARK 680 12.5 x 13.5 0.16 0.31 500 2.00 MALSECV00AH368EARK

10 5 x 5.3 0.12 15.92 24 0.17 MALSECV00BC210FARK

22 6.3 x 5.8 0.12 7.23 42 0.30 MALSECV00AD222FARK

33 8 x 6.2 0.13 5.22 76 0.55 MALSECV00AE233FARK

47 8 x 10 0.13 3.67 124 1.00 MALSECV00AF247FARK 220 10 x 10 0.13 0.78 450 1.21 MALSECV00AG322FARK 330 12.5 x 13.5 0.13 0.52 500 2.00 MALSECV00AH333FARK 470 12.5 x 13.5 0.13 0.37 600 2.00 MALSECV00AH347FARK

10 6.3 x 5.8 0.10 13.26 30 0.30 MALSECV00AD210HARK

22 8 x 6.2 0.12 7.23 67 0.55 MALSECV00AE222HARK

33 8 x 10 0.12 4.82 133 1.00 MALSECV00AF233HARK

47 10 x 10 0.12 3.39 180 1.21 MALSECV00AG247HARK 100 10 x 10 0.12 1.59 310 1.21 MALSECV00AG310HARK 220 12.5 x 13.5 0.12 0.72 480 2.00 MALSECV00AH322HARK

ESR

120 Hz/20 °C

(Ω)

120 Hz/105 °C

(mA)

WEIGHT

(g)

Vishay Roederstein

CATALOG NUMBER

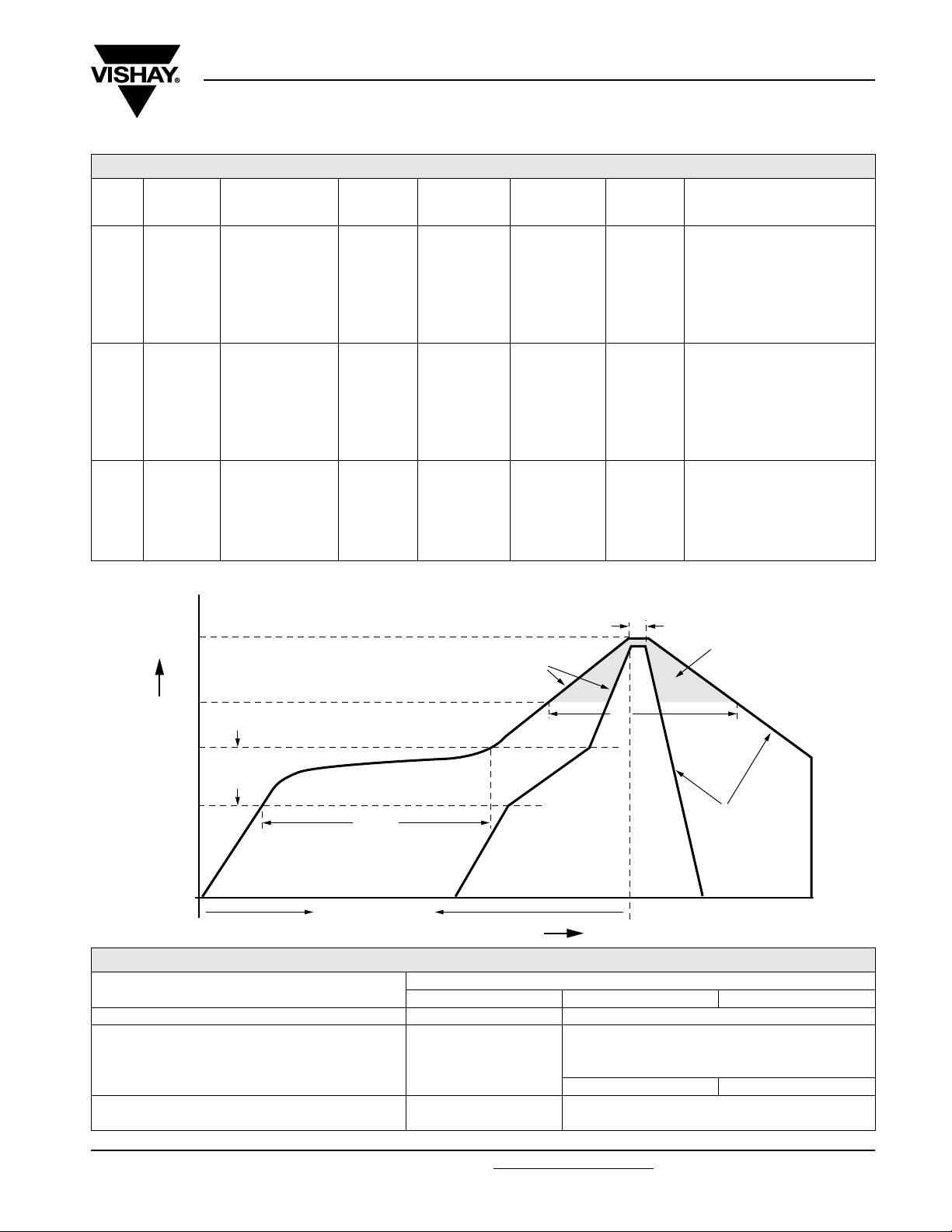

REFLOW SOLDERING CONDITIONS FOR SMD ALUMINUM ELECTROLYTIC CAPACITORS

Ramp-up

max.

Temperature

min.

Preheat

Critical Zone T

to T

Ramp-down

t 25 °C to Peak

Time

PROFILE FEATURE

SOLDERING CONDITION

Ø 4 ~ Ø 10 Ø 12.5 Ø 16

Average ramp-up rate (T

to T

Preheat Temperature min. (T Temperature max. (T Time (T T

min. to Ts max.) 60 ~ 150 s 40 ~ 120 s 40 ~ 100 s

max. to T

min.) 150 °C 150 °C

max.) 200 °C 200 °C

Ramp-up rate 3 °C/s max. 3 °C/s max.

Document Number: 25003 For technical questions, contact: [email protected] Revision: 13-Nov-08 285

3 °C/s max. 3 °C/s max.

www.vishay.com

Page 4

ECV

Vishay Roederstein

Aluminum Capacitors

PROFILE FEATURE

Time maintained above Temperature (T Time (t

Peak/classification temperature (T Time within 5 °C of actual peak temperature (T Ramp-down rate 3 °C/s max. 3 °C/s max. Time 25 °C to peak temperature 8 min max. 8 min max.

) 217 °C 217 °C

) 60 ~ 90 s 40 ~ 60 s

) 250 °C 240 °C 230 °C

) 10 s max. 10 s max.

RESISTANCE TO SOLDERING HEAT

Leakage current

Capacitance value Within ± 10 % of initial value

tan δ Less than specified value

Less than specified value

LOW TEMPERATURE BEHAVIOR (at 120 Hz)

IMPEDANCE RATIO (Z) T2/(Z) T1

T2/T1 6.31016253550

- 25 °C/+ 20 °C 3 3 2 2 2 2

- 40 °C/+ 20 °C 8 5 4 3 3 3

RATED VOLTAGE (V)

ADDITIONAL ELECTRICAL DATA

PARAMETER CONDITIONS VALUE

Current

Leakage current (Test conditions: U

Resistance

Equivalent series resistance (ESR)

, 20 °C)

After 2 minutes at U

Calculated from tan δ

max.

IL2 ≤ 0.01 x CR x URor 3 µA for UR ≤ 100 V (whichever is greater)

ESR = tan δ/2 π f C

MULTIPLIER OF RIPPLE CURRENT (IR) AS A FUNCTION OF FREQUENCY

FREQUENCY (Hz) IR MULTIPLIER FOR UR ≤ 100 V

50 0.70

120 1.00

300 1.17

1000 1.36

≥ 10 000 1.50

TEST PROCEDURES AND REQUIREMENTS

TEST PROCEDURE (QUICK REFERENCE) REQUIREMENTS

Load life

Shelf life

= 105 °C

amb

and IR applied

After 2000 h

No voltage applied After 1000 h After test: U 24 to 48 h before measurement

to be applied for 30 min

ΔC/C: ± 20 % of initial value IL ≤ spec. limit tan δ ≤ 2 x spec. limit

ΔC/C: ± 20 % of initial value

≤ spec. limit

tan δ ≤ 2 x spec. limit

www.vishay.com For technical questions, contact: [email protected] 286 Revision: 13-Nov-08

Document Number: 25003

Page 5
