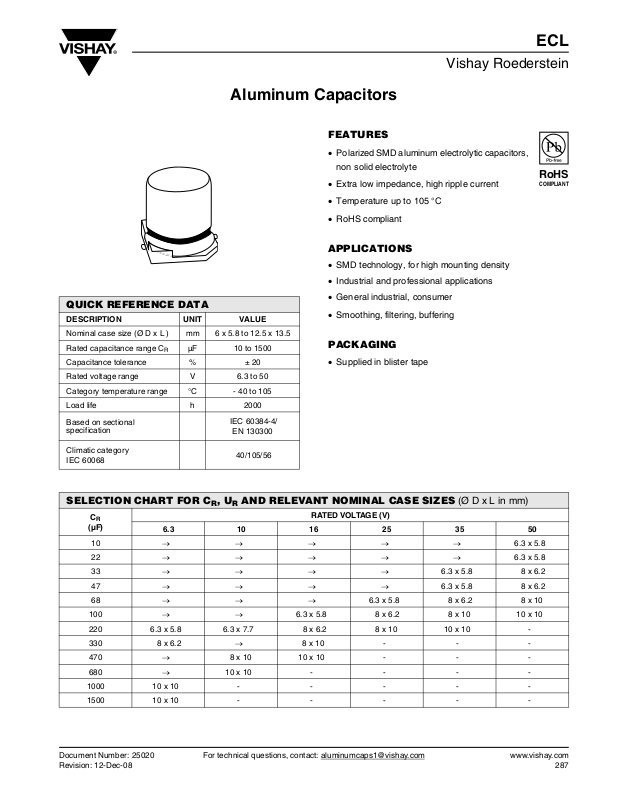

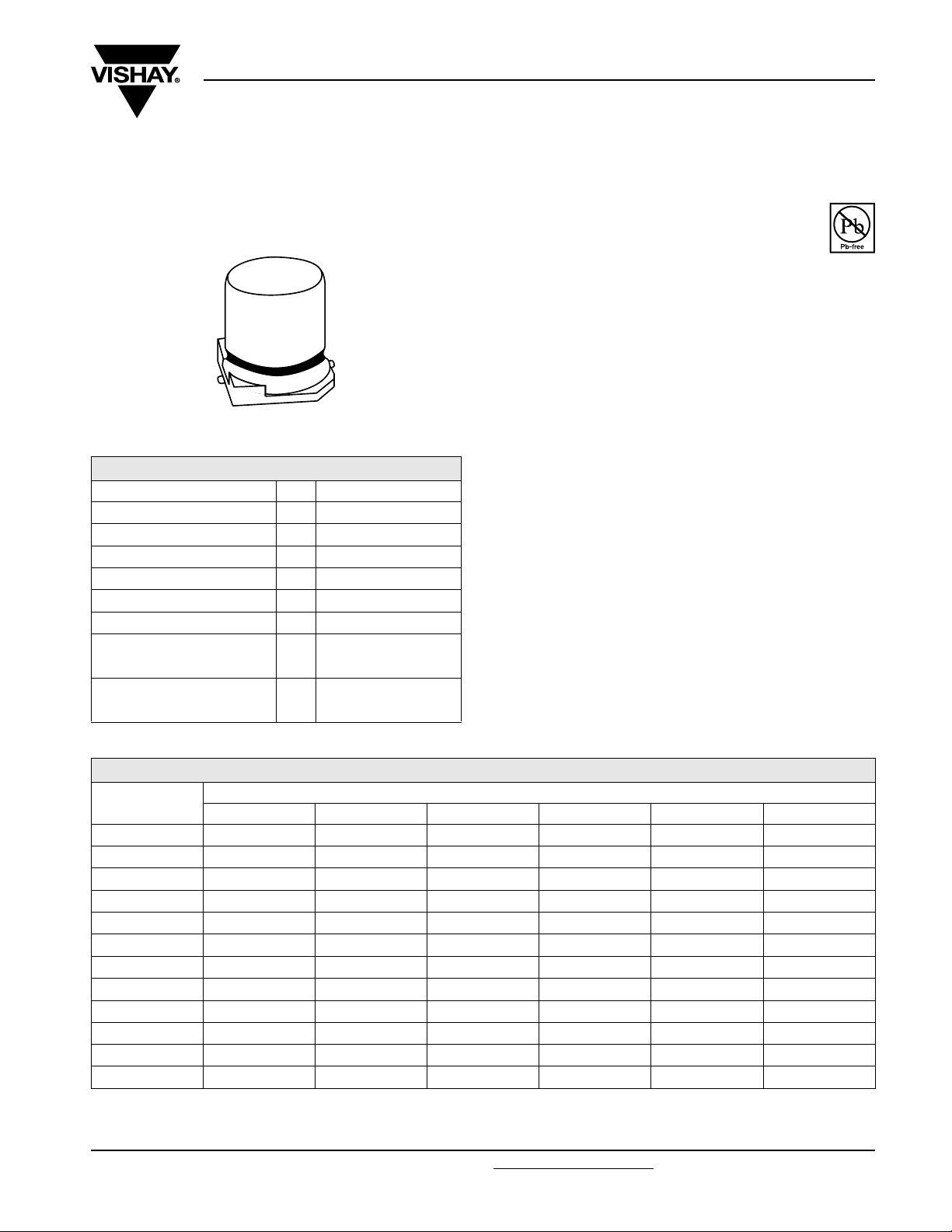

Page 1
Aluminum Capacitors
QUICK REFERENCE DATA
DESCRIPTION UNIT VALUE
Nominal case size (Ø D x L ) mm 6 x 5.8 to 12.5 x 13.5
Rated capacitance range C
Capacitance tolerance % ± 20
Rated voltage range V 6.3 to 50
Category temperature range °C - 40 to 105
Load life h 2000
Based on sectional
specification
µF 10 to 1500
R
IEC 60384-4/
EN 130300
Vishay Roederstein
FEATURES
• Polarized SMD aluminum electrolytic capacitors,
non solid electrolyte
• Extra low impedance, high ripple current
• Temperature up to 105 °C
• RoHS compliant
APPLICATIONS
• SMD technology, for high mounting density
• Industrial and professional applications
• General industrial, consumer
• Smoothing, filtering, buffering
PACKAGING
• Supplied in blister tape
ECL
RoHS
COMPLIANT
Climatic category
IEC 60068
40/105/56
SELECTION CHART FOR CR, UR AND RELEVANT NOMINAL CASE SIZES (Ø D x L in mm)
C
R
(µF)
10 →→→→→6.3 x 5.8
22 →→→→→6.3 x 5.8
33 →→→→6.3 x 5.8 8 x 6.2
47 →→→→6.3 x 5.8 8 x 6.2
68 →→→6.3 x 5.8 8 x 6.2 8 x 10
100 →→6.3 x 5.8 8 x 6.2 8 x 10 10 x 10
220 6.3 x 5.8 6.3 x 7.7 8 x 6.2 8 x 10 10 x 10 -
330 8 x 6.2 → 8 x 10 - - -
470 → 8 x 10 10 x 10 - - -
680 → 10 x 10 - - - -
1000 10 x 10 - - - - -
1500 10 x 10 - - - - -
6.31016253550
RATED VOLTAGE (V)
www.vishay.com

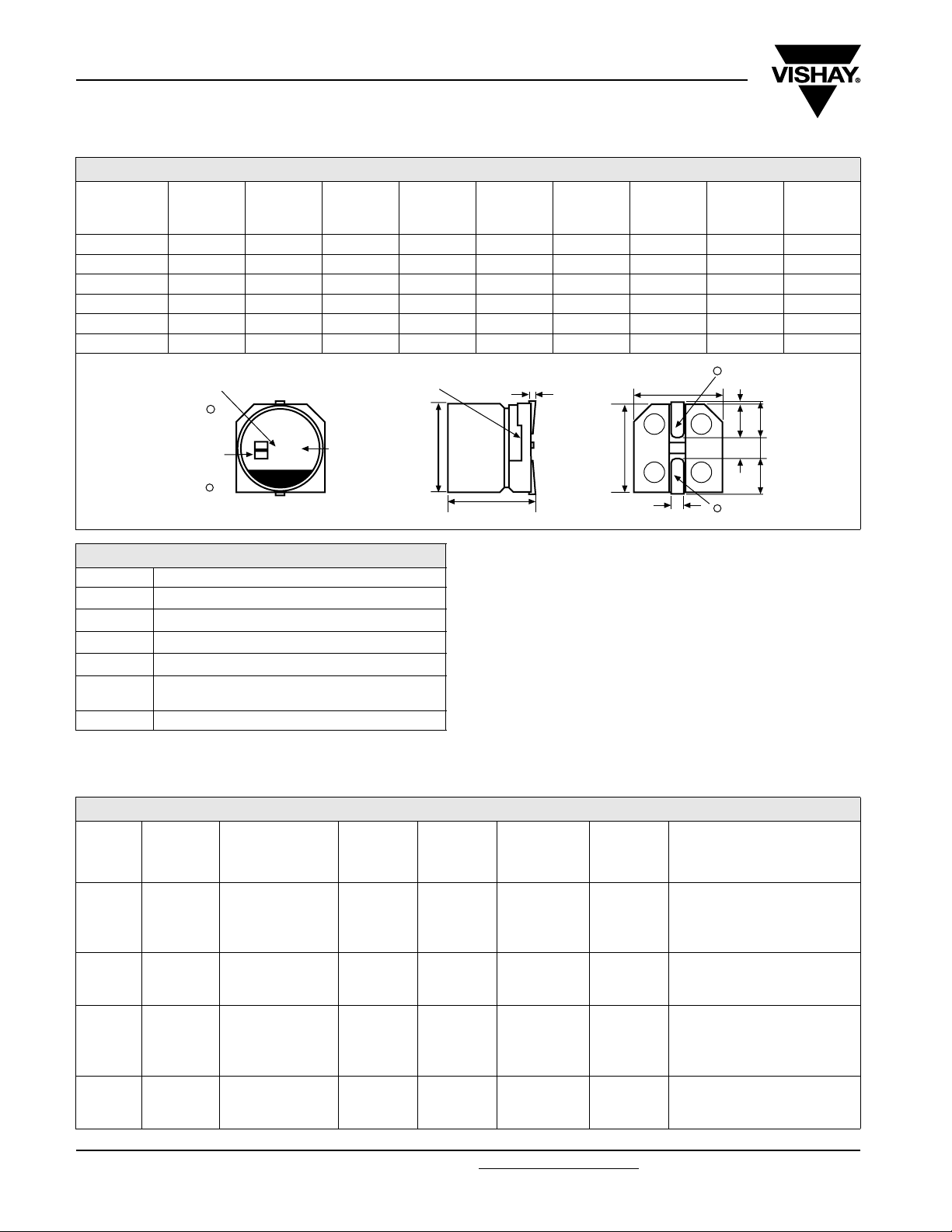

Page 2
ECL
Vishay Roederstein
Aluminum Capacitors
DIMENSIONS in millimeters
CASE SIZE
CODE
AD 6.3 ± 0.5 5.8 ± 0.3 2.4 ± 0.2 6.6 ± 0.2 6.6 ± 0.2 2.2 ± 0.2 0.5 ~ 0.8 0.3 0.5
BM 6.3 ± 0.5 7.7 ± 0.4 2.4 ± 0.2 6.6 ± 0.2 6.6 ± 0.2 2.2 ± 0.2 0.5 ~ 0.8 0.3 0.5
AE 8 ± 0.5 6.2 ± 0.4 3.3 ± 0.2 8.3 ± 0.2 8.3 ± 0.2 2.3 ± 0.2 0.5 ~ 0.8 0.3 0.5
AF 8 ± 0.5 10 ± 0.5 2.9 ± 0.2 8.3 ± 0.2 8.3 ± 0.2 3.1 ± 0.2 0.8 ~ 1.1 0.3 0.5
AG 10 ± 0.5 10 ± 0.5 3.2 ± 0.2 10.3 ± 0.2 10.3 ± 0.2 4.5 ± 0.2 0.8 ~ 1.1 0.3 0.5
AH 12.5 ± 0.5 13.5 ± 0.5 4.6 ± 0.2 12.8 ± 0.2 12.8 ± 0.2 4.5 ± 0.2 1.1 ~ 1.4 0.3 0.5
D ± α L ± α A ± α B ± α C ± α E ± α RNP
+
Capacitance
Lot no.
L ± α
N max.
C ± α
B ± α
R
Plastic plateform
+
Voltage
50
22 A
-
Ø D ± α
Positive
P max.
E ± α
-
Negative
A ± α
A ± α
ELECTRICAL DATA
SYMBOL DESCRIPTION
U
R
C
R
tan δ max. dissipation factor at 120 Hz
R
ESR
I
R
rated voltage
rated capacitance at 120 Hz
max. equivalent series resistance at 120 Hz
rated alternating current at 120 Hz and upper
catagory temperature
ORDERING EXAMPLE
ECL 22 µF/50 V, ± 20 %, size 6.3 x 5.8 mm
Ordering code: MALSECL00AD222HARK
For Standard Packaging Quantity (SPQ) and Minimum Order
Quantity (MOQ) please refer to our price list or contact
customer service.
Z max. impedance at 100 kHz
Note
Unless otherwise specified, all electrical values apply at
T
=20°C, P = 86 to 100 kPa, RH = 45 to 75 %.
amb
ELECTRICAL DATA AND ORDERING INFORMATION
U
(V)
C
R
R
120 Hz
(µF)
DIMENSIONS
DxL
(mm)
tan δ
120 Hz
Z
100 kHz/
20 °C
(Ω)
220 6.3 x 5.8 0.24 0.44 230 0.30 MALSECL00AD322BARK
6.3
330 8 x 6.2 0.24 0.26 300 0.55 MALSECL00AE333BARK
1000 10 x 10 0.24 0.09 670 1.21 MALSECL00AG410BARK
1500 10 x 10 0.24 0.09 670 1.21 MALSECL00AG415BARK
220 6.3 x 7.7 0.19 0.34 280 0.40 MALSECL00BM322CARK
10
470 8 x 10 0.19 0.17 450 1.00 MALSECL00AF347CARK
680 10 x 10 0.19 0.09 670 1.21 MALSECL00AG368CARK
100 6.3 x 5.8 0.16 0.44 230 0.30 MALSECL00AD310DARK
16
220 8 x 6.2 0.16 0.26 300 0.55 MALSECL00AE322DARK
330 8 x 10 0.16 0.17 450 1.00 MALSECL00AF333DARK
470 10 x 10 0.16 0.09 670 1.21 MALSECL00AG347DARK
68 6.3 x 5.8 0.14 0.44 230 0.30 MALSECL00AD268EARK
25
100 8 x 6.2 0.14 0.26 300 0.55 MALSECL00AE310EARK
220 8 x 10 0.14 0.17 450 1.00 MALSECL00AF322EARK
I
R
100 kHz/
105 °C
(mA)
WEIGHT
(g)
CATALOG NUMBER
Document Number: 25020

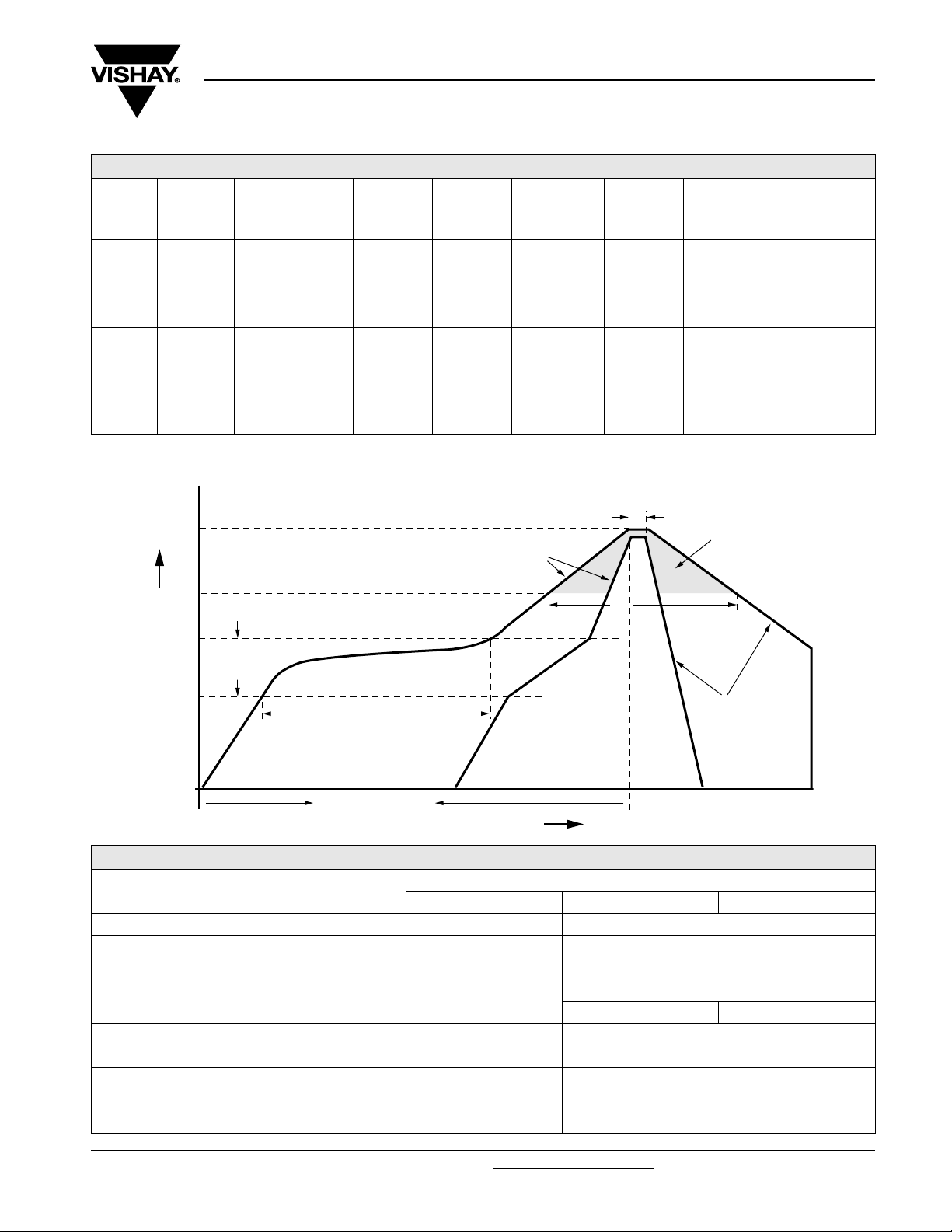

Page 3
ECL
Aluminum Capacitors
Vishay Roederstein
ELECTRICAL DATA AND ORDERING INFORMATION
U
(V)
35
50
C
R
R
120 Hz
(µF)
DIMENSIONS
DxL
(mm)
tan δ
120 Hz
Z
100 kHz/
20 °C
(Ω)
33 6.3 x 5.8 0.12 0.44 230 0.30 MALSECL00AD233FARK
47 6.3 x 5.8 0.12 0.44 230 0.30 MALSECL00AD247FARK
68 8 x 6.2 0.12 0.26 300 0.55 MALSECL00AE268FARK
100 8 x 10 0.12 0.17 450 1.00 MALSECL00AF310FARK
220 10 x 10 0.12 0.09 670 1.21 MALSECL00AG322FARK
10 6.3 x 5.8 0.12 0.88 165 0.30 MALSECL00AD210HARK
22 6.3 x 5.8 0.12 0.88 165 0.30 MALSECL00AD222HARK
33 8 x 6.2 0.12 0.63 300 0.55 MALSECL00AE233HARK
47 8 x 6.2 0.12 0.63 300 0.55 MALSECL00AE247HARK
68 8 x 10 0.12 0.34 450 1.00 MALSECL00AF268HARK
100 10 x 10 0.12 0.18 670 1.21 MALSECL00AG310HARK
I
R
100 kHz/
105 °C
(mA)
WEIGHT
(g)
CATALOG NUMBER
REFLOW SOLDERING CONDITIONS FOR SMD ALUMINUM ELECTROLYTIC CAPACITORS
t
T
P
Ramp-up
P
Critical Zone
T
to T
L
P
T
L
T
max.
s
Temperature
min.
T
s
t
s
Preheat
t
L
Ramp-down
t 25 °C to Peak
Time
PROFILE FEATURE
SOLDERING CONDITION
Ø 4 ~ Ø 10 Ø 12.5
Average ramp-up rate (T
L
to T
P)
3 °C/s max. 3 °C/s max.
Preheat
Temperature min. (T
Temperature max. (T
Time (T
T
min. to Ts max.) 60 ~ 150 s 40 ~ 120 s
s
max. to T
s
L
min.) 150 °C 150 °C
s
max.) 200 °C 200 °C
s
Ramp-up rate 3 °C/s max. 3 °C/s max.
Time maintained above
Temperature (T
Time (t
L
) 217 °C 217 °C
L
) 60 ~ 90 s 40 ~ 60 s
Ø 16
40 ~ 100 s
www.vishay.com
Page 4
ECL
Vishay Roederstein
Aluminum Capacitors
PROFILE FEATURE
Peak/classification temperature (TP) 250 °C 240 °C
Time within 5 °C of actual peak temperature (T
Ramp-down rate 3 °C/s max. 3 °C/s max.
Time 25 °C to peak temperature 8 min max. 8 min max.
) 10 s max. 10 s max.
P
230 °C
RESISTANCE TO SOLDERING HEAT
Leakage current
Capacitance value Within ± 10 % of initial value
tan δ Less than specified value
Less than specified value
LOW TEMPERATURE BEHAVIOR (at 120 Hz)
IMPEDANCE RATIO
(Z) T2/(Z) T1
T2/T1 6.3101625355063100
- 25 °C/+ 20 °C 22222233
- 40 °C/+ 20 °C 33333344
RATED VOLTAGE (V)
MULTIPLIER OF RIPPLE CURRENT (IR) AS A FUNCTION OF FREQUENCY
I
FREQUENCY (Hz)
50 0.41
120 0.59
300 0.69
1000 0.80
10 000 0.88
100 000 1.00
MULTIPLIER
R
ADDITIONAL ELECTRICAL DATA
PARAMETER CONDITIONS VALUE
Current
Leakage current
(Test conditions: U
Resistance
Equivalent series resistance
(ESR)
, 20 °C)
R
After 2 minutes at U
Calculated from tan δ
R
max.
IL2 ≤ 0.01 x CR x URor 3 µA for UR ≤ 100 V (whichever is greater)
ESR = tan δ/2 π f C
R
TEST PROCEDURES AND REQUIREMENTS
TEST PROCEDURE (QUICK REFERENCE) REQUIREMENTS
Load life
Shelf life
= 105 °C
T
amb
U
and IR applied
R
After 2000 h
No voltage applied
After 1000 h
After test: U
24 to 48 h before measurement
to be applied for 30 min
R
ΔC/C: ± 25 % of initial value
IL ≤ spec. limit
tan δ ≤ 2 x spec. limit
ΔC/C: ± 25 % of initial value
≤ spec. limit
I
L
tan δ ≤ 2 x spec. limit
Document Number: 25020
