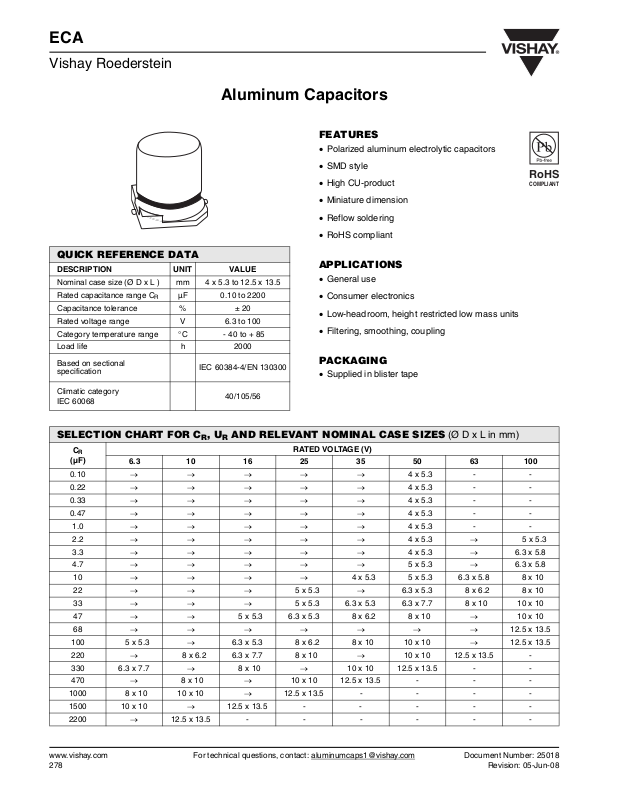

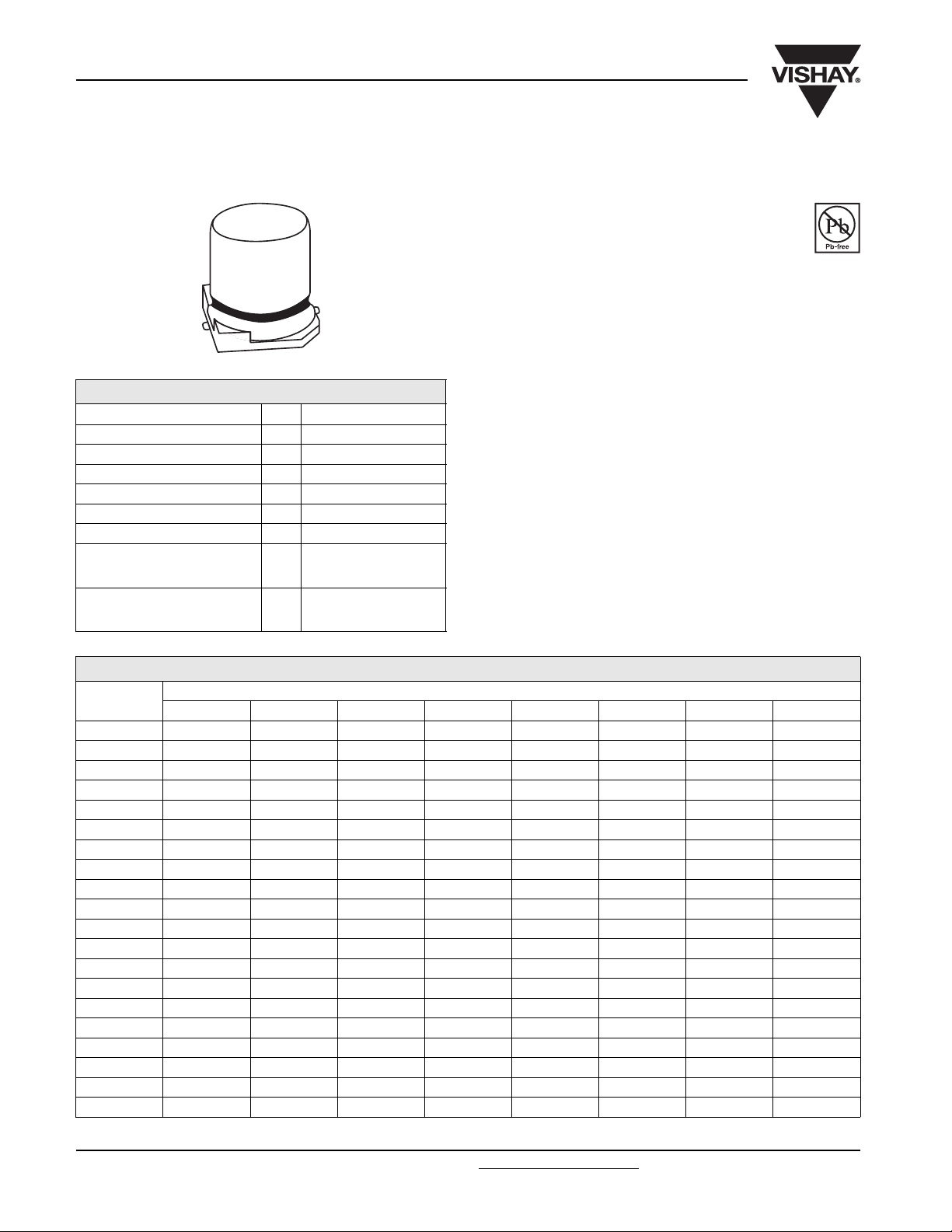

ECA
Vishay Roederstein
Aluminum Capacitors
FEATURES
• Polarized aluminum electrolytic capacitors
• SMD style
• High CU-product
• Miniature dimension
• Reflow soldering
• RoHS compliant
QUICK REFERENCE DATA
DESCRIPTION UNIT VALUE
Nominal case size (Ø D x L ) mm 4 x 5.3 to 12.5 x 13.5
Rated capacitance range C
Capacitance tolerance % ± 20
Rated voltage range V 6.3 to 100
Category temperature range °C - 40 to + 85
Load life h 2000
Based on sectional
specification
Climatic category
IEC 60068
µF 0.10 to 2200
R
IEC 60384-4/EN 130300
40/105/56
APPLICATIONS
• General use
• Consumer electronics
• Low-headroom, height restricted low mass units
• Filtering, smoothing, coupling
PACKAGING
• Supplied in blister tape
SELECTION CHART FOR CR, UR AND RELEVANT NOMINAL CASE SIZES (Ø D x L in mm)
C
R
(µF)
0.10 →→→→→4 x 5.3 - -
0.22 →→→→→4 x 5.3 - -
0.33 →→→→→4 x 5.3 - -
0.47 →→→→→4 x 5.3 - -
1.0 →→→→→4 x 5.3 - -
2.2 →→→→→4 x 5.3 → 5 x 5.3
3.3 →→→→→4 x 5.3 → 6.3 x 5.8
4.7 →→→→→5 x 5.3 → 6.3 x 5.8
10 →→→→4 x 5.3 5 x 5.3 6.3 x 5.8 8 x 10
22 →→→5 x 5.3 → 6.3 x 5.3 8 x 6.2 8 x 10
33 →→→5 x 5.3 6.3 x 5.3 6.3 x 7.7 8 x 10 10 x 10
47 →→5 x 5.3 6.3 x 5.3 8 x 6.2 8 x 10 → 10 x 10
68 →→→→→→→12.5 x 13.5
100 5 x 5.3 → 6.3 x 5.3 8 x 6.2 8 x 10 10 x 10 → 12.5 x 13.5
220 → 8 x 6.2 6.3 x 7.7 8 x 10 → 10 x 10 12.5 x 13.5 -
330 6.3 x 7.7 → 8 x 10 → 10 x 10 12.5 x 13.5 - -
470 → 8 x 10 → 10 x 10 12.5 x 13.5 - - -
1000 8 x 10 10 x 10 → 12.5 x 13.5 - - - -
1500 10 x 10 → 12.5 x 13.5 - - - - -
2200 → 12.5 x 13.5 - - - - - -
6.3101625355063100
RATED VO LTAGE (V)
RoHS
COMPLIANT
Document Number: 25018
Page 2
ECA
Aluminum Capacitors
Vishay Roederstein

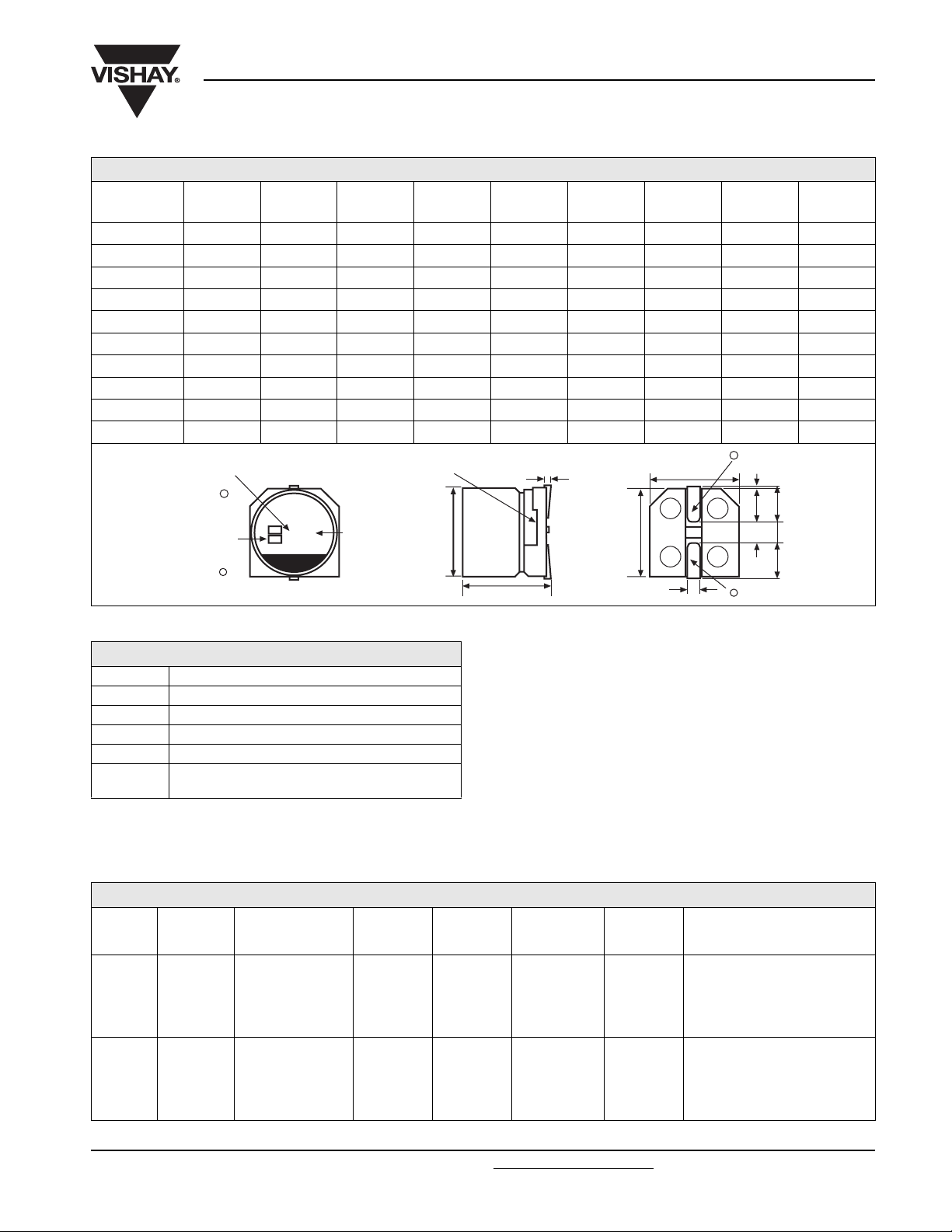

DIMENSIONS in millimeters
CASE SIZE
CODE
BB 4 ± 0.5 5.3 ± 0.2 1.9 ± 0.2 4.3 ± 0.2 4.3 ± 0.2 1.0 ± 0.2 0.5 ~ 0.8 0.3 0.5
BC 5 ± 0.5 5.3 ± 0.2 2.3 ± 0.2 5.3 ± 0.2 5.3 ± 0.2 1.4 ± 0.2 0.5 ~ 0.8 0.3 0.5
BD 6.3 ± 0.5 5.3 ± 0.3 2.4 ± 0.2 6.6 ± 0.2 6.6 ± 0.2 2.2 ± 0.2 0.5 ~ 0.8 0.3 0.5
AD 6.3 ± 0.5 5.8 ± 0.3 2.4 ± 0.2 6.6 ± 0.2 6.6 ± 0.2 2.2 ± 0.2 0.5 ~ 0.8 0.3 0.5
BM 6.3 ± 0.5 7.7 ± 0.4 2.4 ± 0.2 6.6 ± 0.2 6.6 ± 0.2 2.2 ± 0.2 0.5 ~ 0.8 0.3 0.5
AE 8 ± 0.5 6.2 ± 0.4 3.3 ± 0.2 8.3 ± 0.2 8.3 ± 0.2 2.3 ± 0.2 0.5 ~ 0.8 0.3 0.5
AF 8 ± 0.5 10 ± 0.5 2.9 ± 0.2 8.3 ± 0.2 8.3 ± 0.2 3.1 ± 0.2 0.8 ~ 1.1 0.3 0.5
AG 10 ± 0.5 10 ± 0.5 3.2 ± 0.2 10.3 ± 0.2 10.3 ± 0.2 4.5 ± 0.2 0.8 ~ 1.1 0.3 0.5
AH 12.5 ± 0.5 13.5 ± 0.5 4.6 ± 0.2 12.8 ± 0.2 12.8 ± 0.2 4.5 ± 0.2 1.1 ~ 1.4 0.3 0.5
AK 16 ± 0.5 16.5 ± 0.5 5.6 ± 0.2 16.8 ± 0.2 16.8 ± 0.2 6.5 ± 0.2 1.1 ~ 1.4 0.3 0.5
D ± α L ± α A ± α B ± α C ± α E ± α RNP
+
Capacitance
Lot no.
L ± α
N max.
C ± α
B ± α
R
Plastic plateform
+
Voltage
50
22 A
-
Ø D ± α
Positive
P max.
E ± α
-
Negative
A ± α
A ± α
ELECTRICAL DATA
SYMBOL DESCRIPTION
U
R
C
R
rated voltage
rated capacitance at 120 Hz
tan δ max. dissipation factor at 120 Hz
R
ESR
I
R
max. equivalent series resistance at 120 Hz
rated alternating current at 120 Hz and upper
catagory temperature
Note
Unless otherwise specified, all electrical values apply at
=20°C, P = 80 to 120 kPa, RH = 45 to 75 %.
T
amb
ELECTRICAL DATA AND ORDERING INFORMATION
U
(V)
6.3
10
C
R
R
120 Hz
(µF)
DIMENSIONS
DxL
(mm)
tan δ
120 Hz
100 5 x 5.3 0.28 3.71 60 0.17 MALSECA00BC310BARK
330 6.3 x 7.7 0.35 1.41 188 0.40 MALSECA00BM333BARK
1000 8 x 10 0.35 0.46 370 1.00 MALSECA00AF410BARK
1500 10 x 10 0.35 0.31 480 1.25 MALSECA00AG415BARK
220 8 x 6.2 0.24 1.45 175 0.55 MALSECA00AE322CARK
470 8 x 10 0.24 0.68 290 1.00 MALSECA00AF347CARK
1000 10 x 10 0.24 0.32 454 1.25 MALSECA00AG410CARK
2200 12.5 x 13.5 0.24 0.14 960 2.50 MALSECA00AH422CARK
R
ESR
120 Hz
(Ω)
ORDERING EXAMPLE
ECA 33 µF/25 V, ± 20 %, size 5 x 5.3 mm
Ordering code: MALSECA00BC233EARK
For Standard Packaging Quantity (SPQ) and Minimum Order
Quantity (MOQ) please refer to our price list or contact
customer service.
I
R
120 Hz/85 °C
(mA)
WEIGHT
(g)
CATALOG NUMBER
Document Number: 25018 For technical questions, contact: [email protected]
www.vishay.com
Revision: 05-Jun-08 279
Page 3
ECA
Vishay Roederstein
Aluminum Capacitors
ELECTRICAL DATA AND ORDERING INFORMATION
U
(V)
16
25
35
50
63
100
C
R
R
120 Hz
(µF)
47 5 x 5.3 0.20 5.64 52 0.17 MALSECA00BC247DARK
100 6.3 x 5.3 0.20 2.65 88 0.27 MALSECA00BD310DARK
220 6.3 x 7.7 0.24 1.45 162 0.40 MALSECA00BM322DARK
330 8 x 10 0.24 0.96 270 1.00 MALSECA00AF333DARK
1500 12.5 x 13.5 0.24 0.21 870 2.50 MALSECA00AH415DARK
22 5 x 5.3 0.13 7.84 41 0.17 MALSECA00BC222EARK
33 5 x 5.3 0.13 5.22 50 0.17 MALSECA00BC233EARK
47 6.3 x 5.3 0.13 3.67 70 0.27 MALSECA00BD247EARK
100 8 x 6.2 0.16 2.12 145 0.55 MALSECA00AE310EARK
220 8 x 10 0.16 0.96 232 1.00 MALSECA00AF322EARK
470 10 x 10 0.16 0.45 400 1.25 MALSECA00AG347EARK
1000 12.5 x 13.5 0.16 0.21 820 2.50 MALSECA00AH410EARK
10 4 x 5.3 0.15 19.9 27 0.12 MALSECA00BB210FARK
33 6.3 x 5.3 0.15 6.03 65 0.27 MALSECA00BD233FARK
47 8 x 6.2 0.15 4.23 105 0.55 MALSECA00AE247FARK
100 8 x 10 0.15 1.99 175 1.00 MALSECA00AF310FARK
330 10 x 10 0.15 0.60 360 1.25 MALSECA00AG333FARK
470 12.5 x 13.5 0.15 0.42 600 2.50 MALSECA00AH347FARK
0.10 4 x 5.3 0.10 1326 3.2 0.12 MALSECA00BB010HARK
0.22 4 x 5.3 0.10 602.9 4.7 0.12 MALSECA00BB022HARK
0.33 4 x 5.3 0.10 401.9 5.7 0.12 MALSECA00BB033HARK
0.47 4 x 5.3 0.10 282.2 6.8 0.12 MALSECA00BB047HARK
1.0 4 x 5.3 0.10 132.6 10 0.12 MALSECA00BB110HARK
2.2 4 x 5.3 0.10 60.3 15 0.12 MALSECA00BB122HARK
3.3 4 x 5.3 0.10 40.2 18 0.12 MALSECA00BB133HARK
4.7 5 x 5.3 0.10 28.2 25 0.17 MALSECA00BC147HARK
10 5 x 5.3 0.10 13.2 41 0.17 MALSECA00BC210HARK
22 6.3 x 5.3 0.10 6.03 71 0.27 MALSECA00BD222HARK
33 6.3 x 7.7 0.12 4.82 94 0.40 MALSECA00BM233HARK
47 8 x 10 0.12 3.39 140 1.00 MALSECA00AF247HARK
100 10 x 10 0.12 1.59 195 1.25 MALSECA00AG310HARK
220 10 x 10 0.12 0.72 320 1.25 MALSECA00AG322HARK
330 12.5 x 13.5 0.12 0.48 600 2.50 MALSECA00AH333HARK
10 6.3 x 5.8 0.12 15.9 46 0.30 MALSECA00AD210JARK
22 8 x 6.2 0.12 7.23 96 0.55 MALSECA00AE222JARK
33 8 x 10 0.12 4.82 117 1.00 MALSECA00AF233JARK
220 12.5 x 13.5 0.12 0.72 550 2.50 MALSECA00AH322JARK
2.2 5 x 5.3 0.12 72.35 20 0.17 MALSECA00BC122LARK
3.3 6.3 x 5.8 0.12 48.2 29 0.30 MALSECA00AD133LARK
4.7 6.3 x 5.8 0.12 33.9 35 0.30 MALSECA00AD147LARK
10 8 x 10 0.12 15.9 77 1.00 MALSECA00AF210LARK
22 8 x 10 0.12 7.23 100 1.00 MALSECA00AF222LARK
33 10 x 10 0.12 4.82 130 1.25 MALSECA00AG233LARK
47 10 x 10 0.12 3.39 155 1.25 MALSECA00AG247LARK
68 12.5 x 13.5 0.12 2.34 350 2.50 MALSECA00AH268LARK
100 12.5 x 13.5 0.12 1.59 420 2.50 MALSECA00AH310LARK
DIMENSIONS
DxL
(mm)
tan δ
120 Hz
R
ESR
120 Hz
(Ω)
I
R
120 Hz/85 °C
(mA)
WEIGHT
(g)
CATALOG NUMBER
Document Number: 25018
Page 4
ECA
Aluminum Capacitors
Vishay Roederstein

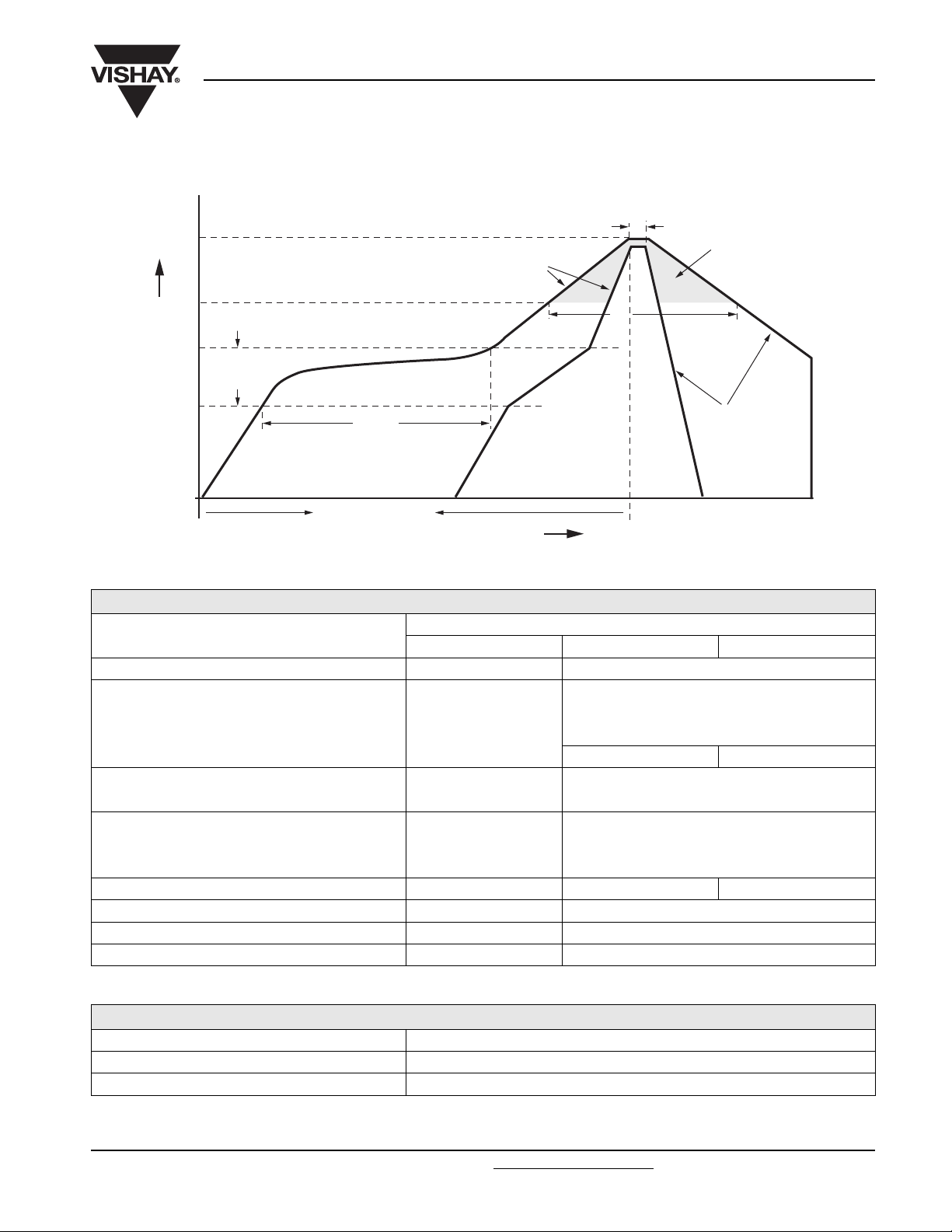

REFLOW SOLDERING CONDITIONS FOR SMD ALUMINUM ELECTROLYTIC CAPACITORS
t
T
P
Ramp-up
T
L
T
max.
s
Temperature
min.
T
s
t
s
Preheat
t 25 °C to Peak
Time
P
t
L
Critical Zone
T
to T
L
P
Ramp-down
PROFILE FEATURE
SOLDERING CONDITION
Ø 4 ~ Ø 10 Ø 12.5
Average ramp-up rate (T
L
to T
P)
3 °C/s max. 3 °C/s max.
Preheat
Temperature min. (T
Temperature max. (T
Time (T
T
min. to Ts max.) 60 ~ 150 s 40 ~ 120 s
s
max. to T
s
L
min.) 150 °C 150 °C
s
max.) 200 °C 200 °C
s
Ramp-up rate 3 °C/s max. 3 °C/s max.
Time maintained above
Temperature (T
Time (t
) 60 ~ 90 s 40 ~ 60 s
L
Peak/classification temperature (T
Time within 5 °C of actual peak temperature (T
) 217 °C 217 °C
L
) 250 °C 240 °C
P
) 10 s max. 10 s max.
P
Ramp-down rate 3 °C/s max. 3 °C/s max.
Time 25 °C to peak temperature 8 min max. 8 min max.
RESISTANCE TO SOLDERING HEAT
Leakage current
Capacitance value Within ± 10 % of initial value
tan δ Less than specified value
Less than specified value
Ø 16
40 ~ 100 s
230 °C
Document Number: 25018 For technical questions, contact: [email protected]
www.vishay.com
Revision: 05-Jun-08 281
Page 5
ECA
Vishay Roederstein
Aluminum Capacitors
LOW TEMPERATURE BEHAVIOR (at 120 Hz)
IMPEDANCE RATIO
(Z) T2/(Z) T1
T2/T1 6.3101625355063100
- 25 °C/+ 20 °C 54322222
- 40 °C/+ 20 °C 10 8 6 4 3 3 3 3
RATED VOLTAGE (V)
ADDITIONAL ELECTRICAL DATA
PARAMETER CONDITIONS VALUE
Current
Leakage current
(Test conditions: U
Resistance
Equivalent series resistance
(ESR)
, 20 °C)
R
After 2 minutes at U
Calculated from tan δ
R
max.
IL2 ≤ 0.01 x CR x URor 3 µA for UR ≤ 100 V (whichever is greater)
ESR = tan δ/2 π f C
R
MULTIPLIER OF RIPPLE CURRENT (IR) AS A FUNCTION OF FREQUENCY
FREQUENCY (Hz) IR MULTIPLIER FOR UR ≤ 100 V
50 0.70
120 1.00
300 1.17
1000 1.36
≥ 10 000 1.50
TEST PROCEDURES AND REQUIREMENTS
TEST PROCEDURE (QUICK REFERENCE) REQUIREMENTS
= 85 °C
T
amb
U
Load life
Shelf life
and IR applied
R
After 2000 h
No voltage applied
After 1000 h
After test: U
24 to 48 h before measurement
to be applied for 30 min
R
ΔC/C: ± 20 % of initial value
IL ≤ spec. limit
tan δ ≤ 2 x spec. limit
ΔC/C: ± 20 % of initial value
≤ spec. limit
I
L
tan δ ≤ 2 x spec. limit
Document Number: 25018
Page 6
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree
to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and
damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay
or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to
obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Revision: 12-Mar-12
1
Document Number: 91000
Loading...
