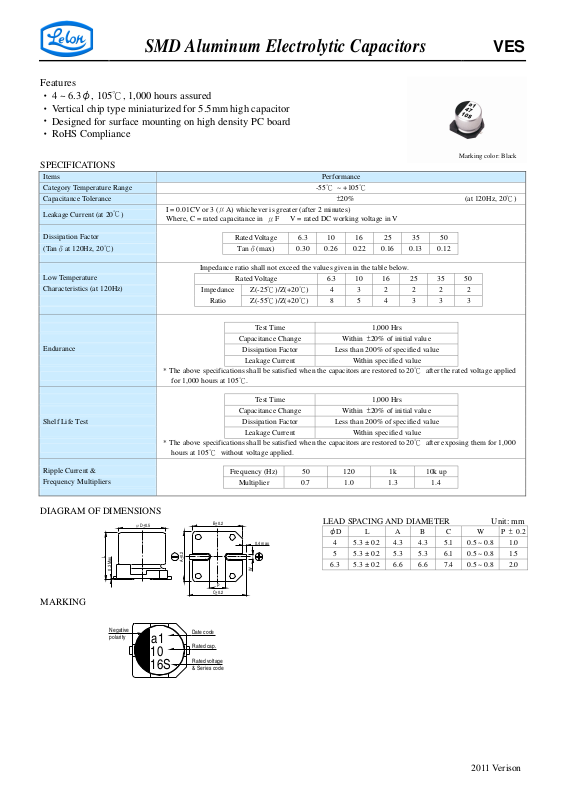

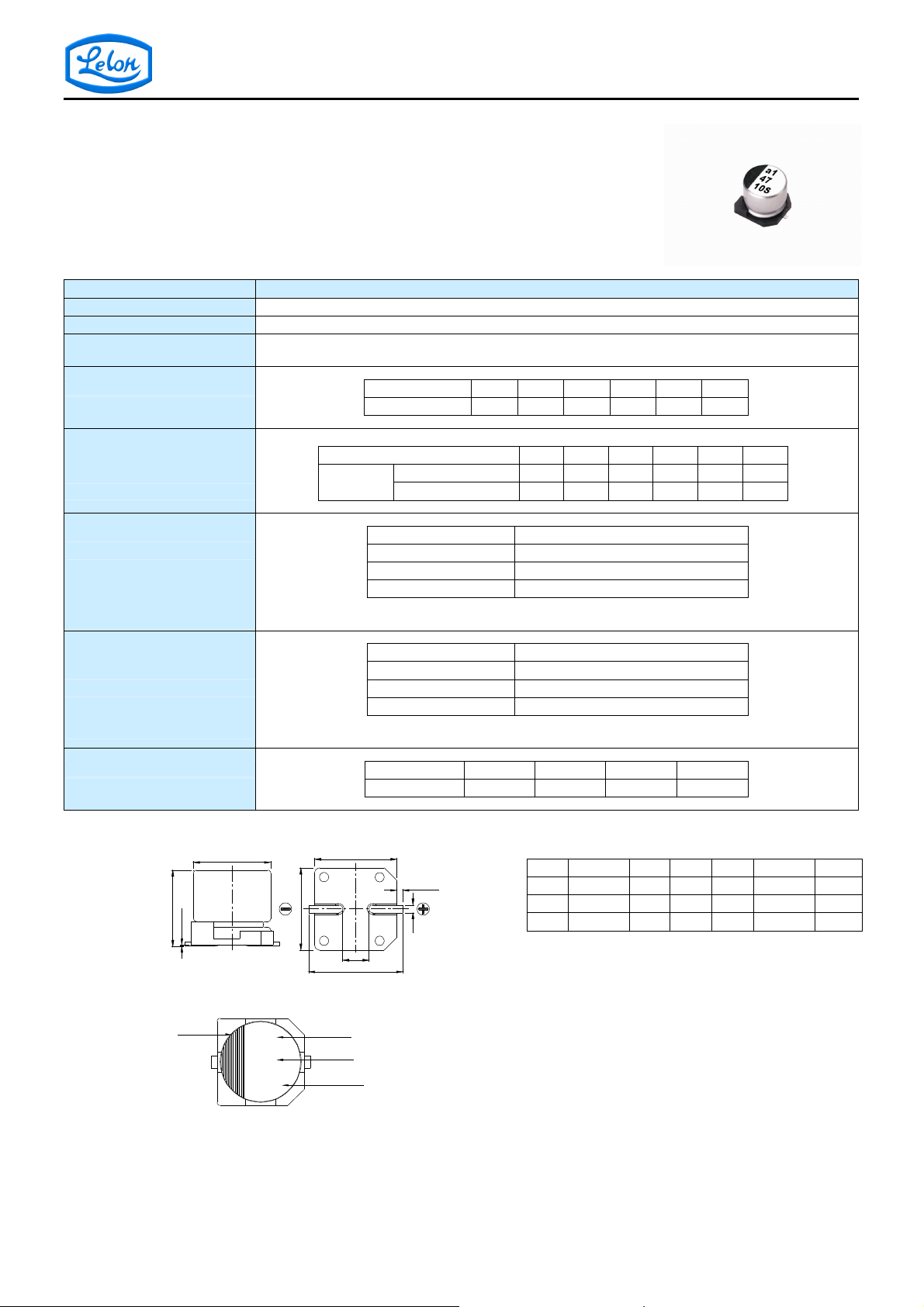

SMD Aluminum Electrolytic Capacitors
VES
Features
‧
4 ~ 6.3φ, 105℃, 1,000 hours assured
‧
Vertical chip type miniaturized for 5.5mm high capacitor
‧
Designed for surface mounting on high density PC board
‧
RoHS Compliance
Marking color: Black
SPECIFICATIONS
Items Performance
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Dissipation Factor
(Tanδat 120Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Endurance
Shelf Life Test
Ripple Current &
Frequency Multipliers
DIAGRAM OF DIMENSIONS
L
φD±
0.5
0.3 Max
MARKING
Negative
polarity
a1
10
16S
I = 0.01CV or 3 (μA) whichever is greater (after 2 minutes)
Where, C = rated capacitance in μF V = rated DC working voltage in V
Rated Voltage
Impedance ratio shall not exceed the values given in the table below.
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied
for 1,000 hours at 105℃.
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000
hours at 105℃ without voltage applied.
Impedance Z(-25℃)/Z(+20℃)
0.2
±
A
Date code
Rated cap.
Rated voltage
& Series code
Tanδ(max)
Rated Voltage
Ratio Z(-55℃)/Z(+20℃)
Test Time 1,000 Hrs
Capacitance Change Within ±20% of initial value
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Test Time 1,000 Hrs
Capacitance Change Within ±20% of initial value
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Frequency (Hz)
Multiplier 0.7 1.0 1.3 1.4
B±0.2
0.4 max
W
P
C±0.2
-55℃ ~ +105℃
±20% (at 120Hz, 20℃)
6.3 10 16 25 35 50
0.30 0.26 0.22 0.16 0.13 0.12
6.3 10 16 25 35 50
4 3 2 2 2 2
8 5 4 3 3 3
50 120 1k 10k up
LEAD SPACING AND DIAMETER
φD
4 5.3 ± 0.2 4.3 4.3 5.1 0.5 ~ 0.8 1.0
5 5.3 ± 0.2 5.3 5.3 6.1 0.5 ~ 0.8 1.5
6.3 5.3 ± 0.2 6.6 6.6 7.4 0.5 ~ 0.8 2.0
L A B C W
Unit: mm
P ± 0.2
2011 Verison
Page 2
mA
SMD Aluminum Electrolytic Capacitors
Dimension: φD × L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT
V. DC
µF Contents
0.1 0R1
0.22 R22
0.33 R33
0.47 R47
1 010
2.2 2R2
3.3 3R3
4.7 4R7
10 100
22 220 4×5.3 21 5×5.3 25 5×5.3 28 6.3×5.3 36 6.3×5.3 50 6.3×5.3 51
33 330 5×5.3 30 5×5.3 31 6.3×5.3 40 6.3×5.3 44
47 470 5×5.3 36 6.3×5.3 43 6.3×5.3 47 6.3×5.3 60
100 101 6.3×5.3 61 6.3×5.3 65 6.3×5.3 70
6.3V (0J) 10V (1A) 16V (1C) 25V (1E) 35V (1V) 50V (1H)
φD×L
mA
φD×L
4×5.3 2
4×5.3 3
4×5.3 4
4×5.3 5
4×5.3 7
4×5.3 10
4×5.3 12
4×5.3 12 4×5.3 14 5×5.3 17
4×5.3 15 4×5.3 16 5×5.3 21 5×5.3 23 6.3×5.3 26
mA
φD×L
mA
φD×L
Ripple Current: mA/rms at 120 Hz, 105°C
φD×L
mA
φD×L
VES
mA
2011 Version
