Page 1
after the rated voltage applied for
Vent≧8φ×10L

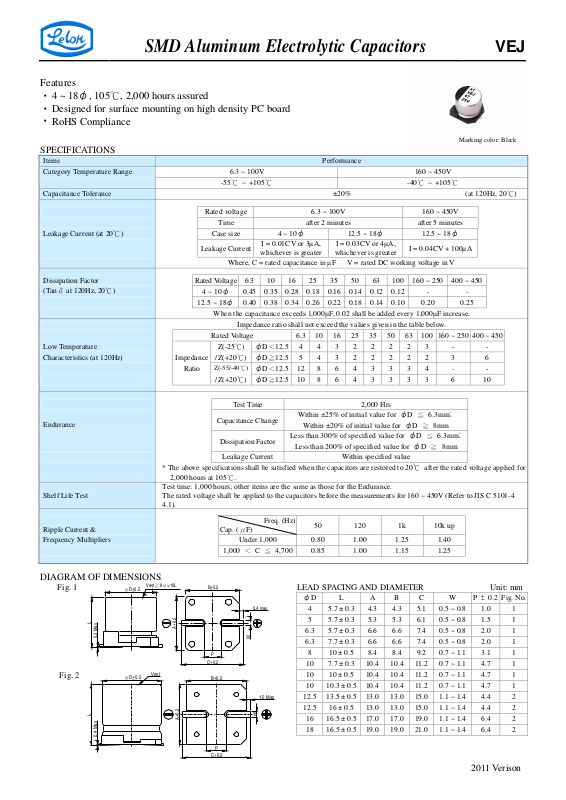

SMD Aluminum Electrolytic Capacitors
Features
‧
4 ~ 18φ, 105℃, 2,000 hours assured
‧
Designed for surface mounting on high density PC board
‧
RoHS Compliance
SPECIFICATIONS
Items Performance
Category Temperature Range 6.3 ~ 100V 160 ~ 450V
Capacitance Tolerance
Rated voltage
Time after 2 minutes after 5 minutes
Leakage Current (at 20℃)
Leakage Current
Dissipation Factor Rated Voltage 6.3 10 16 25 35 50 63 100 160 ~ 250 400 ~ 450
(Tanδ at 120Hz, 20℃)
Rated Voltage 6.3 10 16 25 35 50 63 100 160 ~ 250 400 ~ 450
Low Temperature
Characteristics (at 120Hz) Impedance
Ratio
Test Time 2,000 Hrs
Endurance
Dissipation Factor
Leakage Current Within specified value
Shelf Life Test
Ripple Current &
Frequency Multipliers Under 1,000 0.80 1.00 1.25 1.40
DIAGRAM OF DIMENSIONS
Fig. 1
Fig. 2
-55℃ ~ +105℃ -40℃ ~ +105℃
±20% (at 120Hz, 20℃)
6.3 ~ 100V 160 ~ 450V
Case size
Where, C = rated capacitance in µF V = rated DC working voltage in V
Capacitance Change
* The above specifications shall be satisfied when the capacitors are restored to 20℃
2,000 hours at 105℃.
Test time: 1,000 hours; other items are the same as those for the Endurance.
The rated voltage shall be applied to the capacitors before the measurements for 160 ~ 450V (Refer to JIS C 5101-4
4.1).
φD±
0.5
L
0.3 Max
Vent
φD±
0.5
L
0.4 Max
0.2
±
A
0.2
±
A
4 ~ 10φ
12.5 ~ 18φ
When the capacitance exceeds 1,000µF, 0.02 shall be added every 1,000µF increase.
Z(-55/-40℃)
B±0.2
P
C±0.2
B±0.2
C±0.2
0.45 0.35 0.28 0.18 0.16 0.14 0.12 0.12
0.40 0.38 0.34 0.26 0.22 0.18 0.14 0.10 0.20 0.25
Impedance ratio shall not exceed the values given in the table below.
Z(-25℃)
/Z(+20℃)
/Z(+20℃)
Cap. (μF)
1,000 ＜ C ≦ 4,700
P
4 ~ 10φ 12.5 ~ 18φ 12.5 ~ 18φ
I = 0.01CV or 3µA,
whichever is greater
φD＜12.5 4 4 3 2 2 2 2 3
φD≧12.5 5 4 3 2 2 2 2 2
φD＜12.5 12 8 6 4 3 3 3 4
φD≧12.5 10 8 6 4 3 3 3 3
Within ±25% of initial value for φD ≦ 6.3mm;
Within ±20% of initial value for φD ≧ 8mm
Less than 300% of specified value for φD ≦ 6.3mm;
Less than 200% of specified value for φD ≧ 8mm
Freq. (Hz)
I = 0.03CV or 4µA,
whichever is greater
50 120 1k 10k up
0.85 1.00 1.15 1.25
I = 0.04CV + 100µA
LEAD SPACING AND DIAMETER Unit: mm
L A B C W
0.4 max
W
1.0 Max
W
φD
4 5.7 ± 0.3 4.3 4.3 5.1 0.5 ~ 0.8 1.0 1
5 5.7 ± 0.3 5.3 5.3 6.1 0.5 ~ 0.8 1.5 1
6.3 5.7 ± 0.3 6.6 6.6 7.4 0.5 ~ 0.8 2.0 1
6.3 7.7 ± 0.3 6.6 6.6 7.4 0.5 ~ 0.8 2.0 1
8 10 ± 0.5 8.4 8.4 9.2 0.7 ~ 1.1 3.1 1
10 7.7 ± 0.3 10.4 10.4 11.2 0.7 ~ 1.1 4.7 1
10 10 ± 0.5 10.4 10.4 11.2 0.7 ~ 1.1 4.7 1
10 10.3 ± 0.5 10.4 10.4 11.2 0.7 ~ 1.1 4.7 1
12.5 13.5 ± 0.5 13.0 13.0 15.0 1.1 ~ 1.4 4.4 2
12.5 16 ± 0.5 13.0 13.0 15.0 1.1 ~ 1.4 4.4 2
16 16.5 ± 0.5 17.0 17.0 19.0 1.1 ~ 1.4 6.4 2
18 16.5 ± 0.5 19.0 19.0 21.0 1.1 ~ 1.4 6.4 2
- -
Marking color: Black
- -
3 6
- -
6 10
P ± 0.2
2011 Verison
VEJ
Fig. No.
Page 2
mA
Contents
SMD Aluminum Electrolytic Capacitors
VEJ
MARKING
φ
D ≦ 6.3mm
Negative
polarity
a1
10
16J
Date code
Rated cap.
Rated voltage
& Series code
Dimension: φD × L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT
V. DC
µF Contents
0.22 R22
0.33 R33
0.47 R47
1 010
2.2 2R2
3.3 3R3
4.7 4R7
10 100
22 220 4×5.7 22 4×5.7 22 5×5.7 30 5×5.7 30 6.3×5.7 44 6.3×5.7 38 6.3×7.7 58 8×10 100
33 330 5×5.7 34 5×5.7 34 5×5.7 34 6.3×5.7 46 6.3×5.7 46 6.3×7.7 65 8×10 140 10×10 150
47 470 5×5.7 38 5×5.7 38 6.3×5.7 48 6.3×5.7 48 6.3×7.7 80 6.3×7.7 70 8×10 170 12.5×13.5 250
100 101 6.3×5.7 69 6.3×5.7 69 6.3×5.7 69 6.3×7.7 100 8×10 240 8×10 210 10×10.3 310 12.5×13.5 380
220 221 6.3×7.7 120 6.3×7.7 120 6.3×7.7 120
330 331 8×10 290 8×10 290
470 471 8×10 320
1,000 102 10×10 410 10×10.3 410 12.5×13.5 550 12.5×16 550 16×16.5 800 18×16.5 990
2,200 222 12.5×13.5 680 12.5×13.5 680 16×16.5 900 16×16.5 900 18×16.5 1,050
3,300 332 12.5×16 850 16×16.5 950 16×16.5 950 18×16.5 1,150
4,700 472 16×16.5 1,000 16×16.5 1,000 18×16.5 1,225
6,800 682 18×16.5 1,290 18×16.5 1,290
V. DC
µF
3.3 3R3
4.7 4R7
10 100
22 220
33 330 12.5×13.5 95 12.5×16 120 16×16.5 180 18×16.5 100 18×16.5 100
47 470 16×16 240 16×16.5 220 16×16.5 220
100 101 16×16.5 250 18×16.5 280 18×16.5 260
6.3V (0J) 10V (1A) 16V (1C) 25V (1E) 35V (1V) 50V (1H) 63V (1J) 100V (2A)
φD×L
φD×L
mA
φD×L
4×5.7 3
4×5.7 4
4×5.7 5 4×5.7 5
4×5.7 8 4×5.7 8
4×5.7 12 4×5.7 12
4×5.7 14 5×5.7 17
4×5.7 17 4×5.7 17 5×5.7 20 6.3×5.7 22
4×5.7 20 4×5.7 20 5×5.7 27 6.3×5.7 32 6.3×5.7 32
8×10
10×7.7
160V (2C) 200V (2D) 250V (2E) 400V (2G) 450V (2W)
mA
φD×L
12.5×13.5 60 12.5×13.5 40
12.5×13.5 65 12.5×13.5 45 12.5×13.5 45
12.5×13.5 80 12.5×13.5 70 12.5×13.5 50 12.5×16 75
12.5×16 110 12.5×13.5 105 16×16.5 85 16×16.5 85
φ
D = 8 ~ 10 mm
Negative
polarity
a1
VEJ
470
6.3V
Date code
Series name
Rated cap
Rated voltage
φ
D ≧ 12.5mm
Negative
polarity
.
a1
VEJ
2200
6.3V
Ripple Current: mA/rms at 120 Hz, 105°C
mA
φD×L
8×10
10×7.7
320
10×10 380 10×10 380 12.5×13.5 520 12.5×16 550 16×16.5 700
320
mA
φD×L
mA
φD×L
8×10
10×7.7
290
8×10 290 10×10 370 12.5×13.5 490 16×16.5 650 18×16.5 590
290
mA
φD×L
φD×L
270
8×10 270 10×10.3 330 12.5×13.5 470 16×16.5 450
270
mA
φD×L
mA
φD×L
mA
mA
Date
code
Series
name
Rated
cap.
Rated
voltage
φD×L
mA
φD×L
mA
2011 Version
