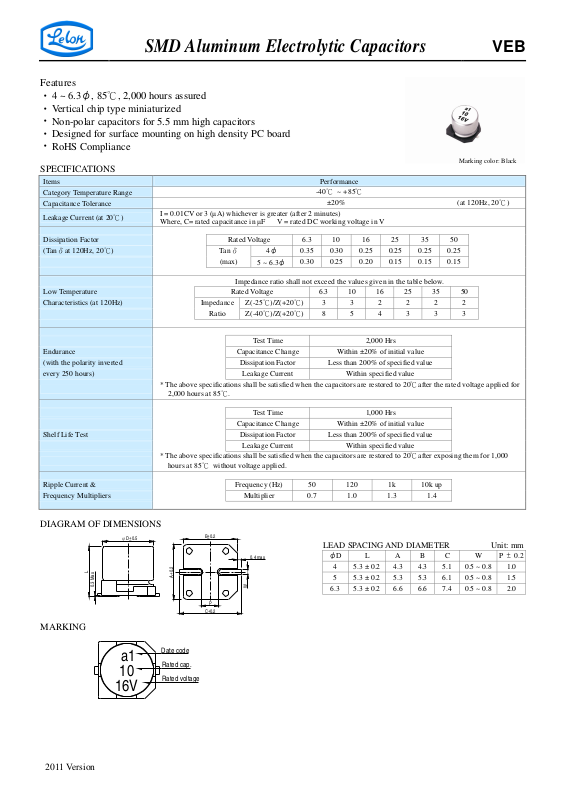

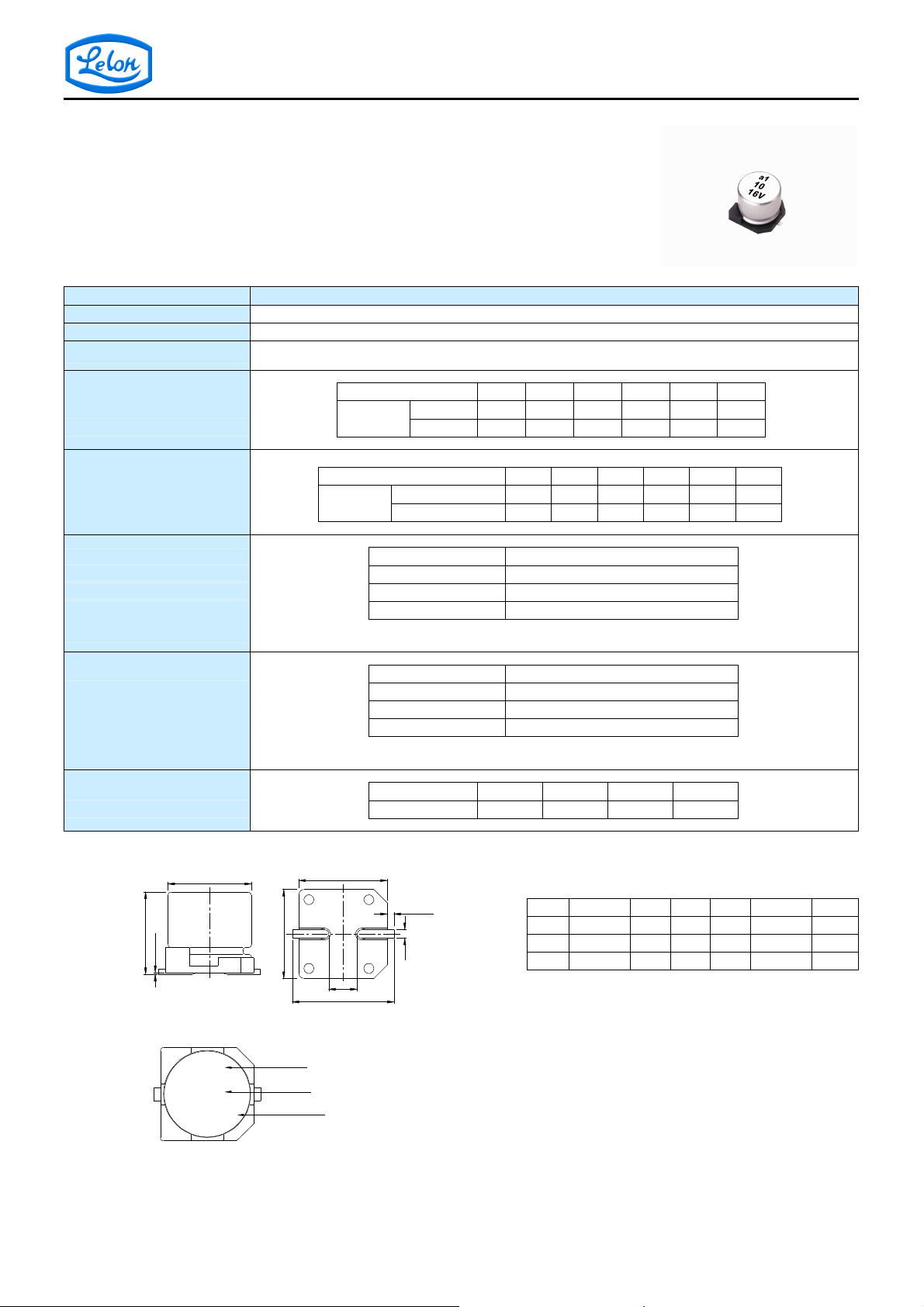

Page 1
SMD Aluminum Electrolytic Capacitors
VEB
Features
‧
4 ~ 6.3φ, 85℃, 2,000 hours assured
‧
Vertical chip type miniaturized
‧
Non-polar capacitors for 5.5 mm high capacitors
‧
Designed for surface mounting on high density PC board
‧
RoHS Compliance
SPECIFICATIONS
Items Performance
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Dissipation Factor
(Tanδat 120Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Endurance
(with the polarity inverted
every 250 hours)
Shelf Life Test
Ripple Current & Frequency (Hz) 50 120 1k 10k up
Frequency Multipliers Multiplier 0.7 1.0 1.3 1.4
I = 0.01CV or 3 (µA) whichever is greater (after 2 minutes)
Where, C= rated capacitance in µF V = rated DC working voltage in V
* The above specifications shall be satisfied when the capacitors are restored to 20℃after the rated voltage applied for
2,000 hours at 85℃.
* The above specifications shall be satisfied when the capacitors are restored to 20℃after exposing them for 1,000
hours at 85℃ without voltage applied.
Rated Voltage 6.3 10 16 25 35 50
Tanδ
(max)
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage 6.3 10 16 25 35 50
Impedance
Ratio
Capacitance Change Within ±20% of initial value
Capacitance Change Within ±20% of initial value
4φ
5 ~ 6.3φ
Z(-25℃)/Z(+20℃)
Z(-40℃)/Z(+20℃)
Test Time 2,000 Hrs
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Test Time 1,000 Hrs
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
DIAGRAM OF DIMENSIONS
φD±
0.5
LEAD SPACING AND DIAMETER Unit: mm
L
0.3 Max
0.2
±
A
B±0.2
C±0.2
0.4 max
W
P
MARKING
a1
10
Date code
Rated cap.
Rated voltage
16V
-40℃ ~ +85℃
±20% (at 120Hz, 20℃)
0.35 0.30 0.25 0.25 0.25 0.25
0.30 0.25 0.20 0.15 0.15 0.15
3 3 2 2 2 2
8 5 4 3 3 3
φD
4 5.3 ± 0.2 4.3 4.3 5.1 0.5 ~ 0.8 1.0
5 5.3 ± 0.2 5.3 5.3 6.1 0.5 ~ 0.8 1.5
6.3 5.3 ± 0.2 6.6 6.6 7.4 0.5 ~ 0.8 2.0
L A B C W
Marking color: Black
P ± 0.2
2011 Version
Page 2
Contents
mA
SMD Aluminum Electrolytic Capacitors
Dimension: φD × L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT
V. DC
µF
0.1 0R1
0.22 R22
0.33 R33
0.47 R47
1 010
2.2 2R2
3.3 3R3
4.7 4R7
10 100
22 220 5×5.3 27 6.3×5.3 40 6.3×5.3 45
33 330 6.3×5.3 45 6.3×5.3 50 6.3×5.3 55
47 470 6.3×5.3 54
6.3V (0J) 10V (1A) 16V (1C) 25V (1E) 35V (1V) 50V (1H)
φD×L
mA
φD×L
4×5.3 2.3
4×5.3 3.3
4×5.3 4.1
4×5.3 4.9
4×5.3 7.2
4×5.3 10 5×5.3 14
4×5.3 13 5×5.3 17 5×5.3 17
4×5.3 14 5×5.3 20 5×5.3 21 6.3×5.3 24
4×5.3 18 5×5.3 26 6.3×5.3 35 6.3×5.3 35
mA
φD×L
mA
φD×L
Ripple Current: mA/rms at 120 Hz, 85°C
φD×L
mA
φD×L
mA
VEB
2011 Verison
