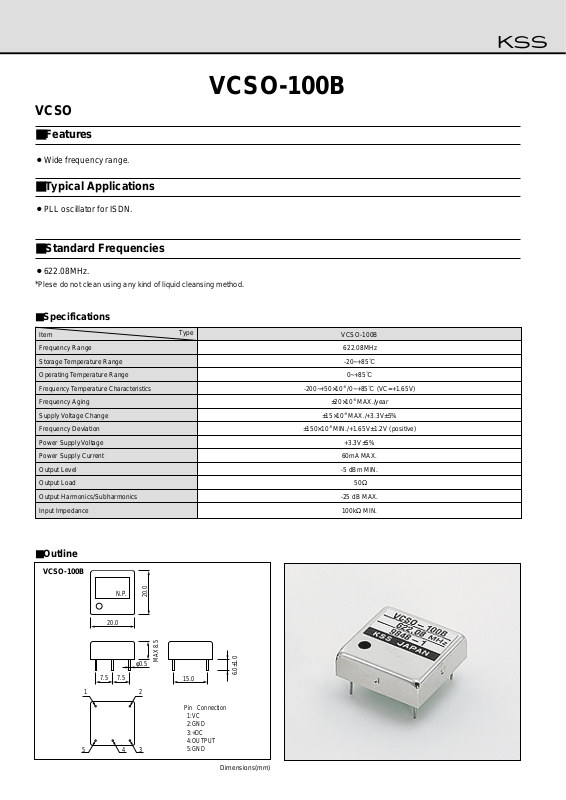

VCSO-100B
VCSO
■Features
■Specifications
■Outline
Item
Type
VCSO-100B
Frequency Range 622.08MHz
Storage T emperature Range -20~+85:
Operating T emperature Range 0~+85:
Frequency Temperature Characteristics -20
0~+50×10
-6
/0~+85: (VC=+1.65V)
Frequency Aging ±20×10
-6
MAX./year
Supply Voltage Change ±15×10
-6
MAX./+3.3V±5%
Frequency Deviation ±150×10
-6
MIN./+1.65V±1.2V (positive)
Power Supply Voltage +3.3V±5%
Power Supply Current 60mA MAX.
Output Level -5 dBm MIN.
Output Load 50Ω
Output Harmonics/Subharmonics -25 dB MAX.
Input Impedance 100kΩ MIN.
¡Wide frequency range.
■Typical Applications
¡PLL oscillator for ISDN.
■Standard Frequencies
¡622.08MHz.
*Plese do not clean using any kind of liquid cleansing method.
Dimensions(mm)
VCSO-100B
12
543
N.P.
20.0
7.5 7.5
20.0
MAX 8.5
φ
0.5
15.0
Pin Connection
1:VC
2:GND
3:+DC
4:OUTPUT
5:GND
6.0±1.0
