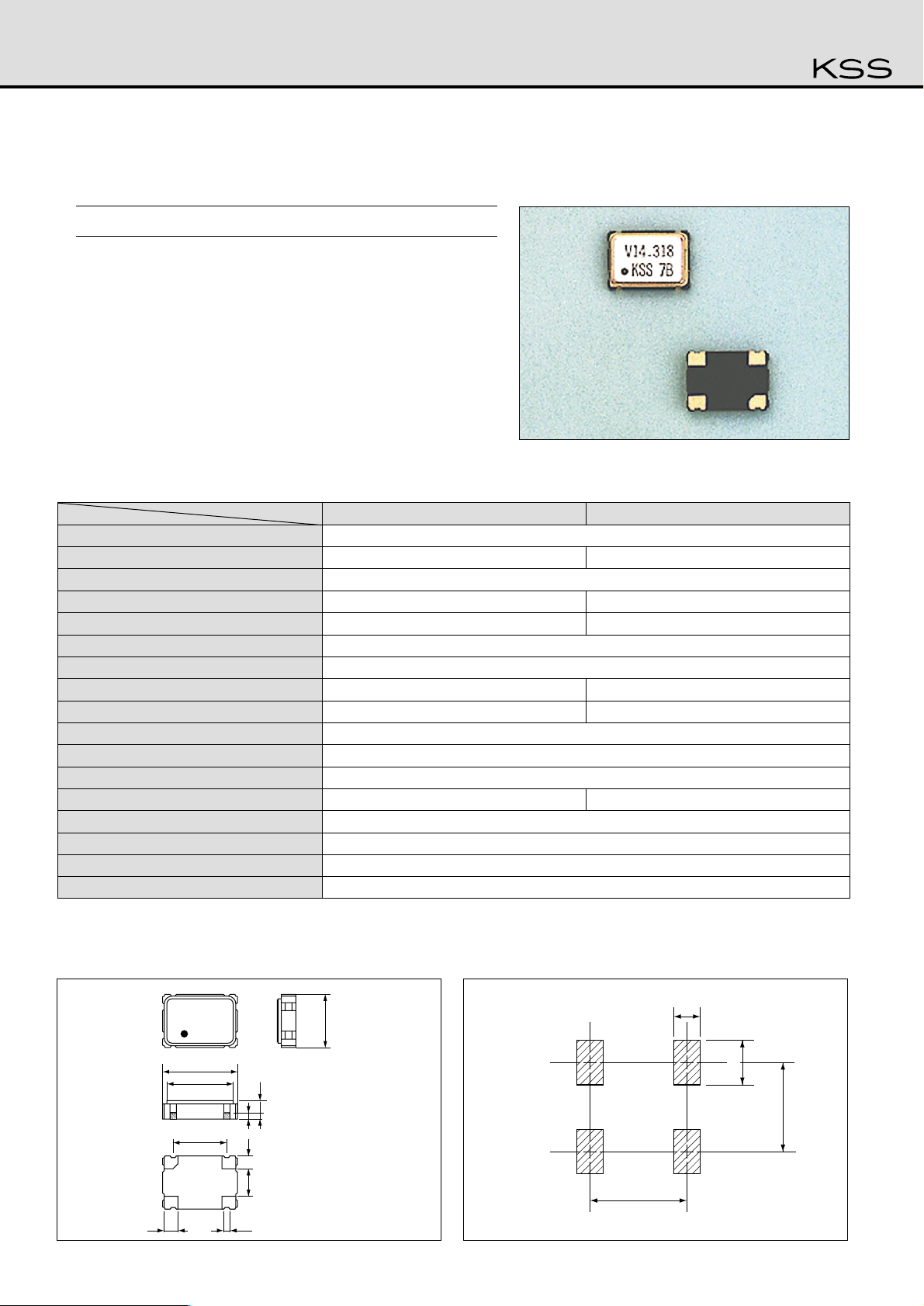

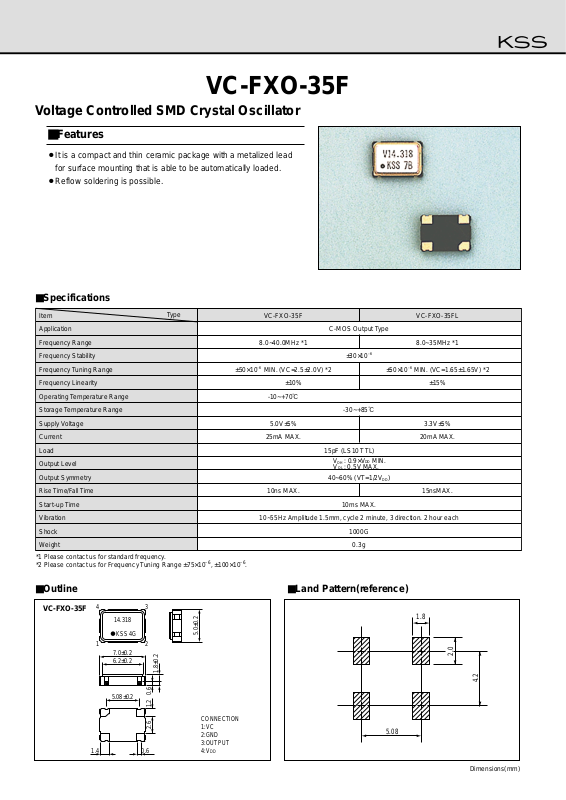

Datasheet VC-FXO-35FL, VC-FXO-35F Datasheet (KSS)

Dimensions(mm)

VC-FXO-35F

Voltage Controlled SMD Crystal Oscillator

■Features

¡It is a compact and thin ceramic package with a metalized lead

for surface mounting that is able to be automatically loaded.

¡Reflow soldering is possible.

■Specifications

■Outline ■Land Pattern(reference)

Item

Type

VC-FXO-35F VC-FXO-35FL
Application C-MOS Output Type
Frequency Range 8.0~40.0MHz *1 8.0~35MHz *1
Frequency Stability ±30×10

–6

Frequency Tuning Range ±50×10

–6

MIN. (VC=2.5±2.0V) *2 ±50×10

–6

MIN. (VC=1.65±1.65V) *2
Frequency Linearity ±10% ±15%
Operating T emperature Range -10~+70:
Storage T emperature Range -30~+85:
Supply Voltage 5.0V±5% 3.3V±5%
Current 25mA MAX. 20mA MAX.
Load 15pF (LS10 TTL)
Output Level
Output Symmetry 40~60% (VT=1/2V

DD

)

Rise Time/Fall Time

10ns MAX. 15nsMAX.
Start-up Time 10ms MAX.
Vibration 10~55Hz Amplitude 1.5mm, cycle 2 minute, 3 direction. 2 hour each
Shock 1000G
Weight 0.3g

*1 Please contact us for standard frequency.
*2 Please contact us for Frequency Tuning Range ±75×10

–6

, ±100×10–6.

V

OH

: 0.9×VDD MIN.

V

OL : 0.5V MAX.

5.08

2.0

4.2

1.8

0.61.22.6

7.0±0.2

14.318
KSS 4G

12

34

1.8±0.2

5.0±0.2

6.2±0.2

5.08±0.2

1.4 0.6

CONNECTION
1:VC
2:GND
3:OUTPUT
4:V

DD

VC-FXO-35F
