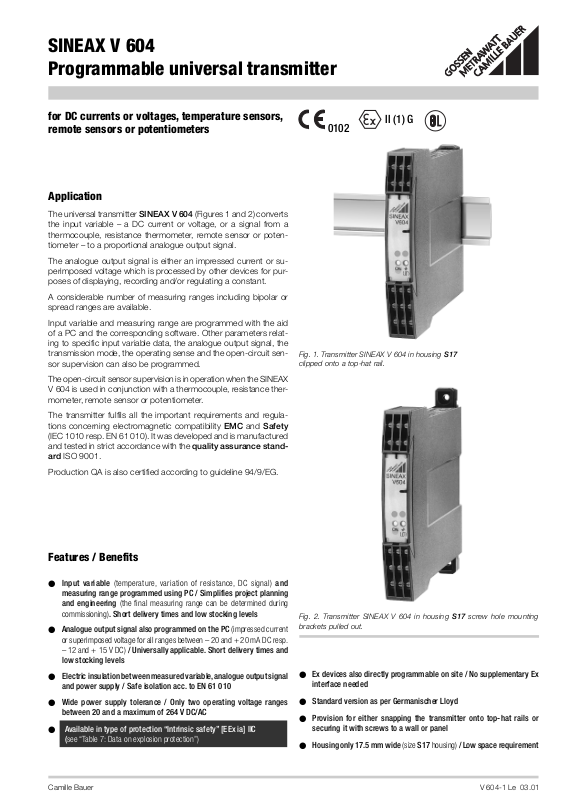

Datasheet V 604 Datasheet (SINEAX)

SINEAX V 604
Programmable universal transmitter

for DC currents or voltages, temperature sensors,
remote sensors or potentiometers

Application

The universal transmitter SINEAX V 604 (Figures 1 and 2) converts
the input variable – a DC current or voltage, or a signal from a
thermocouple, resistance thermometer, remote sensor or poten­tiometer – to a proportional analogue output signal.

The analogue output signal is either an impressed current or su­perimposed voltage which is processed by other devices for pur­poses of displaying, recording and/or regulating a constant.

A considerable number of measuring ranges including bipolar or
spread ranges are available.

Input variable and measuring range are programmed with the aid
of a PC and the corresponding software. Other parameters relat­ing to specific input variable data, the analogue output signal, the
transmission mode, the operating sense and the open-circuit sen­sor supervision can also be programmed.

The open-circuit sensor supervision is in operation when the SINEAX
V 604 is used in conjunction with a thermocouple, resistance ther­mometer, remote sensor or potentiometer.

The transmitter fulfils all the important requirements and regula­tions concerning electromagnetic compatibility EMC and Safety
(IEC 1010 resp. EN 61 010). It was developed and is manufactured
and tested in strict accordance with the quality assurance stand-
ard ISO 9001.

Production QA is also certified according to guideline 94/9/EG.

0102

II (1) G

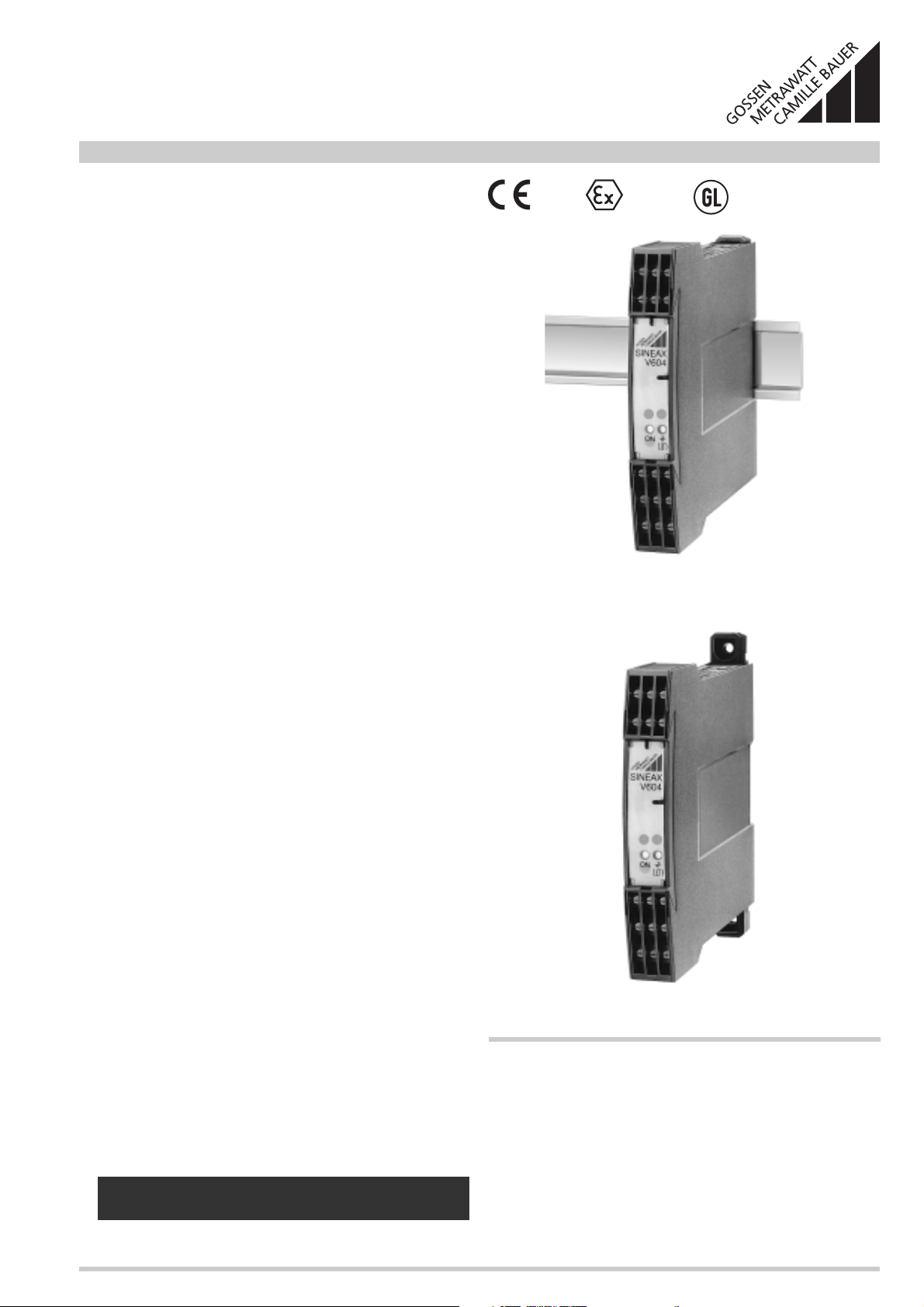

Fig. 1. Transmitter SINEAX V 604 in housing S17
clipped onto a top-hat rail.

Features / Benefits

● Input variable (temperature, variation of resistance, DC signal) and

measuring range programmed using PC / Simplifies project planning
and engineering (the final measuring range can be determined during
commissioning). Short delivery times and low stocking levels

● Analogue output signal also programmed on the PC (impressed current

or superimposed voltage for all ranges between – 20 and + 20 mA DC resp.
– 12 and + 15 V DC) / Universally applicable. Short delivery times and

low stocking levels

● Electric insulation between measured variable, analogue output signal

and power supply / Safe isolation acc. to EN 61 010

● Wide power supply tolerance / Only two operating voltage ranges

between 20 and a maximum of 264 V DC/AC

● Available in type of protection “Intrinsic safety” [EEx ia] IIC

(see “Table 7: Data on explosion protection”)

Camille Bauer 1

Fig. 2. Transmitter SINEAX V 604 in housing S17 screw hole mounting
brackets pulled out.

● Ex devices also directly programmable on site / No supplementary Ex

interface needed

● Standard version as per Germanischer Lloyd

● Provision for either snapping the transmitter onto top-hat rails or

securing it with screws to a wall or panel

● Housing only 17.5 mm wide (size S17 housing) / Low space requirement

V 604-1 Le 03.01

SINEAX V 604
Programmable universal transmitter

● Other programmable parameters: specific measured variable data

(e.g. two, three or four-wire connection for resistance thermometers, “internal”
or “external” cold junction compensation of thermocouples etc.), transmission
mode (special linearised characteristic or characteristic determined by a
mathematical relationship, e.g. output signal = f (measured variable)),
operating sense (output signal directly or inversely proportional to the
measured variable) and open-circuit sensor supervision (output signal
assumes fixed preset value between – 10 and 110%, supplementary output
contact signalling relay) / Highly flexible solutions for measurement

problems

● All programming operations by IBM XT, AT or compatible PC running

the self-explanatory, menu-controlled programming software, if
necessary, during operation / No ancillary hand-held terminals needed

● Digital measured variable data available at the programming interface/

Simplifies commissioning, measured variable and signals can be
viewed on PC in the field

● Standard software includes functional test program / No external

simulator or signal injection necessary

● Self-monitoring function and continuously running test program /

Automatic signalling of defects and device failure

Terminals 7 and 12 are also input terminals and are used for meas­uring currents and for voltages which exceed ± 300 mV.

An extremely important component of the input stage is the EMC
filter which protects the transmitter from interference or even de­struction due to induced electromagnetic waves.

From the input stage, the measured variable (e.g. the voltage of a
thermocouple) and the two auxiliary signals (cold junction com­pensation and the open-circuit sensor supervision) go to the multi­plexer (4), which controlled by the micro-controller (6) applies them
cyclically to the A/D converter (5).

The A/D converter operates according to the dual slope principle
with an integration time of 20 ms at 50 Hz and a conversion time of
approximately 38 ms per cycle. The internal resolution is 12 Bit
regardless of measuring range.

The micro-controller relates the measured variable to the auxiliary
signals and to the data which were loaded in the micro-controller’s
EEPROM via the programming connector (7) when the transmitter
was configured. These settings determine the type of measured
variable, the measuring range, the transmission mode (e.g. linearised
temperature/thermocouple voltage relationship) and the operating
sense (output signal directly or inversely proportional to the meas­ured variable). The measured signal is then filtered again, but this
time digitally to achieve the maximum possible immunity to inter­ference. Finally the value of the measured variable for the output
signal is computed. Apart from normal operation, the program­ming connector is also used to transfer measured variables on-line
from the transmitter to the PC or vice versa. This is especially use­ful during commissioning and maintenance.

Principle of operation (Fig. 3)

The measured variable M is stepped down to a voltage between
–300 and 300 mV in the input stage (1). The input stage includes
potential dividers and shunts for this purpose. A constant refer­ence current facilitates the measurement of resistance. Depending
on the type of measurement, either one or more of the terminals 1,
2, 6, 7 and 12 and the common ground terminal 11 are used.

The constant reference current which is needed to convert a varia­tion of resistance such as that of a resistance thermometer, remote
sensor or potentiometer to a voltage signal is available at terminal

6. The internal current source (2) automatically sets the reference
current to either 60 or 380 µA to suit the measuring range. The
corresponding signal is applied to terminal 1 and is used for resist­ance measurement.

Terminal 2 is used for “active” sensors, i.e. thermocouples or other
mV generators which inject a voltage between –300 and 300 mV.
Small currents from the open-circuit sensor supervision (3) are su­perimposed on the signals at terminals 1 and 2 in order to monitor
the continuity of the measurement circuit. Terminal 2 is also con­nected to the cold junction compensation element which is a
Ni 100 resistor built into the terminal block.

Depending on the measured variable and the input circuit, it can
take 0.4 to 1.1 seconds before a valid signal arrives at the opto­coupler (8). The different processing times result from the fact that,
for example, a temperature measurement with a four-wire resist­ance thermometer and open-circuit sensor supervision requires
more measuring cycles than the straight forward measurement of
a low voltage.

The main purpose of the opto-coupler is to provide electrical insu­lation between input and output. On the output side of the opto­coupler, the D/A converter (9) transforms the digital signal back to
an analogue signal which is then amplified in the output stage (10)
and split into two non-electrically isolated output channels. A pow­erful heavy-duty output is available at A1 and a less powerful out­put for a field display unit at A2. By a combination of programming
and setting the 8 DIP switches in the output stage, the signals at
A1 and A2 can be configured to be either a DC current or DC
voltage (but both must be either one or the other). The signal A1 is
available at terminals 9 and 4 and A2 at terminals 8 and 3.

If the micro-controller (6) detects an open-circuit measurement
sensor, it firstly sets the two output signals A1 and A2 to a constant
value. The latter can be programmed to adopt a preset value be­tween –10 and 110% or to maintain the value it had at the instant
the open-circuit was detected. In this state, the micro-controller
also switches on the red LED (11) and causes the green LED (12)
to flash. Via the opto-coupler (8), it also excites the relay driver (13)
which depending on configuration switches the relay (14) to its
energised or de-energised state. The output contact is available at

Camille Bauer 2

terminals 13, 14 and 15. It is used by safety circuits. In addition to
being able to program the relay to be either energised or de-ener­gised, it can also be set to “relay disabled”. In this case, an open­circuit sensor is only signalled by the output signal being held con­stant, the red LED being switched on and the green LED flashing.
The relay can also be configured to monitor the measured variable
in relation to a programmable limit.

The normal state of the transmitter is signalled when the green
LED (12) is continuously lit. As explained above, it flashes should
the measurement sensor become open-circuit. It also flashes, how­ever, if the measured variable falls 10% below the start of the meas­uring range or rises 10% above its maximum value and during the
first five seconds after the transmitter is switched on.

The push-button S1 is for automatically calibrating the leads of a
two-wire resistance thermometer circuit. This is done by temporar­ily shorting the resistance sensor and pressing the button for at

least three seconds. The lead resistance is then automatically meas­ured and taken into account when evaluating the measure vari­able.

The power supply H is connected to terminals 5 and 10 on the
input block (15). The polarity is of no consequence, because the
input voltage is chopped on the primary side of the power block
(16) before being applied to a full-wave rectifier. Apart from the
terminals, the input block (15) also contains an EMC filter which
suppresses any electromagnetic interference superimposed on the
power supply. The transformer block (17) provides the electrical
insulation between the power supply and the other circuits and
also derives two secondary voltages. One of these (5 V) is rectified
and stabilised in (18) and then supplies the electronic circuits on
the input side of the transmitter. The other AC from block (17)
(–16 V / + 18 V) is rectified in (19) and used to supply the relay
driver and the other components on the output side of the trans­mitter.

(1) (2)

11

NI100

VGST-KOM

6

M

1

2

7

EMC
Filter

12

(7)

(S1)

red

(11)

green

(12)

I

Reference

(3)

I

Interrupt.

(4)

MUX

(18)

(5)

A

(6)

MK

(CPU, RAM,

PROM,

EEPROM)

D

(17)

(8)

(19)

(13)

(16)

(9)

PWM

(15)

5

H

A1

+

9

–

4

+

8

A2

(10)

EMC
Filter

I/U

12345678

10

ON

A

–

3

(14)

14

K

15

13

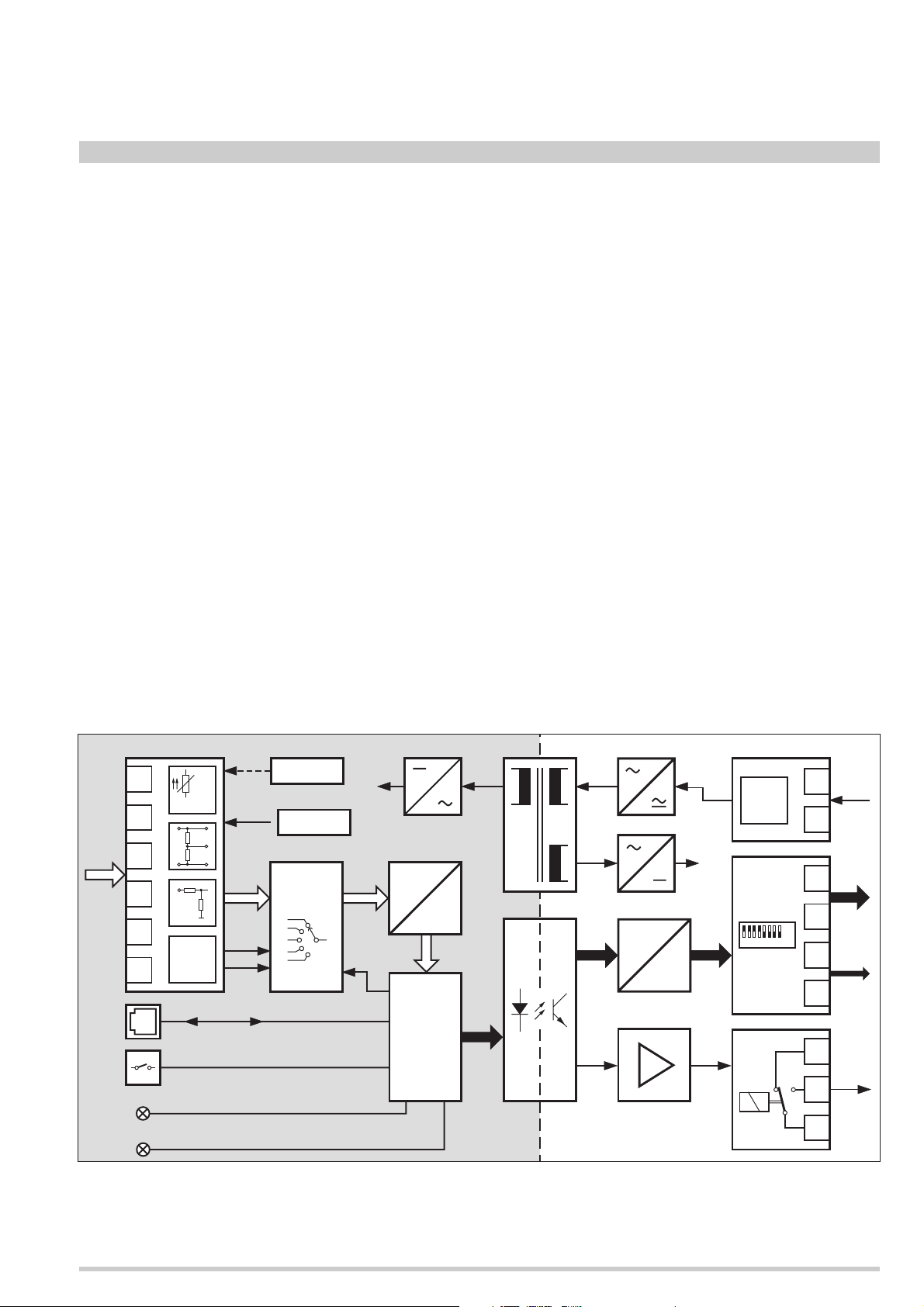

Fig. 3. Block diagram. In the case of the “intrinsically safe” version [EEx ia] IIC, the intrinsically safe circuits are those in the shaded area.

Camille Bauer 3

SINEAX V 604
Programmable universal transmitter

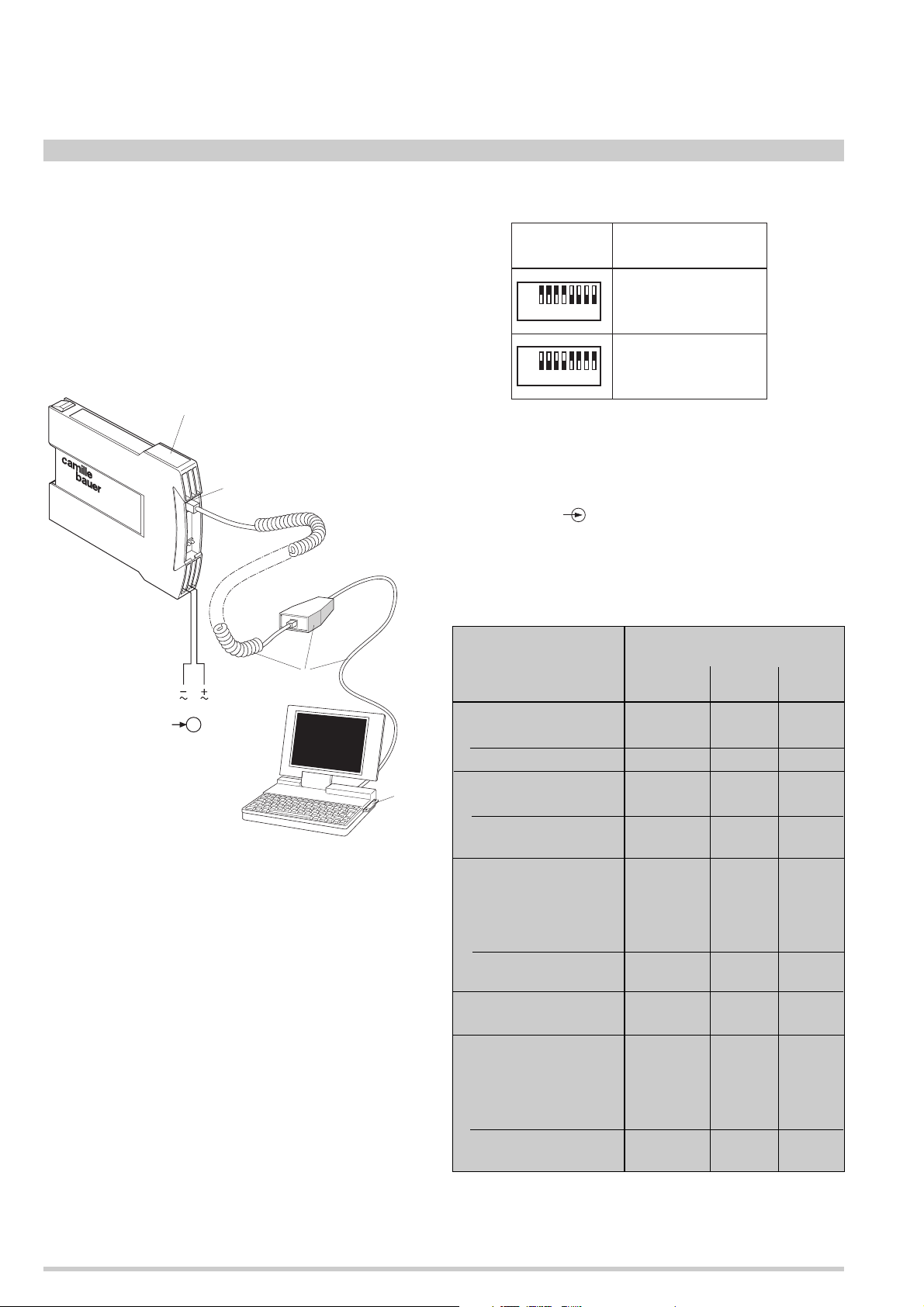

Programming (Figs. 4 and 5)

A PC with RS 232 C interface (Windows 3.1x, 95, 98, NT or 2000),
the programming cable PRKAB 600 and the configuration soft­ware VC 600 are required to program the transmitter. (Details of
the programming cable and the software are to be found in the
separate Data sheet: PRKAB 600 Le.)

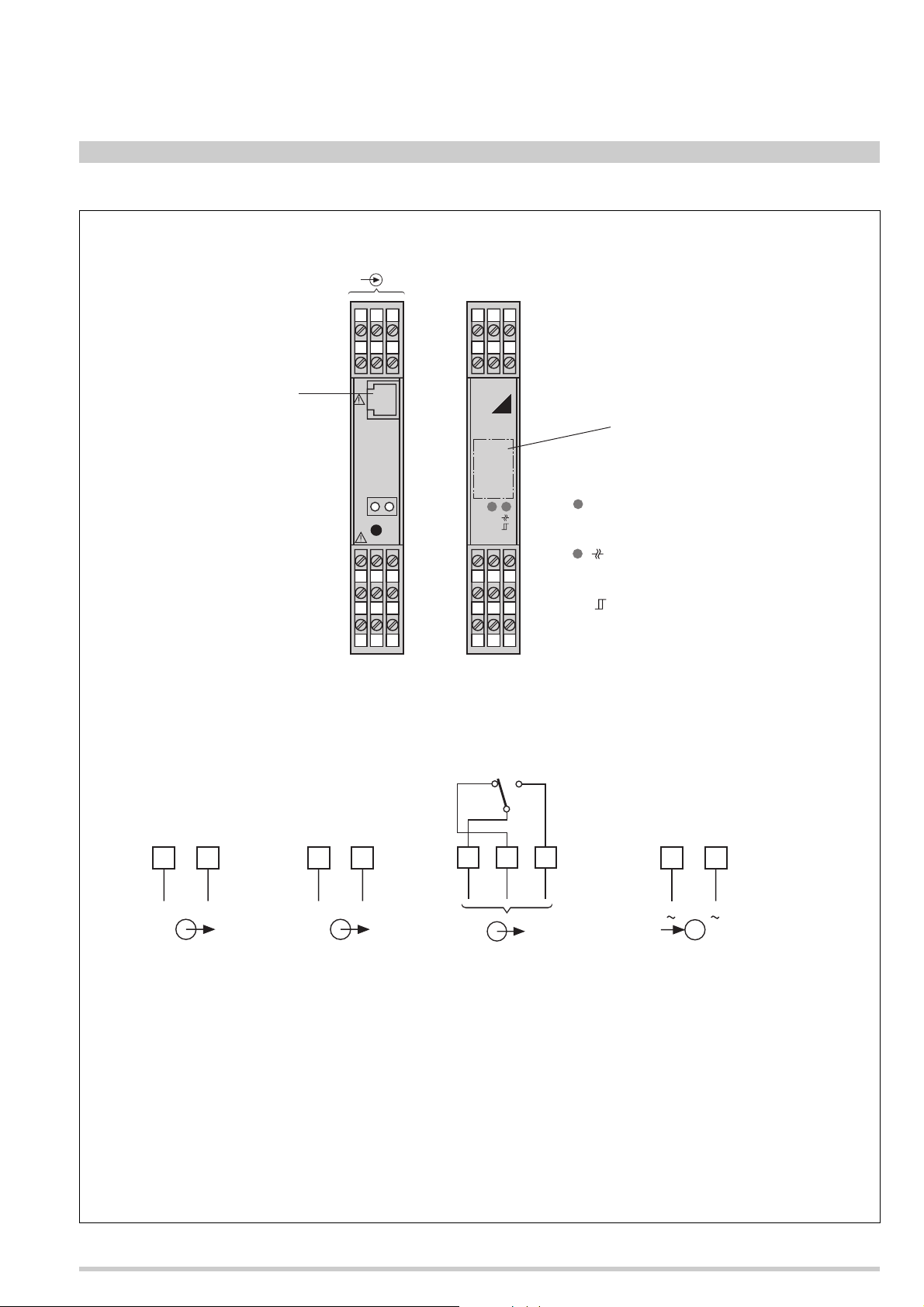

The connections between
“PC ↔ PRKAB 600 ↔ SINEAX V 604” can be seen from
Fig. 4. The power supply must be applied to SINEAX V 604 before
it can be programmed.

SINEAX V 604

Programming
connector

The eight pole DIP switch is located on the PCB in the
SINEAX V 604.

DIP switches Type of

output signal

ON

12345678

ON

12345678

Fig. 5

load-independent

current

load-independent

voltage

Technical data

Measuring input

Measured variable M

The measured variable M and the measuring range can be pro­grammed

Table 1: Measured variables and measuring ranges

PRKAB 600

Power supply

Software

Fig. 4

The software VC 600 is supplied on a CD.

The programming cable PRKAB 600 adjusts the signal level
and provides the electrical insulation between the PC and
SINEAX V 604.

The programming cable PRKAB 600 is used for programming both
standard and Ex versions.

Of the programmable details listed in section “Features / Benefits”
one parameter – the output signal – has to be determined by
PC programming as well as mechanical setting on the transmitter
unit …

… the output signal range by PC

… the type of output (current or voltage signal) has to be set by

DIP switch (see Fig. 5).

Measured variables Measuring ranges

Limits Min. Max.

span span

DC voltages

direct input ± 300 mV
via potential divider

2

± 40 V

1

2 mV 300 mV

1

300 mV 40 V

DC currents

low current range ± 12 mA
high current range – 50 to 0.75 mA 100 mA

+ 100 mA

1

0.08 mA 12 mA

1

Temperature monitored – 200 to
by two, three or four-wire 850 °C
resistance thermometers

1

low 0...740 Ω

8 Ω 740 Ω

resistance range
high 0...5000 Ω

1

40 Ω 5000 Ω

resistance range

Temperature monitored – 270 to 2 mV 300 mV
by thermocouples 1820 °C

Variation of resistance
of remote sensors /
potentiometers

low 0...740 Ω

1

8 Ω 740 Ω

resistance range
high 0...5000 Ω140 Ω 5000 Ω

resistance range

1

Note permissible value of the ratio “full-scale value/span ≤ 20”.

2

Max. 30 V for Ex version with I.S. measuring input.

Camille Bauer 4

DC voltage

Measuring range: See Table 1

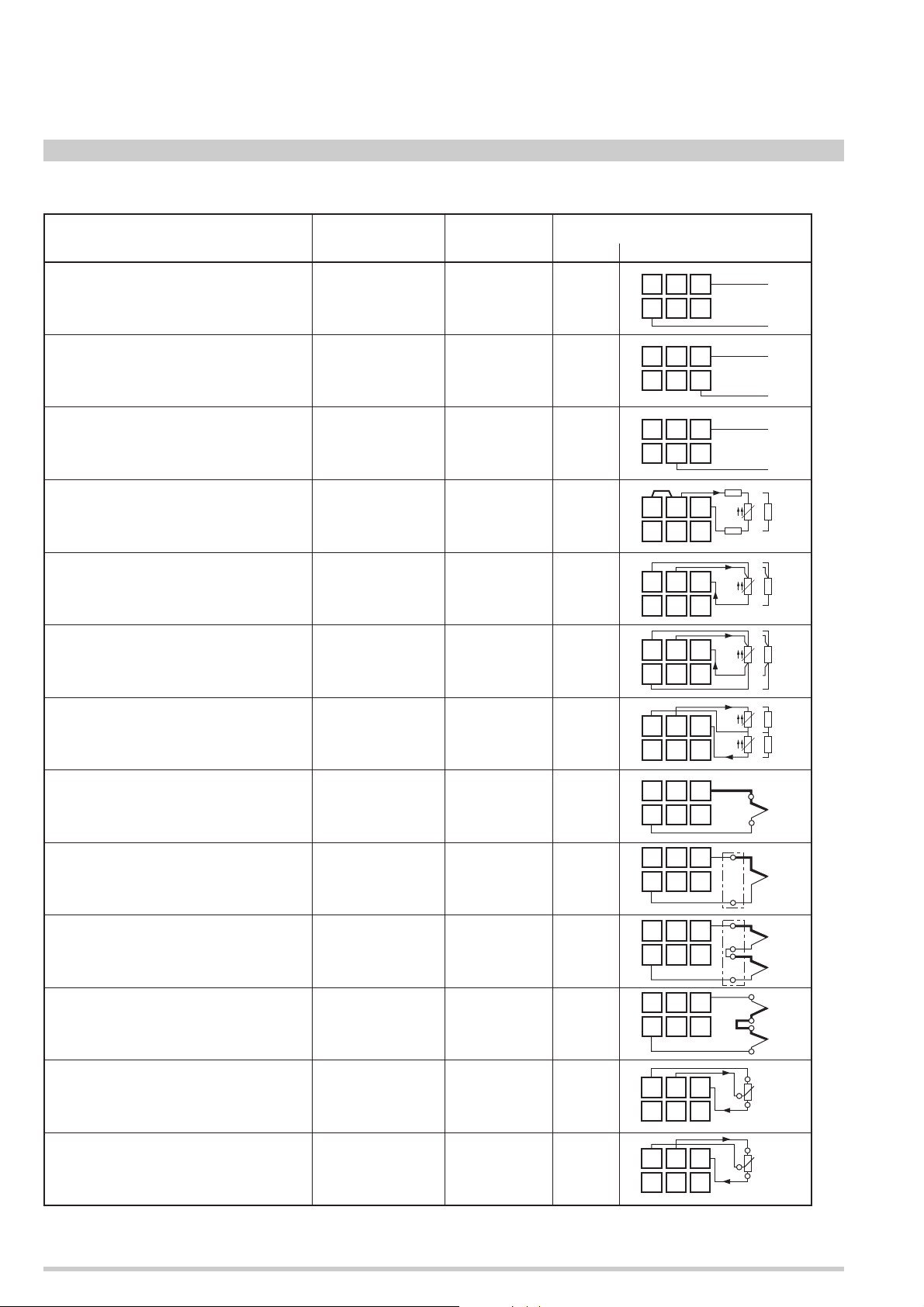

Direct input: Wiring diagram No. 1

1

Input resistance: Ri > 10 MΩ

Continuous overload
max. – 1.5 V, + 5 V

Input via
potential divider: Wiring diagram No. 2

1

Input resistance: Ri = 1 MΩ

Continuous overload
max. ± 100 V

DC current

Measuring range: See Table 1

Low currents: Wiring diagram No. 3

1

Input resistance: Ri = 24.7 Ω

Continuous overload
max. 150 mA

High currents: Wiring diagram No. 3

1

Input resistance: Ri = 24.7 Ω

Continuous overload
max. 150 mA

Resistance thermometer

Measuring range: See Tables 1 and 8

Resistance types: Type Pt 100 (DIN IEC 751)

Type Ni 100 (DIN 43 760)
Type Pt 20/20 °C
Type Cu 10/25 °C
Type Cu 20/25 °C

See “Table 6: Specification and or­dering information”, feature 6 for
other Pt or Ni.

Measuring current: ≤ 0.38 mA for

measuring ranges 0...740 Ω
or
≤ 0.06 mA for
measuring ranges 0...5000 Ω

Standard circuit: 1 resistance thermometer:

– two-wire connection,

wiring diagram No. 4

– three-wire connection,

wiring diagram No. 5

– four-wire connection,

wiring diagram No. 6

1

1

1

Differential circuit: 2 identical three-wire resistance ther-

mometers for deriving the mean tem-

Input resistance: R

perature RT1–RT2,
wiring diagram No. 7

> 10 MΩ

i

1

Lead resistance: ≤ 30 Ω per lead

Thermocouples

Measuring range: See Tables 1 and 8

Thermocouple pairs: Type B:Pt30Rh-Pt6Rh (IEC 584)

Type E:NiCr-CuNi (IEC 584)
Type J: Fe-CuNi (IEC 584)
Type K:NiCr-Ni (IEC 584)
Type L: Fe-CuNi (DIN 43710)
Type N:NiCrSi-NiSi (IEC 584)
Type R:Pt13Rh-Pt (IEC 584)
Type S:Pt10Rh-Pt (IEC 584)
Type T: Cu-CuNi (IEC 584)
Type U:Cu-CuNi (DIN 43710)
Type W5-W26 Re

Other thermocouple pairs on request

Standard circuit: 1 thermocouple, internal cold junc-

tion compensation,
wiring diagram No. 8

1

1 thermocouple, external cold junc­tion compensation,
wiring diagram No. 9

1

Summation circuit: 2 or more thermocouples in a sum-

mation circuit for deriving the mean
temperature, external cold junction
compensation,
wiring diagram No. 10

1

Differential circuit: 2 identical thermocouples in a differ-

ential circuit for deriving the mean
temperature TC1 – TC2, no provision

Input resistance: R

for cold junction compensation,
wiring diagram No. 11

> 10 MΩ

i

1

Cold junction
compensation: Internal or external

Internal: Incorporated Ni 100

Permissible variation
of the internal cold
junction compensation: ± 0.5 K at 23 °C, ± 0.25 K/10 K

External: 0...70 °C, programmable

Summation circuit: Series or parallel connection of 2 or

more two, three or four-wire resist­ance thermometers for deriving the
mean temperature or for matching
other types of sensors,
wiring diagram Nos. 4 - 6

Camille Bauer 5

1

1

See “Table 9: Measuring input”.

SINEAX V 604
Programmable universal transmitter

Resistance sensor, potentiometer

Measuring range: See Table 1

Resistance sensor
types: Type WF

Type WF DIN
Potentiometer see “Table 6: Specifi­cation and ordering information”
feature 5.

Measuring current: ≤ 0.38 mA for

measuring range 0...740 Ω
or
≤ 0.06 mA for
measuring range 0...5000 Ω

Kinds of input: 1 resistance sensor WF

current measured at pick-up,
wiring diagram No. 12

1

1 resistance sensor WF DIN
current measured at pick-up,
wiring diagram No. 13

1

1 resistance sensor for two, three or
four-wire connection,
wiring diagram No. 4-6

1

2 identical three-wire resistance sen-

Input resistance: R

sors for deriving a differential,
wiring diagram No. 7

> 10 MΩ

i

1

Lead resistance: ≤ 30 Ω per lead

Output signal

Output signals A1 and A2

The output signals available at A1 and A2 can be configured for
either an impressed DC current I
UA by appropriately setting DIP switches. The desired range is pro­grammed using a PC. A1 and A2 are not DC isolated and exhibit
the same value.

Standard ranges for I

: 0...20 mA or 4...20 mA

A

Non-standard ranges: Limits –22 to + 22 mA

Open-circuit voltage: Neg. –13.2...–18 V, pos. 16.5...21 V

Burden voltage I

External resistance I

Burden voltage I

1

See “Table 9: Measuring input”.

2

In relation to analogue output span A1 resp. A2.

: + 15 V, resp. –12 V

A1

: 15 V

A1

: < 0.3 V

A2

or a superimposed DC voltage

A

Min. span 5 mA
Max. span 40 mA

R

max. [kΩ] =

ext

resp. =

I

AN

–12 V

[mA]

I

AN

= full-scale output current

IAN [mA]

External resistance I

: 0,3 V

A2

R

max. [kΩ] =

ext

IAN [mA]

Residual ripple: < 1% p.p., DC ... 10 kHz

< 1.5% p.p. for an output span
< 10 mA

Standard ranges for UA : 0...5, 1...5, 0...10 or 2...10 V

Non-standard ranges: Limits –12 to + 15 V

Min. span 4 V
Max. span 27 V

Open-circuit voltage: ≤ 40 mA

Load capacity U

/ U

A1

: 20 mA

A2

External resistance
U

/ U

:U

A1

A2

R

[kΩ] ≥

ext

[V]

A

20 mA

Residual ripple: < 1% p.p., DC ... 10 kHz

< 1,5% p.p. for an output span < 8 V

Fixed settings for the output signals A1 and A2

After switching on: A1 and A2 are at a fixed value for 5 s

after switching on (default).

2

Setting range –10 to 110%

program­mable,
e.g. between 2.4 and 21.6 mA
(for a scale of 4 to 20 mA).

The green LED ON flashes for the
5 s

When input variable
out of limits: A1 and A2 are at either a lower or an

upper fixed value when the input vari­able …

… falls more than 10% below the

minimum value of the permissible
range

… exceeds the maximum value of

the permissible range by more
than 10%.

2

Lower fixed value = –10%

,

e.g. –2 mA (for a scale of 0 to 20 mA).
Upper fixed value = 110%2,

e.g. 22 mA (for a scale of 0 to 20 mA).
The green LED ON flashes

Open-circuit sensor: A1 and A2 are at a fixed value when

an open-circuit sensor is detected
(see Section “Sensor and open-cir­cuit lead supervision

”).

The fixed value of A1 and A2 is con­figured to either maintain their values
at the instant the open-circuit occurs
or adopt a preset value between –10
and 110%2 , e.g. between 1.2 and

10.8 V (for a scale of 2 to
10 V).

The green LED ON flashes and the
red LED lights continuously

Camille Bauer 6

Output characteristic

Characteristic: Programmable

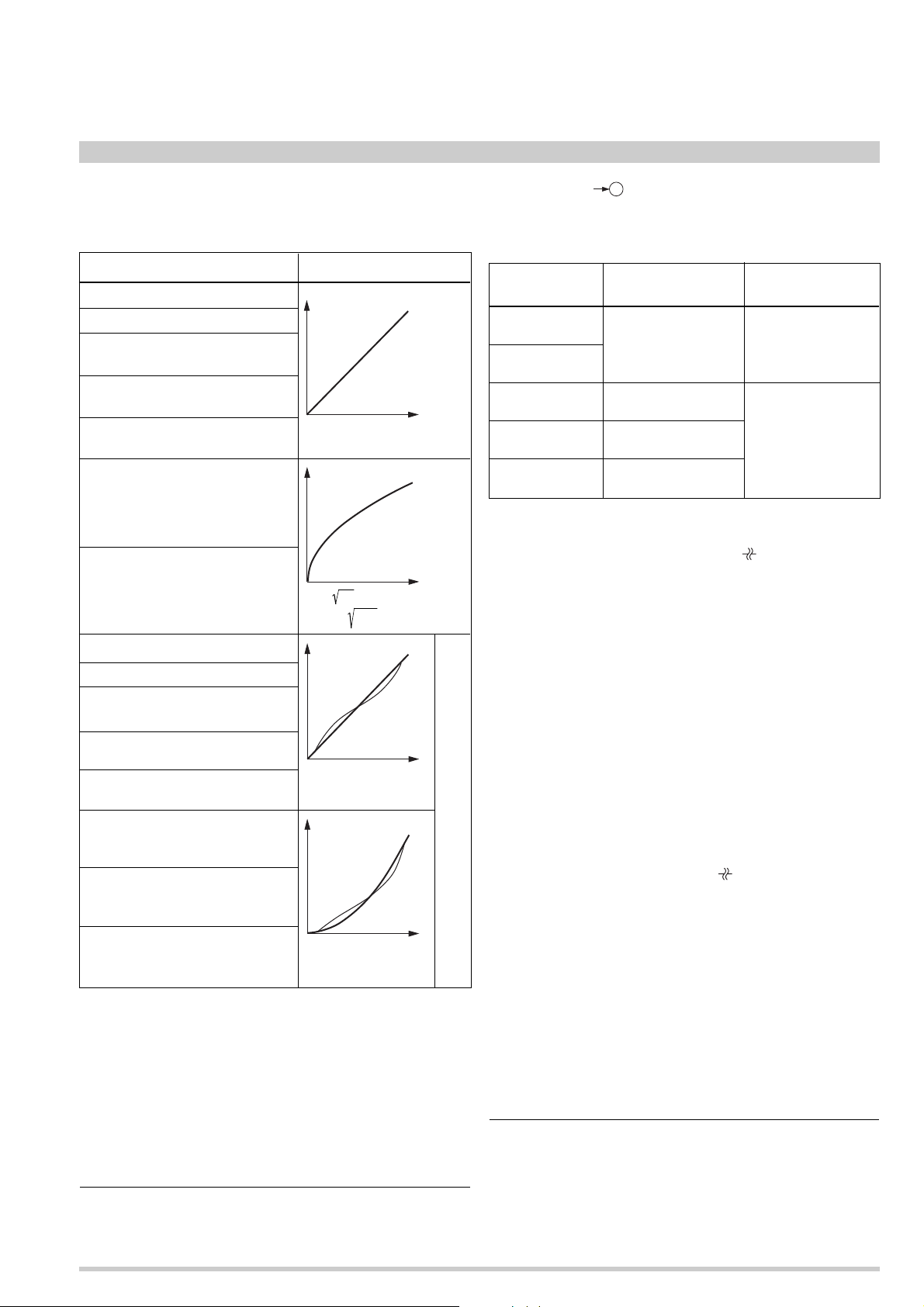

Table 2: Available characteristics (acc. to measured variable)

Power supply H

DC, AC power pack (DC and 45...400 Hz)

Table 3: Nominal voltage and tolerance

Measured variables Characteristic

DC voltage

A

DC current

Resistance thermometer

(linear variation of resistance)

Thermocouple
(linear variation of voltage)

Sensor or potentiometer

A = M

M

A

DC voltage

DC current

DC voltage

A = M or
A =

M

A

M

3

DC current

Resistance thermometer
(linear variation with temperature)

Thermocouple signal
(linear variation with temperature)

M

1

Sensor or potentiometer

DC voltage

A = f (M)
linearised

A

DC current

M

Sensor or potentiometer

A = f (M)
quadratic

2

Operating sense: Programmable

output signal directly
or
inversely proportional to measured
variable

Setting time (IEC 770): Programmable

from 2 to 30 s

1

25 input points M given referred to a linear output scale from –10% to
+ 110% in steps of 5%.

Nominal voltage Tolerance Instrument

U

N

version

24... 60 V
DC / AC

85...230 V

3

DC –15...+ 33%
AC ± 15%

Standard
(Non-Ex)

DC / AC

24... 60 V DC – 15...+ 33%
DC / AC AC ± 15%

85...230 V
AC

85...110 V
DC

± 10%

–15...+ 10%

Type of protection
“Intrinsic safety”
[EEx ia] IIC

Power consumption: ≤ 1.4 W resp. ≤ 2.7 VA

Open-circuit sensor circuit supervision

Resistance thermometers, thermocouples, remote sensors and
potentiometer input circuits are supervised. The circuits of DC volt­age and current inputs are not supervised.

Pick-up/reset level: 1 to 15 kΩ acc. to kind of measure-

ment and range

Signalling modes

Output signals
A1 and A2: Programmable fixed values.

The fixed value of A1 and A2 is con­figured to either maintain their values
at the instant the open-circuit occurs
or adopt a preset value between –
10 and 110%

4

, e.g. between 1.2 and

10.8 V (for a scale of 2 to 10 V)

Frontplate signals: The green LED ON flashes and the

Special characteristics

red LED

lights continuously

Output contact K: Relay 1 potentially-free changeover

contact (see Table 4)
Operating sense programmable
The relay can be either energised or
de-energised in the case of a distur­bance.
Set to “Relay inactive” if not required!

2

25 input points M given referred to a quadratic output scale from –10%
to + 110%. Pre-defined output points: 0, 0, 0, 0.25, 1, 2.25, 4.00, 6.25,

9.00, 12.25, 16.00, 20.25, 25.00, 30.25, 36.00, 42.25, 49.00, 56.25,

64.00, 72.25, 81.00, 90.25, 100.0, 110.0, 110.0%.

3

An external supply fuse must be provided for DC supply voltages
> 125 V.

4

In relation to analogue output span A1 resp. A2.

Camille Bauer 7

SINEAX V 604
Programmable universal transmitter

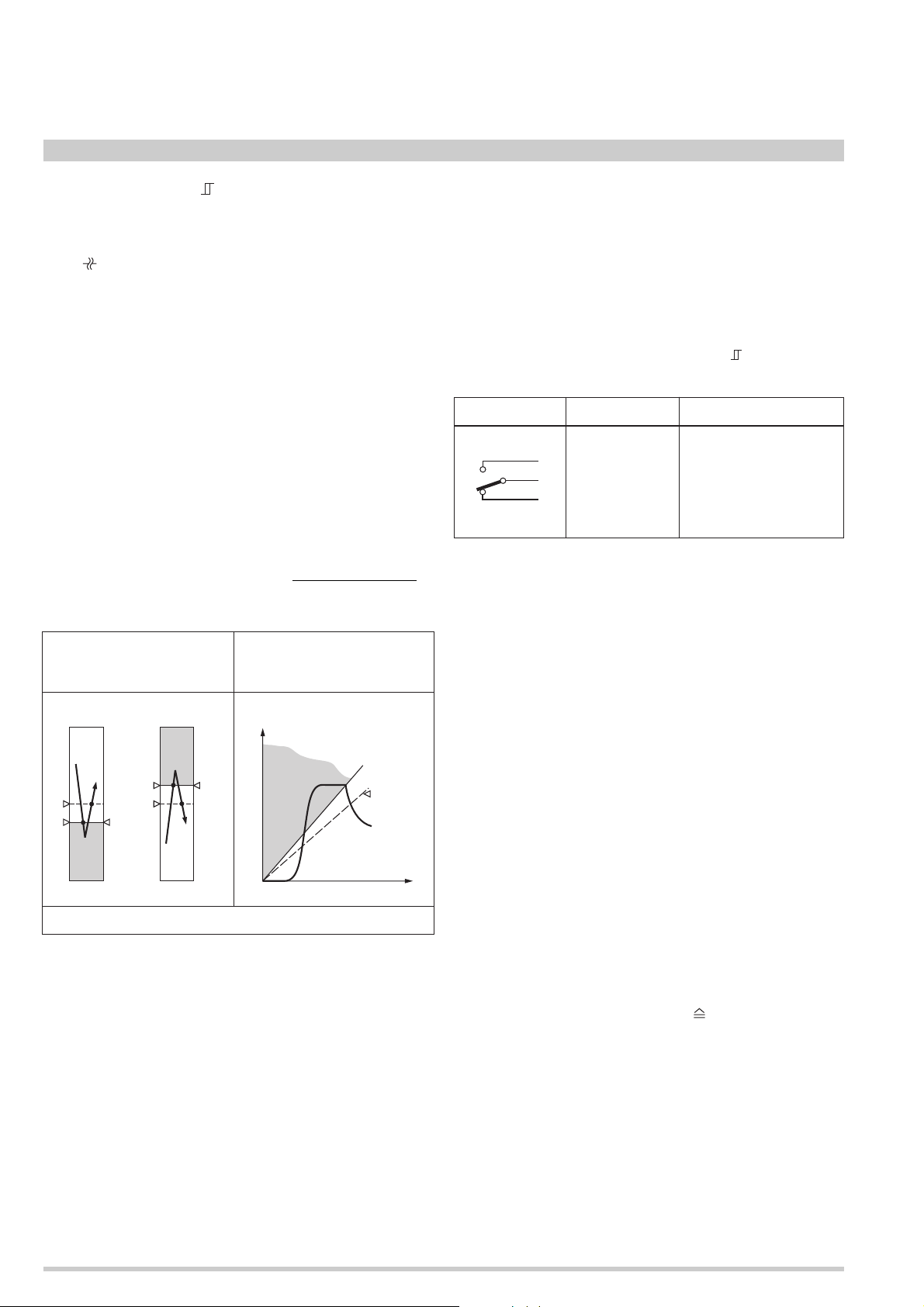

Supervising a limit GW ( )

This Section only applies to transmitters which are not configured
to use the output contact K in conjunction with the open-circuit
sensor supervision (see Section “Open-circuit sensor circuit super­vision ”).

This applies ...
... in all cases when the measured variable is a DC voltage or cur-

rent

... when the measured variable is a resistance thermometer, a ther-

mocouple, a remote sensor or a potentiometer and the relay is
set to “Relay disabled”

Limit: Programmable

– Disabled
– Lower limit value of the measured

variable (see Fig. 6, left)

– Upper limit value of the measured

variable (see Fig. 6, left)

– Maximum rate of change of the

measured variable

∆ measured variable

∆t

Input variable
limit

Slope =

(see Fig. 6, right)

Rate-of-change
of input variable

UpperLower

Slope

Operating and
resetting delays: Programmable

– between 1 to 60 s

Operating sense: Programmable

– Relay energized, LED on
– Relay energized, LED off
– Relay de-energized, LED on
– Relay de-energized, LED off
(once limit reached)

Relay status signal: GW by red LED (

Table 4: Contact arrangement and data

Symbol

Material

Contact rating

AC: ≤ 2 A / 250 V

Gold flashed

silver alloy

Relay approved by UL, CSA, TÜV, SEV

DC: ≤ 1 A / 0.1…250 V

Programming connector

Interface: RS 232 C

FCC-68 socket: 6/6 pin

Signal level: TTL (0/5 V)

Power consumption: Approx. 50 mW

)

(500 VA)

(30 W)

G

H

GW

S

H hysteresis, GW limit value, G operation area, S failure area

Fig. 6. Switching function according to limit monitored.

Trip point setting
using PC for GW: Programmable

Reset ratio: Programmable

S

H

GW

G

– between –10 and 110%

(of the measured variable)

– between ± 1 and ± 50%

(of the rate-of-change of the meas­ured variable)

– between 0.5 and 100%

(of the measured variable)

– between 1 and 100%1/s

(of the rate-of-change of the meas­ured variable)

S

H

G

1

1

/s

1

Time

Accuracy data (acc. to DIN/IEC 770)

Basic accuracy: Max. error ≤ ± 0.2%

Including linearity and repeatability
errors for current, voltage and resist­ance measurement

Additional error (additive): < ± 0.3% for linearised characteristic

< ± 0.3% for measuring ranges

< 5 mV, 0.3…0.75 V,
< 0.2 mA or < 20 Ω

< ± 0.3% for a high ratio between

full-scale value and meas­uring range > factor 10,
e.g. Pt 100

175.84 Ω…194.07 Ω
200 °C…250 °C

< ± 0.3% for current output

< 10 mA span

< ± 0.3% for voltage output

< 8 V span

< 2 · (basic and additional error)

for two-wire resistance
measurement

1

In relation to analogue output span A1 resp. A2.

Camille Bauer 8

Reference conditions:

Ambient temperature 23 °C, ± 2 K
Power supply 24 V DC ± 10% and 230 V AC ± 10%

ext

max.

ext

min.

Output burden Current: 0.5 · R

Voltage: 2 · R

Influencing factors:

Temperature < ± 0.1 … 0.15% per 10 K
Burden < ± 0.1% for current output

< 0.2% for voltage output,
providing R

> 2 · R

ext

ext

min.

Long-time drift < ± 0.3% / 12 months
Switch-on drift < ± 0.5%
Common and transverse

mode influence < ± 0.2%
+ or – output connected

to ground: < ± 0.2%

Installation data

Housing: Housing type S17

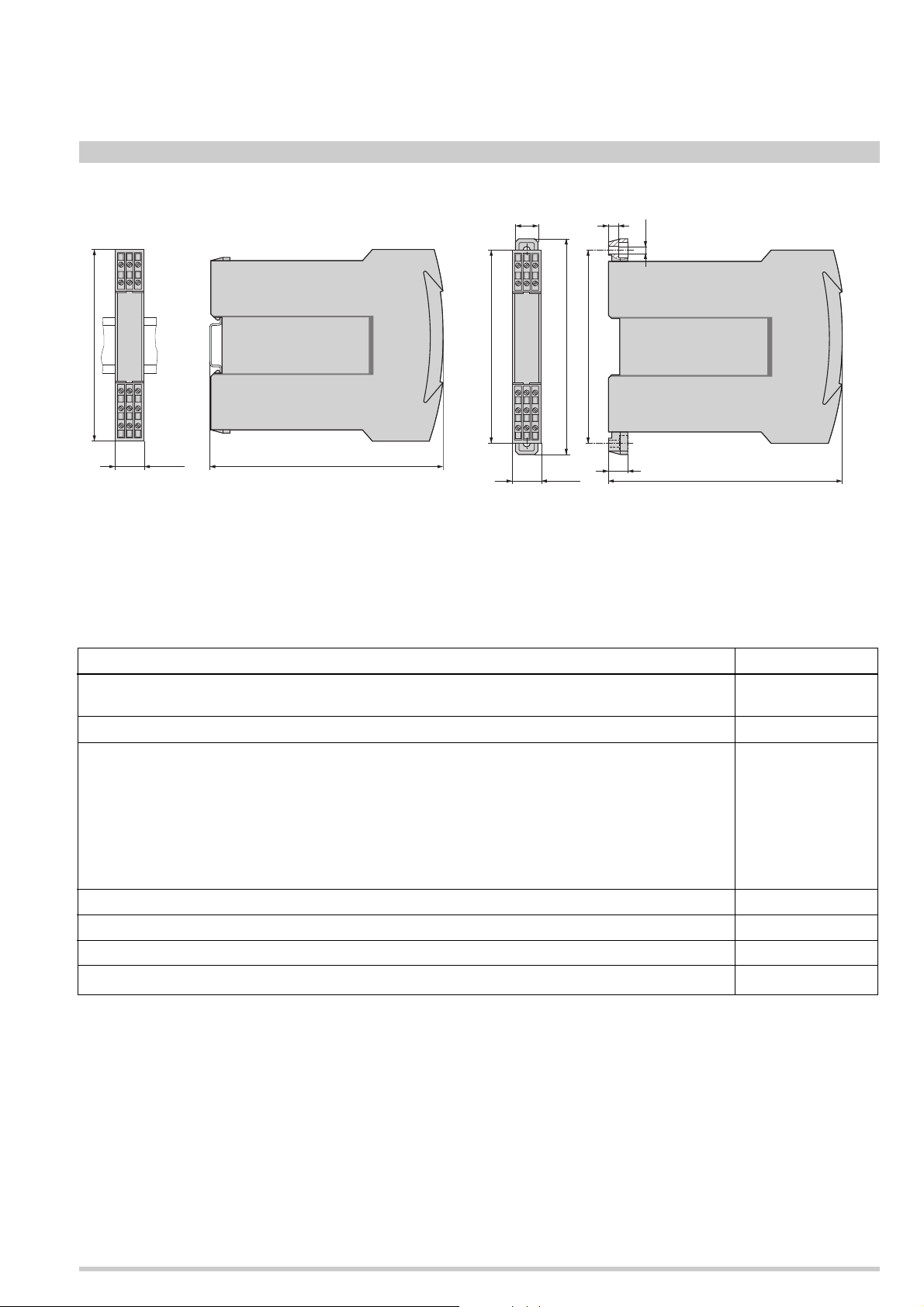

Refer to Section “Dimensional draw­ings” for dimensions

Material of housing: Lexan 940 (polycarbonate).

Flammability Class V-0 acc. to UL 94,
self-extinguishing, non-dripping, free
of halogen

Mounting: For snapping onto top-hat rail

(35 ×15 mm or 35 ×7.5 mm) acc. to
EN 50 022

or
directly onto a wall or panel using the

pull-out screw hole brackets

Mounting position: Any

Terminals: DIN/VDE 0609

Screw terminals with wire guards for
light PVC wiring and
max. 2 ×0.75 mm

Permissible vibrations: 2 g acc. to EN 60 068-2-6

10 … 150 … 10 Hz
10 cycles

Choc: 3 × 50 g

3 shocks each in 6 directions
acc. to EN 60 068-2-27

Weight: Approx. 0.25 kg

Electrical
insulation: All circuits (measuring input/measur-

ing outputs/power supply/output
contact) are electrically insulated.

Programming connector and meas­uring input are connected.

The PC is electrically insulated by the
programming cable PRKAB 600.

2

or 1 × 2,5 mm

2

Standards

Electromagnetic
compatibility: The standards DIN EN 50 081-2 and

DIN EN 50 082-2 are observed

Intrinsically safe: Acc. to DIN EN 50 020: 1996-04

Protection (acc. to IEC 529
resp. EN 60 529): Housing IP 40

Terminals IP 20

Electrical design: Acc. to IEC 1010 resp. EN 61 010

Operating voltages: Measuring input < 40 V

Programming connector,
measuring outputs < 25 V

Output contact,
power supply < 250 V

Rated insulation voltages: Measuring input, programming con-

nector, measuring outputs, output
contact, power supply < 250 V

Pollution degree: 2

Installation category II: Measuring input, programming con-

nector, measuring outputs, output
contact

Installation category III: Power supply

Test voltages: Measuring input and programming

connector to:
– Measuring outputs 2.3 kV,

50 Hz, 1 min.

– Power supply 3.7 kV,

50 Hz, 1 min.

– Output contact 2.3 kV,

50 Hz, 1 min.

Measuring outputs to:
– Power supply 3.7 kV,

50 Hz, 1 min.

– Output contact 2.3 kV,

50 Hz, 1 min.

Serial interface for the PC to:
– everything else 4 kV,

50 Hz, 1 min. (PRKAB 600)

Ambient conditions

Commissioning
temperature: – 10 to + 55 °C

Operating temperature: – 25 to + 55 °C, Ex – 20 to + 55 °C
Storage temperature: – 40 to + 70 °C

Relative humidity
annual mean: ≤ 75% standard climatic rating

≤ 95% enhanced climatic rating

Camille Bauer 9

SINEAX V 604
Programmable universal transmitter

Basic configuration

The transmitter SINEAX V 604 is also available already programmed
with a basic configuration which is especially recommended in
cases where the programming data is not known at the time of
ordering (see “Table 6: Specification and ordering information” fea­ture 4.).

SINEAX V 604 supplied as standard versions are programmed for
basic configuration (see “Table 5: Standard versions”).

Basic configuration: Measuring input 0…5 V DC

Measuring output 0…20 mA linear,
fixed value 0%
during 5 s after switching on

Setting time 0.7 s
Open-circuit supervision inactive
Mains ripple suppression 50 Hz
Limit functions inactive

Table 5: Standard versions

The following 8 transmitter versions are already programmed for basic configuration and are available as standard versions. It is only
necessary to quote the Order No.:

Cold junction Climatic Instrument Power supply Order Code
compensation rating

standard

Included

The complete Order Code

24… 60 V

Standard version

[EEx ia] IIC version,
measuring circuit I.S.

Standard version

increased

[EEx ia] IIC version,
measuring circuit I.S.

1

604-…0 and/or a description should be stated for other versions with the basic works configuration.

DC / AC

85…230 V
DC / AC

24… 60 V
DC / AC

85…110 V DC /
85…230 V AC

24… 60 V
DC / AC

85…230 V
DC / AC

24… 60 V
DC / AC

85…110 V DC /
85…230 V AC

604-1120

604-1220

604-1320

604-1420

604-1140

604-1240

604-1340

604-1440

1

Order No.

973 059

973 083

973 116

973 140

973 075

973 108

973 132

973 166

1

See “Table 6: Specification and ordering information”.

Camille Bauer 10

Table 6: Specification and ordering information (see also “Table 5: Standard versions”)

Order Code 604 -

Features, Selection *SCODE no-go

1. Mechanical design

Insert code in

the 1st
box on
page 13!

1) Housing S17 1.......

2. Version / Power supply H (nominal voltage U

)

N

1) Standard / 24... 60 V DC/AC . 1 . . . . . .

2) Standard / 85...230 V DC/AC . 2 . . . . . .

3) [EEx ia] IIC / 24... 60 V DC/AC . 3 . . . . . .

4) [EEx ia] IIC / 85...110 V DC . 4 . . . . . .

85...230 V AC

Lines 3 and 4: Instrument [EEx ia] IIC, measuring circuit EEx ia IIC

3. Climatic rating / Cold junction compensation

2) Standard climatic rating; instrument with cold junction

compensation ..2.....

4) Extra climatic rating; instrument with cold junction compensation . . 4 . . . . .

4. Configuration

0) Basic configuration, programmed Z . . . 0 . . . .

1) Programmed to order ...1....

2) Programmed to order with test certificate . . . 2 . . . .

Line 0: If you wish to order the basic configuration, the line “0)” must
be selected for options 4. to 13., i.e. all the digits of the order code
after the 4th, are zeros, see “Table 5: Standard versions”

Lines 0 and 1: No test certificate

5. Measured variable / Measuring input M

DC voltage

0) 0... 5 V linear C . . . . 0 . . .

1) 1... 5 V linear C Z . . . . 1 . . .

2) 0...10 V linear C Z . . . . 2 . . .

3) 2...10 V linear C Z . . . . 3 . . .

4) Linear input, other ranges [V] C Z . . . . 4 . . .

5) Square root input function [V] C Z . . . . 5 . . .

6) Input x 3/2 [V] C Z . . . . 6 . . .

Lines 4 to 6: DC [V] 0...0.002 to 0...≤ 40 V (Ex max. 30 V)
or span 0.002 to 40 V between –40 and 40 V,
ratio full-scale/span ≤ 20

Feature “5. Measured variable / Measuring input M” continued on next page!

Camille Bauer 11

SINEAX V 604
Programmable universal transmitter

Order Code 604 -

Features, Selection *SCODE no-go

Insert code in the

1st box of the
next page!

5. Measured variable / Measuring input M (continuation)

DC current

7) 0...20 mA linear C Z 7 . . . . . . .

8) 4...20 mA linear C Z 8 . . . . . . .

9) Linear input, other ranges [mA] C Z 9 . . . . . . .

A) Square root input function [mA] C Z A . . . . . . .

B) Input x 3/2 [mA] C Z B . . . . . . .

Lines 9, A and B: DC [mA] 0...0.08 to 0...100 mA
or span 0.08 to 100 mA between –50 and 100 mA,
ratio full-scale/span ≤ 20

Resistance thermometer, linearised

C) Two-wire connection, R
D) Three-wire connection, R
E) Four-wire connection, R

L

≤ 30 Ω/wire E Z D.......

L

≤ 30 Ω/wire E Z E.......

L

[Ω] E Z C.......

Resistance thermometer, non-linearised

F) Two-wire connection, R
G) Three-wire connection, R
H) Four-wire connection, R

L

≤ 30 Ω/wire E Z G.......

L

≤ 30 Ω/wire E Z H.......

L

[Ω] E Z F.......

J) Temperature difference [deg] E Z J . . . . . . .

2 identical resistance thermometers in three-wire connection

Lines C and F: Specify total lead resistance R
any value between 0 and 60 Ω. This may be omitted,

[Ω],

L

because two leads can be compensated automatically on site
Line J: Temperature difference; specify measuring range [deg],

also for feature 6.: t

min

; t

; t

max

reference

Thermocouple linearised

K) Internal cold junction compensation (not for type B) DT Z K . . . . . . .

L) External cold junction tK [°C] D Z L.......

compensation (specify 0°C for type B)*

Thermocouple non-linearised

M) Internal cold junction compensation (not for type B) DT Z M . . . . . . .

N) External cold junction tK [°C] D Z N.......

compensation (specify 0°C for type B)*

P) Average temperature [n] tK [°C] D Z P.......

Q) Temperature difference [deg] D Z Q . . . . . . .

2 identical thermocouples

Lines L, N and P: Specify external cold junction temperature t
any value between 0 and 70 °C

[°C],

K

Line P: State number of sensors [n]
Line Q: Temperature difference; specify measuring range [deg],

; t

also for feature 6.: t

min

max

; t

reference

* Because of its characteristic, thermocouple type B does not require compensating leads nor cold junction compensation.

Feature “5. Measured variable / Measuring input M” continued on next page!

Camille Bauer 12

Order Code 604 -

Features, Selection *SCODE no-go

Insert code in the

1st box of the
next page!

5. Measured variable / Measuring input M (continuation)

Resistance transmitter / Potentiometer

R) WF Measuring range [Ω] F Z R.......

≤ 30 Ω/wire

R

L

S) WF DIN Measuring range [Ω] F Z S.......

≤ 30 Ω/wire

R

L

T) Potentiometer Measuring range [Ω] F Z T.......

Two-wire connection and R

[Ω]

L

U) Potentiometer Measuring range [Ω] F Z U.......

Three-wire connection

≤ 30 Ω/wire

R

L

V) Potentiometer Measuring range [Ω] F Z V.......

Four-wire connection
R

≤ 30 Ω/wire

L

Lines R to V: Specify initial resistance, span and residual resistance in Ω;
example: 200...600...200; 0...500...0; 10...80...20
Minimum span at full-scale value ME: 8 Ω for ME ≤ 740 Ω

40 Ω for ME > 740 Ω.

Max. resistance value (initial value + span + lead resistance) 5000 Ω.
Note: Initial measuring range < 10× span
Line T: Specify total lead resistance R

0 and 60 Ω. This may be omitted, because two leads can be

[Ω], any value between

L

compensated automatically on site

Special characteristic

Z) For special [V] [mA] [Ω] Z Z.......

characteristic
Fill in Table W 2357 e for special characteristic

for V, mA or Ω input.

6. Sensor type / Temperature range

0) No temperature measurement . 0 . . . . . .

1) Pt 100 [°C] CDFZ . 1 . . . . . .

2) Ni 100 [°C] CDFZ . 2 . . . . . .

3) Other Pt [Ω][°C] CDFZ . 3 . . . . . .

4) Other Ni [Ω][°C] CDFZ . 4 . . . . . .

5) Pt 20 / 20 °C[°C] CDFZ . 5 . . . . . .

6) Cu 10 / 25 °C[°C] CDFZ . 6 . . . . . .

Lines 1 to 6: Specify measuring range in [°C] or °F, refer to Table 8
for the operating limits for each type of sensors.

For temperature difference measurement: specify measuring range

; t

; t

and reference temperature for 2nd sensor (t
e.g. 100; 250; 150

min

max

reference

),

Lines 3 and 4: Specify resistance in Ω at 0°C; permissible values are
100 and 1000, multiplied or divided by a whole number
e.g: 1000 : 4 = 250, 100 : 2 = 50 or 100 x 3 = 300

Feature “6. Sensor type / Temperature range” continued on next page!

Camille Bauer 13

SINEAX V 604
Programmable universal transmitter

Order Code 604 -

Features, Selection *SCODE no-go

6. Sensor type / Temperature range (continuation)

B) Type B: Pt30Rh-Pt6Rh [°C] CEFTZ B . . . . . . .

E) Type E: NiCr-CuNi [°C] CEFZ E . . . . . . .

J) Type J: Fe-CuNi [°C] CEFZ J . . . . . . .

K) Type K: NiCr-Ni [°C] CEFZ K . . . . . . .

L) Type L: Fe-CuNi [°C] CEFZ L . . . . . . .

N) Type N: NiCrSi-NiSi [°C] CEFZ N . . . . . . .

R) Type R: Pt13Rh-Pt [°C] CEFZ R . . . . . . .

S) Type S: Pt10Rh-Pt [°C] CEFZ S . . . . . . .

T) Type T: Cu-CuNi [°C] CEFZ T . . . . . . .

U) Type U: Cu-CuNi [°C] CEFZ U . . . . . . .

W) Type W5-W26Re [°C] CEFZ W . . . . . . .

Lines B to W: Specify measuring range in [°C] or °F, refer to Table 8
for the operating limits for each type of sensor.

For temperature difference measurement: specify measuring range

; t

; t

and reference temperature for 2nd sensor (t
e.g. 100; 250; 150

min

max

reference

),

7. Output signal / Measuring output A1*

0) 0...20 mA, R

1) 4...20 mA, R

≤ 750 Ω .0......

ext

≤ 750 Ω Z .1......

ext

2) Non-standard [mA] Z . 2 . . . . . .

3) 0... 5 V, R

4) 1... 5 V, R

5) 0...10 V, R

6) 2...10 V, R

≥ 250 Ω Z .3......

ext

≥ 250 Ω Z .4......

ext

≥ 500 Ω Z .5......

ext

≥ 500 Ω Z .6......

ext

7) Non-standard [V] Z . 7 . . . . . .

Line 2: –22 to + 22, span 5 to 40 mA
Line 7: –12 to + 15, span 4 to 27 V

8. Output characteristic

0) Directly proportional, initial start-up value 0% . . 0 . . . . .

1) Inversely proportional, initial start-up value 100% Z . . 1 . . . . .

2) Directly proportional, initial start-up value [%] Z . . 2 . . . . .

3) Inversely proportional, initial start-up value [%] Z . . 3 . . . . .

9. Output time response

0) Rated settling time approx. 1 s . . . 0 . . . .

1) Others [s] Z . . . 1 . . . .

Line 1: Any whole number from 2 to 30 s

* 2nd output signal A2 for field indicator only

Camille Bauer 14

Order Code 604 -

Features, Selection *SCODE no-go

10. Open-circuit sensor signalling

Without / open-circuit sensor signal / relay / output signal A
corresponding to input variable [%]

0) No sensor signal (for current or voltage measurement) DEF 0 . . . . . . .

1) With sensor signal / relay disabled / CZ 1 . . . . . . .

output signal A %

2) With sensor signal / relay energized / K CZ 2 . . . . . . .

output signal A %

3) With sensor signal / relay de-energized / K CZ 3 . . . . . . .

output signal A %

4) With sensor signal / relay energized / hold A at last value K CZ 4 . . . . . . .

5) With sensor signal / relay de-energized / hold A at last value K CZ 5 . . . . . . .

Lines 1, 2 and 3: Specify value of output signal span in %,
any value from –10% to 110%; e.g. with output 4...20 mA
corresponding 2.4 mA –10% and 21.6 mA 110%

Lines 2 to 5: Cannot be combined with active trip point GW,
Feature 12. lines 1 to 3 and
Feature 13. lines 1 and 2

11. Mains ripple suppression

0) Frequency 50 Hz .0......

1) Frequency 60 Hz Z . 1 . . . . . .

12. Type and values of trip point GW
and reset ratio, energizing delay and
de-energizing delay of the relay (for output contact K)

0) Alarm function inactive L . . 0 . . . . .

1) Low alarm [%;%;s;s] M KZ . . 1 . . . . .

2) High alarm [%;%;s;s] M KZ . . 2 . . . . .

3) Rate-of-change alarm dx/dt [%/s;%;s;s] M KZ . . 3 . . . . .

13. Sense of action of trip point (for GW resp. K)

0) Alarm function inactive M . . . 0 . . . .

1) Relay energized in alarm condition KLZ . . . 1 . . . .

2) Relay energized in safe condition KLZ . . . 2 . . . .

* Lines with letter(s) under “no-go” cannot be combined with preceding lines having the same letter under “SCODE”.

Table 7: Data on explosion protection II (1) G

Order Type of protection “Intrinsic safety” Type examination certificate Mounting location
Code Marking of the instrument

Instrument Measuring input

604-13/14

[EEx ia] IIC

EEx ia IIC

PTB 97 ATEX 2074 X

Outside

the hazardous area

Important condition: The SINEAX V 604 may only be programmed using a PRKAB 600 with the component
certificate PTB 97 ATEX 2082 U.

Camille Bauer 15

SINEAX V 604
Programmable universal transmitter

Table 8: Temperature measuring ranges

Measuring
range
[°C]

0... 20

0... 25 X X

0... 40 X X X X X

0... 50 X X XXXX XX

0... 60 X X XXXX XX

0... 80 X X XXXX XX

0... 100 X X XXXXX XX

0... 120 X X XXXXX XX

0... 150 X X XXXXX XX

0... 200 X X XXXXX XX

0... 250 X X XXXXX XX

0... 300 X XXXXXXXXX

0... 400 X XXXXXXXXX

0... 500 X XXXXXXX X

0... 600 X XXXXXXX X

0... 800 X

0... 900 XXXXXXXX

0...1000 XXXX XXX

0...1200 X X X X X X

0...1500 X X X

0...1600 X X X

50... 150 X X XXXXX XX

100... 300 X XXXXX XX

300... 600 X XXXXXXX X

600... 900 XXXXXXXX

600...1000 XXXX XXX

900...1200 X X X X X X

600...1600 X X X

600...1800 X
–20... 20 X X X X X
–10... 40 X X XXXX X
–30... 60 X X XXXXX XX
Measuring – 200 –60 0 – 270 –210 –270 – 200 –270 –50 –50 – 270 – 200

range to to to to to to to to to to to to
limits [°C] 850 250 1820 1000 1200 1372 900 1300 1769 1769 400 600

Resistance Thermocouple
thermometer

Pt100 Ni100 B E J K L N R S T U

∆R min 8Ω at ∆U min 2 mV

full-scale

≤ 740 Ω

∆R min 40 Ω at

full-scale

> 740 Ω

to

5000 Ω

Camille Bauer 16

Electrical connections

GOSSEN

LLE BAUER

Front

M

Programming connector

S1

Calibration button
for automatically
compensating the leads for
used in conjunction with a
two-wire resistance
thermometer circuits

1116

2127

a

d

e

r

j

i

u

S1

s

w

t

2

3138

4149

51510

Without transparent
cover

1116

2127

GOSSEN

METRAWATT

CAMILLE BAUER

SINEAX

V604

ON

(

(

3138

4149

51510

With transparent
cover

Relay

b

a

Space for note or designation
measuring circuit

ON

Green LED for indicating
device standing by

Red LED for indicating
operation of open-circuit
or

(

(

trip point GW
(where a limit monitor is
ordered instead of the
open-circuit sensor
supervision)

c

4 9

A1

3 8

+–

+–

A2

13 14 15

K

Energised:
De-energised:

a – c
b – c

5 10

M = Measured variable / measuring input,

Terminal allocation acc. to the measuring mode and application see “Table 9: Measuring input”

A1 = Output signal / measuring output

A2 = 2nd output (field indicator)

(Only brief use permitted in the case of the Ex version)

K = Output contact for open-circuit sensor supervision or for monitoring a limit GW

H = Power supply

+–

H

Camille Bauer 17

SINEAX V 604
Programmable universal transmitter

Table 9: Measuring input

Measurement Measuring range

limits

DC voltage
(direct input)

DC voltage
(input via potential divider)

– 300...0...300 mV 2...300 mV

– 40...0...40 V 0.3...40 V

– 12...0... 12 mA/
– 50...0...100 mA

Resistance thermometer RT
or resistance measurement R,

two-wire connection

Resistance thermometer RT
or resistance measurement R,

three-wire connection

Resistance thermometer RT
or resistance measurement R,

four-wire connection

0... 740 Ω /

0...5000 Ω

0... 740 Ω /

0...5000 Ω

0... 740 Ω /

0...5000 Ω

Measuring
span

0.08... 12 mA/

0.75...100 mA

8... 740 Ω /

40...5000 Ω

8... 740 Ω /

40...5000 Ω

8... 740 Ω /

40...5000 Ω

Wiring diagram

No.

1

2

3DC current

4

5

Terminal arrangement

1611

2712

1611

2712

1611

2712

1611

2712

1611

RT

RT

Rw1

ϑ

Rw2

ϑ

–

+

–

+

–

+

R

R

2712

6

2712

1611

RT

R

ϑ

2 identical three-wire resistance
transmitters RT
for deriving the difference

Thermocouple TC
Cold junction compensation
internal

Thermocouple TC
Cold junction compensation
external

Thermocouple TC
in a summation circuit for deriving
the mean temperature

Thermocouple TC
in a differential circuit for deriving
the mean temperature

Resistance sensor WF

Resistance sensor WF DIN

RT1 - RT2

0... 740 Ω /

0...5000 Ω

8... 740 Ω /

40...5000 Ω

– 300...0...300 mV 2...300 mV

– 300...0...300 mV 2...300 mV

– 300...0...300 mV 2...300 mV

TC1 - TC2
– 300...0...300 mV

0... 740 Ω /

0...5000 Ω

0... 740 Ω /

0...5000 Ω

2...300 mV

8... 740 Ω /

40...5000 Ω

8... 740 Ω /

40...5000 Ω

7

8

9

10

11

12

13

1611

2712

1611

2712

1611

2712

1611

2712

1611

2712

+

1611

2712

1611

2712

ϑ

ϑ

–

+

100%

100%

–

+

–

+
–

+

+

–
–

+

(ref)
R2

R1

External
compen­sating
resistor

External
compen­sating
resistor

TC1
TC2
(Ref.)

0%

0%

(ref)
RT2

RT1

–

Camille Bauer 18

Dimensional drawings

120

+0,5

+0

146,517,5

Fig. 7. SINEAX V 604 in housing S17 clipped onto a top-hat rail
(35 ×15 mm or 35 ×7.5 mm, acc. to EN 50 022).

14

120

17,5

Fig. 8. SINEAX V 604 in housing S17 with the screw hole brackets
pulled out for wall mounting.

134

+0,5

+0

120

6,5

12

Ø4,5

145,5

Table 10: Accessories and spare parts

Description Order No.

Programming cable PRKAB 600 147 787
for SINEAX/EURAX VC 603/V 604, SIRAX V 644 and SINEAX TV 808

Ancillary cable for SINEAX/EURAX VC 603/V 604 and SIRAX V 644 988 058

Configuration Software VC 600 146 557

for SINEAX/EURAX VC 603 / V 604 and SIRAX V 644
Windows 3.1x, 95, 98, NT and 2000
incl. V 600 (Version 1.6, DOS)
on CD in German, English, French and Dutch

(Download free of charge under http://www.gmc-instruments.com)

In addition, the CD contains all configuration programmes presently available
for Camille Bauer products.

Pull-out handle (for removing device from its housing) 988 149

Front label (behind transparent cover) 973 504

Inscription label (green, for recording programmed settings) 120 634

Operating Instructions V 604-1 B d-f-e 987 810

Standard accessories

1 Operating Instructions in three languages: German, French,

English
2 Pull-out handle (for removing device from its housing)
2 Front labels (behind transparent cover)
2 Inscription labels (green, for recording programmed settings)
1 Type examination certificate (only for “intrinsically safe”

explosion-proof devices)

Camille Bauer 19

SINEAX V 604
Programmable universal transmitter

Printed in Switzerland • Subject to change without notice • Edition 03.01 • Data sheet No. V 604-1 Le

Aargauerstrasse 7
CH-5610 Wohlen/Switzerland
Phone [phone]
Fax [phone]
e-mail: [e-mail]

Camille Bauer Ltd

Camille Bauer 20

http://www.gmc-instruments.com
