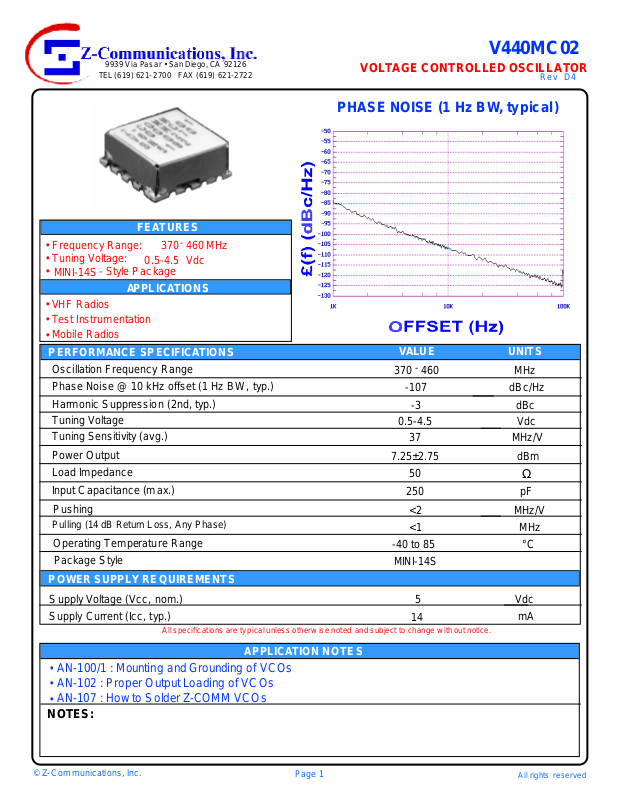

Page 1
9939 Via Pas ar • San Diego, CA 92126
TEL (619) 621-2700 FAX (619) 621-2722
FEATURES
-
MH z• Frequency Range:
• Tuning Voltage:
•
MINI-14S
- Style Package
370 460
0.5-4.5 Vdc
APPLICATIONS
•
VHF Radios
•
Test Instrumentation
Mobile Radios
•
PERFORMANCE SPECIFICATIONS
Oscillation Frequency Range
Phase Noise @ 10 kHz offset (1 Hz BW, typ.)
Harmonic Suppression (2nd, typ.)
Tuning Voltage
Tuning Sensitivity (avg.)
V440MC02
VOLTAGE CONTROLLED OSCILLATOR
PHASE NOISE (1 Hz BW, typical)
VALU E UNITS
-
370 460
-107
-3
0.5-4.5
37
MHz
dBc/Hz
dBc
Vdc
MHz/V
D4Rev
Power Output
Load Impedance
Input Capacitance (max .)
Pushing
Pulling (14 dB Ret ur n Loss, Any Phase)
Operating Temperature Range
Package Style
POWER SUPPLY R EQUIREMENTS
Supply Voltage (Vcc, nom.)
Supply Current (Icc, typ.)
All specifications are ty pical unles s otherw ise noted and s ubject to change without notice.
APPLICATION NOTE S
AN-100/1 : Mounting and Grounding of VCOs
•
AN-102 : Proper Output Loading of VCOs
•
AN-107 : H ow t o Solde r Z -COMM VCOs
•
NOTES:
7.25±2.75
50
250
<2
<1
-40 to 85
MINI-14S
5
14
dBm
Ω
pF
MHz/V
MHz
°C
Vdc
mA
© Z-Communications, Inc.
Page 1
All rights reserv ed
Page 2
LO W COST - HIG H PERFORMA NCE
VOLTAGE CONTROLLED OSCILLATOR
500
450
400
350
300
00.511.522.533.544.5
TUNING CURVE, typ.
POWER CURVE, typ.
V440MC02
PAGE 2
85
°c
°c
25
-40
°c
16
14
12
10
8
6
4
2
0
320 340 361 381 401 420 439 458 478 496
PHYSICAL DIMENSIONS
MINI-14S
415- 0 06 2 REV . B
( D RA W ING NOT TO S C A LE)
25
°c
© Z-Communications, Inc.
Page 2
P r int ed in th e U. S.A.
