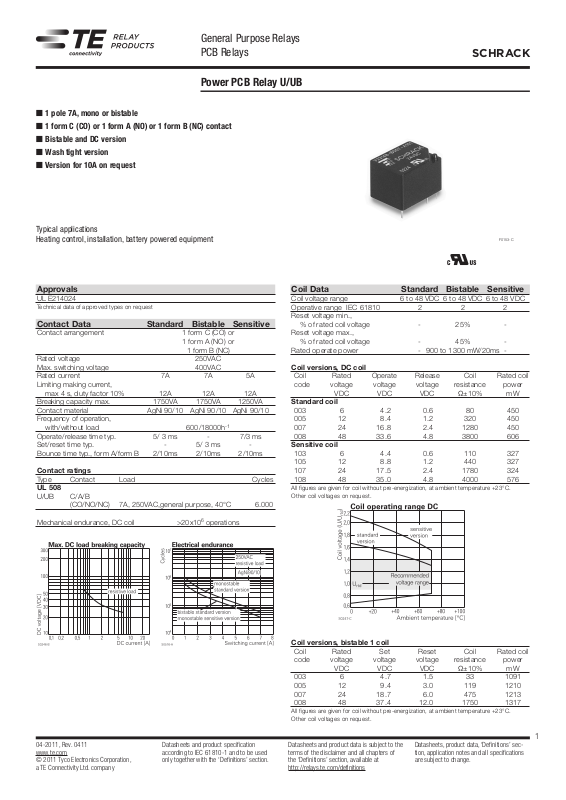

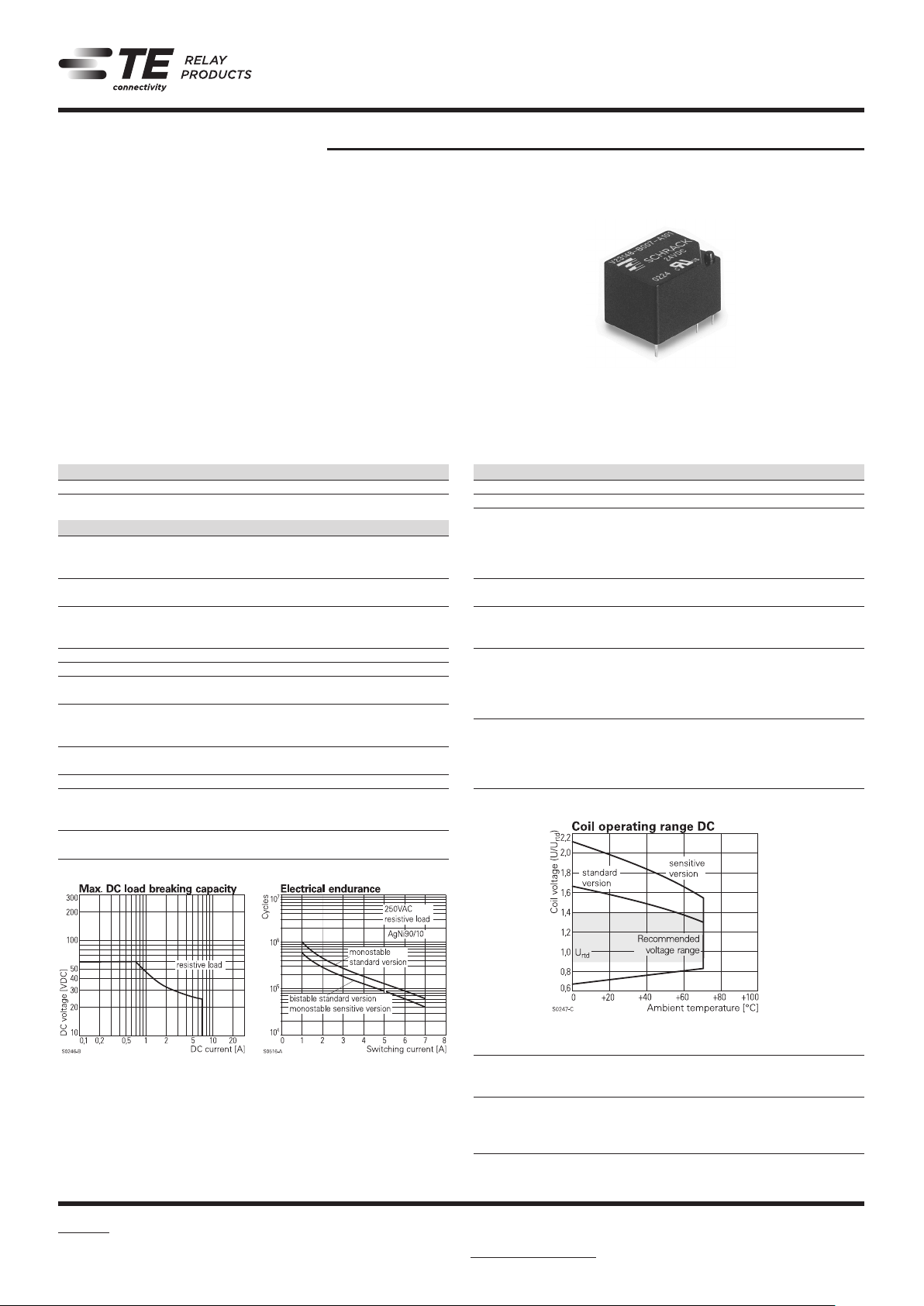

Page 1

General Purpose Relays PCB Relays

Power PCB Relay U/UB

1 pole 7A, mono or bistable

1 form C (CO) or 1 form A (NO) or 1 form B (NC) contact

Bistable and DC version

Wash tight version

Version for 10A on request

SCHRACK

Typical applications Heating control, installation, battery powered equipment

Approvals

UL E214024

Technical data of approved types on request

Contact Data Standard Bistable Sensitive

Contact arrangement 1 form C (CO) or 1 form A (NO) or 1 form B (NC) Rated voltage 250VAC Max. switching voltage 400VAC Rated current 7A 7A 5A Limiting making current, max 4 s, duty factor 10% 12A 12A 12A Breaking capacity max. 1750VA 1750VA 1250VA Contact material AgNi 90/10 AgNi 90/10 AgNi 90/10 Frequency of operation, with/without load 600/18000h-1 Operate/release time typ. 5/ 3 ms - 7/3 ms Set/reset time typ. - 5/ 3 ms Bounce time typ., form A/form B 2/10ms 2/10ms 2/10ms

Contact ratings

Type Contact Load Cycles

UL 508

U/UB C/A/B (CO/NO/NC) 7A, 250VAC,general purpose, 40°C 6.000

Mechanical endurance, DC coil >20x106 operations

F0153-C

Coil Data Standard Bistable Sensitive

Coil voltage range 6 to 48 VDC 6 to 48 VDC 6 to 48 VDC Operative range IEC 61810 2 2 2 Reset voltage min., % of rated coil voltage - 25% Reset voltage max., % of rated coil voltage - 45% Rated operate power - 900 to 1300 mW/20ms -

Coil versions, DC coil

Coil Rated Operate Release Coil Rated coil code voltage voltage voltage resistance power VDC VDC VDC Ω±10% mW

Standard coil

003 6 4.2 0.6 80 450 005 12 8.4 1.2 320 450 007 24 16.8 2.4 1280 450 008 48 33.6 4.8 3800 606

Sensitive coil

103 6 4.4 0.6 110 327 105 12 8.8 1.2 440 327 107 24 17.5 2.4 1780 324 108 48 35.0 4.8 4000 576

All ﬁgures are given for coil without pre-energization, at ambient temperature +23°C. Other coil voltages on request.

Datasheets and product speciﬁcation according to IEC 61810-1 and to be used only together with the ‘Deﬁnitions’ section.

Coil versions, bistable 1 coil

Coil Rated Set Reset Coil Rated coil code voltage voltage voltage resistance power VDC VDC VDC Ω±10% mW 003 6 4.7 1.5 33 1091 005 12 9.4 3.0 119 1210 007 24 18.7 6.0 475 1213 008 48 37.4 12.0 1750 1317

All ﬁgures are given for coil without pre-energization, at ambient temperature +23°C. Other coil voltages on request.

Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Deﬁnitions’ section, available at http://relays.te.com/definitions

Datasheets, product data, ‘Deﬁnitions’ section, application notes and all speciﬁcations are subject to change.

Page 2

General Purpose Relays PCB Relays

Power PCB Relay U/UB (Continued)

SCHRACK

Insulation Data 2kV

Version Version

4kV

rms

V23148-*0*** V23148-*1*** Initial dielectric strength between open contacts 1000V between contact and coil 2000V Clearance/creepage

1000V

rms

4000V

rms

between contact and coil ≥2.5/2.5mm ≥3.5/3.5mm Material group of insulation parts ≥IIIa ≥IIIa

Other Data

Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content refer to the Product Compliance Support Center at www.te.com/customersupport/rohssupportcenter Ambient temperature -25 to +70°C Category of environmental protection IEC 61810 RTIII - wash tight Vibration resistance (functional), form A/form B 10/10g Shock resistance (functional), form A/form B 10/10g Terminal type PCB-THT Weight 9.5 g Resistance to soldering heat THT IEC 60068-2-20, wash tight version 260°C/5 s Packaging unit 25 pcs.

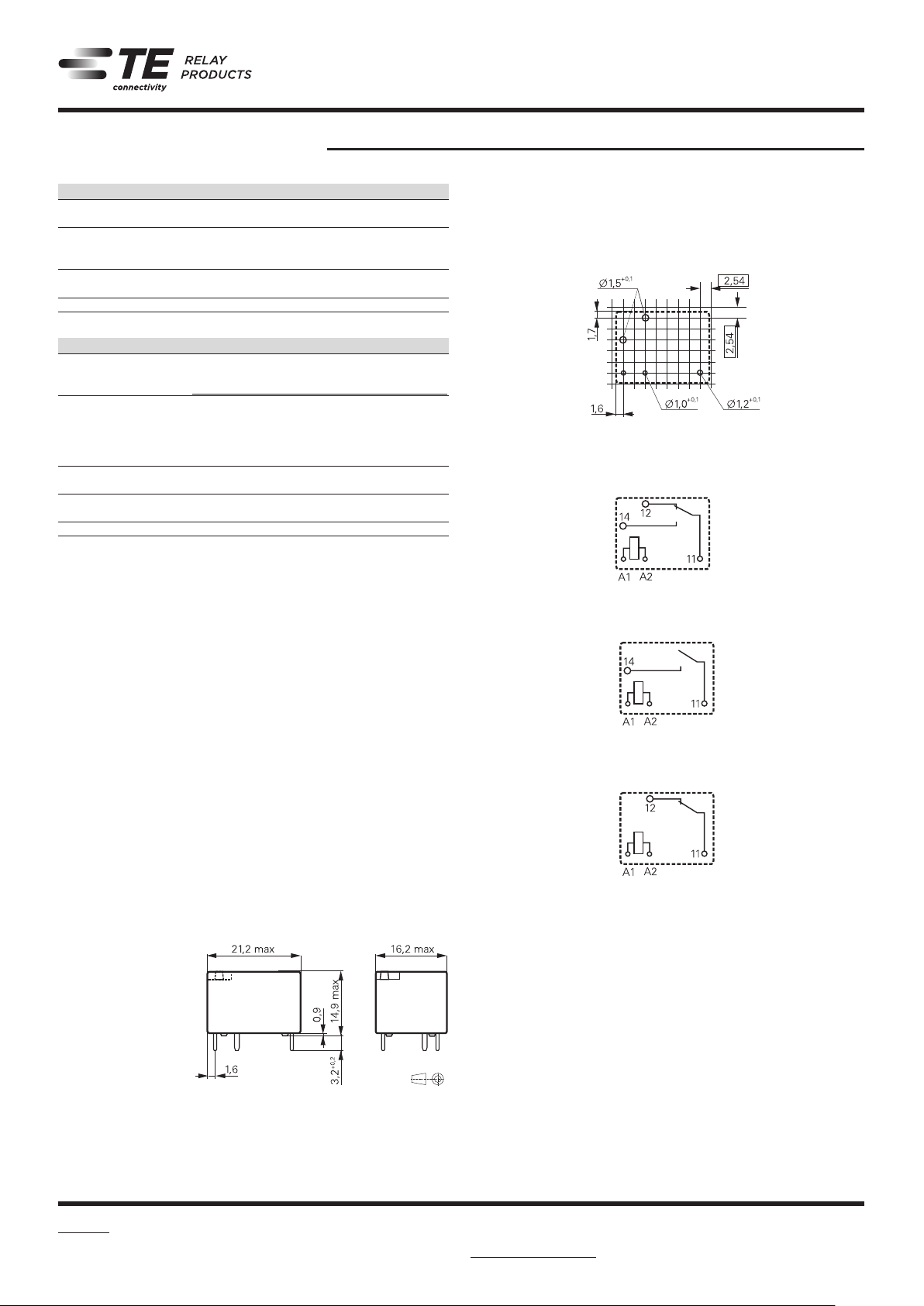

PCB layout / terminal assignment

Bottom view on solder pins

Monostable and bistable 1 coil

S0285-AA

Form C contact (CO)

S0285-AB

Form A contact (NO)

Dimensions

S0285-AC

Form B contact (NC)

S0285-AD

S0286-A

Datasheets and product speciﬁcation according to IEC 61810-1 and to be used only together with the ‘Deﬁnitions’ section.

Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Deﬁnitions’ section, available at http://relays.te.com/definitions

Datasheets, product data, ‘Deﬁnitions’ section, application notes and all speciﬁcations are subject to change.

Page 3

General Purpose Relays PCB Relays

SCHRACK

Power PCB Relay U/UB (Continued)

Product code structure Typical product code V23148 -A 0 0 07 -A 101

Type V23148 Power PCB Relay U/UB Version

A Monostable (Miniature power relay U) B Bistable (Miniature power relay UB, remanence version)

Dielectric strength coil-contact 0 2kV Version

Monostable Bistable 0 Standard 0 Standard 1 Sensitive

Coil

03 6VDC 07 24VDC 05 12VDC 08 48VDC

Contact conﬁguration

A 1 form C contact (1 CO) C 1 form B contact (1 NC) B 1 form A contact (1 NO)

Contact material

101 AgNi10

Other types on request

1 4kV

rms

Product code Version Dielectric Version Arrangement Part number

V23148-A0003-A101 Monostable 2000 V V23148-A0003-B101 relay ‚U‘ contact-coil 1 form A (NO) 1393203-5 V23148-A0005-A101 AgNi10 1 form C (CO) 1393203-8 V23148-A0005-B101 1 form A (NO) 1393203-9 V23148-A0007-A101 1 form C (CO) 1-1393203-1 V23148-A0007-B101 1 form A (NO) 1-1393203-2 V23148-A0008-A101 1 form C (CO) 1-1393203-4 V23148-A0105-A101 Sensitive 2-1393203-1 V23148-A0107-A101 2-1393203-4 V23148-A1005-A101 4000 V V23148-A1007-A101 contact-coil 2-1393203-8 V23148-A1105-A101 Sensitive 2-1393203-9 V23148-A1107-A101 3-1393203-1 V23148-B0003-A101 Bistable 2000 V V23148-B0005-A101 relay ‚UB‘ contact-coil 1393204-7 V23148-B0007-A101 AgNi10 1-1393204-0 V23148-B0008-A101 1-1393204-3

Standard 1 form C (CO) 1393203-4

rms

Standard 2-1393203-7

rms

Standard 1393204-4

rms
