Coil Data
Voltage: 12 VDC.
Resistance: See Coil Data table.
Nom. Power: 0.55 watts @ 23°C coil temp. and rated coil voltage.
Thermal Resistance: 50°C per actual coil watt in still air with no contact
load current.
Contact Data
Arrangements: 1 Form A (SPST-NO) and 1 Form C (SPDT) in single relay
and dual relay configurations.
Material: AgNi 0.15 - Recommended for inductive loads.
AgSnO - Recommended for high inrush, lamp and capacitive
loads and applications prone to contact material transfer.
Max. Switching Rate: 20 operations per second with no contact load.
6 operations per minute for rated life at rated load.
Max. Load Current (@ 14VDC Load Voltage):

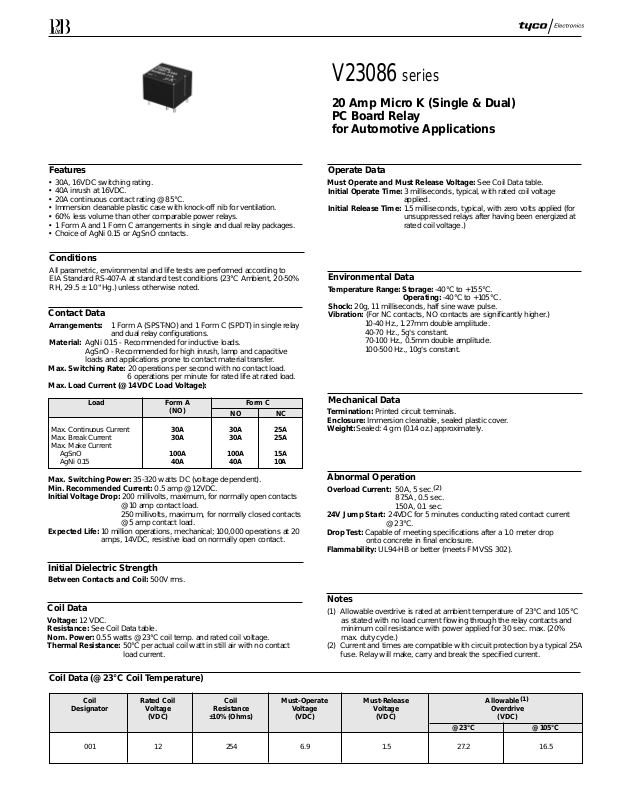

V23086 series
20 Amp Micro K (Single & Dual)
PC Board Relay
for Automotive Applications
Features
• 30A, 16VDC switching rating.
• 40A inrush at 16VDC.
• 20A continuous contact rating @ 85°C.
• Immersion cleanable plastic case with knock-off nib for ventilation.
• 60% less volume than other comparable power relays.
• 1 Form A and 1 Form C arrangements in single and dual relay packages.
• Choice of AgNi 0.15 or AgSnO contacts.
Conditions
All parametric, environmental and life tests are performed according to
EIA Standard RS-407-A at standard test conditions (23°C Ambient, 20-50%
RH, 29.5 ± 1.0" Hg.) unless otherwise noted.
Initial Dielectric Strength
Between Contacts and Coil: 500V rms.
Max. Switching Power: 35-320 watts DC (voltage dependent).
Min. Recommended Current: 0.5 amp @ 12VDC.
Initial Voltage Drop: 200 millivolts, maximum, for normally open contacts
@ 10 amp contact load.
250 millivolts, maximum, for normally closed contacts
@ 5 amp contact load.
Expected Life: 10 million operations, mechanical; 100,000 operations at 20
amps, 14VDC, resistive load on normally open contact.
Coil Data (@ 23°C Coil Temperature)
Load Form A Form C
(NO)
NO NC
Max. Continuous Current 30A 30A 25A
Max. Break Current 30A 30A 25A
Max. Make Current
AgSnO 100A 100A 15A
AgNi 0.15 40A 40A 10A
Abnormal Operation
Overload Current: 50A, 5 sec.
(2)
87.5A, 0.5 sec.
150A, 0.1 sec.
24V Jump Start: 24VDC for 5 minutes conducting rated contact current
@ 23°C.
Drop Test: Capable of meeting specifications after a 1.0 meter drop
onto concrete in final enclosure.
Flammability: UL94-HB or better (meets FMVSS 302).
Operate Data
Must Operate and Must Release Voltage: See Coil Data table.
Initial Operate Time:3 milliseconds, typical, with rated coil voltage
applied.
Initial Release Time: 1.5 milliseconds, typical, with zero volts applied (for
unsuppressed relays after having been energized at
rated coil voltage.)
Mechanical Data
Termination: Printed circuit terminals.
Enclosure: Immersion cleanable, sealed plastic cover.
Weight:Sealed: 4 gm (0.14 oz.) approximately.
Notes
(1) Allowable overdrive is rated at ambient temperature of 23°C and 105°C
as stated with no load current flowing through the relay contacts and
minimum coil resistance with power applied for 30 sec. max. (20%
max. duty cycle.)
(2) Current and times are compatible with circuit protection by a typical 25A
fuse. Relay will make, carry and break the specified current.
Environmental Data
Temperature Range: Storage: -40°C to +155°C.
Operating: -40°C to +105°C.
Shock: 20g, 11 milliseconds, half sine wave pulse.
Vibration: (For NC contacts, NO contacts are significantly higher.)
10-40 Hz., 1.27mm double amplitude.
40-70 Hz., 5g's constant.
70-100 Hz., 0.5mm double amplitude.
100-500 Hz., 10g's constant.
Coil Rated Coil Coil Must-Operate Must-Release Allowable
(1)
Designator Voltage Resistance Voltage Voltage Overdrive
(VDC) ±10% (Ohms) (VDC) (VDC) (VDC)
@ 23°C @ 105°C
001 12 254 6.9 1.5 27.2 16.5
Page 2
Stock Items - The following items are normally maintained in stock for immediate delivery.
V23086-C1001-A303
V23086-C1001-A403
1 Form A
1 Form C

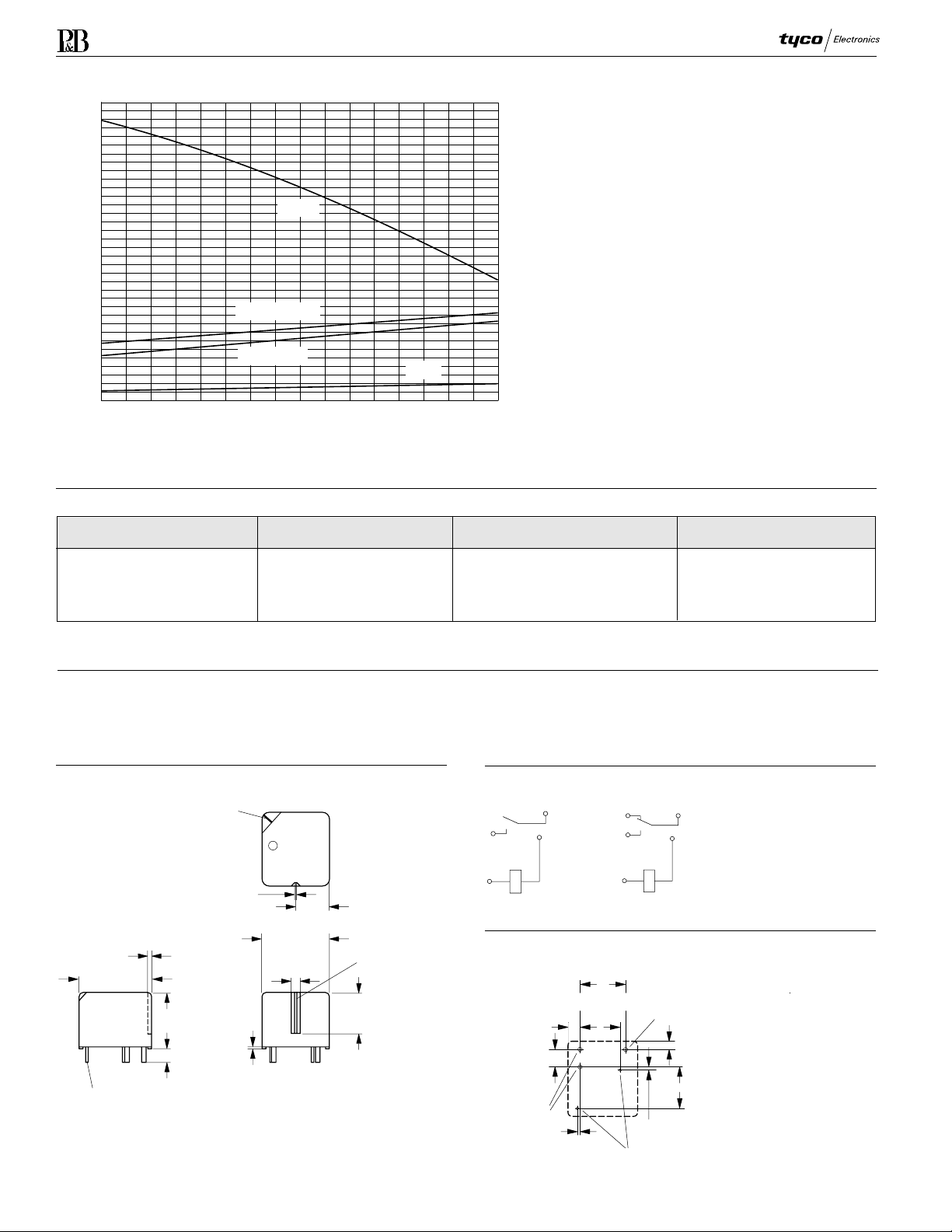

Figure 1 - Operating Voltage Range
Ordering Information
Outline Dimensions – Single Relay
Suggested PC Board Layout – Single Relay (Bottom View)
Wiring Diagrams – Single Relay (Bottom Views)
Contact Contact
Part Number Arrangement Enclosure Materials
V23086-C1001-A303 1 Form C Sealed, Plastic Cover AgNi 0.15
V23086-C1001-A402 1 Form A Sealed, Plastic Cover AgSnO
V23086-C1001-A403 1 Form C Sealed, Plastic Cover AgSnO
V23086-C2001-A303 Dual Form C Sealed, Plastic Cover AgNi 0.15
V23086-C2001-A403 Dual Form C Sealed, Plastic Cover AgSnO
35
30
25
20
V max.
Does not take into account
the temperature rise due
to the contact current.
15
Coil V oltage (VDC)
10
5
V op (E = 13.5V)
V op (E = 0V)
V op = Operation Voltage
E = Pre-Generation
V rel.
0
-40
-20
02040
60 80 100 120
Ambient T emperature (°C)
Knock-off-nib
.390 ± .004
(9.9 ± 0.1)
.110 ±. 008*
(2.8 ± 0.2)
.024 ± .008
(0.6 ± 0.2)
.016 ± .004
(0.4 ± 0.1)
*
excluding solder
.472 ±.004
.098 ± .008
.508 ± .008
(12.9 ± 0.2)
Terminals tinned
The Knock-off-nib may be
removed after soldering
and washing
(for ventilation)
.037 ± .008
(0.95 ± 0.2)
(12 ± 0.1)
(2.5 ± 0.2)
.228 ± .004
(5.8 ± 0.1)
Assembly and
positioning aid
.301 ± .004
(7.65 ± 0.1)
5
2
4
1
3
5
2
4
1
.315 ± .004
(8 ± 0.1)
.087
(2.2)
.118 ± .002
(3 ± 0.05)
ø .067 ± .002
(1.7 ± 0.05)
.276 ± .004
(7 ± 0.1)
3
5
2
.020 ± .008
(0.5 ± 0.2)
ø .071 ± .002
(1.8 ± 0.05)
4
1
.024 ± .004
(0.6 ± 0.1)
ø .043 ± .002
(1.1 ± 0.05)
.053
(1.35)
.283 ± .008
(7.2 ± 0.2)
Page 3
Terminals tinned
Excluding solder
.390 ± .004
(9.9 ± 0.1)
.016 ± .004
(0.4 ± 0.1)
.110 ± .008*
(2.8 ± 0.2)
.508 ± .008
(12.9 ± 0.2)
.037 ± .008
(0.95 ± 0.2)
.925 ± .008
(23.5 ± 0.2)
.024 ± .008
(0.6 ± 0.2)
.098 ± .008
(2.5 ± 0.2)
.301 ± .004
(7.65 ± 0.1)
The knock-off-nibs may be
removed after soldering
and washing
(for ventilation)
Knock-off-nibs
*
1 Form A
1 Form C

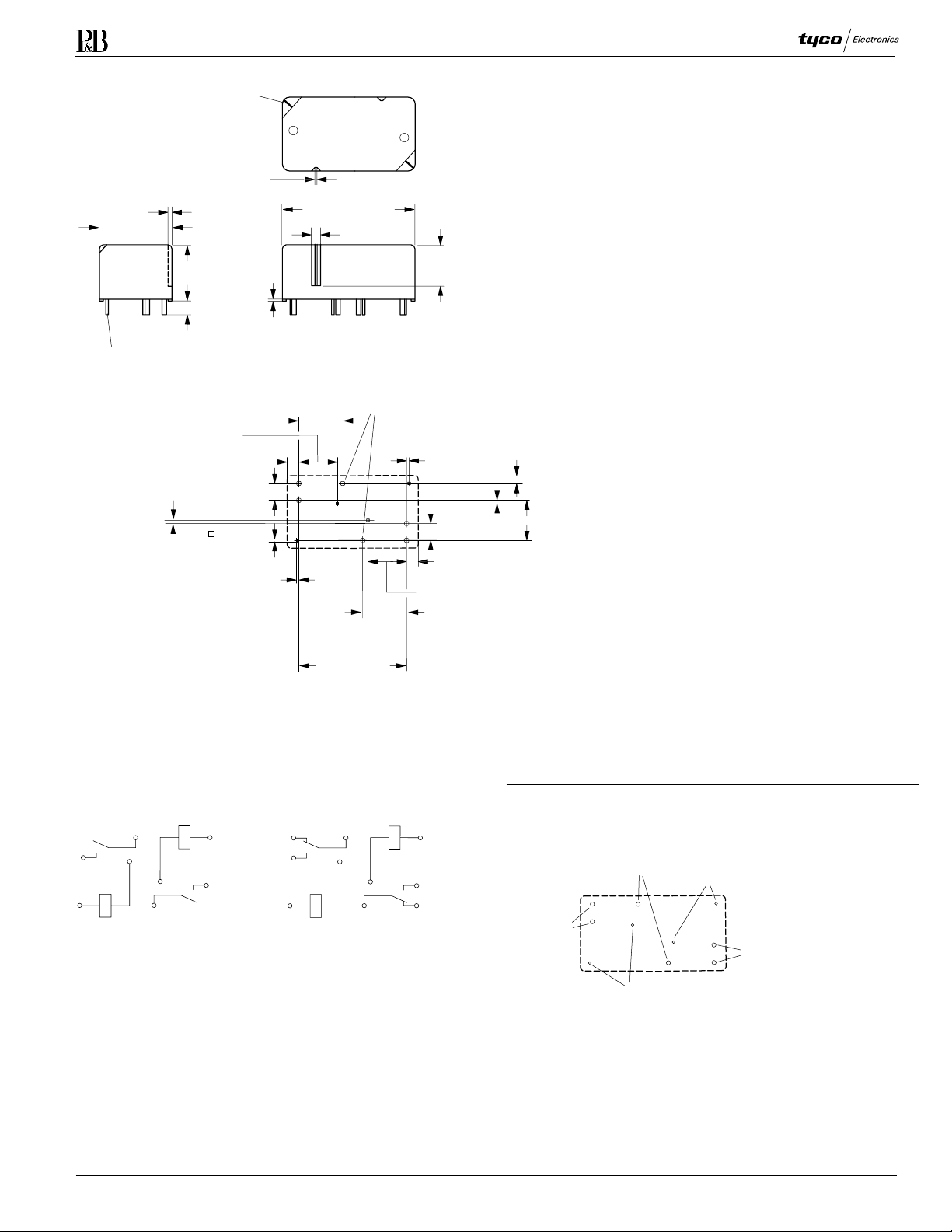

Outline Dimensions – Dual Relay
Suggested PC Board Mtg. Holes – Dual Relay (Bottom View)
See bottom view of relay (above) for hole-to-hole spacing
1
2
5
4
4
1
5
2
3
5
2
4
1
4
1
2
5
3
ø .043 ± .002
(1.1 ± 0.05)
ø .071 ± .002
(1.8 ± 0.05)
ø .067 ± .002
(1.7 ± 0.05)
ø .043 ± .002
(1.1 ± 0.05)
ø .067 ± .002
(1.7 ± 0.05)
3
4
5
2
1
2
5
1
43
.276 ± .004
(7 ± 0.1)
.283 ± .008
(7.2 ± 0.2)
.020 ± .008
(0.5 ± 0.2)
.024 ± .004
(0.6 ± 0.1)
.315 ± .004
(8 ± 0.1)
.087
(2.2)
.053
(1.35)
.118 ± .002
(3 ± 0.05)
4 x .020 + .002
(0.5 + 0.05)
.276
± .004
(7
± 0.1)
.020
± .008
(0.5
± 0.2)
.315
± .004
(8
± 0.1)
.087
(2.2)
.118
± .002
(3
± 0.05)
.756
± .012
(19.2
± 0.3)
.024 ± .004
(0.6 ± 0.1)
6 x
ø .047
± .002
(1.2
± 0.05)
34
5
1
2
2
1
5
3
4
Specifications and availability subject to change without notice.
13C8570 Printed in U.S.A. IH/4-00
Wiring Diagrams - Dual Relay (Bottom Views)
Tyco Electronics Corporation - P&B, Winston-Salem, NC 27102
Technical Support Center: 1-800-522-6752, www.pandbrelays.com
