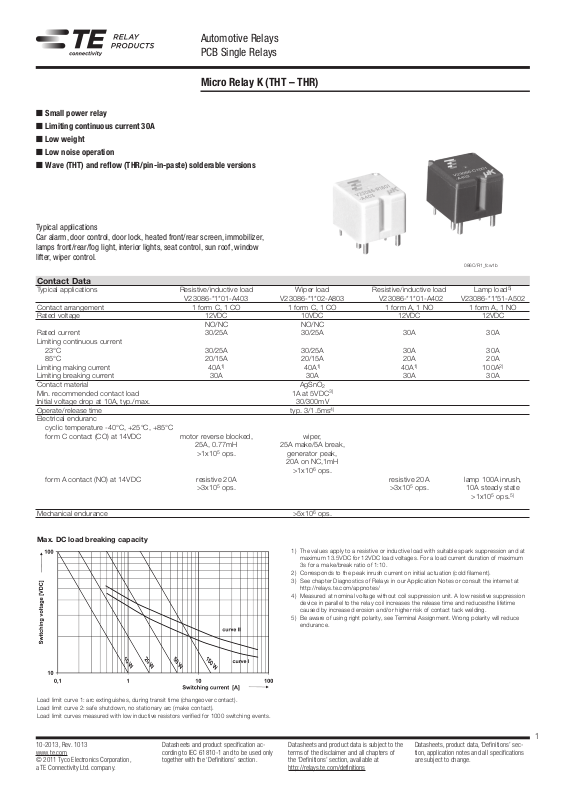

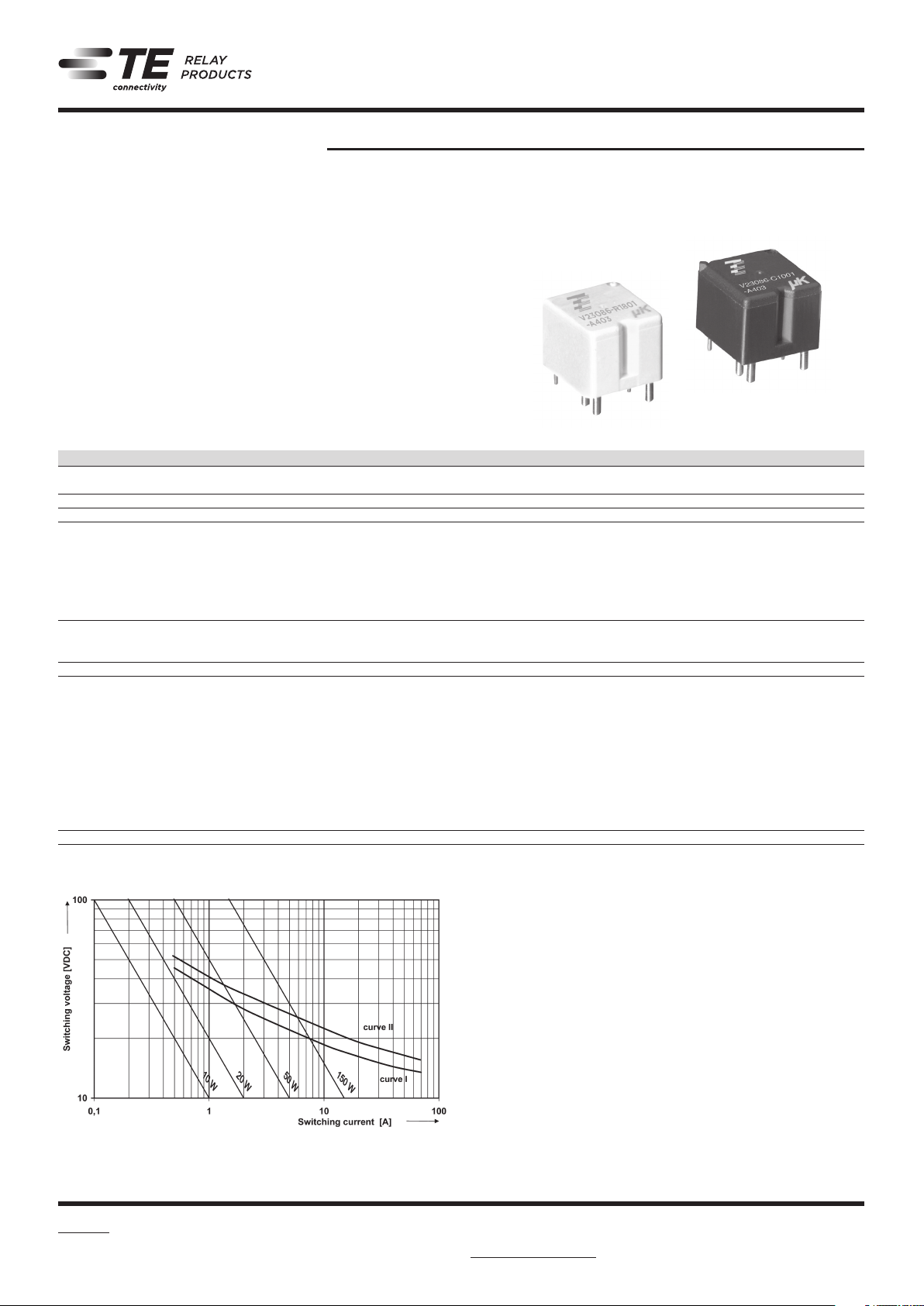

Automotive Relays
PCB Single Relays
Micro Relay K (THT – THR)
n
Small power relay
n
Limiting continuous current 30A
n
Low weight
n
Low noise operation
n
Wave (THT) and reflow (THR/pin-in-paste) solderable versions
Typical applications
Car alarm, door control, door lock, heated front/rear screen, immobilizer,
lamps front/rear/fog light, interior lights, seat control, sun roof, window
lifter, wiper control.
Contact Data
Typical applications Resistive/inductive load Wiper load Resistive/inductive load Lamp load5)
V23086-*1*01-A403 V23086-*1*02-A803 V23086-*1*01-A402 V23086-*1*51-A502
Contact arrangement 1 form C, 1 CO 1 form C, 1 CO 1 form A, 1 NO 1 form A, 1 NO
Rated voltage 12VDC 10VDC 12VDC 12VDC
NO/NC NO/NC
Rated current 30/25A 30/25A 30A 30A
Limiting continuous current
23°C 30/25A 30/25A 30A 30A
85°C 20/15A 20/15A 20A 20A
Limiting making current 40A1) 40A1) 40A1) 100A
Limiting breaking current 30A 30A 30A 30A
Contact material AgSnO
Min. recommended contact load 1A at 5VDC3)
Initial voltage drop at 10A, typ./max. 30/300mV
Operate/release time typ. 3/1.5ms
2
4)
Electrical enduranc
cyclic temperature -40°C, +25°C, +85°C
form C contact (CO) at 14VDC motor reverse blocked, wiper,
25A, 0.77mH 25A make/5A break,
>1x105 ops. generator peak,
20A on NC,1mH
>1x106 ops.
form A contact (NO) at 14VDC resistive 20A resistive 20A lamp 100A inrush,
>3x105 ops. >3x105 ops. 10A steady state
>1x105 ops.5)
Mechanical endurance >5x10
6
ops.
086C/R1_fcw1b
2)
Max. DC load breaking capacity
Load limit curve 1: arc extinguishes, during transit time (changeover contact).
Load limit curve 2: safe shutdown, no stationary arc (make contact).
Load limit curves measured with low inductive resistors verified for 1000 switching events.
10-2013, Rev. 1013
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification according to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
1) The values apply to a resistive or inductive load with suitable spark suppression and at
maximum 13.5VDC for 12VDC load voltages. For a load current duration of maximum
3s for a make/break ratio of 1:10.
2) Corresponds to the peak inrush current on initial actuation (cold filament).
3) See chapter Diagnostics of Relays in our Application Notes or consult the internet at
http://relays.te.com/appnotes/
4) Measured at nominal voltage without coil suppression unit. A low resistive suppression
device in parallel to the relay coil increases the release time and reducesthe lifetime
caused by increased erosion and/or higher risk of contact tack welding.
5) Be aware of using right polarity, see Terminal Assignment. Wrong polarity will reduce
endurance.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ section, application notes and all specifications
are subject to change.
1
Page 2
Automotive Relays
PCB Single Relays
Micro Relay K (THT – THR) (Continued)

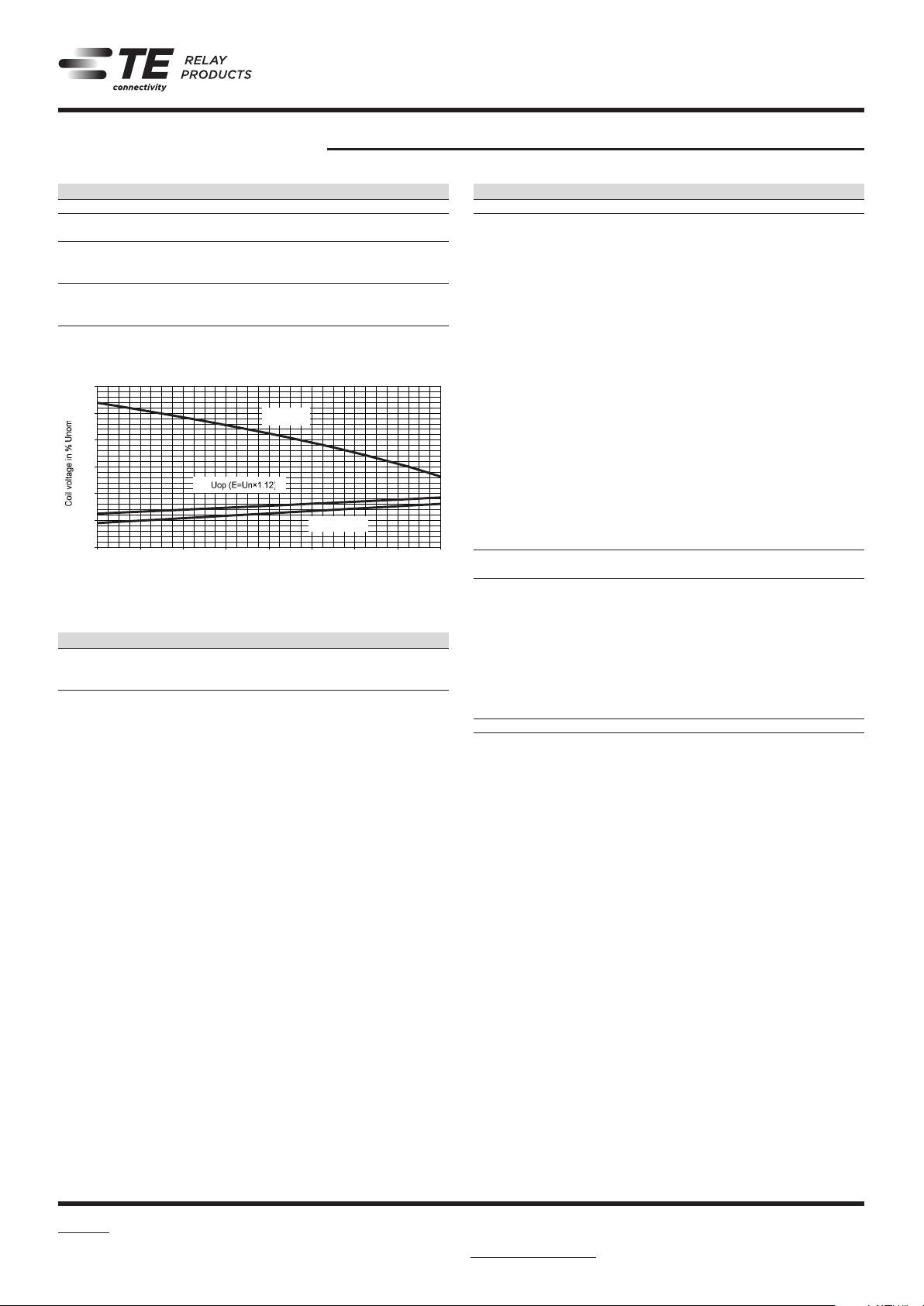

Coil Data
Rated coil voltage 12VDC
Coil versions, DC coil
Coil Rated Operate Release Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10% mW
001/801 12 6.9 1.5 254 0567
002/802 10 5.7 1.25 181 0552
051/851 10 6.5 1.1 90 1111
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Coil operating range
300
250
200
150
100
50
0
-40-20 020406080100 120
Does not take into account the temperature rise due to the contact current
E = pre-energization
Ambient temperature in °C
Umax
Uop (E=0V)
Insulation Data
Initial dielectric strength
between open contacts 500VAC
between contact and coil 500VAC
rms
rms
Other Data
EU RoHS/ELV compliance compliant
Ambient temperature, DC coil -40 to +105°C
Cold storage, IEC 60068-2-1 1000h; -40°C
Dry heat, IEC 60068-2-2 1000h; +125°C
Climatic cycling with condensation,
EN ISO 6988 20 cycles, storage 8/16h
Temperature cycling (shock),
IEC 60068-2-14, Na 100 cycles; -40/+125°C
Temperature cycling,
IEC 60068-2-14, Nb 35 cycles; -40/+125°C
Damp heat cyclic,
IEC 60068-2-30, Db, variant 1 6 cycles 25°C/55°C/93%RH
Damp heat constant,
IEC 60068-2-3 method Ca 56 days 40°C/95%RH
Degree of protection
THT: RT III (61810), IP67 (IEC 60529)
THR: RT II (61810), IP56 (IEC 60529)
Sealing test, IEC 60068-2-17: THT Qc, method 2, 1min, 70°C
Corrosive gas
IEC 60068-2-42 10 days
IEC 60068-2-43 10 days
Vibration resistance (functional)
IEC 60068-2-6 (sine sweep) 10 to 500Hz; 6g6)
Shock resistance (functional)
IEC 60068-2-27 (half sine) 6ms, up to 30g
Terminal type PCB:THT, THR
Weight approx. 4g (0.14oz)
Solderability (aging 3: 4h/155°C) THT
IEC 60068-2-20 Ta, method 1, hot dip 5s, 215°C
Solderability THR
IEC60068-2-58 hot dip 5s 245°C
Resistance to soldering heat THT
IEC 60068-2-20 Tb, method 1A, hot dip 10s,
260°C with thermal screen
Resistance to soldering heat THR
IEC 60068-2-58 260°C; preheating min 130°C
Storage conditions according IEC 600688
Packaging unit 2000 pcs.
6) Depending on mounting position: no change in the switching state >10μs.
7) For general storage and processing recommendations please refer to our Application
Notes and especially to Storage in the Definitions or at http://relays.te.com/appnotes/
6)
7)
2
10-2013, Rev. 1013
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification according to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ section, application notes and all specifications
are subject to change.
Page 3
12.0
0.2
86ets_ab
86etw_ab

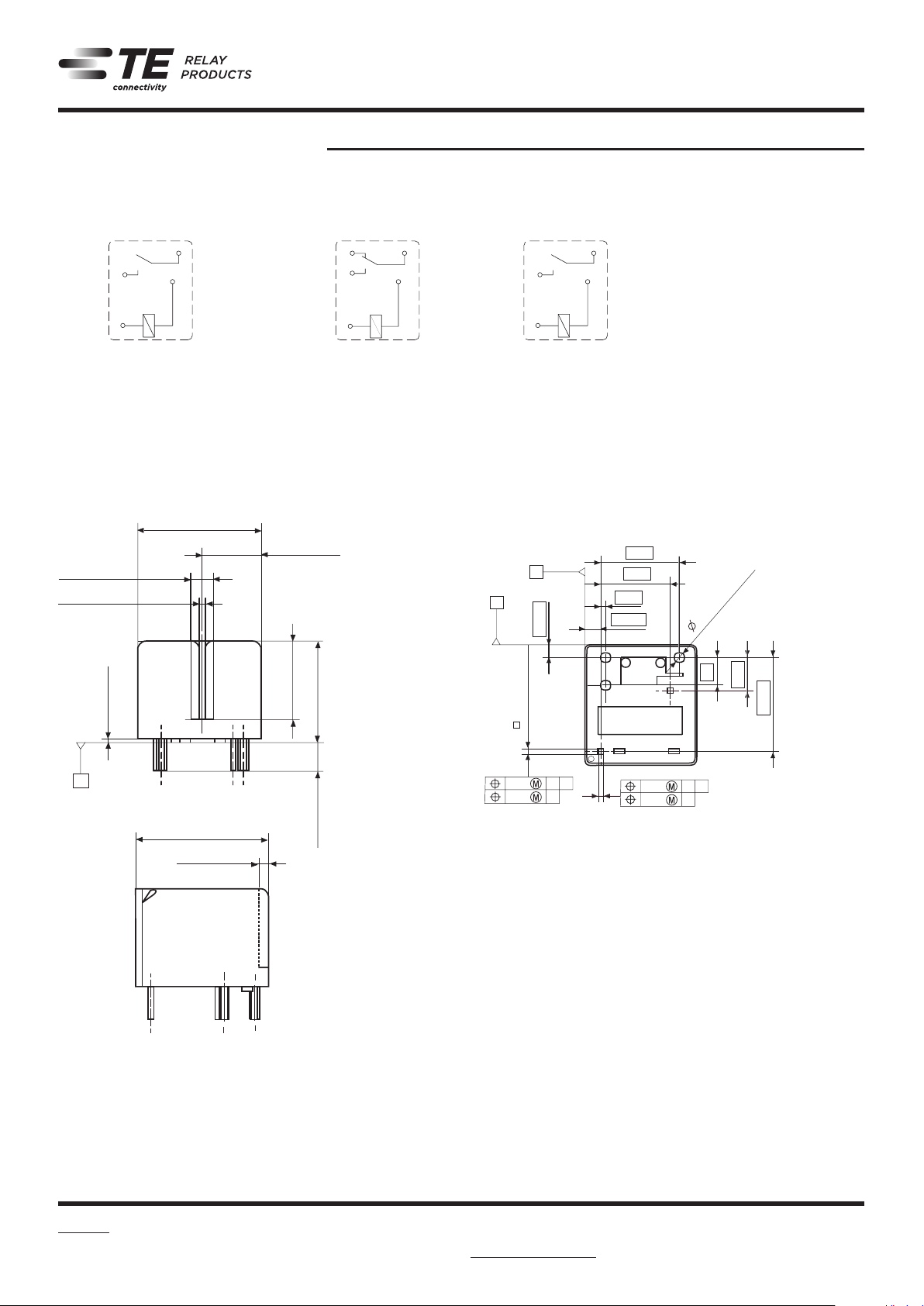

Terminal Assignment
86ets_ab
Bottom view on solder pins
1 form A, 1 NO
4
1
5
Automotive Relays
PCB Single Relays
Micro Relay K (THT – THR) (Continued)
1 form C, 1 CO
3
5
4
1
1 form A, 1 NO (lamp load)
(+)
(–)
4
1
5
2
Dimensions
Micro Relay K, THT version
± 0.2
2.5
0.6 ± 0.2
± 0.1
0.4
A
12.9
0.95
2
2
Mounting Hole Layout
Bottom view on solder pins
±
5.8
± 0.3
± 0.2
± 0.1
7.65
± 0.1
± 0.2
9.9
± 0.2 *)
2.8
C
B
1.38
0
+0.05
0.5 2 x
5 x
0.4
0.3
BA
A
Remark: Positional tolerances according to DIN EN ISO 5458
8.5
7.5
0.5
1.72
3
5
2
5 x
4
1
0.4
A
A
0.3
3x
+0.05
0
1.2
3.0
3.6
10.2
C
TE86etw_an1
TE86etw_se
*) Additional tin tops max. 1mm
10-2013, Rev. 1013
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
*) Additional tin tops max. 1 mm
Datasheets and product specification according to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
3
tion, application notes and all specifications
are subject to change.
Page 4
Automotive Relays
PCB Single Relays
Micro Relay K (THT – THR) (Continued)

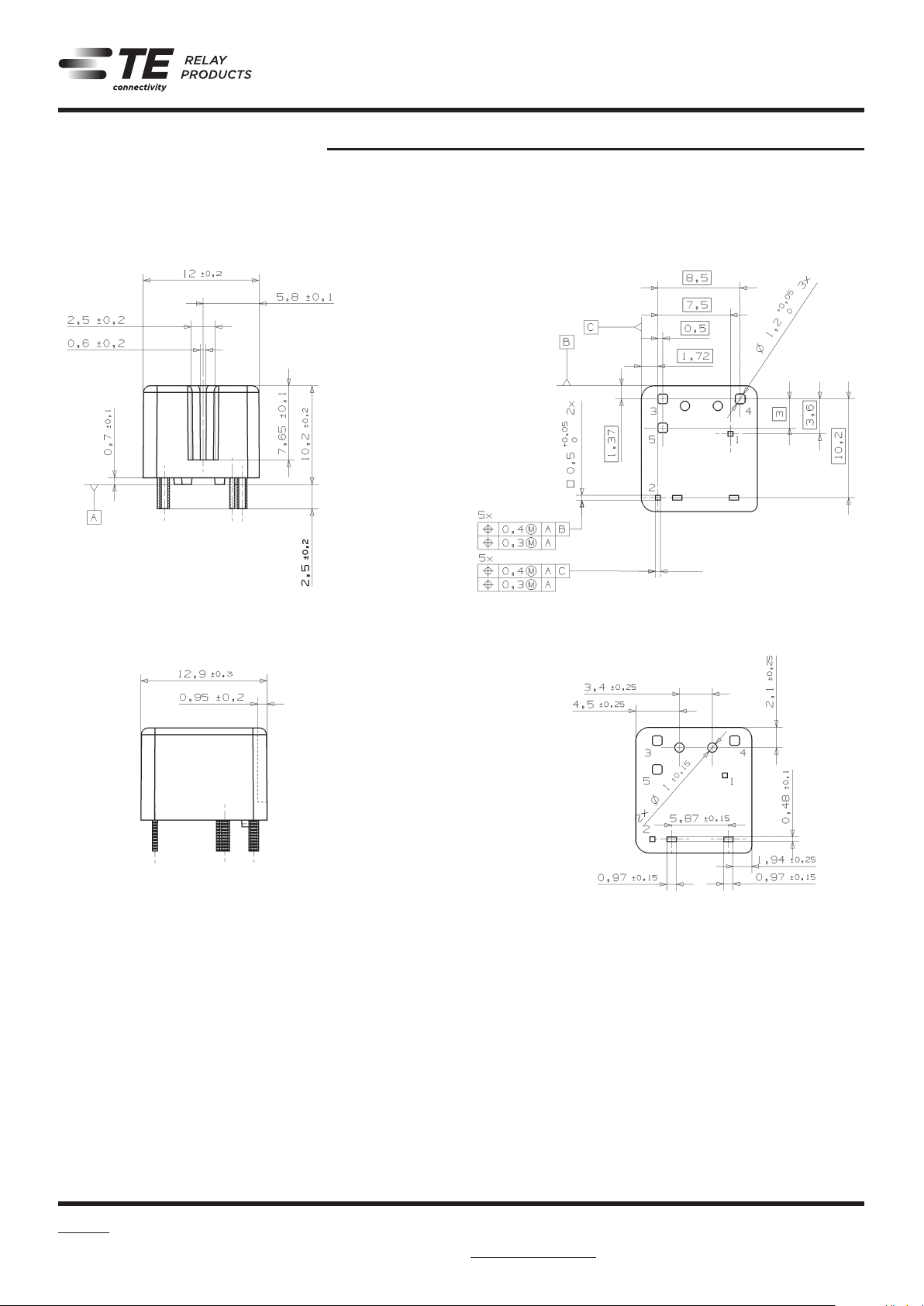

Micro Relay K, THR version
86R1_DD2_2
Mounting Hole Layout
Bottom view on solder pins
*)
86R1_VT3
View of Stand-Offs
Bottom view on solder pins
*) Additional tin tops max. 1mm
4
10-2013, Rev. 1013
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
86R1_DD1_2
Datasheets and product specification according to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
86R1_VT1
Datasheets, product data, ‘Definitions’ section, application notes and all specifications
are subject to change.
Page 5
Automotive Relays
PCB Single Relays
Micro Relay K (THT – THR) (Continued)
Product code structure Typical product code V23086 -C 1 001 -A 4 03
Type
V23086 Micro Relay K (THT – THR)
Terminal and enclosure
C PCB version THT, sealed R PCB version THR, vented
Design
1 Single relay
Coil
001 Standard (THT) 002 Sensitive (THT)
801 Standard (THR) 802 Sensitive (THR)
051 Lamp load (THT) 851 Lamp load (THR)
Contact type
A Single contact
Contact material index
4 AgSnO
5 AgSnO
Contact arrangement index
02 NO 03 CO
standard 8 AgSnO2 wiper load
2
lamp load
2
Product code
V23086-C1001-A402
Version Design Coil Contact Cont. material Arrangement
PCB THT, Single Standard Single AgSnO
(standard)
2
1 form A, 1 NO
Part number
0-1393280-5
V23086-C1001-A403 cleanable 1 form C, 1 CO 0-1393280-6
V23086-C1051-A502 Lamp load AgSnO
V23086-C1002-A803 Sensitive AgSnO
V23086-R1801-A402
PCB THR, Standard AgSnO
(lamp) 1 form A, 1 NO 2-1904093-1
2
(lwiper) 1 form C, 1 CO 2-1414987-3
2
(standard)
2
1 form A, 1 NO 2-1904093-2
V23086-R1801-A403 vented 1 form C, 1 CO 6-1414920-0
V23086-R1851-A502 Lamp load AgSnO
V23086-R1802-A803 Sensitive AgSnO
This list represents the most common types and does not show all variants covered by this datasheet.
Other types on request.
(lamp) 1 form A, 1 NO 9-1904064-4
2
(lwiper) 1 form C, 1 CO 7-1414967-8
2
10-2013, Rev. 1013
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification according to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
5
tion, application notes and all specifications
are subject to change.
