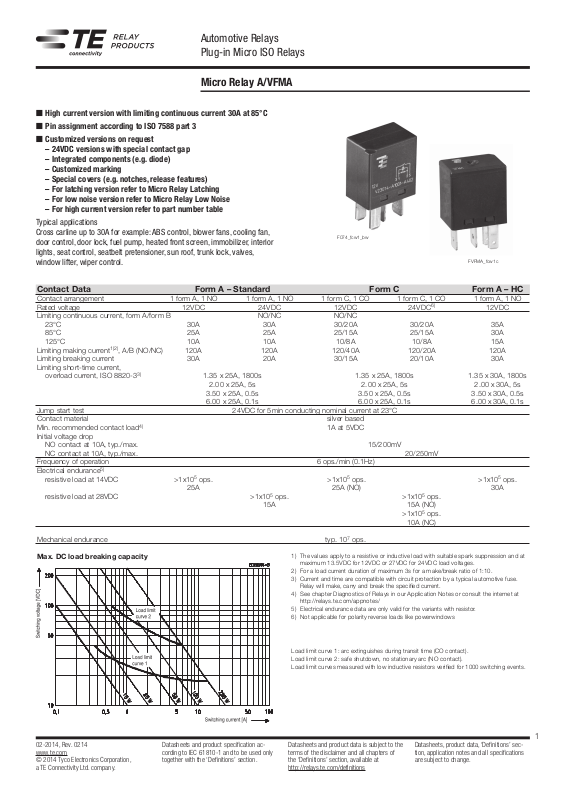

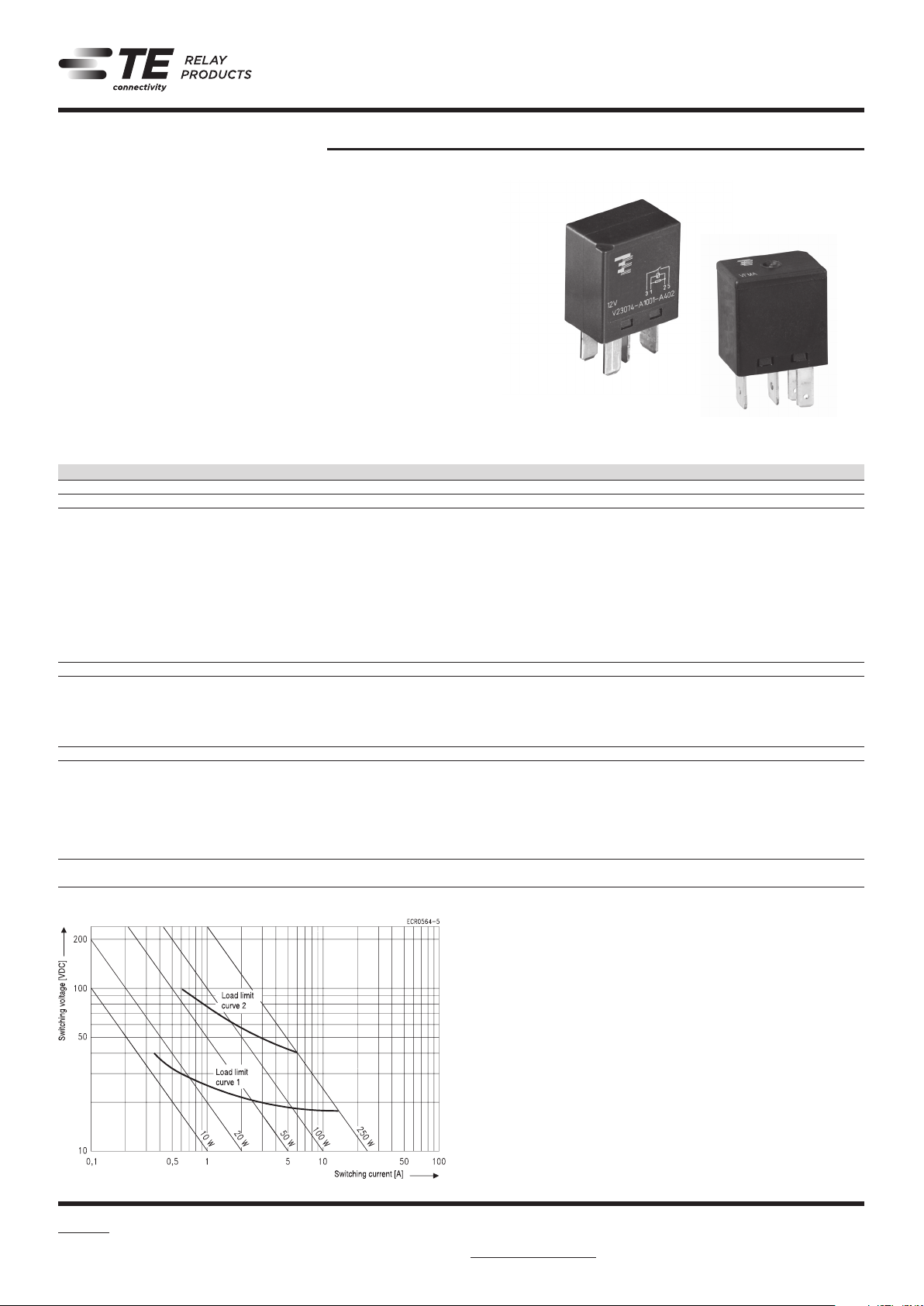

Automotive Relays Plug-in Micro ISO Relays

Micro Relay A/VFMA

High current version with limiting continuous current 30A at 85°C

Pin assignment according to ISO 7588 part 3

Customized versions on request

– 24VDC versions with special contact gap – Integrated components (e.g. diode) – Customized marking – Special covers (e.g. notches, release features) – For latching version refer to Micro Relay Latching – For low noise version refer to Micro Relay Low Noise – For high current version refer to part number table

Typical applications Cross carline up to 30A for example: ABS control, blower fans, cooling fan, door control, door lock, fuel pump, heated front screen, immobilizer, interior lights, seat control, seatbelt pretensioner, sun roof, trunk lock, valves, window lifter, wiper control.

Contact Data Form A – Standard Form C Form A – HC

Contact arrangement 1 form A, 1 NO 1 form A, 1 NO 1 form C, 1 CO 1 form C, 1 CO 1 form A, 1 NO Rated voltage 12VDC 24VDC 12VDC 24VDC Limiting continuous current, form A/form B NO/NC NO/NC 23°C 30A 30A 30/20A 30/20A 35A 85°C 25A 25A 25/15A 25/15A 30A 125°C 10A 10A 10/8A 10/8A 15A Limiting making current Limiting breaking current 30A 20A 30/15A 20/10A 30A Limiting short-time current, overload current, ISO 8820-3

2.00 x 25A, 5s 2.00 x 25A, 5s 2.00 x 30A, 5s

3.50 x 25A, 0.5s 3.50 x 25A, 0.5s 3.50 x 30A, 0.5s

6.00 x 25A, 0.1s 6.00 x 25A, 0.1s 6.00 x 30A, 0.1s Jump start test 24VDC for 5min conducting nominal current at 23°C Contact material silver based Min. recommended contact load4) 1A at 5VDC Initial voltage drop NO contact at 10A, typ./max. 15/200mV NC contact at 10A, typ./max. 20/250mV Frequency of operation 6 ops./min (0.1Hz) Electrical endurance resistive load at 14VDC >1x105 ops. >1x105 ops. >1x105 ops. 25A 25A (NO) 30A resistive load at 28VDC >1x105 ops. >1x105 ops. 15A 15A (NO) >1x105 ops. 10A (NC)

Mechanical endurance typ. 107 ops.

Max. DC load breaking capacity

1)2)

, A/B (NO/NC) 120A 120A 120/40A 120/20A 120A

1.35 x 25A, 1800s 1.35 x 25A, 1800s 1.35 x 30A, 1800s

1) The values apply to a resistive or inductive load with suitable spark suppression and at maximum 13.5VDC for 12VDC or 27VDC for 24VDC load voltages.

2) For a load current duration of maximum 3s for a make/break ratio of 1:10.

3) Current and time are compatible with circuit protection by a typical automotive fuse. Relay will make, carry and break the speciﬁed current.

4) See chapter Diagnostics of Relays in our Application Notes or consult the internet at http://relays.te.com/appnotes/

5) Electrical endurance data are only valid for the variants with resistor.

6) Not applicable for polarity reverse loads like powerwindows

F074_fcw1_bw

FVFMA_fcw1c

12VDC

Datasheets and product speciﬁcation according to IEC 61810-1 and to be used only together with the ‘Deﬁnitions’ section.

Load limit curve 1: arc extinguishes during transit time (CO contact). Load limit curve 2: safe shutdown, no stationary arc (NO contact). Load limit curves measured with low inductive resistors veriﬁed for 1000 switching events.

Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Deﬁnitions’ section, available at http://relays.te.com/definitions

Datasheets, product data, ‘Deﬁnitions’ section, application notes and all speciﬁcations are subject to change.

Page 2

Automotive Relays

Does not take into account the temperature rise due to the contact current E = pre-energization

TE074_OVR1

Plug-in Micro ISO Relays

Micro Relay A/VFMA (Continued)

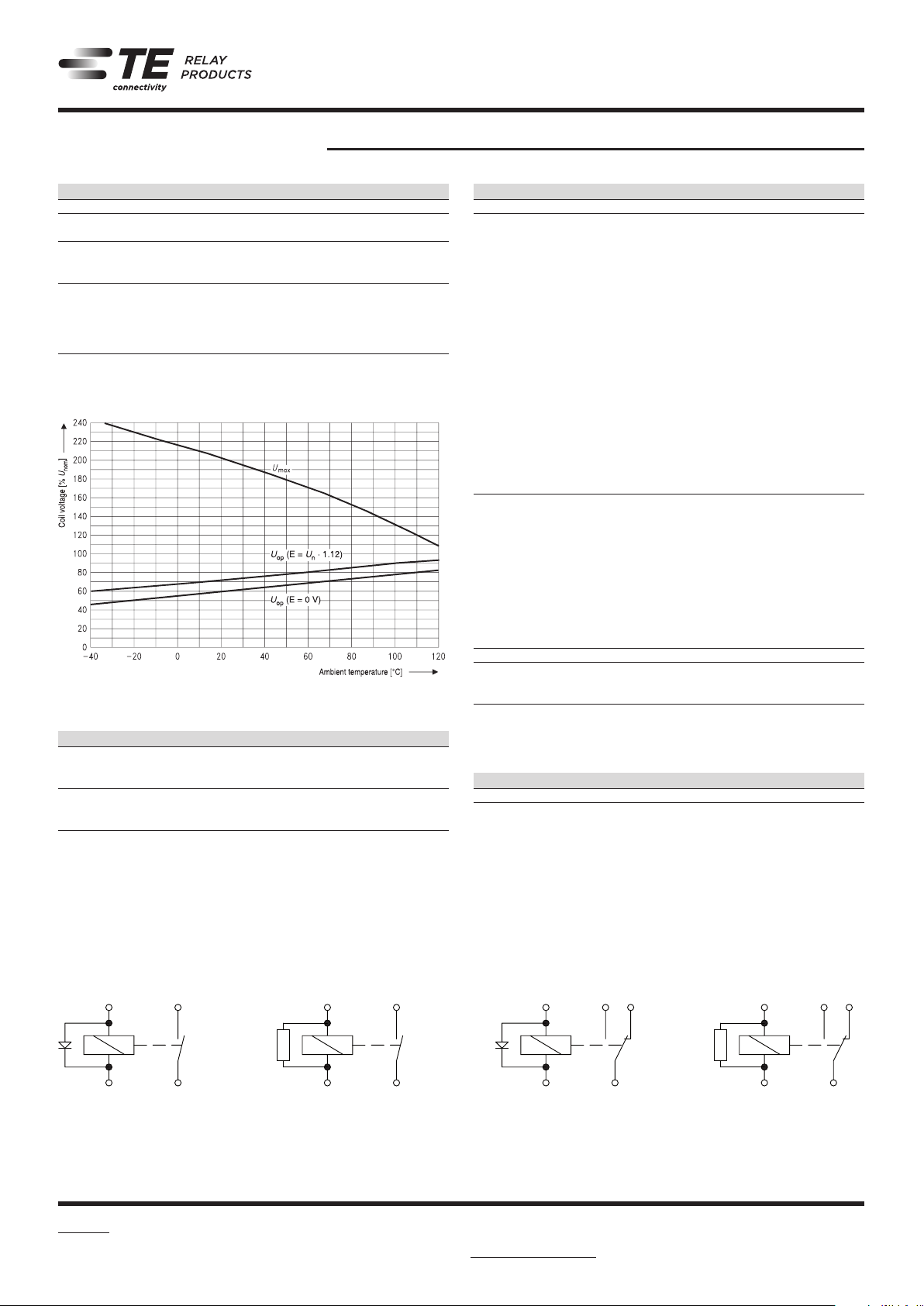

Coil Data

Coil voltage range 12/24VDC

Coil versions, DC coil

Coil Rated Operate Release Coil Rated coil code voltage voltage voltage resistance7) power7) VDC VDC VDC Ω±10% W 001 12 7.2 1.6 119 1.20 002 24 14.4 3.6 430 1.34 005 12 7.2 1.6 144 1.00 F 12 7.2 1.2 90 1.60 H 24 14.4 3.6 430 1.34

All ﬁgures are given for coil without pre-energization, at ambient temperature +23°C.

7) Without components in parallel.

Coil operating range

Does not take into account the temperature rise due to the contact current E = pre-energization.

Insulation Data

Initial dielectric strength between open contacts 500VAC between contact and coil 500VAC Load dump test ISO 7637-1 (12VDC), test pulse 5 Vs=+86.5VDC ISO 7637-2 (24VDC), test pulse 5 Vs=+200VDC

rms

Other Data

EU RoHS/ELV compliance compliant Ambient temperature -40 to +125°C Climatic cycling with condensation, EN ISO 6988 6 cycles, storage 8/16h Temperature cycling, IEC 60068-2-14, Nb 10 cycles, -40/+85°C (5°C/min) Damp heat cyclic, IEC 60068-2-30, Db, Variant 1 6 cycles, upper air temp. 55°C Damp heat constant, IEC 60068-2-3 (78), Ca 56 days Category of environmental protection, IEC 61810 RT I – dustproof Degree of protection, IEC 60529 IP54 Corrosive gas IEC 60068-2-42 10±2cm3/m3 SO2, 10 days IEC 60068-2-43 1±0.3cm3/m3 H2S, 10 days Vibration resistance (functional) IEC 60068-2-6 (sine sweep) 10 to 500Hz min. 5g Shock resistance (functional) IEC 60068-2-27 (half sine) min. 20g 11ms Drop test, free fall, IEC 60068-2-32 1m onto concrete Terminal type plug-in, QC Cover retention axial force 150N pull force 150N push force 200N Terminal retention pull force 100N push force 100N resistance to bending 10N force applied to side 10N

torque 0.3Nm Weight approx. 16 to 20g (0.5 to 0.7oz) Packaging unit Micro A 480 pcs. VFMA 600 pcs.

8) No change in the switching state >10µs. Valid for NC contacts, NO contact values signiﬁcantly higher.

9) Values apply 2mm from the end of the terminal. When the force is removed, the terminal must not have moved by more than 0.3mm

Accessories

For details see datasheet Connectors for Micro ISO Relays

Terminal Assignment

NOD 1 form A, 1 NO with diode

NOR 1 form A, 1 NO with resistor

Datasheets and product speciﬁcation according to IEC 61810-1 and to be used only together with the ‘Deﬁnitions’ section.

COD 1 form C, 1 CO with diode

Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Deﬁnitions’ section, available at http://relays.te.com/definitions

COR 1 form C, 1 CO with resistor

Datasheets, product data, ‘Deﬁnitions’ section, application notes and all speciﬁcations are subject to change.

Page 3

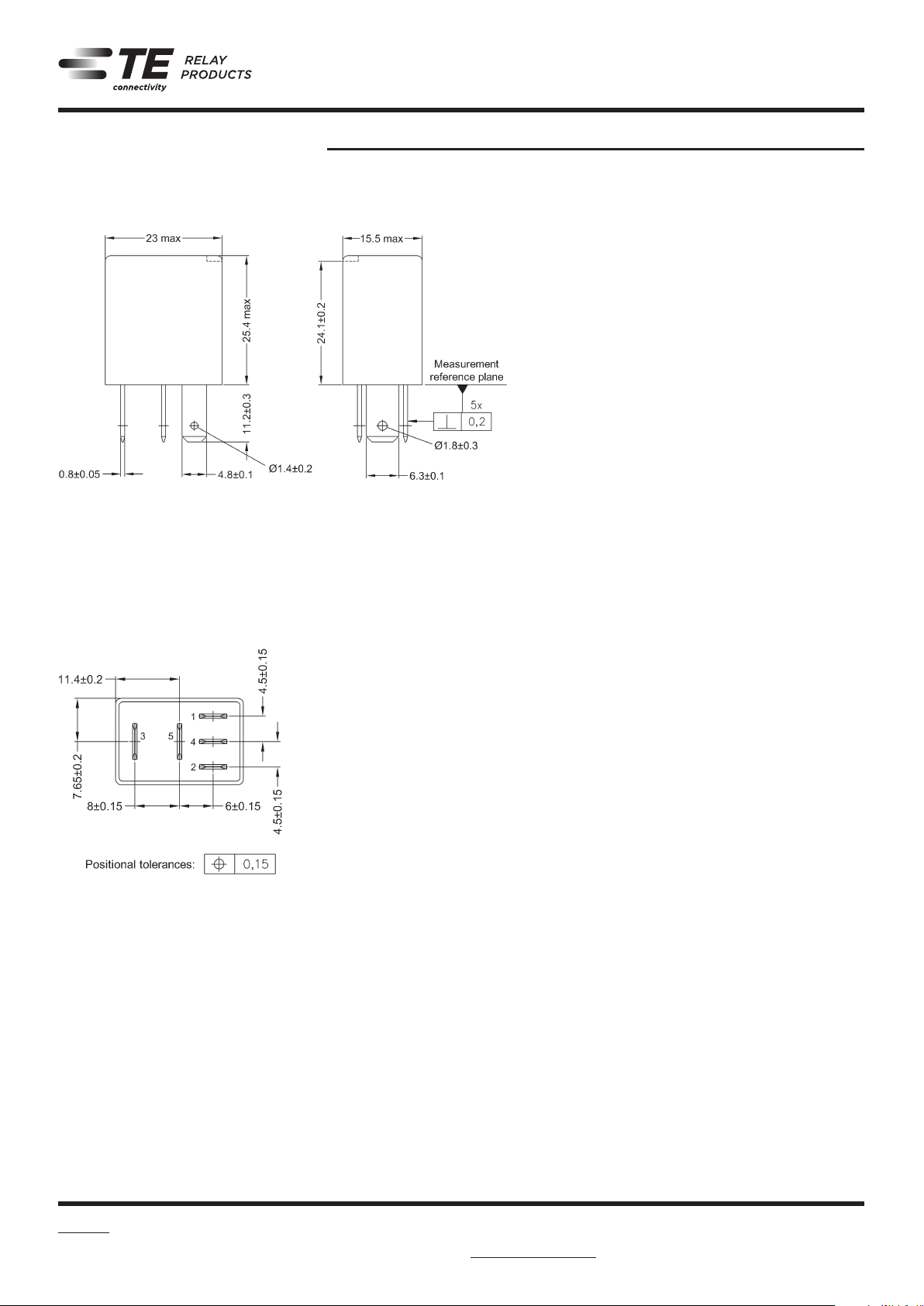

Dimensions

Automotive Relays Plug-in Micro ISO Relays

Micro Relay A/VFMA (Continued)

Quick connect terminal similar to ISO 8092-1. Micro A: Terminals without holes VFMA: Terminals with holes

View of the terminals (bottom view)

Datasheets and product speciﬁcation according to IEC 61810-1 and to be used only together with the ‘Deﬁnitions’ section.

Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Deﬁnitions’ section, available at http://relays.te.com/definitions

Datasheets, product data, ‘Deﬁnitions’ sec-

tion, application notes and all speciﬁcations are subject to change.

Page 4

Automotive Relays Plug-in Micro ISO Relays

Micro Relay A/VFMA (Continued)

Product code structure Typical product code V23074 -A 1 001 -A4 02

Type V23074 Micro Relay A Version A Standard H High current Coil suppression 1 Resistor 2 Diode Coil 001 12VDC 002 24VDC 005 12VDC for high current version Contact material

-A4 Silver based -A5 Silver based for high current version Contact arrangement 02 1 form A, 1 NO 03 1 form C, 1 CO

Product code structure Typical product code VFMA -1 1 F 4 1 -S01

Type VFMA VFMA Series Version 1 Standard Contact arrangement 1 1 form A, 1 NO 5 1 form C, 1 CO Coil F 12VDC H 24VDC Contact material 4 Silver based 7 Silver based for high current version Terminals 1 Plug-in Coil suppression S01 Resistor

Product code Equivalent to Version Coil suppr. Circuit

V23074-A1001-A402 VFMA-11F41-S01 Standard Resistor 680Ω NOR 12VDC 1 form A, 1 NO Plug-in, QC

VFMA-11F41-S01 V23074-A1001-A402 9-1393292-9 V23074-A1001-A403 VFMA-15F41-S01 VFMA-15F41-S01 V23074-A1001-A403 1393293-8 V23074-A2001-A402 V23074-A2001-A403 COD 1 form C, 1 CO 6-1419137-4 V23074-H1005-A502 VFMA-11F71-S01 VFMA-11F71-S01 V23074-H1005-A502 Resistor 680Ω 1432885-1 V23074-A1002-A402 VFMA-11H41-S01 VFMA-11H41-S01 V23074-A1002-A402 6-1415008-2 V23074-A1002-A403 COR 1 form C, 1 CO 3-1393292-8 V23074-A2002-A402 V23074-A2002-A403

1) See terminal assignment diagrams. Other types on request. This list represents the most common types and does not show all variants covered by this datasheet.

High current

Standard Resistor 1800Ω 24VDC

Diode

Resistor 1000Ω

Diode

Coil Arrangement Terminals Part number

COR 1 form C, 1 CO

NOD 1 form A, 1 NO 5-1393292-8

NOR 1 form A, 1 NO

NOD 1 form A, 1 NO 6-1393292-2 COD 1 form C, 1 CO

1393292-5

9-1414992-1

8-1393292-4

2-1414971-4

8-1393292-9

6-1393292-3
