General Purpose Relays
1
SCHRACK

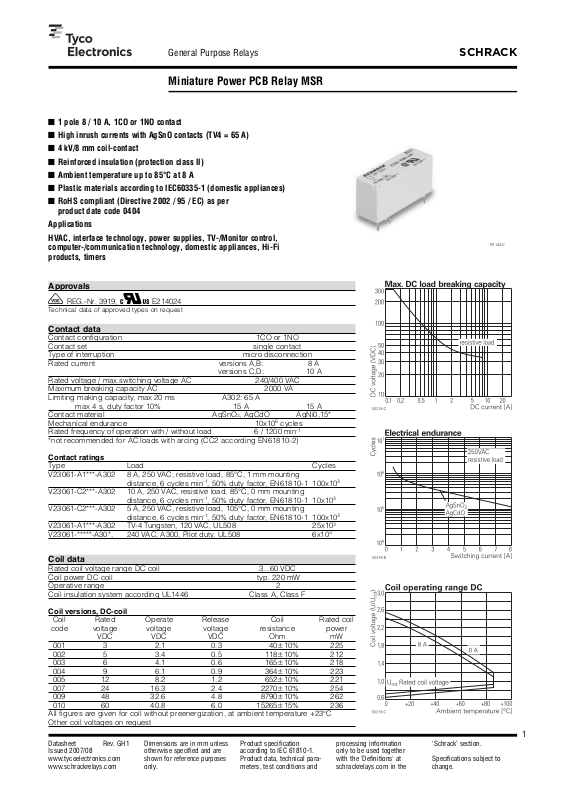

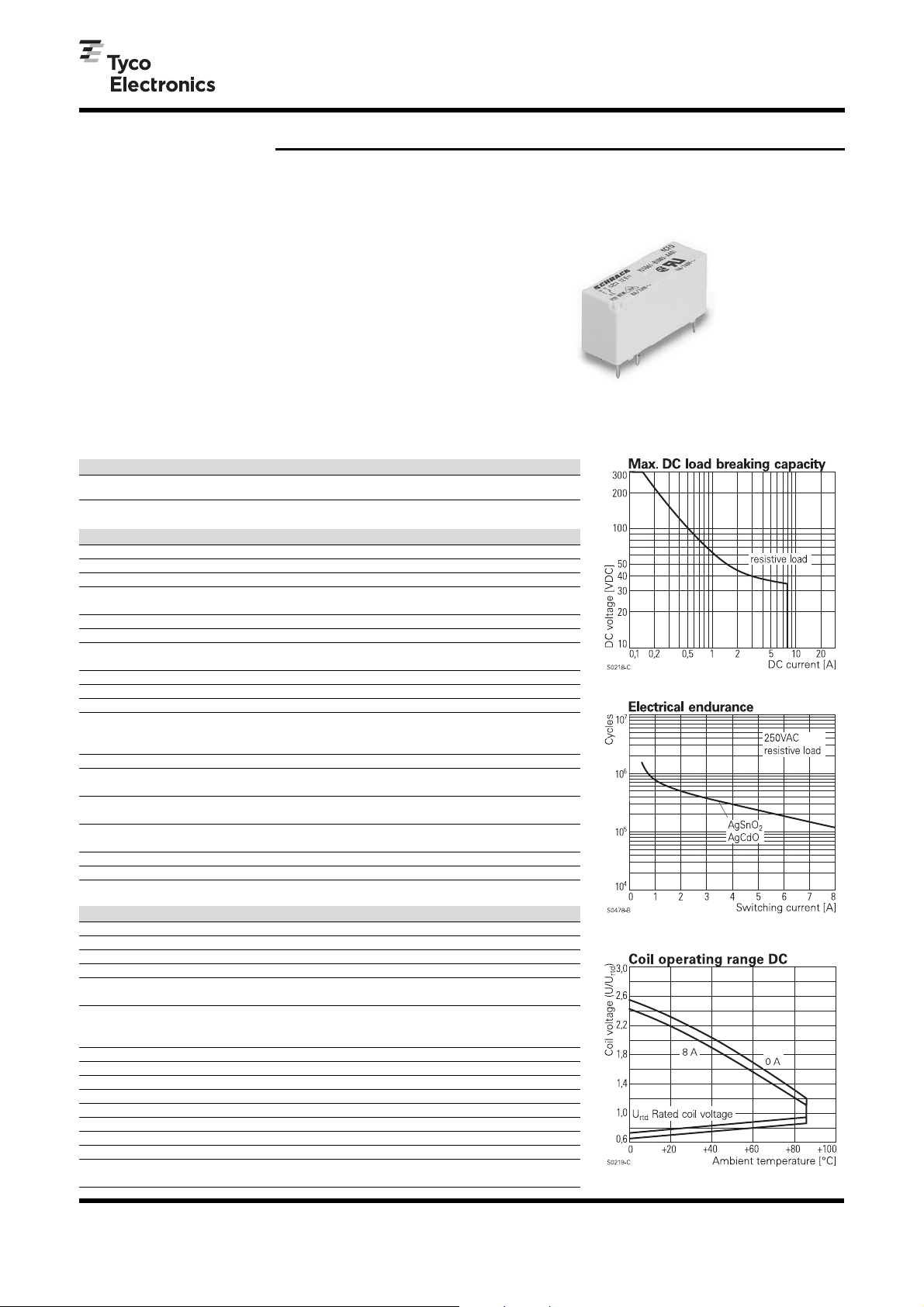

Miniature Power PCB Relay MSR
I
1 pole 8 / 10 A, 1CO or 1NO contact
I
High inrush currents with AgSnO contacts (TV4 = 65 A)
I
4 kV/8 mm coil-contact
I
Reinforced insulation (protection class II)
I
Ambient temperature up to 85°C at 8 A
I
Plastic materials according to IEC60335-1 (domestic appliances)
I
RoHS compliant (Directive 2002 / 95 / EC) as per
product date code 0404
Applications
HVAC, interface technology, power supplies, TV-/Monitor control,
computer-/communication technology, domestic appliances, Hi-Fi
products, timers
F0143-C
Approvals
V REG.-Nr. 3919, Z E214024
Technical data of approved types on request
Contact data
Contact configuration 1CO or 1NO
Contact set single contact
Type of interruption micro disconnection
Rated current versions A,B: 8 A
versions C,D: 10 A
Rated voltage / max.switching voltage AC 240/400 VAC
Maximum breaking capacity AC 2000 VA
Limiting making capacity, max 20 ms A302: 65 A
max 4 s, duty factor 10% 15 A 15 A
Contact material AgSnO2, AgCdO AgNi0,15*
Mechanical endurance 10x106cycles
Rated frequency of operation with / without load 6 / 1200 min
-1
*not recommended for AC loads with arcing (CC2 according EN61810-2)
Contact ratings
Type Load Cycles
V23061-A1***-A302 8 A, 250 VAC, resistive load, 85°C, 1 mm mounting
distance, 6 cycles min-1, 50% duty factor, EN61810-1 100x10
3
V23061-C2***-A302 10 A, 250 VAC, resistive load, 85°C, 0 mm mounting
distance, 6 cycles min-1, 50% duty factor, EN61810-1 10x10
3
V23061-C2***-A302 5 A, 250 VAC, resistive load, 105°C, 0 mm mounting
distance, 6 cycles min-1, 50% duty factor, EN61810-1 100x10
3
V23061-A1***-A302 TV-4 Tungsten, 120 VAC, UL508 25x10
3
V23061-*****-A30*, 240 VAC, A300, Pilot duty, UL508 6x10
3
Coil data
Rated coil voltage range DC coil 3...60 VDC
Coil power DC coil typ. 220 mW
Operative range 2
Coil insulation system according UL1446 Class A, Class F
Coil versions, DC-coil
Coil Rated Operate Release Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ohm mW
001 3 2.1 0.3 40+10% 225
002 5 3.4 0.5 118+10% 212
003 6 4.1 0.6 165+10% 218
004 9 6.1 0.9 364+10% 223
005 12 8.2 1.2 652+10% 221
007 24 16.3 2.4 2270+10% 254
009 48 32.6 4.8 8790+10% 262
010 60 40.8 6.0 15265+15% 236
All figures are given for coil without preenergization, at ambient temperature +23°C
Other coil voltages on request
Page 2
Datasheet Rev. GH1
Issued 2007/08
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical parameters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
2
SCHRACK
Miniature Power PCB Relay MSR (Continued)

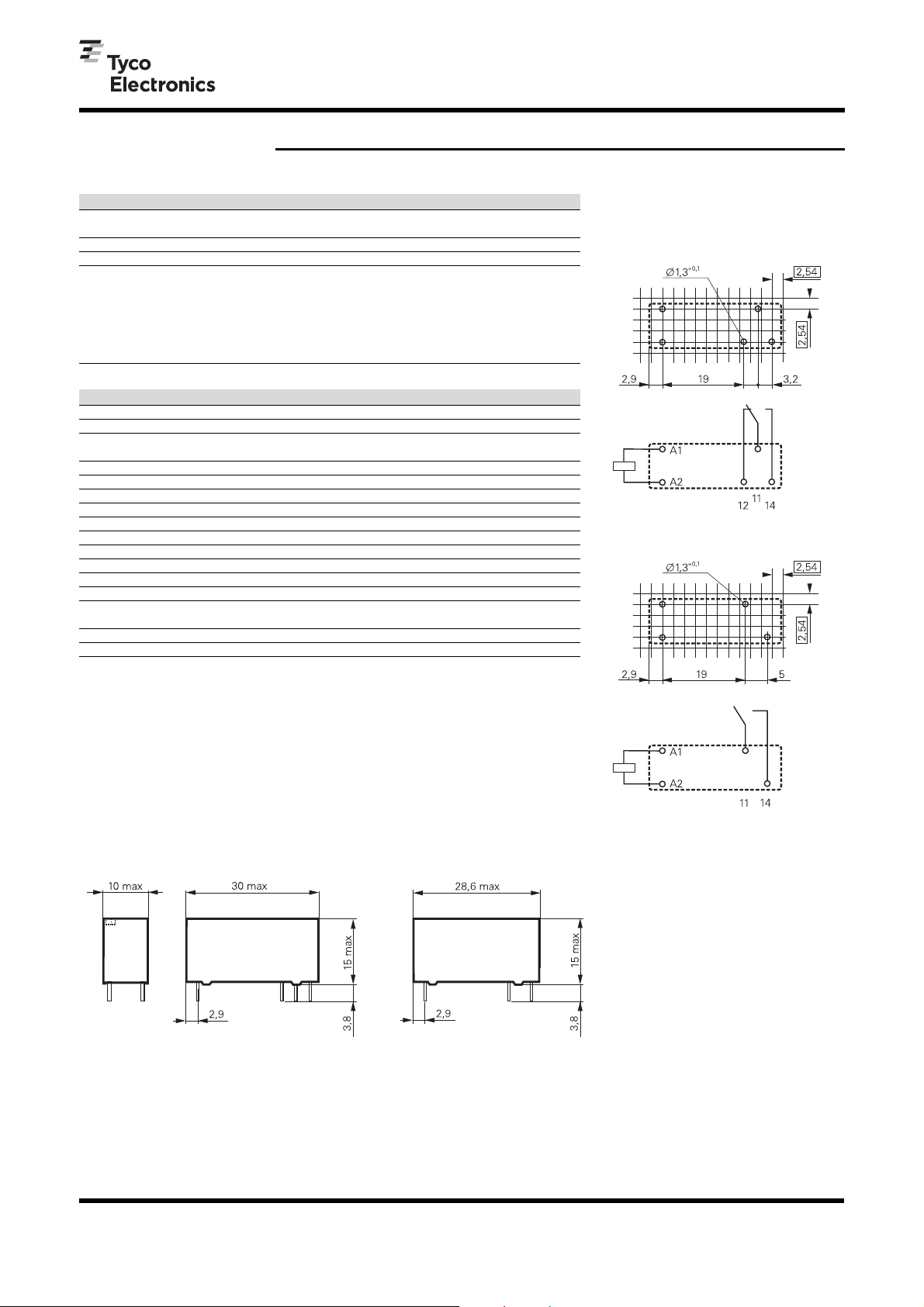

PCB layout / terminal assignment
Bottom view on solder pins
Dimensions
1 CO contact, 3.2 mm
1 NO contact, 5 mm
1 CO contact, 3.2 mm 1 NO contact, 5 mm
S0255-AA
S0255-AB
S0255-AH
S0255-AI
S0275-AH
S0275-AA
Insulation CO contact NO contact
Dielectric strength coil-contact circuit 4000 V
rms
open contact circuit 1000 V
rms
Clearance / creepage coil-contact circuit W 8 / 8 mms W 8/8mm
Material group of insulation parts IIIb IIIb
Insulation to IEC 60664-1
Type of insulation coil-contact circuit reinforced reinforced
open contact circuit functional functional
Rated insulation voltage 250 V 250 V
Pollution degree 3 2 3
Rated voltage system 230 V 400 V 230 / 400 V
Overvoltage category III III
Other data
RoHS - Directive 2002/95/EC compliant as per product date code 0404
Flammability class according to UL94 V-0
For WG version: GWFI to IEC 60335-1 > 850 °C
GWIT to IEC 60335-1 > 775 °C
Ambient temperature range -40...+85°C
Operate- / release time 6 / 2,5 ms
Bounce time NO / NC contact 0,5 / 4 ms
Vibration resistance (function) NO / NC contact 10 / 4 g
Shock resistance (function) NO / NC contact 20 / 5 g
Shock resistance (destruction) 100 g
Category of protection RTII-flux proof; RTIII- wash tight
Mounting pcb
Mounting position any
Minimum mounting distance 0 mm
Resistance to soldering heat flux-proof version 270°C / 10 s
wash-tight version 260°C / 5s
Relay weight 11 g
Packaging unit 20 / 1000 pcs
Page 3
Datasheet Rev. GH1
Issued 2007/08
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical parameters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
3
SCHRACK
Miniature Power PCB Relay MSR (Continued)
Product key Version Contacts Contact material Coil Part number
V23061-A1002-A302 wash tight 1 NO contact AgSnO
2
5 VDC 0-1393222-4
V23061-A1002-A502 AgNi 0.15 0-1393222-6
V23061-A1003-A302 AgSnO
2
6 VDC 0-1393222-9
V23061-A1003-A502 AgNi 0.15 1-1393222-3
V23061-A1005-A302 AgSnO
2
12 VDC 2-1393222-0
V23061-A1005-A502 AgNi 0.15 2-1393222-7
V23061-A1005-A602 AgCdO gold pl. 2-1393222-8
V23061-A1007-A302 AgSnO
2
24 VDC 3-1393222-9
V23061-A1007-A502 AgNi 0.15 4-1393222-6
V23061-A1007-A602 AgCdO gold pl. 4-1393222-7
V23061-A1009-A502 AgNi 0.15 48 VDC 5-1393222-7
V23061-A1009-A602 AgCdO gold pl. 5-1393222-8
V23061-A1010-A502 AgNi 0.15 60 VDC 6-1393222-2
V23061-A1010-A602 AgCdO gold pl. 6-1393222-3
V23061-B1002-A301 1 CO contact AgSnO
2
5 VDC 7-1393222-2
V23061-B1002-A501 AgNi 0.15 7-1393222-4
V23061-B1002-A601 AgCdO gold pl. 7-1393222-5
V23061-B1003-A501 AgNi 0.15 6 VDC 8-1393222-1
V23061-B1003-A601 AgCdO gold pl. 8-1393222-2
V23061-B1005-A301 AgSnO
2
12 VDC 9-1393222-1
V23061-B1005-A501 AgNi 0.15 9-1393222-7
V23061-B1005-A601 AgCdO gold pl. 9-1393222-9
V23061-B1007-A301 AgSnO
2
24 VDC 1-1393223-7
V23061-B1007-A501 AgNi 0.15 2-1393223-5
V23061-B1007-A601 AgCdO gold pl. 2-1393223-6
V23061-B1009-A301 AgSnO
2
48 VDC 3-1393223-7
V23061-B1009-A501 AgNi 0.15 3-1393223-9
V23061-B1009-A601 AgCdO gold pl. 4-1393223-0
V23061-B1010-A501 AgNi 0.15 60 VDC 4-1393223-3
V23061-B1010-A601 AgCdO gold pl. 4-1393223-4
V23061-A2002-A402 flux proof 1 NO contact AgCdO 5 VDC 6-1393222-8
V23061-A2003-A402 6 VDC 1-1416200-9
V23061-A2005-A402 12 VDC 2-1416200-1
V23061-A2007-A402 24 VDC 2-1416200-3
V23061-A2009-A402 48 VDC 2-1416200-5
V23061-A2010-A402 60 VDC 2-1416200-6
V23061-B2002-A401 1 CO contact 5 VDC 2-1416200-7
V23061-B2003-A401 6 VDC 2-1416200-8
V23061-B2005-A401 12 VDC 3-1416200-1
V23061-B2007-A401 24 VDC 5-1393223-0
V23061-B2009-A401 48 VDC 3-1416200-6
V23061-B2010-A401 60 VDC 4-1416200-0
Product key
V23061- -A
Type
Version
A 1 NO contact, UL-class A B 1 CO contact, UL-class A
C 1 NO contact, UL-class F D 1 CO contact, UL-class F
Version
1 wash tight 2 flux proof
Coil
Coil code: please refer to coil versions table
Contact system
A standard
Contact material
3 AgSnO
2
5 AgNi 0.15
4 AgCdO 6 AgCdO, gold plated
Contact configuration
