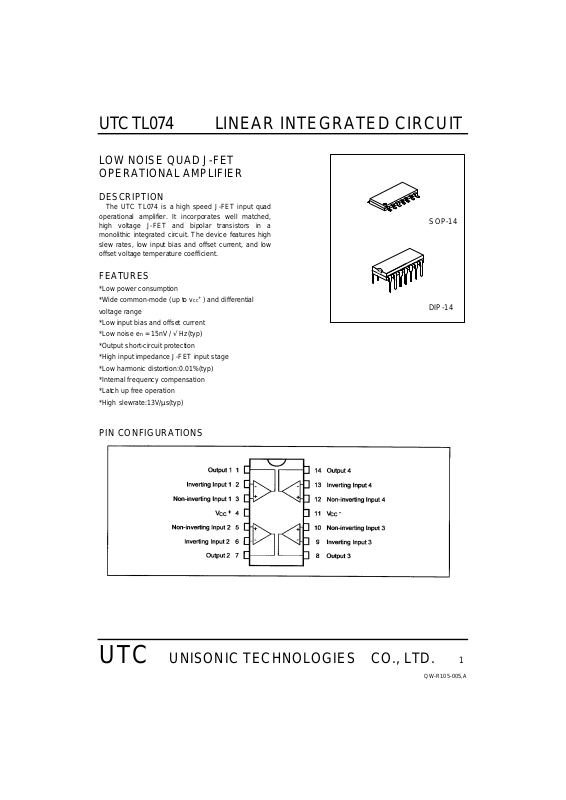

UTC TL074 LINEAR INTEGRATED CIRCUIT

LOW NOISE QUAD J-FET
OPERATIONAL AMPLIFIER

DESCRIPTION

The UTC TL074 is a high speed J-FET input quad
operational amplifier. It incorporates well matched,
high voltage J-FET and bipolar transistors in a
monolithic integrated circuit. The device features high
slew rates, low input bias and offset current, and low
offset voltage temperature coefficient.

FEATURES

*Low power consumption
*Wide common-mode (up to vcc+ ) and differential
voltage range
*Low input bias and offset current
*Low noise en = 15nV / √ Hz(typ)
*Output short-circuit protection
*High input impedance J-FET input stage
*Low harmonic distortion:0.01%(typ)
*Internal frequency compensation
*Latch up free operation
*High slewrate:13V/µs(typ)

SOP-14

DIP-14

PIN CONFIGURATIONS

UTC UNISONIC TECHNOLOGIES CO., LTD. 1

QW-R105-005,A

UTC TL074 LINEAR INTEGRATED CIRCUIT

SCHEMATIC DIAGRAM

ABSOLUTE MAXIMUM RATINGS(Ta=25°C )

Supply Voltage (note 1) Vcc +-18 V
Input Voltage (note 2) Vi +-15 V
Differential Input Voltage (note 3) Vid +-30 V
Power Dissipation Ptot 680 mW
Output Short-Circuit Duration (Note 4) Infinite
Operating Free Air Temperature Toper 0 to 70
Storage Temperature Tstg 5 to 150

NOTES: 1. All voltage values, except differential voltage, are with respect to the zero reference level (ground) of

PARAMETER SYMBOL VALUE UNIT

°C
°C

the supply voltages where the zero reference level is the midpoint between Vcc- and Vcc+.

2. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 volts,
whichever is less.

3. Differential voltages are at the non-inverting input terminal with respect to the inverting input terminal.

4. The output may be shorted to ground or to either supply. Temperature and/or supply voltages must be
limited to ensure that the dissipation rating is not exceeded.

UTC UNISONIC TECHNOLOGIES CO., LTD. 2

QW-R105-005,A

UTC TL074 LINEAR INTEGRATED CIRCUIT

UTC TL074C ELECTRICAL CHARACTERISTICS( Vcc=+-15V, Ta=25°C, unless otherwise

specified)

PARAMETER SYMBOL MIN TYP MAX UNIT

Input Offset Voltage(Rs=50Ω), Ta=25°C
Tmin<=Ta<=Tmax

Temperature Coefficient of Input Offset
Voltage
Input Offset Current*
Ta=25°C
Tmin<=Ta<=Tmax
Input Bias Current*
Ta=25°C
Tmin<=Ta<=Tmax
Input Common Mode Voltage Vicm +-11 -12~+15 V

Output Voltage Swing(RL=10kΩ)
Ta=25°C, RL=2kΩ,
Ta=25°C, RL=10kΩ
Tmin<=Ta<=Tmax, RL=2kΩ
Tmin<=Ta<=Tmax, RL=10kΩ
Large Signal Voltage Gain(RL=2kΩ, Vo=+-
10V) Ta=25°C
Tmin<=Ta<=Tmax
Gain Bandwidth Product(Ta=25°C, RL=10kΩ,
f=100kHz, Vin=10mV, CL=100pF)
Input Resistance Ri

Common Mode Rejection Ratio(RS=50Ω)
Ta=25°C
Tmin<=Ta<=Tmax
Supply Voltage Rejection Ratio(RS=50Ω)
Ta=25°C
Tmin<=Ta<=Tmax
Supply Current( no load)
Ta=25°C
Tmin<=Ta<=Tmax
Channel Separation(Av=100, Ta=25°C)
Output Short-circuit Current
Ta=25°C
Tmin<=Ta<=Tmax
Slew Rate(Vi=10V, RL=2kΩ, CL=100pF,
Ta=25°C, unity gain)
Rise Time(Vi=20mV, RL=2kΩ, CL=100pF,
Ta=25°C, unity gain)
Overshoot Factor(Vi=20mV, RL=2kΩ,
CL=100pF, Ta=25°C, unity gain)
Total Harmonic Distortion(Av=20dB, f=1kHz
RL=2kΩ, CL=100pF, Ta=25Ω, Vo=2Vpp)
Phase Margin 45 Degrees
Equivalent Input Noise Voltage(RS=100Ω,

f=1KHz)
*The Input bias currents are junction leakage currents, which approximately double for every 10°C increase in the
junction temperature.

Vio

Dvio 10

Iio

Iib

Vopp

10
12
10
12

Avd

25
15

GBP 2 3 MHz

CMR

70
70

SVR

70
70

Icc

V01/V02 120 dB

Ios

10
10

SR 8 13

tr 0.1

Kov 10 %

THD 0.01 %

en 15

3 10

13

5 100

10

30 200

20

12

13.5

200 V/mV

1012

86

86

1. 4 2. 5

2.5

40 60

60

mV

¦ÌV/¡æ

pA
nA

pA
nA

dB

dB

mA

mA

V/µs

µs

V

Ω

UTC UNISONIC TECHNOLOGIES CO., LTD. 3

QW-R105-005,A

UTC TL074 LINEAR INTEGRATED CIRCUIT

UTC TL074AC ELECTRICAL CHARACTERISTICS( Vcc=+-15V, Ta=25°C, unless otherwise

specified)

PARAMETER SYMBOL MIN TYP MAX UNIT

Input Offset Voltage(Rs=50Ω), Ta=25°C

Tmin<=Ta<=Tmax

Temperature Coefficient of Input Offset

Voltage(Rs=50Ω)

Input Offset Current*

Ta=25°C

Tmin<=Ta<=Tmax

Input Bias Current*

Ta=25°C

Tmin<=Ta<=Tmax

Input Common Mode Voltage Vicm +-11 -12~+15 V

Output Voltage Swing(RL=10kΩ)

Ta=25°C, RL=2kΩ,

Ta=25°C, RL=10kΩ

Tmin<=Ta<=Tmax, RL=2kΩ

Tmin<=Ta<=Tmax, RL=10kΩ

Large Signal Voltage Gain(RL=10kΩ, Vo=+-

10V) Ta=25°C

Tmin<=Ta<=Tmax

Gain Bandwidth Product(Ta=25°C, RL=10kΩ,

CL=100pF)

Input Resistance Ri

Common Mode Rejection Ratio(RS=50Ω)

Ta=25°C

Tmin<=Ta<=Tmax

Supply Voltage Rejection Ratio(RS=50Ω)

Ta=25°C

Tmin<=Ta<=Tmax

Supply Current( no load)

Ta=25°C

Tmin<=Ta<=Tmax

Channel Separation(Av=100, Ta=25°C)

Output Short-circuit Current

Ta=25°C

Tmin<=Ta<=Tmax

Slew Rate(Vi=10V, RL=2kΩ, CL=100pF,

Ta=25°C, unity gain)

Rise Time(Vi=20mV, RL=2kΩ, CL=100pF,

Ta=25°C, unity gain)

Overshoot Factor(Vi=20mV, RL=2kΩ,

CL=100pF, Ta=25°C, unity gain)

Total Harmonic Distortion(Av=20dB, f=1kHz

RL=2kΩ, CL=100pF, Ta=25°C, Vo=2Vpp)

Phase Margin 45 Degrees

Equivalent Input Noise Voltage(RS=100Ω,

f=1KHz)
*The Input bias currents are junction leakage currents, which approximately double for every 10°C increase in the
junction temperature.

Vio

Dvio 10

Iio

Iib

Vopp

10
12
10
12

Avd

50
25

GBP 2 3 MHz

CMR

80
80

SVR

80
80

Icc

V01/V02 120 dB

Ios

10
10

SR 8 13

tr 0.1

Kov 10 %

THD 0.01 %

en 15

3 6

7

5 100

4

20 200

20

12

13.5

200 V/mV

1012

86

86

1. 4 2. 5

2.5

40 60

60

mV

µV/°C

pA
nA

pA
nA

dB

dB

mA

mA

V/µs

µs

V

Ω

UTC UNISONIC TECHNOLOGIES CO., LTD. 4

QW-R105-005,A

UTC TL074 LINEAR INTEGRATED CIRCUIT

UTC TL074BC ELECTRICAL CHARACTERISTICS( Vcc=+-15V, Ta=25°C, unless otherwise

specified)

PARAMETER SYMBOL MIN TYP MAX UNIT

Input Offset Voltage(Rs=50Ω), Ta=25°C

Tmin<=Ta<=Tmax

Temperature Coefficient of Input Offset

Voltage(Rs=50Ω)

Input Offset Current*

Ta=25°C

Tmin<=Ta<=Tmax

Input Bias Current*

Ta=25°C

Tmin<=Ta<=Tmax

Input Common Mode Voltage Vicm +-11 -12~+15 V

Output Voltage Swing(RL=10kΩ)

Ta=25°C, RL=2kΩ,

Ta=25°C, RL=10kΩ

Tmin<=Ta<=Tmax, RL=2kΩ

Tmin<=Ta<=Tmax, RL=10kΩ

Large Signal Voltage Gain(RL=10kΩ, Vo=+-

10V) Ta=25°C

Tmin<=Ta<=Tmax

Gain Bandwidth Product(Ta=25°C, RL=10kΩ,

CL=100pF)

Input Resistance Ri

Common Mode Rejection Ratio(RS=50Ω)

Ta=25°C

Tmin<=Ta<=Tmax

Supply Voltage Rejection Ratio(RS=50Ω)

Ta=25°C

Tmin<=Ta<=Tmax

Supply Current( no load)

Ta=25°C

Tmin<=Ta<=Tmax

Channel Separation(Av=100, Ta=25°C)

Output Short-circuit Current

Ta=25°C

Tmin<=Ta<=Tmax

Slew Rate(Vi=10V, RL=2kΩ, CL=100pF,

Ta=25°C, unity gain)

Rise Time(Vi=20mV, RL=2kΩ, CL=100pF,

Ta=25°C, unity gain)

Overshoot Factor(Vi=20mV, RL=2kΩ,

CL=100pF, Ta=25°C, unity gain)

Total Harmonic Distortion(Av=20dB, f=1kHz

RL=2kΩ, CL=100pF, Ta=25°C, Vo=2Vpp)

Phase Margin 45 Degrees

Equivalent Input Noise Voltage(RS=100Ω,

f=1KHz)
*The Input bias currents are junction leakage currents, which approximately double for every 10°C increase in the
junction temperature.

Vio

Dvio 10

Iio

Iib

Vopp

10
12
10
12

Avd

50
25

GBP 2 3 MHz

CMR

80
80

SVR

80
80

Icc

V01/V02 120 dB

Ios

10
10

SR 8 13

tr 0.1

Kov 10 %

THD 0.01 %

en 15

1 3

5

5 100

4

20 200

20

12

13.5

200 V/mV

1012

86

86

1. 4 2. 5

2.5

40 60

60

mV

¦ÌV/¡æ

pA
nA

pA
nA

dB

dB

mA

mA

V/µs

µs

V

Ω

UTC UNISONIC TECHNOLOGIES CO., LTD. 5

QW-R105-005,A

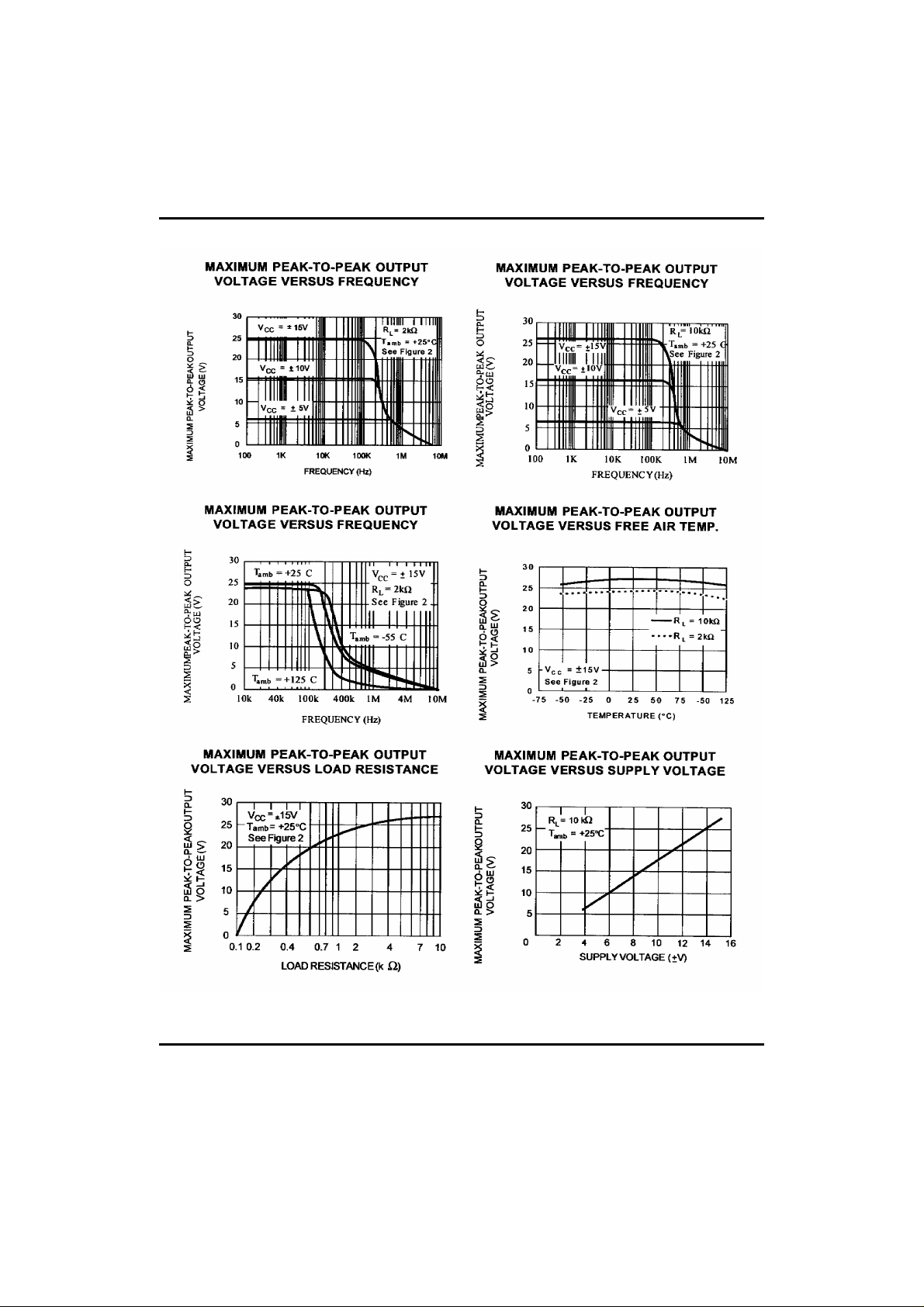

UTC TL074 LINEAR INTEGRATED CIRCUIT

UTC UNISONIC TECHNOLOGIES CO., LTD. 6

QW-R105-005,A

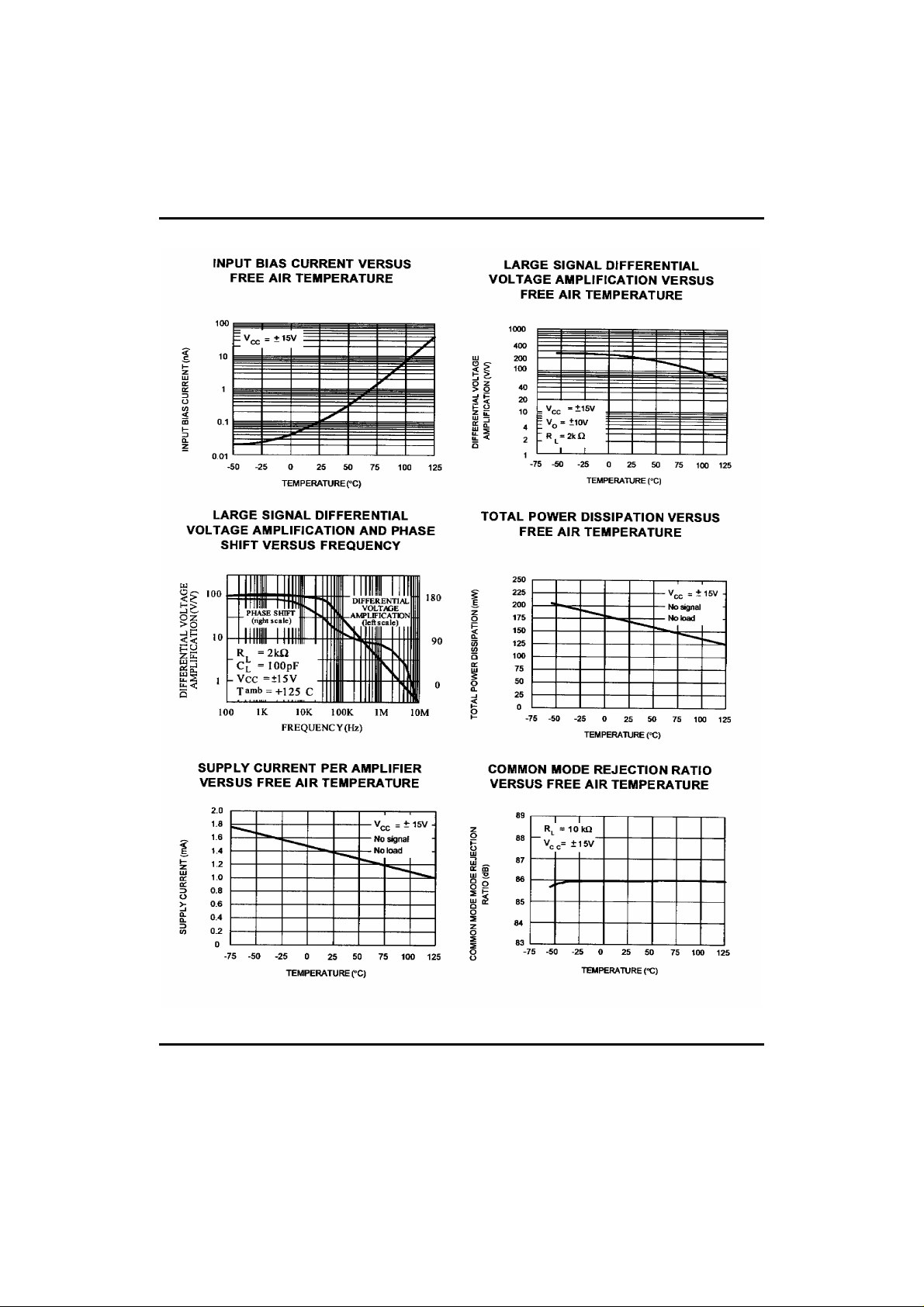

UTC TL074 LINEAR INTEGRATED CIRCUIT

UTC UNISONIC TECHNOLOGIES CO., LTD. 7

QW-R105-005,A

UTC TL074 LINEAR INTEGRATED CIRCUIT

UTC UNISONIC TECHNOLOGIES CO., LTD. 8

QW-R105-005,A

UTC TL074 LINEAR INTEGRATED CIRCUIT

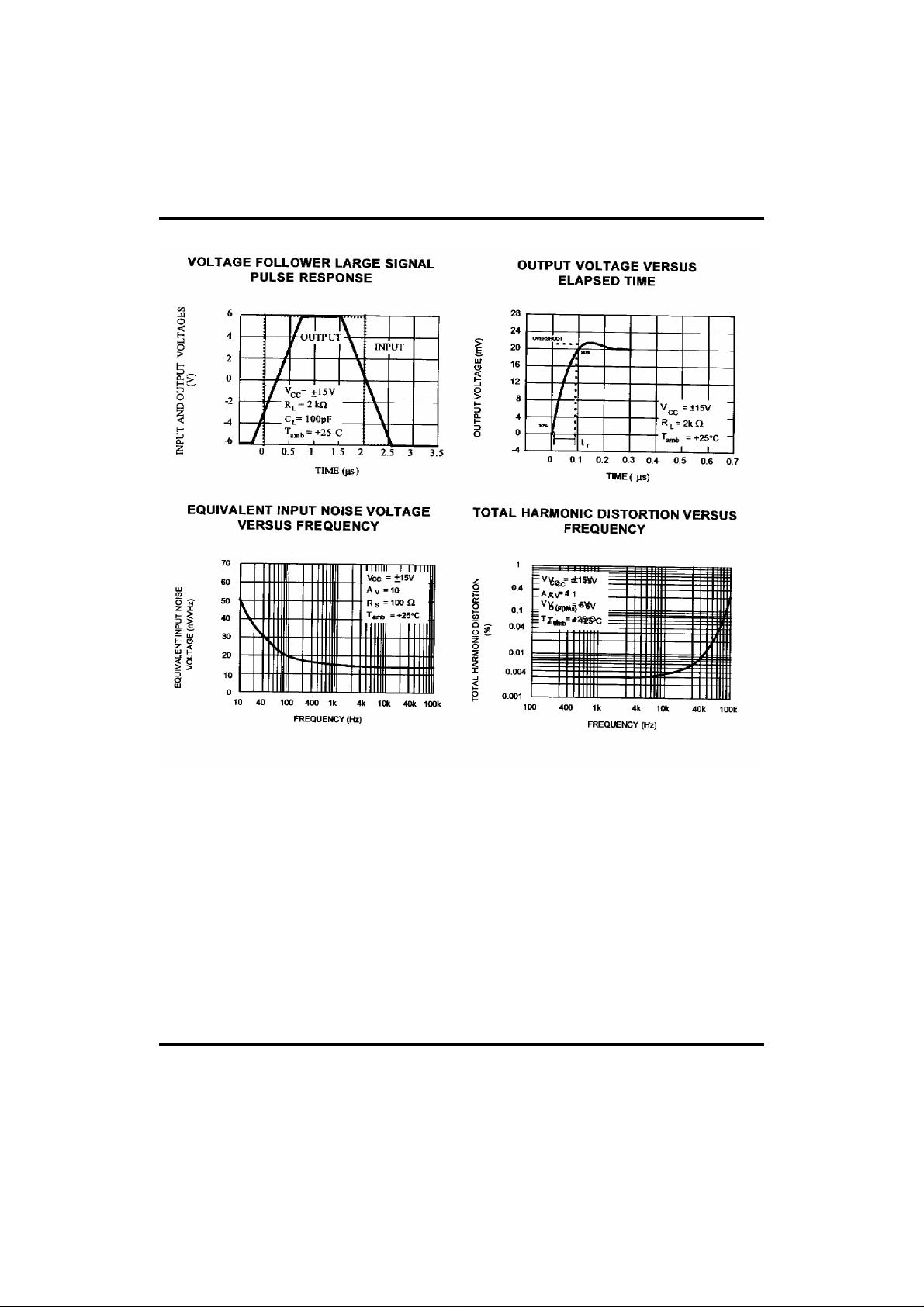

PARAMETER MEASUREMENT INFORMATION

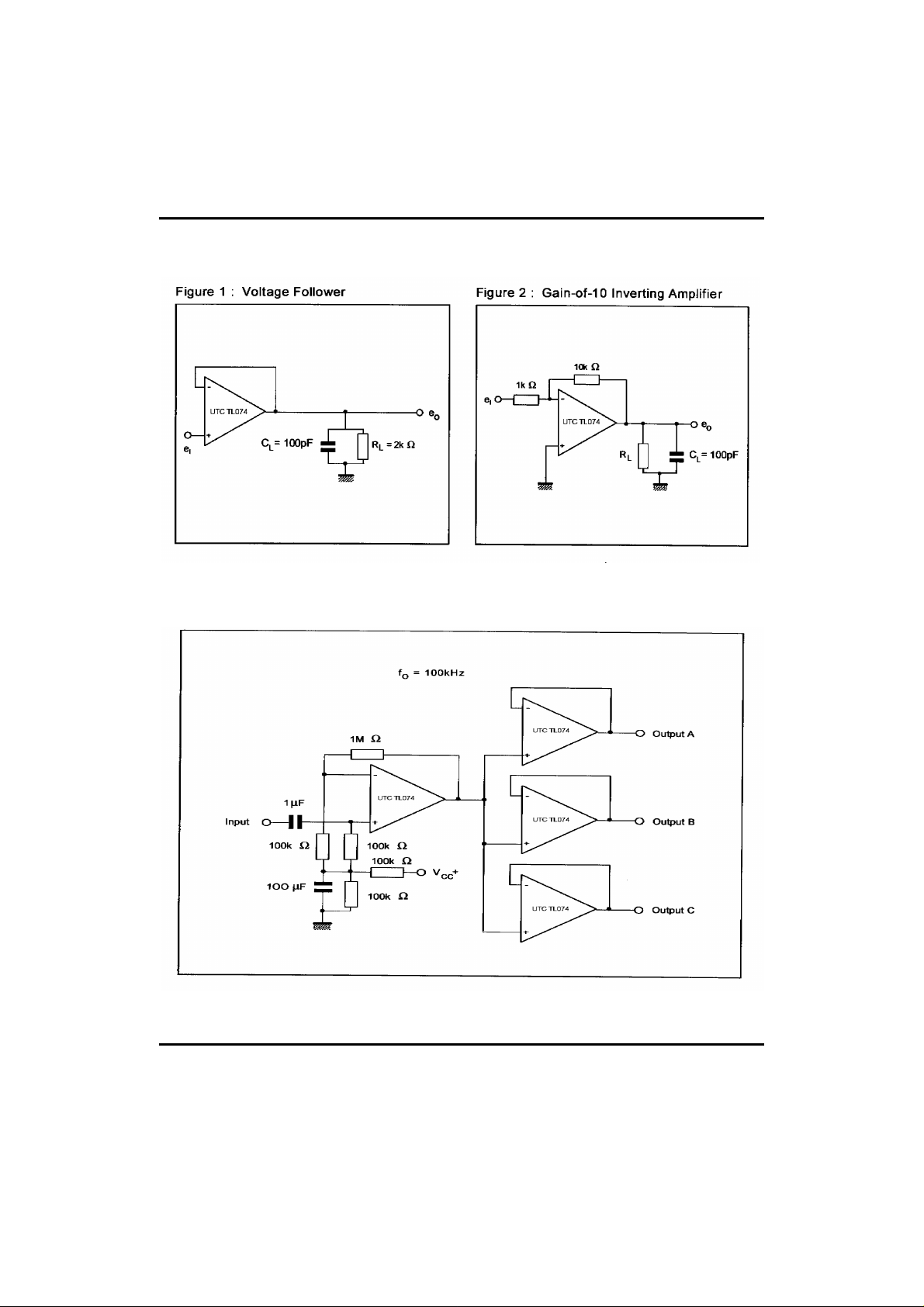

TYPICAL APPLICATIONS
