Datasheet UT322 Specification

Page 1

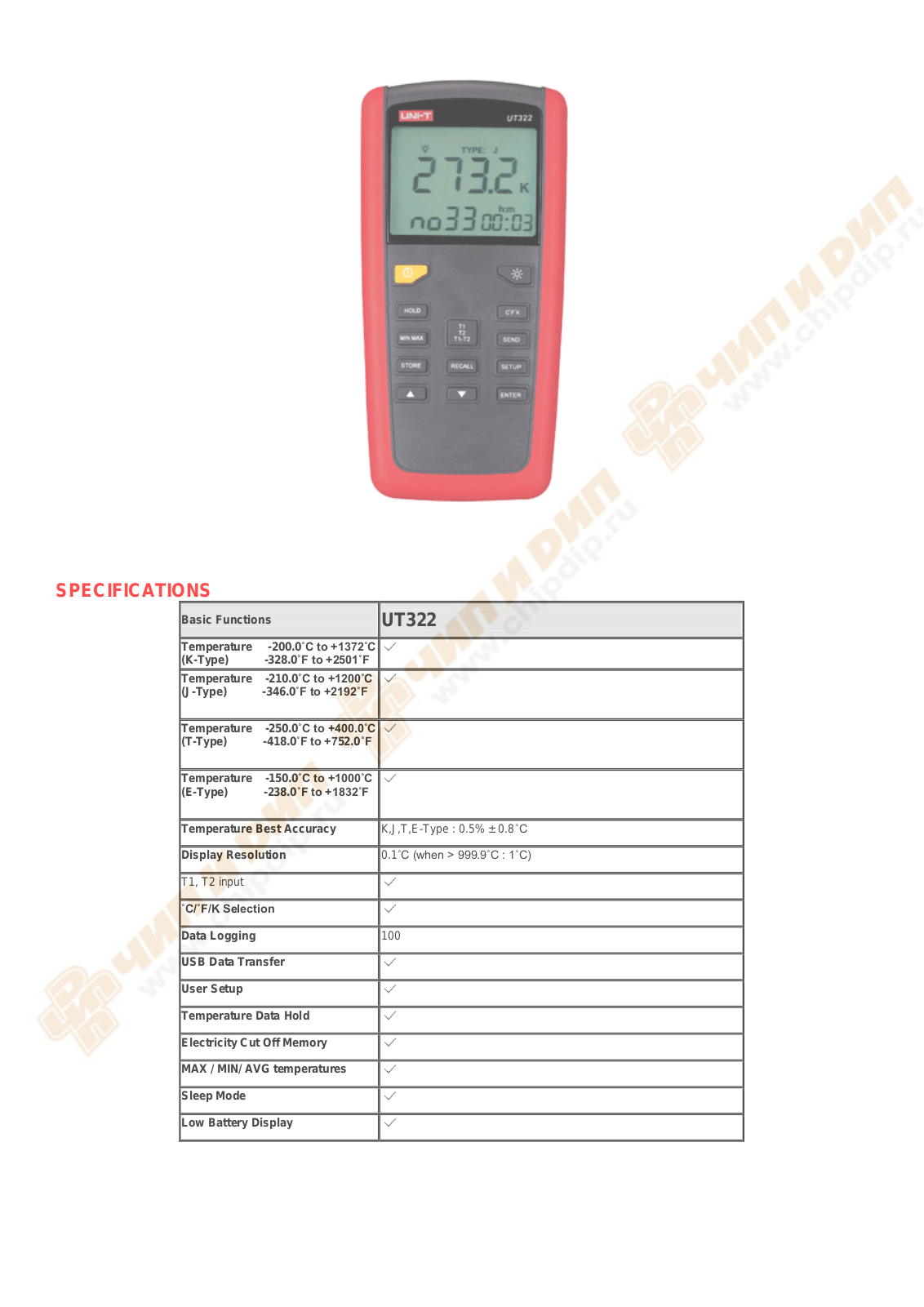

SPECIFICATIONS
Temperature -200.0˚C to +137C
Temperature -210.0˚C to +1200˚C
Temperature -250.0˚C to +400.0˚C
Temperature -150.0˚C to +1000˚C
Temperature Best Accuracy
Display Resolution
0.1˚C (when > 999.C : 1˚C)
T1, T2 input
˚CF/K Selection
Data Logging
USB Data Transfer
User Setup
Temperature Data Hold
Electricity Cut Off Memory
MAX / MIN/ AVG temperatures
Sleep Mode
Low Battery Display
Basic Functions
(K-Type) -328.0˚ F to +2501˚F
(J-Type) -346.0˚F to +2192˚F
(T-Type) -418.0˚F to +752.0˚F
(E-Type) -238.0˚F to +1832˚F
UT322
K,J,T,E-Type : 0.5% ± 0.8˚C
100
Page 2

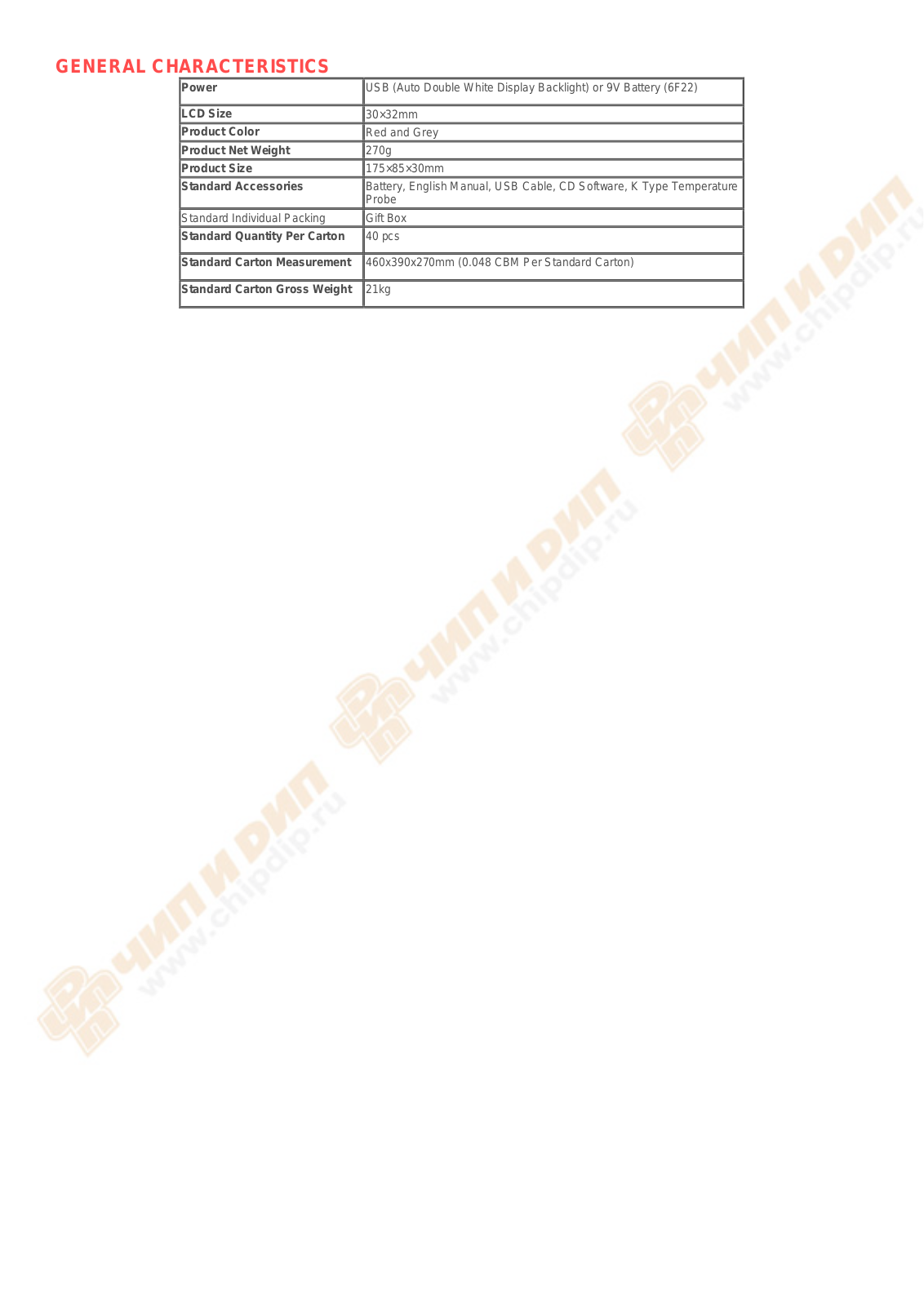

GENERAL CHARACTERISTICS
Power
USB (Auto Double White Display Backlight) or 9V Battery (6F22)
LCD Size
332mm
Product Color
Red and Grey
Product Net Weight
270g
Product Size
175×830mm
Standard Accessories
Standard Individual Packing
Gift Box
Standard Quantity Per Carton
Standard Carton Gross Weight
21kg
Battery, English Manual, USB Cable, CD Sof tware, K Type T emperatur e Probe
40 pcs
Standard Carton Measurement
460x390x270mm (0.048 CBM Per Standard Carton)
