Advance Data Sheet, Rev. 9

USS-344 QuadraBus™
Four-Host PCI-to-USB OpenHCI Host Controller

June 2001

Features

32-bit, 33 MHz PCI interface compliant with PCI Local

■

Bus Specification Revision 2.2

Four downstream USB ports

■

Each USB port dedicated to providing full USB band-

■

width to the attached device
Full compliance with Universal Serial Bus Specifica-

■

tion Revision 1.1
OpenHCI Open Host Controller Interface Specifica-

■

tion for USB Release 1.0a compatible
Fully compatible with Microsoft Windows 98/95/Win-

■

dows NT * standard OpenHCI drivers
Fully compatible with Mac† OS 8.5 and 8.6

■

Integrated dual-speed USB transceivers

■

3 V or 5 V switchable PCI signaling

■

Low-power mode and wake-up compatible with PCI

■

Power Management Interface Specification Revision

1.1

Supports up to 127 devices per port

■

Supports peripheral hot swap and wake-up

■

Support for legacy keyboard and mouse

■

128-pin TQFP package

■

Full 12 Mbits/s bandwidth per port

■

Evaluation kit:

■

— PCI card
— Data sheet

0.25 µm technology

■

Applications

Seamless integration with 3 V or 5 V PCI-based com-

■

puter products
Supports all USB compliant devices and hubs

■

Simultaneous operation of multiple high-performance

■

devices

Description

The Agere Systems Inc. USS-344 QuadraBus provides
a single-chip four-host PCI-to-Universal Serial Bus
(USB) solution. The USS-344 interfaces directly to any
32-bit, 33 MHz PCI bus and is ideal for either onboard
applications or add-in card applications. It can easily be
configured to communicate in either a 3 V PCI environ­ment or 5 V PCI environment simply by selecting the
appropriate communications voltage level on the VIO
input pin.

The USS-344 provides four downstream USB ports for
connectivity with any USB compliant device or hub. Full­speed or low-speed peripherals are supported along
with all of the USB transfer types: control, interrupt,
bulk, or isochronous. The USS-344’s OpenHCI compli­ance offers significant USB performance benefits and
reduced CPU overhead compared to other USB UHCI
host controllers.

In addition, the USS-344 offers a significant perfor­mance advantage over all other USB host controllers
(both UHCI and OHCI) by providing full USB bandwidth
to each port rather than sharing the USB bandwidth
over all ports. This results in an increase in the number
of devices which can feasibly be connected to a
computer system as well as ensuring high-bandwidth
devices, such as video cameras and audio devices, are
always provided with the high bandwidth they need
while other USB devices are in use.

The USS-344 is a multifunction PCI device with one
single-port USB host controller per PCI function. There
are four PCI functions in the USS-344 for a total of four
single-port USB host controllers. Each single-port host
controller provides the full USB bandwidth (12 Mbits/s)
for devices connected downstream of its port.

The USS-344 is fully compatible with the Microsoft
Windows standard OpenHCI drivers. The USS-344
pinout is compatible with the future release of the Agere
USB 2.0 host controller.The USS-344 is a 3.3 V device
fabricated in 0.25 µm technology. Integrated dual-speed
USB transceivers enable a single-chip PCI-to-USB
solution. The USS-344 provides full support for legacy
PC peripherals as defined in the OpenHCI Open Host

Controller Interface Specification for USB Release 1.0a.

* Microsoft, Windows, and Windows NT are registered trademarks

of Microsoft Corporation.

† Mac is a registered trademark of Apple Computer, Inc.

USS-344 QuadraBus Advance Data Sheet, Rev. 9
Four-Host PCI-to-USB OpenHCI Host Controller June 2001

Table of Contents

Contents Page

Features .................................................................................................................................................................. 1

Applications ............................................................................................................................................................. 1

Description ............................................................................................................................................................... 1

Applicable Documents and Specifications ............................................................................................................... 4

Pin Information ........................................................................................................................................................ 4

Register Overview ................................................................................................................................................... 8

PCI Registers ........................................................................................................................................................ 12

PCI Function 0—Single-Port USB Host Controller 0 ....................................................................................... 12

PCI Function 1—Single-Port USB Host Controller 1 ....................................................................................... 16

PCI Function 2—Single-Port USB Host Controller 2 ....................................................................................... 20

PCI Function 3—Single-Port USB Host Controller 3 ....................................................................................... 24

USB Registers ....................................................................................................................................................... 28

Legacy Support Registers ..................................................................................................................................... 35

HceInput Register ............................................................................................................................................35

HceOutput Register ......................................................................................................................................... 36

HceStatus Register.......................................................................................................................................... 36

HceControl Register ........................................................................................................................................37

Connection Instructions ......................................................................................................................................... 37

PCI Connection Instructions ............................................................................................................................ 37

USB Connection Instructions...........................................................................................................................38

Test Mode Connection Instructions ................................................................................................................. 38

Legacy Configuration ............................................................................................................................................. 40

Power Connection Recommendations .................................................................................................................. 41

Power Management Interface ............................................................................................................................... 42

Configuration Space Offset 50h....................................................................................................................... 43

Configuration Space Offset 51h....................................................................................................................... 43

Configuration Space Offset 52h....................................................................................................................... 44

Configuration Space Offset 54h....................................................................................................................... 44

Configuration Space Offset 56h....................................................................................................................... 45

Configuration Space Offset 57h....................................................................................................................... 45

Power Consumption/Dissipation Reporting ..................................................................................................... 45

NAND Tree Mode .................................................................................................................................................. 46

Absolute Maximum Ratings ................................................................................................................................... 48

Electrical Characteristics ....................................................................................................................................... 49

PCI Electrical Characteristics ..........................................................................................................................49

USB Electrical Characteristics ......................................................................................................................... 52

Physical Markings .................................................................................................................................................. 53

Outline Diagram ..................................................................................................................................................... 53

128-Pin TQFP..................................................................................................................................................53

Ordering Information .............................................................................................................................................. 54

2 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

Description

MIRQ121

KIRQ1I

A20I

IRQ1

IRQ12

A20MN

SMIN

CLK48STOP

PMEN

(continued)

USS-344 PCI-TO-USB OpenHCI HOST CONTROLLER

ADDRESS

DATA

CONTROL

DATA

ADDRESS/

DATA

CONTROL

LEGACY

SUPPORT

POWER

MNGMNT

LOGIC

HCI

SLAVE

BLOCK

HCI

MASTER

BLOCK

CONTROL

PROCESSOR

POWER

MNGMNT

PCI CORE 0

USB

STATE

LIST

BLOCK

FIFO

ROOT

HUB
AND

HOST

HSIE

DPLL

LEGACY

LOGIC

USB HOST CONTROLLER

SIE

S/M

TX

RX

CORE 0

OHCI

ROOT

HUB

PORT

1

USB

PCI BUS

AD[31:0]
CBE[3:0]
REQN
GNTN
IDSEL
FRAMEN
IRDYN
TRDYN
DEVSELN
STOPN
PERRN
SERRN
PAR

INTA
INTB
INTC
INTD

POWER

MNGMNT

PCI

ARBITER

PCI CORE 1

POWER

MNGMNT

PCI CORE 2

POWER

MNGMNT

PCI CORE 3

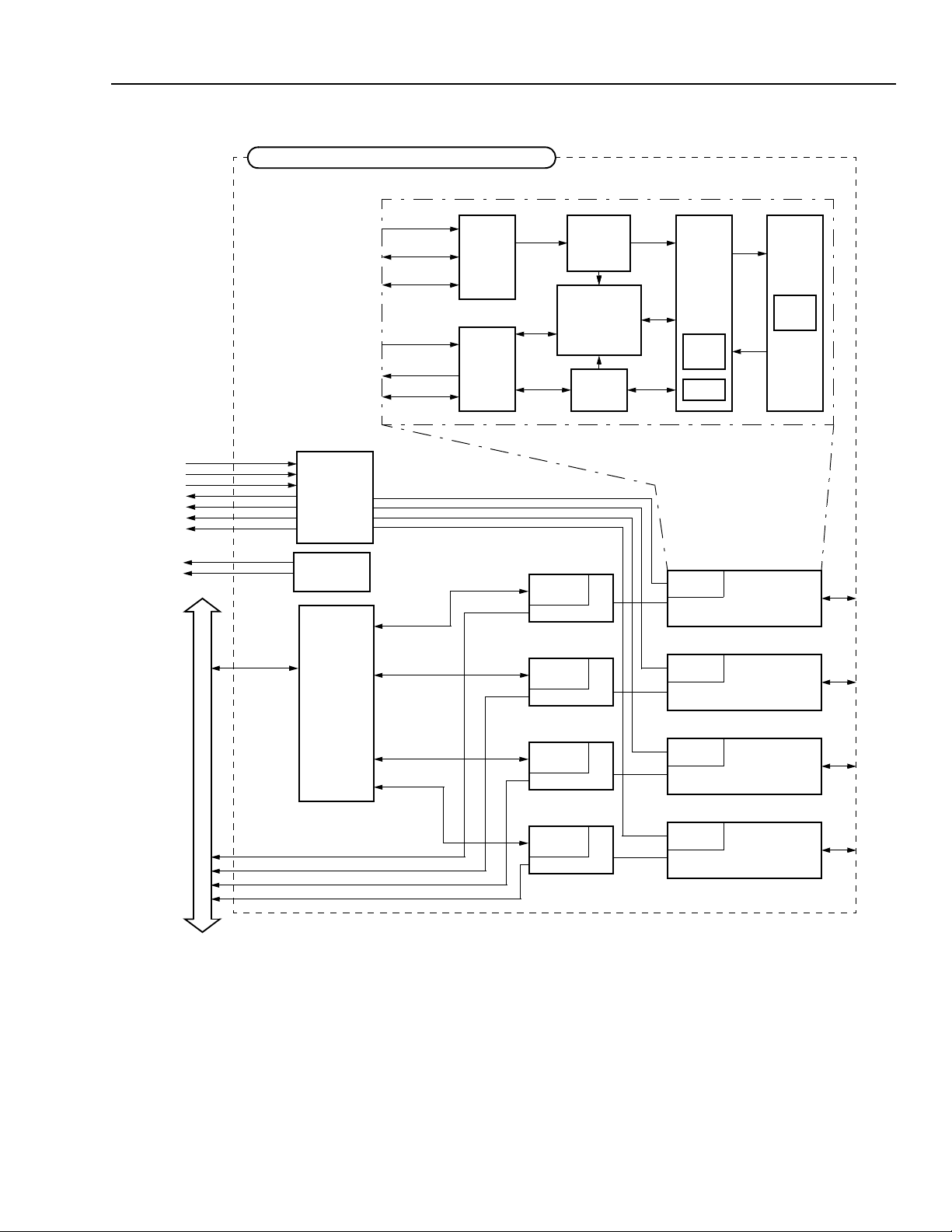

Figure 1. USS-344 Interconnection Diagram

LEGACY

LOGIC

USB HOST CONTROLLER

CORE 1

LEGACY

LOGIC

USB HOST CONTROLLER

CORE 2

LEGACY

LOGIC

USB HOST CONTROLLER

CORE 3

USB

USB

USB

5-7828.r1

Agere Systems Inc. 3

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

Applicable Documents and Specifications

PCI Local Bus Specification Revision 2.1s., June 1, 1995. PCI Special Interest Group.

■

Universal Serial Bus Specification Revision 1.1., September 23, 1998. Compaq/Digital Equipment Corporation/

■

IBM PC Company/Intel/Microsoft/NEC/Northern Telecom.

OpenHCI Open Host Controller Interface Specification for USB Release 1.0a., July 31, 1997. Compaq/Microsoft/

■

National Semiconductor.

PCI Bus Power Management Interface Specification Revision 1.1., December 18, 1998. PCI Special Interest

■

Group.

Pin Information

VSS

VDD
VSS

AD24

C/BEN3

IDSEL

AD23
AD22

VSS

VDD
AD21
AD20
AD19
AD18

VSS

VDD
AD17
AD16

C/BEN2

FRAMEN

VDD

VSS

IRDYN

TRDYN

DEVSELN

STOPN

PERRN

VSS

VDD

SERRN

PAR

C/BEN1

AD15

VDD

VSS
AD14
AD13
AD12
AD11

AD25

124

125

126

127

128

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

39404142434445464748495051525354555657585960616263

123

122

121

120

PMEN

119

117

118

USS-344

116

115

114

VDD

VSS

GNTN

REQN

AD31

AD30

AD29

VSS

VDD

AD28

AD27

AD26

CLK

113

VDD

112

RSTN

111

INTDN

110

INTCN

109

INTBN

108

VSS

107

VDD

106

INTAN

105

PWRFLT3N

104

PRTPWR3

103

102
101
100

64

PWRFLT2N
PRTPWR2

VSST
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65

VDDT

DMNS3

DPLS3

DMNS2

DPLS2

VSST

VDDT

DMNS1

DPLS1

DMNS0

DPLS0

VSST

VDDT

RREF

VDDA

XHI

XLO/CLK48

VSSA

CLK48STOP

VDD

PWRFLT1N

PRTPWR1

PWRFLT0N

PRTPWR0

SMIN

VSS

VDD

IRQ12

IRQ1

A20MN

A20I

KIRQ1I

MIRQ12I

VSS

VDD

AD9

AD8

AD7

AD6

AD5

AD4

VSS

VDD

VSS

AD10

VDD

C/BEN0

VSS

AD3

VDD

AD2

AD1

AD0

VSS

VIO

VSS

VDD

TEST0

TEST1

TEST2

TEST3

5-7830

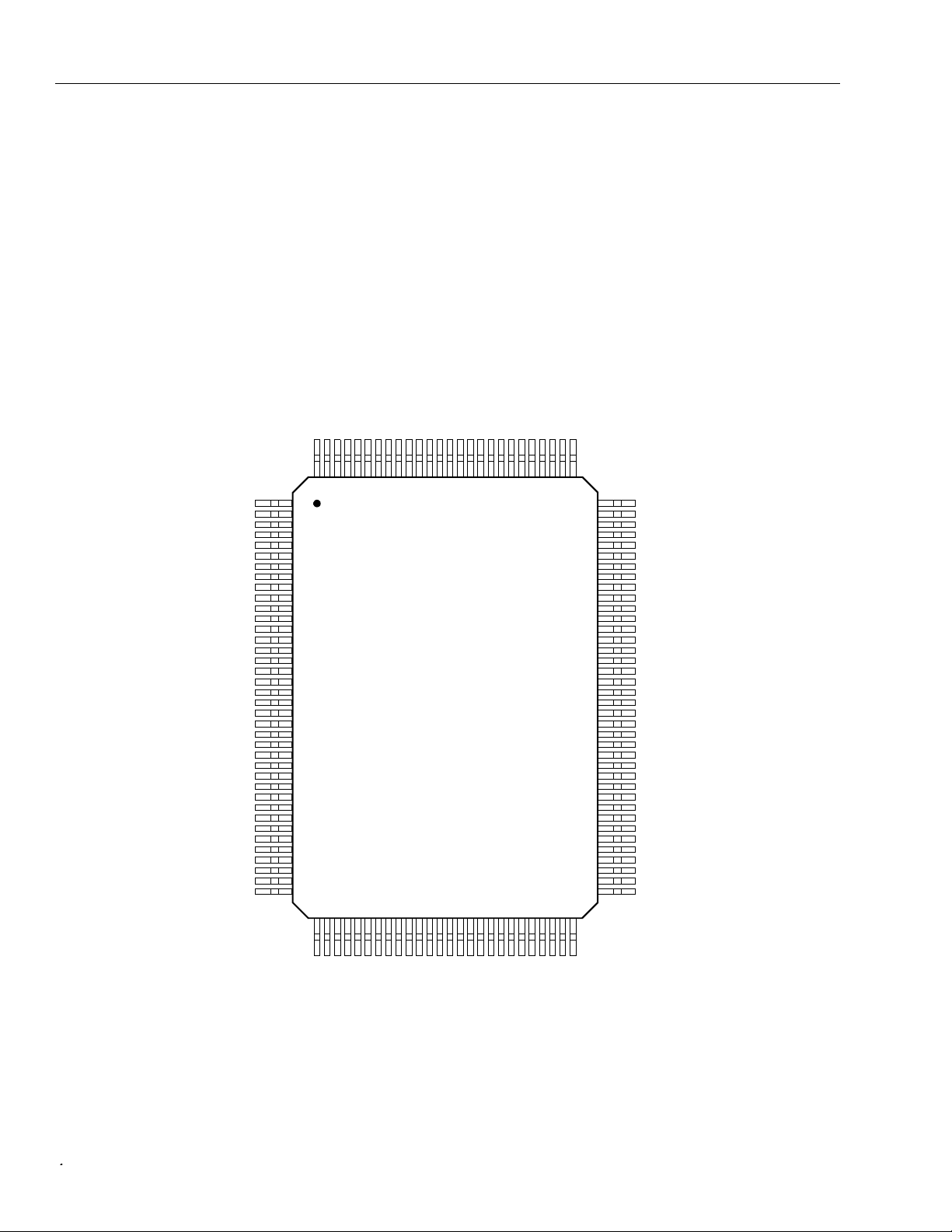

Figure 2. USS-344 Pin Diagram

44 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

Pin Information

(continued)

Table 1. Numeric Pin Cross Reference

Pin Symbol* Pin Symbol* Pin Symbol* Pin Symbol*

1V
2V

DD

SS

33 V
34 V

DD

SS

65 V
66 V

DD

SS

97 DPLS3

98 DMNS3
3 AD24 35 AD14 67 MIRQ12I 99 V
4C/BEN336 AD13 68KIRQ1I100V
5 IDSEL 37 AD12 69 A20I 101 PRTPWR2
6 AD23 38 AD11 70 A20MN 102 PWRFLT2N
7AD2239V
8V
9V

SS

DD

40 V
41 AD10 73 V

DD

SS

10 AD21 42 AD9 74 V

71 IRQ1 103 PRTPWR3
72 IRQ12 104 PWRFLT3N

DD

SS

105 INTAN

106 V
11 AD20 43 AD8 75 SMIN 107 V
12 AD19 44 C/BEN0 76 PRTPWR0 108 INTBN
13 AD18 45 V
14 V
15 V

SS

DD

46 V
47 AD7 79 PWRFLT1N 111 RSTN

SS

DD

16 AD17 48 AD6 80 V

77 PWRFLT0N 109 INTCN
78 PRTPWR1 110 INTDN

DD

112 V
17 AD16 49 AD5 81 CLK48STOP 113 CLK
18 C/BEN2 50 AD4 82 V
19 FRAMEN 51 V
20 V
21 V

DD

SS

52 V
53 AD3 85 VDDA117 V

SS

DD

83 XLO/CLK48 115 GNTN
84 XHI 116 REQN

A114 V

SS

22 IRDYN 54 AD2 86 RREF 118 V
23 TRDYN 55 AD1 87 VDDT 119 PMEN
24 DEVSELN 56 AD0 88 V
25 STOPN 57 V

SS

89 DPLS0 121 AD30

T 120 AD31

SS

26 PERRN 58 VIO 90 DMNS0 122 AD29
27 V
28 V

SS

DD

59 V
60 V

DD

SS

91 DPLS1 123 V

92 DMNS1 124 V
29 SERRN 61 TEST0 93 VDDT 125 AD28
30 PAR 62 TEST1 94 V

T 126 AD27

SS

31 C/BEN1 63 TEST2 95 DPLS2 127 AD26
32 AD15 64 TEST3 96 DMNS2 128 AD25

DD

SS

DD

SS

DD

SS

SS

DD

SS

DD

T
T

* Pins identified as NC are unused and should be left unconnected. Active-low signals within this document are indicated by an N following the

symbol names.

Agere Systems Inc. 5

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

Pin Information

(continued)

Table 2. PCI Signals

Pin Symbol* Type Description

111 RSTN Input PCI Reset (Active-Low).
113 CLK Input PCI System Clock (33 MHz).
116 REQN Output/3-State PCI Request (Active-Low).
115 GNTN Input PCI Grant (Active-Low).

120, 121, 122, 125, 126, 127, 128,

AD[31:0] Bidir PCI Address and Data.
3, 6, 7, 10, 11, 12, 13, 16, 17, 32,
35, 36, 37, 38, 41, 42, 43, 47, 48,

49, 50, 53, 54, 55, 56

30 PAR Bidir PCI Parity.

4, 18, 31, 44 C/BEN[3:0] Bidir PCI Bus Command and Byte Enables.

19 FRAMEN Bidir PCI Cycle Frame (Active-Low).
22 IRDYN Bidir PCI Initiator Ready (Active-Low).
23 TRDYN Bidir PCI Target Ready (Active-Low).
25 STOPN Bidir PCI Stop (Active-Low).

5 IDSEL Input PCI Initialization Device Select.
24 DEVSELN Bidir PCI Device Select (Active-Low).
26 PERRN Bidir PCI Parity Error (Active-Low).
29 SERRN Output/Open Drain PCI System Error (Active-Low).

105 INTAN Output/Open Drain PCI Interrupt A (Active-Low).
108 INTBN Output/Open Drain PCI Interrupt B (Active-Low).
109 INTCN Output/Open Drain PCI Interrupt C (Active-Low).
110 INTDN Output/Open Drain PCI Interrupt D (Active-Low).
119 PMEN Output/Open Drain Power Management Event (Active-Low).

1, 9, 15, 20, 28, 33, 39, 46, 52, 59,

V

DD

Power 3.3 V V

65, 73, 80, 106, 112, 118, 124

2, 8, 14, 21, 27, 34, 40, 45, 51, 57,

V

SS

Power V

60, 66, 74, 107, 114, 117, 123

58 VIO Power PCI Environment Selection (3.3 V or 5 V).

* An N following the symbol names indicates active-low for the USS-344.

DD.

SS.

Table 3. USB Port Signals

Pin Symbol* Type Description

89 DPLS0 Bidir USB Port 0 DPLUS.
90 DMNS0 Bidir USB Port 0 DMINUS.
91 DPLS1 Bidir USB Port 1 DPLUS.
92 DMNS1 Bidir USB Port 1 DMINUS.
95 DPLS2 Bidir USB Port 2 DPLUS.
96 DMNS2 Bidir USB Port 2 DMINUS.
97 DPLS3 Bidir USB Port 3 DPLUS.
98 DMNS3 Bidir USB Port 3 DMINUS.
76 PRTPWR0 Bidir USB Port 0 Power Enable (Active-Low).
78 PRTPWR1 Bidir USB Port 1 Power Enable (Active-Low).

101 PRTPWR2 Bidir USB Port 2 Power Enable (Active-Low).
103 PRTPWR3 Bidir USB Port 3 Power Enable (Active-Low).

* An N following the symbol names indicates active-low for the USS-344.

66 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

Pin Information

(continued)

Table 3. USB Port Signals (continued)

Pin Symbol* Type Description

77 PWRFLT0N Input USB Port 0 Overcurrent (Active-Low).

79 PWRFLT1N Input USB Port 1 Overcurrent (Active-Low).
102 PWRFLT2N Input USB Port 2 Overcurrent (Active-Low).
104 PWRFLT3N Input USB Port 3 Overcurrent (Active-Low).

81 CLK48STOP Bidir USB Clock Stop (Optional). Used to stop external

48 MHz clock in PCI power management state D3.

87, 93, 99 V

88, 94, 100 V

TPowerUSB Transceiver V

DD

TPowerUSB Transceiver V

SS

86 RREF Input USB 2.0 1 kΩ Precision Resistor Connection. Hi-Z if

implementation does not expect upgrade to USB 2.0.

85 V

APowerUSB 2.0 Analog Power. Connect to VDD if implementa-

DD

tion does not expect upgrade to USB 2.0.

82 V

APowerUSB 2.0 Analog Power. Connect to VSS if implementa-

SS

tion does not expect upgrade to USB 2.0.

84 XHI Power USB 2.0 Crystal Oscillator XHI Connection. Hi-Z if

implementation does not expect upgrade to USB 2.0.

83 XLO/CLK48 Power/Input USB 2.0 Crystal Oscillator XHI Connection/USB 1.X

CLK 48 MHz Input.

* An N following the symbol names indicates active-low for the USS-344.

(3.3 V).

DD

SS.

Table 4. Legacy Support Signals

Pin Symbol* Type Description

68 KIRQ1I Input Legacy Keyboard Controller Interrupt (IRQ1 Input from

Keyboard Controller).

67 MIRQ12I Input Legacy Mouse Controller Interrupt (IRQ12 Input from

Mouse Controller).

69 A20I Input Legacy Gate A20 Input.

70 A20MN Output/Open Drain Legacy Gate A20 Output (to Memory Controller).

71 IRQ1 Output/Open Drain System Keyboard Interrupt (Active-High).

72 IRQ12 Output/Open Drain System Mouse Interrupt (Active-High).

75 SMIN Output/Open Drain System Management Interrupt (Active-Low).

* An N following the symbol names indicates active-low for the USS-344.

Table 5. Chip Test Signals

Pin Symbol* Type Description

61 TEST0 Input Chip Test Signal. Refer to Test Mode Connection

Instructions section for usage information.

62 TEST1 Input Chip Test Signal. Refer to Test Mode Connection

Instructions section for usage information.

63 TEST2 Input Chip Test Signal. Refer to Test Mode Connection

Instructions section for usage information.

64 TEST3 Input Chip Test Signal. Refer to section Test Mode Connection

Instructions for usage information.

* An N following the symbol names indicates active-low for the USS-344.

Agere Systems Inc. 7

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

Register Overview

Table 6. PCI Bus Configuration Memory Summary (Function 0)

Refer to Tables 10—31 for more details on each of these registers.

Configuration Space Offset Register Name Read/Write Default Value (Reset)

00h—01h Vendor ID R 11C1h
02h—03h Device ID R 5803h
04h—05h Command R/W 0000h
06h—07h Status R/W TEST1 = 0b: 0210h

TEST1 = 1b: 0200h

08h Revision ID* R 10h

09h—0Bh Class Code R 0C0310h

0Ch Cache Line Size R 00h
0Dh Latency Timer R/W 00h
0Eh Header Type R 80h

0Fh BIST R 00h
10h—13h BAR 0 R/W 00000000h
14h—17h BAR 1 R 00000000h
18h—1Bh BAR 2 R 00000000h

1Ch—1Fh BAR 3 R 00000000h

20h—23h BAR 4 R 00000000h
24h—27h BAR 5 R 00000000h

28h—2Bh CardBus CIS Pointer R 00000000h
2Ch—2Dh Subsystem Vendor ID R/W
2Eh—2Fh Subsystem ID R/W

30h—33h Expansion ROM Base Address R 00000000h

34h Capabilities Pointer R TEST1 = 0b: 50h

3Ch Interrupt Line R/W 00h
3Dh Interrupt Pin R 01h
3Eh Min_Gnt R 03h

3Fh Max_Lat R 56h

4Ch Special—Subsystem Write Capability R/W 00000000h

* The revision can be identified electronically using the standard PCI Revision ID register described in this table. The revision can also be iden-

tified by physical markings using the last letter of the USS-344 identifier code printed on the device. The USS-344 identifier code will be
printed using the format USS344XY, where X will identify the package type (T) and Y will identify the revision.

† This register is normally read only. Write capability of this register is available to system BIOS only.

†

11C 1h

†

5803h

TEST1 = 1b: 00h

88 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

Register Overview

(continued)

Table 7. PCI Bus Configuration Memory Summary (Function 1)

Refer to Tables 32—53 for more details on each of these registers.

Configuration Space Offset Register Name Read/Write Default Value (Reset)

00h—01h Vendor ID R 11C1h
02h—03h Device ID R 5803h
04h—05h Command R/W 0000h
06h—07h Status R/W TEST1 = 0b: 0210h

TEST1 = 1b: 0200h

08h Revision ID* R 10h

09h—0Bh Class Code R 0C0310h

0Ch Cache Line Size R 00h
0Dh Latency Timer R/W 00h

0Eh Header Type R 80h

0Fh BIST R 00h
10h—13h BAR 0 R/W 00000000h
14h—17h BAR 1 R 00000000h
18h—1Bh BAR 2 R 00000000h

1Ch—1Fh BAR 3 R 00000000h

20h—23h BAR 4 R 00000000h
24h—27h BAR 5 R 00000000h

28h—2Bh CardBus CIS Pointer R 00000000h
2Ch—2Dh Subsystem Vendor ID R/W
2Eh—2Fh Subsystem ID R/W

†

11C 1h

†

5803h

30h—33h Expansion ROM Base Address R 00000000h

34h Capabilities Pointer R TEST1 = 0b: 50h

TEST1 = 1b: 00h
3Ch Interrupt Line R/W 00h
3Dh Interrupt Pin R TEST0 = 0b: 01h

TEST0 = 1b: 02h

3Eh Min_Gnt R 03h
3Fh Max_Lat R 56h

4Ch Special—Subsystem Write Capability R/W 00000000h

* The revision can be identified electronically using the standard PCI Revision ID register described in this table. The revision can also be iden-

tified by physical markings using the last letter of the USS-344 identifier code printed on the device. The USS-344 identifier code will be
printed using the format USS344XY, where X will identify the package type (T) and Y will identify the revision.

† This register is normally read only. Write capability of this register is available to system BIOS only.

Agere Systems Inc. 9

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

Register Overview

(continued)

Table 8. PCI Bus Configuration Memory Summary (Function 2)

Refer to Tables 54—75 for more details on each of these registers.

Configuration Space Offset Register Name Read/Write Default Value (Reset)

00h—01h Vendor ID R 11C1h
02h—03h Device ID R 5803h
04h—05h Command R/W 0000h
06h—07h Status R/W TEST1 = 0b: 0210h

TEST1 = 1b: 0200h

08h Revision ID* R 10h

09h—0Bh Class Code R 0C0310h

0Ch Cache Line Size R 00h
0Dh Latency Timer R/W 00h
0Eh Header Type R 80h

0Fh BIST R 00h
10h—13h BAR 0 R/W 00000000h
14h—17h BAR 1 R 00000000h

18h—1Bh BAR 2 R 00000000h
1Ch—1Fh BAR 3 R 00000000h

20h—23h BAR 4 R 00000000h
24h—27h BAR 5 R 00000000h

28h—2Bh CardBus CIS Pointer R 00000000h

†

2Ch—2Dh Subsystem Vendor ID R/W
2Eh—2Fh Subsystem ID R/W

11C 1h

†

5803h

30h—33h Expansion ROM Base Address R 00000000h

34h Capabilities Pointer R TEST1 = 0b: 50h

TEST1 = 1b: 00h
3Ch Interrupt Line R/W 00h
3Dh Interrupt Pin R TEST0 = 0b: 01h

TEST0 = 1b: 03h
3Eh Min_Gnt R 03h

3Fh Max_Lat R 56h

4Ch Special—Subsystem Write Capability R/W 00000000h

* The revision can be identified electronically using the standard PCI Revision ID register described in this table. The revision can also be iden-

tified by physical markings using the last letter of the USS-344 identifier code printed on the device. The USS-344 identifier code will be
printed using the format USS344XY, where X will identify the package type (T) and Y will identify the revision.

† This register is normally read only. Write capability of this register is available to system BIOS only.

1010 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

Register Overview

(continued)

Table 9. PCI Bus Configuration Memory Summary (Function 3)

Refer to Tables 76—97 for more details on each of these registers.

Configuration Space Offset Register Name Read/Write Default Value (Reset)

00h—01h Vendor ID R 11C1h
02h—03h Device ID R 5803h
04h—05h Command R/W 0000h
06h—07h Status R/W TEST1 = 0b: 0210h

TEST1 = 1b: 0200h

08h Revision ID* R 10h

09h—0Bh Class Code R 0C0310h

0Ch Cache Line Size R 00h
0Dh Latency Timer R/W 00h

0Eh Header Type R 80h

0Fh BIST R 00h
10h—13h BAR 0 R/W 00000000h
14h—17h BAR 1 R 00000000h

18h—1Bh BAR 2 R 00000000h
1Ch—1Fh BAR 3 R 00000000h

20h—23h BAR 4 R 00000000h
24h—27h BAR 5 R 00000000h

28h—2Bh CardBus CIS Pointer R 00000000h
2Ch—2Dh Subsystem Vendor ID R/W
2Eh—2Fh Subsystem ID R/W

†

11C 1h

†

5803h

30h—33h Expansion ROM Base Address R 00000000h

34h Capabilities Pointer R TEST1 = 0b: 50h

TEST1 = 1b: 00h
3Ch Interrupt Line R/W 00h
3Dh Interrupt Pin R TEST0 = 0b: 01h

TEST0 = 1b: 04h

3Eh Min_Gnt R 03h
3Fh Max_Lat R 56h

4Ch Special—Subsystem Write Capability R/W 00000000h

* The revision of the USS-344 can be identified either electronically or by physical markings. The revision can be identified electronically using

the standard PCI Revision ID register described in this table. The revision can also be identified by physical markings using the last letter of
the USS-344 identifier code printed on the device. The USS-344 identifier code will be printed using the format USS344XY, where X will iden­tify the package type (T) and Y will identify the revision.

† This register is normally read only. Write capability of this register is available to system BIOS only.

Agere Systems Inc. 11

USS-344 QuadraBus

Advance Data Sheet, Rev. 9

Four-Host PCI-to-USB OpenHCI Host Controller

PCI Registers

PCI Function 0—Single-Port USB Host Controller 0

Table 10. Vendor ID Register (00h—01h)

This register is fixed as the Agere Systems vendor ID assigned by the PCI SIG.

Bits Field Read/Write Reset/Description

15:0 Vendor ID R Assigned 11C1h

Table 11. Device ID Register (02h—03h)

This register is fixed as the Agere Systems product USS-344.

Bits Field Read/Write Reset/Description

15:0 Device ID R Assigned 5803h

Table 12. Command Register (04h—05h)

All read-only bits represent nonconfigurable features of the USS-344.

June 2001

Bits Field Read/Write Reset/Description

0 IO Space R/W 0
1 Memory Space R/W 0
2Bus MasterR/W0
3 Special Cycles R 0
4 Memory Write and

Invalidate Enable
5 VGA Palette Snoop R 0
6 Parity Error Response R/W 0
7 Wait Cycle Control R 0
8 SERRN Enable R/W 0
9 Fast Back-to-back

Enable
15:10 Reserved R 000000b

Table 13. Status Register (06h—07h)

All read-only bits represent nonconfigurable features of the USS-344.

Bits Field Read/Write Reset/Description

3:0 Reserved R 0000b
4 Capabilities R TEST1 = 0b: 1

5 66 MHz Capable R 0
6 UDF Support R 0
7 Fast Back-to-back

Capable
8 Data Parity Error

Detected
10:9 DEVSEL Timing R 01
11 Signaled Target Abort R/W 0
12 Received Target Abort R/W 0
13 Received Master Abort R/W 0
14 Signaled System Error R/W 0
15 Detected Parity Error R/W 0

1212 Agere Systems Inc.

R/W 0

R/W 0

TEST1 = 1b: 0

R0

R/W 0

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

PCI Registers

Table 14. Revision ID Register (08h)

Represents the current revision of the USS-344.

Bits Field Read/Write Reset/Description

7:0 Revision ID* R 10h

* The revision of the USS-344 can be identified either electronically or by physical markings. The revision can be identified

electronically using the standard PCI Revision ID register described in this table. The revision can also be identified by phys­ical markings using the last letter of the USS-344 identifier code printed on the device. The USS-344 identifier code will be
printed using the format USS344XY, where X will identify the package type (M or T) and Y will identify the revision.

Table 15. Class Code Register (09h—0Bh)

The PCI class code for all OpenHCI host controllers is defined in the OpenHCI specification.

Bits Field Read/Write Reset/Description

7:0 Programming Interface R 10h = OpenHCI Host Controller
15:8 Subclass R 03h = Universal Serial Bus
23:16 Base Class R 0Ch = Serial Bus Controller

Table 16. Cache Line Size Register (0Ch)

No cache line is supported by the USS-344.

(continued)

Bits Field Read/Write Reset/Description

7:0 Cache Line Size R 00h

Table 17. Latency Timer Register (0Dh)

Controls the number of clock cycles the USS-344 may remain on the PCI bus after becoming bus master.

Bits Field Read/Write Reset/Description

7:0 Latency Timer R/W Upper 5 bits are read/write. Lower

3 bits are read only.

Table 18. Header Type Register (0Eh)

The USS-344 supports PCI header type 0 only.

Bits Field Read/Write Reset/Description

7:0 Header Type R 80h = Multifunction PCI Device

Table 19. BIST Register (0Fh)

BIST is not supported by the USS-344.

Bits Field Read/Write Reset/Description

7:0 BIST R 00h

Agere Systems Inc. 13

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

PCI Registers

Table 20. Base Address Register 0 (10h—13h)

The Base Address register is used to specify to the PCI operating system the memory size of the USS-344 device.
As recommended by the OpenHCI specification, the lower 12 bits are read only (fixed to logic 0) to indicate 4K

12

(2

) memory size.

Bits Field Read/Write Reset/Description

31:0 BAR 0 R/W Lower 12 bits are read only. Upper

Table 21. Base Address Register 1, 2, 3, 4, 5 (14h—17h), (18h—1Bh), (1Ch—1Fh), (20h—23h), (24h—27h)

These Base Address registers are unused by the USS-344 device.

Bits Field Read/Write Reset/Description

31:0 BAR 1—5 R 00000000h

Table 22. Cardbus CIS Pointer Register (28h—2Bh)

Cardbus CIS pointer not required for the USS-344.

Bits Field Read/Write Reset/Description

31:0 CardBus CIS Pointer R 00000000h

(continued)

20 bits are read/write.

Table 23. Subsystem Vendor ID Register (2Ch—2Dh)

The subsystem vendor ID is R/W for compliance with Microsoft PC98 specifications. On reset, this register is read
only. System BIOS may write a 1 to Special—Subsystem Write Capability register (4Ch) bit 0 to enable write capa­bility of this register. After configuring this register, the system BIOS must write a 0 to Special—Subsystem Write
Capability register (4Ch) bit 0 to disable write capability of this register.

Bits Field Read/Write Reset/Description

15:0 Subsystem Vendor ID R/W 11C1h

Table 24. Subsystem ID Register (2Eh—2Fh)

The subsystem vendor ID is R/W for compliance with Microsoft PC98 specifications. On reset, this register is read
only. System BIOS may write a 1 to Special—Subsystem Write Capability register (4Ch) bit 0 to enable write capa­bility of this register. After configuring this register, the system BIOS must write a 0 to Special—Subsystem Write
Capability register (4Ch) bit 0 to disable write capability of this register.

Bits Field Read/Write Reset/Description

15:0 Subsystem ID R/W 5803h

Table 25. Expansion ROM Base Address Register (30h—33h)

Expansion ROM not supported by the USS-344.

Bits Field Read/Write Reset/Description

31:0 Expansion ROM Base

Address

R 00000000h

1414 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

PCI Registers

Table 26. Capabilities Pointer Register (34h)

Bits Field Read/Write Reset/Description

7:0 Cap_Ptr R TEST1 = 0b: 50h

Table 27. Interrupt Line Register (3Ch)

Bits Field Read/Write Reset/Description

7:0 Interrupt Line R/W 00h

Table 28. Interrupt Pin Register (3Dh)

Interrupt A used as the PCI interrupt for this core.

Bits Field Read/Write Reset/Description

7:0 Interrupt Pin R 01h

Table 29. Min_Gnt Register (3Eh)

The USS-344 can support a four DWORD master burst read or write which requires less than 500 ns.

Bits Field Read/Write Reset/Description

7:0 Min_Gnt R 03h

(continued)

TEST1 = 1b: 00h

Table 30. Max_Lat Register (3Fh)

The USS-344 requires service at a minimum interval of 21.3 µs.

Bits Field Read/Write Reset/Description

7:0 Max_Lat R 56h

Table 31. Special—Subsystem Write Capability (4Ch)

This is a special register implemented for compliance with Microsoft PC98 Specification, Chapter 9, Item 11. Bit 0
is read/write to allow the system BIOS to enable write capability of the Subsystem Vendor ID and Subsystem ID
registers (refer to Tables 23 and 24).

Bits Field Read/Write Reset/Description

31:1 Reserved R 00000000h
0 Subsystem Write R/W 0b

0 = Subsystem write disabled
1 = Subsystem write enabled

Agere Systems Inc. 15

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

PCI Registers

(continued)

PCI Function 1—Single-Port USB Host Controller 1

Table 32. Vendor ID Register (00h—01h)

This register is fixed as the Agere Systems vendor ID assigned by the PCI SIG.

Bits Field Read/Write Reset/Description

15:0 Vendor ID R Assigned 11C1h

Table 33. Device ID Register (02h—03h)

This register is fixed as the Agere Systems product USS-344.

Bits Field Read/Write Reset/Description

15:0 Device ID R Assigned 5803h

Table 34. Command Register (04h—05h)

All read-only bits represent nonconfigurable features of the USS-344.

Bits Field Read/Write Reset/Description

0IO SpaceR/W0
1 Memory Space R/W 0
2 Bus Master R/W 0
3 Special Cycles R 0
4 Memory Write and Invalidate

Enable
5 VGA Palette Snoop R 0
6 Parity Error Response R/W 0
7 Wait Cycle Control R 0
8 SERRN Enable R/W 0
9 Fast Back-to-back Enable R/W 0
15:10 Reserved R 000000b

R/W 0

Table 35. Status Register (06h—07h)

All read-only bits represent nonconfigurable features of the USS-344.

Bits Field Read/Write Reset/Description

3:0 Reserved R 0000b
4 Capabilities R TEST1 = 0b: 1

TEST1 = 1b: 0
5 66 MHz Capable R 0
6 UDF Support R 0
7 Fast Back-to-back Capable R 0
8 Data Parity Error Detected R/W 0
10:9 DEVSEL Timing R 01
11 Signaled Target Abort R/W 0
12 Received Target Abort R/W 0
13 Received Master Abort R/W 0
14 Signaled System Error R/W 0
15 Detected Parity Error R/W 0

1616 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

PCI Registers

Table 36. Revision ID Register (08h)

Represents the current revision of the USS-344.

Bits Field Read/Write Reset/Description

7:0 Revision ID* R 10h

* The revision of the USS-344 can be identified either electronically or by physical markings. The revision can be identified

electronically using the standard PCI Revision ID register described in this table. The revision can also be identified by phys­ical markings using the last letter of the USS-344 identifier code printed on the device. The USS-344 identifier code will be
printed using the format USS344XY, where X will identify the package type (M or T) and Y will identify the revision.

Table 37. Class Code Register (09h—0Bh)

The PCI class code for all OpenHCI host controllers is defined in the OpenHCI specification.

Bits Field Read/Write Reset/Description

7:0 Programming Interface R 10h = OpenHCI Host Controller
15:8 Subclass R 03h = Universal Serial Bus
23:16 Base Class R 0Ch = Serial Bus Controller

Table 38. Cache Line Size Register (0Ch)

No cache line is supported by the USS-344.

(continued)

Bits Field Read/Write Reset/Description

7:0 Cache Line Size R 00h

Table 39. Latency Timer Register (0Dh)

Controls the number of clock cycles the USS-344 may remain on the PCI bus after becoming bus master.

Bits Field Read/Write Reset/Description

7:0 Latency Timer R/W Upper 5 bits are read/write. Lower

3 bits are read only.

Table 40. Header Type Register (0Eh)

The USS-344 supports PCI header type 0 only.

Bits Field Read/Write Reset/Description

7:0 Header Type R 80h = Multifunction PCI Device

Agere Systems Inc. 17

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

PCI Registers

Table 41. BIST Register (0Fh)

BIST is not supported by the USS-344.

Bits Field Read/Write Reset/Description

7:0 BIST R 00h

Table 42. Base Address Register 0 (10h—13h)

The Base Address register is used to specify to the PCI operating system the memory size of the USS-344 device.
As recommended by the OpenHCI specification, the lower 12 bits are read only (fixed to logic 0) to indicate 4K

12

) memory size.

(2

Bits Field Read/Write Reset/Description

31:0 BAR 0 R/W Lower 12 bits are read only. Upper

Table 43. Base Address Register 1, 2, 3, 4, 5 (14h—17h), (18h—1Bh), (1Ch—1Fh), (20h—23h), (24h—27h)

These Base Address registers are unused by the USS-344 device.

Bits Field Read/Write Reset/Description

31:0 BAR 1—5 R 00000000h

(continued)

20 bits are read/write.

Table 44. Cardbus CIS Pointer Register (28h—2Bh)

Cardbus CIS pointer not required for the USS-344.

Bits Field Read/Write Reset/Description

31:0 CardBus CIS Pointer R 00000000h

Table 45. Subsystem Vendor ID Register (2Ch—2Dh)

The subsystem vendor ID is R/W for compliance with Microsoft PC98 specifications. On reset, this register is read
only. System BIOS may write a 1 to Special—Subsystem Write Capability register (4Ch) bit 0 to enable write capa­bility of this register. After configuring this register, the system BIOS must write a 0 to Special—Subsystem Write
Capability register (4Ch) bit 0 to disable write capability of this register.

Bits Field Read/Write Reset/Description

15:0 Subsystem Vendor ID R/W 11C1h

Table 46. Subsystem ID Register (2Eh—2Fh)

The subsystem vendor ID is R/W for compliance with Microsoft PC98 specifications. On reset, this register is read
only. System BIOS may write a 1 to Special—Subsystem Write Capability register (4Ch) bit 0 to enable write capa­bility of this register. After configuring this register, the system BIOS must write a 0 to Special—Subsystem Write
Capability register (4Ch) bit 0 to disable write capability of this register.

Bits Field Read/Write Reset/Description

15:0 Subsystem ID R/W 5803h

1818 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

PCI Registers

Table 47. Expansion ROM Base Address Register (30h—33h)

Expansion ROM not supported by the USS-344.

Bits Field Read/Write Reset/Description

31:0 Expansion ROM Base

Table 48. Capabilities Pointer Register (34h)

Bits Field Read/Write Reset/Description

7:0 Cap_Ptr R TEST1 = 0b: 50h

Table 49. Interrupt Line Register (3Ch)

Bits Field Read/Write Reset/Description

7:0 Interrupt Line R/W 00h

Table 50. Interrupt Pin Register (3Dh)

If TEST0 = 0b, interrupt A is used as the PCI interrupt for this core.
If TEST0 = 1b, interrupt B is used as the PCI interrupt for this core.

(continued)

R 00000000h

Address

TEST1 = 1b: 00h

Bits Field Read/Write Reset/Description

7:0 Interrupt Pin R TEST0 = 0b: 01h

TEST0 = 1b: 02h

Table 51. Min_Gnt Register (3Eh)

The USS-344 can support a four DWORD master burst read or write which requires less than 500 ns.

Bits Field Read/Write Reset/Description

7:0 Min_Gnt R 03h

Table 52. Max_Lat Register (3Fh)

The USS-344 requires service at a minimum interval of 21.3 µs.

Bits Field Read/Write Reset/Description

7:0 Max_Lat R 56h

Table 53. Special—Subsystem Write Capability (4Ch)

This is a special register implemented for compliance with Microsoft PC98 Specification, Chapter 9, Item 11. Bit 0
is read/write to allow the system BIOS to enable write capability of the Subsystem Vendor ID and Subsystem ID
registers (refer to Tables 23 and 24).

Bits Field Read/Write Reset/Description

31:1 Reserved R 00000000h
0 Subsystem Write R/W 0b

0 = Subsystem write disabled
1 = Subsystem write enabled

Agere Systems Inc. 19

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

PCI Registers

(continued)

PCI Function 2—Single-Port USB Host Controller 2

Table 54. Vendor ID Register (00h—01h)

This register is fixed as the Agere Systems vendor ID assigned by the PCI SIG.

Bits Field Read/Write Reset/Description

15:0 Vendor ID R Assigned 11C1h

Table 55. Device ID Register (02h—03h)

This register is fixed as the Agere Systems product USS-344.

Bits Field Read/Write Reset/Description

15:0 Device ID R Assigned 5803h

Table 56. Command Register (04h—05h)

All read-only bits represent nonconfigurable features of the USS-344.

Bits Field Read/Write Reset/Description

0 IO Space R/W 0
1 Memory Space R/W 0
2Bus Master R/W0
3 Special Cycles R 0
4 Memory Write and Invalidate Enable R/W 0
5 VGA Palette Snoop R 0
6 Parity Error Response R/W 0
7 Wait Cycle Control R 0
8 SERRN Enable R/W 0
9 Fast Back-to-back Enable R/W 0
15:10 Reserved R 000000b

Table 57. Status Register (06h—07h)

All read-only bits represent nonconfigurable features of the USS-344.

Bits Field Read/Write Reset/Description

3:0 Reserved R 0000b
4 Capabilities R TEST1 = 0b: 1

TEST1 = 1b: 0
5 66 MHz Capable R 0
6 UDF Support R 0
7 Fast Back-to-back Capable R 0
8 Data Parity Error Detected R/W 0
10:9 DEVSEL Timing R 01
11 Signaled Target Abort R/W 0
12 Received Target Abort R/W 0
13 Received Master Abort R/W 0
14 Signaled System Error R/W 0
15 Detected Parity Error R/W 0

2020 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

PCI Registers

Table 58. Revision ID Register (08h)

Represents the current revision of the USS-344.

Bits Field Read/Write Reset/Description

7:0 Revision ID* R 10h

* The revision of the USS-344 can be identified either electronically or by physical markings. The revision can be identified

electronically using the standard PCI Revision ID register described in this table. The revision can also be identified by phys­ical markings using the last letter of the USS-344 identifier code printed on the device. The USS-344 identifier code will be
printed using the format USS344XY, where X will identify the package type (M or T) and Y will identify the revision.

Table 59. Class Code Register (09h—0Bh)

The PCI class code for all OpenHCI host controllers is defined in the OpenHCI specification.

Bits Field Read/Write Reset/Description

7:0 Programming Interface R 10h = OpenHCI Host Controller
15:8 Subclass R 03h = Universal Serial Bus
23:16 Base Class R 0Ch = Serial Bus Controller

Table 60. Cache Line Size Register (0Ch)

No cache line is supported by the USS-344.

(continued)

Bits Field Read/Write Reset/Description

7:0 Cache Line Size R 00h

Table 61. Latency Timer Register (0Dh)

Controls the number of clock cycles the USS-344 may remain on the PCI bus after becoming bus master.

Bits Field Read/Write Reset/Description

7:0 Latency Timer R/W Upper 5 bits are read/write. Lower

3 bits are read only.

Table 62. Header Type Register (0Eh)

The USS-344 supports PCI header type 0 only.

Bits Field Read/Write Reset/Description

7:0 Header Type R 80h = Multifunction PCI Device

Agere Systems Inc. 21

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

PCI Registers

Table 63. BIST Register (0Fh)

BIST is not supported by the USS-344.

Bits Field Read/Write Reset/Description

7:0 BIST R 00h

Table 64. Base Address Register 0 (10h—13h)

The Base Address register is used to specify to the PCI operating system the memory size of the USS-344 device.
As recommended by the OpenHCI specification, the lower 12 bits are read only (fixed to logic 0) to indicate 4K

12

) memory size.

(2

Bits Field Read/Write Reset/Description

31:0 BAR 0 R/W Lower 12 bits are read only. Upper

Table 65. Base Address Register 1, 2, 3, 4, 5 (14h—17h), (18h—1Bh), (1Ch—1Fh), (20h—23h), (24h—27h)

These Base Address registers are unused by the USS-344 device.

Bits Field Read/Write Reset/Description

31:0 BAR 1—5 R 00000000h

(continued)

20 bits are read/write.

Table 66. Cardbus CIS Pointer Register (28h—2Bh)

Cardbus CIS pointer not required for the USS-344.

Bits Field Read/Write Reset/Description

31:0 CardBus CIS Pointer R 00000000h

Table 67. Subsystem Vendor ID Register (2Ch—2Dh)

The subsystem vendor ID is R/W for compliance with Microsoft PC98 specifications. On reset, this register is read
only. System BIOS may write a 1 to Special—Subsystem Write Capability register (4Ch) bit 0 to enable write capa­bility of this register. After configuring this register, the system BIOS must write a 0 to Special—Subsystem Write
Capability register (4Ch) bit 0 to disable write capability of this register.

Bits Field Read/Write Reset/Description

15:0 Subsystem Vendor ID R/W 11C1h

Table 68. Subsystem ID Register (2Eh—2Fh)

The subsystem vendor ID is R/W for compliance with Microsoft PC98 specifications. On reset, this register is read
only. System BIOS may write a 1 to Special—Subsystem Write Capability register (4Ch) bit 0 to enable write capa­bility of this register. After configuring this register, the system BIOS must write a 0 to Special—Subsystem Write
Capability register (4Ch) bit 0 to disable write capability of this register.

Bits Field Read/Write Reset/Description

15:0 Subsystem ID R/W 5803h

2222 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

PCI Registers

Table 69. Expansion ROM Base Address Register (30h—33h)

Expansion ROM not supported by the USS-344.

Bits Field Read/Write Reset/Description

31:0 Expansion ROM Base

Table 70. Capabilities Pointer Register (34h)

Bits Field Read/Write Reset/Description

7:0 Cap_Ptr R TEST1 = 0b: 50h

Table 71. Interrupt Line Register (3Ch)

Bits Field Read/Write Reset/Description

7:0 Interrupt Line R/W 00h

Table 72. Interrupt Pin Register (3Dh)

If TEST0 = 0b, interrupt A is used as the PCI interrupt for this core.
If TEST0 = 1b, interrupt C is used as the PCI interrupt for this core.

(continued)

R 00000000h

Address

TEST1 = 1b: 00h

Bits Field Read/Write Reset/Description

7:0 Interrupt Pin R TEST0 = 0b: 01h

TEST0 = 1b: 03h

Table 73. Min_Gnt Register (3Eh)

The USS-344 can support a four DWORD master burst read or write which requires less than 500 ns.

Bits Field Read/Write Reset/Description

7:0 Min_Gnt R 03h

Table 74. Max_Lat Register (3Fh)

The USS-344 requires service at a minimum interval of 21.3 µs.

Bits Field Read/Write Reset/Description

7:0 Max_Lat R 56h

Table 75. Special—Subsystem Write Capability (4Ch)

This is a special register implemented for compliance with Microsoft PC98 Specification, Chapter 9, Item 11. Bit 0
is read/write to allow the system BIOS to enable write capability of the Subsystem Vendor ID and Subsystem ID
registers (refer to Tables 23 and 24).

Bits Field Read/Write Reset/Description

31:1 Reserved R 00000000h
0 Subsystem Write R/W 0b

0 = Subsystem write disabled
1 = Subsystem write enabled

Agere Systems Inc. 23

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

PCI Registers

(continued)

PCI Function 3—Single-Port USB Host Controller 3

Table 76. Vendor ID Register (00h—01h)

This register is fixed as the Agere Systems vendor ID assigned by the PCI SIG.

Bits Field Read/Write Reset/Description

15:0 Vendor ID R Assigned 11C1h

Table 77. Device ID Register (02h—03h)

This register is fixed as the Agere Systems product USS-344.

Bits Field Read/Write Reset/Description

15:0 Device ID R Assigned 5803h

Table 78. Command Register (04h—05h)

All read-only bits represent nonconfigurable features of the USS-344.

Bits Field Read/Write Reset/Description

0 IO Space R/W 0
1 Memory Space R/W 0
2Bus MasterR/W0
3 Special Cycles R 0
4 Memory Write and

Invalidate Enable
5 VGA Palette Snoop R 0
6 Parity Error Response R/W 0
7 Wait Cycle Control R 0
8 SERRN Enable R/W 0
9 Fast Back-to-back

Enable
15:10 Reserved R 000000b

R/W 0

R/W 0

Table 79. Status Register (06h—07h)

All read-only bits represent nonconfigurable features of the USS-344.

Bits Field Read/Write Reset/Description

3:0 Reserved R 0000b
4 Capabilities R TEST1 = 0b: 1

TEST1 = 1b: 0
5 66 MHz Capable R 0
6 UDF Support R 0
7 Fast Back-to-back

Capable

8 Data Parity Error

Detected
10:9 DEVSEL Timing R 01
11 Signaled Target Abort R/W 0
12 Received Target Abort R/W 0
13 Received Master Abort R/W 0
14 Signaled System Error R/W 0
15 Detected Parity Error R/W 0

2424 Agere Systems Inc.

R0

R/W 0

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

PCI Registers

Table 80. Revision ID Register (08h)

Represents the current revision of the USS-344.

Bits Field Read/Write Reset/Description

7:0 Revision ID* R 10h

* The revision of the USS-344 can be identified either electronically or by physical markings. The revision can be identified

electronically using the standard PCI Revision ID register described in this table. The revision can also be identified by phys­ical markings using the last letter of the USS-344 identifier code printed on the device. The USS-344 identifier code will be
printed using the format USS344XY, where X will identify the package type (M or T) and Y will identify the revision.

Table 81. Class Code Register (09h—0Bh)

The PCI class code for all OpenHCI host controllers is defined in the OpenHCI specification.

Bits Field Read/Write Reset/Description

7:0 Programming Interface R 10h = OpenHCI Host Controller
15:8 Subclass R 03h = Universal Serial Bus
23:16 Base Class R 0Ch = Serial Bus Controller

Table 82. Cache Line Size Register (0Ch)

No cache line is supported by the USS-344.

(continued)

Bits Field Read/Write Reset/Description

7:0 Cache Line Size R 00h

Table 83. Latency Timer Register (0Dh)

Controls the number of clock cycles the USS-344 may remain on the PCI bus after becoming bus master.

Bits Field Read/Write Reset/Description

7:0 Latency Timer R/W Upper 5 bits are read/write. Lower

3 bits are read only.

Table 84. Header Type Register (0Eh)

The USS-344 supports PCI header type 0 only.

Bits Field Read/Write Reset/Description

7:0 Header Type R 80h = Multifunction PCI Device

Agere Systems Inc. 25

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

PCI Registers

Table 85. BIST Register (0Fh)

BIST is not supported by the USS-344.

Bits Field Read/Write Reset/Description

7:0 BIST R 00h

Table 86. Base Address Register 0 (10h—13h)

The Base Address register is used to specify to the PCI operating system the memory size of the USS-344 device.
As recommended by the OpenHCI specification, the lower 12 bits are read only (fixed to logic 0) to indicate 4K

12

) memory size.

(2

Bits Field Read/Write Reset/Description

31:0 BAR 0 R/W Lower 12 bits are read only. Upper

Table 87. Base Address Register 1, 2, 3, 4, 5 (14h—17h), (18h—1Bh), (1Ch—1Fh), (20h—23h), (24h—27h)

These base address registers are unused by the USS-344 device.

Bits Field Read/Write Reset/Description

31:0 BAR 1—5 R 00000000h

(continued)

20 bits are read/write.

Table 88. Cardbus CIS Pointer Register (28h—2Bh)

Cardbus CIS pointer not required for the USS-344.

Bits Field Read/Write Reset/Description

31:0 CardBus CIS Pointer R 00000000h

Table 89. Subsystem Vendor ID Register (2Ch—2Dh)

The subsystem vendor ID is R/W for compliance with Microsoft PC98 specifications. On reset, this register is read
only. System BIOS may write a 1 to Special—Subsystem Write Capability register (4Ch) bit 0 to enable write capa­bility of this register. After configuring this register, the system BIOS must write a 0 to Special—Subsystem Write
Capability register (4Ch) bit 0 to disable write capability of this register.

Bits Field Read/Write Reset/Description

15:0 Subsystem Vendor ID R/W 11C1h

Table 90. Subsystem ID Register (2Eh—2Fh)

The subsystem vendor ID is R/W for compliance with Microsoft PC98 specifications. On reset, this register is read
only. System BIOS may write a 1 to Special—Subsystem Write Capability register (4Ch) bit 0 to enable write capa­bility of this register. After configuring this register, the system BIOS must write a 0 to Special—Subsystem Write
Capability register (4Ch) bit 0 to disable write capability of this register.

Bits Field Read/Write Reset/Description

15:0 Subsystem ID R/W 5803h

2626 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

PCI Registers

Table 91. Expansion ROM Base Address Register (30h—33h)

Expansion ROM not supported by the USS-344.

Bits Field Read/Write Reset/Description

31:0 Expansion ROM Base

Table 92. Capabilities Pointer Register (34h)

Bits Field Read/Write Reset/Description

7:0 Cap_Ptr R TEST1 = 0b: 50h

Table 93. Interrupt Line Register (3Ch)

Bits Field Read/Write Reset/Description

7:0 Interrupt Line R/W 00h

Table 94. Interrupt Pin Register (3Dh)

If TEST0 = 0b, interrupt A is used as the PCI interrupt for this core.
If TEST0 = 1b, interrupt D is used as the PCI interrupt for this core.

(continued)

R 00000000h

Address

TEST1 = 1b: 00h

Bits Field Read/Write Reset/Description

7:0 Interrupt Pin R TEST0 = 0b: 01h

TEST0 = 1b: 04h

Table 95. Min_Gnt Register (3Eh)

The USS-344 can support a four DWORD master burst read or write which requires less than 500 ns.

Bits Field Read/Write Reset/Description

7:0 Min_Gnt R 03h

Table 96. Max_Lat Register (3Fh)

The USS-344 requires service at a minimum interval of 21.3 µs.

Bits Field Read/Write Reset/Description

7:0 Max_Lat R 56h

Table 97. Special—Subsystem Write Capability (4Ch)

This is a special register implemented for compliance with Microsoft PC98 Specification, Chapter 9, Item 11. Bit 0
is read/write to allow the system BIOS to enable write capability of the Subsystem Vendor ID and Subsystem ID
registers (refer to Tables 23 and 24).

Bits Field Read/Write Reset/Description

31:1 Reserved R 00000000h
0 Subsystem Write R/W 0b

0 = Subsystem write disabled
1 = Subsystem write enabled

Agere Systems Inc. 27

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

USB Registers

Table 98. USB Operational Registers Summary

Each PCI Function has one set of USB operational registers available through the memory mapped Base Address
register 0. Each set of USB operational registers represents one single-port USB host controller. Refer to Tables
99—120 for more details on each of these registers.

Offset Register Name

00h HcRevision
04h HcControl
08h HcCommandStatus

0Ch HcInterruptStatus

10h HcInterruptEnable
14h HcInterruptDisable
18h HcHCCA

1Ch HcPeriodCurrentED

20h HcControlHeadED
24h HcControlCurrentED
28h HcBulkHeadED

2Ch HcBulkCurrentED

30h HcDoneHead
34h HcFmInterval
38h HcFmRemaining

3Ch HcFmNumber

40h HcPeriodicStart
44h HcLSThreshold
48h HcRhDescriptorA

4Ch HcRhDescriptorB

50h HcRhStatus

54h HcRhPortStatus1
100h HceControl
104h HceInput
108h HceOutput
10Ch HceStatus

Table 99. HcRevision Register (00h)

Bits Field Reset HCD

(Host Controller Driver)HC(Host Controller)

7:0 Revision (REV) 10h R R

8 Legacy (L) 1b R R

2828 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

USB Registers

Table 100. HcControl Register (04h)

Bits Field Reset HCD

1:0 Control Bulk Service Ratio (CBSR) 00b R/W R

2 Periodic List Enable (PLE) 0b R/W R
3 Isochronous Enable (IE) 0b R/W R
4 Control List Enable (CLE) 0b R/W R
5 Bulk List Enable (BLE) 0b R/W R

7:6 Host Controller Functional State (HCFS)

00b: UsbReset
01b: UsbResume
10b: UsbOperational

11b: UsbSuspend
8 Interrupt Routing (IR) 0b R/W R
9 Remote Wakeup Connected (WC) 0b R/W R/W

10 Remote Wakeup Enable (RWE) 0b R/W R

Table 101. HcCommandStatus Register (08h)

Bits Field Reset HCD HC

0 Host Controller Reset (HCR) 0b R/W R/W
1 Control List Filled (CLF) 0b R/W R/W
2 Bulk List Filled (BLF) 0b R/W R/W
3 Ownership Change Request (OCR) 0b R/W R/W

17:16 Scheduling Overrun Count (SOC) 0b R R/W

(continued)

(Host Controller Driver)HC(Host Controller)

00b R/W R/W

Table 102. HcInterruptStatus Register (0Ch)

Bits Field Reset HCD HC

0 Scheduling Overrun (SO) 0b R/W R/W
1 Writeback Done Head (WDH) 0b R/W R/W
2 Start of Frame (SF) 0b R/W R/W
3 Resume Detected (RD) 0b R/W R/W
4 Unrecoverable Error (UE) 0b R/W R/W
5 Frame Number Overflow (FNO) 0b R/W R/W
6 Root Hub Status Change (RHSC) 0b R/W R/W

30 Ownership Change (OC) 0b R/W R/W

Agere Systems Inc. 29

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

USB Registers

Table 103. HcInterruptEnable Register (10h)

Bits Field Reset HCD

0 Scheduling Overrun (SO)

0—Ignore
1—Enable interrupt

1 Writeback Done Head (WDH)

0—Ignore
1—Enable interrupt

2 Start of Frame (SF)

0—Ignore
1—Enable interrupt

3 Resume Detected (RD)

0—Ignore
1—Enable interrupt

4 Unrecoverable Error (UE)

0—Ignore
1—Enable interrupt

5 Frame Number Overflow (FNO)

(continued)

(Host Controller Driver)HC(Host Controller)

0b R/W R

0b R/W R

0b R/W R

0b R/W R

0b R/W R

0b R/W R

0—Ignore
1—Enable interrupt

6 Root Hub Status Change (RHSC)

0—Ignore
1—Enable interrupt

30 Ownership Change (OC)

0—Ignore
1—Enable interrupt

31 Master Interrupt Enable (MIE)

0—Ignored by HC
1—Enables interrupt generation due to events
specified in the other bits of this register

0b R/W R

0b R/W R

0b R/W R

3030 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

USB Registers

Table 104. HcInterruptDisable Register (14h)

Bits Field Reset HCD

0 Scheduling Overrun (SO)

0—Ignore
1—Disable interrupt generation

1 Writeback Done Head (WDH)

0—Ignore
1—Disable interrupt

2 Start of Frame (SF)

0—Ignore
1—Disable interrupt

3 Resume Detected (RD)

0—Ignore
1—Disable interrupt

4 Unrecoverable Error (UE)

0—Ignore
1—Disable interrupt

5 Frame Number Overflow (FNO)

(continued)

(Host Controller Driver)HC(Host Controller)

0b R/W R

0b R/W R

0b R/W R

0b R/W R

0b R/W R

0b R/W R

0—Ignore
1—Disable interrupt

6 Root Hub Status Change (RHSC)

0—Ignore
1—Disable interrupt

30 Ownership Change (OC)

0—Ignore
1—Disable interrupt

31 Master Interrupt Enable (MIE)

0—Ignored by HC
1—Disables interrupt generation due to events
specified in the other bits of this register

0b R/W R

0b R/W R

0b R/W R

Agere Systems Inc. 31

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

USB Registers

Table 105. HcHCCA Register (18h)

Bits Field Reset HCD

31:8 Host Controller Communications Area (HCCA)

Base Address

Bits 7:0 will always return a 0.

Table 106. HcPeriodCurrentED Register (1Ch)

Bits Field Reset HCD HC

31:4 Period Current ED (PCED) Base Address

Bits 3:0 will always return a 0.

Table 107. HcControlHeadED Register (20h)

Bits Field Reset HCD HC

31:4 Control Head ED (CHED) Base Address

Bits 3:0 will always return a 0.

Table 108. HcControlCurrentED Register (24h)

(continued)

(Host Controller Driver)HC(Host Controller)

0h R/W R

0h R/W R

0h R/W R

Bits Field Reset HCD HC

31:4 Control Current ED (CCED) Base Address

Bits 3:0 will always return a 0.

Table 109. HcBulkHeadED Register (28h)

Bits Field Reset HCD HC

31:4 Bulk Head ED (BHED) Base Address

Bits 3:0 will always return a 0.

Table 110. HcBulkCurrentED Register (2Ch)

Bits Field Reset HCD HC

31:4 Bulk Current ED (BCED) Base Address

Bits 3:0 will always return a 0.

Table 111. HcDoneHead Register (30h)

Bits Field Reset HCD HC

31:4 Done Head ED (DH) Base Address

Bits 3:0 will always return a 0.

0h R/W R/W

0h R/W R

0h R/W R/W

0h R R/W

3232 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

USB Registers

Table 112. HcFmInterval Register (34h)

Bits Field Reset HCD

13:0 Frame Interval (FI) 2EDFh R/W R

30:16 FS Largest Data Packet (FSMPS) 0h R/W R

31 Frame Interval Toggle (FIT) 0b R/W R

Table 113. HcFmRemaining Register (38h)

Bits Field Reset HCD HC

13:0 Frame Remaining (FR) 0h R R/W

31 Frame Remaining Toggle (FRT) 0b R R/W

Table 114. HcFmNumber Register (3Ch)

Bits Field Reset HCD HC

15:0 Frame Number (FN) 0h R R/W

Table 115. HcPeriodicStart Register (40h)

Bits Field Reset HCD HC

13:0 Periodic Start (PS) 0h R/W R

(continued)

(Host Controller Driver)HC(Host Controller)

Table 116. HcLSThreshold (44h)

Bits Field Reset HCD HC

11:0 LS Threshold 628h R/W R

Table 117. HcRhDescriptorA Register (48h)

Bits Field Reset HCD HC

7:0 Number Downstream Ports

(NDP)
8 Power Switching Mode (PSM) 1b R/W R
9 No Power Switching (NPS) 0b R/W R

10 Device Type (DT) 0b R R
11 Overcurrent Protection Mode

(OCPM)

12 No Overcurrent Protection

(NOCP)

24:31 Power On to Power Good Time

(POTPGT)

10h R/W R

01h R R

1b R/W R

0b R/W R

Agere Systems Inc. 33

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

USB Registers

Table 118. HcRhDescriptorB Register (4Ch)

Bits Field Reset HCD

15:0 Device Removable (DR) 0000h R/W R

17:16 Port Power Control Mask (PPCM) 0002h R/W R

Table 119. HcRhStatus Register (50h)

Bits Field Reset HCD HC

0 Local Power Status (LPS) 0b R/W R

1 Overcurrent Indicator (OCI) 0b R R/W
15 Device Remote Wakeup Enable (DRWE) 0b R/W R
16 Local Power Status Change (LPSC) 0b R/W R
17 Overcurrent Indicator Change (OCIC) 0b R/W R/W
31 Clear Remote Wakeup Enable (CRWE) 0b W R

Table 120. HcRhPortStatus1 Register (54h)

Bits Field Reset HCD HC

0 Current Connect Status (CCS) 0b R/W R/W

1 Port Enable Status (PES) 0b R/W R/W

2 Port Suspend Status (PSS) 0b R/W R/W

3 Port Overcurrent Indicator (POCI) 0b R/W R/W

4 Port Reset Status (PRS) 0b R/W R/W

8 Port Power Status (PPS) 0b R/W R/W

9 Low-speed Device Attached (LSDA) 0b R/W R/W
16 Connect Status Change (CSC) 0b R/W R/W
17 Port Enable Status Change (PESC) 0b R/W R/W
18 Port Suspend Status Change (PSSC) 0b R/W R/W
19 Port Overcurrent Indicator Change (OCIC) 0b R/W R/W
20 Port Reset Status Change (PRSC) 0b R/W R/W

(continued)

(Host Controller Driver)HC(Host Controller)

3434 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

Four-Host PCI-to-USB OpenHCI Host Controller

USS-344 QuadraBus

Legacy Support Registers

The legacy support function and all registers described in this section are available on all four embedded USB host
controllers. Four operational registers are used to provide the legacy support. Each of these registers is located on
a 32-bit boundary. The offset of these registers is relative to the base address of the respective host controller core
operational registers with HceControl located at offset 100h.

Table 121. Legacy Support Registers

Offset Register Description

100h HceControl

104h HceInput

108h HceOutput

10Ch HceStatus

Three of the operational registers (HceStatus, HceInput, HceOutput) are accessible at I/O address 60h and 64h
when emulation is enabled. Reads and writes to the registers using I/O addresses have side effects as outlined in
the Table 122.

Used to enable and control the emulation hardware and report various status
information.

Emulation side of the Legacy Input Buffer register.

Emulation side of the Legacy Output Buffer register where keyboard and
mouse data is to be written by software.

Emulation side of the Legacy Status register.

Table 122. Emulated Registers

I/O

Address

60h IN HceOutput

60h OUT HceInput

64h IN HceStatus

64h OUT HceInput

Cycle

Type

Register Contents

Accessed/Modified

Side

Effects

IN from port 60h will set OutputFull in HceStatus to 0.

OUT to port 60h will set InputFull to 1 and CmdData to 0 in
HceStatus.

IN from port 64h returns current value of HceStatus with no
other side effect.

OUT to port 64h will set InputFull to 0 and CmdData in
HceStatus to 1.

HceInput Register

Table 123. HceInput Register (104h)

Bit Field R/W Description

7:0 InputData R/W

31:8 Reserved —

I/O data that is written to ports 60h and 64h is captured in this register when emulation is enabled. This register
may be read or written directly by accessing it with its memory address in the host controller’s operational register
space. When accessed directly with a memory cycle, reads and writes of this register have no side effects.

This register holds data that is written to I/O ports 60h and 64h.

—

Agere Systems Inc. 35

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

Legacy Support Registers

(continued)

HceOutput Register

Table 124. HceOutput Register (108h)

Bit Field R/W Description

7:0 OutputData R/W

31:8 Reserved —

The data placed in this register by the emulation software is returned when I/O port 60h is read and emulation is
enabled. On a read of this location, the OutputFull bit in HceStatus is set to 0.

This register hosts data that is returned when an I/O read of port 60h is per­formed by application software.

—

HceStatus Register

Table 125. HceStatus Register (10Ch)

Bit Field R/W Description

0 OutputFull R/W

1 InputFull R/W

2FlagR/W

3 CmdData R/W

4 Inhibit Switch R/W

5 AuxOutputFull R/W

6 Time-out R/W

7ParityR/W

31:8 Reserved —

The HC sets this bit to 0 on a read of I/O port 60h. If IRQEn is set and Aux­OutputFull is set to 0, then an IRQ1 is generated as long as this bit is set to 1.
If IRQEn is set and AuxOutputFull is set to 1, then an IRQ12 is generated as
long as this bit is set to 1. While this bit is 0 and CharacterPending in Hce­Control is set to 1, an emulation interrupt condition exists.

Except for the case of a Gate A20 sequence, this bit is set to 1 on an I/O write
to address 60h or 64h. While this bit is set to 1 and emulation is enabled, an
emulation interrupt condition exists.

Nominally used as a system flag by software to indicate a warm or cold boot.

The HC sets this bit to 0 on an I/O write to port 60h and to 1 on an I/O write to
port 64h.

This bit reflects the state of the keyboard inhibit switch and is set if the key­board is not inhibited.

IRQ12 is asserted whenever this bit is set to 1 and OutputFull is set to 1 and
the IRQEn bit is set.

Used to indicate a time-out.

Indicates parity error on keyboard/mouse data.

—

The contents of the HceStatus register are returned on an I/O Read of port 64h when emulation is enabled. Reads
and writes of port 60h and writes to port 64h can cause changes in this register. Emulation software can directly
access this register through its memory address in the host controller’s operational register space. Accessing this
register through its memory address produces no side effects.

3636 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Con-

Legacy Support Registers

(continued)

HceControl Register

Table 126. HceControl Register (100h)

Bit Field Reset R/W Description

0 EmulationEnable 0b R/W

1 EmulationInterrupt — R

2 CharacterPending 0b R/W

3 IRQEn 0b R/W

4 ExternalIRQEn 0b R/W

5 GateA20Sequence 0b R/W

6IRQ1Active0bR/W

7 IRQ12Active 0b R/W

8A20State0bR/W

31:9 Reserved — —

When set to 1, the HC is enabled for legacy emulation. The
HC decodes accesses to I/O registers 60h and 64h and gen­erates IRQ1 and/or IRQ12 when appropriate. Additionally,
the HC generates an emulation interrupt at appropriate times
to invoke the emulation software.

This bit is a static decode of the emulation interrupt condi­tion.

When set, an emulation interrupt is generated when the Out­putFull bit of the HceStatus register is set to 0.

When set, the HC generates IRQ1 or IRQ12 as long as the
OutputFull bit in HceStatus is set to 1. If the AuxOutputFull
bit of HceStatus is 0, then IRQ1 is generated; if it is 1, then
an IRQ12 is generated.

When set to 1, IRQ1 and IRQ12 from the keyboard controller
causes an emulation interrupt. The function controlled by this
bit is independent of the setting of the EmulationEnable bit in
this register.

Set by HC when a data value of D1h is written to I/O port
64h. Cleared by HC on write to I/O port 64h of any value
other than D1h.

Indicates that a positive transition on IRQ1 from keyboard
controller has occurred. SW may write a 1 to this bit to clear
it (set it to 0). SW write of a 0 to this bit has no effect.

Indicates that a positive transition on IRQ12 from keyboard
controller has occurred. SW may write a 1 to this bit to clear
it (set it to 0). SW write of a 0 to this bit has no effect.

Indicates current state of gate A20 on keyboard controller.
Used to compare against value written to 60h when
GateA20Sequence is active.

Must read as 0s.

Connection Instructions

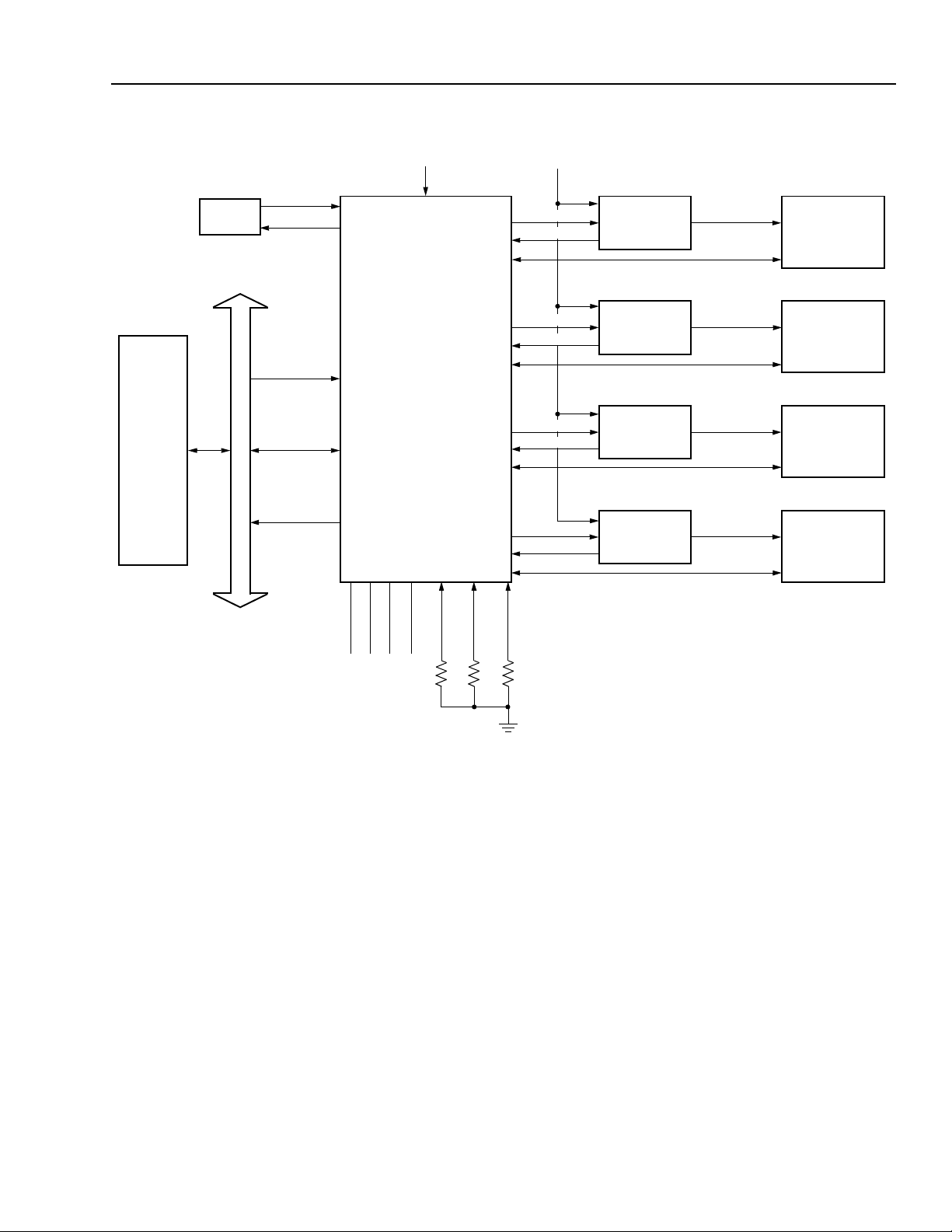

Figure 6 shows a typical connection of the USS-344 to
provide four USB ports and full legacy support to a
PCI-based system. For each of the following sections,
refer to Figure 6 for guidance.

connecting the VIO signal to the signaling voltage on
the motherboard or VIO pin on the card edge of the
expansion card. The VIO pin will select the PCI
signaling level as indicated in Table 127. A 5 V refer­ence voltage is not required for the USS-344 to be 5 V
compatible.

Table 127. PCI Signaling Levels

PCI Connection Instructions

VIO Pin Input

The USS-344 interfaces directly with any 32-bit,
33 MHz PCI bus simply by connecting all PCI related
signals directly to the signals on the host motherboard
or card edge of an expansion card. The PCI signaling
level for all PCI signals of the USS-344 is selected by

Agere Systems Inc. 37

4.75 V—5.25 V 5 V signaling

3.0 V—3.6 V 3.3 V signaling

Voltag e

USS-344 PCI Signaling

Level (All PCI Signals)

USS-344 QuadraBus Advance Data Sheet, Rev. 9
Four-Host PCI-to-USB OpenHCI Host Controller June 2001

Connection Instructions

(continued)

USB Connection Instructions

The USS-344 is a port-powered OHCI host controller
(refer to OHCI specification) requiring an external
switchable power regulator to supply downstream USB
port power controlled by the USS-344. The power
regulator interface has been designed to interface
directly with commonly used USB power regulators
with very little additional circuitry. The PRTPWR[0, 1, 2,
3] output signal is used as the switch for the power
regulator. The PRTPWR[0, 1, 2, 3] signal must be boot­strapped with a pull-up or pull-down resistor to select
the appropriate power switch polarity. Bootstrapping
with a pull-up resistor will select an active-low power
switch while bootstrapping with a pull-down will select
an active-high power switch. Figure 3 depicts a typical
board connection for both power regulator enable
polarities.

The PWRFLT[0, 1, 2, 3]N can be connected directly to
an active-low power fault regulator output to inform the
USS-344 of a USB port overcurrent condition.

DPLS[0, 1, 2, 3] and DMNS[0, 1, 2, 3] are related to the
integrated USB transceiver and are connected directly
to the USB port connector through a 28 Ω—32 Ω series
resistor for each signal. Figure 5 shows complete detail
of the USS-344 connection to USB.

CLK48 must be connected to a 48 MHz oscillator to
provide a suitable USB clock to the USS-344. If
CLK48STOP signal is used to disable the external
oscillator during D3 Power Management state,
CLK48STOP must be bootstrapped with a pull-up or
pull-down resistor to select the appropriate disable
polarity. Bootstrapping with a pull-up resistor will select
an active-low disable while bootstrapping with a pull­down will select an active-high disable. Figure 4
depicts a typical board connection for both oscillator
enable polarities. CLK48STOP must be pulled to a
stable logic value with a resistor if CLK48STOP is not
used. Figure 4 also shows the typical board connection
when CLK48STOP is not used.

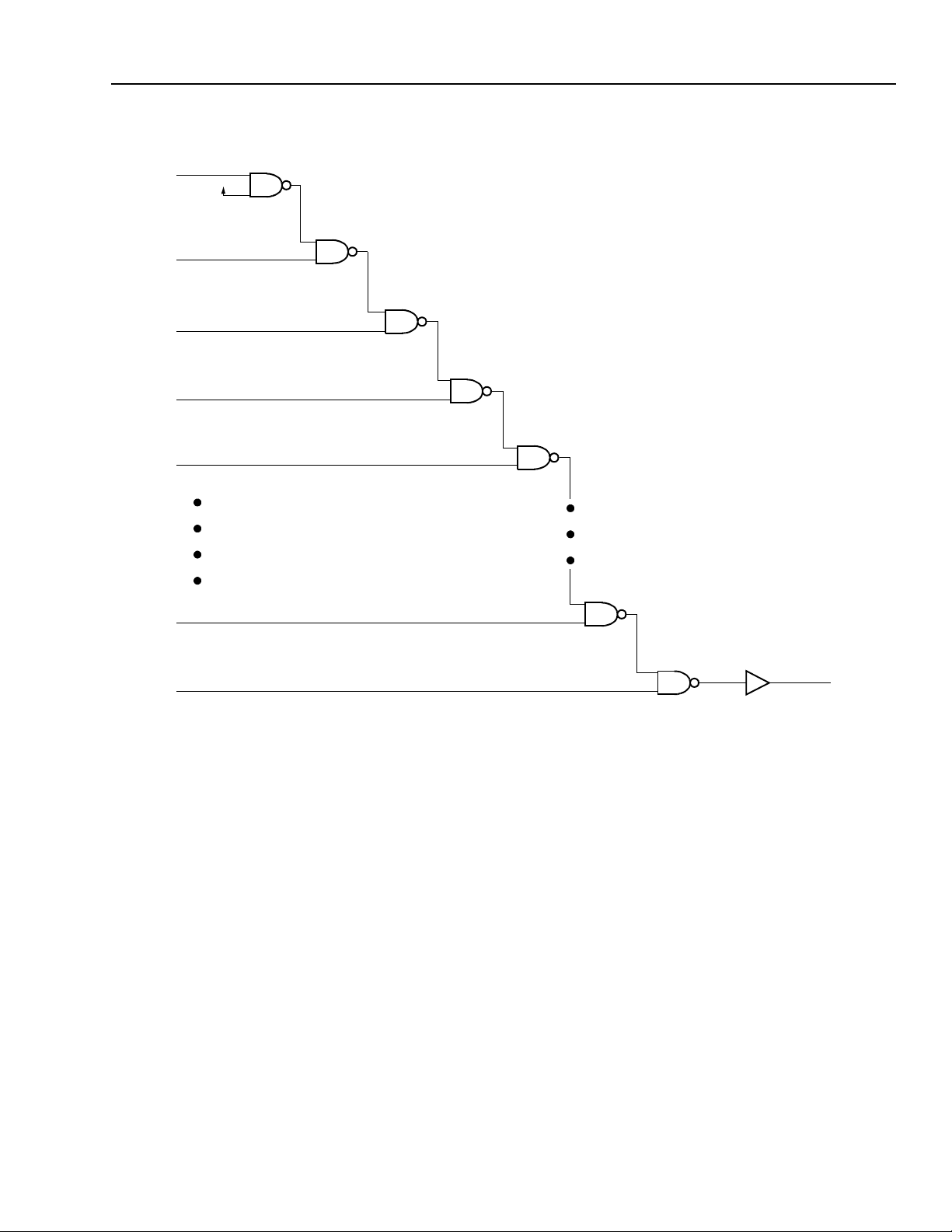

Test Mode Connection Instructions

TEST[3:0] input pins present various options and test
modes for the USS-344. These pins can be connected
directly to V
(NAND tree mode) is available for a system designer to
implement. For a system designer who wishes to
implement NAND tree mode, it is recommended that a
pull-down resistor be used on TEST2 input. This will
allow an in-circuit tester to drive TEST2 high and acti­vate NAND tree mode (see NAND Tree Mode section).
TEST3, TEST1, and TEST0 can be grounded without a
resistor.

It is also recommended that all NAND tree pins have a
corresponding PWB trace that can be driven by the in­circuit tester during NAND tree mode.

Table 128. Test Mode Decodes

TEST[3:0] Description

00X0 Share Interrupt A. All four controllers

00X1 Individual Interrupt. Controller 0 returns

000X Power Management Interface

001X Power Management Interface

01XX NAND Test.

or ground as needed. One test mode

DD

return a 01h in the Interrupt Pin register
(3Dh) and use the PCI interrupt A pin.

01h in the Interrupt Pin register (3Dh)
and uses the PCI interrupt A pin.

Controller 1 returns 02h in the interrupt
pin register (3Dh) and uses the PCI inter­rupt B pin.

Controller 2 returns 03h in the Interrupt
Pin register (3Dh) and uses the PCI inter­rupt C pin.

Controller 3 returns 04h in the Interrupt
Pin register (3Dh) and uses the PCI inter­rupt D pin.

Enabled. Power management interface
enabled in all four controllers.

Disabled. Power management interface
disabled in all four controllers.

38 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

Connection Instructions

USS-344

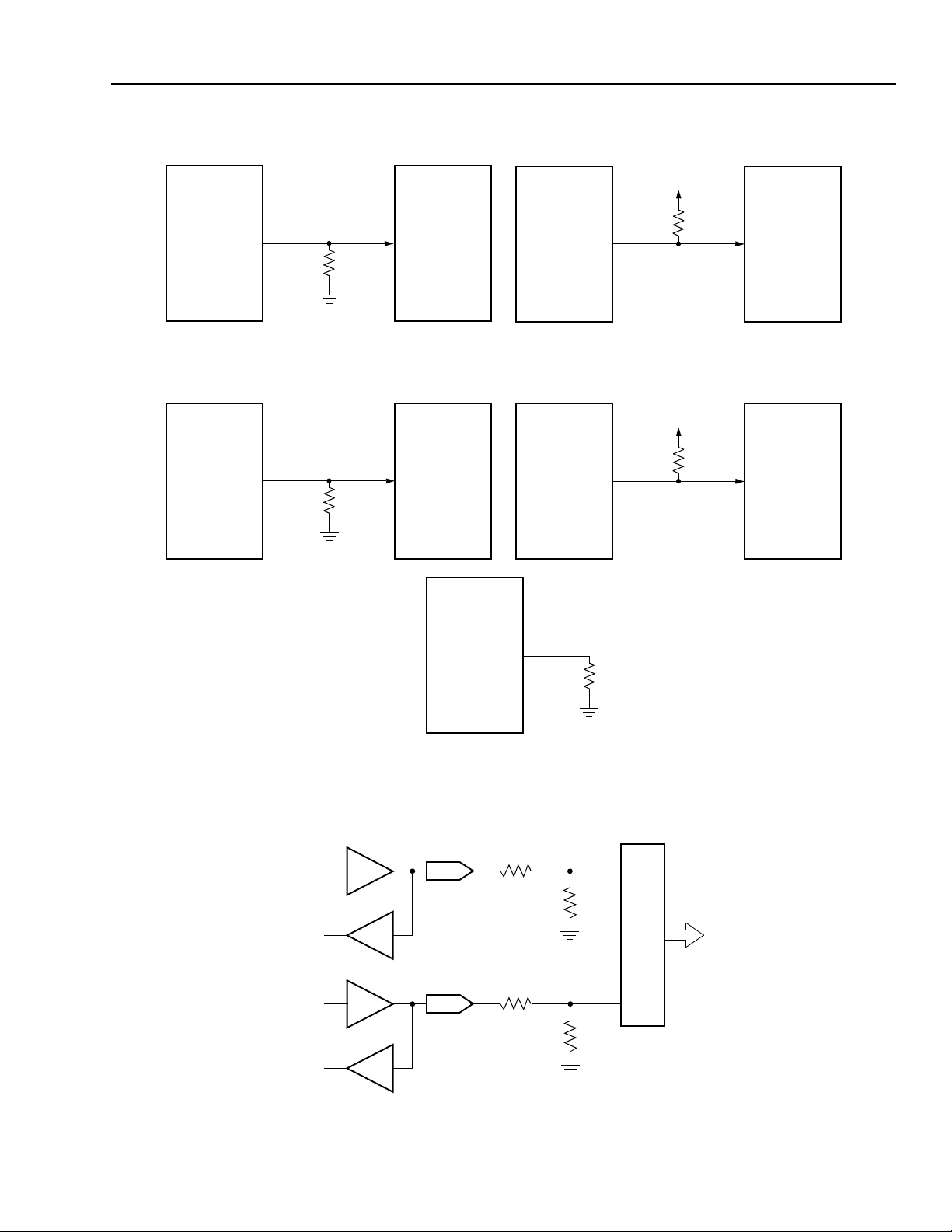

Figure 3. Typical Board Connection for Both Power Regulator Enable Polarities

USS-344

PRTPWRX

CLK48STOP

(continued)

2 kΩ

2 kΩ

5 Vdc-5 Vdc
SWITCHED

REGULATOR

EN

ACTIVE-

HIGH

ENABLE

48 MHz

OSCILLATOR

EN

ACTIVE-

LOW

ENABLE

USS-344

USS-344

PRTPWRX

CLK48STOP

2 kΩ

2 kΩ

5 Vdc-5 Vdc
SWITCHED

REGULATOR

EN

ACTIVE-

LOW

ENABLE

48 MHz

OSCILLATOR

EN

ACTIVE-

HIGH

ENABLE

5-8738.r1

USS-344

CLK48STOP

2 kΩ

Figure 4. Typical Board Connection for Both Oscillator Enable Polarities or Without Oscillator

USB

CONNECTOR

DPLS

INTEGRATED

USB

TRANSCEIVER

INTEGRATED

USB

TRANSCEIVER

DMNS

28 Ω—32 Ω

28 Ω—32 Ω

15 kΩ
± 5%

DOWNSTREAM

PORT

15 kΩ
± 5%

5-8739

5-9289

Figure 5. USB Transceiver Connection

Agere Systems Inc. 39

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

Legacy Configuration

Also included in the USS-344 is the legacy PS/2 mouse and keyboard interface as defined in the OpenHCI Open
Host Controller Interface Specification for USB Release 1.0a. This legacy interface along with standard USB BIOS

drivers allows USB mice and keyboards to operate in MS-DOS* mode. Legacy support need not be implemented
by the system designer if not desired. If not implemented, A20I, MIRQ12I, and KIRQ12I must be connected to a
stable logic level. Figure 6 shows the typical legacy support connection to the USS-344. Figure 7 shows the typical
connection of the unused legacy support signals when legacy support is not desired.

CPU

SMI

A20MN

48 MHz

OSC

PCI BUS

CLK48

CLK48STOP

PCI VIO

PCI SIGNALS

32-bit, 33 MHz

PMEN

3.3 Vdc

AGERE USS-344

PCI-TO-USB

OHCI HOST

CONTROLLER

PRTPWR0

PWRFLT0N

PRTPWR1

PWRFLT1N

PRTPWR2

PWRFLT2N

PRTPWR3

PWRFLT3N

5 Vdc

5 Vdc-5 Vdc

SWITCHED

REGULATOR

5 Vdc-5 Vdc

SWITCHED

REGULATOR

5 Vdc-5 Vdc

SWITCHED

REGULATOR

5 Vdc-5 Vdc

SWITCHED

REGULATOR

VBUS = 5 Vdc

DPLS0/DMNS0

VBUS = 5 Vdc

DPLS1/DMNS1

VBUS = 5 Vdc

DPLS2/DMNS2

VBUS = 5 Vdc

DPLS3/DMNS3

USB

CONNECTOR

USB

CONNECTOR

USB

CONNECTOR

USB

CONNECTOR

8259

INTERRUPT

CONTROLLER

OPTIONAL LEGACY SUPPORT

IRQ1
IRQ12

KIRQ1I

MIRQ12I

A2OI

8042

LEGACY

DEVICE

CONTROLLER

PS/2 MOUSE

PS/2 KEYBOARD

5-7829

Figure 6. Typical Legacy Support Connection

* MS-DOS is a registered trademark of Microsoft Corporation.

4040 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

Legacy Configuration

48 MHz

OSC

CPU

CLK48

CLK48STOP

PCI VIO

PCI SIGNALS

32-bit, 33 MHz

PCI BUS

PMEN

(continued)

3.3 Vdc

AGERE USS-344

PCI-TO-USB

OHCI HOST CONTROLLER

5 Vdc

PRTPWR0

PWRFLT0N

PRTPWR1

PWRFLT1N

PRTPWR2

PWRFLT2N

PRTPWR3

PWRFLT3N

5 Vdc-5 Vdc
SWITCHED

REGULATOR

5 Vdc-5 Vdc
SWITCHED

REGULATOR

5 Vdc-5 Vdc
SWITCHED

REGULATOR

5 Vdc-5 Vdc
SWITCHED

REGULATOR

VBUS = 5 Vdc

DPLS0/DMNS0

VBUS = 5 Vdc

DPLS1/DMNS1

VBUS = 5 Vdc

DPLS2/DMNS2

VBUS = 5 Vdc

USB

CONNECTOR

USB

CONNECTOR

USB

CONNECTOR

USB

CONNECTOR

DPLS3/DMNS3

SMIN

A20MN

IRQ1

IRQ12

A201

KIRQ1I

MIRQ12I

2 kΩ

2 kΩ

2 kΩ

5-8740

Figure 7. Typical Connection When Not Using Legacy Support

Power Connection Recommendations

The USS-344 is a 3.3 V device. Therefore, all VDD inputs must be connected to an appropriate 3.3 V source. VDDT
provides all transceiver power and must be connected to a 3.3 V source. It is recommended that the system
designer undertake special board routing and filtering of V
induced by other components.

T and VSST to isolate these power inputs from noise

DD

Agere Systems Inc. 41

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

Power Management Interface

An advanced power management capabilities interface compliant with PCI Bus Power Management Interface
Specification Revision 1.1 has been incorporated into each of the USS-344 controllers. This interface allows the

USS-344 to be placed in various power management states offering a variety of power savings for a host system.

Table 129 highlights the USS-344 support for power management states and features supported for each of the
power management states. The USS-344 has the ability to internally gate-off the CLK48 input, disable the USB
transceivers, and assert USB resume signaling asynchronously (without active CLK48) in response to upstream
USB resume being detected. The USS-344 will assert PMEN and retain chip context in accordance with the rules
defined in the PCI Bus Power Management Interface Specification Revision 1.1.

Table 129. USS-344 Support for Power Management States

Power

Management

State

D0 Required X X — — X Fully awake backwards com-

D1 Optional X X — X X Fully awake state with PCI

D2 Optional — — X* X X USB sleep state with PCI bus

hot

D3

cold

D3

State

Required/

Optional

Required — X — X* X — Deep USB sleep state with

Required — — — — — Fully asleep backwards com-

Clk48

Active

Internally

CLK48

STOP

Active

USB
Trans­ciever
Active

Async

Resume

Logic

Active

PMEN

Assert

Enabled

Chip

Context

Main-

tained

Comments

patible state. All logic in full­power mode.

bus master capabilities turned
off by host. All logic in full­power mode because of low
latency returning to D0 State.

master capabilities turned off
by host. PCI clocks may be
turned off by the system.

PCI bus master capabilities
turned off by host. PCI clocks
may be turned off by the sys­tem.

patible state. All power turned
off. Reset required to recover
to D0 state. All downstream
devices disconnected
because of power loss.

* Asynchronous resume logic active only when PME_Enable register bit is active.

A wakeup event (power management event) detected by a USB host controller is considered either an upstream
resume detected or a connect status change (device disconnecting/connecting) detected. Any of these events
detected by the USS-344 while the power management event is enabled will cause PMEN to be issued.

This power management feature is considered an extension of the PCI Specification and is only present when
enabled by the TEST1 input pin. While the TEST1 input pin is logic 0 (or ground), the power management function
is enabled, the Power Management registers and Capabilities Pointer register are accessible, and the PCI Config­uration Space Status register, bit 4, will read as logic 1 (capabilities list present). While the TEST1 input pin is
logic 1, the power management function is disabled, the Power Management registers and Capabilities Pointer
register are inaccessible and read as 0h, and the PCI Configuration Space Status register, bit 4, will read as logic 0
(no capabilities list).

4242 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

Power Management Interface

The CLK48STOP output pin is active if all four PCI cores in the USS-344 multifunction PCI device have been
placed into the D3
while in this state. CLK48STOP is only active in D3
state-change latency to allow the external oscillator to be stopped.

PMEN is an open collector output allowing wire-OR of several PMEN signals.

The following Power Management register definitions present the specific implementation of the PCI Bus Power
Management Interface Specification for the USS-344. All the following registers are located in the PCI configura­tion memory space of each controller in the USS-344. All further information concerning the register functions and
the system implementation of this interface should be referenced from the PCI Bus Power Management Interface
Specification Revision 1.1 available from the PCI Special Interest Group.

state. This will allow the external 48 MHz oscillator to be disabled and in a low-power mode

hot

(continued)

state since this is the only low-power state with sufficient

hot

Configuration Space Offset 50h

Table 130. Capabilities Identifier (Cap_ID) Register

Bits Default

Value

7:0 01h R This capability is for the PCI power management data structure.

Read/Write Description

Configuration Space Offset 51h

Table 131. Next Item Pointer Register

Bits Default

Value

7:0 00h R No other PCI capabilities are implemented.

Read/Write Description

Agere Systems Inc. 43

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

Power Management Interface

(continued)

Configuration Space Offset 52h

Table 132. Power Management Capabilities Register

Bits Default

Value

15:11 01110b R PME_Support. Specifies the states in which the PME signal can be asserted.

10 1b R D2_Support. This device supports the D2 power management state.

91b RD1_Support. This device supports the D1 power management state.

8:6 000b R Aux_Current. PMEN generation is not supported by this function. Therefore,

50b RDSI. No device specific initialization sequence is required before using this

40b RReserved.
30b RPME Clock. No clocks are required for this device to issue PMEN.

2:0 010b R Version. PCI Power Management Interface Specification Revision 1.1 compli-

Read/

Write

Name/Description

XXXX0b—PME cannot be asserted in D0 state.
XXX1Xb—PME can be asserted in D1 state.
XX1XXb—PME can be asserted in D2 state.
X1XXXb—PME can be asserted in D3
0XXXXb—PME cannot be asserted in D3

this register is not applicable and returns 000b.

device.

ant.

hot

state.

state.

cold

Configuration Space Offset 54h

Table 133. Power Management Control/Status Register

Bits Default

Value

15 0b Read/

14:13 See

Table 136

12:9 0000b R/W Data_Select. The system uses this register to select the appropriate data for

80bR/WPME_En. When active (1b), the function is enabled to assert PMEN.
7:2 000000b R Reserved.
1:0 00b R/W Power_State. Represents the current power state of the function.

Read/

Write

PME_Status. This bit is set when the function would normally assert the

Write-

Clear

R Data Scale. Variable based upon data select. See Table 136.

PMEN signal independent of the state of the PME_En bit.
Writing a 1b to this bit will clear the PME_Status bit and force the function to
stop asserting PMEN.

reporting in the Data Scale register and Data register.

Name/Description

4444 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

Power Management Interface

(continued)

Configuration Space Offset 56h

Table 134. Power Management Bridge Support Extensions

Bits Default

Value

70b RBPCC_En (Bus Power/Clock Control Enable). This is not a PCI bridge func-

60b RB2_B3# (B2/B3 Support for D3

5:0 000000b R Reserved.

Read/

Write

tion.

Name/Description

). This is not a PCI bridge function.

hot

Configuration Space Offset 57h

Table 135. Data Register

Bits Default

Value

7:0 See

Table 136

Read/

Write

R Represents the amount of power dissipated or consumed in various power

management states. Variable based upon data select. See Table 136.

Description

Power Consumption/Dissipation Reporting

Table 136. Power Consumption/Dissipation Reporting

Value In Data

Select

0000b D0 Power Consumed 1Fh 01b mW * 100
0001b D1 Power Consumed 38h 10b mW * 100
0010b D2 Power Consumed 66h 11b mW
0011b D3 Power Consumed 07h 11b mW
0100b D0 Power Dissipated 37h 10b mW * 10
0101b D1 Power Dissipated 37h 10b mW * 10
0110b D2 Power Dissipated 64h 11b mW

0111b D3 Power Dissipated 03h 11b mW

1000b—1111b Reserved (single-function

PCI device configuration)

Data Reported Data Data Scale Units (Interpreting Data

00000000b 00b NA

Scale)

Agere Systems Inc. 45

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

NAND Tree Mode

The USS-344 can be placed in a NAND tree mode of operation for board-level production testing. The NAND tree
is designed to allow board-level contact testing of inputs and bidirectional pins of the USS-344.

To activate the NAND tree in the USS-344, force pin 63 (TEST2) to a logic high and force pin 64 (TEST3) to a logic
low. Pins 62 and 61 (TEST1 and TEST0) may be high or low. No clocks are required. When this is performed, the
NAND tree will be active and follow the order of the map presented in Table 137. Figure 8 shows the NAND tree
logic structure. The test mode connection instructions should be followed to place the USS-344 in NAND tree
mode.

Table 137. NAND Tree

Order

Assignment

1 (Start) 81 CLK48STOP 41 10 AD21

2 83 XLO/CLK48 42 11 AD20
375SMIN4312AD19
4 76 PRTPWR0 44 13 AD18
577PWRFLT0N4516AD17
6 78 PRTPWR1 46 17 AD16
779PWRFLT1N4718C/BEN2
8 89 DPLS0 48 19 FRAMEN

9 90 DMNS0 49 22 IRDYN
10 91 DPLS1 50 23 TRDYN
11 92 DMNS1 51 24 DEVSELN
12 95 DPLS2 52 25 STOPN
13 96 DMNS2 53 26 PERRN
14 97 DPLS3 54 29 SERRN
15 98 DMNS3 55 30 PAR
16 101 PRTPWR2 56 31 C/BEN1
17 102 PWRFLT2N 57 32 AD15
18 103 PRTPWR3 58 35 AD14
19 104 PWRFLT3N 59 36 AD13
20 105 INTAN 60 37 AD12
21 108 INTBN 61 38 AD11
22 109 INTCN 62 41 AD10
23 110 INTDN 63 42 AD9
24 111 RSTN 64 43 AD8
25 113 CLK 65 44 C/BEN0
26 115 GNTN 66 47 AD7
27 116 REQN 67 48 AD6
28 119 PMEN 68 49 AD5
29 120 AD31 69 50 AD4
30 121 AD30 70 53 AD3
31 122 AD29 71 54 AD2
32 125 AD28 72 55 AD1
33 126 AD27 73 56 AD0
34 127 AD26 74 67 MIRQ12I
35 128 AD25 75 68 KIRQ1I
36 3 AD24 76 69 A20I
37 4 C/BEN3 77 70 A20MN
38 5 IDSEL 78 71 IRQ1
39 6 AD23 Output Pin 72 IRQ12
40 7 AD22

Pin

Number

Pin

Name

Order

Assignment

Pin

Number

Pin

Name

4646 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

NAND Tree Mode

CLK48STOP

VDD

CLK48

SMIN

PRTPWR0

PWRFLT0N

(continued)

A20MN

IRQ1

IRQ12

5-7276a

Figure 8. NAND Tree Logic Structure

Agere Systems Inc. 47

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Absolute Maximum Ratings

Table 138. Absolute Maximum Ratings

Parameter Symbol Min Max Unit

Advance Data Sheet, Rev. 9

June 2001

Ambient Operating Temperature Range T

Storage Temperature T

Voltage on Any Pin with Respect to Ground — V

V

DD

V

T — 3.135 3.465 V

DD

VIO (3.3 V operation) — 3.0 3.6 V

VIO (5 V operation) — 4.75 5.25 V

A

stg

—3.03.6 V

070°C

−40 125 °C

− 0.3 5.5 V

SS

4848 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

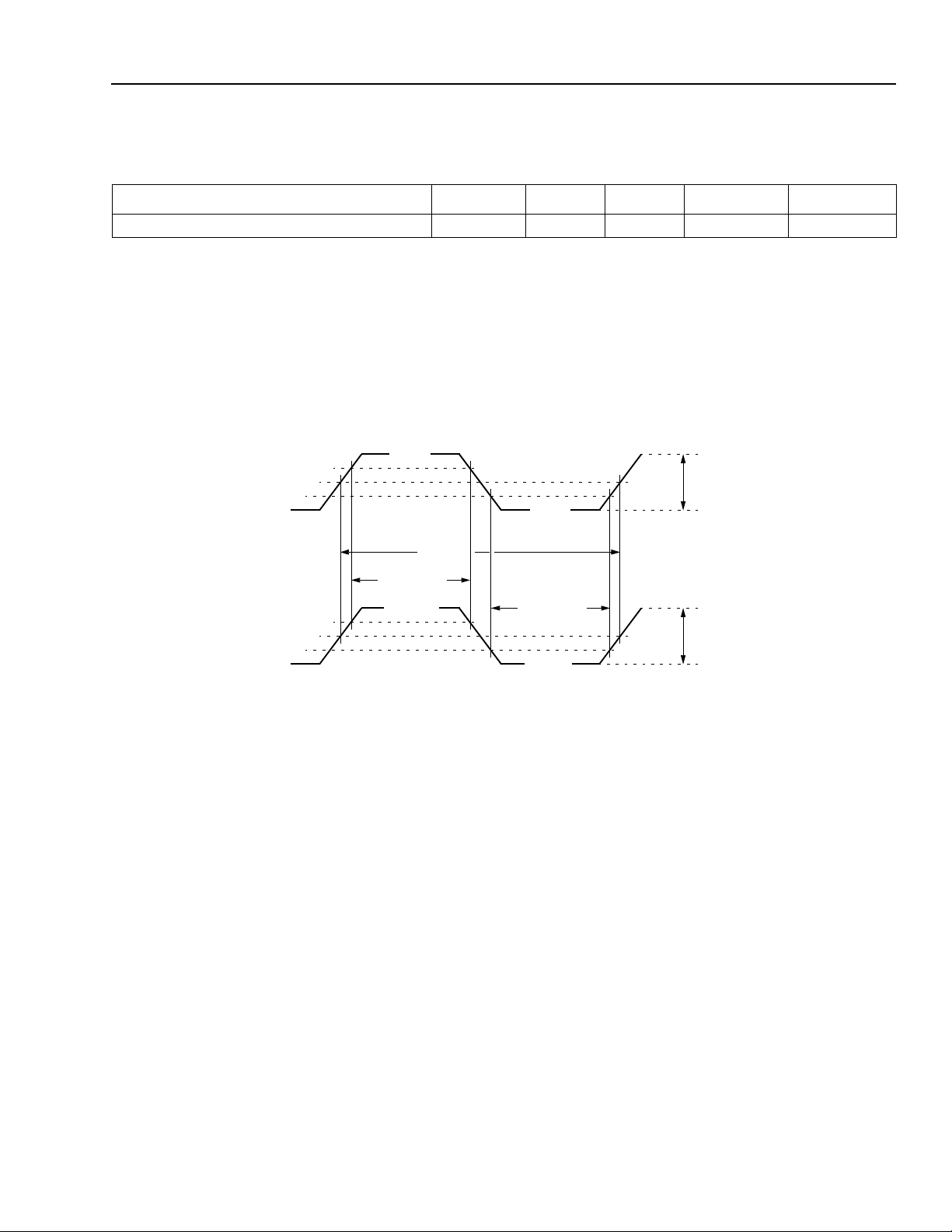

Electrical Characteristics

Table 139. Power Dissipation

Parameter Symbol Min Typ Max Unit

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

Power Dissipation P

D

283 345 410 mW

PCI Electrical Characteristics

PCI Timing Specifications

The clock waveform must be delivered to each PCI component in the system. In the case of expansion boards,
compliance with the clock specification is measured at the expansion board component, not at the connector slot.
Figure 9 shows the clock waveform and required measurement points for both 5 V and 3.3 V signaling environ­ments. Table 140 summarizes the clock specifications.

5 V CLOCK

1.5 V

0.5 V

3.3 V CLOCK

0.5V

0.4V

CC

0.3V

2.0 V

CC

CC

2.4 V

HIGH

t

0.6V

CC

CYC

t

0.4 V

LOW

t

0.2V

CC

2 Vp-p

(MINIMUM)

CC

0.4V

Vp-p

(MINIMUM)

Figure 9. Clock Waveforms

5-6474

Agere Systems Inc. 49

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

Electrical Characteristics

(continued)

PCI Timing Parameters

Table 140. Clock and Reset Specifications

Symbol Parameter Min Max Unit

t

CYC

t

HIGH

t

LOW

CLK Cycle Time
CLK High Time 11 — ns

CLK Low Time 11 — ns
— CLK Slew Rate
— RSTN Slew Rate

1. In general, all PCI components must work with any clock frequency between nominal dc and 33 MHz. Device operational parameters at
frequencies under 16 MHz may be guaranteed by design rather than by testing. The clock frequency may be changed at any time during the
operation of the system, as long as the clock edges remain clean (monotonic), and the minimum cycle and high and low times are not
violated. The clock may only be stopped in a low state. A variance on this specification is allowed for components designed for use on the
system motherboard only. These components may operate at any single fixed frequency up to 33 MHz and may enforce a policy of no
frequency changes.

2. Rise and fall times are specified in terms of the edge rate measured in V/ns. This slew rate must be met across the minimum peak-to-peak
portion of the clock waveform, as shown in Figure 9.

3. The minimum RSTN slew rate applies only to the rising (deassertion) edge of the reset signal and ensures that system noise cannot render
an otherwise monotonic signal to appear to bounce in the switching range.

1

2

3

30 ∞ ns

14V/ns

50 — mV/ns

5050 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

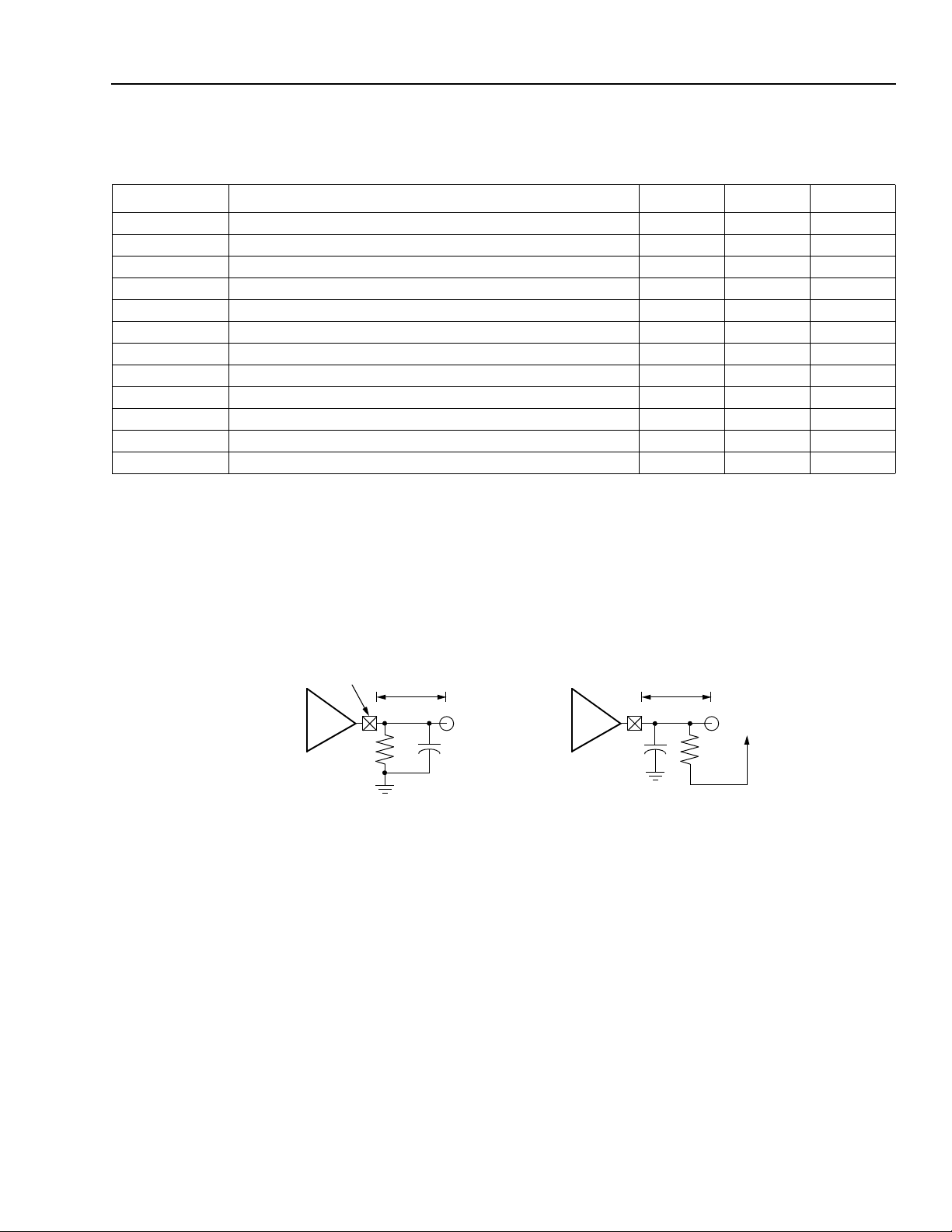

Electrical Characteristics

Tab le 141

. 5 V and 3.3 V PCI Timing Parameters

(continued)

Symbol Parameter Min Max Unit

t

VAL

t

VAL(ptp)

t

ON

t

OFF

t

SU

t

SU(ptp)

t

H

t

RST

t

RST-CLK

t

RST-OFF

t

RRSU

t

RRH

1. See the timing measurement conditions in Figure 4-8 of PCI Specification Revision 2.1.

2. For parts compliant to the 5 V signaling environment:
Minimum times are evaluated with 0 pF equivalent load; maximum times are evaluated with 50 pF equivalent load. Actual test capacitance
may vary, but results should be correlated to these specifications. Note that faster buffers may exhibit some ring back when attached to a
50 pF lump load, which should be of no consequence as long as the output buffers are in full compliance with slew rate and V/I curve spec­ifications.

For parts compliant to the 3.3 V signaling environment:

Minimum times are evaluated with same load used for slew rate measurement (see PCI Specification, Rev. 2.1s); maximum times are eval­uated with the following load circuits, for high-going and low-going edges, respectively.

CLK to Signal Valid Delay—Bused Signals
CLK to Signal Valid Delay—Point to Point
Float to Active Delay
Active to Float Delay

1, 7

1, 7

Input Setup Time to CLK—Bused Signals
Input Setup Time to CLK—Point to Point
Input Hold Time from CLK

4

Reset Active Time After Power Stable
Reset Active Time After CLK Stable
Reset Active to Output Float Delay

5, 6, 7

REQN to RSTN Setup Time 10 × t
RSTN to REQN Hold Time 0 50 ns

VAL

(MAX) RISING EDGE

T

1, 2, 3

1, 2, 3

211ns
212ns
2—ns

—28ns

3, 4

3, 4

7—ns

10, 12 — ns

0—ns

5

5

1—ns

100 — ns

—40ns

—ns

T

VAL

(MAX) FALLING EDGE

CYC

PIN

OUTPUT

BUFFER

3. REQN and GNTN are point-to-point signals and have different output valid delay and input setup times than bused signals. GNTN has a

setup time of 10 ns; REQN has a setup time of 12 ns. All other signals are bused.

4. See the timing measurement conditions in Figure 4-8 of PCI Specification Revision 2.1.

5. RSTN is asserted and deasserted asynchronously with respect to CLK.

6. All output drivers must be asynchronously floated when RSTN is active.

7. For purposes of active/float timing measurements, the Hi-Z or off state is defined to be when the total current delivered through the compo-

nent pin is less than or equal to the leakage current specification.

1/2 IN. MAX.

25 Ω 10 pF

1/2 IN. MAX.

CC

V

25 Ω10 pF

Agere Systems Inc. 51

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Advance Data Sheet, Rev. 9

June 2001

Electrical Characteristics

(continued)

USB Electrical Characteristics

Table 142. Full-Speed Source USB Electrical Characteristics

Parameter Symbol Conditions

Driver Characteristics

4, 5

Transition Time

Rise Time

Fall Time
Rise/Fall Time Matching t
Output Signal Crossover Voltage V
Driver Output Resistance Z

:

t

R

t

F

RFM

CRS

DRV

CL = 50 pF
CL = 50 pF

(TR/TF) 90 110 %

Steady-State Drive 28 43 Ω

Data Source Timings

Full-speed Data Rate t

DRATE

Average Bit Rate

(12 Mbits/s ± 0.25%)

Frame Interval t

1. All voltages measured from the local ground potential, unless otherwise specified.

2. All timings use a capacitive load (CL) to ground of 50 pF, unless otherwise specified.

3. Full-speed timings have a 1.5 kΩ pull-up to 2.8 V on the D+ data line.

4. Measured from 10% to 90% of the data signal.

5. The rising and falling edges should be smoothly transitioning (monotonic).

FRAME

1.0 ms ± 0.05% 0.9995 1.0005 ms

1, 2, 3

—1.32.0V

Min Max Unit

4
4

20
20

ns
ns

11.97 12 . 0 3 Mb i t s /s

Table 143. Low-Speed Source USB Electrical Characteristics

Parameter Symbol Conditions Min Max Unit

Driver Characteristics

Transition Time

Rise Time

1, 2

:

t

R

CL = 50 pF

CL = 350 pF

Fall Time

t

F

CL = 50 pF

CL = 350 pF
Rise/Fall Time Matching t
Output Signal Crossover Voltage V

RFM

CRS

(TR/TF) 80 120 %

Data Source Timings

Low-speed Data Rate t

DRATE

Average Bit Rate

(1.5 Mbits/s ± 1.5%)

1. Measured from 10% to 90% of the data signal.

2. The rising and falling edges should be smoothly transitioning (monotonic).

Table 144. CLK48 Clock Specification

Parameter Symbol Min Max Unit

CLK Cycle Time t
CLK High Time t
CLK Low Time t

CYC

HIGH

LOW

20.8 − 0.01% 20.8 + 0.01% ns

75
—
75
—

—

300

—

300

ns
ns
ns
ns

—1.32.0V

1.4775 1.5225 Mbits/s

8.32 12.48 ns

8.32 12.48 ns

5252 Agere Systems Inc.

Advance Data Sheet, Rev. 9
June 2001

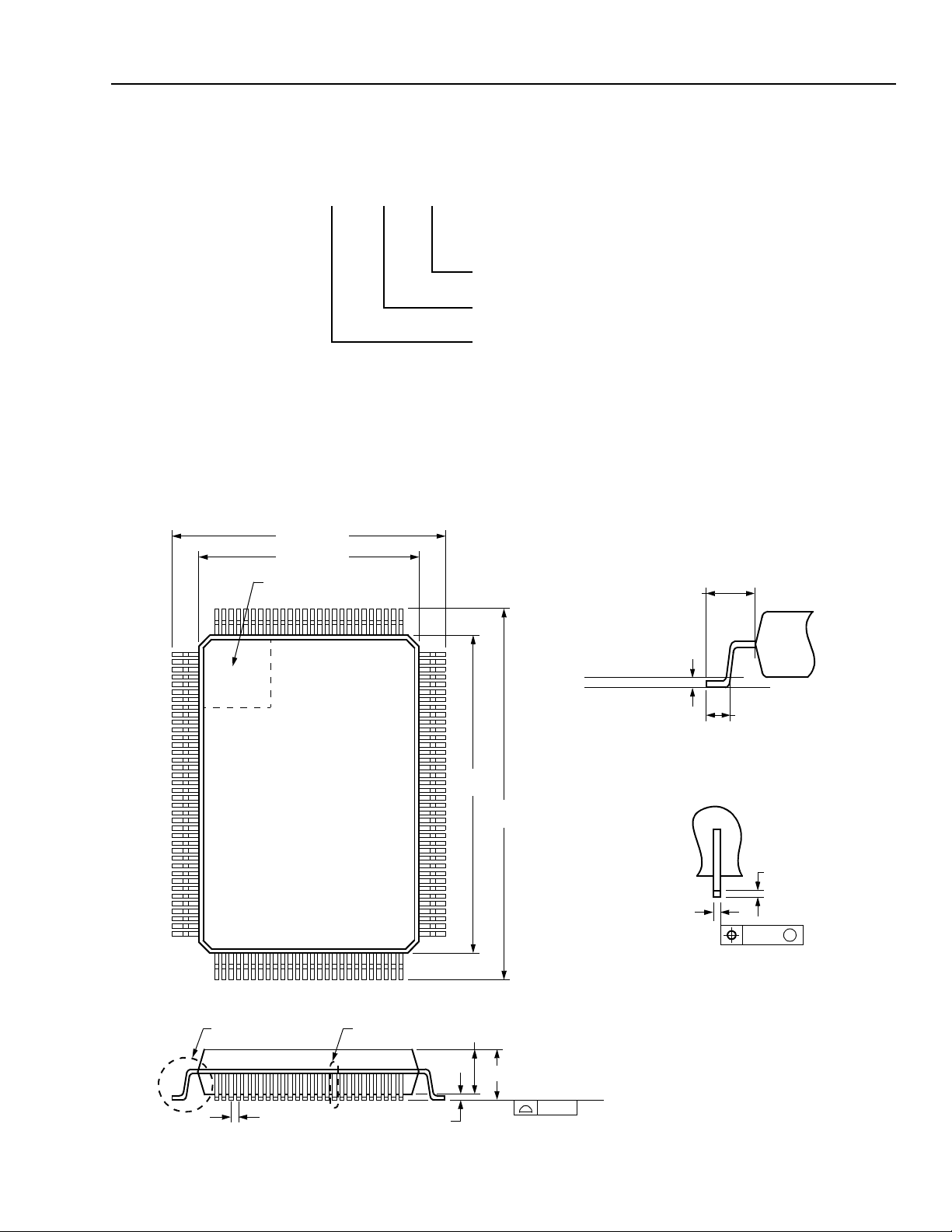

Physical Markings

Each USS-344 will be physically marked as follows:

USS344 X Y

Outline Diagram

128-Pin TQFP

USS-344 QuadraBus

Four-Host PCI-to-USB OpenHCI Host Controller

REVISION IDENTIFICATION.
i.e., B IS USS-344 REVISION B

PACKAGE TYPE. T: 128-PIN TQFP

USS-344 DEVICE

5-8116a

Dimensions are in millimeters.

16.00 ± 0.20

14.00 ± 0.20

PIN #1 IDENTIFIER ZONE

1

38

103128

102

GAGE PLANE

SEATING PLANE

20.00

± 0.20

22.00

± 0.20

65

1.00 REF

0.19/0.27

0.25

DETAIL A

0.45/0.75

0.106/0.200

0.08

M

DETAIL B

5-4427

DETAIL A DETAIL B

0.50 TYP

6439

0.05/0.15

1.40 ± 0.05

1.60 MAX

SEATING PLANE

0.08

Agere Systems Inc. 53

USS-344 QuadraBus
Four-Host PCI-to-USB OpenHCI Host Controller

Ordering Information

Device Code Package Comcode

USS344S-DB 128-Pin TQFP 108556937

Advance Data Sheet, Rev. 9

June 2001

For additional information, contact your Agere Systems Account Manager or the following:
INTERNET: http://www.agere.com
E-MAIL: [e-mail]
N. AMERICA: Agere Systems Inc., 555 Union Boulevard, Room 30L-15P-BA, Allentown, PA 18109-3286

ASIA PACIFIC: Agere Systems Singapore Pte. Ltd., 77 Science Park Drive, #03-18 Cintech III, Singapore 118256

CHINA: Agere Systems (Shanghai) Co., Ltd., 33/F Jin Mao Tower, 88 Century Boulevard Pudong, Shanghai 200121 PRC

JAPAN: Agere Systems Japan Ltd., 7-18, Higashi-Gotanda 2-chome, Shinagawa-ku, Tokyo 141, Japan

EUROPE: Data Requests: DATALINE: Tel. [phone], FAX [phone]

Agere Systems Inc. reserves the right to make changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or application.
QuadraBus is a trademark of Agere Systems Inc.

Copyright © 2001 Agere Systems Inc.
All Rights Reserved
Printed in U.S.A.

June 2001
DS99-330CMPR-9 (Replaces DS99-330CMPR-8)

1-800-372-2447, FAX [phone] (In CANADA: 1-800-553-2448, FAX [phone])

Tel. [phone], FAX [phone]

Tel. [phone], FAX [phone]

Tel. [phone], FAX [phone]

Technical Inquiries: GERMANY: (49) 89 95086 0 (Munich), UNITED KINGDOM: (44) 1344 865 900 (Ascot),

FRANCE: (33) 1 40 83 68 00 (Paris), SWEDEN: (46) 8 594 607 00 (Stockholm), FINLAND: (358) 9 3507670 (Helsinki),
ITALY: (39) 02 6608131 (Milan), SPAIN: (34) 1 807 1441 (Madrid)
