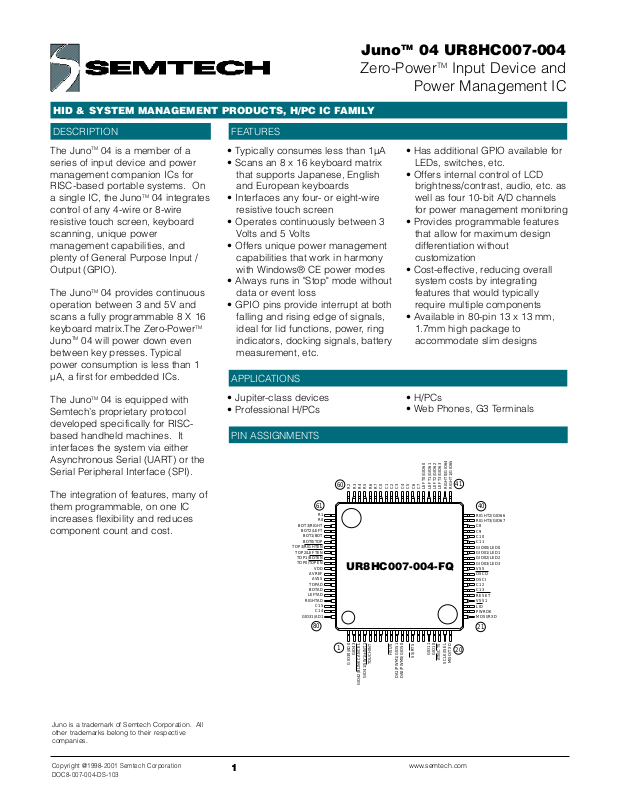

Datasheet UR8HC007-004-FQ Datasheet (Semtech)

JunoTM04 UR8HC007-004

Zero-PowerTMInput Device and

Power Management IC

Juno is a trademark of Semtech Corporation. All other trademarks belong to their respective companies.

Copyright @1998-2001 Semtech Corporation DOC8-007-004-DS-103

www.semtech.com

1

HID & SYSTEM MANAGEMENT PRODUCTS, H/PC IC FAMILY

DESCRIPTION FEATURES

RIGHT2/GIO66 RIGHT3/GIO67 C8 C9 C10 C11 GIO00/LED0 GIO01/LED1 GIO02/LED2 GIO03/LED3 VSS OSCO OSCI C12 C13 RESET VSS1 LID PWROK MOSI/RXD

1

80

61

20

21

40

41

60

GIO30/AD0

GIO43

GIO42/BLINKCANCEL

GIO41/SW1/±INT1

TOUCHINT

HSUS

DA1/PWM1/GIO51

DA0/PWM0/GIO50

SS/RTS

GIO11

GIO10

ATN/CTS

SCLK/ISEL

MISO/TXD

R1 R0

BOT3/RIGHT

BOT2/LEFT

BOT1/BOT BOT0/TOP

TOP3/RIGHTEN

TOP2/LEFTEN

TOP1/BOTEN TOP0/TOPEN

VDD

AVREF

AVSS TOPAD BOTAD

LEFTAD

RIGHTAD

C15 C14

GIO31/AD1

R2R3R4R5R6R7C0C1C2C3C4C5C6C7LEFT0/GIO60

LEFT1/GIO61

LEFT2/GIO62

LEFT3/GIO63

RIGHT0/GIO64

RIGHT1/GIO65

UR8HC007-004-FQ

• Jupiter-class devices

• Professional H/PCs

• H/PCs

• Web Phones, G3 Terminals

The JunoTM04 is a member of a series of input device and power management companion ICs for RISC-based portable systems. On a single IC, the Juno

TM

04 integrates control of any 4-wire or 8-wire resistive touch screen, keyboard scanning, unique power management capabilities, and plenty of General Purpose Input / Output (GPIO).

The JunoTM04 provides continuous operation between 3 and 5V and scans a fully programmable 8 X 16 keyboard matrix.The Zero-Power

TM

JunoTM04 will power down even between key presses. Typical power consumption is less than 1 µA, a first for embedded ICs.

The JunoTM04 is equipped with Semtech’s proprietary protocol developed specifically for RISCbased handheld machines. It interfaces the system via either Asynchronous Serial (UART) or the Serial Peripheral Interface (SPI).

The integration of features, many of them programmable, on one IC increases flexibility and reduces component count and cost.

• Has additional GPIO available for LEDs, switches, etc.

• Offers internal control of LCD brightness/contrast, audio, etc. as well as four 10-bit A/D channels for power management monitoring

• Provides programmable features that allow for maximum design differentiation without customization

• Cost-effective, reducing overall system costs by integrating features that would typically require multiple components

• Available in 80-pin 13 x 13 mm,

1.7mm high package to accommodate slim designs

• Typically consumes less than 1µA

• Scans an 8 x 16 keyboard matrix that supports Japanese, English and European keyboards

• Interfaces any four- or eight-wire resistive touch screen

• Operates continuously between 3 Volts and 5 Volts

• Offers unique power management capabilities that work in harmony with Windows® CE power modes

• Always runs in "Stop" mode without data or event loss

• GPIO pins provide interrupt at both falling and rising edge of signals, ideal for lid functions, power, ring indicators, docking signals, battery measurement, etc.

APPLICATIONS

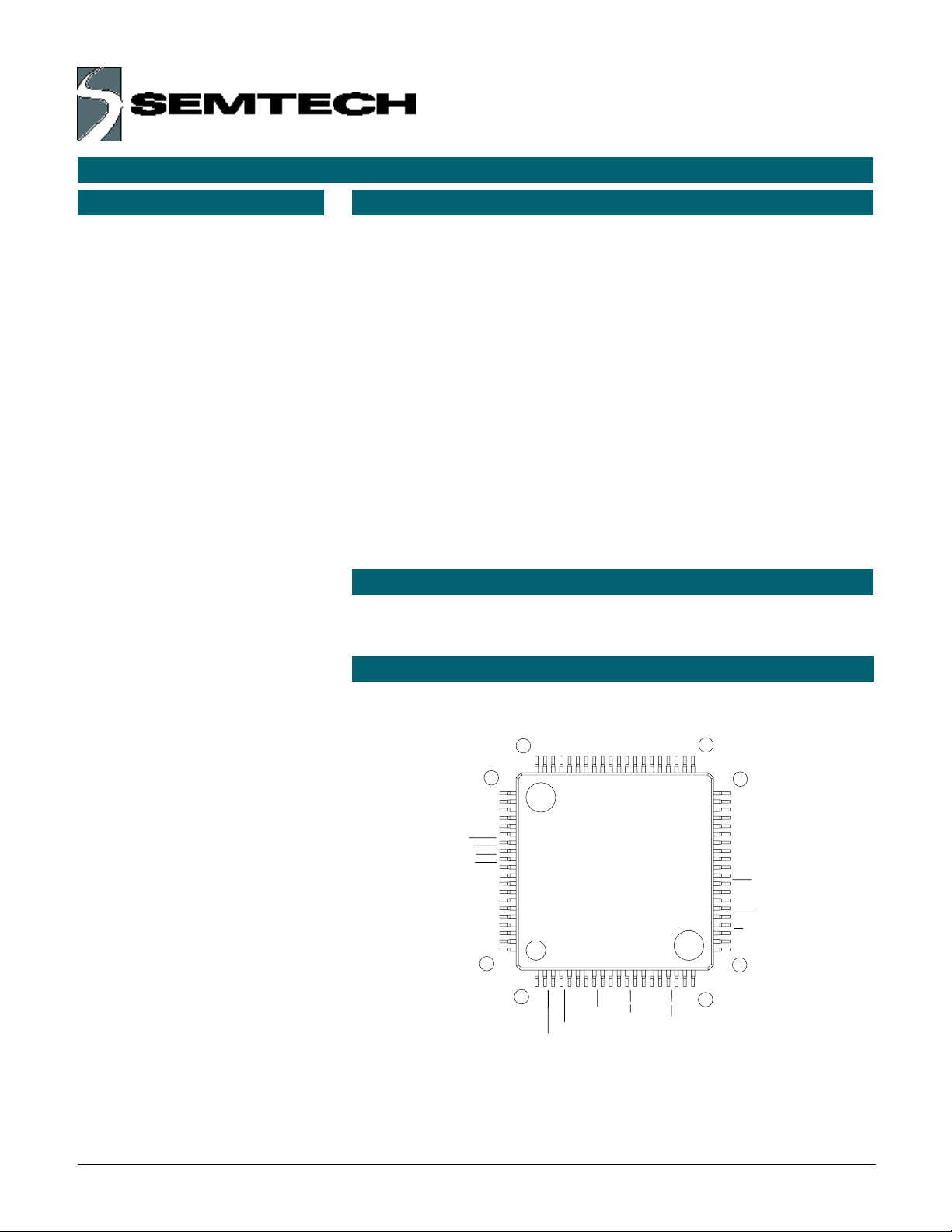

PIN ASSIGNMENTS

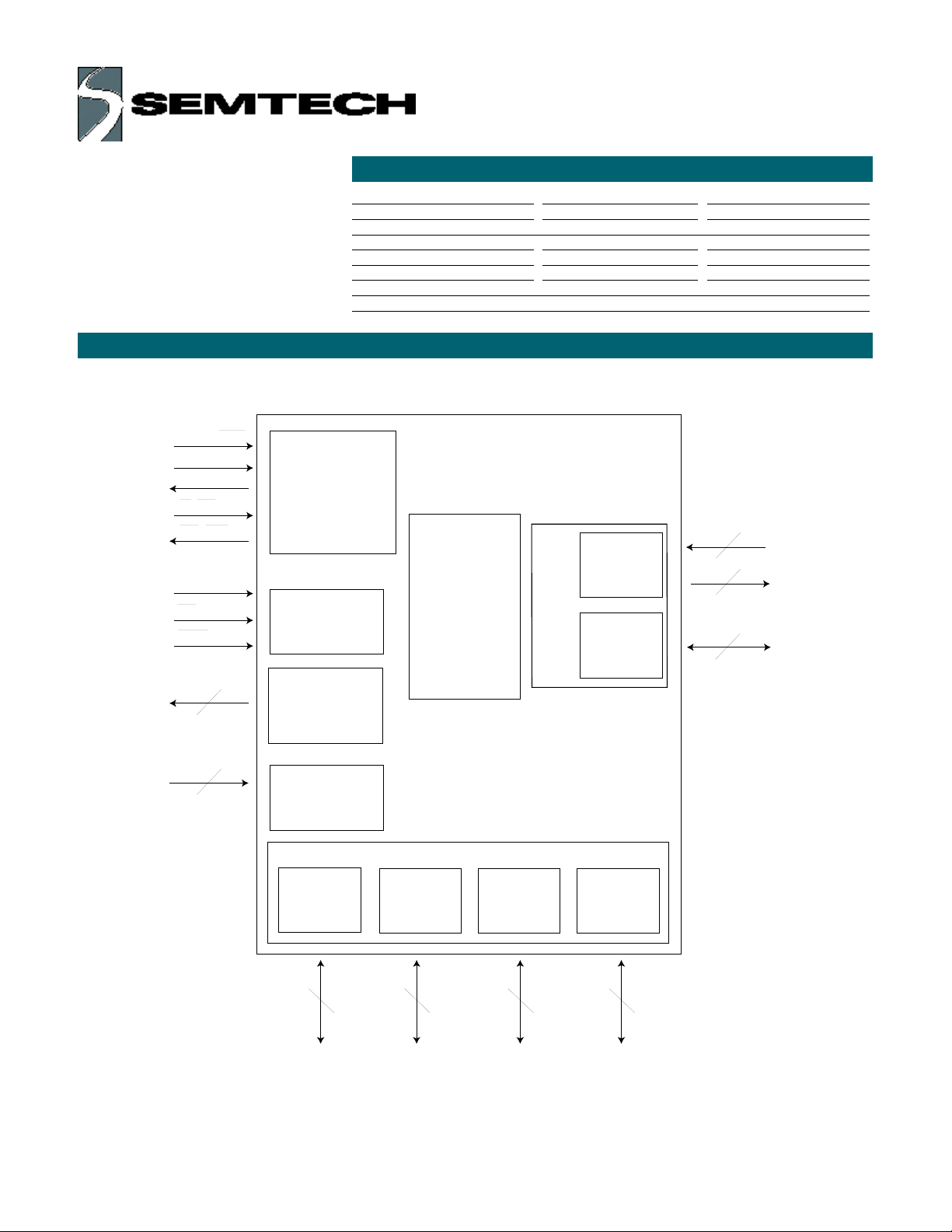

BLOCK DIAGRAM

ORDERING CODE

www.semtech.com

2

Package Options Pitch in mm’s TA = 0° C to +75° C

80-pin, Plastic LQFP 0.5 UR8HC007-004-XX-FQ

Other Materials Type Order number

Technical Reference Manual

Document DOC8-007-004-TR-XXX

JunoTM04 Eval. Kit Evaluation Kit EVK8-007-004-XXX

Note 1: XX= Optional for customization; XXX= Denotes revision number

SCLK / ISEL

MOSI/RxD

MISO/TxD

SS/RTS

ATN/CTS

PWROK

LID

HSUS

2

Dual Mode Serial Communications Port

Power Management Unit

Analog Outputs

PWM0-1 D/A0-1 GIO50-1

Analog Inputs

A/D0-1 (Shared with GIO3)

GIO30-31 / A/D0-1

Configuration Status and Control Registers

GIO00-03 / LED0-3

GPIO

GIO10-11 GIO41-43 /

Keyboard Matrix Scanner

TouchScreen Port / GIO60-7

HID Manager

SW / INT

ROW 0-7

COL 0-15

21

42

2 3

PIN DEFINITIONS

www.semtech.com

3

Pin Numbers Mnemonic QFP Type Name and Function Power Supply

VDD 71 PWR Positive Supply Voltage AVREF 72 AI Positive analog reference

voltage

AVSS 73 PWR Ground: analog signal VSS 30 PWR Ground: negative supply voltage VSS1 24 PWR Auxiliary Ground; must be tied to

pin 30

Reset

_RESET 25 I Controller hardware reset pin:

when at Low-level, this pin holds the UR8HC007in a reset state. This pin must be held at a logic-low until Power Supply voltage (VDD) reaches the minimum operating level (2.7V).

Oscillator pins

OSCI 28 I Oscillator input: connect ceramic

resonator with built-in load capacitors or CMOS clock from external oscillator 4 MHz operating frequency

_OSCO 29 O Oscillator Output: connect ceramic

resonator with built-in load capacitors or keep open if external oscillator is used

Scanned matrix pins

ROW0-ROW7 62-55 I Row matrix outputs COL0-COL7 54-47 O Column matrix outputs COL8-COL11 38-35 COL12-COL13 27-26 COL14-COL15 79-78

PIN DEFINITIONS, (CON’T)

www.semtech.com

4

Pin Numbers Mnemonic QFP Type Name and Function General Purpose Input/Ouput GIO0

GIO00/LED0-GIO3/LED3 34-31 I/O General purpose input/output pin

LED driver

GIO1

GIO10-GIO11 17-16 I/O General purpose input/output pin,

GIO3 - analog input

GIO30/AD0 1 I/O/Ai General purpose input/output pin,

A/D input 0

GIO31/AD1 80 I/O/Ai General purpose input/output pin,

A/D input 1

GIO4

GIO41/SW1/±INT1 4 I/O, I±Int General purpose input/output pin,

switch Input. Capable of interrupt on both positive and negative edges

GIO42/_BLINKCANCEL 3 I/O General purpose input/output pin;

negative input cancels all LED blinking, unless blink-cancel function disabled in register

GIO43 2 I/O General purpose input/output pin

GIO5 - analog output

DA0/PWM0/GIO50 11 Ao D/A output (Range: AVSS to AVREF) DA1/PWM1/GIO51 10 Ao D/A output (Range: AVSS to AVREF)

Touch Screen interface

RIGHT3/GIO67 39 I/O If no hardware touchscreen driver,

drive output to right side of touchscreen; otherwise general purpose I/O

RIGHT2/GIO66 40 I/O If no hardware touchscreen driver,

drive output to right side of touchscreen; otherwise general purpose I/O

RIGHT1/GIO65 41 I/O If no hardware touchscreen driver,

drive output to right side of touchscreen; otherwise general purpose I/O

RIGHT0/GIO64 42 I/O If no hardware touchscreen driver,

drive output to right side of touchscreen; otherwise general purpose I/O

LEFT3/GIO63 43 I/O If no hardware touchscreen driver,

drive output to left side of touchscreen; otherwise general purpose I/O

LEFT2/GIO62 44 I/O If no hardware touchscreen driver,

drive output to left side of touchscreen; otherwise general purpose I/O

LEFT1/GIO61 45 I/O If no hardware touchscreen driver,

drive output to left side of touchscreen; otherwise general purpose I/O

LEFT0/GIO60 46 I/O If no hardware touchscreen driver,

drive output to left side of touchscreen; otherwise general purpose I/O

PIN DEFINITIONS, (CON’T)

www.semtech.com

5

Pin Numbers Mnemonic QFP Type Name and Function

BOT3/RIGHT 63 O If no hardware touchscreen driver,

drive output to bottom side of touchscreen; otherwise output for right side of touchscreen

BOT2/LEFT 64 O If no hardware touchscreen driver,

drive output to bottom side of touchscreen; otherwise output for left side of touchscreen

BOT1/BOT 65 O If no hardware touchscreen driver,

drive output to bottom side of touchscreen; otherwise output for bottom side of touchscreen

BOT0/TOP 66 O If no hardware touchscreen driver,

drive output to bottom side of touchscreen; otherwise output for top side of touchscreen

TOP3/_RIGHTEN 67 O If no hardware touchscreen driver,

drive output to top side of touchscreen; otherwise enable output to right side of touchscreen

TOP2/_LEFTEN 68 O If no hardware touchscreen driver,

drive output to top side of touchscreen; otherwise enable output to left side of touchscreen

TOP1/_BOTEN 69 O If no hardware touchscreen driver,

drive output to top side of touchscreen; otherwise enable output to bottom side of touchscreen

TOP0/_TOPEN 70 O If no hardware touchscreen driver,

drive output to top side of touchscreen; otherwise enable output to top side of

touchscreen _TOUCHINT 5 I Touchscreen interrupt input RIGHTAD 77 Ai A/D input from right side of

touchscreen LEFTAD 76 Ai A/D input from left side of touchscreen BOTAD 75 Ai A/D input from bottom side of

touchscreen TOPAD 74 Ai A/D input from top side of touchscreen

System and Power Management

_LID 23 I±Int Lid closed signal from the lid switch

(active-low). Capable of interrupt on

both positive and negative edges PWROK 22 I±Int Power OK signal. Capable of interrupt

on both positive and negative edges _HSUS 9 I Host Suspended signal (active-low).

When "Low," indicates that host

computer system is in power-reduced

or Stop mode.

PIN DEFINITIONS, (CON’T)

www.semtech.com

6

Pin Numbers Mnemonic QFP Type Name and Function Host Communication Interface

_SS/_RTS 13 I_Int Slave_Select (SPI Mode) or

Ready_To_Send (Asynchronous Serial Mode). Active-Low signal Input. Low-level indicates that the Host System has data for the UR8HC007 peripheral device or the Host System is ready to accept data from the UR8HC007 peripheral device. Capable of Interrupt on Negative edge. Pin 60 and pin 18 should both be "Low" for data exchange to occur.

_ATN/_CTS 18 O Attention (SPI Mode) or Clear_To_Send

(Asynchronous Serial Mode ). Active-Low signal Output. Low-level indicates that the UR8HC007 peripheral device has data for the Host System or the UR8HC007 peripheral device is ready to accept data from the Host System. Pin 18 and pin 60 should both be "Low" for data exchange to occur.

MISO/TXD 20 I/O / O Master-In-Slave-Out (SPI Mode) or

Transmit Data (Asynchronous Serial Mode, Idle = "High" = 1)

MOSI/RXD 21 I Master-Out-Slave-In (SPI Mode) or Receive

Data (Asynchronous Serial Mode)

SCLK/_ISEL 19 I Serial Clock (SPI Mode) or Interface Select

(Asynchronous Serial Mode). Tie "Low" to select Asynchronous Serial Mode. In SPI Mode, use the following Clock sequence: Idle-High / Negative-Edge (Shift Data) \ Positive-Edge (Latch Data), Idle-High.

Note 2: An underscore before a pin mnemonic denotes an active low signal. Pin Types Legend: PWR= Power; Ai=Analog Input; Ao= Analog Output; I=Digital Input;

I_Int=Digital Input capable of generating interrupts on a positive to negative edge transition; I±Int=Digital Input capable of generating interrupts on either a positive or a negative edge transition of the input signal; Ipup= Digital Input with built-in Pull-up to VDD; O=Output; pD= p-channel open Drain Output (switch to VDD); I/O=Input or Output (Bidirectional pin); nD= nchannel open Drain Output (switch to VSS); 15V= 5 Volt tolerant input (even if VDD is less than 5V); nD5V=5 Volt tolerant n-channel open Drain Output.

JUNOTMFAMILY COMMUNICATIONS INTERFACE

www.semtech.com

7

The Juno™ family of controllers implements two modes of serial communications: The "Synchronous Peripheral Interface" (SPI) mode and the "Asynchronous Serial Interface" (ASI).

The SPI is a synchronous bidirectional, multi-slave interface that supports bit rates up to 500 Kb/s. Several Hosts and companion chips implement the SPI protocol in order to communicate with a wide range of peripherals such as EEPROMs, A/D converters, MCUs and other system components. Alternatively, the SPI may be implemented through software on the Host side.

The Juno™ family implements the _ATN as an additional hand-shake signal in order to support low power operation of the bus.

The ASI is an asynchronous interface (UART type) that operates at a fixed baud rate of 62.5 Kb/s.

Both interfaces are implemented through the same set of four pins.

The IC determines the mode of communication with the Host during power-up by reading the value of the SCLK/ISEL pin. If the pin is tied low, the ASI mode is enabled. If it is high, the SPI interface is enabled.

Please refer to the

JunoTM04

Technical Reference Manual

for a description of handshake and critical timing parameters for each interface.

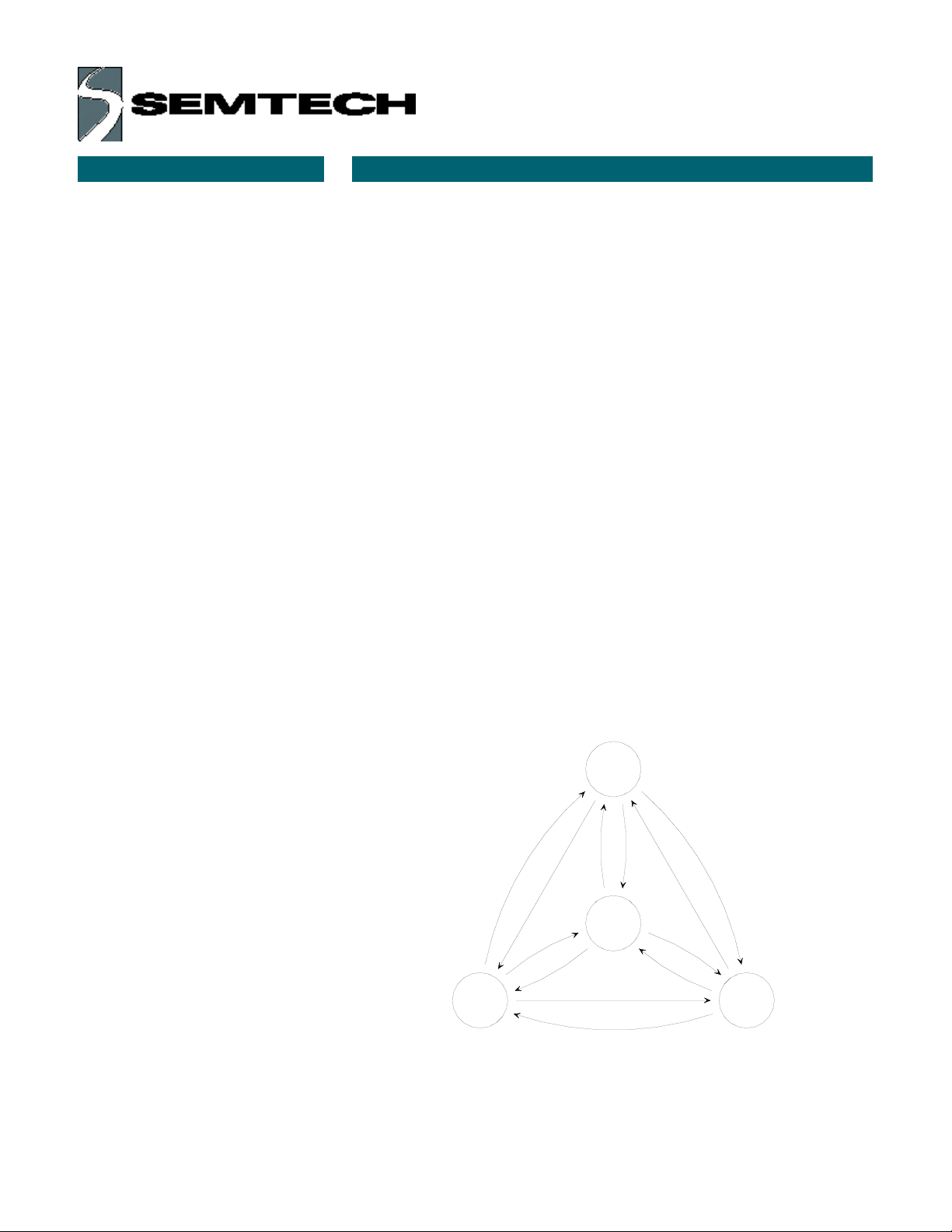

The diagrams below describe the SPI and ASI communications interfaces, respectively.

SPI Communications Interface

Host

(master)

MOSI

MISO

SCLK

_SS

_ATN

USAR Juno™

(slave)

SLAVE 2

_SS

ASI Communications Interface

Host UR8HC007

CTS

RTS

RxD

TxD

CTS

RTS

RxD

TxD

ISEL

GND

PROTOCOLS, COMMANDS AND REPORTS

www.semtech.com

8

Overview

The Juno™ UR8HC007-004 implements and supports four types of transaction messages.

1. Commands from the IC to the Host system

2. Commands from the Host system to the IC

3. Human Input Device (HID) reports to the system

4. Event Alert messages to the system

The protocol is fundamentally implemented through a set of general packet commands that allow handling and reporting of each individual controller register and each bit within each register. In this manner, the system achieves maximum flexibility in manipulating the operation of the UR8HC007-004 controller.

General Message Structure

Communications between the Juno™ UR8HC007-004 and the Host processor are implemented using a set of packet protocols and commands. The general structure of a message is shown in the following diagram:

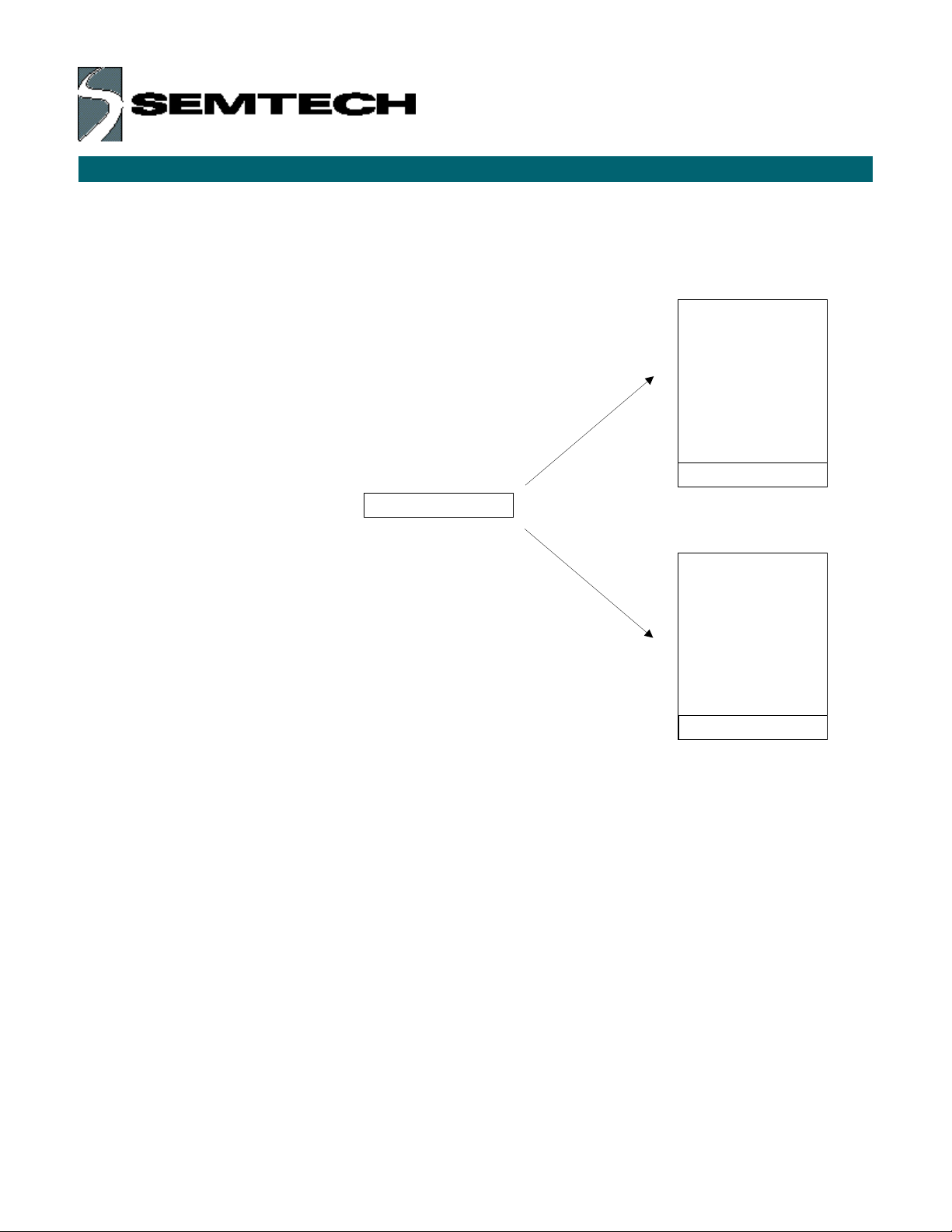

General Message Format

The Protocol Header identifies the type of transaction. The following table lists the available protocols.

Protocol Headers

Protocols used in commands issued by the Host Protocol Header

Simple Commands 80H Write Register bit 81H Read Register bit 82H Write Register 83H Read Register 84H Write Block 85H Read Block 86H

Protocols used in responses, reports and alerts issued by the controller Protocol Header

Simple Commands 80H Report Register bit & Event Alerts 81H Report Register 83H Report Block 85H Relative Pointer Data Report 87H Keyboard PS/2 Code Data Report 88H Absolute Pointer Data Report 89H Keyboard Key Code (position) Report 8AH

Protocol Header Command/Report Identifier Message Body (if applicable)

LRC

PROTOCOLS, COMMANDS AND REPORTS (CON’T)

www.semtech.com

9

HID Data Report

The Pointing Device Data Reports format covers both absolute (where applicable) and relative positioning devices.

Keyboard Data Report

The Keyboard Data Reports return changes on the keyboard matrix or the External PS/2 keyboard device. The report ibncludes a make or break bit, a column number, and a row number.

LRC (Longitudinal Redundancy Check)

The LRC is calculated for the whole packet, including the Protocol Header. The LRC is calculated by first taking the bitwise exclusive OR of all bytes from the message. If the most significant bit (MSB) of the LRC is set, the LRC is modified by clearing the MSB and changing the state of the next most significant bit. Thus, the Packet Check Byte will never consist of a valid LRC with the most significant bit set.

General Commands Format

For protocols used by either the host or the UR8HC007, a set of simple commands is implemented. These support the basic communication protocol and handle reset and errors in transmission.

A simple command would have the following structure:

Simple Command Structure

Following is a summary of the simple commands used by both the Host and the UR8HC007-004:

Simple Commands Summary

Command Protocol Cmd Code Description

Initialize Simple 20H Forces the recipient to enter the

known default power-on state

Initialization Complete Simple 21H Issued as a hand-shake response

only to the "Initialize" command.

Resend Request Simple 25H Issued upon error in the reception

of a package. The recipient will resend the last transmitted packet

Header (80H) Command Code LRC

REGISTERS

www.semtech.com

10

The Juno™ 04 implements a set of internal registers that can be used to control and monitor the operation of the various functional units of the controller IC. These registers can be accessed through the Read/Write Register commands described in the Commands section of the

Juno™ 04 Technical

Reference Manual

. The register architecture of the Juno™ 04 allows for maximum flexibility and expandability of the controller operation. At the same time, by using the default values for each register, a system can utilize all the basic functionality of the IC controller with minimum Host driver intervention.

Registers’ Page Organization

Registers’ Page 0

Control and Status

Registers

Page Number Register

0001255

Register Offset

Registers’ Page 1

Scanned Matrix and

Alternate Layout Keys

Registers

Page Number Register

0001255

Register Offset

0

1

Page Number Register

Figure 1: Registers’ Page Organization

POWER MANAGEMENT MODES OF OPERATION

POWER MANAGEMENT

www.semtech.com

11

The JunoTMfamily has three modes of operation relating to its power consumption.

The "Stop" mode is the lowest power consumption mode. In this mode, the crystal is stopped and the IC consumes only 1 µA of leakage current. This is the default mode to which the IC will revert any time an event or a signal condition does not force it to exit this mode.

The "Wait" mode is entered each time it is necessary for a timer to be running in order to perform a system function. Such functions include the LED blinking mode and the use of one of the PWM channels. Typical power consumption in this mode is several hundred µAs.

The "Run" mode is entered briefly, only to process an event or while an interrupt-generating signal condition persists. The controller IC will remain in this mode only for as long a signal prohibits it from reentering a lower power consumption mode or for as long as it is necessary to process a Host-related transaction (a few milliseconds).

The Juno™ UR8HC007 family of controllers implements two power management methods: system-coordinated power management and Self-Power Management™ (SPM).

System-coordinated power management primarily determines the tasks performed and the type of reports communicated to the Host. The Juno™ 04 monitors the system states through the PWROK (Power OK), _LID (Lid closed) and _HSUS (Host suspended) lines. In addition to these signal inputs, the UR8HC007 family provides a set of registers, described in the "Registers" chapter of the

JunoTM04 Technical Reference Manual

, that can be used by the host to control the PM-related performance of the controller through software. According to the status of these lines (or register settings), the Juno™ 04 will enable or disable specific tasks and reports suited to the current power and system management state of the Host.

Self-Power Management™ describes a method implemented by the Juno™ family of controllers that, independently of any system intervention, results in the lowest power consumption possible within the given parameters of its operation. Through Self-Power Management™, the Juno™ controllers are capable of typically operating at only 1 µA, independent of the state of the system. Self-Power Management™ primarily determines the actual power consumption of the controller IC.

The Juno™ 04 implements the Semtech-patented Self-Power Management™ method to achieve the minimum power consumption possible, independent of the Host power management state.

Even when the Host is in the active state, the IC can still operate most of the time at only 1 µA, even with external PS/2 devices attached to it.

Critical

Suspend

Host

Suspend

PWROK=0

PWROK=1 AND _LID=1 AND _HSUS=0

PWROK=1

AND _LID=0

AND _LID=1 AND _HSUS=0

PWROK=1 AND _LID=1 AND _HSUS=1

Lid

Closed*

PWROK=1

PWROK=1 AND _LID=1

AND _HSUS=0

PWROK=1 AND _LID=0

PWROK=0

PWROK=1 AND _LID=1 AND _HSUS=1

PWROK=1

AND _LID=0

PWROK=1 AND _LID=1 AND _HSUS=1

SPM

HID MANAGER KEYBOARD ENCODING

www.semtech.com

12

The UR8HC007-004 Human Input Device (HID) Manager is responsible for the configuration and handling of HID devices that are embedded or attached to the controller. The HID Manager has the following responsibilities:

1. Enabling and disabling embedded and attached input devices through the "HID enable/disable control" register

2. Formatting and relaying input device reports to the Host

3. Controlling the configuration and operation of both embedded and attached input devices

The HID Manager consists of the two functional blocks: the Keyboard Manager and the Pointing Device Manager.

The function of each Manager is explained in full in the

JunoTM04

Technical Reference Manual

.

The UR8HC007-004 will encode an 8-row by 16-column keyboard matrix. OEMs may reprogram the matrix by sending commands to the IC from the system. The JunoTM04 supports English, Japanese and European keyboards. In addition, the IC supports both sticky keys and notebook-style keyboards.

The keyboard below, the Fujitsu FKB7654, is the default keyboard for the UR8HC007-004.

The JunoTM04 provides many GPIO pins which enable OEMs to easily differentiate their products.

Four GPIO ports provide interrupt at both falling and rising edge of signals. Two of these pins are dedicated for use as a Lid indicator and Digital power monitor. The other two may be used for a ring indicator, docking signal, soft power button, etc.

Three GPIO pins provide A/D input and are ideal for battery measurement.

Three GPIO pins provide two Pulse Width Modulation (PWM) channels and one D/A channel and may be used for analog control functions such as LCD brightness/contrast or audio volume control.

Four GPIO pins with high drive ability are set aside as LED drivers or I/O.

Eight GPIO pins can be used as system control outputs or inputs, for example, for switches.

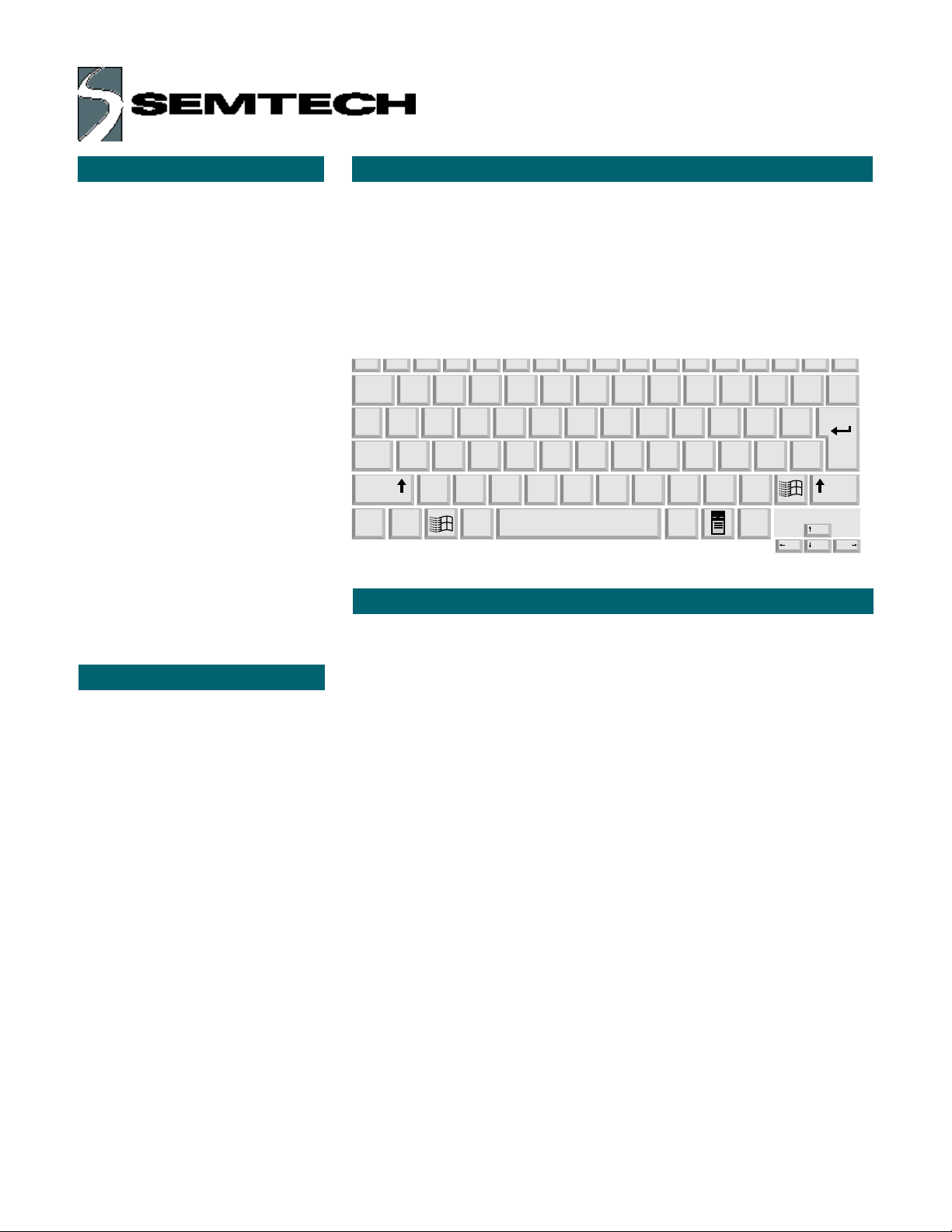

Fujitsu FKB7654

Other members of the JunoTMseries of companion ICs offers advanced, ergonomic control of an internal pointing device. Enabled pointing devices include touch pads or force sticks. If the application requires an internal pointing device, using a pointing-enabled JunoTMwill eliminate the need for a dedicated mouse encoder IC.

OTHER JUNOTMSERIES MEMBERS

GENERAL PURPOSE INPUT OUTPUT

Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12

!1@2#3$4%5^6&7*

Q W E

tab

cap

A S D F G H J K L

lock

Z X C V B N M

ctrl altfn Zspace alt ctrl

R T Y U I O P

879

8(9)0

546

21

0

<>?

, .

3

_

-

+

: ;

.

/

SLNLPau

+ =

{} [

"

'

/

Ins

Brk

Prt

~

`

enter

]

| \

shiftshift

pgup

pgup pgup

pgup

bk sp

Del Srq

JUNOTM04 POINTING DEVICE MANAGER

www.semtech.com

13

The JunoTM04 Pointing Device Manager has the following features:

Pin drive or device drive detection

The designer can select one of two configurations for touchscreen driving: with hardware driver (device drive) and without (pin drive). The Juno™ 04 can detect the configuration automatically at power-up and behave properly for that configuration. The touch and motion qualities are exactly the same for both configurations. For more details, see the analytical pin descriptions for touchscreen in the "Pin information" chapter.

Touch detection

The Pointing Device Manager periodically checks whether there is touch on touchscreen. If no touch is detected, the pointing device manager drives the touchscreen into power saving mode. If a touch is detected, touchscreen is forced into driving state and prepared for measurement.

Touch measurement

When the Pointing Device Manager detects a touch on touchscreen, it drives the touchscreen into drive state and does measurement. If the touch data is not good enough, the measured data are not used for the algorithm. Only good touch data are used for the algorithm.

Touch algorithm

Due to hand shaking and electrical noise, the raw data can not be output directly. The Pointing Device Manager uses a proprietary algorithm to process the data.

Sampling rate

The sampling rate is 100 coordinate points per second.

Resolution

The maximum touchscreen resolution is approximately 1000 points per direction. It varies with different touchscreens due to voltage drop on connection wires.

Touchscreens from different manufacturers

Touchscreens from different manufacturers have different parameters. The touchscreen parameters also depend on the size of touchscreen and material from which it is made. Because the Pointing Device Manager takes these properties into account, it can support almost any touchscreen.

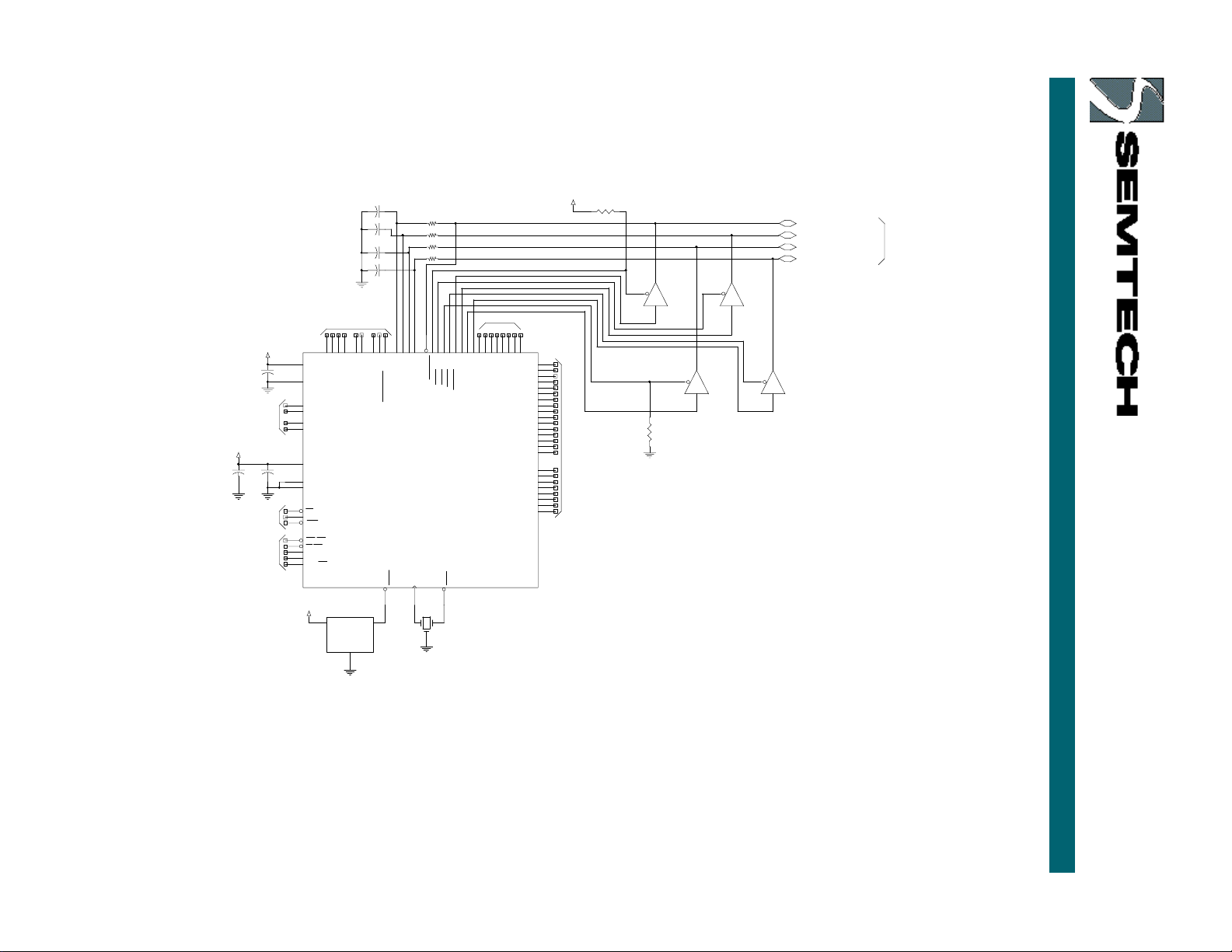

SAMPLE SCHEMATIC FOR THE JUNO

TM

WITH TOUCHSCREEN DRIVER

DOC8-007-004-DS-103

www.semtech.com

14

0.01µF

0.01uF

10

System & PWR Man agement

8x16 Keyboard Matrix

GP I/O

Host Interface

4-wire TouchScreen Sensor Interface

D/A, A/D, GP I/O

nRESET

GP I/O

+3V

U2

TC54VC2702ECB

VSS

3

VIN2VOUT

1

C4

C1

C2

Y1

4.00MHz

C7

.1uF

C5

.1uF

C3

71

72

62

61

60

59

58

57

56

55

54

53

52

51

50

49

48

47

46454443424140

39

73

30

28

29

24

70696867666564

63

38

37

36

35

343332

31

25

11 10

747576

77

78 79

80

1

17

9

3

4

19

20

21

13

18

16

2

5

26 27

23 22

C6

10uF

+

U5C

74LCX125

98

10

U5A

74LCX125

23

1

U5B

74LCX125

56

4

RN1

10k

1

3

5786

4

2

U5D

74LCX125

1211

13

R3

100k

R4

100k

TS_SENSOR_TOP

TS_SENSOR_BOTTOM

TS_SENSOR_LEFT

TS_SENSOR_RIGHT

UR8HC007-0

04-FQ

VDD

AVREF

R0

R1

R2

R3

R4

R5

R6

R7

C0

C1

C2

C3

C4

C5

C6

C7

LEFT0/GIO60

LEFT1/GIO61

LEFT2/GIO62

LEFT3/GIO63

RIGHT0/GIO64

RIGHT1/GIO65

RIGHT2/GIO66

RIGHT3/GIO67

AVSS

VSS

OSCI

OSCO

VSS1

TOP0/TOPEN

TOP1/BOTEN

TOP2/LEFTEN

TOP3/RIGHTEN

BOT0/TOP

BOT1/BOT

BOT2/LEFT

BOT3/RIGHT

C8

C9

C10

C11

GIO00/LED0

GIO01/LED1

GIO02/LED2

GIO03/LED3

RESET

DA0/PWM0/GIO50 DA1/PWM1/GIO51

TOPAD

BOTAD

LEFTAD

RIGHTAD

C15 C14

AD1/GIO31

AD0/GIO30

GIO10

HSUS >>>

GIO42/BLINKCANCEL

GIO41/SW1/±INT1

SCLK/ISEL

MISO/TXD <<<

MOSI/RXD >>>

SS/RTS >>>

ATN/CTS <<<

GIO11

GIO43

TOUCHINT

C13 C12

LID >>> PWROK >>>

SAMPLE SCHEMATIC FOR THE JUNO

TM

WITHOUT THE TOUCH SCREEN DRIVE

DOC8-007-004-DS-103

www.semtech.com

15

nRESET

GP I/O

D/A, A/D, GP I/O

System & PWR Management

Host Interface

8x16 Keyboard Matrix

4-wire TouchScreen Senso

r

Interface

+3V

Y1

4.00MHz

C1

C2

C3

C4

0.01µF

RN1

10k

1

3

5

7

8

6

4

2

C7

.1uF

U2

TC54VC2702ECB

VSS

3

VIN

2

VOUT

1

C6

10uF

+

UR8HC007-004-FQ

VDD

71

AVREF

72

R0

62

R1

61

R2

60

R3

59

R4

58

R5

57

R6

56

R7

55

C0

54

C1

53

C2

52

C3

51

C4

50

C5

49

C6

48

C7

47

LEFT0/GIO6046LEFT1/GIO61

45

LEFT2/GIO62

44

LEFT3/GIO6343RIGHT0/GIO64

42

RIGHT1/GIO65

41

RIGHT2/GIO66

40

RIGHT3/GIO67

39

AVSS

73

VSS

30

OSCI

28

OSCO

29

VSS1

24

TOP0/TOPEN

70

TOP1/BOTEN

69

TOP2/LEFTEN

68

TOP3/RIGHTEN

67

BOT0/TOP

66

BOT1/BOT65BOT2/LEFT

64

BOT3/RIGHT

63

C8

38

C9

37

C10

36

C11

35

GIO00/LED034GIO01/LED1

33

GIO02/LED2

32

GIO03/LED3

31

RESET

25

DA0/PWM0/GIO50

11

DA1/PWM1/GIO51

10

TOPAD

74

BOTAD75LEFTAD

76

RIGHTAD

77

C15

78

C14

79

AD1/GIO31

80

AD0/GIO30

1

GIO10

17

HSUS >>>

9

GIO42/BLINKCANCEL

3

GIO41/SW1/±INT1

4

SCLK/ISEL

19

MISO/TXD <<<

20

MOSI/RXD >>>

21

SS/RTS >>>

13

ATN/CTS <<<

18

GIO11

16

GIO43

2

TOUCHINT

5

C13

26

C12

27

LID >>>

23

PWROK >>>

22

C5

.1uF

TS_SENSOR_TOP

TS_SENSOR_BOTTOM

TS_SENSOR_RIGHT

TS_SENSOR_LEFT

JUNOTM04 ELECTRICAL CHARACTERISTICS

www.semtech.com

16

Absolute maximum ratings

(VSS = 0V, Ambient Temperature TA is in the range TLOW to THIGH)

Parameter Symbol Value Unit

Supply Voltage VDD -0.3 to +7.0 V

Input voltage

All pins except 2-9 V

IN -0.3 to VDD+0.3 V

Pins 2-9 (PS/2 ports XXXDAT, XXXCLK, GIO16/SW16, GIO17/SW17) VIN -0.3 to +5.8 V

Output current

Total peak for all pins ΣIOH(Peak) -80

ΣI

OL (Peak) 80 mA

Total average for all pins ΣIOH (Avg) -40

ΣIOL (Avg) 40 mA All pins except 31-34 Peak for each pin IOH

(Peak) -10

IOL (Peak) 10 mA Average for each pin I

OH (Avg) -5

IOL (Avg) 5 mA Pins 31-34 (GIO00/LED0 - GIO03/LED3) Peak for each pin IOH (Peak) -10

IOL (Peak) 20 mA Average for each pin I

OH (Avg) -5

IOL (Avg) 15 mA

Temperature range

Operating Temperature TLOW to THIGH -20 to 85 ºC Storage Temperature T

STG -40 to 125 ºC

www.semtech.com

17

Users should consider the built-in PWM channels for generating slowly changing DC control voltages. Since continuous clocking is necessary for the PWM operations, the only penalty for using the built-in PWM channels is the requirement for the chip to operate at least in the Reduced Power Mode, with typical Current Consumption of 750 µA.

Recommended Operating Conditions, Digital Section

(VSS = 0V, Ambient Temperature T

A is in the range TLOW

to THIGH)

Parameter Symbol Min Typ Max Unit

Supply voltage VDD

2.7 3.0 5.5 V

Input logic high voltage

All pins except 2-9 VIH 0.8VDD VDD V Pins 2-9 (PS/2 ports xxxDAT, xxxCLK, GIO16/SW16, GIO17/SW17) V

IH 0.8V

DD 5.5 V

Input logic low voltage

All pins except 28 VIL 0 0.2V

DD V

Pin 28 (OSCI) V

IL 0 0.16V

DD V

Input current

VI = VSS, V

DD)I

IL / IIL

-5.0 0 5.0 µA Input Pull-up Current (pins 56-58 / IP6-IP8, V

I = VSS

)IPUP -120 -10 µA

Output voltage

IOH = -1.0 mA VOH VDD-1.0 V I

OL = 1.6 mA V

OL 0.4 V

Current Consumption

(see Note 3 below) Full Speed Mode (Fosc=4MHz) I

DD 3.5 7.0 mA

Reduced Power Mode (Fosc=4MHz) IDD 750 µA Stop Mode (Interrupts active, Fosc=0) 1.0 (TA = 25ºC)

IDD .1 10(TA = 85ºC ) µA

Recommended operating conditions, analog section

(VSS = 0V, Ambient Temperature T

A is in the range TLOW to THIGH)

Parameter Symbol Min Typ Max Unit

Analog Signal Ground AVSS 0V Analog Reference Voltage AV

REF 2.7 VDD VDD V

A/D Resolution- 10 Bits A/D Absolute Accuracy ± 4 LSb A/D Analog Input Voltage Range VIA AV SS AVREF V A/D Analog Input Current IIA 5.0 µA Analog Reference Current (see Note 4) (A/D is active) IAVREF 200 µA D/A Resolution- 8 Bits D/A Absolute Accuracy - 2.5 % D/A Output Impedance R

O 1 2.5 4.0 KOhms

Analog Reference Current (see Note 5) (D/A is active, Output = Full Scale) I

AVREF

3.2 mA

Note 3: please see left Note 4: please see left Note 5: please see left

POWER CONSUMPTION WHILE OPERATING THE PWM CHANNELS

JUNOTM04 ELECTRICAL CHARACTERISTICS, (CON’T)

NOTES FOR ELECTRICALS

Note 3:

Current Consumption values do not include any loading on the Output pins or Analog Reference Current for the built-in A/D or D/A modules.

Note 4:

Since the built-in A/D module consumes current only during short periods of time (when A/D conversion is actually requested), the Analog Reference Current for the built-in A/D module is not a significant contributor to the overall power consumption.

Note 5:

The Analog Reference Current for the built-in D/A module correlates linearly to the Output Voltage. For D/A output of 0V, the Analog Reference Current is null. For D/A outputs approaching Full Scale (AVREF), the maximum Analog Reference Current is indicated in this Table. This current is a significant contributor to the overall power consumption.

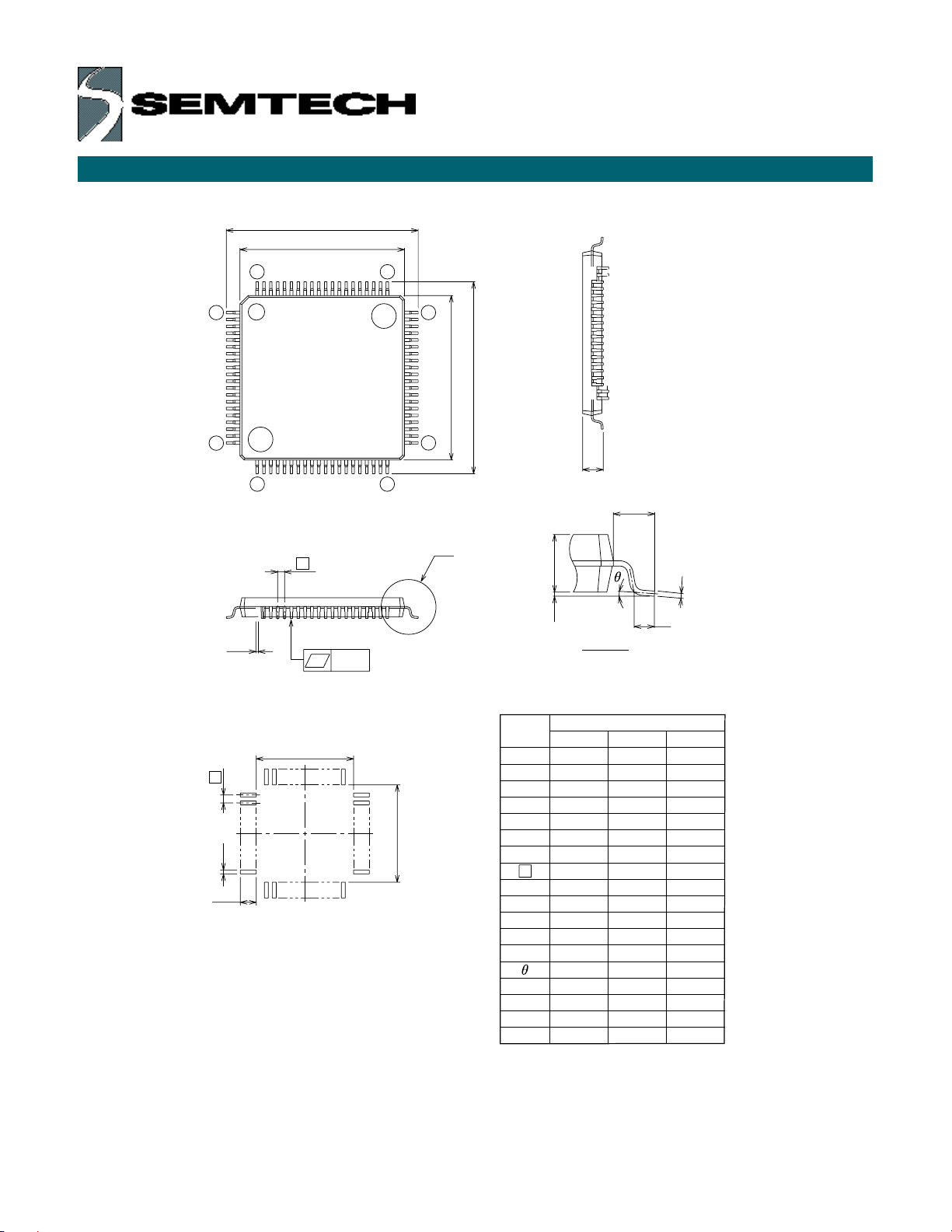

MECHANICAL INFORMATION FOR THE UR8HC007-004 LQFP PACKAGE

www.semtech.com

18

HD

D

80 61

1

80 Pin LQFP

20

21 40

e

b

y

D

M

e

b2

I2

Recommended Mount Pad

60

E

HE

41

A

L1

F

c

A1 A2

L

Detail F

Symbol

A1 A

ME

H H

L

b

M M

Dimension in Millimeters

Min Nom Max

A

–

0

2

––

b

c D E

e

D E

–

L

1

y

2

I

2

D E

–– –

1.0

–

0.1

1.4

0.5

1.0

– –

0.225

12.4

1.7

0.2

0.280.180.13

0.1750.1250.105

12.112.011.9

–

14.214.013.8

0.70.50.3

0.1

10˚0˚

–– –– –– ––

JUNOTM04 BILL OF MATERIALS FOR PAGE 13 SCHEMATIC

www.semtech.com

19

UR8HC007-004-FQ BOM Description Quantity Manufacturer Part# Description Capacitors:

C1-C4 4 Generic Any 100pF, 5%, Ceramic, NPO or X7R C2,C3,C4 3 Generic Any .1uF, 10%, Ceramic, X7R or Z5U C6 1 Generic Any 1uF, 10V, +80%/-20%, Tantalum C5A,C5B,C5C 3 Generic Any 10uF, 10V, +80%/-20%, Tantalum

ICs:

U4 1 National LMV321M5 Single OpAmp, Low Voltage, SOT23-5 U3 1 Generic 74HC4053 Tri 2-ch Analog Mux U1 1 Semtech UR8HC007-004-FQ JunoTMController

Resistors:

R2 1 Generic Any 1k, 5%, 1/16W R1 1 Generic Any 2.7k, 5%, 1/16W R3 1 Generic Any 3.16k, 1%, 1/16W R4,R5 2 Generic Any 100k, 5%, 1/16W

Resonator:

Y1 1 AVX PBRC-4.00BR 4.00MHz Ceramic Resonator w/ Caps, SMT

Transistor:

Q1 1 Zetex BSS84ZXCT MOSFET_P Transistor, SMT, SOT-23

www.semtech.com

20

For sales information and product literature, contact:

HID & System Mgmt Division Semtech Corporation 568 Broadway New York, NY 10012

usar@semtech.com http://www.semtech.com

212 226 2042 Telephone 212 226 3215 Telefax

Semtech Western Regional Sales 805-498-2111 Telephone 805-498-3804 Telefax

Semtech Central Regional Sales 972-437-0380 Telephone 972-437-0381 Telefax

Semtech Eastern Regional Sales 203-964-1766 Telephone 203-964-1755 Telefax

Semtech Asia-Pacific Sales Office +886-2-2748-3380 Telephone +886-2-2748-3390 Telefax

Semtech Japan Sales Office +81-45-948-5925 Telephone +81-45-948-5930 Telefax

Semtech Korea Sales Sales +82-2-527-4377 Telephone +82-2-527-4376 Telefax

Northern European Sales Office +44 (0)2380-769008 Telephone +44 (0)2380-768612 Telefax

Southern European Sales Office +33 (0)1 69-28-22-00 Telephone +33 (0)1 69-28-12-98 Telefax

Central European Sales Office +49 (0)8161 140 123 Telephone +49 (0)8161 140 124 Telefax

Copyright ©1998-2001 Semtech Corporation. All rights reserved. Junoand Zero-Power are trademarks of Semtech Corporation. Semtech is a registered trademark of Semtech Corporation. All other trademarks belong to their respective companies.

INTELLECTUAL PROPERTY DISCLAIMER This specification is provided "as is" with no warranties whatsoever including any warranty of merchantability, fitness for any particular purpose, or any warranty otherwise arising out of any proposal, specification or sample. A license is hereby granted to reproduce and distribute this specification for internal use only. No other license, expressed or implied to any other intellectual property rights is granted or intended hereby. Authors of this specification disclaim any liability, including liability for infringement of proprietary rights, relating to the implementation of information in this specification. Authors of this specification also do not warrant or represent that such implementation(s) will not infringe such rights.
