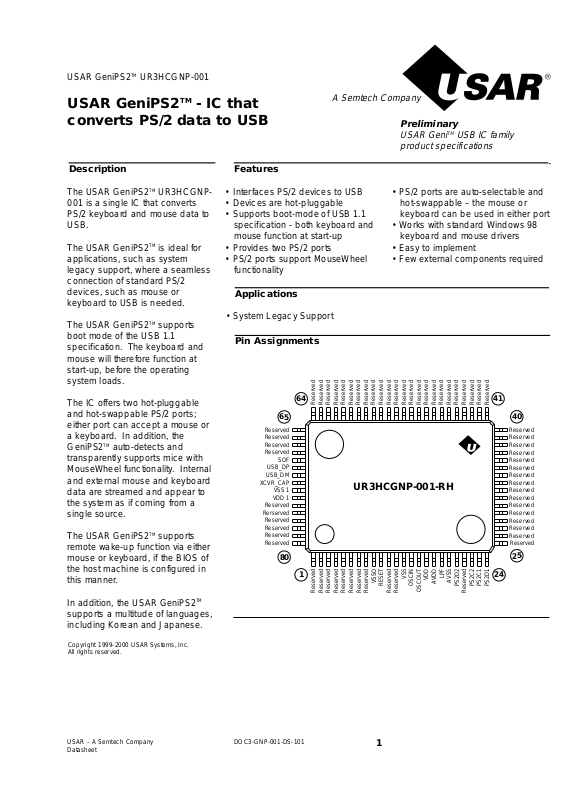

Datasheet UR3HCGNP-100-RH Datasheet (Semtech)

USAR GeniPS2TMUR3HCGNP-001

USAR GeniPS2TM- IC that
converts PS/2 data to USB

Preliminary

USAR GeniTMUSB IC family
product specifications

Description Features

• System Legacy Support

Copyright 1999-2000 USAR Systems, Inc.
All rights reserved.

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

1

The USAR GeniPS2TMUR3HCGNP­001 is a single IC that converts
PS/2 keyboard and mouse data to
USB.

The USAR GeniPS2TMis ideal for
applications, such as system
legacy support, where a seamless
connection of standard PS/2
devices, such as mouse or
keyboard to USB is needed.

The USAR GeniPS2TMsupports
boot mode of the USB 1.1
specification. The keyboard and
mouse will therefore function at
start-up, before the operating
system loads.

The IC offers two hot-pluggable
and hot-swappable PS/2 ports;
either port can accept a mouse or
a keyboard. In addition, the
GeniPS2TMauto-detects and
transparently supports mice with
MouseWheel functionality. Internal
and external mouse and keyboard
data are streamed and appear to
the system as if coming from a
single source.

The USAR GeniPS2TMsupports
remote wake-up function via either
mouse or keyboard, if the BIOS of
the host machine is configured in
this manner.

In addition, the USAR GeniPS2

TM

supports a multitude of languages,
including Korean and Japanese.

• PS/2 ports are auto-selectable and
hot-swappable – the mouse or
keyboard can be used in either port

• Works with standard Windows 98
keyboard and mouse drivers

• Easy to implement

• Few external components required

• Interfaces PS/2 devices to USB

• Devices are hot-pluggable

• Supports boot-mode of USB 1.1
specification - both keyboard and
mouse function at start-up

• Provides two PS/2 ports

• PS/2 ports support MouseWheel
functionality

1

80

65

40

64

41

25

24

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

VSSO

RESET

Reserved

Reserved

VSS

OSCIN

OSCOUT

VDD

AVDD

LPF

AVSS

PS2D2

Reserved

PS2C2

PS2C1

PS2D1

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved
Reserved
Reserved
Reserved

SOF

USB_DP

USB_DM

XCVR_CAP

VSS 1

VDD 1

Reserved

Rerserved

Reserved
Reserved
Reserved
Reserved

UR3HCGNP-001-RH

Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved

Reserved

Applications

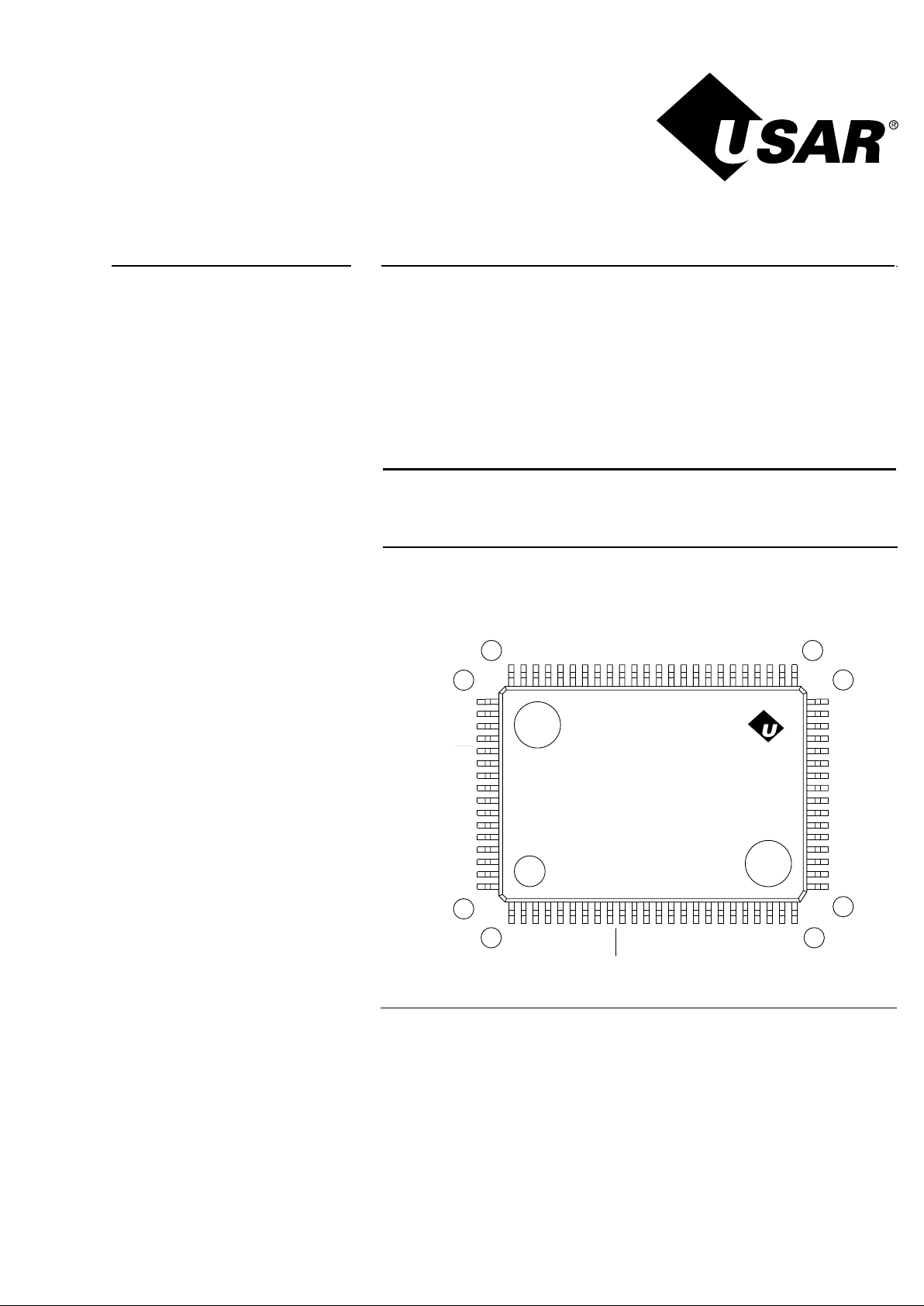

Pin Assignments

A Semtech Company

USAR GeniPS2TMUR3HCGNP-001

USAR GeniTMUSB IC family
product specifications

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

USAR –– A Semtech Company

Descri

2

Ordering Code

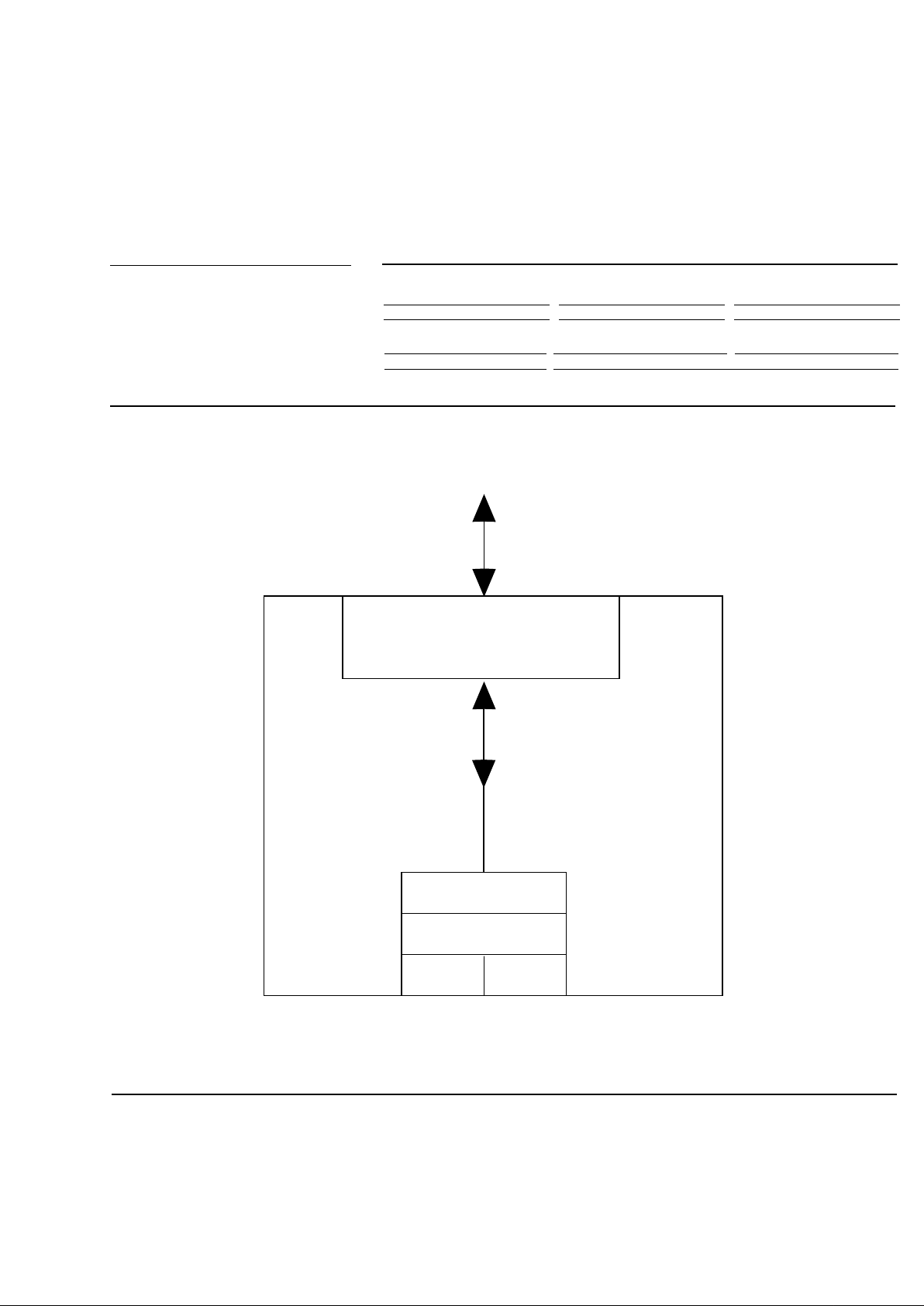

Block Diagram

USB I/O

System

Keyboard/Mouse

PS/2 Handler

PS2
Port 1

PS2
Port 2

Package options

80-pin, PQFP

Pitch in mm’s

0.8

TA = 0°C to +75°C

UR3HCGNP-100-RH

Other Materials Type Order number

USAR GeniPS2TMEval Kit Evaluation Kit EVK3-GNP-001-XXX

Pin Definitions

USAR GeniPS2TMUR3HCGNP-001

Preliminary

USAR GeniTMUSB IC family
product specifications

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

3

USAR –– A Semtech Company

USB Functionality

The USAR GeniPS2TMis a full­speed composite USB device that
interfaces PS/2.

The PS/2 interface supports legacy
Human Input Devices (HID)-class
specification and uses two
interrupt endpoints for the PS/2
devices.

The USAR GeniPS2TMhandles the
merging of all this data, and sends
the data to the system. Data can
come from either of the two PS/2
ports. Internal and external mouse
and keyboard data are streamed
and appear to the system as if
coming from a single source.

Mnemonic QFP Type Name and Function

Power Supply

VDD 16 PWR Positive supply voltage
VDD1 74 PWR Positive supply voltage
AVDD 17 PWR Positive analog reference voltage
AVSS 19 PWR Ground: analog signal
VSS 13 PWR Ground: negative supply voltage
VSS0 9 PWR Ground: negative supply voltage
VSS1 73 PWR Ground: negative supply voltage
XCVRCAP 72 PWR Bypass line

Reset

_RESET 10 I Controller hardware reset pin:

Active-low reset line

Oscillator pins

OSCIN 14 I Oscillator input: input signal from

oscillator

OSCOUT 15 O Oscillator output: output signal to

oscillator

LPF 18 O Loop filter for frequency synthesizer

USB

_SOF 69 O USB _SOF signal
USB_DP 70 I/O USB D+ line
USB-DM 71 I/O USB D- line

PS/2

PS2D2 20 I/O Data line for PS/2 port 2
PS2C2 22 I/O Clock line for PS/2 port 2
PS2C1 23 I/O Clock line for PS/2 port 1
PS2D1 24 I/O Data line for PS/2 port 1

Reserved

Reserved 1-8 N/U Not used; keep open; reserved for

25-40 future functions
41-69
75-80

Note 1: An underscore in front of the pin
mnemonic denotes an active low signal.

USAR GeniPS2TMUR3HCGNP-001

Preliminary

USAR GeniTMUSB IC family
product specifications

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

4

USAR –– A Semtech Company

PS/2 Ports

The two PS/2 ports allow the user
to connect legacy PS/2 devices to
the USB host system. Standard
104-key keyboards and PS/2 mice,
with support for MouseWheel
functionality, can be hot-plugged at
either of the PS/2 ports and
immediately begin communicating
with the host.

USB Descriptors

Offset Field Size Value Description

Device Descriptor

0 bLength 1 12 Descriptor length (18 bytes)
1 bDescriptorType 1 01 Descriptor type
2 bcdUSB 2 0101 USB release
4 bDeviceClass 1 00 Specified in interfaces
5 bDeviceSubClass 1 00 Specified in interfaces
6 bDeviceProtocol 1 00 No protocols on the device basis
7 bMaxPacketSize0 1 08 Maximum packet length (bytes) for

endpoint 0 is 8
8 idVendor 2 047A Vendor ID (USAR)
10 idProduct 2 0101 Product ID
12 bcdDevice 2 0100 Firmware revision 1.0
14 iManufacturer 1 04 Index for manufacturer string

descriptor
15 iProduct 1 1E Index for product string descriptor
16 iSerialNumber 1 00 Index for serial number string

descriptor
17 bNumConfigurations 1 01 Number of configurations

Configuration Descriptor

0 bLength 1 09 Configuration Descriptor length
1 bDescriptorType 1 02 Configuration Descriptor
2 bTotalLength 2 003B Total length of descriptors returned

with this one
4 bNumInter faces 1 02 Number of interfaces supported
5 bConfigurationValue 1 01 Value associated with this configuration
6 iConfiguration 1 00 Index for configuration string

descriptor – none
7 bmAttributes 1 A0 Configuration Characteristics

Bit 7: Reserved (set to one) 1

Bit 6: Self-powered 0

Bit 5: Remote wake-up 1
8 MaxPower 1 32 Maximum Power consumed is 100 mA

String Descriptor

0 bLength 1 04 Length of language ID
1 bDescriptorType 1 03 Descriptor type (=String)
2 bString 2 0904 Array of Language ID code (=English)
4 bLength 1 1A Length of Manufacture String
5 bDescriptionType 1 03 Descriptor Type (=String)
6 bString 24 USAR

Systems Manufacturer name
30 bLength 1 2A Length of product string
31 bDescriptorType 1 03 Descriptor Type (= String)
32 bString 40 USAR

Systems

Geni PS2 Product Name

USAR GeniPS2TMUR3HCGNP-001

Preliminary

USAR GeniTMUSB IC family
product specifications

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

5

USAR –– A Semtech Company

PS/2 Data Format

Offset Field Size Value Description

HID Interface Descriptor (Keyboard)

0 bLength 1 09 Interface Descriptor length
1 bDescriptorType 1 04 Inter face Descriptor
2 bInter faceNumber 1 00 Index for HID interface
3 bAlter nateSetting 1 00 Alter nate Setting index
4 bNumEndpoints 1 01 Number of endpoints in this interface.

This includes one interrupt endpoint
5 bInter faceClass 1 03 USB HID class
6 bInter faceSubClass 1 01 Keyboard subclass
7 bInter faceProtocol 1 01 Boot protocol
8 iInter face 1 00 Index for interface string

descriptor – none

HID Class Descriptor (Keyboard)

0 bLength 1 09 HID Descriptor length
1 bDescriptorType 1 21 HID Descriptor
2 bcdHID 2 0101 HID Specification Release (1.01)
4 bCountr yCode 1 00 Country Code (not supported)
5 bNumDescriptors 1 01 Number of class descriptors. The one

descriptor is the report descriptor
6 bDescriptorType 1 22 Repor t Descriptor
7 wDescriptorLength 2 0040 Length of Report Descriptor

EndPoint Descriptor (Keyboard)

0 bLength 1 07 Endpoint Descriptor Length
1 bDescriptor type 1 05 Endpoint Descriptor
2 bEndpointAddress 1 83 Address:Endpoint3.IN
3 bmAttributes 1 03 Endpoint Attributes: interrupt
4 wMaxPacketSize 2 0008 Maximum Packet Size: 8 bytes
6 bInterval 1 04 Polling Interval

USB Descriptors, Cont.

USAR GeniPS2TMUR3HCGNP-001

Preliminary

USAR GeniTMUSB IC family
product specifications

Descri

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

6

USAR –– A Semtech Company

Byte # Data Mnemonic Value

0 Usage Page 05 01 Generic Desktop Control
2 Usage 09 06 Keyboard
4 Collection A1 01 Application
6 Usage Page 05 07 Keyboard/Keypad Keys
8 Usage Minimum 19 E0 224
10 Usage Maximum 29 E7 231
12 Logical Minimum 15 00 0
14 Logical Maximum 25 01 1
16 Report Size 75 01 1
18 Report Count 95 08 8
20 Input 81 02 Data, Variable, Absolute
22 Report Size 75 01 1
24 Report Count 95 08 8
26 Input 81 03 Constant
28 Report Count 95 06 6
30 Report Size 75 01 1
32 Usage Page 05 08 LED
34 Usage Minimum 19 01 1
38 Usage Maximum 29 06 6
40 Output 91 02 Data, Variable, Absolute
42 Report Count 95 01 1
44 Report Size 75 02 2
46 Output 91 03 Constant
48 Report Count 95 06 6
50 Report Size 75 08 8
52 Logical Minimum 15 00 0
54 Logical Maximum 26 FF 00 255
56 Usage Page 05 07 Keyboard/Keypad Keys
58 Usage Minimum 19 00 0
60 Usage Maximum 29 FF 255
62 Input 81 00 Data, Array, Absolute
64 End Collection C0

USB Descriptors: Report Descriptors (Keyboard)

USAR GeniPS2TMUR3HCGNP-001

Preliminary

USAR GeniTMUSB IC family
product specifications

Descri

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

7

USAR –– A Semtech Company

USB Descriptors, Cont.

Offset Field Size Value Description

HID Interface Descriptor (Mouse)

0 bLength 1 09 Interface Descriptor length
1 bDescriptorType 1 04 Inter face Descriptor
2 bInter faceNumber 1 01 Index for HID interface
3 bAlter nateSetting 1 00 Alter nate Setting index
4 bNumEndpoints 1 01 Number of endpoints in this interface.

This includes one interrupt endpoint
5 bInter faceClass 1 03 USB HID class
6 bInter faceSubClass 1 01 Keyboard subclass
7 bInter faceProtocol 1 02 Boot protocol
8 iInter face 1 00 Index for interface string

descriptor – none

HID Class Descriptor (Mouse)

0 bLength 1 09 HID Descriptor length
1 bDescriptorType 1 21 HID Descriptor
2 bcdHID 2 0101 HID Specification Release (1.01)
4 bCountr yCode 1 00 Country Code (not supported)
5 bNumDescriptors 1 01 Number of class descriptors. The one

descriptor is the report descriptor
6 bDescriptorType 1 22 Repor t Descriptor
7 wDescriptorLength 2 0034 Length of Report Descriptor

EndPoint Descriptor (Mouse)

0 bLength 1 07 Endpoint Descriptor Length
1 bDescriptor type 1 05 Endpoint Descriptor
2 bEndpointAddress 1 84 Address:Endpoint4.IN
3 bmAttributes 1 03 Endpoint Attributes: interrupt
4 wMaxPacketSize 2 0004 Maximum Packet Size: 8 bytes
6 bInterval 1 04 Polling Interval

USAR GeniPS2TMUR3HCGNP-001

Preliminary

USAR GeniTMUSB IC family
product specifications

Descri

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

8

USAR –– A Semtech Company

Byte # Data Mnemonic Value

0 Usage Page 05 01 Generic Desktop Control
2 Usage 09 02 Mouse
4 Collection A1 01 Application
6 Usage 09 01 Pointer
8 Collection A1 00 Physical
10 Usage Page 05 09 Button
12 Usage Minimum 19 01 1
14 Usage Maximum 29 03 3
16 Logical Minimum 15 00 0
18 Logical Maximum 25 01 1
20 Report Count 95 03 3
22 Report Size 75 01 1
24 Input 81 02 Data, Variable, Absolute
26 Report Count 95 01 1
28 Report Size 75 05 5
30 Input 81 01 Constant
32 Usage Page 05 01 Generic Desktop Control
34 Logical Minimum 15 81 -127
36 Logical Maximum 25 7F 127
38 Report Size 75 08 8
40 Report Count 95 03 3
42 Usage 09 30 X
44 Usage 09 31 Y
46 Usage 09 38 Wheel
48 Input 81 06 Data, Variable, Relative
50 End Collection C0
52 End Collection C0

USB Descriptors: Report Descriptors (Mouse)

USAR GeniPS2TMUR3HCGNP-001

Preliminary

USAR GeniTMUSB IC family
product specifications

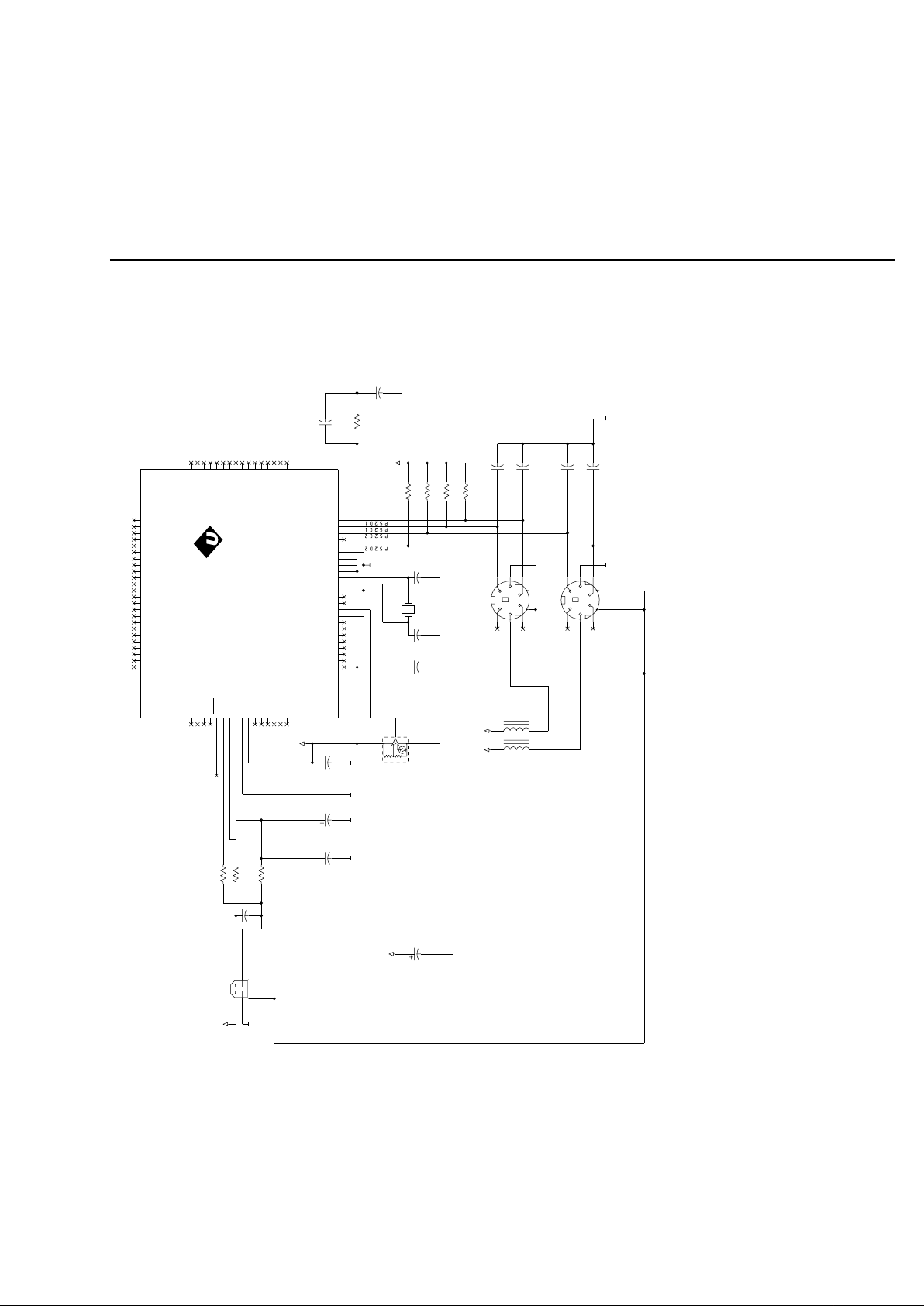

Suggested Interfacing for the USAR GeniPS2TMUR3HCGNP-001

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

9

USAR –– A Semtech Company

UR3HCGNP-001 2xPS/2-to-USB Interface #NPP001.SCH R 1.2

(C)1998-2000 USAR SYSTEMS, A Semtech Co

RESERVED

65

RESERVED

66

RESERVED

67

RESERVED

68

SOF

69

USB_DP

70

USB_DM

71

XCVR_CAP

72

VSS1

73

VDD1

74

RESERVED

75

RESERVED

76

RESERVED

77

RESERVED

78

RESERVED

79

RESERVED

80

RESERVE

D

1

RESERVE

D

2

RESERVE

D

3

RESERVE

D

4

RESERVE

D

5

RESERVE

D

6

RESERVE

D

7

RESERVE

D

8

RESERVE

D

1

1

RESERVE

D

1

2

VSS

0

9

RESET

1

0

VSS

1

3

OSCIN

1

4

OSCOU

T

1

5

VDD

1

6

AVD

D

1

7

LPF

1

8

AVS

S

1

9

PS2D2

2

0

RESERVE

D

2

1

PS2C2

2

2

PS2C1

2

3

PS2D1

2

4

RESERVED

25

RESERVED

26

RESERVED

27

RESERVED

28

RESERVED

29

RESERVED

30

RESERVED

31

RESERVED

32

RESERVED

33

RESERVED

34

RESERVED

35

RESERVED

36

RESERVED

37

RESERVED

38

RESERVED

39

RESERVED

40

RESERVE

D

4

1

RESERVE

D

4

2

RESERVE

D

4

3

RESERVE

D

4

4

RESERVE

D

4

5

RESERVE

D

4

6

RESERVE

D

4

7

RESERVE

D

4

8

RESERVE

D

4

9

RESERVE

D

5

0

RESERVE

D

5

1

RESERVE

D

5

2

RESERVE

D

5

3

RESERVE

D

5

4

RESERVE

D

5

5

RESERVE

D

5

6

RESERVE

D

5

7

RESERVE

D

5

8

RESERVE

D

5

9

RESERVE

D

6

0

RESERVE

D

6

1

RESERVE

D

6

2

RESERVE

D

6

3

RESERVE

D

6

4

U1

UR3HCGNP-001

SHIELD

USBDM

USBDP

VCC

GND

GND

1 2

3 4

56

J1

CON_AMP_USB_B

GND

R133R2

33

R3

1.5k

C1

33pF

C2

.1uF

C3

2.2uF

SOF

DM

DP

VCC

GNDGND

C4

.1uF

C9

680pF

PS2C1

GND

GND

VCC

R4

1k

R5

10kR610kR710kR810k

C10

.1uF

C11

47pF

6

4

2

531

78

JP1

MDIN6_SH

Y1

24MHz

VCC VCC

GND GNDGND GND

1

2

3

U2

TC54VC3502ECB

C6

.1uF

C7

33pF

C8

33pF

VCC

GND

C5

10uF

2x PS/2

6

4

2

531

78

JP2

MDIN6_SH

L1

12uH

L2

12uH

PS2P1

PS2P2

SHIELD

PS2D1

PS2C2

PS2D2

GND

GND GND

C12

47pF

C13

47pF

C14

47pF

USAR GeniPS2TMUR3HCGNP-001

Preliminary

USAR GeniTMUSB IC family
product specifications

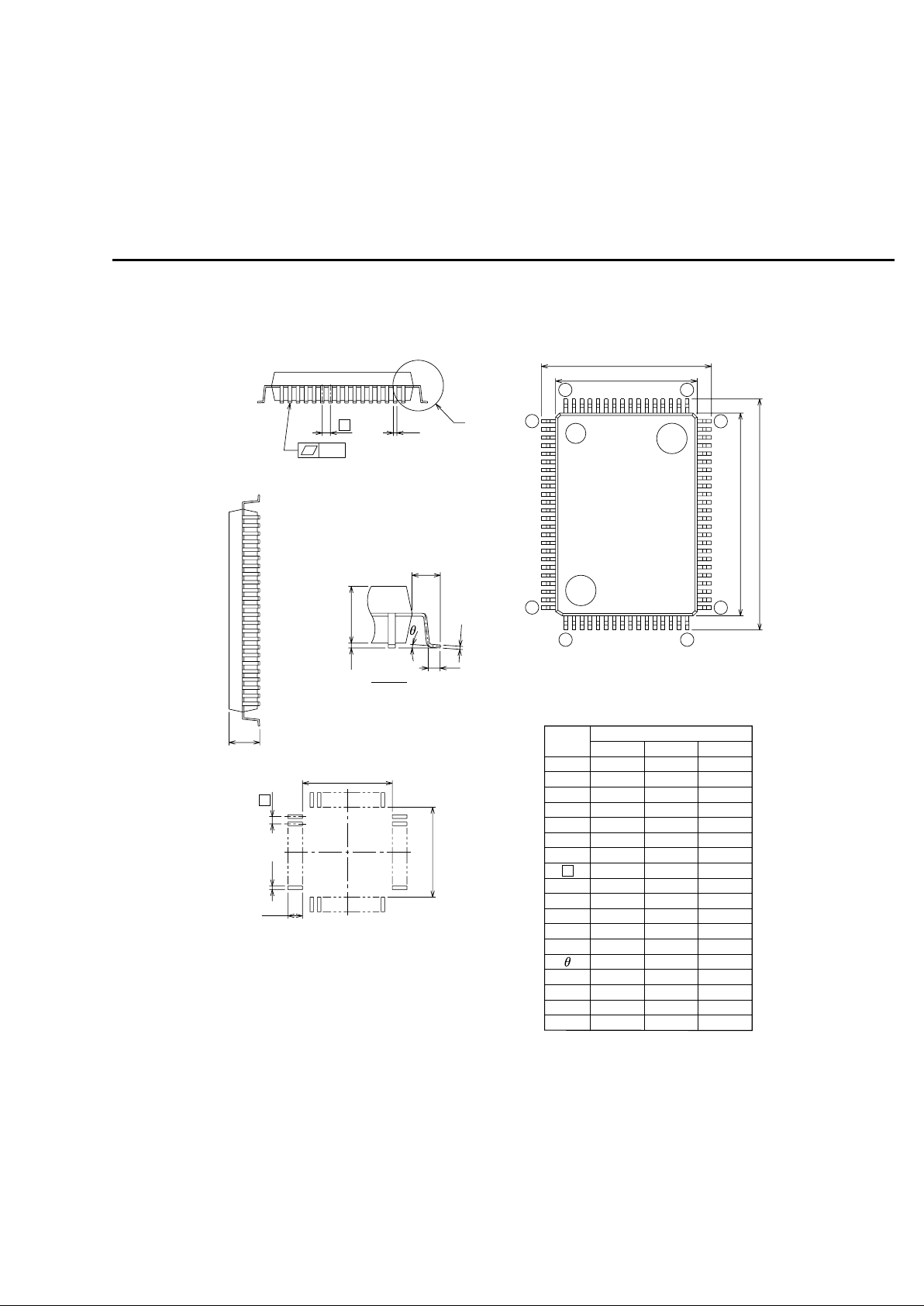

Mechanical Information for the USAR UR3GNP-001 Package

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

10

USAR –– A Semtech Company

E

H

E

1

80 65

40

64

41

25

24

H

D

D

A

c

A

1

A

2

L

1

L

Detail F

–

0.1

–
––

0.2

–

–

––

–
–

––

–

Symbol

Min Nom Max

A

A

2

b
c
D
E

H

E

L

L

1

y

b

2

Dimension in Millimeters

H

D

A

1

0.5

––

I

2

1.3

––

M

D

14.6

––

M

E

20.6

10¡0¡

0.1

1.4

0.80.60.4

23.122.822.5

17.116.816.5

0.8

20.220.019.8

14.214.013.8

0.20.150.13

0.450.350.3

2.8

0

3.05

e

Recommended Mount Pad

e

M

D

M

E

b

2

I

2

e

F

b

y

USAR GeniPS2TMUR3HCGNP-001

Preliminary

USAR GeniTMUSB IC family
product specifications

Electrical Specifications

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

11

USAR –– A Semtech Company

Absolute Maximum Ratings
Ratings Symbol Value Unit

Supply Voltage Vdd -0.3 to 7.0 V
Input Voltage Vin Vss -0.3 to Vdd +0.3 V
Input Voltage USB D+, D- Vin USB -0.5 to +3.8 V
Operating Temperature Ta T low to T high ° C
UR3HCGNP-001-RH -20 to +85 ° C
Storage Temperature Range Tstg -40 to +125 ° C

DC Electrical Characteristics, Temperature range=T low to T high unless otherwise noted)
Characteristic Symbol Min Typ Max Unit

Supply Voltage Vdd +4.15 +5 +5.25 V
Input High Voltage Vih 0.8Vdd V
Input Low Voltage Vil 0.2Vdd V
Peak Output Current Io -10 +10 mA
Average Output Current Io (avg) -5 +5 mA
Output Voltage (Ioh = -10mA) Voh Vdd-2.0

(Iol = 10 mA) Vol 2.0 V
Input Current Iin -5 +5 µA
Supply Current
(Vdd=5.0 Vdc+/-10%, Vss=0,
USB operating) Idd 70 90 mA
Supply Current
(Vdd=5.0 Vdc+/-10%, Vss=0,
USB suspended) Idd 200 250 µA

Control Timing (Vdd=5.0 Vdc +/-10%, Vss=0 Vdc, Temperature range=T low to T high unless otherwise noted)
Characteristic Symbol Min Typ Max Unit

Frequency of Operation fosc MHz

Crystal Option 24.0
External Clock Option 24.0

USAR GeniPS2TMUR3HCGNP-001

Preliminary

USAR GeniTMUSB IC family
product specifications

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

12

USAR –– A Semtech Company

USAR GeniPS2TMBill of Materials For Page 9 Schematic

UR3HCGNP-001-XX BOM
Description Quantity Manufacturer Part# Description
Capacitors:

C1, C7, C8 3 Generic Any 33pF, Ceramic, NPO/C0G
C2,C4, C6, C10 4 Generic Any .1uF, Ceramic, X7R
C3 1 Generic Any 2.2uF, Tantalum
C5 1 Generic Any 10uF, Tantalum
C9 1 Generic Any 680pF, Ceramic, NP0/C0G
C11,C12,C13,C14 4 Generic Any 47pF, Ceramic, NP0/C0G

ICs:

U1 1 USAR UR3GNP-001 USAR GeniPS2TMController
U2 1 Generic TC54VC3502ECB

Resistors:

R1,R2 2 Generic Any 33, 5%, 1/16W
R3 1 Generic Any 1.5k, 5%, 1/16W
R4 1 Generic Any 1.0k, 5%, 1/16W
R5, R6, R7, R8 4 Generic Any 10k, 5%, 1/16W

Resonator:

Y1 1 Generic Any 24MHz

Transistor:

Q1 1 Zetex BSS84ZXCT MOSFET_P Transistor, SMT, SOT-23

Connector:

J1 1 Generic Any Con_AMP_USB_B

Inductor:

L1, L2 2 Generic Any 12uH

Total # Comp 28

USAR GeniPS2TMUR3HCGNP-001

Preliminary

USAR GeniTMUSB IC family
product specifications

Page Intentionally Left Blank

USAR – A Semtech Company
Datasheet

DOC3-GNP-001-DS-101

13

USAR –– A Semtech Company

Description

For sales information
and product literature,
contact:

USAR – A Semtech Company
568 Broadway
New York, NY 10012

[e-mail]
http://www.usar.com

212 226 2042 Telephone
212 226 3215 Telefax

In Japan:
Semtech Japan
Tel: [phone]
Fax: [phone]

In Taiwan:
Semtech Asia/Pacific Sales
Tel: [phone]
Fax: [phone]

Koryo Electronics Co., Ltd.
Telephone [phone]
E-mail [e-mail]

In Korea:
Semtech Korea
Tel: [phone]
Fax: [phone]

In Europe
Semtech Limited
Tel: [phone]
Fax: [phone]

Copyright 1999-2000 USAR – A Semtech Company. All
rights reserved. Geni and GeniPS2 are trademarks of
USAR Systems, Inc. USAR and the USAR logo are
registered trademarks of USAR – A Semtech Company. All
other trademarks belong to their respective companies.

INTELLECTUAL PROPERTY DISCLAIMER
This specification is provided "as is" with no warranties
whatsoever including any warranty of merchantability,
fitness for any particular purpose, or any warranty
otherwise arising out of any proposal, specification or
sample.

A license is hereby granted to reproduce and distribute
this specification for internal use only. No other license,
expressed or implied to any other intellectual property
rights is granted or intended hereby. Authors of this
specification disclaim any liability, including liability for
infringement of proprietary rights, relating to the
implementation of information in this specification. Authors
of this specification also do not warrant or represent that
such implementation(s) will not infringe such rights.

A Semtech Company
