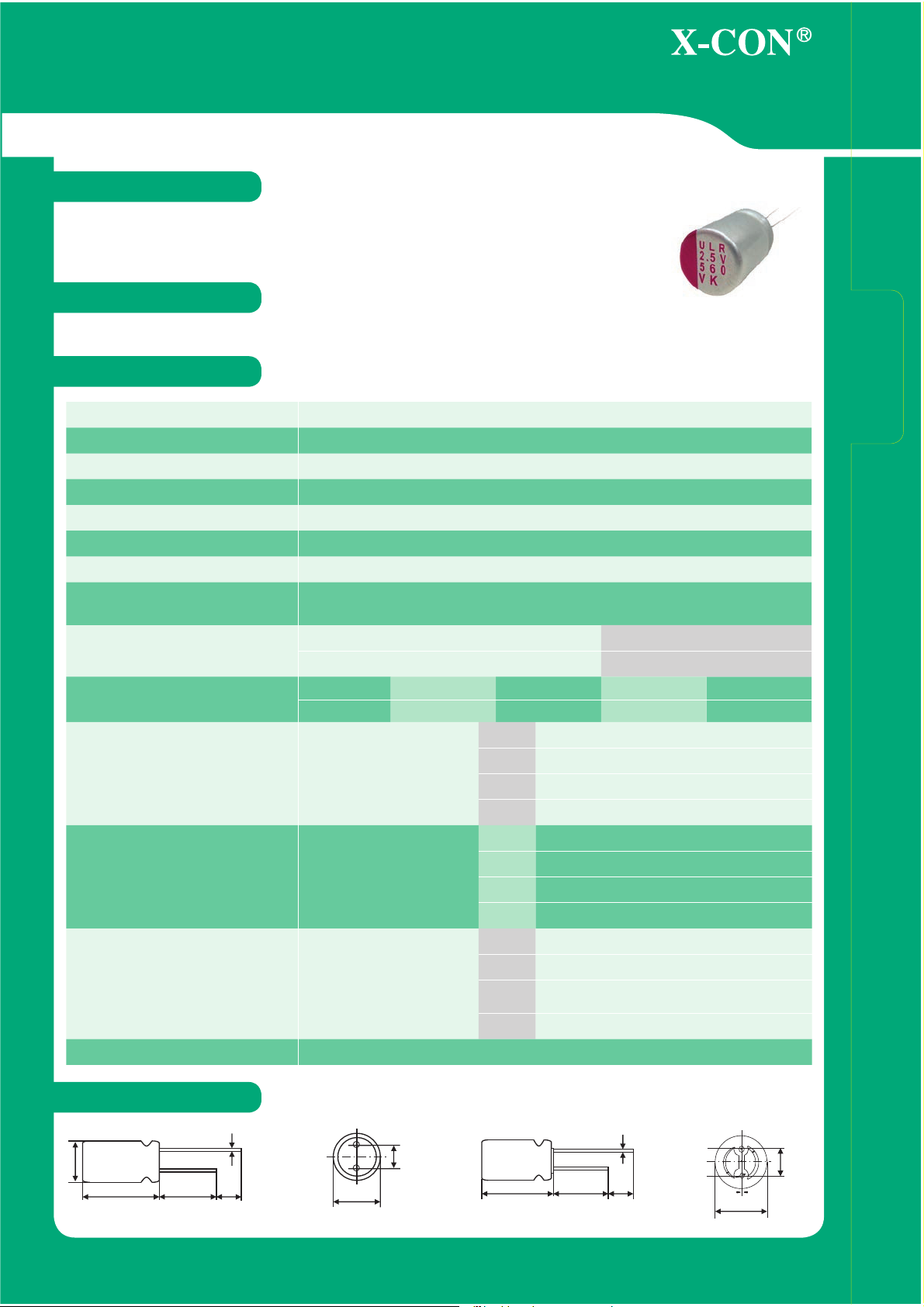

+105˚C, Higher Ripple Current, Lower ESR than ULG
- 15 -

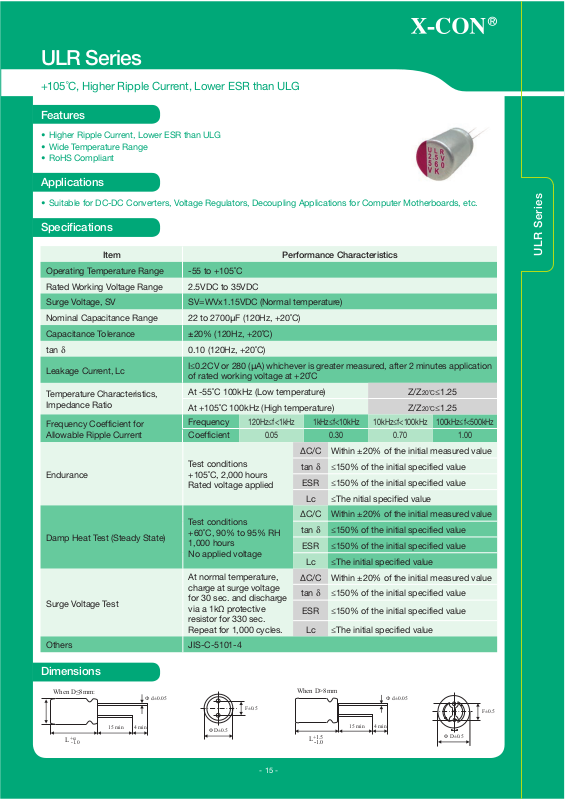

ULR Series
Features
• Higher Ripple Current, Lower ESR than ULG
• Wide Temperature Range
• RoHS Compliant
Applications
• Suitable for DC-DC Converters, Voltage Regulators, Decoupling Applications for Computer Motherboards, etc.
Specifications
Item Performance Characteristics
Operating Temperature Range -55 to +105˚C
Rated Working Voltage Range 2.5VDC to 35VDC
Surge Voltage, SV SV=WVx1.15VDC (Normal temperature)
Nominal Capacitance Range 22 to 2700μF (120Hz, +20˚C)
Capacitance Tolerance ±20% (120Hz, +20˚C)
tan δ 0.10 (120Hz, +20˚C)
Leakage Current, Lc
I≤0.2CV or 280 (μA) whichever is greater measured, after 2 minutes application
of rated work
ing voltage at +20˚C
Temperature Characteristics,
Impedance Ratio
At -55˚C 100kHz (Low temperature) Z/Z
20˚C≤1.25
At +105˚C 100kHz (High temperature) Z/Z
20˚C≤1.25
Frequency Coefficient for
Allowable Ripple Current
Frequency
120Hz≤f<1kHz 1kHz≤f<10kHz 10kHz≤f<100kHz 100kHz≤f<500kHz
Coefficient
0.05 0.30 0.70 1.00
Endurance
Test conditions
+105˚C, 2,000 hours
Rated voltage applied
∆C/C Within ±20% of the initial measured value
tan δ ≤150% of the initial specified value
ESR ≤150% of the initial specified value
Lc ≤The nitial specified value
Damp Heat Test (Steady State)
Test conditions
+60˚C, 90% to 95% RH
1,000 hours
No applied voltage
∆C/C Within ±20% of the initial measured value
tan δ ≤150% of the initial specifi
ed value
ESR ≤150% of the initial specified value
Lc ≤The initial specified value
Surge Voltage Test
At normal temperature,
charge at surge voltage
for 30 sec. and discharge
via a 1kΩ protective
resistor for 330 sec.
Repeat for 1,000 cycles.
∆C/C Within ±20% of the initial measured value
tan δ ≤150% of the initial specified value
ESR ≤150% of the initial specified value
Lc ≤The initial specified value
Other
s JIS-C-5101-4
Dimensions
ɎGɎG
PLQ
PLQ
:KHQ'PP
PLQ
PLQ
:KHQ'!PP
)
)
ĭ'
ĭ'
Į
/
/
ULR Series
Page 2
+105˚C, Higher Ripple Current, Lower ESR than ULG
- 16 -
Specifications are subject to change without notice. Should a safety or technical concern arise regarding the product, please be sure to
contact our sales offices or agents immediately.
ULR Series
Size List
New item | RV: Rated Voltage
RV
μF
Code 2.5 (0E) 4 (0G) 6.3 (0J) 10 (1A) 16 (1C) 20 (1D) 25 (1E) 35 (1V)
22 226 E08 E08
33 336 E08 E08 F08
47 476 E08 E08 F08 F08
100 107
E55
D09 , E06, E07 ,
E08, E11
F1A F1A G1B
150 157
C65 G1B
180 187
E08
F1A
220 227 E06
D07
, E06 , E08 E06, E07 , E08 E11, F08, F1A G1B
270 277 E08 D07 F08, F1A
E11
, F08, F1A
330 337
E08
D08 , D09 ,
E06, E08, F08
E08
, F1A
F07
, F08, F1A ,
G09
, G1B
G1B
390 397 E06
D09
, F08 F08, F1A
470 477 D09 E08, F08, F1A F08, F1A, G1B F1A, G1B
560 567
D08, D09,
E06, E08, F08
E08, F08, F1A E08, F08 F08, F1A
680 687
F08
F08, F1A E08, F08, F1A, G1B F1A, G1B G1B
820 827 E08, F08, F1A F08, F1A F08, F1A, G1B F1A G1B
1000 108
F08
, F09 , F1A F08, G1B
E1K
, F08 , F1A,
G1B
G1B G1B
1200 128
F08
F08, F1A , G1B F1A G1B
1500 158 F1A, G1B
F1A
, G1B
2700 278 G1B G1B
(Unit: mm)
Size
Code
C65 D07 D08 D09 E55 E06 E07 E08 E1K E11 F07 F08 F09 F1A G09 G1B
ΦDxL 4 x 6.5 5 x 7 5 x 8 5 x 9 6.3 x 5.5 6.3 x 6 6.3 x 7 6.3 x 8 6.3 x 10.5 6.3 x 11 8 x 7 8 x 8 8 x 9 8 x 11.5 10 x 9 10 x 12.5
F±0.5 2.0 2.0 2.0 2.0 2.5 2.5 2.5 2.5 2.5 2.5 3.5 3.5 3.5 3.5 5.0 5.0
Φd 0.45 0.5 0.6 0.6 0.45 0.45 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6
α1.0 1.5 1.0 1.5
Characteristics List
Rated
Vol.
(V)
Rated
Cap.
(μF)
Case
Size
ΦD x L (mm)
Size
Code
Part Number
ESR
(mΩ, max/
20˚C, 100kHz)
Rated Ripple
(mArms/
105˚C, 100kHz)
DF
(%max)
Leakage
Current
(μA/2 mins)
2.5 220 6.3 x 6 E06 ULR227M0EE06 15 3400 10 280
2.5 330 6.3 x 8 E08 ULR337M0EE08 7 4200 10 280
2.5 390 6.3 x 6 E06 ULR397M0EE06 15 3400 10 280
2.5 470 5 x 9 D09 ULR477M0ED09 7 4180 10 280
2.5 560 5 x 8 D08 ULR567M0ED08 7 4180 10 280
2.5 560 5 x 9 D09 ULR567M0ED09 7 4180 10 280
2.5 560 6.3 x 6 E06
ULR567M0EE06 15 3400 10 280
2.5 560 6.3 x 8 E08 ULR567M0EE08 7 4000 10 280
2.5 560 8 x 8 F08 ULR567M0EF08 7 6100 10 280
2.5 680 8 x 8 F08 ULR687M0EF08 7 6100 10 390
2.5 820 6.3 x 8 E08 ULR827M0EE08 7 5600 10 410
2.5 820 8 x 8 F08 ULR827M0EF08 7 6100 10 410
2.5 820 8 x 11.5 F1A ULR827M0EF1A 7 6100 10 410
2.5 1000 8 x 8 F08 ULR108M0EF08 7 6100 10 500
2.5 1000 8 x 9 F09 ULR108M0EF09 7 6100 10 500
ULR Series
Page 3
+105˚C, Higher Ripple Current, Lower ESR than ULG
- 17 -
Specifications are subject to change without notice. Should a safety or technical concern arise regarding the product, please be sure to
contact our sales offices or agents immediately.
ULR Series
Rated
Vol.
(V)
Rated
Cap.
(μF)
Case
Size
ΦD x L (mm)
Size
Code
Part Number
ESR
(mΩ, max/
20˚C, 100kHz)
Rated Ripple
(mArms/
105˚C, 100kHz)
DF
(%max)
Leakage
Current
(μA/2 mins)
2.5 1000 8 x 11.5 F1A ULR108M0EF1A 7 6100 10 500
2.5 1200 8 x 8 F08 ULR128M0EF08 7 6100 10 600
2.5 1500 8 x 11.5 F1A ULR158M0EF1A 7 6100 10 750
2.5 1500 10 x 12.5 G1B ULR158M0EG1B 7 6100 10 750
2.5 2700 10 x 12.5 G1B ULR278M0EG1B 8 5560 10 1350
4 270 6.3 x 8 E08 ULR277M0GE08 12 3200 10 280
4 56
0 6.3 x 8 E08 ULR567M0GE08 7 5600 10 448
4 560 8 x 8 F08 ULR567M0GF08 7 6100 10 448
4 560 8 x 11.5 F1A ULR567M0GF1A 7 6100 10 448
4 680 8 x 8 F08 ULR687M0GF08 7 6100 10 544
4 680 8 x 11.5 F1A ULR687M0GF1A 7 6100 10 544
4 820 8 x 8 F08 ULR827M0GF08 7 6100 10 656
4 820 8 x 11.5 F1A ULR827M0GF1A 7 6100 10 656
4 1000 8 x 8 F08 ULR108M0GF08 7 6100 10 800
4 1000 10 x 12.5 G1B ULR108M0GG1B 7 6640 10 800
4 1200 8 x 8 F08 ULR128M0GF08 7 6100 10 960
4 1200 8 x 11.5 F1A ULR128M0GF1A 7 6100 10 960
4 1200 10
x 12.5 G1B ULR128M0GG1B 8 5600 10 960
4 2700 10 x 12.5 G1B ULR278M0GG1B 8 6900 10 2160
6.3 100 6.3 x 5.5 E55 ULR107M0JE55 80 1200 10 280
6.3 150 4 x 6.5 C65 ULR157M0JC65 100 2000 10 280
6.3 220 5 x 7 D07 ULR227M0JD07 11 3700 10 280
6.3 220 6.3 x 6 E06 ULR227M0JE06 20 3160 10 280
6.3 220 6.3 x 8 E08 ULR227M0JE08 20 2160 10 280
6.3 270 5 x 7 D07 ULR277M0JD07 11 3700 10 340
6.3 330 5 x 8 D08 ULR337M0JD08 12 2900 10 416
6.3 330 5 x 9 D09 ULR337M0JD09 11 3100 10 416
6.3 330 6.3 x 6 E06 ULR33
7M0JE06 20 3160 10 416
6.3 330 6.3 x 8 E08 ULR337M0JE08 10 4500 10 416
6.3 330 8 x 8 F08 ULR337M0JF08 8 5700 10 416
6.3 390 5 x 9 D09 ULR397M0JD09 11 3100 10 492
6.3 390 8 x 8 F08 ULR397M0JF08 8 5700 10 492
6.3 470 6.3 x 8 E08 ULR477M0JE08 8 4700 10 592
6.3 470 8 x 8 F08 ULR477M0JF08 8 5700 10 593
6.3 470 8 x 11.5 F1A ULR477M0JF1A 7 6100 10 592
6.3 560 6.3 x 8 E08 ULR567M0JE08 8 4700 10 706
6.3 560 8 x 8 F08 ULR567M0JF08 8 5700 10 706
6.3 680 6.3 x 8 E08 ULR687M0JE08 8 4700 10 857
6.3 680 8 x
8 F08 ULR687M0JF08 8 5700 10 857
6.3 680 8 x 11.5 F1A ULR687M0JF1A 7 6100 10 857
6.3 680 10 x 12.5 G1B ULR687M0JG1B 7 6640 10 857
6.3 820 8 x 8 F08 ULR827M0JF08 7 6100 10 1033
6.3 820 8 x 11.5 F1A ULR827M0JF1A 7 6100 10 1033
6.3 820 10 x 12.5 G1B ULR827M0JG1B 7 6640 10 1033
6.3 1000 6.3 x 10.5 E1K ULR108M0JE1K 8 4700 10 1260
6.3 1000 8 x 8 F08 ULR108M0JF08 7 6100 10 1260
6.3 1000 8 x 11.5 F1A ULR108M0JF1A 7 6100 10 1260
6.3 1000 10 x 12.5 G1B ULR108M0JG1B 10 5500 10 1260
6.3 1200 8 x
11.5 F1A ULR128M0JF1A 7 6100 10 1512
6.3 1500 8 x 11.5 F1A ULR158M0JF1A 10 4500 10 1890
6.3 1500 10 x 12.5 G1B ULR158M0JG1B 10 5560 10 1890
10 22 6.3 x 8 E08 ULR226M1AE08 45 1870 10 280
10 33 6.3 x 8 E08 ULR336M1AE08 35 2000 10 280
10 47 6.3 x 8 E08 ULR476M1AE08 32 2100 10 280
10 180 6.3 x 8 E08 ULR187M1AE08 25 2820 10 360
10 220 6.3 x 6 E06 ULR227M1AE06 15 2700 10 440
10 220 6.3 x 7 E07 ULR227M1AE07 15 2700 10 440
ULR Series
Page 4
ULR Series
Rated
Vol.
(V)
Rated
Cap.
(μF)
Case
Size
ΦD x L (mm)
Size
Code
Part Number
ESR
(mΩ, max/
20˚C, 100kHz)
Rated Ripple
(mArms/
105˚C, 100kHz)
DF
(%max)
Leakage
Current
(μA/2 mins)
10 220 6.3 x 8 E08 ULR227M1AE08 12 3200 10 440
10 270 8 x 8 F08 ULR277M1AF08 14 4420 10 540
10 270 8 x 11.5 F1A ULR277M1AF1A 11 5100 10 540
10 330 6.3 x 8 E08 ULR337M1AE08 10 3500 10 660
10 330 8 x 11.5 F1A ULR337M1AF1A 17 3950 10 660
10 390 8 x 8 F08 ULR397M1AF08 11 5000 10 780
10 390 8 x 11.5 F
1A ULR397M1AF1A 9 6100 10 780
10 470 8 x 8 F08 ULR477M1AF08 11 5000 10 940
10 470 8 x 11.5 F1A ULR477M1AF1A 9 5650 10 940
10 470 10 x 12.5 G1B ULR477M1AG1B 8 6100 10 940
10 560 8 x 8 F08 ULR567M1AF08 9 5600 10 1120
10 560 8 x 11.5 F1A ULR567M1AF1A 9 5650 10 1120
10 680 8 x 11.5 F1A ULR687M1AF1A 10 5800 10 1360
10 680 10 x 12.5 G1B ULR687M1AG1B 8 6100 10 1360
10 820 8 x 11.5 F1A ULR827M1AF1A 8 6100 10 1640
10 1000 10 x 12.5 G1B ULR108M1AG1B 9 6100 10 2000
10 1200 10 x 12.5 G1B ULR128M1AG
1B 8 6200 10 2400
16 47 6.3 x 8 E08 ULR476M1CE08 60 458 10 280
16 100 5 x 9 D09 ULR107M1CD09 24 2820 10 320
16 100 6.3 x 6 E06 ULR107M1CE06 25 2700 10 320
16 100 6.3 x 7 E07 ULR107M1CE07 24 2820 10 320
16 100 6.3 x 8 E08 ULR107M1CE08 24 2820 10 320
16 100 6.3 x 11 E11 ULR107M1CE11 24 2820 10 320
16 180 8 x 11.5 F1A ULR187M1CF1A 13 5000 10 576
16 220 6.3 x 11 E11 ULR227M1CE11 20 3100 10 704
16 220 8 x 8 F08 ULR227M1CF08 13 4300 10 704
16 220 8 x 11.5 F1A ULR227M1CF1A 13 5000 10 704
16 270 6.3
x 11 E11 ULR277M1CE11 20 3100 10 864
16 270 8 x 8 F08 ULR277M1CF08 13 4300 10 864
16 270 8 x 11.5 F1A ULR277M1CF1A 13 5000 10 864
16 330 8 x 7 F07 ULR337M1CF07 13 4300 10 1056
16 330 8 x 8 F08 ULR337M1CF08 13 4300 10 1056
16 330 8 x 11.5 F1A ULR337M1CF1A 10 5800 10 1056
16 330 10 x 9 G09 ULR337M1CG09 13 4300 10 1056
16 330 10 x 12.5 G1B ULR337M1CG1B 10 6100 10 1056
16 470 8 x 11.5 F1A ULR477M1CF1A 11 5100 10 1504
16 470 10 x 12.5 G1B ULR477M1CG1B 10 6100 10 1504
16 680 10 x 12.5 G1B ULR6
87M1CG1B 10 6100 10 2176
16 820 10 x 12.5 G1B ULR827M1CG1B 10 6100 10 2624
16 1000 10 x 12.5 G1B ULR108M1CG1B 10 6100 10 3200
20 33 6.3 x 8 E08 ULR336M1DE08 35 2000 10 280
20 47 8 x 8 F08 ULR476M1DF08 33 2100 10 280
20 100 8 x 11.5 F1A ULR107M1DF1A 32 2750 10 400
20 150 10 x 12.5 G1B ULR157M1DG1B 28 2900 10 600
25 22 6.3 x 8 E08 ULR226M1EE08 45 1870 10 280
25 33 8 x 8 F08 ULR336M1EF08 40 2050 10 280
25 47 8 x 8 F08 ULR476M1EF08 36 2100 10 280
25 100 8 x 11.5 F1A ULR107M1EF1A 32 2750 10 500
25 330 10 x 12.5 G1B ULR337M1EG1B 45 2700 10 1650
35 100 10 x 12.5 G1B ULR107M1VG1B 60 2000 10 700
35 220 10 x 12.5 G1B ULR227M1VG1B 50 2500 10 1540
ULR Series
+105˚C, Higher Ripple Current, Lower ESR than ULG
Specifications are subject to change without notice. Should a safety or technical concern arise regarding the product, please be sure to
contact our sales offices or agents immediately.
- 18 -
