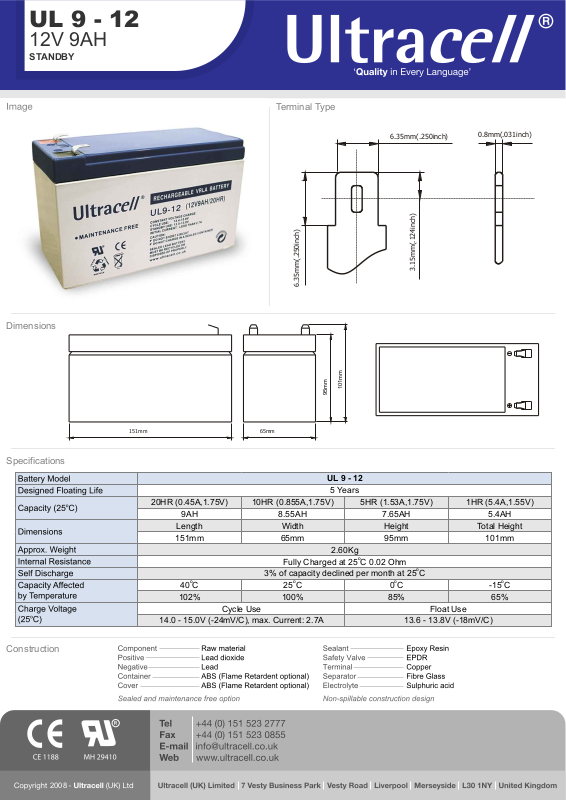

Page 1
UL 9 - 12
12V 9AH
STANDBY
Terminal Type
Dimensions
6.35mm(.250inch)
3.15mm(.124inch)
6.35mm(.250inch)
101mm
95mm
0.8mm(.031inch)
Specifications
Construction
65mm151mm
UL 9 - 12
5 Years
20HR (0.45A,1.75V) 10HR (0.855A,1.75V) 5HR (1.53A,1.75V) 1HR (5.4A,1.55V)
9AH 8.55AH 7.65AH 5.4AH
Length Width Height Total Height
151mm 65mm 95mm 101mm
2.60Kg
Fully Charged at 25
o
40
C 25oC 0oC -15oC
102%
Cycle Use
14.0 - 15.0V (-24mV/C), max. Current: 2.7A
3% of capacity declined per month at 25
100% 85% 65%
o
C 0.02 Ohm
o
C
Float Use
13.6 - 13.8V (-18mV/C)
2008 2008
Page 2
UL 9 - 12
12V 9AH
STANDBY
Charge Characteristic
Ch arge
Ch arge
Cu rr en t
Ca pa ci ty
%) (CA) (V)
(
120
100
80
0.25
0.20
60
0.15
40
0.10
20
0.05
0
0
Vol ta ge
Ch ar ge
14
13
12
11
0 2
Constant Charge At 0.25CA-13.8V (25 )
Charge
Voltage
Time(hour)
Relationship of OCV and state of charge
13.5
13.0
12.5
12.0
Battery Voltage (V)
11.5
11.0
10 20 30 40 50 60 70 80 90 100
0
Remained Capacity(%)
o
C
Charge
Capacity
100%Discharge
50%Discharge
Charge Current
84 6 10 12
Discharge Characteristic 25oC
13
12
11
10
9
8
Discharge Voltage (V)
0 2 6 12 30 60 3 10 20
Min
Self Discharge Characteristics
110
105
100
95
90
85
80
75
70
65
Capacity (%)
60
55
50
o
40 C
45
40
1
0
2
3
o
30 C
4
5
9
7
8
6
Storage time:months
o
20 C
10
12
11
16
1413
15
Hour
1817
19
20
Constant Current Discharge Ratings - amperes at 25oC
35.5 21.8 16.5 10.1 5.40 2.81 1.66 0.92 0.51
32.9 20.9 16.0 9.65 5.35 2.38 1.62 0.90 0.47
30.4 20.0 15.5 8.75 5.15 2.25 1.58 0.88 0.46
30.1 19.4 15.0 8.33 5.04 2.20 1.53 0.86 0.45
26.6 18.5 14.0 7.72 4.70 2.14 1.51 0.85 0.45
23.6 17.6 12.2 7.07 4.55 2.11 1.50 0.67 0.44
o
Constant Power Discharge Ratings - watts at 25
72.0 46.8 36.0 20.9 11.7 4.55 3.10 1.75 0.92
69.7 45.7 35.5 20.5 11.6 4.54 3.08 1.75 0.92
66.8 45.0 34.6 20.2 11.4 4.50 3.07 1.73 0.91
62.8 43.2 33.5 19.6 11.3 4.46 3.06 1.73 0.91
54.5 40.0 32.0 19.1 10.9 4.37 3.03 1.69 0.90
51.5 37.0 30.6 18.2 10.7 4.30 3.00 1.69 0.90
C
