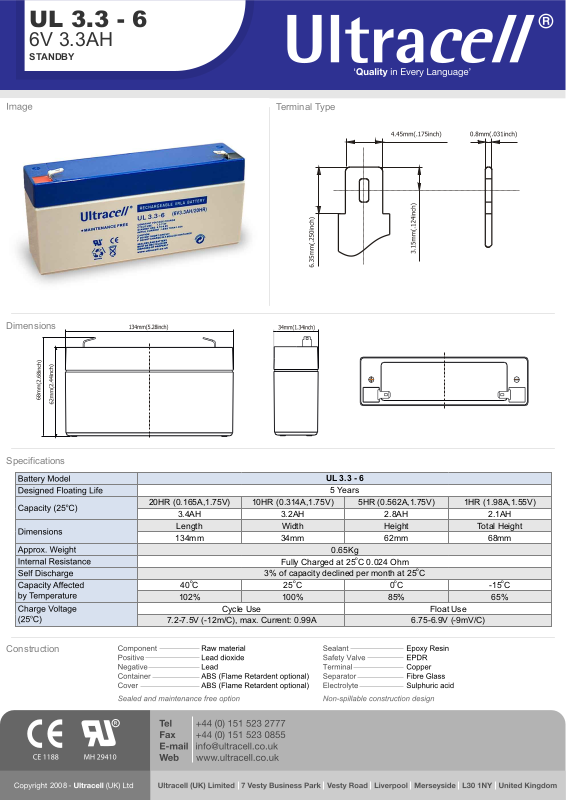

Page 1
UL 3.3 - 6
6V 3.3AH
STANDBY
AWAITING
Terminal Type
Dimensions
Specifications
UL 3.3 - 6
5 Years
20HR (0.165A,1.75V) 10HR (0.314A,1.75V) 5HR (0.562A,1.75V) 1HR (1.98A,1.55V)
3.4AH 3.2AH 2.8AH 2.1AH
Length Width Height Total Height
134mm 34mm 62mm 68mm
0.65Kg
Fully Charged at 25
o
40
C 25oC 0oC -15oC
102%
Cycle Use
7.2-7.5V (-12m/C), max. Current: 0.99A
3% of capacity declined per month at 25
100% 85% 65%
o
C 0.024 Ohm
o
C
Float Use
6.75-6.9V (-9mV/C)
Construction
2008 2008
Page 2
UL 3.3 - 6
6V 3.3AH
STANDBY
Charge Characteristic
Ch arge
Ca pa ci ty
Ch arge
Cu rr en t
Ch ar ge
Vol ta ge
%) (CA) (V)
(
120
100
80
0.25
0.20
60
0.15
40
0.10
20
0.05
0
0
7.0
6.5
6.0
5.5
Constant Charge At 0.25CA-6.9V (25 )
Charge
Voltage
0 2
Time(hour)
Relationship of OCV and state of charge
6.7
6.5
6.3
6.1
Battery Voltage (V)
5.9
5.7
10 20 30 40 50 60 70 80 90 100
0
Remained Capacity(%)
o
C
Charge
Capacity
100%Discharge
50%Discharge
Charge Current
84 6 10 12
Discharge Characteristic 25oC
6.5
6.0
5.5
5.0
4.5
4.0
Discharge Voltage (V)
1CA 0.6CA
0.25CA
0 2 6 12 30 60 3 10 20
Min
Hour
Self Discharge Characteristics
110
105
100
95
90
85
80
75
70
65
Capacity (%)
60
55
50
45
40
o
40 C
1
0
32
4
o
30 C
9
5
6
10
7
8
o
20 C
16
12
11
151413
Storage time:months
0.1CA 0.05CA
19
20
1817
Constant Current Discharge Ratings - amperes at 25oC
12.7 7.79 5.88 3.54 1.98 1.00 0.62 0.35 0.19
11.9 7.58 5.67 3.48 1.97 0.92 0.61 0.35 0.18
11.0 7.28 5.54 3.33 1.97 0.83 0.58 0.33 0.18
10.8 6.88 5.41 2.98 1.89 0.82 0.57 0.33 0.17
9.48 6.59 4.86 2.78 1.87 0.80 0.54 0.32 0.17
8.37 6.28 4.38 2.61 1.86 0.79 0.51 0.32 0.17
o
Constant Power Discharge Ratings - watts at 25
23.48 16.52 12.58 7.63 3.99 1.79 1.18 0.67 0.37
23.48 16.30 12.35 7.56 3.96 1.69 1.17 0.67 0.37
22.44 15.88 11.92 7.46 3.93 1.68 1.17 0.66 0.37
21.45 15.42 11.59 7.30 3.90 1.66 1.16 0.66 0.37
21.42 14.58 10.94 6.97 3.83 1.62 0.13 0.65 0.36
21.37 14.42 10.90 6.62 3.87 1.59 0.12 0.65 0.36
C
