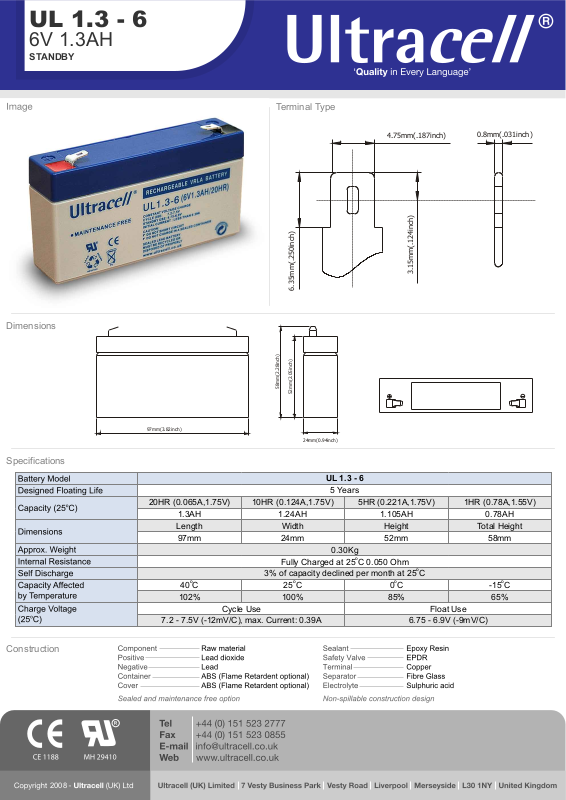

Page 1
UL 1.3 - 6
6V 1.3AH
STANDBY
Terminal Type
Dimensions
4.75mm(.187inch)
3.15mm(.124inch)
6.35mm(.250inch)
58mm(2.28inch)
52mm(2.05inch)
0.8mm(.031inch)
Specifications
Construction
97mm(3.82inch)
24mm(0.94inch)
UL 1.3 - 6
5 Years
20HR (0.065A,1.75V) 10HR (0.124A,1.75V) 5HR (0.221A,1.75V) 1HR (0.78A,1.55V)
1.3AH 1.24AH 1.105AH 0.78AH
Length Width Height Total Height
97mm 24mm 52mm 58mm
0.30Kg
Fully Charged at 25
o
40
C 25oC 0oC -15oC
102%
3% of capacity declined per month at 25
100% 85% 65%
Cycle Use
7.2 - 7.5V (-12mV/C), max. Current: 0.39A
o
C 0.050 Ohm
o
C
Float Use
6.75 - 6.9V (-9mV/C)
2008 2008
Page 2
UL 1.3 - 6
6V 1.3AH
STANDBY
Charge Characteristic
Ch arg
Ch arg
Ca pa c
Cu rr en
Ch arg
Vol ta g
%) (CA) (V)
(
120
100
80
0.25
0.20
60
0.15
40
0.10
20
0.05
0
0
7.0
6.5
6.0
5.5
Constant Charge At 0.25CA-6.9V (25 )
Charge
Voltage
0 2
Time(hour)
Relationship of OCV and state of charge
6.7
6.5
6.3
6.1
Battery Voltage (V)
5.9
5.7
10 20 30 40 50 60 70 80 90 100
0
Remained Capacity(%)
o
C
Charge
Capacity
100%Discharge
50%Discharge
Charge Current
84 6 10 12
Discharge Characteristic 25oC
6.5
6.0
5.5
5.0
4.5
4.0
Discharge Voltage (V)
1CA 0.6CA
0.25CA
0 2 6 12 30 60 3 10 20
Min
Self Discharge Characteristics
110
105
100
95
90
85
80
75
70
65
Capacity (%)
60
55
50
45
40
o
40 C
1
0
32
4
o
30 C
9
5
6
10
7
8
o
20 C
16
1413
12
11
15
Storage time:months
0.1CA 0.05CA
Hour
19
1817
20
Constant Current Discharge Ratings - amperes at 25oC
5.09 3.18 2..39 1.47 0.94 0.42 0.26 0.14 0.07
4.79 3.01 2.30 1.41 0.93 0.40 0.25 0.14 0.07
4.39 2.90 2.26 1.28 0.90 0.37 0.24 0.14 0.07
4.29 2.81 2.19 1.22 0.86 0.36 0.23 0.14 0.07
3.84 2.68 1.98 1.16 0.82 0.35 0.22 0.13 0.07
3.38 2.57 1.78 1.04 0.75 0.34 0.21 0.13 0.06
o
Constant Power Discharge Ratings - watts at 25
9.63 6.27 5.83 2.79 1.61 0.73 0.45 0.28 0.16
9.33 6.16 4.49 2.76 1.57 0.72 0.44 0.28 0.16
8.93 6.00 4.63 2.73 1.55 0.70 0.44 0.28 0.16
8.39 5.79 4.49 2.69 1.53 0.71 0.43 0.27 0.16
8.06 5.37 4.29 2.56 1.48 0.65 0.43 0.26 0.15
8.01 5.34 4.24 2.51 1.44 0.63 0.42 0.26 0.15
C
