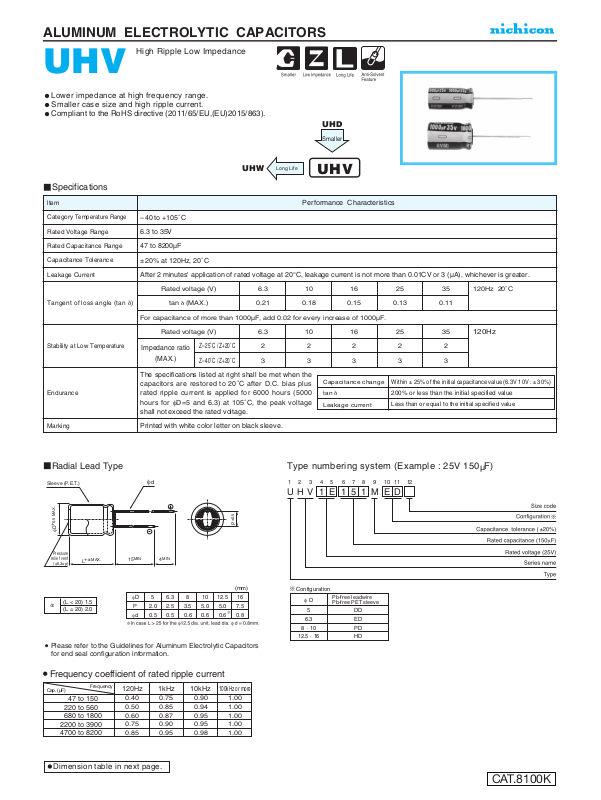

Datasheet UHV series Specification

ALUMINUM ELECTROLYTIC CAPACITORS

ALUMINUM ELECTROLYTIC CAPACITORS

UHV

Rated Voltage

（V）

（code）

Rated

Capacitance

（µF）

Case Size

φD×L（mm）

tan δ

Leakage Current

（µA）

Impedance（Ω）

MAX.

Rated Ripple

（mArms）

（105℃/100kHz）

Part Number

（

at 20℃ after

2 minutes

）

20℃/

100kHz

－10℃/
100kHz

6.3

（0J）

220 5×11 0.21 13.86 0.23 0.76 360 UHV0J221MDD

330 6.3×11 0.21 20.79 0.10 0.33 460 UHV0J331MED

470 6.3×11 0.21 29.61 0.10 0.33 550 UHV0J471MED

680 8×11.5 0.21 42.84 0.059 0.181 900 UHV0J681MPD

820 8×11.5 0.21 51.66 0.059 0.181 990 UHV0J821MPD

1000 10×12.5 0.21 63 0.043 0.133 1250 UHV0J102MPD

1200 10×12.5 0.21 75.6 0.043 0.133 1360 UHV0J122MPD

1200 8×15 0.21 75.6 0.046 0.143 1330 UHV0J122MPD6

1500 8×20 0.21 94.5 0.031 0.105 1550 UHV0J152MPD

1800 10×16 0.21 113.4 0.030 0.095 1815 UHV0J182MPD

2200 10×20 0.23 138.6 0.019 0.057 2160 UHV0J222MPD

2700 10×25 0.23 170.1 0.017 0.051 2475 UHV0J272MPD

3300 12.5×20 0.25 207.9 0.016 0.041 2500 UHV0J332MHD

3900 12.5×20 0.25 245.7 0.016 0.041 2725 UHV0J392MHD

4700 12.5×25 0.27 296.1 0.014 0.036 3190 UHV0J472MHD

5600 12.5×31.5 0.29 352.8 0.012 0.031 3795 UHV0J562MHD

6800 12.5×35.5 0.31 428.4 0.011 0.029 3925 UHV0J682MHD

6800 16×20 0.31 428.4 0.014 0.036 3575 UHV0J682MHD6

8200 16×25 0.35 516.6 0.012 0.033 3990 UHV0J822MHD

10

（1A）

150 5×11 0.18 15 0.23 0.76 360 UHV1A151MDD

220 6.3×11 0.18 22 0.10 0.33 450 UHV1A221MED

330 6.3×11 0.18 33 0.10 0.33 550 UHV1A331MED

470 8×11.5 0.18 47 0.059 0.181 820 UHV1A471MPD

680 8×11.5 0.18 68 0.059 0.181 990 UHV1A681MPD

820 10×12.5 0.18 82 0.043 0.133 1250 UHV1A821MPD

1000 10×12.5 0.18 100 0.043 0.133 1360 UHV1A102MPD

1000 8×15 0.18 100 0.046 0.143 1330 UHV1A102MPD6

1200 10×16 0.18 120 0.030 0.095 1650 UHV1A122MPD

1500 10×16 0.18 150 0.030 0.095 1815 UHV1A152MPD

1500 8×20 0.18 150 0.031 0.105 1550 UHV1A152MPD6

1800 10×20 0.18 180 0.019 0.057 2160 UHV1A182MPD

2200 10×25 0.2 220 0.017 0.051 2475 UHV1A222MPD

2700 12.5×20 0.2 270 0.016 0.041 2475 UHV1A272MHD

3300 12.5×20 0.22 330 0.016 0.041 2725 UHV1A332MHD

3900 12.5×25 0.22 390 0.014 0.036 3190 UHV1A392MHD

4700 12.5×31.5 0.24 470 0.012 0.031 3795 UHV1A472MHD

4700 16×20 0.24 470 0.014

0.036 3575

UHV1A472MHD6

5600 12.5×35.5 0.26 560 0.011 0.029 3975 UHV1A562MHD

6800 16×25 0.28 680 0.012 0.033 3990 UHV1A682MHD

■

Dimensions

For cut leads, formed leads or taped parts, please add the appropriate code after the size code (12th digit ).
If there is no size code in the part number, please add size code “1” and then add the appropriate code.

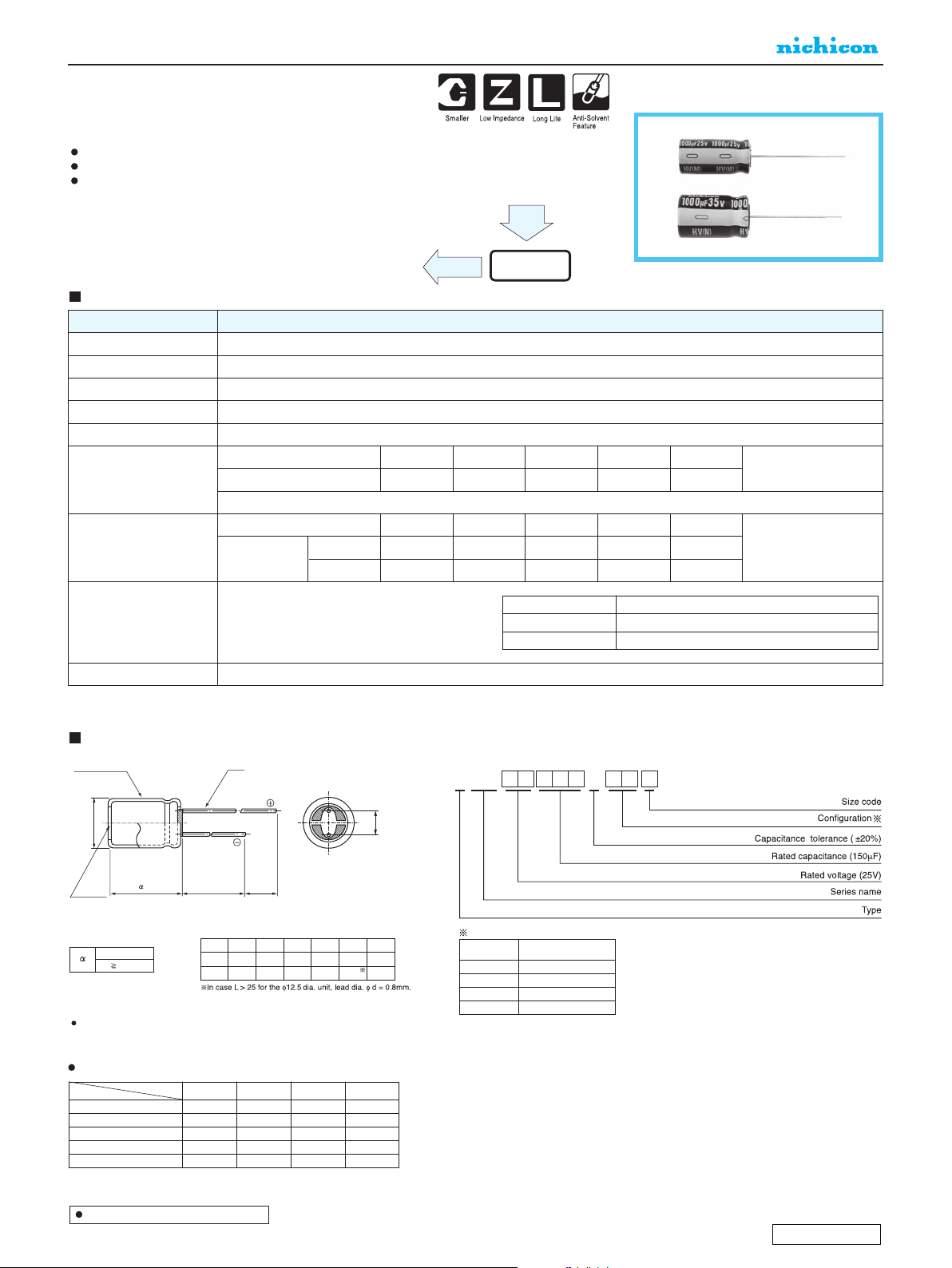

High Ripple Low Impedance

UHV

Lower impedance at high frequency range.
Smaller case size and high ripple current.
Compliant to the RoHS directive (2011/65/EU,(EU)2015/863).

UHW

6.3 10 16 25 35

0.21 0.18 0.15 0.13 0.11

6.3 10 16 25 35

2 2 2 2 2

3 3 3 3 3

˚C after D.C. bias plus

˚C, the peak voltage

Specifications

ltem

Category

Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Tangent of loss angle (tan δ)

Stability at Low Temperature

Endurance

Marking

–40 to +105˚C

6.3 to 35V

47 to 8200µF

± 20% at 120Hz, 20˚C

After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01CV or 3 (µA), whichever is greater.

Rated voltage (V)

tan

δ

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Impedance ratio

The specifications listed at right shall be met when the
capacitors are restored to 20
rated ripple current is applied for 6000 hours (5000
hours for φD=5 and 6.3) at 105
shall not exceed the rated voltage.

Printed with white color letter on black sleeve.

(MAX.)

Rated voltage (V)

(MAX.)

Z–25˚C / Z+20˚C

Z–40˚C / Z+20˚C

Radial Lead Type

Sleeve (P.E.T.

)

φd

0.5 MAX.

+

φD

±0.5

P

Pressure

relief vent

(φ6.3up)

(L < 20) 1.5
(L 20) 2.0

L

+

MAX.

MIN

15

MIN

4

φD

5

2.0

0.5

6.3

2.5

0.5 0.6

P

φd

10

8

5.0

3.5

0.6

(mm)

12.5

5.0167.5

0.6 0.8

Please refer to the Guidelines for Aluminum Electrolytic Capacitors

for end seal configuration information.

Frequency coefficient of rated ripple current

Cap. (µF)

47 to 150
220 to 560
680 to 1800
2200 to 3900
4700 to 8200

Frequency

120Hz 1kHz 10kHz

0.40

0.50

0.60

0.75

0.85

0.75

0.85

0.87

0.90

0.95

0.90

0.94

0.95

0.95

0.98

100kHz or more

1.00

1.00

1.00

1.00

1.00

Long Life

UHV

Performance Characteristics

Type numbering system (Example : 25V 150µF)

U1H2V314E5165718M9E10D

Configuration

φ D

5

6.3 ED

8 · 10 PD

12.5 · 16 HD

UHD

Smaller

Capacitance change

tan δ

Leakage current

Pb-free leadwire
Pb-free PET sleeve

DD

Approved by Reliability Center for Electronic
Component, Japan-Certification No. RCJ-03-23C

120Hz 20˚C

120Hz

Within ± 25% of the initial capacitance value (6.3V 10V : ± 30%)

200% or less than the initial specified value

Less than or equal to the initial specified value

11 12

Dimension table in next page.

CAT.8100K

ALUMINUM ELECTROLYTIC CAPACITORS

UHV

■

Dimensions

Impedance（Ω）

20℃/

）

100kHz

MAX.

－10℃/
100kHz

Rated Voltage

（V）

（code）

6.3

（0J）

10

（1A）

For cut leads, formed leads or taped parts, please add the appropriate code after the size code (12th digit ).
If there is no size code in the part number, please add size code “1” and then add the appropriate code.

Rated

Capacitance

（µF）

220 5×11 0.21 13.86 0.23 0.76 360 UHV0J221MDD

330 6.3×11 0.21 20.79 0.10 0.33 460 UHV0J331MED

470 6.3×11 0.21 29.61 0.10 0.33 550 UHV0J471MED

680 8×11.5 0.21 42.84 0.059 0.181 900 UHV0J681MPD

820 8×11.5 0.21 51.66 0.059 0.181 990 UHV0J821MPD

1000 10×12.5 0.21 63 0.043 0.133 1250 UHV0J102MPD

1200 10×12.5 0.21 75.6 0.043 0.133 1360 UHV0J122MPD

1200 8×15 0.21 75.6 0.046 0.143 1330 UHV0J122MPD6

1500 8×20 0.21 94.5 0.031 0.105 1550 UHV0J152MPD

1800 10×16 0.21 113.4 0.030 0.095 1815 UHV0J182MPD

2200 10×20 0.23 138.6 0.019 0.057 2160 UHV0J222MPD

2700 10×25 0.23 170.1 0.017 0.051 2475 UHV0J272MPD

3300 12.5×20 0.25 207.9 0.016 0.041 2500 UHV0J332MHD

3900 12.5×20 0.25 245.7 0.016 0.041 2725 UHV0J392MHD

4700 12.5×25 0.27 296.1 0.014 0.036 3190 UHV0J472MHD

5600 12.5×31.5 0.29 352.8 0.012 0.031 3795 UHV0J562MHD

6800 12.5×35.5 0.31 428.4 0.011 0.029 3925 UHV0J682MHD

6800 16×20 0.31 428.4 0.014 0.036 3575 UHV0J682MHD6

8200 16×25 0.35 516.6 0.012 0.033 3990 UHV0J822MHD

150 5×11 0.18 15 0.23 0.76 360 UHV1A151MDD

220 6.3×11 0.18 22 0.10 0.33 450 UHV1A221MED

330 6.3×11 0.18 33 0.10 0.33 550 UHV1A331MED

470 8×11.5 0.18 47 0.059 0.181 820 UHV1A471MPD

680 8×11.5 0.18 68 0.059 0.181 990 UHV1A681MPD

820 10×12.5 0.18 82 0.043 0.133 1250 UHV1A821MPD

1000 10×12.5 0.18 100 0.043 0.133 1360 UHV1A102MPD

1000 8×15 0.18 100 0.046 0.143 1330 UHV1A102MPD6

1200 10×16 0.18 120 0.030 0.095 1650 UHV1A122MPD

1500 10×16 0.18 150 0.030 0.095 1815 UHV1A152MPD

1500 8×20 0.18 150 0.031 0.105 1550 UHV1A152MPD6

1800 10×20 0.18 180 0.019 0.057 2160 UHV1A182MPD

2200 10×25 0.2 220 0.017 0.051 2475 UHV1A222MPD

2700 12.5×20 0.2 270 0.016 0.041 2475 UHV1A272MHD

3300 12.5×20 0.22 330 0.016 0.041 2725 UHV1A332MHD

3900 12.5×25 0.22 390 0.014 0.036 3190 UHV1A392MHD

4700 12.5×31.5 0.24 470 0.012 0.031 3795 UHV1A472MHD

4700 16×20 0.24 470 0.014 0.036 3575

5600 12.5×35.5 0.26 560 0.011 0.029 3975 UHV1A562MHD

6800 16×25 0.28 680 0.012 0.033 3990 UHV1A682MHD

Case Size

φD×L（mm）

tan δ

Leakage Current

（µA）

at 20℃ after

（

2 minutes

Rated Ripple

（mArms）

（105℃/100kHz）

Part Number

UHV1A472MHD6

CAT.8100K

ALUMINUM ELECTROLYTIC CAPACITORS

ALUMINUM ELECTROLYTIC CAPACITORS

UHV

Rated Voltage

（V）

（code）

Rated

Capacitance

（µF）

Case Size

φD×L（mm）

tan δ

Leakage Current

（µA）

Impedance（Ω）

MAX.

Rated Ripple

（mArms）

（105℃/100kHz）

Part Number

（

at 20℃ after

2 minutes

）

20℃/

100kHz

－10℃/
100kHz

35

（1V）

47 5×11 0.11 16.45 0.23 0.76 360 UHV1V470MDD

68 6.3×11 0.11 23.8 0.10 0.33 450 UHV1V680MED

100 6.3×11 0.11 35 0.10 0.33 550 UHV1V101MED

150 8×11.5 0.11 52.5 0.059 0.181 820 UHV1V151MPD

220 8×11.5 0.11 77 0.059 0.181 990 UHV1V221MPD

270 8×15 0.11 94.5 0.046 0.143 1330 UHV1V271MPD

330 10×12.5 0.11 115.5 0.043 0.133 1360 UHV1V331MPD

390 8×20 0.11 136.5 0.031 0.105 1550 UHV1V391MPD

470 10×16 0.11 164.5 0.030 0.095 1815 UHV1V471MPD

560 10×20 0.11 196 0.019 0.057 2160 UHV1V561MPD

680 10×25 0.11 238 0.017 0.051 2475 UHV1V681MPD

820 12.5×20 0.11 287 0.016 0.041 2725 UHV1V821MHD

1000 12.5×20 0.11 350 0.016 0.041 2920 UHV1V102MHD

1200 12.5×25 0.11 420 0.014 0.041 3190 UHV1V122MHD

1500 12.5×31.5 0.11 525 0.012 0.031 3795 UHV1V152MHD

1500 16×20 0.11 525 0.014 0.036 3575 UHV1V152MHD6

1800 12.5×35.5 0.11 630 0.011 0.029 3925 UHV1V182MHD

2200 16×25 0.13 770 0.012 0.033 3990 UHV1V222MHD

■

Dimensions

For cut leads, formed leads or taped parts, please add the appropriate code after the size code (12th digit ).
If there is no size code in the part number, please add size code “1” and then add the appropriate code.

For formed lead or taped product specifications and minimum order quantity,

please refer to the Guidelines for Aluminum Electrolytic Capacitors.

UHV

■

Dimensions

Rated Voltage

（V）

（code）

16

（1C）

25

（1E）

For cut leads, formed leads or taped parts, please add the appropriate code after the size code (12th digit ).
If there is no size code in the part number, please add size code “1” and then add the appropriate code.

Rated

Capacitance

（µF）

100 5×11 0.15 16 0.23 0.76 360 UHV1C101MDD

150 6.3×11 0.15 24 0.10 0.33 450 UHV1C151MED

220 6.3×11 0.15 35.2 0.10 0.33 550 UHV1C221MED

330 8×11.5 0.15 52.8 0.059 0.181 830 UHV1C331MPD

470 8×11.5 0.15 75.2 0.059 0.181 990 UHV1C471MPD

680 10×12.5 0.15 108.8 0.043 0.133 1360 UHV1C681MPD

680 8×15 0.15 108.8 0.046 0.143 1330 UHV1C681MPD6

820 10×16 0.15 131.2 0.030 0.095 1650 UHV1C821MPD

1000 10×16 0.15 160 0.030 0.095 1815 UHV1C102MPD

1000 8×20 0.15 160 0.031 0.105 1550 UHV1C102MPD6

1200 10×20 0.15 192 0.019 0.057 1930 UHV1C122MPD

1500 10×20 0.15 240 0.019 0.057 2160 UHV1C152MPD

1800 10×25 0.15 288 0.017 0.051 2475 UHV1C182MPD

2200 12.5×20 0.17 352 0.016 0.041 2725 UHV1C222MHD

2700 12.5×25 0.17 432 0.014 0.036 3190 UHV1C272MHD

3300 12.5×31.5 0.19 528 0.012 0.031 3795 UHV1C332MHD

3300 16×20 0.19 528 0.014 0.036 3575 UHV1C332MHD6

3900 12.5×35.5 0.19 624 0.011 0.029 3925 UHV1C392MHD

4700 16×25 0.21 752 0.012 0.033 3990 UHV1C472MHD

68 5×11 0.13 17 0.23 0.76 360 UHV1E680MDD

100 6.3×11 0.13 25 0.10 0.33 450 UHV1E101MED

150 6.3×11 0.13 37.5 0.10 0.33 550 UHV1E151MED

220 8×11.5 0.13 55 0.059 0.181 810 UHV1E221MPD

270 8×11.5 0.13 67.5 0.059 0.181 900 UHV1E271MPD

330 8×11.5 0.13 82.5 0.059 0.181 990 UHV1E331MPD

390 8×15 0.13 97.5 0.046 0.143 1330 UHV1E391MPD

470 10×12.5 0.13 117.5 0.043 0.133 1360 UHV1E471MPD

560 8×20 0.13 140 0.031 0.105 1550 UHV1E561MPD

680 10×16 0.13 170 0.030 0.095 1815 UHV1E681MPD

820 10×20 0.13 205 0.019 0.057 2160 UHV1E821MPD

1000 10×25 0.13 250 0.017 0.051 2475 UHV1E102MPD

1200 12.5×20 0.13 300 0.016 0.041 2475 UHV1E122MHD

1500 12.5×20 0.13 375 0.016 0.041 2725 UHV1E152MHD

1800 12.5×25 0.13 450 0.014 0.036 3190 UHV1E182MHD

2200 12.5×31.5 0.15 550 0.012 0.031 3795 UHV1E222MHD

2200 16×20 0.15 550 0.014 0.036 3575 UHV1E222MHD6

2700 12.5×35.5 0.15 675 0.011 0.029 3925

3300 16×25 0.17 825 0.012 0.033 3990 UHV1E332MHD

Case Size

φD×L（mm）

tan δ

Leakage Current

（µA）

at 20℃ after

（

2 minutes

Impedance（Ω）

20℃/

）

100kHz

MAX.

－10℃/
100kHz

Rated Ripple

（mArms）

（105℃/100kHz）

Part Number

UHV1E272MHD

CAT.8100K

ALUMINUM ELECTROLYTIC CAPACITORS

UHV

■

Dimensions

Impedance（Ω）

20℃/

）

100kHz

MAX.

Rated Voltage

（V）

（code）

35

（1V）

For cut leads, formed leads or taped parts, please add the appropriate code after the size code (12th digit ).
If there is no size code in the part number, please add size code “1” and then add the appropriate code.

Rated

Capacitance

（µF）

47 5×11 0.11 16.45 0.23 0.76 360 UHV1V470MDD

68 6.3×11 0.11 23.8 0.10 0.33 450 UHV1V680MED

100 6.3×11 0.11 35 0.10 0.33 550 UHV1V101MED

150 8×11.5 0.11 52.5 0.059 0.181 820 UHV1V151MPD

220 8×11.5 0.11 77 0.059 0.181 990 UHV1V221MPD

270 8×15 0.11 94.5 0.046 0.143 1330 UHV1V271MPD

330 10×12.5 0.11 115.5 0.043 0.133 1360 UHV1V331MPD

390 8×20 0.11 136.5 0.031 0.105 1550 UHV1V391MPD

470 10×16 0.11 164.5 0.030 0.095 1815 UHV1V471MPD

560 10×20 0.11 196 0.019 0.057 2160 UHV1V561MPD

680 10×25 0.11 238 0.017 0.051 2475 UHV1V681MPD

820 12.5×20 0.11 287 0.016 0.041 2725 UHV1V821MHD

1000 12.5×20 0.11 350 0.016 0.041 2920 UHV1V102MHD

1200 12.5×25 0.11 420 0.014 0.041 3190 UHV1V122MHD

1500 12.5×31.5 0.11 525 0.012 0.031 3795 UHV1V152MHD

1500 16×20 0.11 525 0.014 0.036 3575 UHV1V152MHD6

1800 12.5×35.5 0.11 630 0.011 0.029 3925 UHV1V182MHD

2200 16×25 0.13 770 0.012 0.033 3990 UHV1V222MHD

Case Size

φD×L（mm）

tan δ

Leakage Current

（µA）

at 20℃ after

（

2 minutes

－10℃/
100kHz

Rated Ripple

（mArms）

（105℃/100kHz）

Part Number

For formed lead or taped product specifications and minimum order quantity,

please refer to the Guidelines for Aluminum Electrolytic Capacitors.

CAT.8100K
