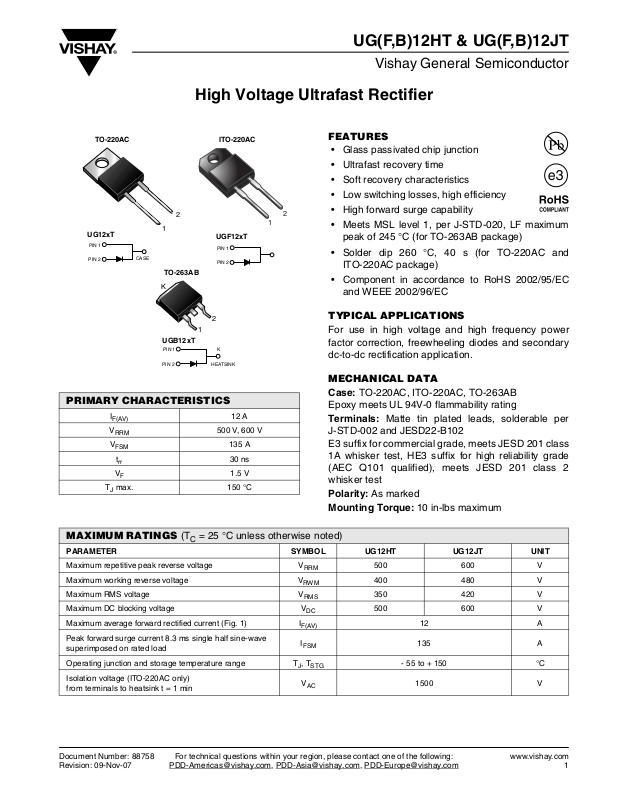

UG(F,B)12HT & UG(F,B)12JT
Vishay General Semiconductor
High Voltage Ultrafast Rectifier
TO-220AC
UG12xT
PIN 1
PIN 2
CASE
2
1
TO-263AB
K
UGB12xT
PIN 1
PIN 2
ITO-220AC
UGF12xT
PIN 1
PIN 2
2
1
K
HEATSINK
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
V
FSM
t
rr
V
F
T
max. 150 °C
J
500 V, 600 V
12 A
135 A
30 ns
1.5 V
FEATURES
• Glass passivated chip junction
• Ultrafast recovery time
• Soft recovery characteristics
• Low switching losses, high efficiency
2
1
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum
peak of 245 °C (for TO-263AB package)
• Solder dip 260 °C, 40 s (for TO-220AC and
ITO-220AC package)
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
For use in high voltage and high frequency power
factor correction, freewheeling diodes and secondary
dc-to-dc rectification application.
MECHANICAL DATA
Case: TO-220AC, ITO-220AC, TO-263AB
Epoxy meets UL 94V-0 flammability rating
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD22-B102
E3 suffix for commercial grade, meets JESD 201 class
1A whisker test, HE3 suffix for high reliability grade
(AEC Q101 qualified), meets JESD 201 class 2
whisker test
Polarity: As marked
Mounting Torque: 10 in-lbs maximum
MAXIMUM RATINGS (TC = 25 °C unless otherwise noted)
PARAMETER SYMBOL UG12HT UG12JT UNIT
Maximum repetitive peak reverse voltage V
Maximum working reverse voltage V
Maximum RMS voltage V
Maximum DC blocking voltage V
Maximum average forward rectified current (Fig. 1) I
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
Operating junction and storage temperature range T
Isolation voltage (ITO-220AC only)
from terminals to heatsink t = 1 min
Document Number: 88758
Revision: 09-Nov-07
For technical questions within your region, please contact one of the following:
500 600 V
RRM
400 480 V
RWM
350 420 V
RMS
500 600 V
DC
12 A
F(AV)
I
135 A
FSM
, T
- 55 to + 150 °C
J
STG
V
1500 V
AC
www.vishay.com
1
Page 2
UG(F,B)12HT & UG(F,B)12JT
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS (TC = 25 °C unless otherwise noted)
PARAMETER TEST CONDITIONS SYMBOL UG12HT UG12JT UNIT
Maximum instantaneous forward voltage
(1)
Maximum reverse current
Maximum reverse recovery time
Typical softness factor (t
b/ta
)
Maximum reverse recovery current
Peak forward recovery time
Note:
(1) Pulse test: 300 μs pulse width, 1 % duty cycle
I
= 12 A
F
I
= 12 A
F
I
= 0.5 A, IR = 1.0 A,
F
I
= 0.25 A
rr
I
= 1.0 A, dI/dt = 50 A/µs,
F
V
= 30 V, Irr = 0.1 IRM
R
I
= 12 A, dI/dt = 240 A/µs,
F
V
= 400 V, Irr = 0.1 IRM
R
I
= 12 A, dI/dt = 96 A/µs,
F
V
= 400 V, TC = 125 °C
R
I
= 12 A, dI/dt = 96 A/µs,
F
V
= 1.1 V x VF
F
= 25 °C
T
J
T
= 125 °C
J
T
= 25 °C
J
T
= 125 °C
J
max.
V
F
I
R
t
30 ns
rr
t
50 ns
rr
S 0.9 -
I
7.5 A
RM
tfr 500 ns
1.75
1.50
30
4.0
V
µA
mA
THERMAL CHARACTERISTICS (TC = 25 °C unless otherwise noted)
PARAMETER SYMBOL UG12 UGF12 UGB12 UNIT
Typical thermal resistance from junction to case R
1.73 3.04 1.73 °C/W
θJC
ORDERING INFORMATION (Example)
PACKAGE PREFERRED P/N UNIT WEIGHT (g) PACKAGE CODE BASE QUANTITY DELIVERY MODE
TO-220AC UG12JT-E3/45 1.80 45 50/tube Tube
ITO-220AC UGF12JT-E3/45 1.95 45 50/tube Tube
TO-263AB UGB12JT-E3/45 1.33 45 50/tube Tube
TO-263AB UGB12JT-E3/81 1.33 81 800/reel Tape reel
TO-220AC UG12JTHE3/45
ITO-220AC UGF12JTHE3/45
TO-263AB UGB12JTHE3/45
TO-263AB UGB12JTHE3/81
Note:
(1) Automotive grade AEC Q101 qualified
(1)
(1)
(1)
(1)
1.80 45 50/tube Tube
1.95 45 50/tube Tube
1.33 45 50/tube Tube
1.33 81 800/reel Tape reel
www.vishay.com For technical questions within your region, please contact one of the following:
2
Document Number: 88758
Revision: 09-Nov-07
Page 3
RATINGS AND CHARACTERISTICS CURVES
(T
= 25 °C unless otherwise noted)
A
UG(F,B)12HT & UG(F,B)12JT
Vishay General Semiconductor
16
14
12
10
8
6
4
Average Forward Current (A)
2
0
UGF12HT, UGF12JT
0
25
50
UG12HT, UG12JT
75
100
125
150
Case Temperature (°C)
Figure 1. Forward Current Derating Curve
200
175
150
125
100
75
50
25
Peak Forward Surge Current (A)
0
1
10
100
Number of Cycles at 60 Hz
Figure 2. Maximum Non-Repetitive Peak Forward Surge Current
10 000
= 125 °C
T
J
1000
100
TJ = 100 °C
Current (µA)
10
T
= 25 °C
Instantaneous Reverse Leakage
1
0
J
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Figure 4. Typical Reverse Leakage Characteristics Per Leg
100
10
Junction Capacitance (pF)
1
1
10
100
Reverse Voltage (V)
Figure 5. Typical Junction Capacitance Per Leg
100
10
0.1
TJ = 125 °C
1
TJ = 100 °C
= 25 °C
T
J
Instantaneous Forward Current (A)
0.01
0.1 0.3 0.5 0.7 0.9 1.0 1.3 1.5 1.7 1.9 2.1
Instantaneous Forward Voltage (V)
Figure 3. Typical Instantaneous Forward Characteristics Per Leg
Document Number: 88758
Revision: 09-Nov-07
For technical questions within your region, please contact one of the following:
400
t
rr
Q
rr
12 A, 240 A/µs, 400 V
1 A, 50 A/µs, 30 V
50
12 A, 240 A/µs, 400 V
1 A, 50 A/µs, 30 V
75
100
Stored Charge/Reverse Recovery
350
300
250
200
150
Time (nC/ns)
100
50
0
25
Junction Temperature (°C)
Figure 6. Reverse Switching Characteristics Per Leg
125
www.vishay.com
3
Page 4
UG(F,B)12HT & UG(F,B)12JT
Vishay General Semiconductor
PACKAGE OUTLINE DIMENSIONS in inches (millimeters)
TO-220AC
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
0.105 (2.67)
0.095 (2.41)
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
PIN
12
0.154 (3.91) DIA.
0.148 (3.74) DIA.
0.113 (2.87)
0.103 (2.62)
0.635 (16.13)
0.625 (15.87)
PIN 1
PIN 2
0.037 (0.94)
0.027 (0.68)
0.205 (5.20)
0.195 (4.95)
1.148 (29.16)
1.118 (28.40)
CASE
0.145 (3.68)
0.135 (3.43)
0.350 (8.89)
0.330 (8.38)
0.560 (14.22)
0.530 (13.46)
0.022 (0.56)
0.014 (0.36)
0.185 (4.70)
0.175 (4.44)
0.055 (1.39)
0.045 (1.14)
0.603 (15.32)
0.573 (14.55)
0.110 (2.79)
0.100 (2.54)
45° REF.
0.600 (15.24)
0.580 (14.73)
0.560 (14.22)
0.530 (13.46)
0.025 (0.64)
0.015 (0.38)
0.404 (10.26)
0.384 (9.75)
PIN
1
0.076 (1.93) REF.
2
0.191 (4.85)
0.171 (4.35)
0.057 (1.45)
0.045 (1.14)
0.035 (0.89)
0.025 (0.64)
0.205 (5.21)
0.195 (4.95)
ITO-220AC
0.076 (1.93) REF.
0.671 (17.04)
0.651 (16.54)
7° REF.
0.140 (3.56) DIA.
0.125 (3.17) DIA.
7° REF.
0.350 (8.89)
0.330 (8.38)
0.190 (4.83)
0.170 (4.32)
0.110 (2.79)
0.100 (2.54)
0.135 (3.43) DIA.
0.122 (3.08) DIA.
7° REF.
0.110 (2.79)
0.100 (2.54)
0.028 (0.71)
0.020 (0.51)
0.360 (9.14)
0.320 (8.13)
0.037 (0.940)
0.027 (0.686)
0.105 (2.67)
0.095 (2.41)
0.411 (10.45)
0.380 (9.65)
0.245 (6.22)
MIN.
K
12
K
TO-263AB
0.624 (15.85)
0.591 (15.00)
0.205 (5.20)
0.195 (4.95)
0.190 (4.83)
0.160 (4.06)
0.055 (1.40)
0.045 (1.14)
0.055 (1.40)
0.047 (1.19)
0 to 0.01 (0 to 0.254)
0.110 (2.79)
0.090 (2.29)
0.021 (0.53)
0.014 (0.36)
0.140 (3.56)
0.110 (2.79)
0.670 (17.02)
0.591 (15.00)
0.08 (2.032) MIN.
0.105 (2.67)
0.095 (2.41)
Mounting Pad Layout
0.42 (10.66) MIN.
0.33 (8.38) MIN.
0.15 (3.81) MIN.
www.vishay.com For technical questions within your region, please contact one of the following:
4
Document Number: 88758
Revision: 09-Nov-07
Page 5
