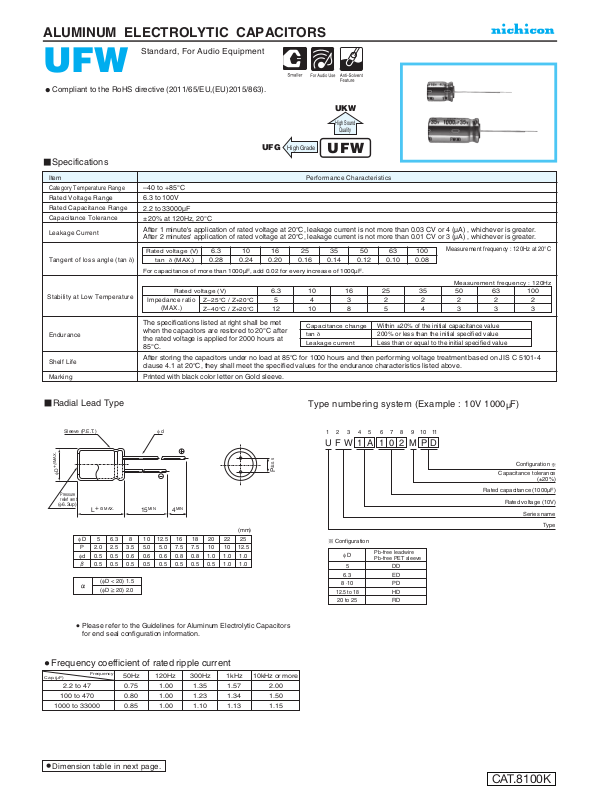

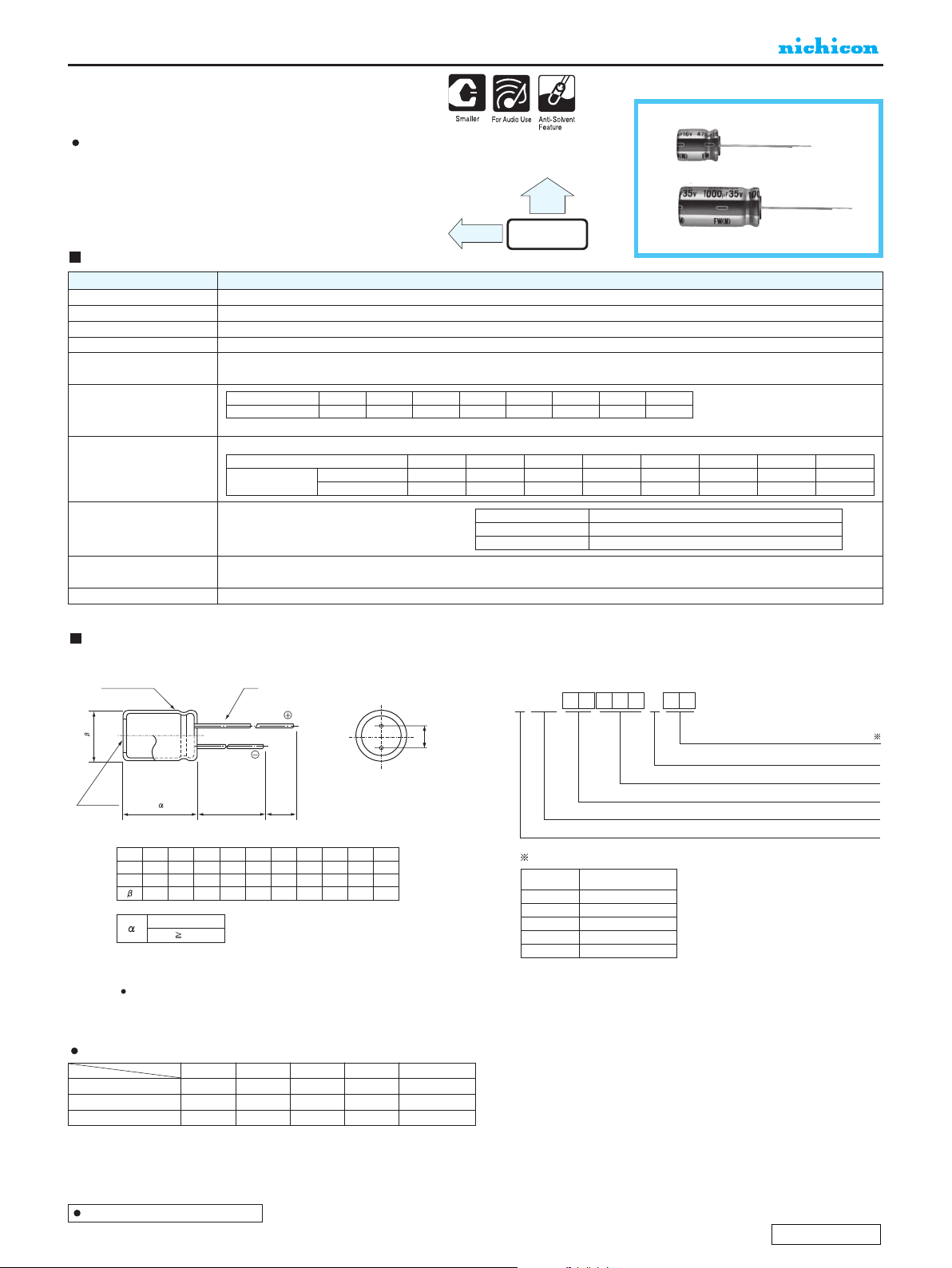

Datasheet UFW series Specification

ALUMINUM ELECTROLYTIC CAPACITORS

Pressure
relief vent

P

±

0.5

L

+

MAX.

15

MIN4MIN

Sleeve (P.E.T.)

φ d

(φ6.3up)

φD

+

MAX.

Standard, For Audio Equipment

UFW

Compliant to the RoHS directive (2011/65/EU,(EU)2015/863).

High Grade

UFG

Specifications

Performance CharacteristicsItem

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Tangent of loss angle (tan δ)

Stability at Low Temperature

Endurance

Shelf Life

Marking

–40 to +85°C

6.3 to 100V

2.2 to 33000µF
± 20% at 120Hz, 20°C

After 1 minute's application of rated voltage at 20°C, leakage current is not more than 0.03 CV or 4 (µA) , whichever is greater.
After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01 CV or 3 (µA) , whichever is greater.

Rated voltage (V)

tan δ (MAX.)

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Rated voltage (V)

Impedance ratio

(MAX.)

The specifications listed at right shall be met
when the capacitors are restored to 20°C after
the rated voltage is applied for 2000 hours at
85°C.

After storing the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

6.3

0.28100.24160.20250.16350.14500.12630.10

Z–25°C / Z+20°C

Z–40°C / Z+20°C

6.3
5

12

10

4

10

Capacitance change
tan δ
Leakage current

Printed with black color letter on Gold sleeve.

UKW

High Sound

Quality

UFW

16

3
8

Measurement frequency : 120Hz at 20°C

100

0.08

25

2
5

Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value

35

2
4

Measurement frequency : 120Hz

50

2
3

63

2
3

100

2
3

Radial Lead Type

Sleeve (P.E.T.)

MAX.

+

φD

Pressure
relief vent

(φ6.3up)

MAX.

+

L

φDP5

φd 0.5 0.5 0.6 0.6 0.6 0.8 0.8

6.3

2.0

2.5

3.5

0.5

0.5

0.5

(φD < 20) 1.5

(φD 20) 2.0

Please refer to the Guidelines for Aluminum Electrolytic Capacitors

for end seal configuration information.

φ d

MIN

12.5

5.0

0.5

MIN

4

16

18

7.5

7.5

0.5

0.5

15

8

10

5.0

0.5

Frequency coefficient of rated ripple current

Cap.(µF)

2.2 to 47

100 to 470

1000 to 33000

Frequency

50Hz

0.75

0.80

0.85

120Hz

1.00

1.00

1.00

300Hz

1.35

1.23

1.10

Type numbering system (Example : 10V 1000µF)

11

U1F2W314A5160728M9P10D

0.5

±

P

Rated capacitance (1000µF)

(mm)

20

22
10

1.0

1.0

1kHz

1.57

1.34

1.13

25

12.5

1.0

1.0

10kHz or more

2.00

1.50

1.15

10

1.0

0.5

Configuration

5

Pb-free leadwire
Pb-free PET sleeve

φ D

6.3

8 ·10 PD

12.5 to 18
20 to 25 RD

DD

ED

HD

Configuration

Capacitance tolerance

Rated voltage (10V)

(±20%)

Series name

Type

Dimension table in next page.

CAT.8100K

ALUMINUM ELECTROLYTIC CAPACITORS

ALUMINUM ELECTROLYTIC CAPACITORS

UFW

Rated Voltage

（V）

（code）

Rated

Capacitance

（µF）

Case Size

φD×L（mm）

tan δ

Leakage Current

（µA）

Rated Ripple

（mArms）

（85℃/120Hz）

Part Number

at 20℃ after

1 minute

at 20℃ after

2 minutes

25

（1E）

47 5×11 0.16 35.25 11.75 115 UFW1E470MDD

100 6.3×11 0.16 75 25 185 UFW1E101MED

220 8×11.5 0.16 165 55 320 UFW1E221MPD

330 10×12.5 0.16 247.5 82.5 420 UFW1E331MPD

470 10×12.5 0.16 352.5 117.5 530 UFW1E471MPD

1000 10×20 0.16 750 250 950 UFW1E102MPD

2200 12.5 × 25 0.18 1650 550 1550 UFW1E222MHD

3300 16×25 0.20 2475 825 1950 UFW1E332MHD

4700 16×31.5 0.22 3525 1175 2360 UFW1E472MHD

6800 18×35.5 0.26 5100 1700 2590 UFW1E682MHD

10000 20×40 0.34 7500 2500 3000 UFW1E103MRD

15000 22×50 0.44 11250 3750 3800 UFW1E153MRD

22000 25×50 0.58 16500 5500 4500 UFW1E223MRD

35

（1V）

33 5×11 0.14 34.65 11.55 105 UFW1V330MDD

47 5×11 0.14 49.35 16.45 120 UFW1V470MDD

100 6.3×11 0.14 105 35 200 UFW1V101MED

220 10×12.5 0.14 231 77 370 UFW1V221MPD

330 10×12.5 0.14 346.5 115.5 470 UFW1V331MPD

470 10×16 0.14 493.5 164.5 630 UFW1V471MPD

1000 12.5 × 20 0.14 1050 350 1100 UFW1V102MHD

2200 16×25 0.16 2310 770 1800 UFW1V222MHD

3300 16×35.5 0.18 3465 1155 2220 UFW1V332MHD

4700 18×35.5 0.20 4935 1645 2490 UFW1V472MHD

6800 20×40 0.24 7140 2380 3000 UFW1V682MRD

10000 22×50 0.32 10500 3500 3700 UFW1V103MRD

15000 25×50 0.42 15750 5250 4300 UFW1V153MRD

50

（1H）

2.2 5×11 0.12 4 3 23 UFW1H2R2MDD

3.3 5×11 0.12 4.95 3 35 UFW1H3R3MDD

4.7 5×11 0.12 7.05 3 40 UFW1H4R7MDD

10 5×11 0.12 15 5 65 UFW1H100MDD

22 5×11 0.12 33 11 95 UFW1H220MDD

33 5×11 0.12 49.5 16.5 120 UFW1H330MDD

47 6.3×11 0.12 70.5 23.5 150 UFW1H470MED

100 8×11.5 0.12 150 50 250 UFW1H101MPD

220 10×12.5 0.12 330 110 410 UFW1H221MPD

330 10×16 0.12 495 165 570 UFW1H331MPD

470 12.5 × 20 0.12 705 235 760 UFW1H471MHD

1000 12.5 × 25 0.12 1500 500 1300 UFW1H102MHD

2200 16×35.5 0.14 3300 1100 2090 UFW1H222MHD

3300 18×35.5 0.16 4950 1650 2360 UFW1H332MHD

4700 20×40 0.18 7050 2350 2900 UFW1H472MRD

6800 22

×50 0.22 10200 3400 3500 UFW1H682MRD

10000 25×50 0.30 15000 5000 4000 UFW1H103MRD

Dimensions

For cut leads, formed leads or taped parts, please add the appropriate code after the size code (12th digit ).
If there is no size code in the part number, please add size code “1” and then add the appropriate code.

UFW

Dimensions

Leakage Current

Rated

Rated Voltage

（V）

（code）

6.3

（0J）

10

（1A）

16

（1C）

For cut leads, formed leads or taped parts, please add the appropriate code after the size code (12th digit ).
If there is no size code in the part number, please add size code “1” and then add the appropriate code.

Capacitance

（µF）

330 6.3×11 0.28 62.37 20.79 265 UFW0J331MED

470 6.3×11 0.28 88.83 29.61 310 UFW0J471MED

1000 8×11.5 0.28 189 63 530 UFW0J102MPD

2200 10×20 0.30 415.8 138.6 980 UFW0J222MPD

3300 10×20 0.32 623.7 207.9 1170 UFW0J332MPD

4700 12.5×20 0.34 888.3 296.1 1350 UFW0J472MHD

6800 12.5×25 0.38 1285.2 428.4 1600 UFW0J682MHD

10000 16×25 0.46 1890 630 2000 UFW0J103MHD

15000 16×35.5 0.56 2835 945 2550 UFW0J153MHD

22000 18×40 0.70 4158 1386 3200 UFW0J223MHD

33000 22×50 0.92 6237 2079 3900 UFW0J333MRD

100 5×11 0.24 30 10 145 UFW1A101MDD

220 6.3×11 0.24 66 22 230 UFW1A221MED

330 6.3×11 0.24 99 33 270 UFW1A331MED

470 6.3×11 0.24 141 47 330 UFW1A471MED

1000 10×12.5 0.24 300 100 630 UFW1A102MPD

2200 10×20 0.26 660 220 1050 UFW1A222MPD

3300 12.5×20 0.28 990 330 1420 UFW1A332MHD

4700 12.5×25 0.30 1410 470 1800 UFW1A472MHD

6800 16×25 0.34 2040 680 2150 UFW1A682MHD

10000 16×35.5 0.42 3000 1000 2500 UFW1A103MHD

15000 18×35.5 0.52 4500 1500 2720 UFW1A153MHD

22000 20×40 0.66 6600 2200 3700 UFW1A223MRD

33000 22×50 0.88 9900 3300 4500 UFW1A333MRD

100 5×11 0.20 48 16 155 UFW1C101MDD

220 6.3×11 0.20 105.6 35.2 250 UFW1C221MED

330 8×11.5 0.20 158.4 52.8 360 UFW1C331MPD

470 8×11.5 0.20 225.6 75.2 420 UFW1C471MPD

1000 10×16 0.20 480 160 770 UFW1C102MPD

2200 12.5×20 0.22 1056 352 1250 UFW1C222MHD

3300 12.5×25 0.24 1584 528 1700 UFW1C332MHD

4700 16×25 0.26 2256 752 2100 UFW1C472MHD

6800 16×35.5 0.30 3264 1088 2500 UFW1C682MHD

10000 18×35.5 0.38 4800 1600 2640 UFW1C103MHD

15000 20×40 0.48 7200 2400 3400 UFW1C153MRD

22000 22×50 0.62 10560 3520 4200 UFW1C223MRD

33000 25×50 0.84 15840 5280 4800 UFW1C333MRD

Case Size

φD×L（mm）

tan δ

（µA）

at 20℃ after

1 minute

at 20℃ after

2 minutes

Rated Ripple

（mArms）

（85℃/120Hz）

Part Number

CAT.8100K

ALUMINUM ELECTROLYTIC CAPACITORS

UFW

Dimensions

Rated Voltage

（V）

（code）

25

（1E）

35

（1V）

50

（1H）

For cut leads, formed leads or taped parts, please add the appropriate code after the size code (12th digit ).
If there is no size code in the part number, please add size code “1” and then add the appropriate code.

Rated

Capacitance

（µF）

47 5×11 0.16 35.25 11.75 115 UFW1E470MDD

100 6.3×11 0.16 75 25 185 UFW1E101MED

220 8×11.5 0.16 165 55 320 UFW1E221MPD

330 10×12.5 0.16 247.5 82.5 420 UFW1E331MPD

470 10×12.5 0.16 352.5 117.5 530 UFW1E471MPD

1000 10×20 0.16 750 250 950 UFW1E102MPD

2200 12.5 × 25 0.18 1650 550 1550 UFW1E222MHD

3300 16×25 0.20 2475 825 1950 UFW1E332MHD

4700 16×31.5 0.22 3525 1175 2360 UFW1E472MHD

6800 18×35.5 0.26 5100 1700 2590 UFW1E682MHD

10000 20×40 0.34 7500 2500 3000 UFW1E103MRD

15000 22×50 0.44 11250 3750 3800 UFW1E153MRD

22000 25×50 0.58 16500 5500 4500 UFW1E223MRD

33 5×11 0.14 34.65 11.55 105 UFW1V330MDD

47 5×11 0.14 49.35 16.45 120 UFW1V470MDD

100 6.3×11 0.14 105 35 200 UFW1V101MED

220 10×12.5 0.14 231 77 370 UFW1V221MPD

330 10×12.5 0.14 346.5 115.5 470 UFW1V331MPD

470 10×16 0.14 493.5 164.5 630 UFW1V471MPD

1000 12.5 × 20 0.14 1050 350 1100 UFW1V102MHD

2200 16×25 0.16 2310 770 1800 UFW1V222MHD

3300 16×35.5 0.18 3465 1155 2220 UFW1V332MHD

4700 18×35.5 0.20 4935 1645 2490 UFW1V472MHD

6800 20×40 0.24 7140 2380 3000 UFW1V682MRD

10000 22×50 0.32 10500 3500 3700 UFW1V103MRD

15000 25×50 0.42 15750 5250 4300 UFW1V153MRD

2.2 5×11 0.12 4 3 23 UFW1H2R2MDD

3.3 5×11 0.12 4.95 3 35 UFW1H3R3MDD

4.7 5×11 0.12 7.05 3 40 UFW1H4R7MDD

10 5×11 0.12 15 5 65 UFW1H100MDD

22 5×11 0.12 33 11 95 UFW1H220MDD

33 5×11 0.12 49.5 16.5 120 UFW1H330MDD

47 6.3×11 0.12 70.5 23.5 150 UFW1H470MED

100 8×11.5 0.12 150 50 250 UFW1H101MPD

220 10×12.5 0.12 330 110 410 UFW1H221MPD

330 10×16 0.12 495 165 570 UFW1H331MPD

470 12.5 × 20 0.12 705 235 760 UFW1H471MHD

1000 12.5 × 25 0.12 1500 500 1300 UFW1H102MHD

2200 16×35.5 0.14 3300 1100 2090 UFW1H222MHD

3300 18×35.5 0.16 4950 1650 2360 UFW1H332MHD

4700 20×40 0.18 7050 2350 2900 UFW1H472MRD

6800 22

10000 25×50 0.30 15000 5000 4000 UFW1H103MRD

Case Size

φD×L（mm）

×50 0.22 10200 3400 3500 UFW1H682MRD

tan δ

Leakage Current

（µA）

at 20℃ after

1 minute

at 20℃ after

2 minutes

Rated Ripple

（mArms）

（85℃/120Hz）

Part Number

CAT.8100K

ALUMINUM ELECTROLYTIC CAPACITORS

ALUMINUM ELECTROLYTIC CAPACITORS

tan δ (MAX.)

Chip type acoustic series within the wide temperature range.
Applicable to automatic mounting machine fed with carrier tape.
Compliant to the RoHS directive (2011/65/EU,(EU)2015/863).
AEC-Q200 compliant. Please contact us for details.

Specifications

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Tangent of loss angle (tan δ)

Stability at Low Temperature

Endurance

Shelf Life

Resistance to soldering

heat

Marking

Performance CharacteristicsItem

–40 to +105°C

6.3 to 50V

1 to 1000µF

± 20% (120Hz, 20°C)
After 1 minute's application of rated voltage at 20°C, leakage current is not more than 0.03 CV or 4 (µA) , whichever is greater.

Black print on the case top.

Measurement frequency : 120Hz at 20°C

Capacitance change

Leakage current

The specifications listed at right shall be met when
the capacitors are restored to 20°C after the rated
voltage is applied for 1000 hours at 105

°C.

After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the

endurance

characteristics listed above.

tan δ

Within ± 20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value

Rated voltage (V)

6.3

0.30

10

0.26

16

0.22

25

0.16

35

0.13

50

0.12

Measurement frequency : 120Hz

Z–25°C / Z+20°C
Z–40°C / Z+20°C

Rated voltage (V)

Impedance ratio

(MAX.)

6.3
4
8

10

3
5

16

2
4

25

2
3

35

2
3

50

2
3

Capacitance change

Leakage current

tan δ

Within ±10% of the initial capacitance value

Less than or equal to the initial specified value

Less than or equal to the initial specified value

U1U2Q304J5160718M9C10L11112G13B

14

Configuration

Taping code

Size code

Capacitance tolerance (±20%)

Rated voltage (6.3V )

Rated capacitance (100μF)

Series name

Type

φD

4 to 6.3

8・10

code

GB

GS

Voltage (j:6.3V)

Capacitance

Series

Lot No.

A2

100 j

UQ

Plastic platform

0.3MAX.

L

+0.1

-

0.2

φD±0.5

A±0.2 A±0.2

B±0.2

C±0.2

0.5MAX.

E

H

Positive

Negative

(mm)

A
B
C
E
L
H

4

× 5.4

1.8

4.3

4.3

1.0

5.4

0.5 to 0.8

5

× 5.4

2.1

5.3

5.3

1.3

5.4

0.5 to 0.8

6.3

× 5.4

2.4

6.6

6.6

2.2

5.4

0.5 to 0.8

8

× 6.2

3.3

8.3

8.3

2.3

6.2

0.5 to 0.8

8

× 10

2.9

8.3

8.3

3.1
10

0.8 to 1.1

10 × 10

3.2

10.3

10.3

4.5
10

0.8 to 1.1

φ D × L

Plastic platform

0.3MAX.

L±

0.3

φD±0.5

A±0.2 A±0.2

B±0.2

C±0.2

0.5MAX.

E

H

Positive

Negative

Lot No. Capacitance

Series

Trade mark

Voltage (A : 10V)

A2

100A

UQ

Plastic platform

0.3MAX.

L±

0.5

φD±0.5

A±0.2 A±0.2

B±0.2

C±0.2

0.5MAX.

E

H

Positive

Negative

Lot No. Capacitance

Series

Trade mark

Voltage (V : 35V)

A2

100V

UQ

Chip Type

Type numbering system (Example : 6.3V 100µF)

The capacitors are kept on a hot plate for 30 seconds,
which is maintained at 250°C. The capacitors shall meet
the characteristic requirements listed at right when they
are removed from the plate and restored to 20°C.

UUQ

Chip Type, For Audio Equipment
Wide Temperature Range

(φ4 to φ6.3)

(φ8 × 6.2L)

(φ8 × 10L, φ10)

Voltage

V 6.3 10 16 25 35 50

Code j A C E V H

Frequency coefficient of rated ripple current

Coefficient

Frequency

50 Hz 120 Hz 300 Hz 1 kHz 10 kHz or more

0.70 1.00 1.17 1.36 1.50

Dimension table in next page.

UFW

Dimensions

Rated Voltage

（V）

Capacitance

（code）

63

（1J）

100

（2A）

For cut leads, formed leads or taped parts, please add the appropriate code after the size code (12th digit ).
If there is no size code in the part number, please add size code “1” and then add the appropriate code.

For formed lead or taped product specifications and minimum order quantity,

please refer to the Guidelines for Aluminum Electrolytic Capacitors.

at 20℃ after

Leakage Current

（µA）

1 minute

at 20℃ after

2 minutes

Rated

（µF）

Case Size

φD×L（mm）

tan δ

10 5×11 0.10 18.9 6.3 70 UFW1J100MDD

22 5×11 0.10 41.58 13.86 100 UFW1J220MDD

33 6.3×11 0.10 62.37 20.79 140 UFW1J330MED

47 6.3×11 0.10 88.83 29.61 165 UFW1J470MED

100 10×12.5 0.10 189 63 300 UFW1J101MPD

220 10×16 0.10 415.8 138.6 470 UFW1J221MPD

330 10×20 0.10 623.7 207.9 650 UFW1J331MPD

470 12.5 × 20 0.10 888.3 296.1 880 UFW1J471MHD

1000 16×25 0.10 1890 630 1300 UFW1J102MHD

2200 18×35.5 0.12 4158 1386 2200 UFW1J222MHD

3300 20×40 0.14 6237 2079 2700 UFW1J332MRD

4700 22×50 0.16 8883 2961 3400 UFW1J472MRD

6800 25×50 0.20 12852 4284 3500 UFW1J682MRD

10 6.3×11 0.08 30 10 75 UFW2A100MED

22 6.3×11 0.08 66 22 120 UFW2A220MED

33 8×11.5 0.08 99 33 160 UFW2A330MPD

2.2 5×11 0.08 6.6 3 30 UFW2A2R2MDD

3.3 5×11 0.08 9.9 3.3 40 UFW2A3R3MDD

4.7 5×11 0.08 14.1 4.7 45 UFW2A4R7MDD

47 10×12.5 0.08 141 47 210 UFW2A470MPD

100 10×20 0.08 300 100 350 UFW2A101MPD

220 12.5 × 25 0.08 660 220 600 UFW2A221MHD

330 12.5 × 25 0.08 990 330 750 UFW2A331MHD

470 16×25 0.08 1410 470 1000 UFW2A471MHD

1000 18×40 0.08 3000 1000 1370 UFW2A102MHD

2200 22×50 0.10 6600 2200 2400 UFW2A222MRD

3300 25×50 0.12 9900 3300 2900 UFW2A332MRD

Rated Ripple

（mArms）

（85℃/120Hz）

Part Number

CAT.8100K
