Page 1
FA
OS -CON-105&C
UNITED CHEMI-CON, INC. 9801 West Higgins Road, Rosemont, Illinois 60018 Phone 847-696-2000 Fax 847-696-9278 71

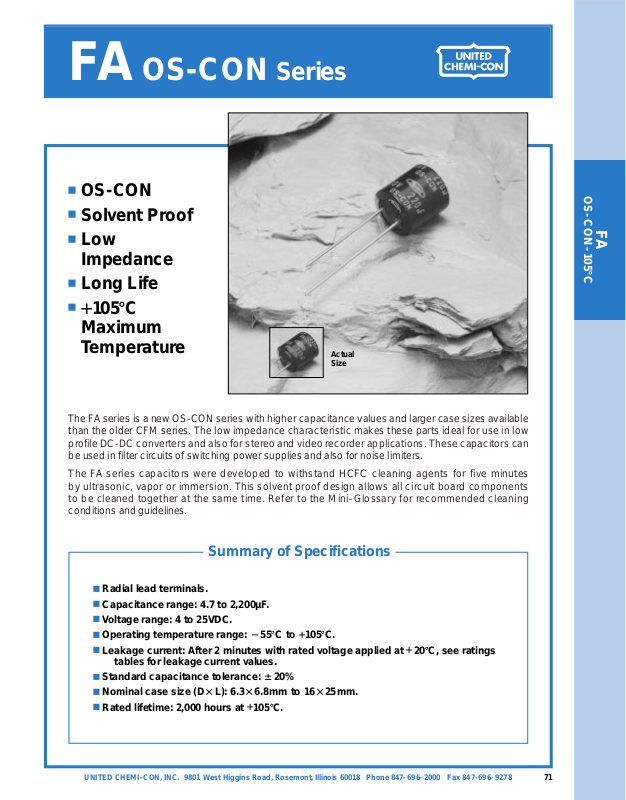

FA OS-CON Series
The FA series is a new OS-CON series with higher capacitance values and lar ger case sizes available
than the older CFM series. The low impedance characteristic makes these parts ideal for use in low
profile DC-DC converters and also for stereo and video r ecor der applications. These capacitors can
be used in filter circuits of switching power supplies and also for noise limiters.
The FA series capacitors were developed to withstand HCFC cleaning agents for five minutes
by ultrasonic, vapor or immersion. This solvent proof design allows all circuit board components
to be cleaned together at the same time. Refer to the Mini- Glossary for recommended cleaning
conditions and guidelines.
n
OS-CON
n
Solvent Proof
n
Low
Impedance
n
Long Life
n
~
105& C
Maximum
Temperature
Actual
Size
n
Radial lead terminals.
n
Capacitance range: 4.7 to 2,200µF.
n
Voltage range: 4 to 25VDC.
n
Operating temperature range: !55&Cto~105& C.
n
Leakage current: After 2 minutes with rated voltage applied at~20&C, see ratings
tables for leakage current values.
n
Standard capacitance tolerance: %20%
n
Nominal case size (D@L): 6.3@6.8mm to 16@25mm.
n
Rated lifetime: 2,000 hours at~105& C.
Summary of Specifications
Page 2
FA
OS-CON-105&C
UNITED CHEMI-CON, INC. 9801 West Higgins Road, Rosemont, Illinois 60018 Phone 847-696-2000 Fax 847-696-927872
FA Series
FA Specifications
Item
Operating Temperature Range
!
55 to~105&C
Rated Voltage Range 4 to 25VDC
Capacitance Range 4.7 to 2,200mF
Capacitance Tolerance
%
20% (M) at~20&C,120Hz
Leakage Current After 2 minutes with rated voltage applied at~20&C, see Ratings Tables for specified values.
Characteristics
Shelf Life The following specifications shall be satisfied when the capacitors are restored to~20&C
after exposing them for 1,000hours at~105&C without voltage applied. The rated voltage shall
be applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more
than 48 hours before the measurements.
Capacitance change: ≤%10% of initial measured value
Tan d (DF) : ≤150% of initial specified value
Leakage current : ≤ initial specified value
Load Life The following specifications shall be satisfied when the capacitors are restored to~20&C
after subjecting them to the DC rated voltage for 2,000 hours at~105&C. The sum of DC
voltage and peak AC voltage must not exceed the full rated voltage of the capacitors.
Capacitance change: ≤%20% of initial measured value
Tan d (DF) : ≤150% of initial specified value
Leakage current : ≤ initial specified value
Rated Voltage (V)
Z(!55&C)/Z(~20&C)
Z(!40&C)/Z(~20&C)
Z(~105&C) /Z (~20&C)
4-25
1.00-1.25
1.00-1.20
0.75-1.00
Low Temperature
Characteristics
At 120Hz, impedance (Z) ratio between the!55&C,!40&C or~105&C value and~20&C value
shall not exceed the values given below.
Ripple Current Multipliers
Refer to Section 4 of the
Mini-Glossary for explanation
of Ripple Current Multipliers.
Ambient Temperature (&C)
≤~45&C
4
~
85&C
2.8
~
95&C
1.6
~
105&C
1.0
VB/Radial Lead
Unit: mm
Diagram of Dimensions
15 MIN.
PVC Sleeve
D
'
D
L
'
L
d
F
5 MIN.
For optional lead configurations and tape and ammo
packaging, refer to the beginning of the Miniature section.
ØD
6.3
8
10
12.5
16
ØD
'
max
ØD~0.5
ØD
~
0.5
ØD
~
0.5
ØD
~
0.5
ØD
~
0.5
L
'
max
L~1.0
L~1.0
L~1.0
L~1.0
L~1.0
Ød
0.45 (6.8L)
0.5 (9.8L)
0.6
0.6
0.8
0.8
F%0.5
2.5
3.5
5.0
5.0
7.5
Page 3
FA Series
UNITED CHEMI-CON, INC. 9801 West Higgins Road, Rosemont, Illinois 60018 Phone 847-696-2000 Fax 847-696-9278 73
FA
OS-CON-105&C
Standard Voltage Ratings - VB/Radial Lead
22 6FA22M 6.3 @ 6.8 1.39 0.07 318
33 6FA33M 6.3 @ 6.8 2.08 0.07 330
47 6FA47M 6.3 @ 6.8 2.96 0.06 360
150 6FA150M 8 @ 10.5 18.90 0.03 695
330 6FA330M 10 @ 10.5 41.58 0.025 875
1,000 6FA1000M 12.5 @ 22 126.00 0.019 1,420
1,500 6FA1500M 16 @ 20 189.00 0.017 1,860
2,200 6FA2200M 16 @ 25 277.00 0.015 2,435
6.3 Volts
8 Volts Surge
15 10FA15M 6.3 @ 6.8 1.50 0.09 308
22 10FA22M 6.3 @ 6.8 2.20 0.07 318
33 10FA33M 6.3 @ 6.8 3.30 0.07 340
47 10FA47M 6.3 @ 9.8 4.70 0.06 500
68 10FA68M 6.3 @ 9.8 13.60 0.05 510
100 10FA100M 8 @ 10.5 20.00 0.03 670
220 10FA220M 10 @ 10.5 44.00 0.027 840
680 10FA680M 12.5 @ 22 136.00 0.02 1,420
1,500 10FA1500M 16 @ 25 300.00 0.015 2,440
10 Volts
13 Volts Surge
10 16FA10M 6.3 @ 6.8 1.60 0.09 288
15 16FA15M 6.3 @ 6.8 2.40 0.09 308
22 16FA22M 6.3 @ 6.8 3.52 0.07 330
33 16FA33M 6.3 @ 6.8 5.28 0.07 340
47 16FA47M 6.3 @ 9.8 15.00 0.06 460
68 16FA68M 8 @ 10.5 21.80 0.036 650
100 16FA100M 8 @ 10.5 32.00 0.03 690
150 16FA150M 10 @ 10.5 48.00 0.028 820
470 16FA470M 12.5 @ 22 150.00 0.02 1,520
1,000 16FA1000M 16 @ 25 320.00 0.015 2,435
16 Volts
20 Volts Surge
2,200 4FA2200M 16 @ 20 176.00 0.017 1,860
4 Volts
5 Volts Surge
*
The case sizes in table are with no sleeve, refer to diagram for case sizes with sleeve.
15 20FA15M 6.3 @ 6.8 6.00 0.09 300
22 20FA22M 6.3 @ 6.8 8.80 0.07 330
33 20FA33M 6.3 @ 9.8 13.20 0.07 430
47 20FA47M 8 @ 10.5 18.80 0.04 610
68 20FA68M 8 @ 10.5 27.20 0.036 650
100 20FA100M 10 @ 10.5 40.00 0.03 800
20 Volts
25 Volts Surge
4.7 25FA4R7M 6.3 @ 6.8 1.18 0.1 283
6.8 25FA6R8M 6.3 @ 6.8 1.70 0.1 285
10 25FA10M 6.3 @ 6.8 2.50 0.09 288
15 25FA15M 6.3 @ 9.8 3.75 0.07 413
22 25FA22M 8 @ 10.5 5.50 0.04 583
33 25FA33M 10 @ 10.5 8.25 0.035 725
47 25FA47M 10 @ 10.5 11.75 0.035 745
25 Volts
32 Volts Surge
Capacitance Tolerance: M =%20%
Capacitance Value: Expressed in microfarads.An R indicates a
decimal point (e.g. 2R2 = 2.2mF).
Series Name: Indicates Basic Capacitor Design.
DC Rated Voltage: Expressed in Volts (e.g. 10= 10WVDC).
Note: Prefix code 6 indicates 6.3WVDC products.
Part Numbering System for FA Series When ordering, always specify complete catalog number for FA Series.
10 FA 220 M
Rated
Voltage
(WVDC)
Capacitance
(µF)
Catalog
Part Number
Nominal
Case Size*
D@L (mm)
Maximum
Ripple Current
(mA rms) at
~
105&C,100kHz
Maximum ESR
(Ω) at
~
20&C,100kHz
Maximum
Leakage
Current (µA)
at~20&C
Page 4
UNITED CHEMI-CON, INC. 9801 West Higgins Road, Rosemont, Illinois 60018 Phone 847-696-2000 Fax 847-696-927874
FA Series
FA
OS-CON-105&C
(at~20&C)
!20
!30
0
!10
!55 !40 !20 0 ~20 ~40 ~60 ~80 ~105
~20
~10
!20
!30
0
!10
!55 !40 !20 0 ~20 ~40 ~60 ~80 ~105
~20
~10
Capacitance Change (%)
Capacitance Change (%)
Dissipation Factor (Tan d)Impedance (ohms)

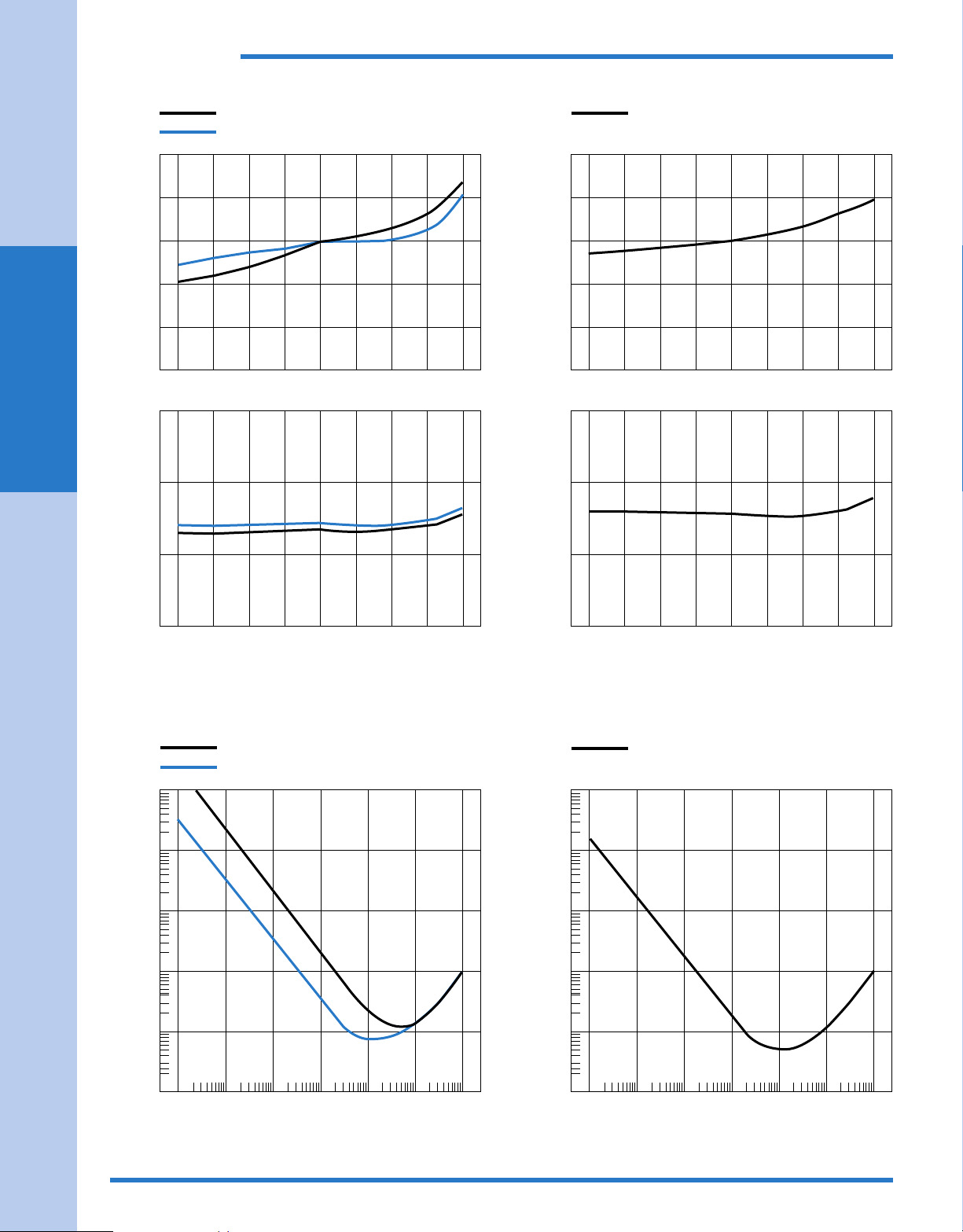

Temperature Characteristics
Temperature Characteristics
16FA10M Ø6.3X6.8L
16FA47M Ø6.3X9.8L
Impedance – Frequency Characteristics
16FA10M Ø6.3X6.8L
16FA47M Ø6.3X9.8L
16FA100M Ø8X10.5L
Temperature (&C)
Dissipation Factor (Tan d)
Temperature (&C)
(at~20&C)
Impedance (ohms)
Impedance – Frequency Characteristics
16FA100M Ø8X10.5L
0.001
0.01
0.1
1
!55 !40 !20 0 ~20 ~40 ~60 ~80 ~105
0.001
0.01
0.1
1
!55 !40 !20 0 ~20 ~40 ~60 ~80 ~105
Frequency (Hz)
10 100 10k1k 1M100k 10M
100
1k
10
1
0.1
0.01
Frequency (Hz)
(at 120Hz)
(at 120Hz)
10 100 10k1k 1M100k 10M
100
1k
10
1
0.1
0.01
