Page 1
application of rated voltage, leakage current is not more than
for 1000 hours, they

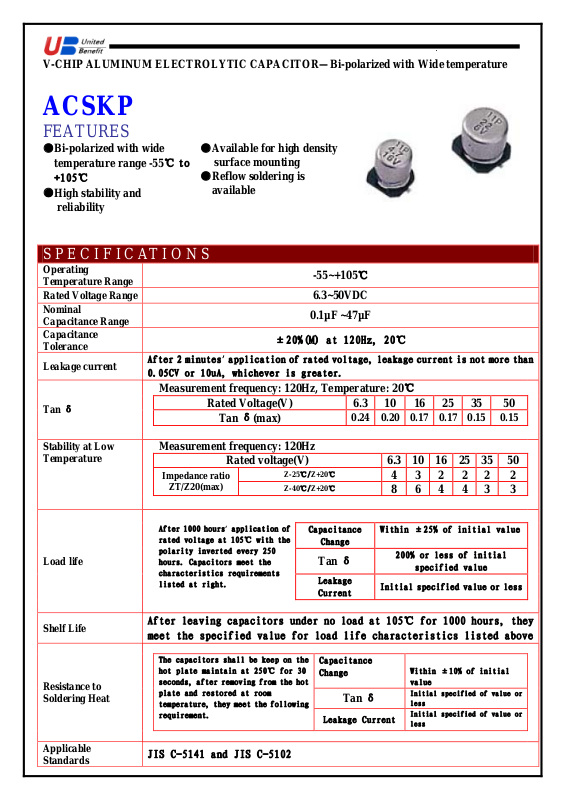

V-CHIP ALUMINUM ELECTROLYTIC CAPACITOR—Bi-polarized with Wide temperature
ACSKP
FEATURES
●Bi-polarized with wide
temperature range -55℃ to
+105℃
●High stability and
●Available for high density
surface mounting
●Reflow soldering is
available
reliability
S P E C I F I C AT I O N S
Operating
Temperature Range
Rated Voltage Range
Nominal
Capacitance Range
Capacitance
Tolerance
Leakage current
Tan δ
Stability at Low
Temperature
Load life
Shelf Life
Resistance to
Soldering Heat
Applicable
Standards
After 2 minutes’
0.05CV or 10uA, whichever is greater.
Measurement frequency: 120Hz, Temperature: 20℃
Rated Voltage(V) 6.3 10 16 25 35 50
Measurement frequency: 120Hz
Impedance ratio
ZT/Z20(max)
After 1000 hours’ application of
rated voltage at 105℃ with the
polarity inverted every 250
hours. Capacitors meet the
characteristics requirements
listed at right.
After leaving capacitors under no load at 105℃
meet the specified value for load life characteristics listed above
The capacitors shall be keep on the
hot plate maintain at 250℃ for 30
seconds, after removing from the hot
plate and restored at room
temperature, they meet the following
requirement.
JIS C-5141 and JIS C-5102
-55~+105℃
6.3~50VDC
0.1µF ~47µF
±20%(M) at 120Hz, 20℃
Tan δ(max)
0.24 0.20 0.17 0.17 0.15 0.15
Rated voltage(V) 6.3 10 16 25 35 50
Z-25℃/Z+20℃
Z-40℃/Z+20℃
Capacitance
Change
Tan δ
Leakage
Current
Capacitance
Change
Tan δ
Leakage Current
4 3 2 2 2 2
8 6 4 4 3 3
Within ±25% of initial value
200% or less of initial
specified value
Initial specified value or less
Within ±10% of initial
value
Initial specified of value or
less
Initial specified of value or
less
Page 2
V-CHIP ALUMINUM ELECTROLYTIC CAPACITOR—Bi-polarized with Wide temperature
ACSKP
◆Dimensions&Marking
Φ4X5.4 Φ5X5.4 Φ6.3X5.4
A 1.8 2.1 2.4
B 4.3 5.3 6.6
C 4.3 5.3 6.6
E 1.0 1.3 2.2
L 5.4 5.4 5.4
H 0.5~0.8
◆Standard size & Maximum permissible ripple current
V 6.3 10 16 25 35 50
uF 0J 1A 1C 1E 1V 1H
0.1 4x5.4 1.0
0.22 4x5.4 2.0
0.33 4x5.4 2.8
0.47 4x5.4 4.0
1 4x5.4 8.4
2.2 4x5.4 8.4 5x5.4 13
3.3 5x5.4 12 5x5.4 16 5x5.4 17
4.7 4x5.4 12 5x5.4 16 5x5.4 18 6.3x5.4 20
10 4x5.4 17 5x5.4 23 6.3x5.4 27 6.3x5.4 29
22 5x5.4 28 6.3x5.4 33 6.3x5.4 37
33 6.3x5.4 37 6.3x5.4 41 6.3x5.4 49
47 6.3x5.4 45
Case size Allowable ripple
Page 3
V-CHIP ALUMINUM ELECTROLYTIC CAPACITOR—Bi-polarized with Wide temperature
ACSKP
◆HOW TO ORDER
(Note: Below two order methods only is a reference, you can use any order method you consider
convenience. Below example only tell you product key order parameters)
A, Use UB P/N as below:
ACSKP 1H 0R1 M 004054 S S
Capacitor
Type
Rated
Voltage
Rated
Capacitance
Capacitance
Tolerance
Size Code Terminal
Type
Lead
Forming
Please refer document “How to order UB Aluminum electrolytic capacitor” for details
B, Fill in your requirement in the blank:
Capacito
r Type
Rated
Voltage
(VDC
orVAC)
Rated
Capaci
tance
Capacitance
Tolerance
D/L/
d(φ)
(unite:
mm)
Terminal
Type(Vertical
,Radial, Snap
in, Lug,
Screw, SMD)
Lead
forming(1,Forming
cut; 2,Straight cut;
3, Kink forming;
4,Kink cut; 5,Axial;
6,SMD)
Packaging
Mode
(bulk or
Reel-pack
or
Ammo-pac
k)
Please see below an example:
Capacito
r Type
Rated
Voltage
(VDC
orVAC)
Rated
Capaci
tance
ACSKP 50VDC 0.1uF
Capacitance
Tolerance
±20%
D/L/
d(φ)
(unite:
mm)
Terminal
Type(Vertical
,Radial, Snap
in, Lug,
Screw, SMD)
Lead
forming(1,Forming
cut; 2,Straight cut;
3, Kink forming;
4,Kink cut; 5,Axial;
6,SMD)
4/5.4 SMD SMD Reel
Packaging
Mode
(bulk or
Reel-pack
or
Ammo-pac
k)
