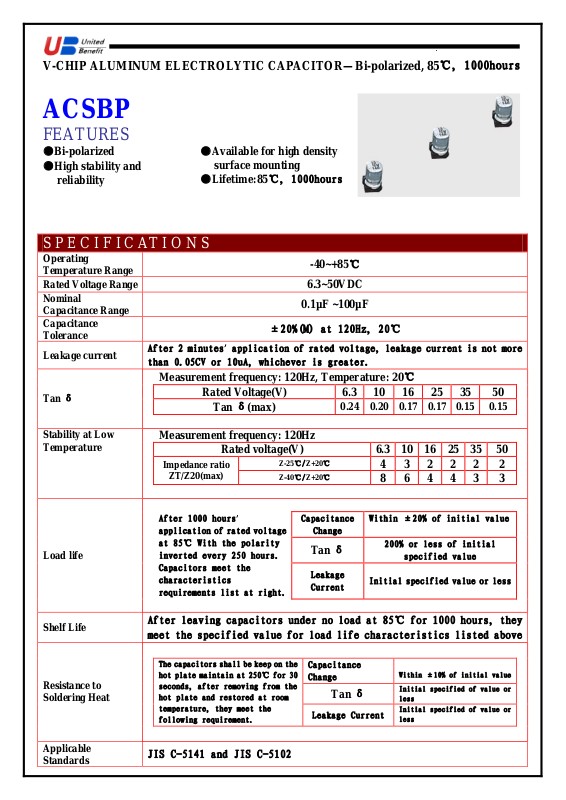

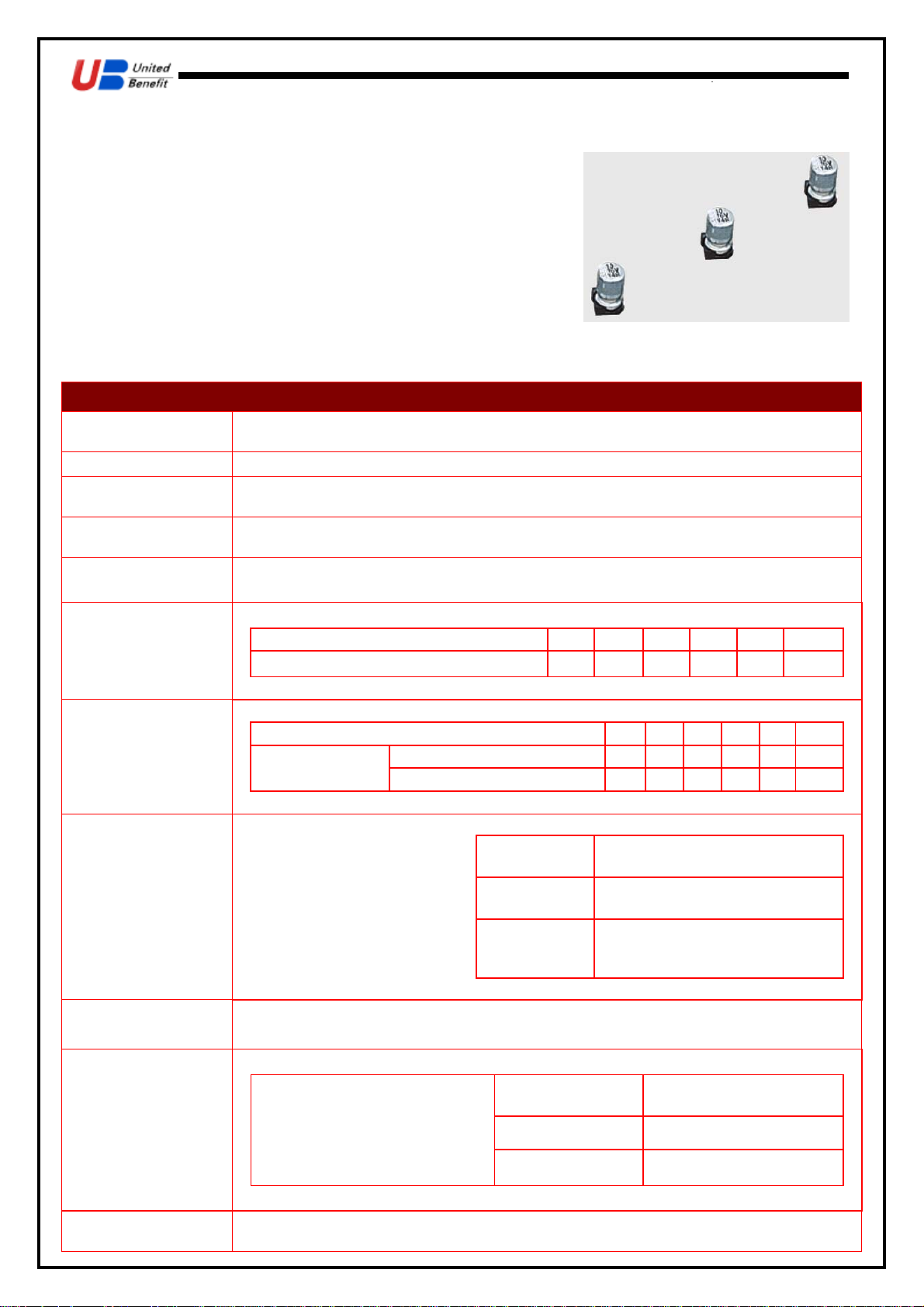

V-CHIP ALUMINUM ELECTROLYTIC CAPACITOR—Bi-polarized, 85℃, 1000hours
ACSBP
FEATURES
●Bi-polarized
●High stability and
reliability
●Available for high density
surface mounting
●Lifetime:85℃, 1000hours
S P E C I F I C AT I O N S
Operating
Temperature Range
Rated Voltage Range
Nominal
Capacitance Range
Capacitance
Tolerance
Leakage current
Tan δ
Stability at Low
Temperature
Load life
Shelf Life
Resistance to
Soldering Heat
Applicable
Standards
After 2 minutes’ application of rated voltage, lea
than 0.05CV or 10uA, whichever is greater.
Measurement frequency: 120Hz, Temperature: 20℃
Rated Voltage(V) 6.3 10 16 25 35 50
Measurement frequency: 120Hz
Impedance ratio
ZT/Z20(max)
After 1000 hours’
at 85℃ With the polarity
inverted every 250 hours.
Capacitors meet the
characteristics
requirements list at right.
After leaving capacitors under no load at 85℃
meet the specified value for load life characteristics listed above
The capacitors shall be keep on the
hot plate maintain at 250℃ for 30
seconds, after removing from the
hot plate and restored at room
temperature, they meet the
following requirement.
JIS C-5141 and JIS C-5102
-40~+85℃
6.3~50VDC
0.1µF ~100µF
±20%(M) at 120Hz, 20℃
Tan δ(max)
0.24 0.20 0.17 0.17 0.15 0.15
Rated voltage(V) 6.3 10 16 25 35 50
Z-25℃/Z+20℃
Z-40℃/Z+20℃
Capacitance
Change
Tan δ
Leakage
Current
Capacitance
Change
Leakage Current
Tan δ
4 3 2 2 2 2
8 6 4 4 3 3
Within ±20% of initial value
200% or less of initial
specified value
Initial specified value or less
Within ±10% of initial value
Initial specified of value or
less
Initial specified of value or
less
Page 2
V-CHIP ALUMINUM ELECTROLYTIC CAPACITOR—Bi-polarized, 85℃, 1000hours
ACSBP

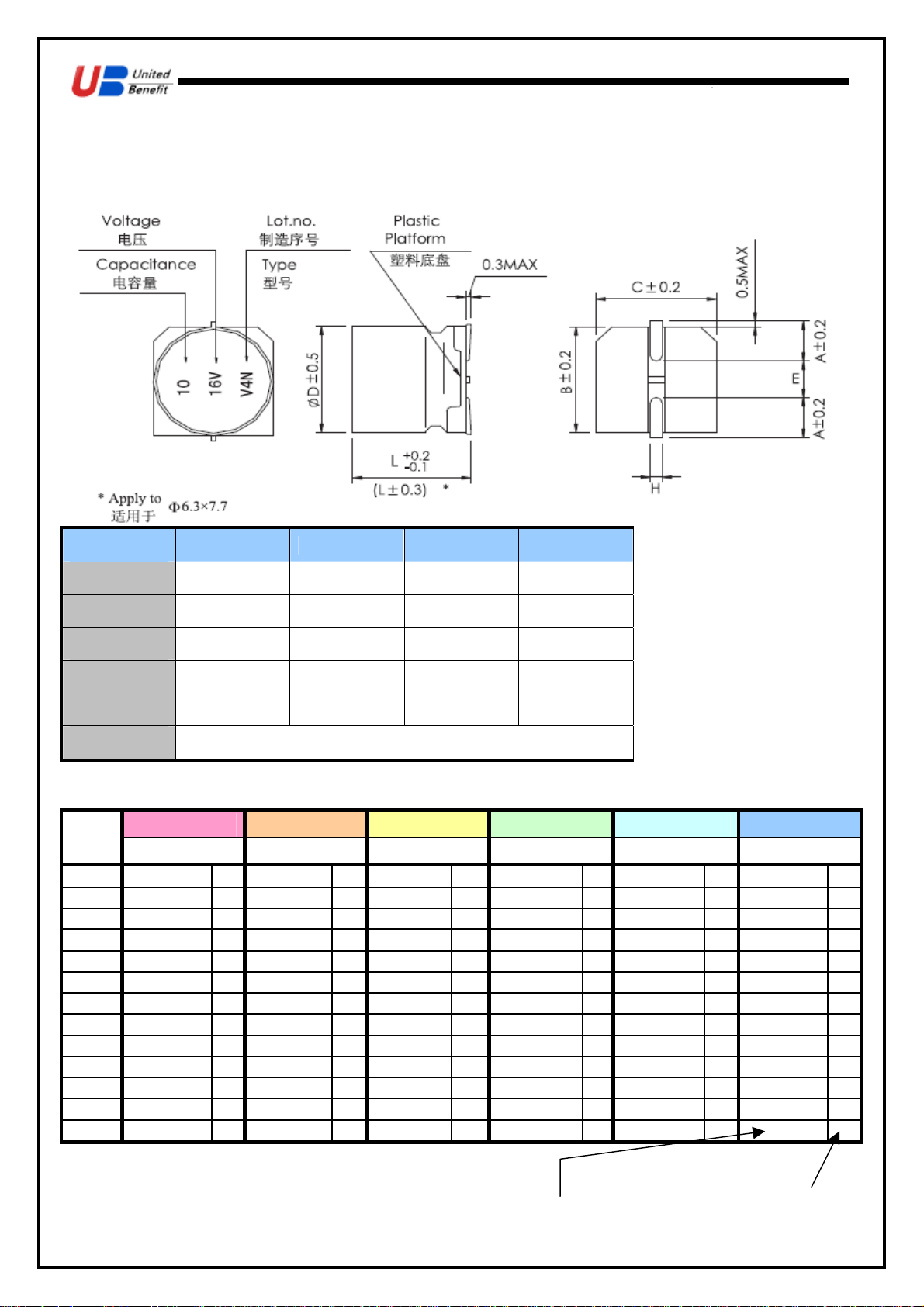

◆Dimensions&Marking
Φ4X5.4 Φ5X5.4 Φ6.3X5.4 Φ6.3X7.7
A 1.8 2.1 2.4 2.4
B 4.3 5.3 6.6 6.6
C 4.3 5.3 6.6 6.6
E 1.0 1.3 2.2 2.2
L 5.4 5.4 5.4 7.7
H 0.5~0.8
◆Standard size & Maximum permissible ripple current
V
uF
0.1
0.22
0.33
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
Case size Allowable ripple
6.3 10 16 25 35 50
0J 1A 1C 1E 1V 1H
4x5.4 1.0
4x5.4 2.0
4x5.4 2.8
4x5.4 4.0
4x5.4 8.4
4x5.4 8.4 5x5.4 13
5x5.4 12 5x5.4 16 5x5.4 17
4x5.4 12 5x5.4 16 5x5.4 18 6.3x5.4 20
4x5.4 17 6.3x5.4 23 6.3x5.4 27 6.3x5.4 29 6.3x7.7 36
5x5.4 28 6.3x5.4 33 6.3x5.4 37 6.3x7.7 50 6.3x7.7 54
6.3x5.4 37 6.3x5.4 41 6.3x5.4 49 6.3x7.7 61
6.3x5.4 45 6.3x7.7 61 6.3x7.7 75
6.3x7.7 82
Page 3
V-CHIP ALUMINUM ELECTROLYTIC CAPACITOR—Bi-polarized, 85℃, 1000hours
ACSBP
◆HOW TO ORDER
(Note: Below two order methods only is a reference, you can use any order method you consider
convenience. Below example only tell you product key order parameters)
A, Use UB P/N as below:
ACSBP 0J 0R1 M 004054 S S
Capacitor
Type
Please refer document “How to order UB Aluminum electrolytic capacitor” for details
B, Fill in your requirement in the blank:
Capacito
r Type
Please see below an example:
Capacito
r Type
ACSBP 6.3VDC 0.1uF
Rated
Voltage
Rated
Voltage
(VDC
orVAC)
Rated
Voltage
(VDC
orVAC)
Rated
Capaci
tance
Rated
Capaci
tance
Rated
Capacitance
Capacitance
Tolerance
Capacitance
Tolerance
±20%
Capacitance
Tolerance
D/L/
d(φ)
(unite:
mm)
D/L/
d(φ)
(unite:
mm)
Terminal
Type(Vertical
,Radial, Snap
in, Lug,
Screw, SMD)
Terminal
Type(Vertical
,Radial, Snap
in, Lug,
Screw, SMD)
Size Code Terminal
Type
Lead
forming(1,Forming
cut; 2,Straight cut;
3, Kink forming;
4,Kink cut; 5,Axial;
6,SMD)
Lead
forming(1,Forming
cut; 2,Straight cut;
3, Kink forming;
4,Kink cut; 5,Axial;
6,SMD)
Lead
Forming
Packaging
Mode
(bulk or
Reel-pack
or
Ammo-pac
k)
Packaging
Mode
(bulk or
Reel-pack
or
Ammo-pac
k)
4/5.4 SMD SMD Reel
