Page 1

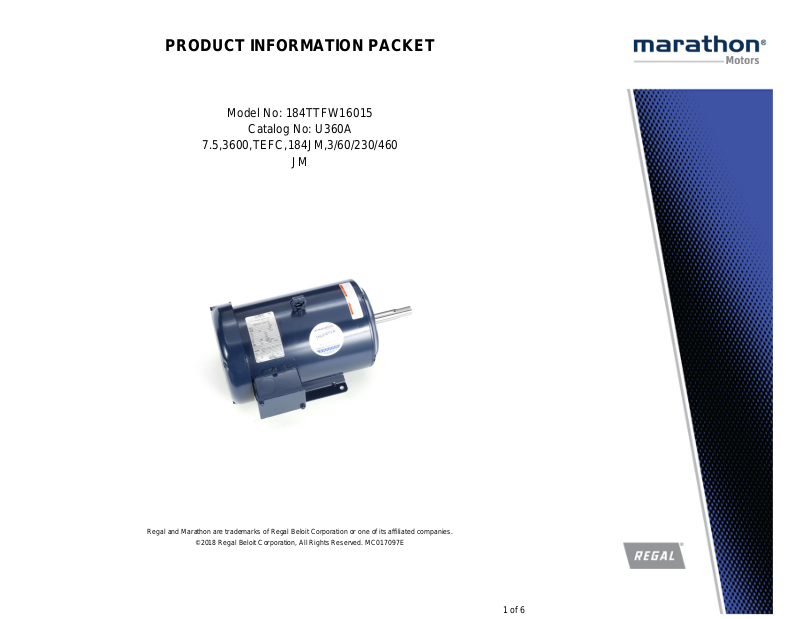

PRODUCT INFORMATION PACKET
Model No: 184TTFW16015
Catalog No: U360A
7.5,3600,TEFC,184JM,3/60/230/460
JM
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: 184TTFW16015, Catalog No:U360A 7.5,3600,TEFC,184JM,3/60/230/460
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 230/460 V
Current
Service Factor
Efficiency 90.1 % Duty Continous
Insulation Class
KVA Code L Frame 184JM
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6205 UL Recognized
CSA
IP Code
7.50 Hp
17.6/8.8 A
1
F
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
5.6 kW
3510 rpm
3
B
6207
Y
Technical Specifications
Electrical Type
Poles 2 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type JM
Overall Length
Shaft Diameter 0.875 in Shaft Extension 4.25 in
Assembly/Box Mounting

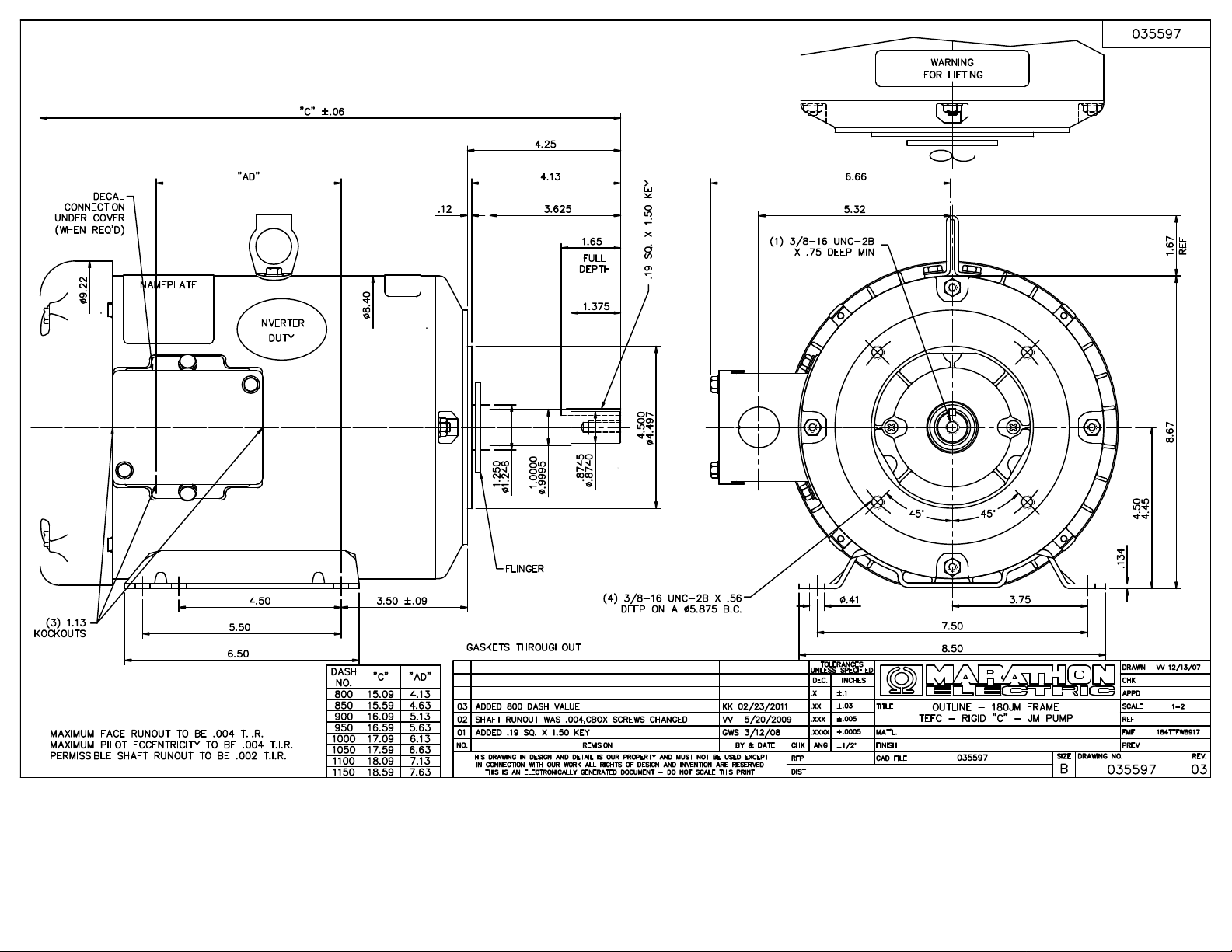

Outline Drawing
Rigid base
18.09 in
F1/F2 Capable
035597-1100
Motor Orientation
Frame Length

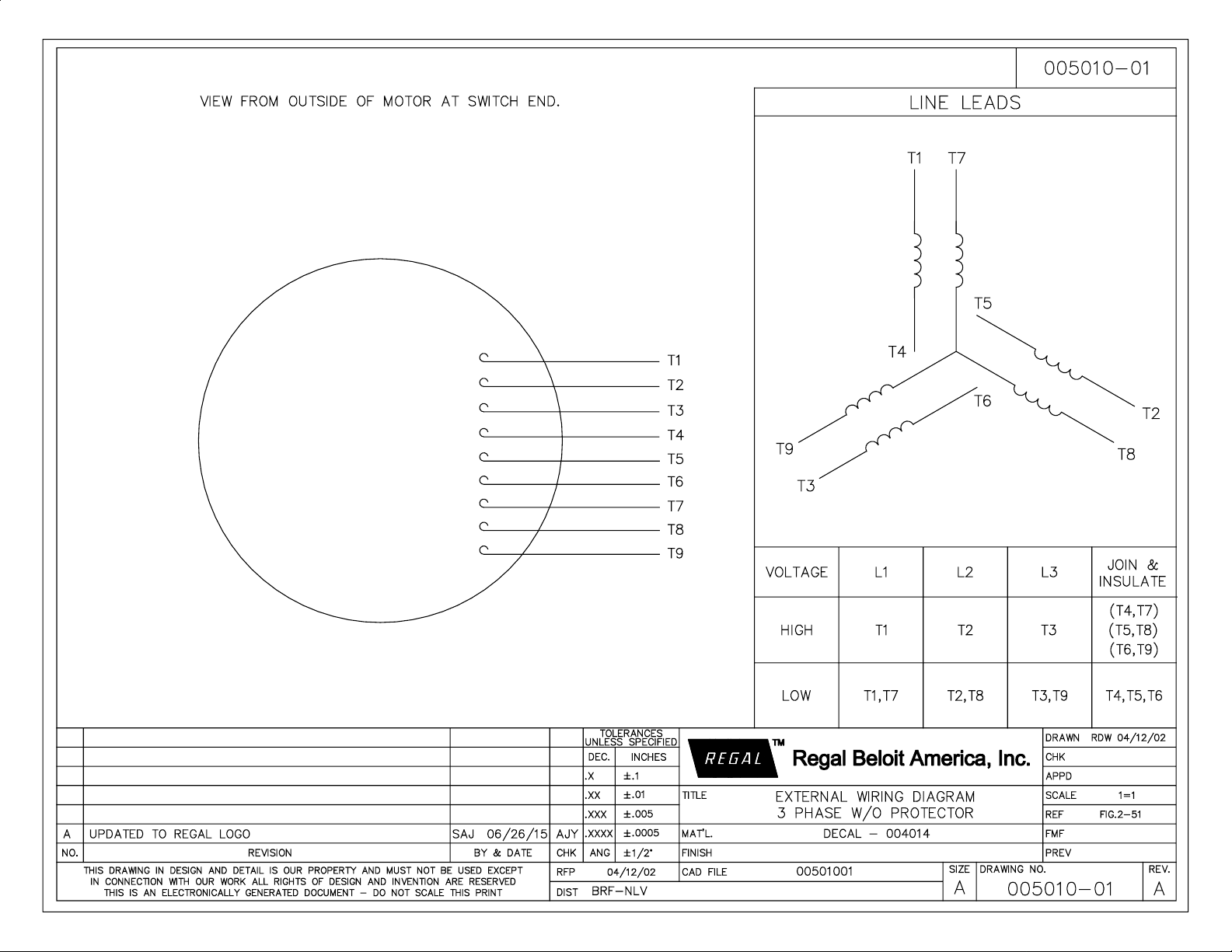

Connection Diagram
Horizontal
11.00 in
005010.01
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 07/02/2018
2 of 6
Page 3
2/23/2011 5:12:30 AM
3 of 6
Page 4
Uncontrolled Copy
4 of 6
Page 5
CERTIFICATION DATA SHEET
Model#: 184TTFW16015 AA WINDING#: T82153 FR 3
CONN. DIAGRAM: 005010.01 ASSEMBLY: F1/F2 CAPABLE
OUTLINE: 035597-1100
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
7 1/2&5 5.60&3.70 3600 3510&2925 184JM TEFC L B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60/50 230/460#190/
380
17.6/8.8&15/7.5ACROSS THE
LINE
CONTINUOUSF4 1.0/1.0 40 3300
FULL LOAD EFF:
90.1&90.2
3/4 LOAD EFF: 91.2 1/2 LOAD EFF: 90.8 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF:
88.4&85.5
3/4 LOAD PF: 84.2 1/2 LOAD PF: 75.2 87.5 SQ CAGE IND RUN 6 / 3
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
11.2 LB-FT 175 / 87.5 34.6 LB-FT 308 46 LB-FT 409 70
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
0 dBA 10 dBA 0.221 LB-FT^2 0 LB-FT^2 15 SEC. 2 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM JM NONE NONE AISI 1045 (C-240) ROLLED STEEL
6207 6205
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/28/2017 07:31:04 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 6
Page 6
Date:
Customer:
Attention:
Submitted by:
Data @
460
v
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
3.0 3.7 5.2 6.9 8.8 10.0 10.9 87.5
Torque (ft-lb)
0.00 2.80 5.6 8.4 11.2 12.9 14.0 34.6
RPM
3600 3579 3556 3535 3510 3,494 3482 0
Efficiency (%)
86.4 90.8 91.2 90.1 89.5 88.5
P.F. (%)
9.4 55.9 75.2 84.2 88.4 89.7 90.1 0.0
LR Pull-Up BD Rated Idle
Speed (RPM)
0 400 3312 3510 3600
Information Block
Current (Amps)
87.5 80.5 52.5 8.8 3.0 7.5
Torque (ft-lb)
34.6 33.5 46.0 11.2 0.00 3600
180
TEFC
TFW
V
60
Hz
A
L
1.15
70
°
C
CONT
40
°
C
1,000
feet
0.22
Lb-Ft²
T82153 FR
0 dBA
Additional Specifications:
R1 R2 X1 X2 Xm
0.0000 0.0000 0.0000 0.0000 0.0000
NONE
0
365THFS8036
EQUIV CKT (OHMS / PHASE)
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg 035597-1100
Conn. Diag 005010.01
Rotor/Shaft wk²
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
Duty
Ambient
Elevation
Construction
Motor Speed Data
HP
Sync. RPM
Frame
Enclosure
Motor Load Data
Submittal
FAREEDA DUDEKULA
Data Sheet
15-06-2017 184TTFW16015
0.0
2.0
4.0
6.0
8.0
10.0
12.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0% 20% 40% 60% 80% 100% 120% 140%
Efficiency (%) P.F. (%) Cu rrent (Amps)
LOAD
A
M
P
S
E
F
F
P
F
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
0 500 1000 150 0 2000 2500 3000 3500 4000
Speed -Torque Curve
Torque Amps
RPM
T
O
R
Q
U
E
A
M
P
S
Uncontrolled Copy
6 of 6
