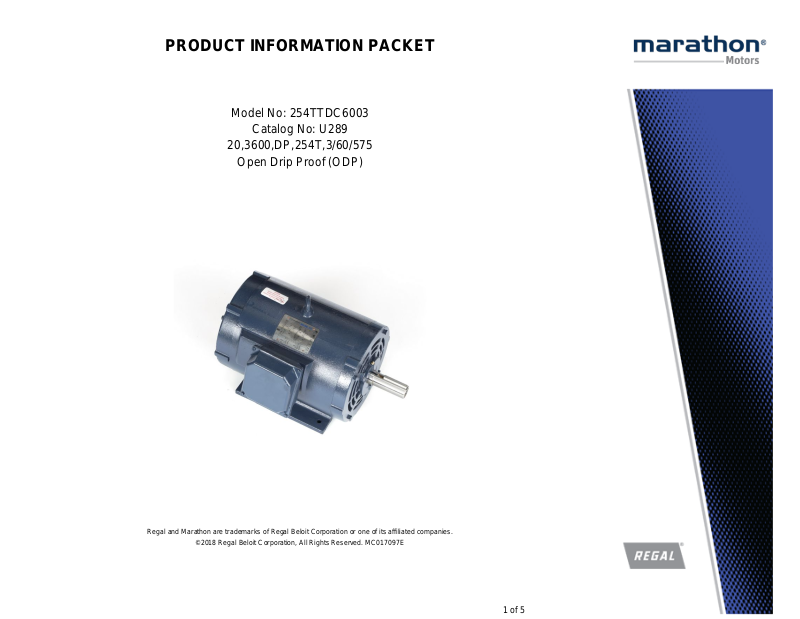

Page 1
PRODUCT INFORMATION PACKET
Model No: 254TTDC6003
Catalog No: U289
20,3600,DP,254T,3/60/575
Open Drip Proof (ODP)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Page 2
Product Information Packet: Model No: 254TTDC6003, Catalog No:U289 20,3600,DP,254T,3/60/575
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 575 V
Current
Service Factor
Efficiency 93 % Duty Continous
Insulation Class
KVA Code G Frame 254T
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6208 UL Recognized
CSA
IP Code
20 Hp
18.4 A
1.15
F
40 °C
Y
22
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
14.9 kW
3550 rpm
3
B
6309
Y
Technical Specifications
Electrical Type
Poles 2 Rotation Reversible
Squirrel Cage Inverter Rated
Starting Method
Line Or Inverter
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Cast Iron Shaft Type T
Overall Length
Shaft Extension 4.25 in Assembly/Box Mounting F1/F2 Capable

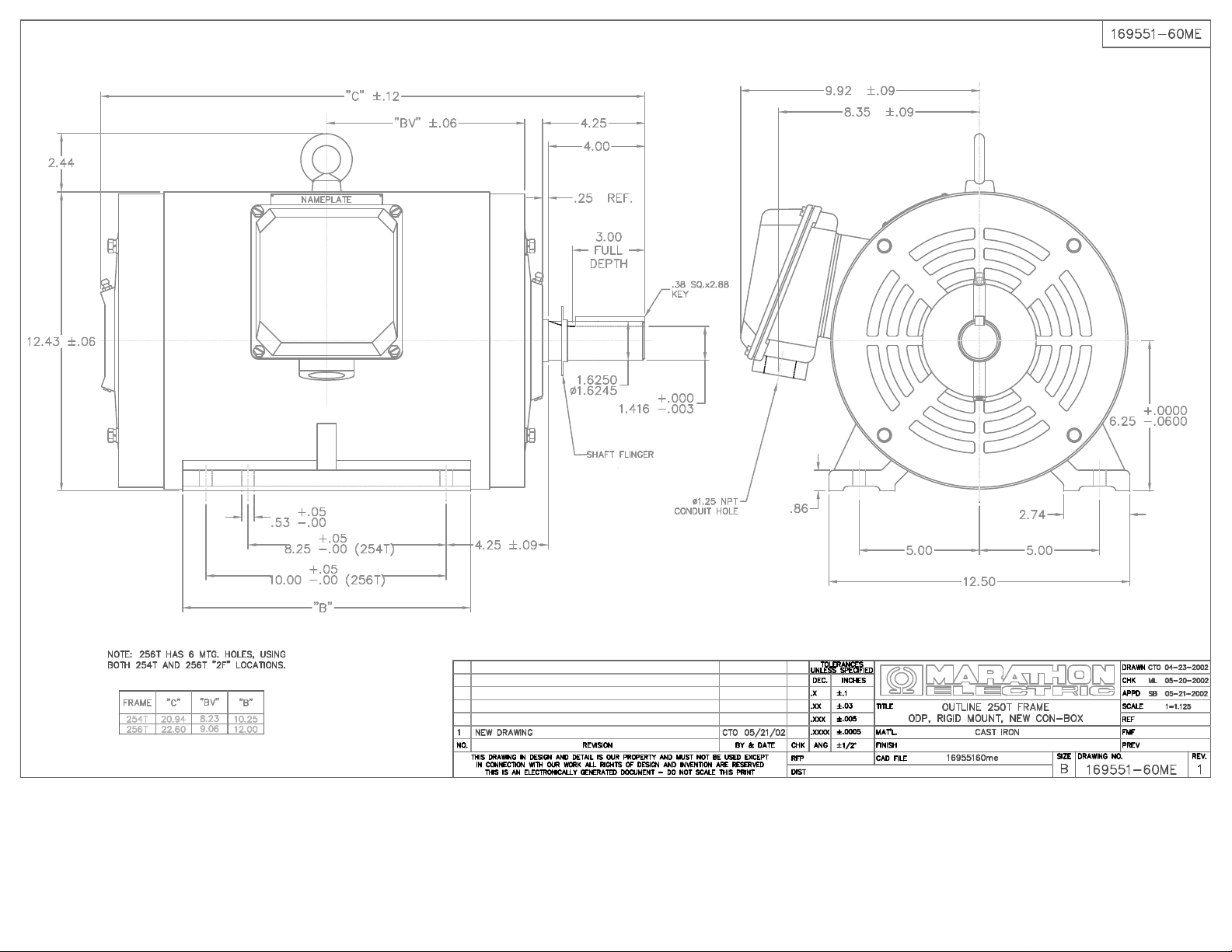

Outline Drawing
Rigid base
20.94 in
169551.60ME
Motor Orientation
Shaft Diameter
Connection Diagram
Horizontal
1.625 in
0051090.01
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 07/02/2018
2 of 5
Page 3
9/27/2008 2:46:41 PM
3 of 5
Page 4
CERTIFICATION DATA SHEET
Model#: 254TTDC6003 AA WINDING#: T12902025 NONE 4
CONN. DIAGRAM: 51090.01 ASSEMBLY: F1/F2 CAPABLE
OUTLINE: 169551.60ME
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
20 14.9 3600 3550 254T DP G B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60 575 18.4 LINE OR
INVERTER
CONTINUOUSF2 1.15/1.0 40 3300
FULL LOAD EFF: 93 3/4 LOAD EFF: 92.4 1/2 LOAD EFF: 92 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 89 3/4 LOAD PF: 87.5 1/2 LOAD PF: 82 92.4 SQ CAGE INV RATED 4.9
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
30 LB-FT 116 57 LB-FT 190 84 LB-FT 280 48
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
75 dBA 85 dBA - LB-FT^2 - LB-FT^2 15 SEC. - 300 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE 1045 HOT
ROLLED (C-204)
CAST IRON
6309 6208
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: CONSTANT 10:1
INV. HP SPEED RANGE: 1.5 X BASE SPEED
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/23/2017 02:19:33 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
4 of 5
Page 5
Date:
Customer:
Attention:
Submitted by:
Data @
575
v
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
4.9 6.7 10.1 14.0 18.4 21.1 22.9 116
Torque (ft-lb)
0.00 7.5 15.0 22.5 30.0 34.5 37.5 57.0
RPM
3600 3590 3575 3560 3550 3,540 3530 0
Efficiency (%)
88.0 92.0 92.4 93.0 92.8 92.4
P.F. (%)
8.0 65.5 82.0 87.5 89.0 89.0 89.0 0.0
LR Pull-Up BD Rated Idle
Speed (RPM)
0 1800 3312 3550 3600
Information Block
Current (Amps)
116 107 69.6 18.4 4.9 20.0
Torque (ft-lb)
57.0 50.2 84.0 30.0 0.00 3600
254
DP
TDC
575
V
60
Hz
A
G
1.15
48
°
C
CONT
40
°
C
1,000
feet
0.00
Lb-Ft²
T12902025 NONE
75 dBA
Additional Specifications:
R1 R2 X1 X2 Xm
0.0000 0.0000 0.0000 0.0000 0.0000
CONSTANT 10:1
0
365THFS8036
EQUIV CKT (OHMS / PHASE)
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg 169551.60ME
Conn. Diag 51090.01
Rotor/Shaft wk²
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
Duty
Ambient
Elevation
Construction
Motor Speed Data
HP
Sync. RPM
Frame
Enclosure
Motor Load Data
Submittal
FAREEDA DUDEKULA
Data Sheet
16-06-2017 254TTDC6003
0.0
5.0
10.0
15.0
20.0
25.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0% 20% 40% 60% 80% 100% 120% 140%
Efficiency (%) P.F. (%) Cu rrent (Amps)
LOAD
A
M
P
S
E
F
F
P
F
0.0
20.0
40.0
60.0
80.0
100.0
120.0
140.0
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
0 500 1000 1500 2000 2500 3000 3500 4000
Speed -Torque Curve
Torque Amps
RPM
T
O
R
Q
U
E
A
M
P
S
Uncontrolled Copy
5 of 5
