PRODUCT INFORMATION PACKET
Model No: 254TTDX4017
Catalog No: U213
20 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 230/460 V, 254JP Frame, ODP
JP Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2021 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 6
Page 2
Nameplate Specifications
Output HP 20 Hp Output KW 14.9 kW Frequency 60 Hz Voltage 230/460 V Current 46.0/23.1 A Speed 3520 rpm Service Factor 1.15 Phase 3 Efficiency 91 % Power Factor 88.6 Duty Continuous Insulation Class F Design Code B KVA Code F Frame 254JP Enclosure Drip Proof Thermal Protection No Ambient Temperature 40 °C Drive End Bearing Size 6309 Opp Drive End Bearing Size 6208 UL Recognized CSA Y CE Y IP Code 12
Technical Specifications
Electrical Type Squirrel Cage Induction Run Starting Method Across The Line Poles 2 Rotation Reversible Resistance Main .485 Ohms Mounting Rigid Base Motor Orientation Horizontal Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Rolled Steel Shaft Type JP Overall Length 25.29 in Frame Length 13.40 in Shaft Diameter 1.250 in Shaft Extension 8.15 in Assembly/Box Mounting F1/F2 Capable Connection Drawing A-EE7308K Outline Drawing A-SS86519-1340
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:20/01/2021
2 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 6
Page 3
Uncontrolled Copy
3 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 6
Page 4
Uncontrolled Copy
4 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 6
Page 5
CERTIFICATION DATA SHEET
Model#: 254TTDX4017 BC WINDING#: K2152191 NONE 1 CONN. DIAGRAM: A-EE7308K ASSEMBLY: F1/F2 CAPABLE OUTLINE: A-SS86519-1340
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
20&15 14.9&11.2 3600 3520&2925 254JP DP F B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60/50 230/460#190/
380
46/23.1&42/21 ACROSS THE
LINE
CONTINUOUSF4 1.15/1.15 40 3300
FULL LOAD EFF:
91&90.2
3/4 LOAD EFF: 91.7 1/2 LOAD EFF: 90.2 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF:
88.6&88
3/4 LOAD PF: 85.5 1/2 LOAD PF: 78 89.5 SQ CAGE IND RUN 14 / 7
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
30 LB-FT 288 / 144 52.5 LB-FT 175 86.5 LB-FT 288 45
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
78 dBA 88 dBA 0.65 LB-FT^2 18 LB-FT^2 15 SEC. 2 160 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM JP NONE NONE AISI 1045 (C-240) ROLLED STEEL 6309 6208
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
* N O T E S *
INVERTER TORQUE: NONE INV. HP SPEED RANGE: NONE
ENCODER: NONE NONE NONE NONE NONE PPR
BRAKE: NONE NONE NONE P/N NONE NONE NONE
- FT-LB NONE V NONE Hz
DATE: 06/23/2017 03:38:56 AM FORM 3531 REV.3 02/07/99 ** Subject to change without notice.
Uncontrolled Copy
5 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 6
Page 6
Speed (RPM)
230/460#190/380
Current (Amps)
P
E
10.0
20.0
30.0
0.0
0 500 1000 1500 2000 2500 3000 3500 4000
40.0
TORQU
50.0
60.0
70.0
80.0
100.0
90.0
30.0
40.0
50.0
0% 20% 40% 60% 80% 100% 120% 140%
F
60.0
70.0
EFF
80.0
100.0
90.0
Torque (ft-lb)
Efficiency (%) P.F. (%) Current (Amps)
52.5 48.0 86.5 30.0 0.00 3600
144 130 90.0 23.1 7.0 20.0
0 1800 3050 3520 3600
P.F. (%)
Submitted by:
Customer:
Attention:
Date:
3600 3580 3565 3545 3520 3,515 3490 0
0.00 7.5 15.0 22.2 30.0 34.5 37.5 52.5
9.0 60.0 78.0 85.5 88.6 89.0 89.0 40.0
LR Pull-Up BD Rated Idle
FAREEDA DUDEKULA
7.0 9.0 13.5 18.0 23.1 26.5 29.5 144
6/29/2017 254TTDX4017
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
Motor Speed Data
LOAD
87.0 90.2 91.7 91.0 91.0 90.2
Data Sheet
Torque Amps
Speed -Torque Curve
Motor Load Data
RPM
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
A
M
P
S
Rotor/Shaft wk²
Duty
Ambient
Elevation
Ref Wdg
Sound Pressure @ 1M
VFD Rating

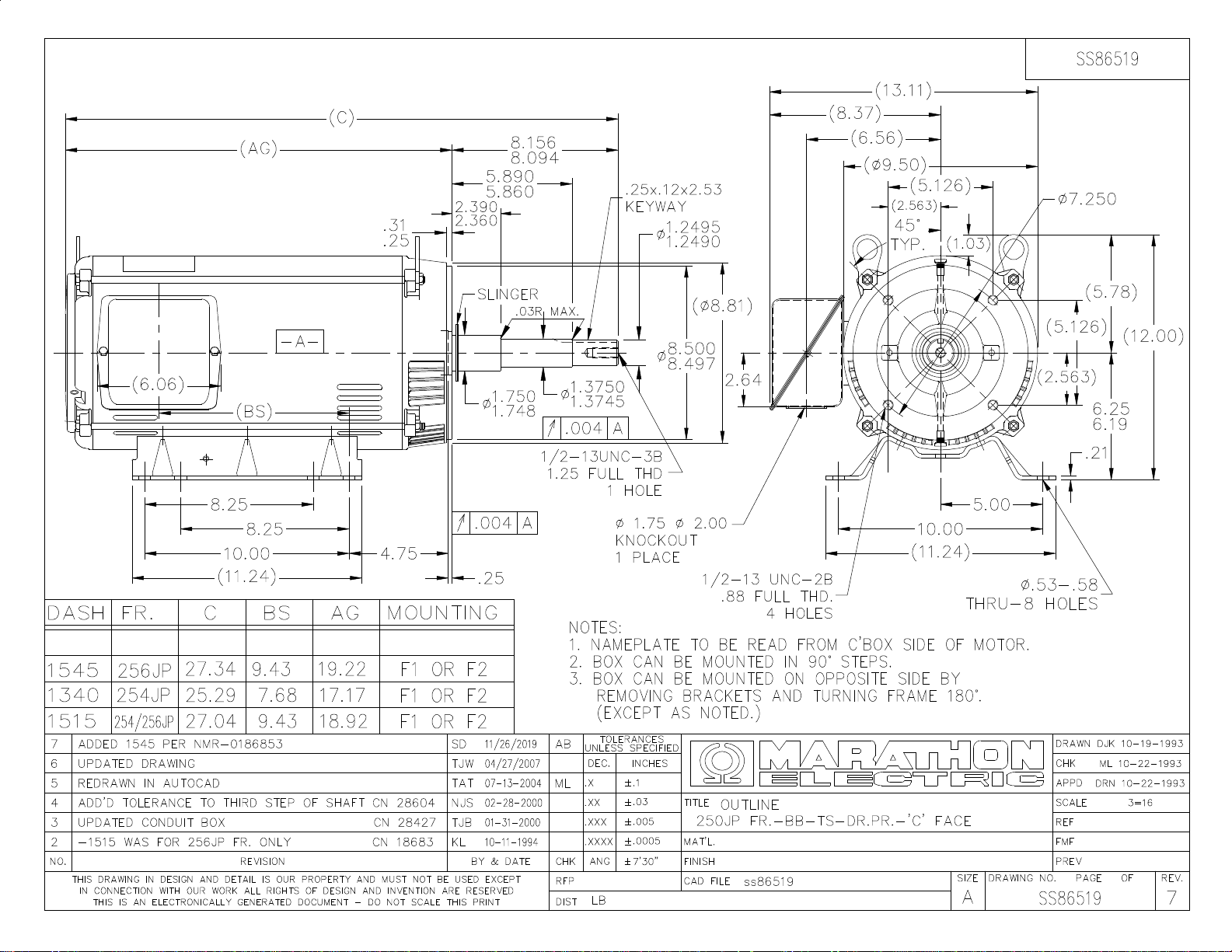

Outline Dwg A-SS86519-1340
Conn. Diag A-EE7308K
0
0
Additional Specifications:
0.2880 0.2300 1.0850 1.1460 35.0740
R1 R2 X1 X2 Xm
EQUIV CKT (OHMS / PHASE)
Design
LR Code letter
Service Factor
Temp Rise @ FL
Construction
Voltage
Frequency
HP
Sync. RPM
Frame
Enclosure
Information Block
K2152191 NONE
CONT
1,000
0.65
78 dBA
NONE
feet
Lb-Ft²
0.0
20.0
40.0
60.0
80.0
100.0
120.0
140.0
160.0
A
M
P
S
1.15
45
40
°
C
A
F
°
C
TDX
254
60
Hz
DP
V
Submittal
Data @
460
v
Uncontrolled Copy
